A Survey on Distance Metric Learning (Part 1)

1. A Survey on Distance Metric Learning (Part 1) Gerry Tesauro IBM T.J.Watson Research Center

2. Acknowledgement • Lecture material shamelessly adapted/stolen from the following sources: • Kilian Weinberger: • “Survey on Distance Metric Learning” slides • IBM summer intern talk slides (Aug. 2006) • Sam Roweis slides (NIPS 2006 workshop on “Learning to Compare Examples”) • Yann LeCun talk slides (NIPS 2006 workshop on “Learning to Compare Examples”)

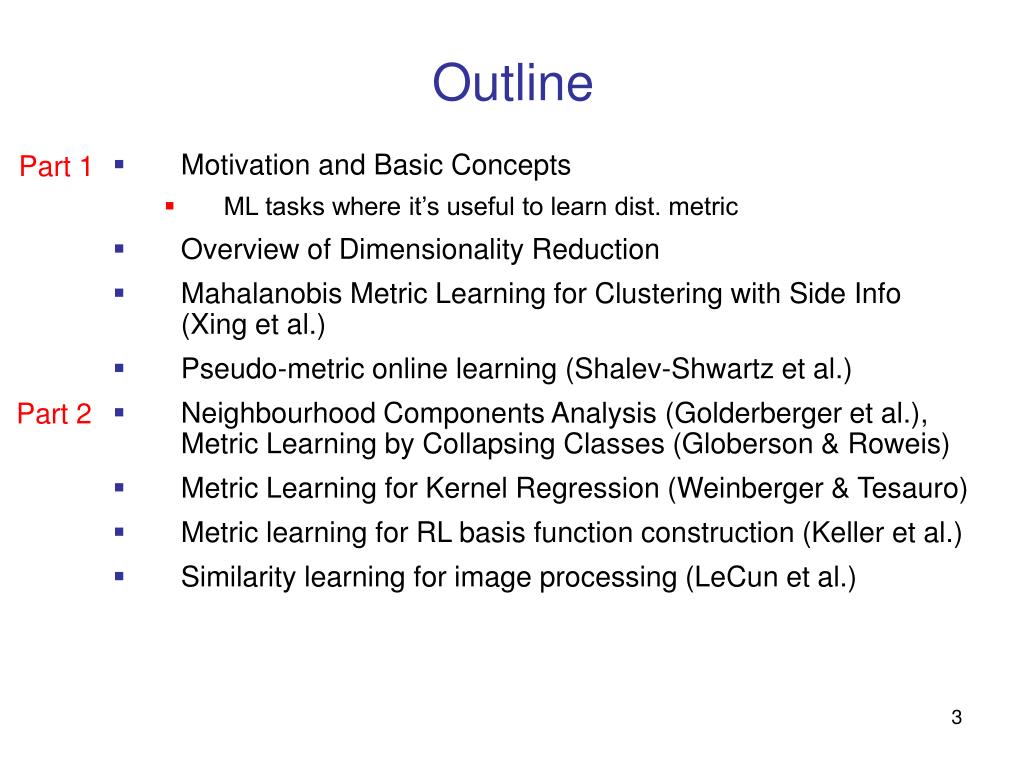

3. Outline Part 1 • Motivation and Basic Concepts • ML tasks where it’s useful to learn dist. metric • Overview of Dimensionality Reduction • Mahalanobis Metric Learning for Clustering with Side Info (Xing et al.) • Pseudo-metric online learning (Shalev-Shwartz et al.) • Neighbourhood Components Analysis (Golderberger et al.), Metric Learning by Collapsing Classes (Globerson & Roweis) • Metric Learning for Kernel Regression (Weinberger & Tesauro) • Metric learning for RL basis function construction (Keller et al.) • Similarity learning for image processing (LeCun et al.) Part 2

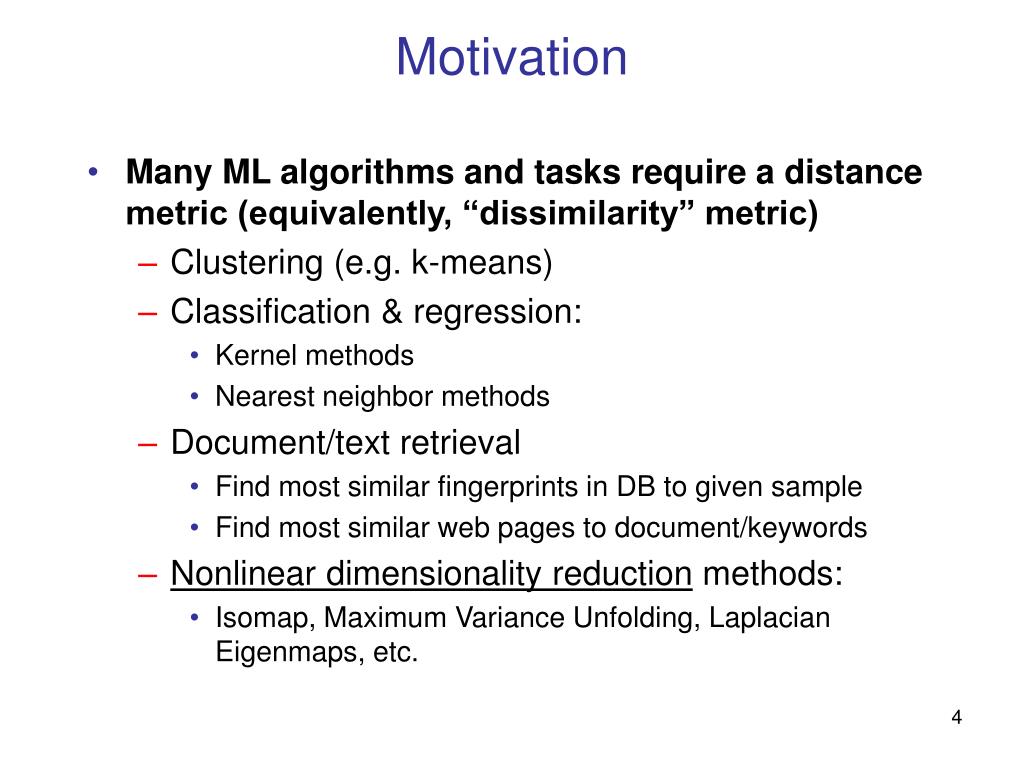

4. Motivation • Many ML algorithms and tasks require a distance metric (equivalently, “dissimilarity” metric) • Clustering (e.g. k-means) • Classification & regression: • Kernel methods • Nearest neighbor methods • Document/text retrieval • Find most similar fingerprints in DB to given sample • Find most similar web pages to document/keywords • Nonlinear dimensionality reduction methods: • Isomap, Maximum Variance Unfolding, Laplacian Eigenmaps, etc.

5. Motivation (2) • Many problems may lack a well-defined, relevant distance metric • Incommensurate features  Euclidean distance not meaningful • Side information  Euclidean distance not relevant • Learning distance metrics may thus be desirable • A sensible similarity/distance metric may be highly task-dependent or semantic-dependent • What do these data points “mean”? • What are we using the data for?

6. Which images are most similar?

7. right centered left It depends ...

8. male female It depends ...

9. student professor ... what you are looking for

10. nature background plain background ... what you are looking for

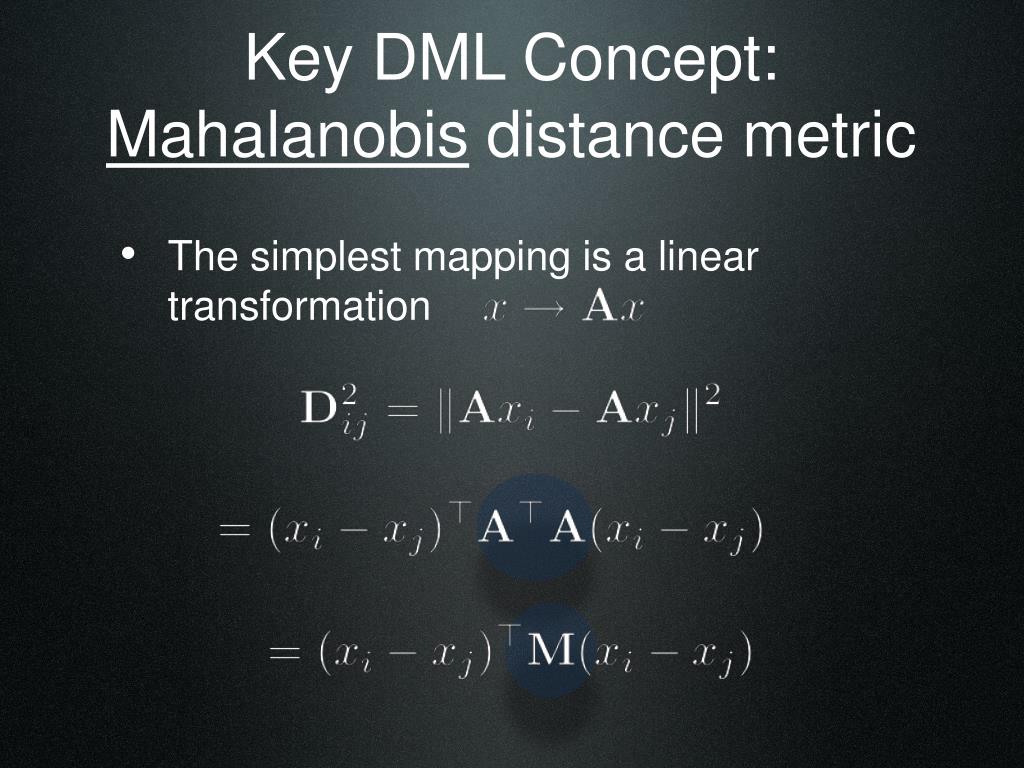

11. Key DML Concept: Mahalanobis distance metric • The simplest mapping is a linear transformation

12. PSD Mahalanobis distance metric • The simplest mapping is a linear transformation Algorithms can learn both matrices

13. >5 Minutes Introduction to Dimensionality Reduction

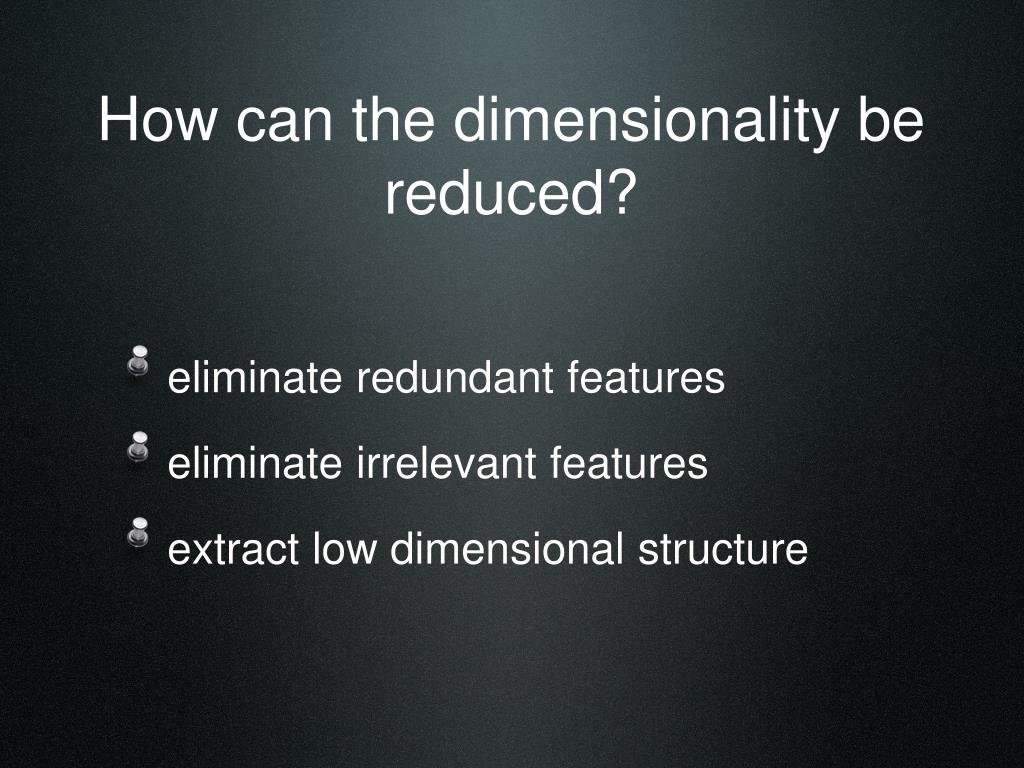

14. How can the dimensionality be reduced? • eliminate redundant features • eliminate irrelevant features • extract low dimensional structure

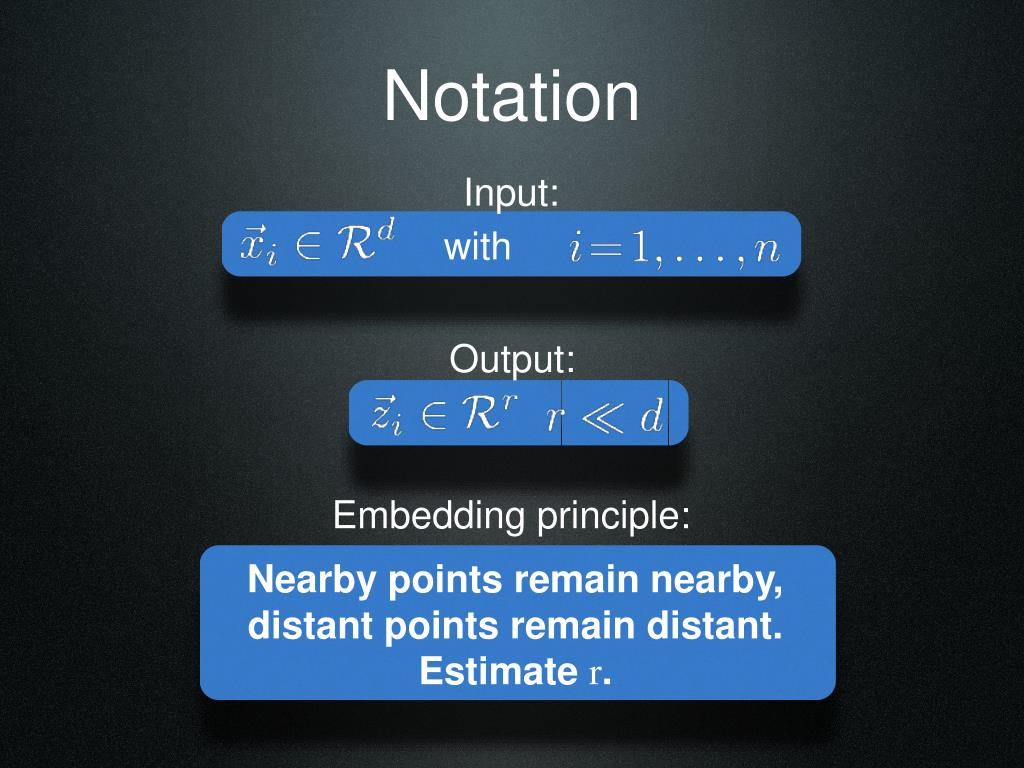

15. Notation Input: with Output: Embedding principle: Nearby points remain nearby, distant points remain distant. Estimate r.

16. Two classes of DR algorithms Linear Non-Linear

17. Linear dimensionality reduction

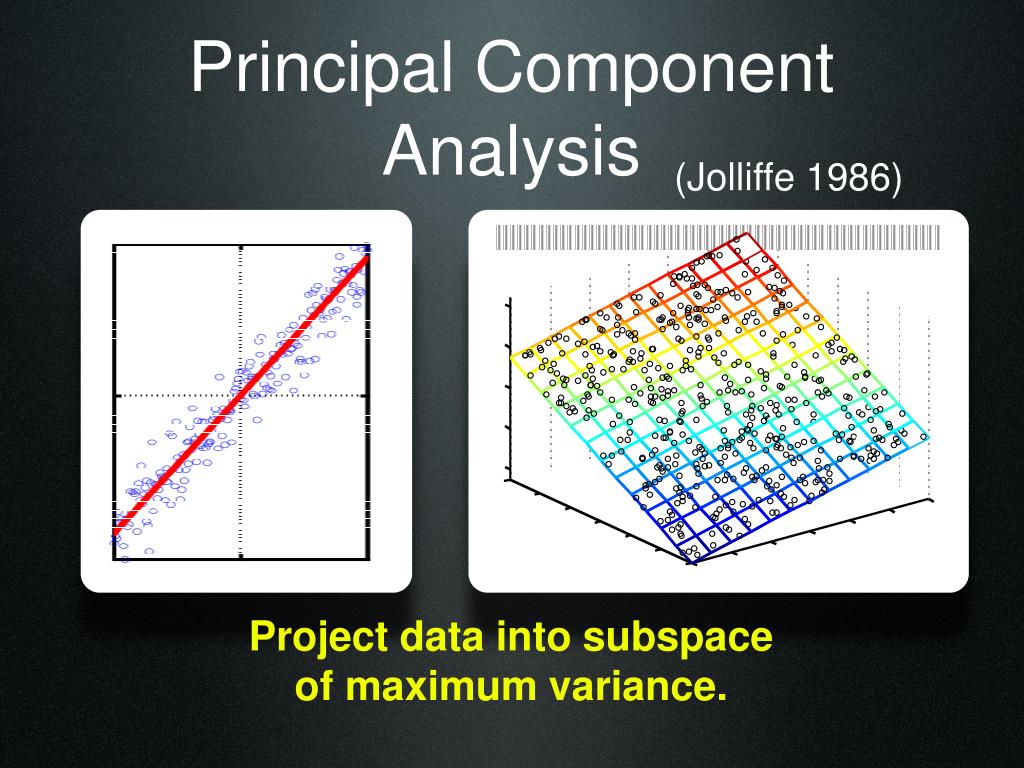

18. Principal Component Analysis (Jolliffe 1986) Project data into subspace of maximum variance.

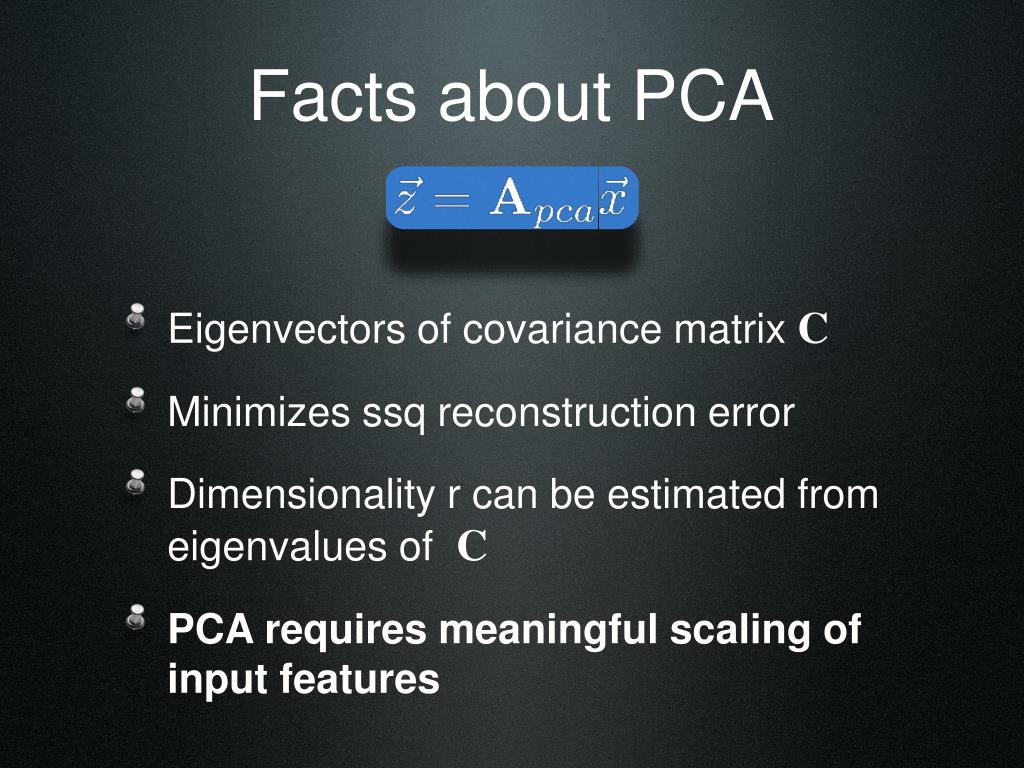

19. Facts about PCA • Eigenvectors of covariance matrix C • Minimizes ssq reconstruction error • Dimensionality r can be estimated from eigenvalues of C • PCA requires meaningful scaling of input features

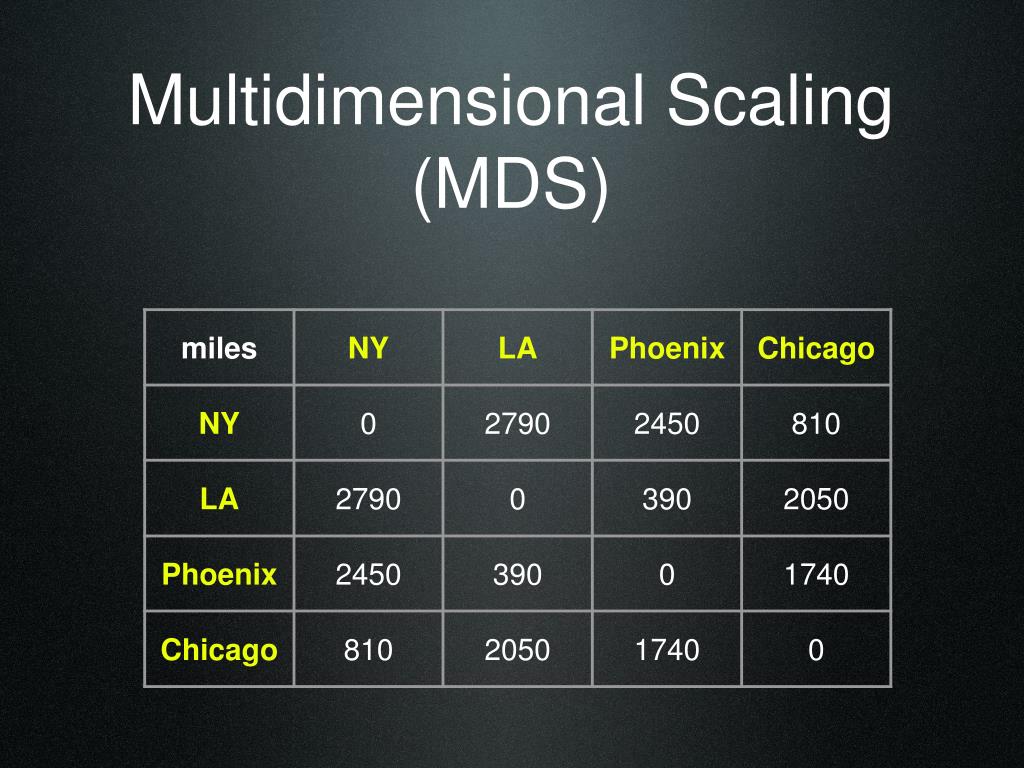

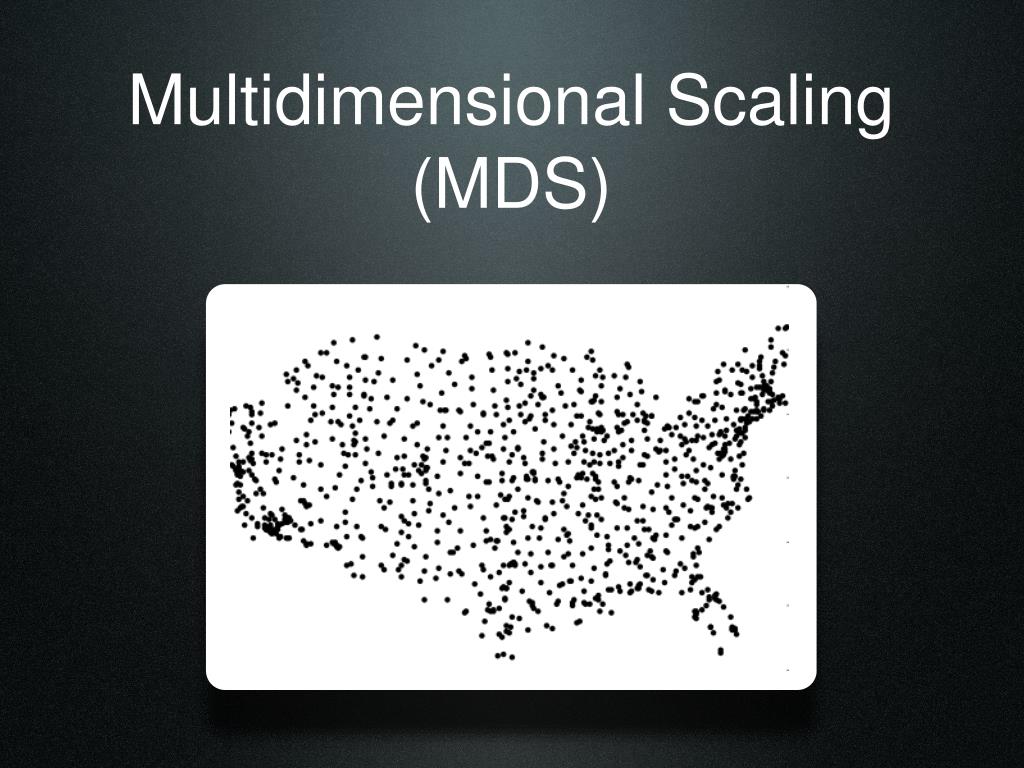

20. Multidimensional Scaling (MDS)

21. Multidimensional Scaling (MDS)

22. Multidimensional Scaling (MDS) • equivalent to PCA • use eigenvectors of inner-product matrix • requires only pairwise distances

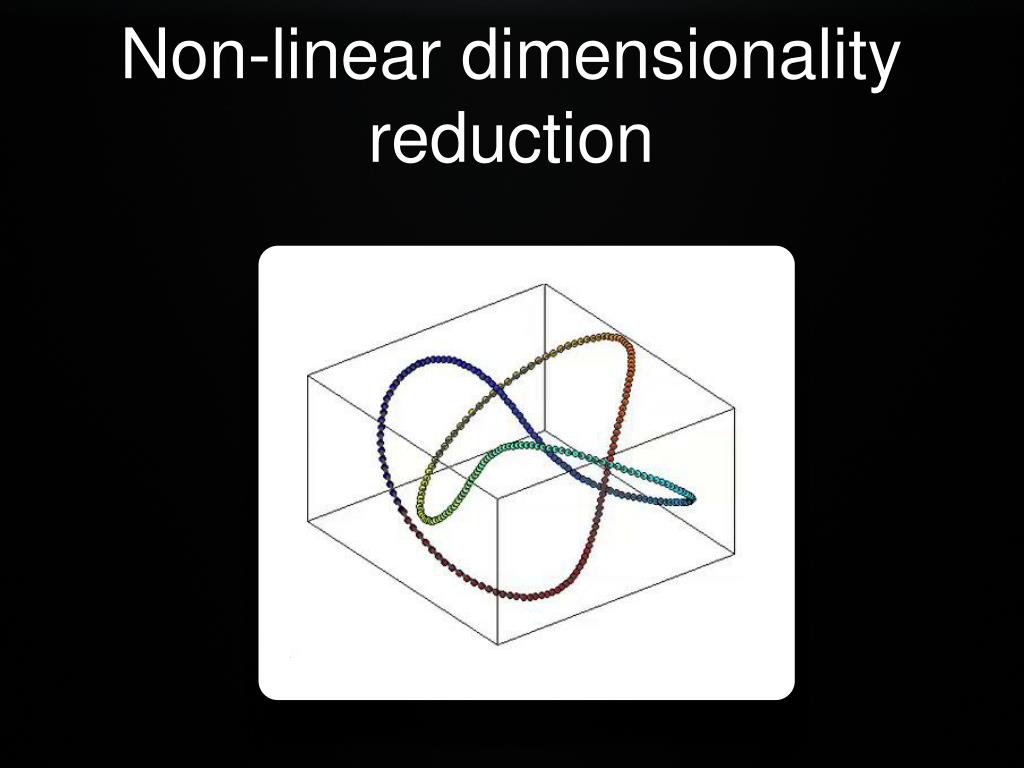

23. Non-linear dimensionality reduction

24. Non-linear dimensionality reduction

25. From subspace to submanifold We assume the data is sampled from some manifold with lower dimensional degree of freedom. How can we find a truthful embedding?

26. Approximate manifold with neighborhood graph

27. Approximate manifold with neighborhood graph

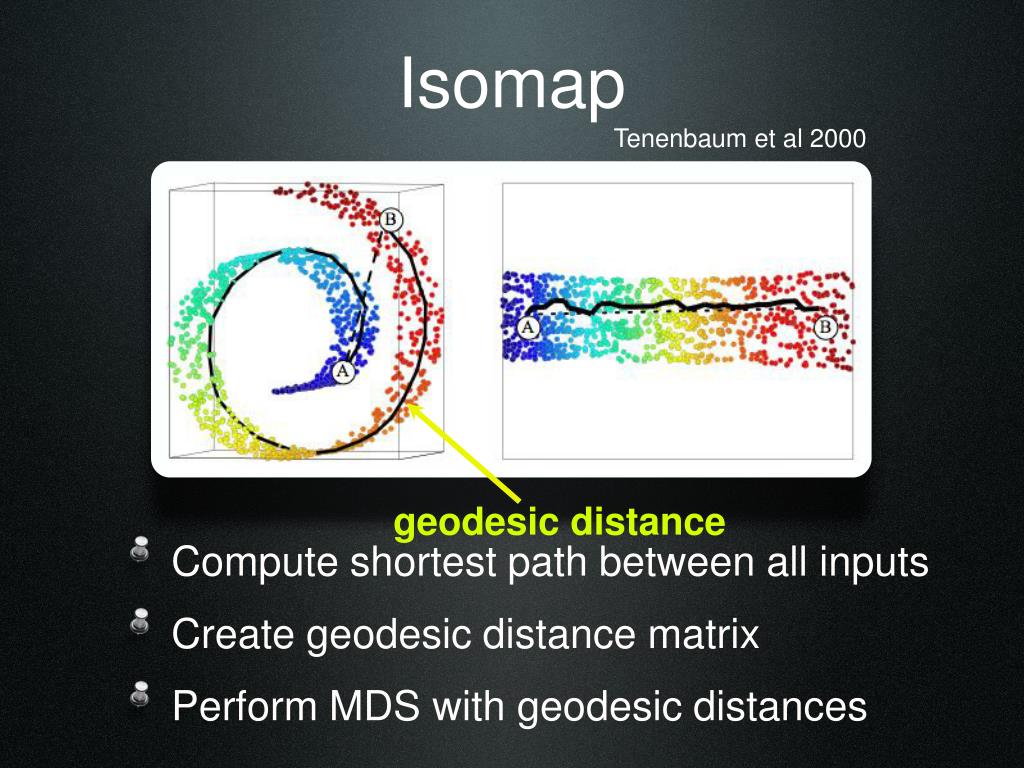

28. Isomap Tenenbaum et al 2000 • Compute shortest path between all inputs • Create geodesic distance matrix • Perform MDS with geodesic distances geodesic distance

29. Maximum Variance Unfolding (MVU) Weinberger and Saul 2004

30. Maximum Variance Unfolding (MVU) Weinberger and Saul 2004

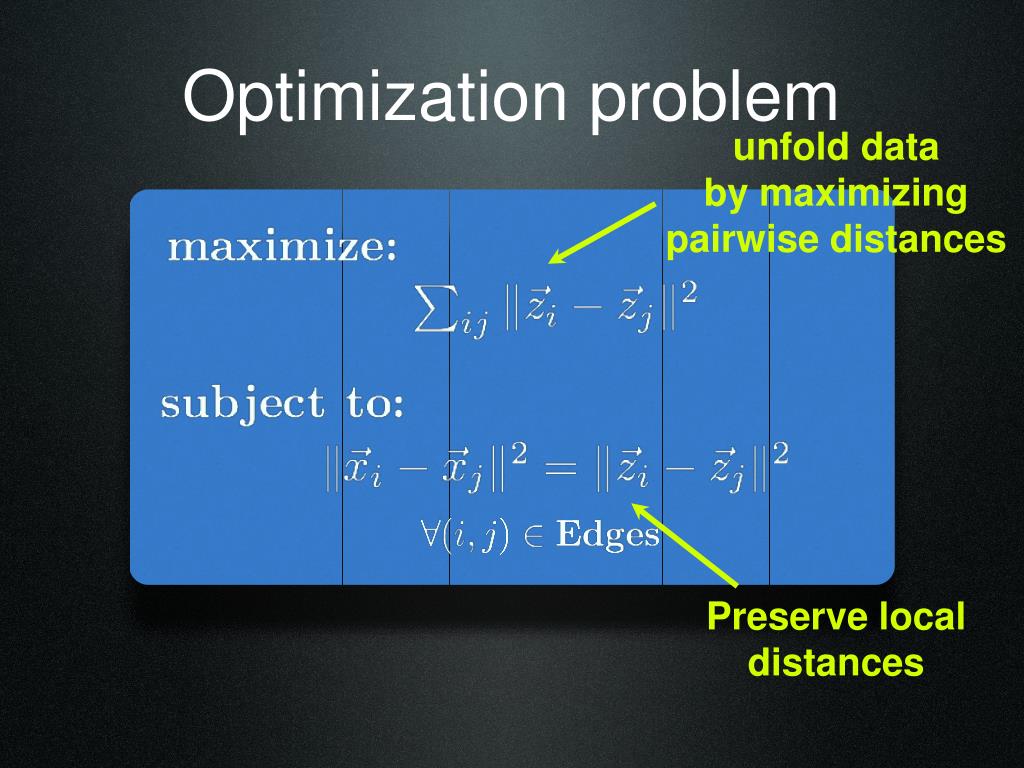

31. Optimization problem unfold data by maximizing pairwise distances Preserve local distances

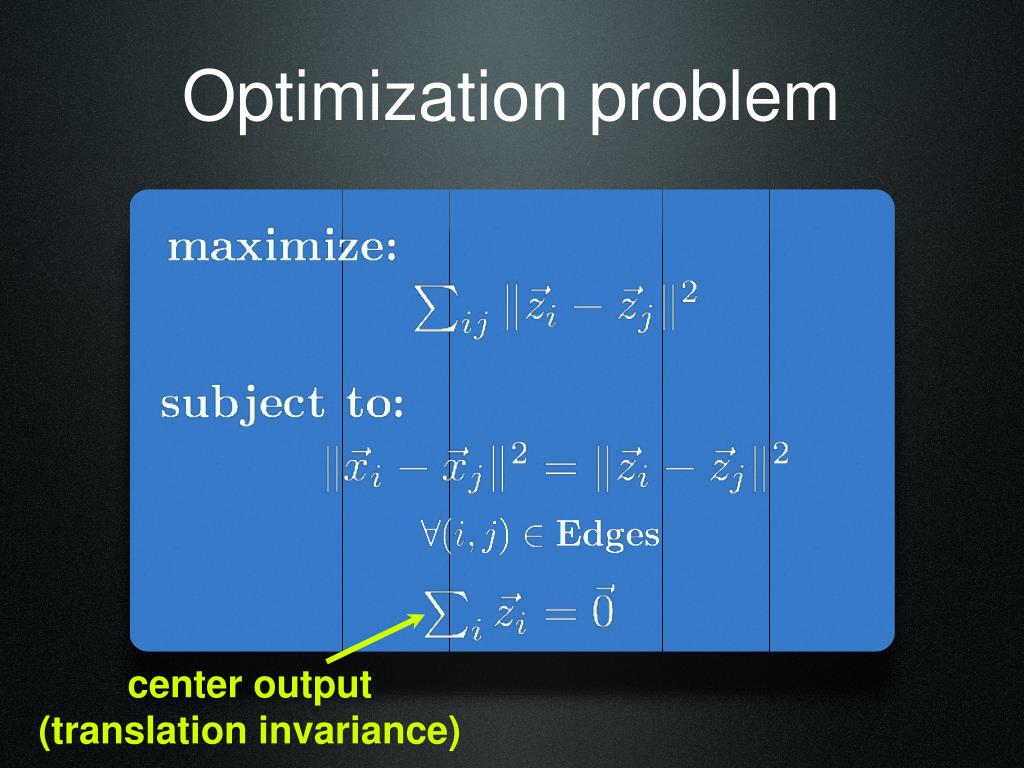

32. Optimization problem center output (translation invariance)

33. Optimization problem Problem: Optimization non-convex multiple local minima

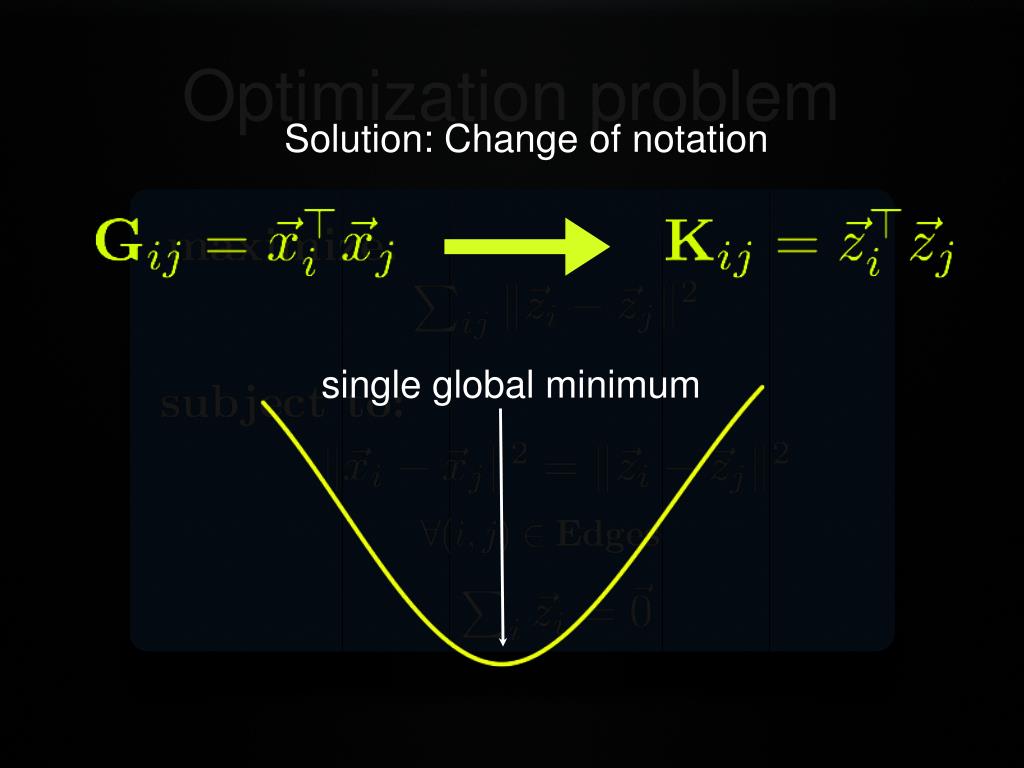

34. Optimization problem Solution: Change of notation single global minimum

35. Unfolding the swiss-roll

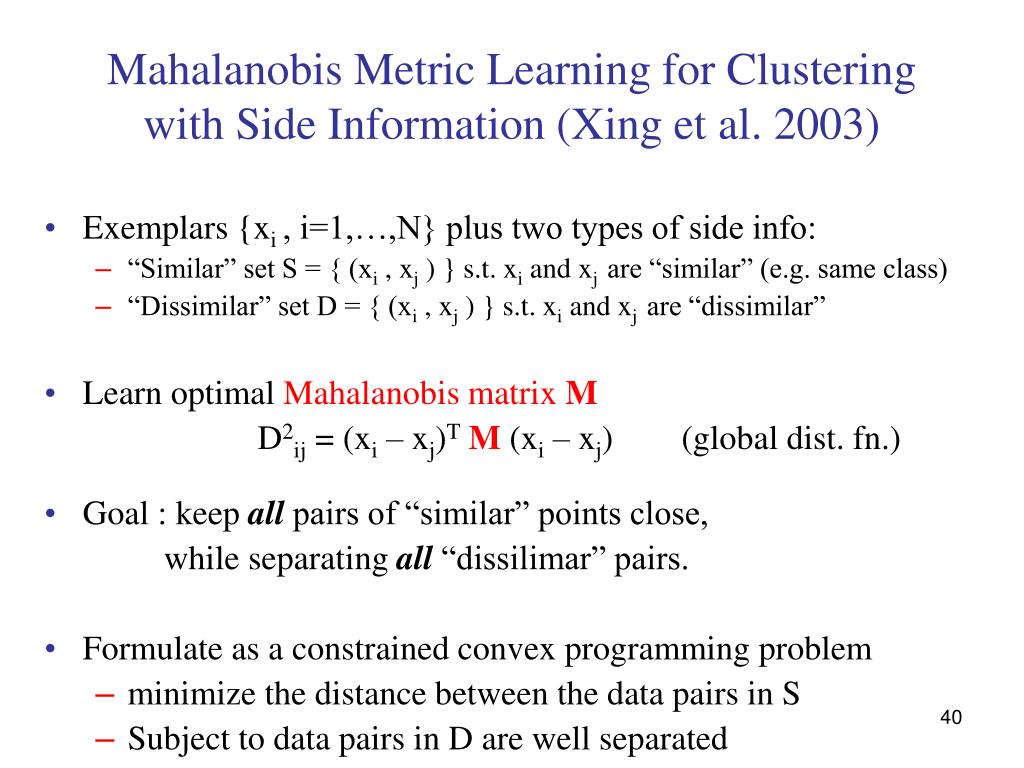

36. Mahalanobis Metric Learning for Clustering with Side Information (Xing et al. 2003) • Exemplars {xi , i=1,…,N} plus two types of side info: • “Similar” set S = { (xi , xj ) } s.t. xi and xj are “similar” (e.g. same class) • “Dissimilar” set D = { (xi , xj ) } s.t. xi and xj are “dissimilar” • Learn optimal Mahalanobis matrix M D2ij = (xi – xj)TM (xi – xj) (global dist. fn.) • Goal : keep all pairs of “similar” points close, while separating all “dissilimar” pairs. • Formulate as a constrained convex programming problem • minimize the distance between the data pairs in S • Subject to data pairs in D are well separated

37. MMC-SI (Cont’d) • Objective of learning: • M is positive semi-definite • Ensure non negativity and triangle inequality of the metric • The number of parameters is quadratic in the number of features • Difficult to scale to a large number of features • Significant danger of overfitting small datasets

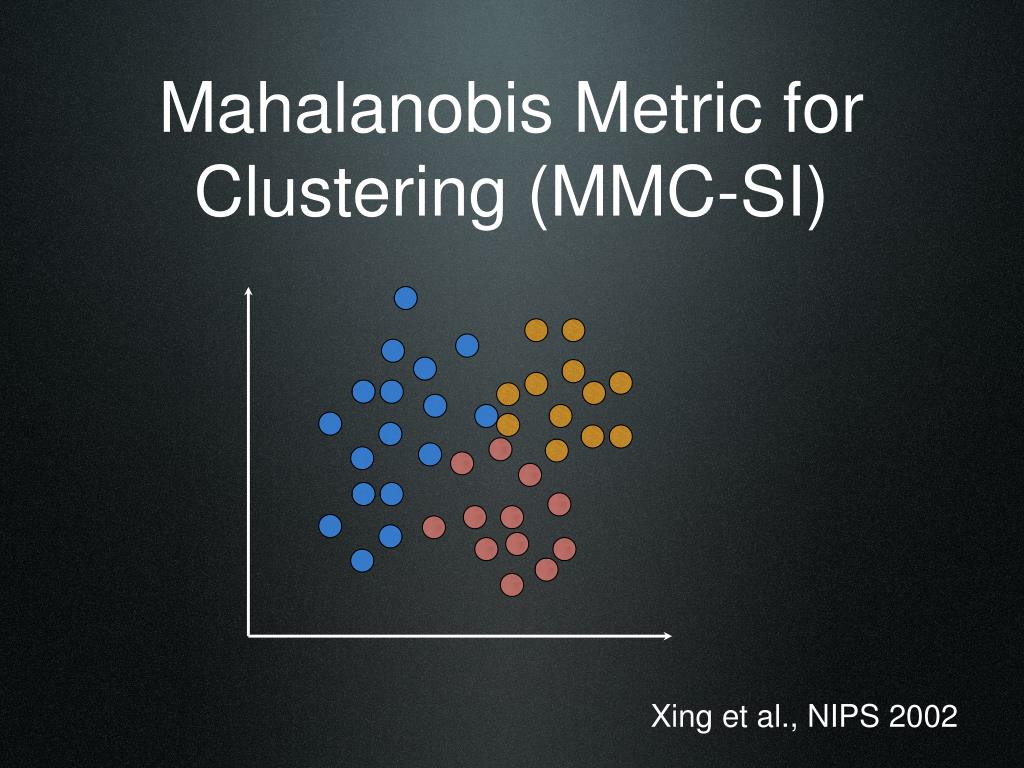

38. Mahalanobis Metric for Clustering (MMC-SI) Xing et al., NIPS 2002

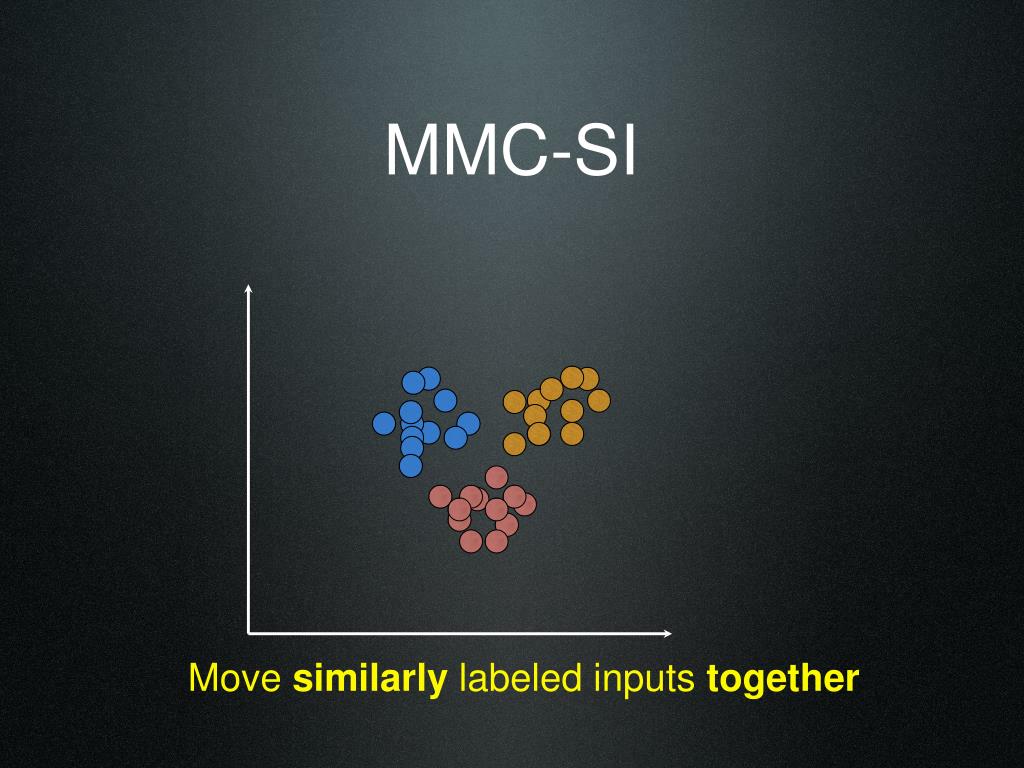

39. MMC-SI Move similarly labeled inputs together

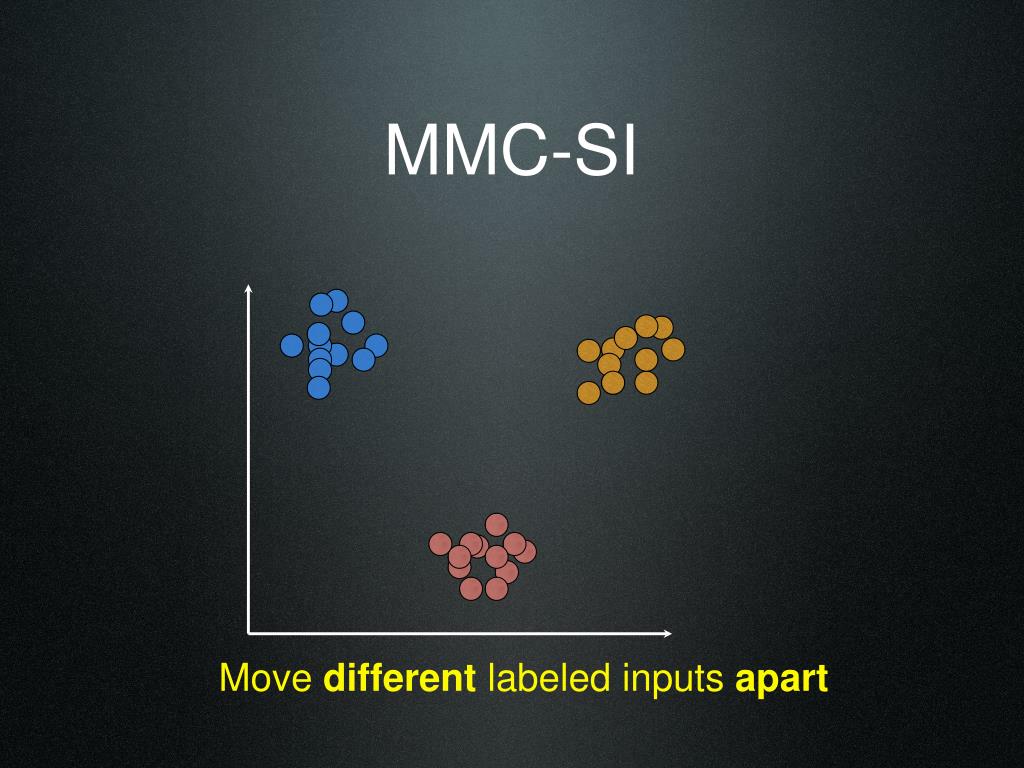

40. MMC-SI Move different labeled inputs apart

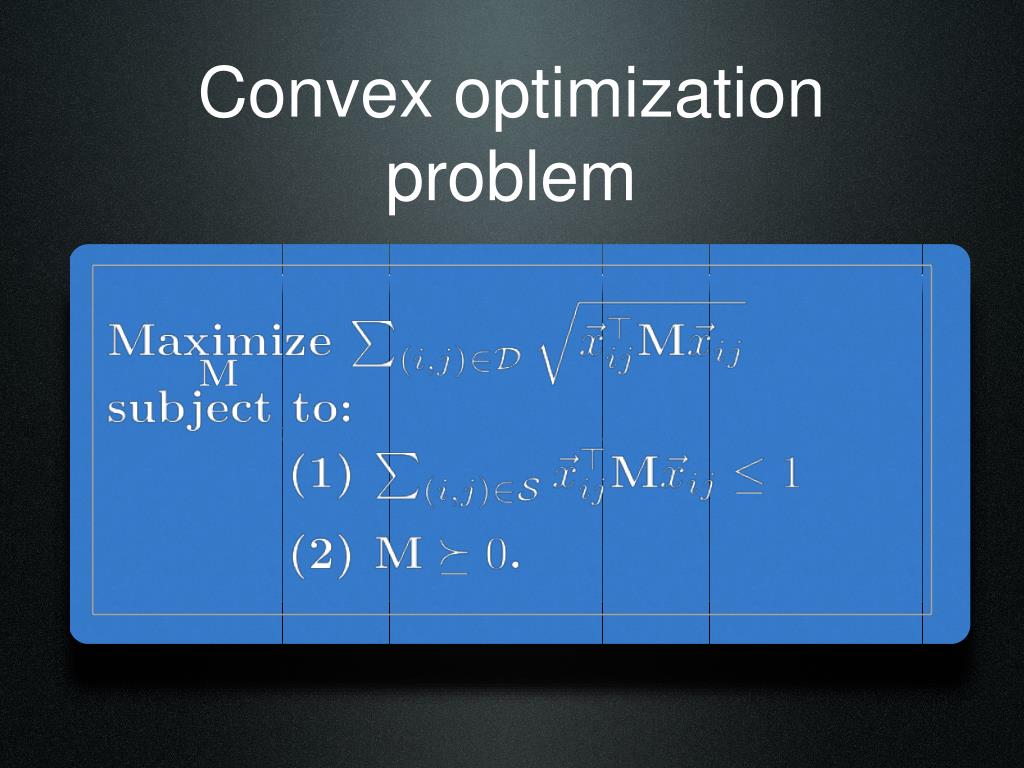

41. Convex optimization problem

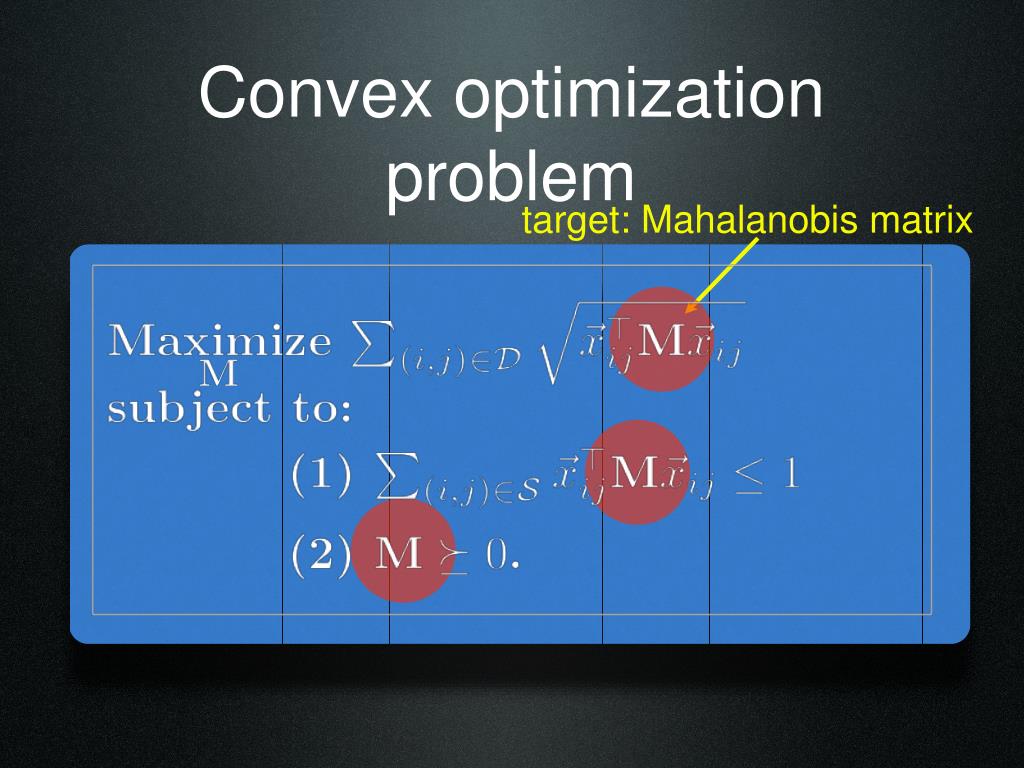

42. Convex optimization problem target: Mahalanobis matrix

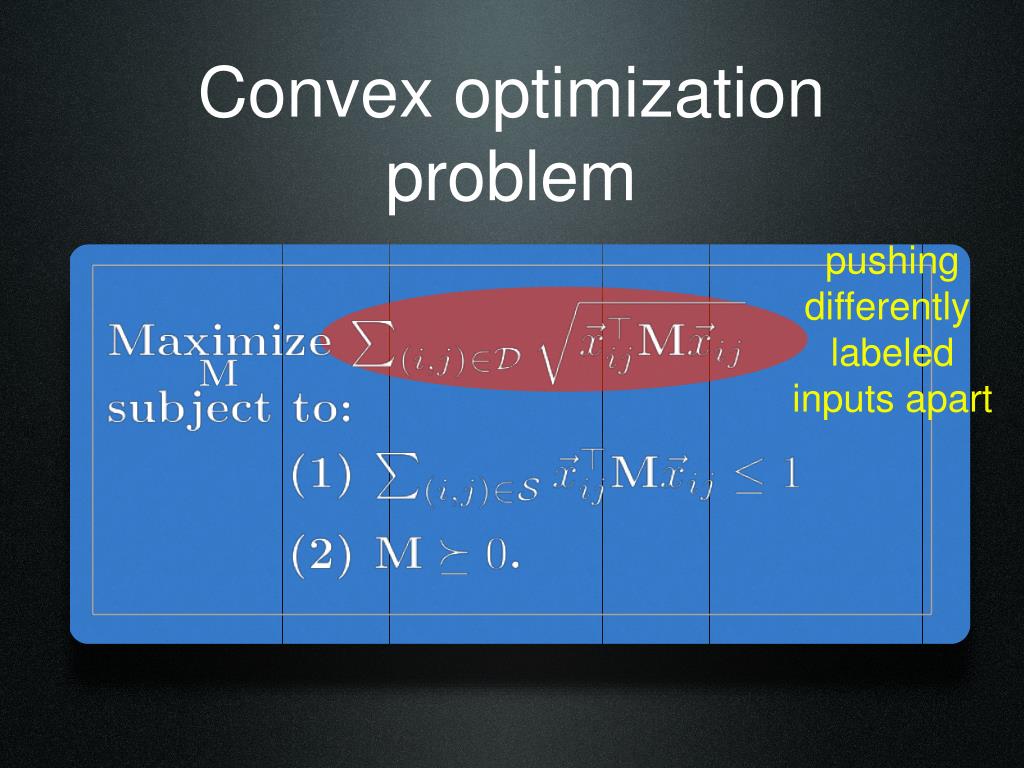

43. Convex optimization problem pushing differently labeled inputs apart

44. Convex optimization problem pulling similar points together

45. Convex optimization problem ensuring positive semi-definiteness

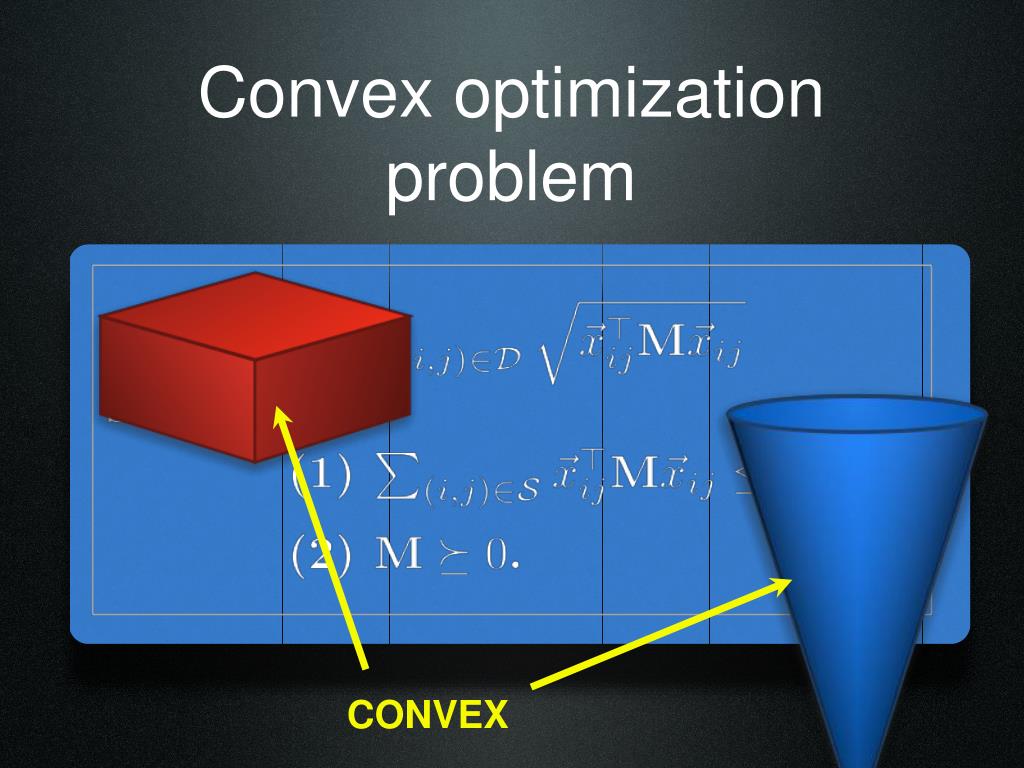

46. CONVEX Convex optimization problem

47. Gradient Alternating Projection

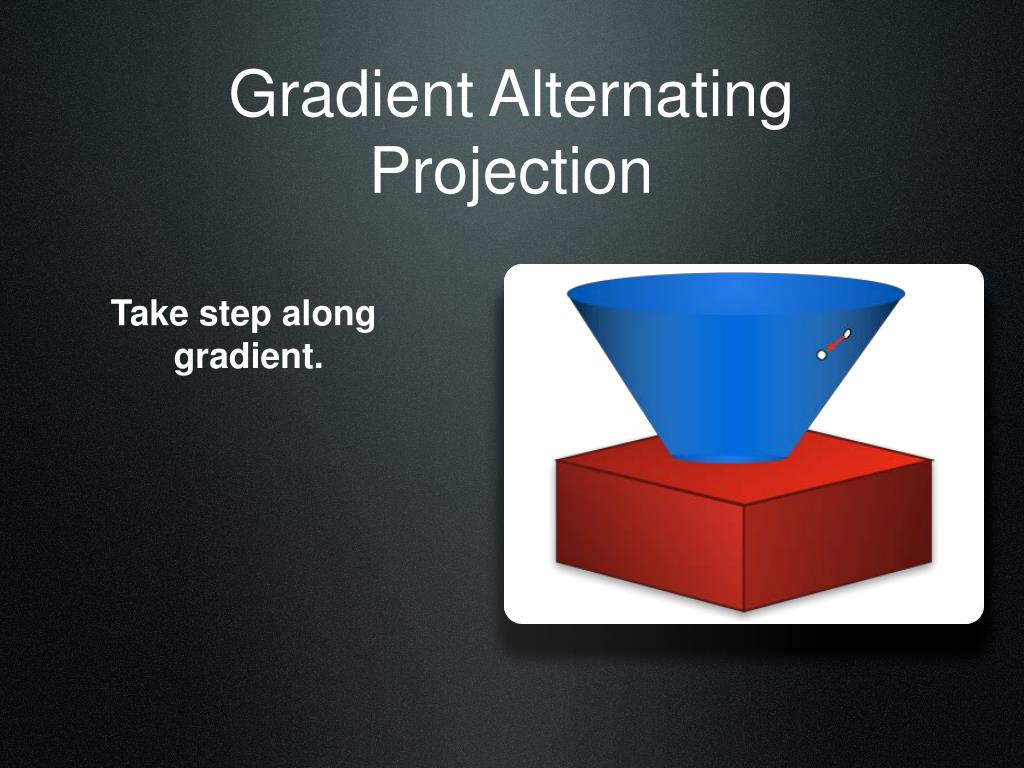

48. Gradient Alternating Projection Take step along gradient.

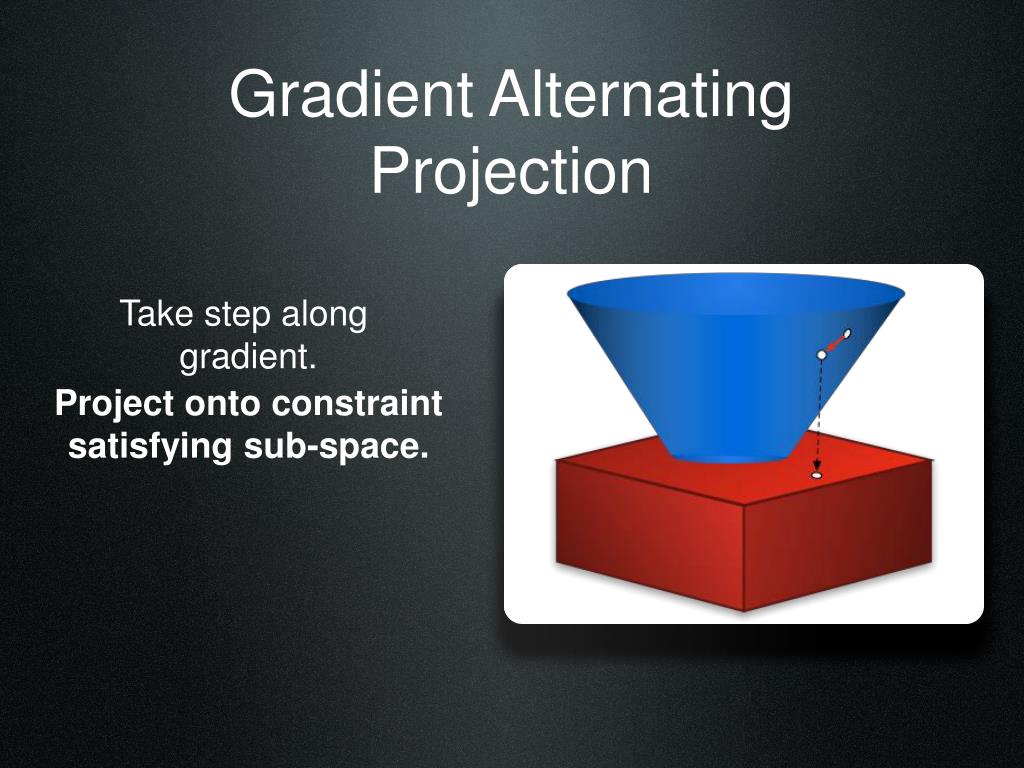

49. Gradient Alternating Projection Take step along gradient. Project onto constraint satisfying sub-space.

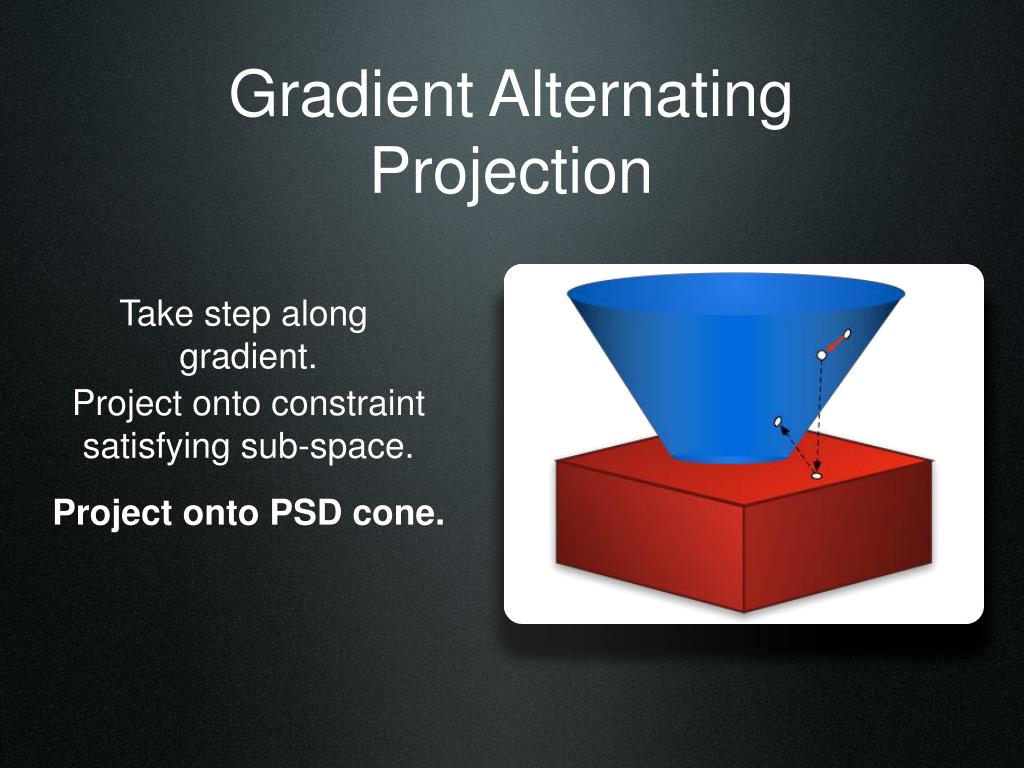

50. Gradient Alternating Projection Take step along gradient. Project onto constraint satisfying sub-space. Project onto PSD cone.
