CS 501: Software EngineeringFall 2000 Lecture 14 System Architecture I Data Intensive Systems

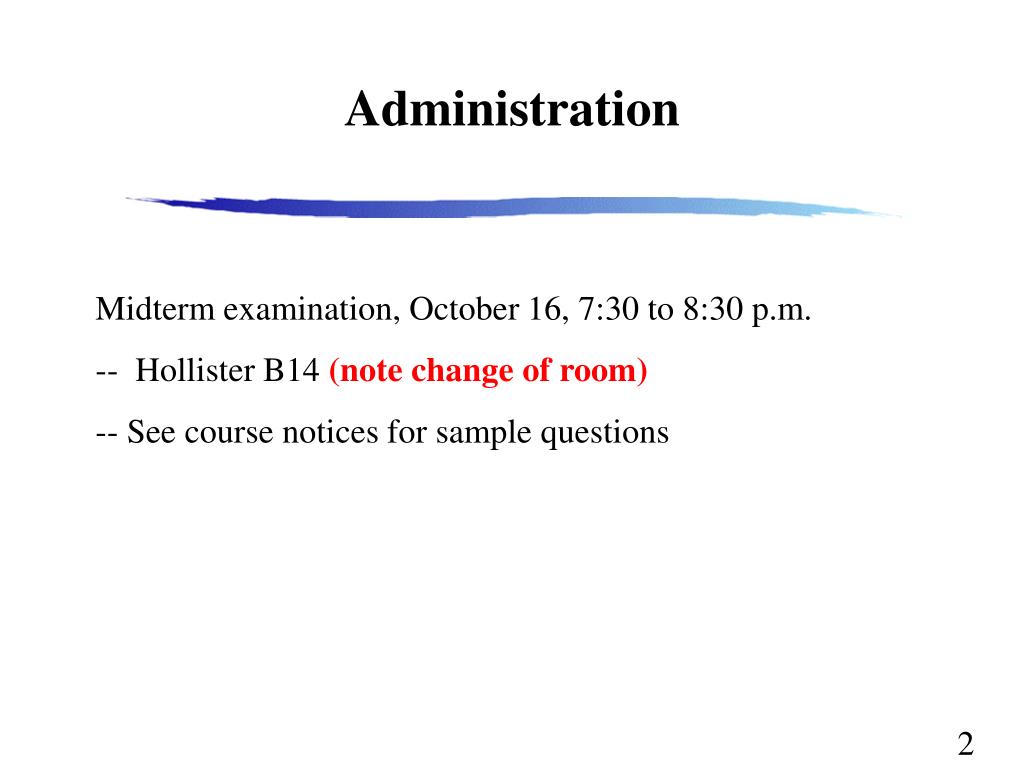

Administration Midterm examination, October 16, 7:30 to 8:30 p.m. -- Hollister B14 (note change of room) -- See course notices for sample questions

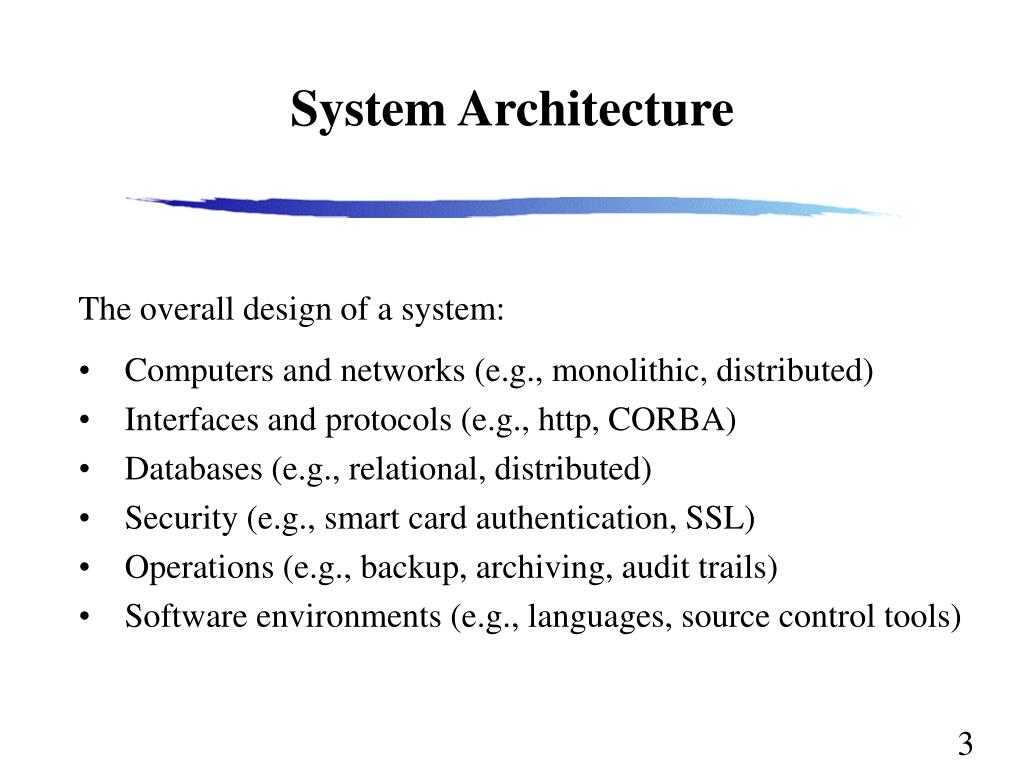

System Architecture The overall design of a system: • Computers and networks (e.g., monolithic, distributed) • Interfaces and protocols (e.g., http, CORBA) • Databases (e.g., relational, distributed) • Security (e.g., smart card authentication, SSL) • Operations (e.g., backup, archiving, audit trails) • Software environments (e.g., languages, source control tools)
Data Intensive Systems Examples • Electricity utility customer billing • Telephone company call recording and billing • Car rental reservations (e.g., Hertz) • Stock market brokerage (e.g., Charles Schwab) • Web sales (e.g., Amazon.com)
Example 1: Electricity Utility Billing First attempt: Bill Master file Transaction Data input Each transaction handled as it arrives.
Criticisms of First Attempt Where is this first attempt weak? The requirements have not been specified!!!
Transaction Types • Create account / close account • Meter reading • Payment received • Other credits / debits • Check cleared / check bounced • Account query • Correction of error • etc., etc., etc.,
Typical Requirements • All payments to be credited on day received • Customers must be able to query account by telephone • Cutting off service for non-payment requires management authorization • Data input staff should process n transactions per day per person • Error rate must be below 0.01% • System available 99.9% of business hours

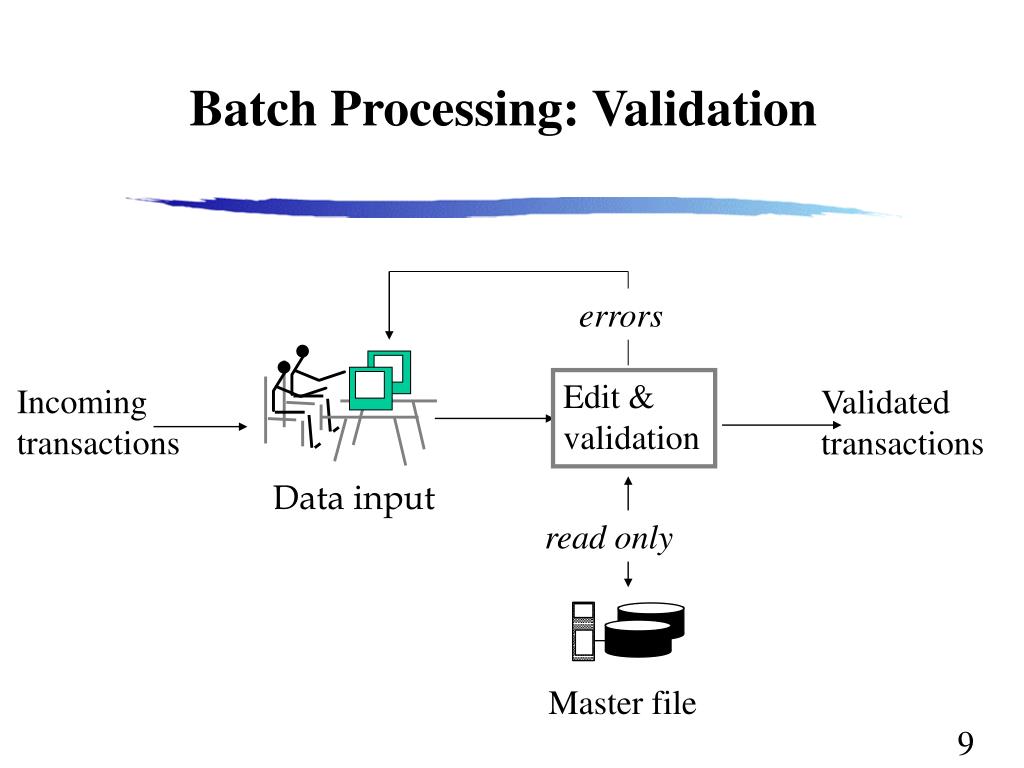

Batch Processing: Validation errors Edit & validation Incoming transactions Validated transactions Data input read only Master file
Batch Processing: Master File Update Reports errors Validated transactions in batches Sort by account Bills Master file update Instructions

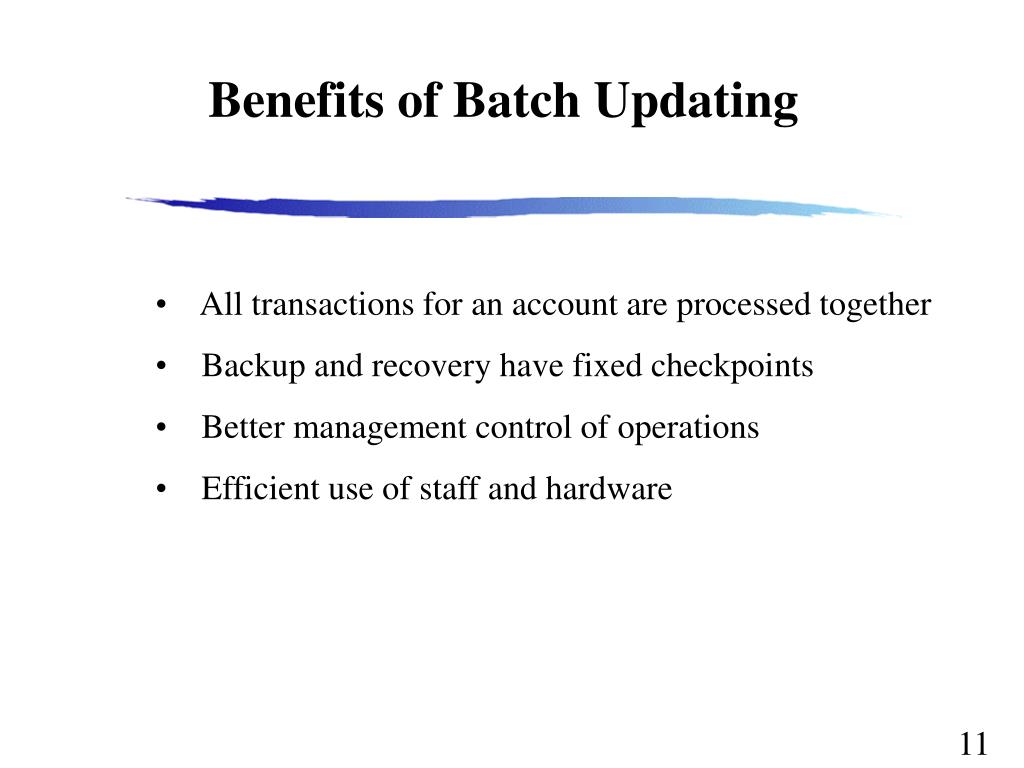

Benefits of Batch Updating • All transactions for an account are processed together • Backup and recovery have fixed checkpoints • Better management control of operations • Efficient use of staff and hardware
Online Inquiry Customer service read only Bills Master file Transactions Data input
Example 2: A Small-town Stockbroker • Transactions Received by mail or over telephone For immediate or later action • Complex customer inquiries • Highly competitive market

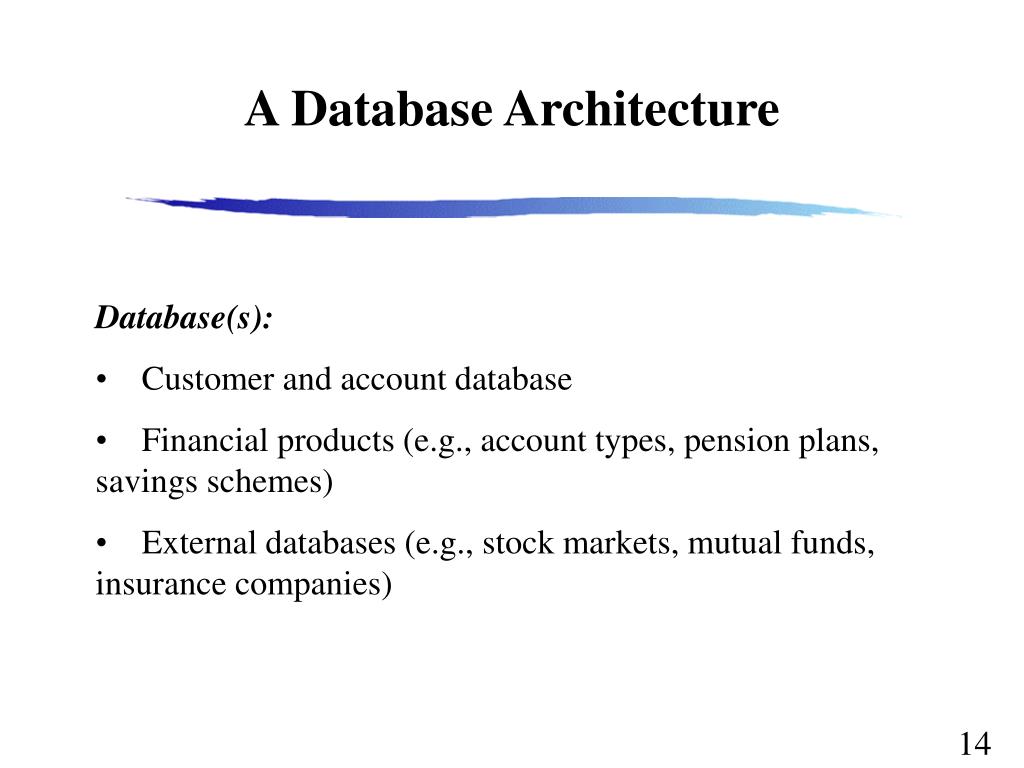

A Database Architecture Database(s): • Customer and account database • Financial products (e.g., account types, pension plans, savings schemes) • External databases (e.g., stock markets, mutual funds, insurance companies)

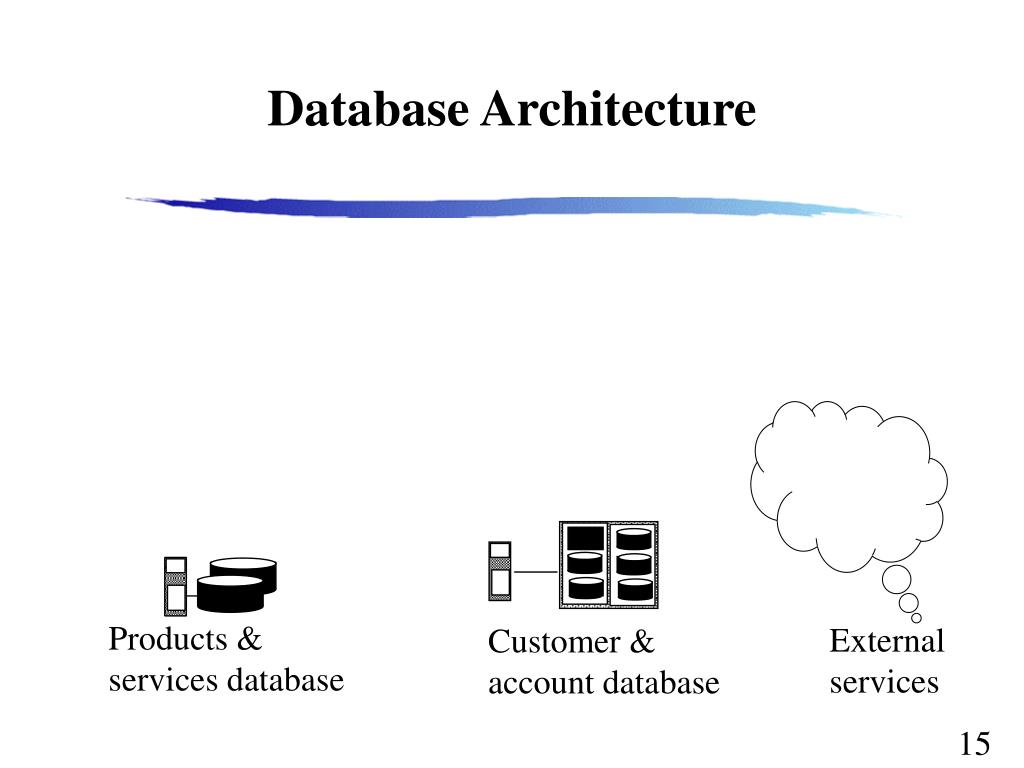

Database Architecture Products & services database External services Customer & account database
Real-time Transaction Real-time transactions Products & services database External services Customer & account database
Real-time Transactions & Batch Processing Data input Real-time transactions Batch processing Products & services database External services Customer & account database
Architectural considerations • Real-time service during scheduled hours + batch processing overnight • Combine information from several databases • Database consistency after any type of failure two-phase commit reload from checkpoint + log detailed audit trail • How will transaction errors be avoided? • How will transaction errors be corrected?
Example: Merger of Two Banks Each bank has a database with its customer accounts. The databases are used by staff at many branches and for back-office processing. The requirement is to integrate the two banks so that they appear to the customers to be a single organization and to provide integrated service from all branches.
Merger of Two Banks: Options A B ??? ???
Merger of Two Banks: Architectural Options I. Convert everything to System A. convert databases retrain staff enhance System A (software and hardware) discard System B II. Build an interface between the databases in System A and System B. III. Extend client software so that it can interact with either System A or System B database.

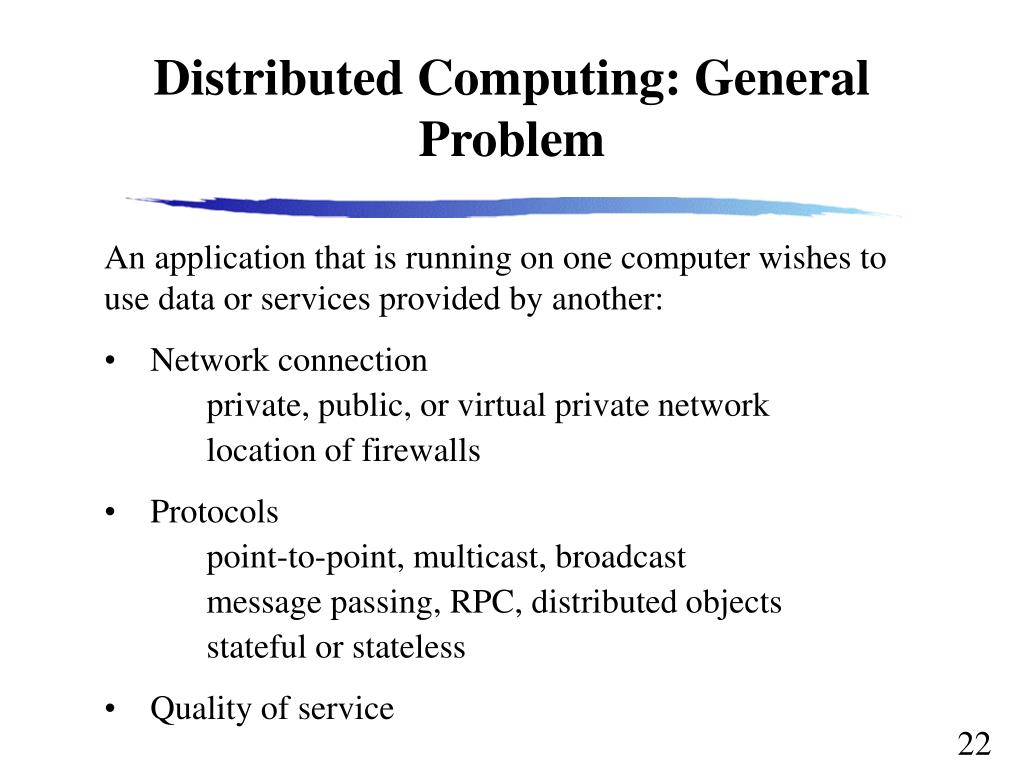

Distributed Computing: General Problem An application that is running on one computer wishes to use data or services provided by another: • Network connection private, public, or virtual private network location of firewalls • Protocols point-to-point, multicast, broadcast message passing, RPC, distributed objects stateful or stateless • Quality of service
Network Choices Public Internet: Ubiquitous -- worldwide Low cost Private network: Security Predictable performance Choice of protocols (e.g., IBM's SNA)
Quality of Network Services Performance Maximum throughput Variations in throughput Real-time media (e.g., audio) Business Suppliers Trouble shooting and maintenance Upgrades
Firewall Private network Public network Firewall A firewall is a computer at the junction of two network segments that: • Inspects every packet that attempts to cross the boundary • Rejects any packet that does not satisfy certain criteria, e.g., an incoming request to open a TCP connection an unknown packet type
