Presentation Transcript

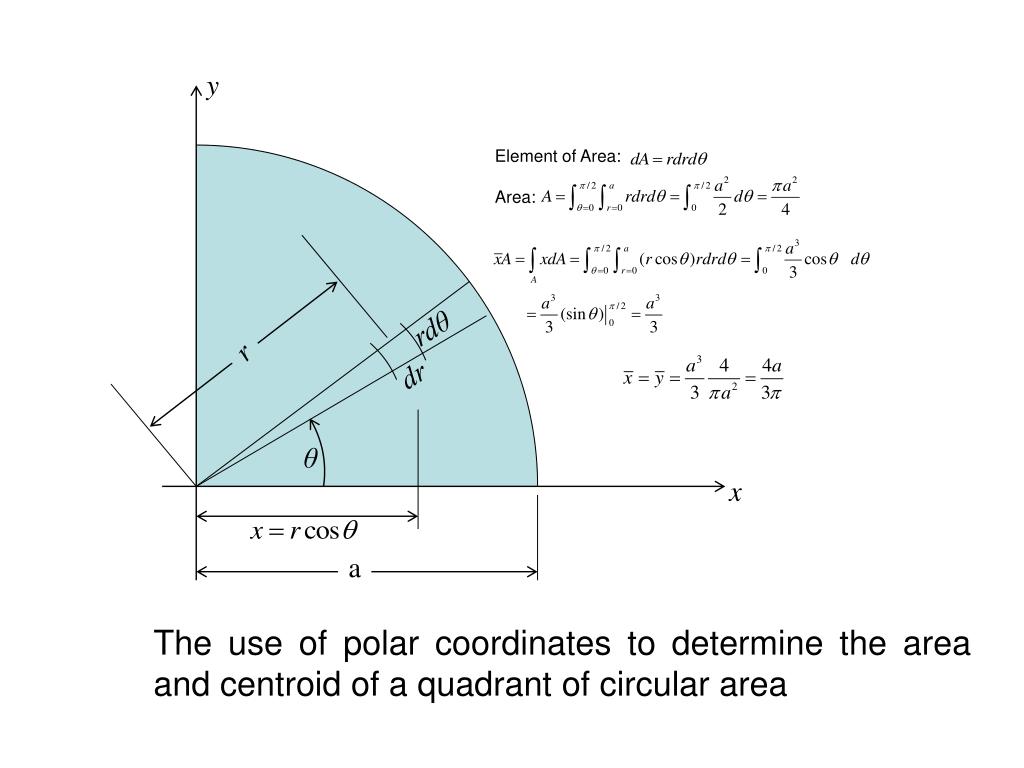

  1. y Element of Area: Area: rdθ r dr θ x a The use of polar coordinates to determine the area and centroid of a quadrant of circular area

  2. z cross-section area to be rotated around the z-axis through the angle R axis of rotation side view y R x top view Volumes formed by rotating an area around an axis

  3. Example: Find for the volume obtained by rotating the quadrant of circular area around the z-axis through 90 degs. Example: Find the volume obtained by rotating the quadrant of circular area shown in the figure below around the z-axis through 90 degs. z 3a a

  4. Find for the volume obtained by rotating the quadrant of circular area around the z-axis through 90 degs. Homework 5/31: Find the volume obtained by rotating the quadrant of circular area shown in the figure below around the z-axis through 90 degs. z a a
