  1. Temperature Controller DT3 Series & Delta Machine Vision Automation for a Changing World

  2. DT3 Series Intelligent Integration Interactive Immediately

  3. Various Control Mode • Self Tuning • FUZZY • Auto Tuning • ON/OFF • Manual PID FUZZY Control Temp. Temp. Time Time

  4. Extendable • To change module board by your self, do not need to prepare much stock. Large LCD Display

  5. Re-Transmission Inject 0~20mA, 4~20mA 0~5V, 0~10V Re-transmission output: Via re-transmission function to transmission present value. Current Transfer DT3 DT3

  6. Remote Control Set up the temperature/value data via PLC analog or communication function: Hotplate Control Outputs Sensor Inputs 0~20mA, 4~20mA 0~5V, 0~10V Analog mA / V • Via analog or communication to remote control other temperature controller

  7. User Define Function Key • Control Mode • Local / Remote • RUN / STOP • Start PID

  8. DELTA Intelligent Eye

  9. DMV System Configuration

  10. DMV & Accessory • CCD (IEEE1394) • Lens • LED Lights (CCD) (Lens) (Lights)

  11. Part Names and Function Ethernet IO Interface Joystick SD Card RS232/485 CCD*2 VGA OUT

  12. New User-Friendly Interface • Sets up camera related parameter • Selects inspection mode • Edits image process result • Set output mode and content Simple! Easy Start!

  13. Industrial Communication Interface Rapid connection to external control system

  14. Goalkeeper on Production Line • High Precision • Continuity • Flexibility • Repeatability

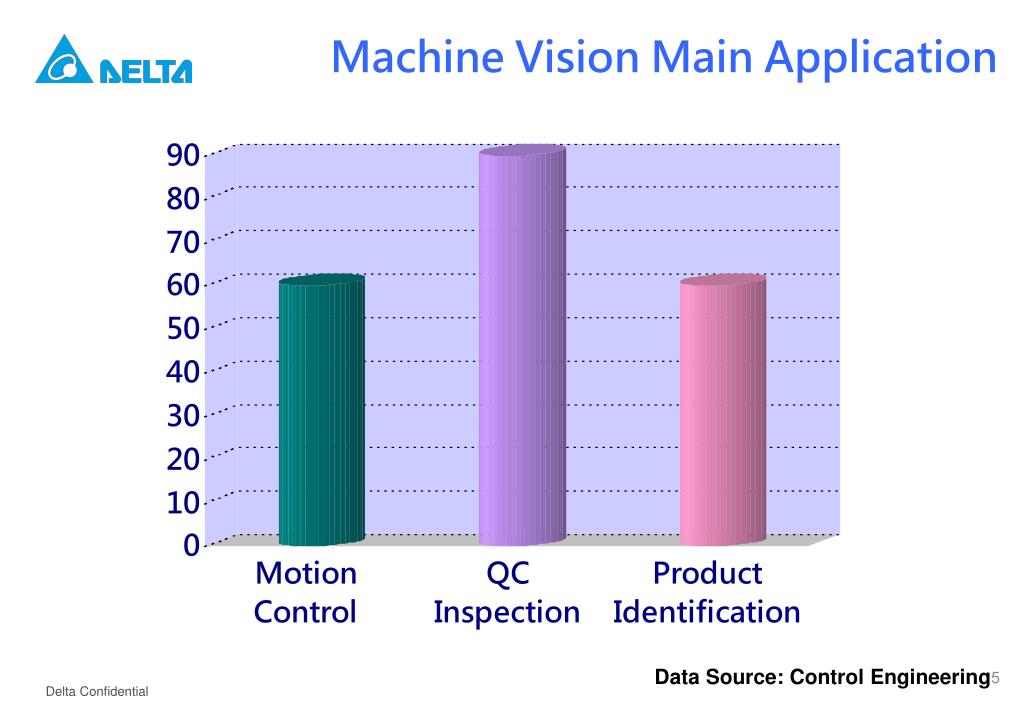

  15. Machine Vision Main Application Data Source: Control Engineering

  16. Motion Control by Industry

  17. QC Inspection by Industry

  18. Product Identification by Industry

  19. Connector Inspection To detect the connector pitch, pin number… etc.:

  20. Deformation Detection To check the width of the tool deformation:

  21. Direction confirm To verify the cigarette lighter assembly: Right Wrong

  22. Measurement work piece assembly To detect components in the assembly of finished products placed contrary material:

  23. Product Inspection To detect if relay socket related size fits standard:

  24. Delta Machine Vision Make Your Solution!
