  1. Key Distribution and Management Yuan Xue

  2. Outline • Secret Key Distribution • Introduction • Using key distribution center (KDC) • Decentralized • Using public-key • Public Key Management • Public-key Announcement • Publicly Available Directory • Public-key Certificate • Web of Trust (GnuPG)

  3. Secret Key Distribution • Message Encryption • Secret key encryption vs. public key encryption • Both encryption algorithms can provide confidentiality • Secret Key Encryption is more efficient and faster • To use secret key encryption • Communicating peers must share the same key • The key must be protected from access by others Key Distribution

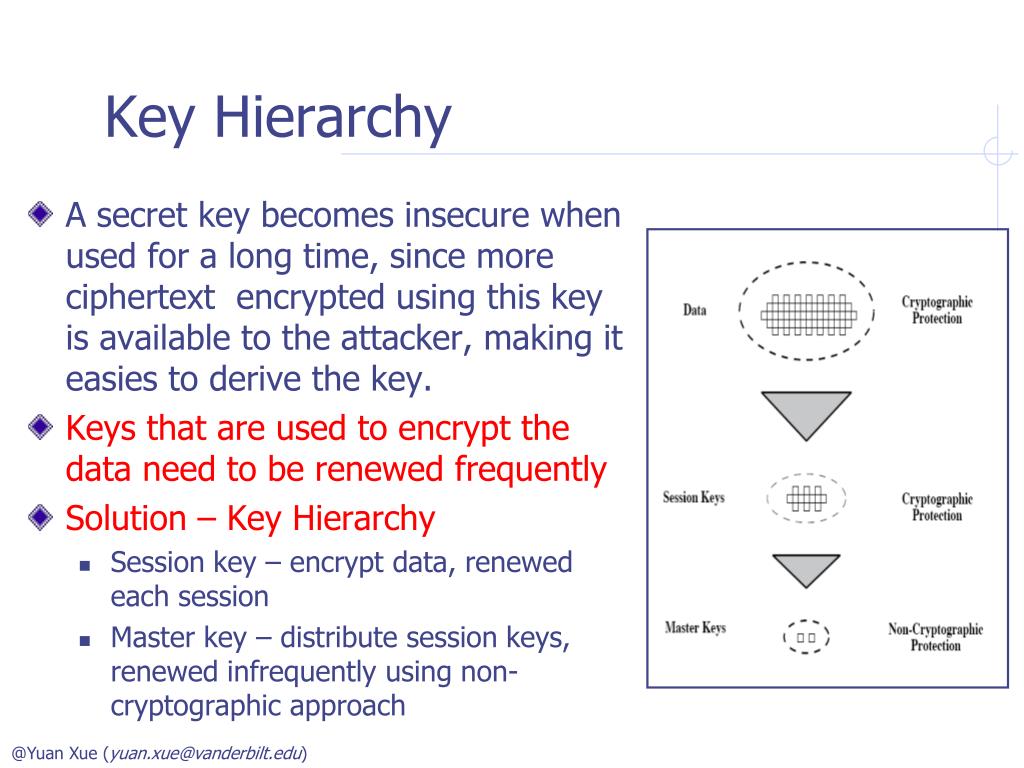

  4. Key Hierarchy • A secret key becomes insecure when used for a long time, since more ciphertext encrypted using this key is available to the attacker, making it easies to derive the key. • Keys that are used to encrypt the data need to be renewed frequently • Solution – Key Hierarchy • Session key – encrypt data, renewed each session • Master key – distribute session keys, renewed infrequently using non-cryptographic approach

  5. Secret Key Distribution Approaches • Now the questions are • What are master keys? • secret key or public key? • Who should share master keys? • who needs to be trusted a priory? • How to get session keys from master keys? • key distribution protocol • Three approaches • Via key distribution center (KDC) • KDC needs to share a secret key with each of the communication parties • Decentralized • The communication parties need to share a master key • Via public key • Using public key encryption • Using Diffie-Hellman key exchange

  6. Key Distribution based on KDC • Initially • A and B both trust KDC • KUA -- shared secret key between A and KDC • KUB -- shared secret key between B and KDC • Goal • A and B trust each other • A and B share a secret key KS KDC KUA, KUB KDC KUA, KUB KUA KS ,KUA A B KUB A B KS ,KUB

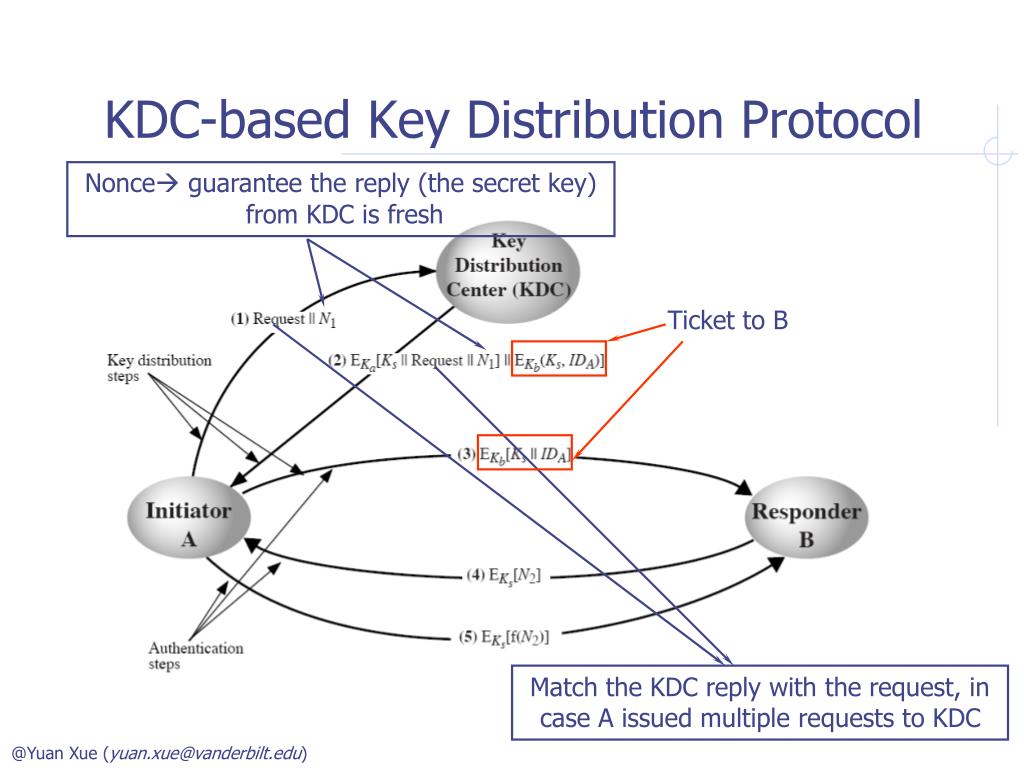

  7. KDC-based Key Distribution Protocol Nonce guarantee the reply (the secret key) from KDC is fresh Ticket to B Match the KDC reply with the request, in case A issued multiple requests to KDC

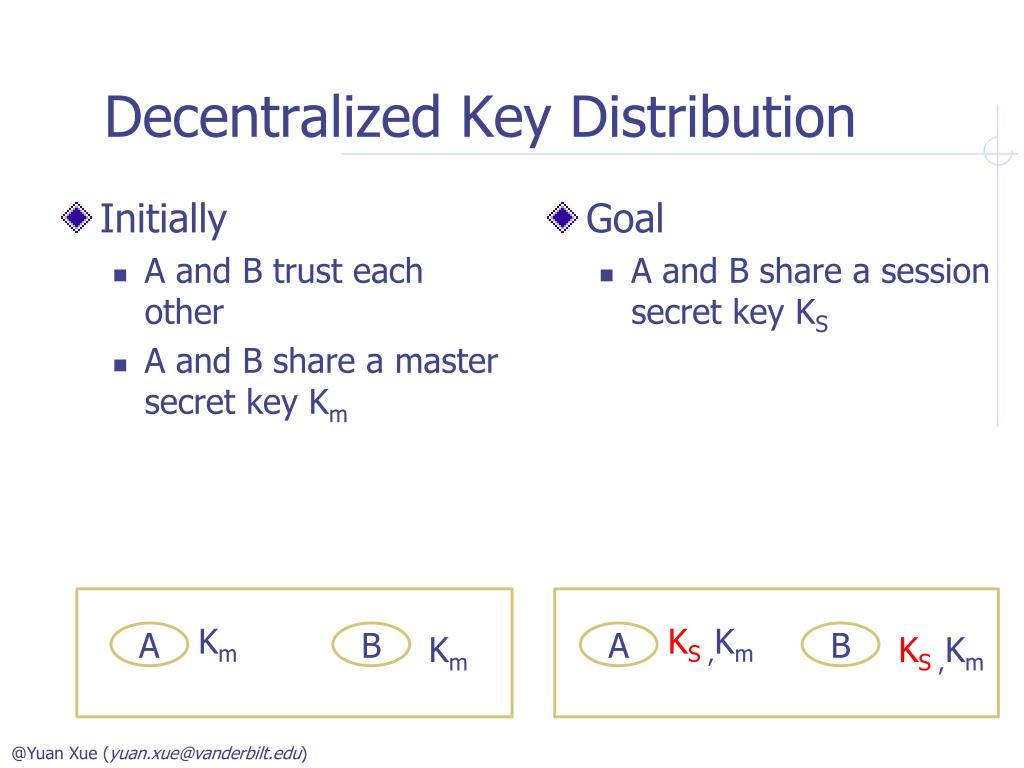

  8. Decentralized Key Distribution • Initially • A and B trust each other • A and B share a master secret key Km • Goal • A and B share a session secret key KS Km KS ,Km A B Km A B KS ,Km

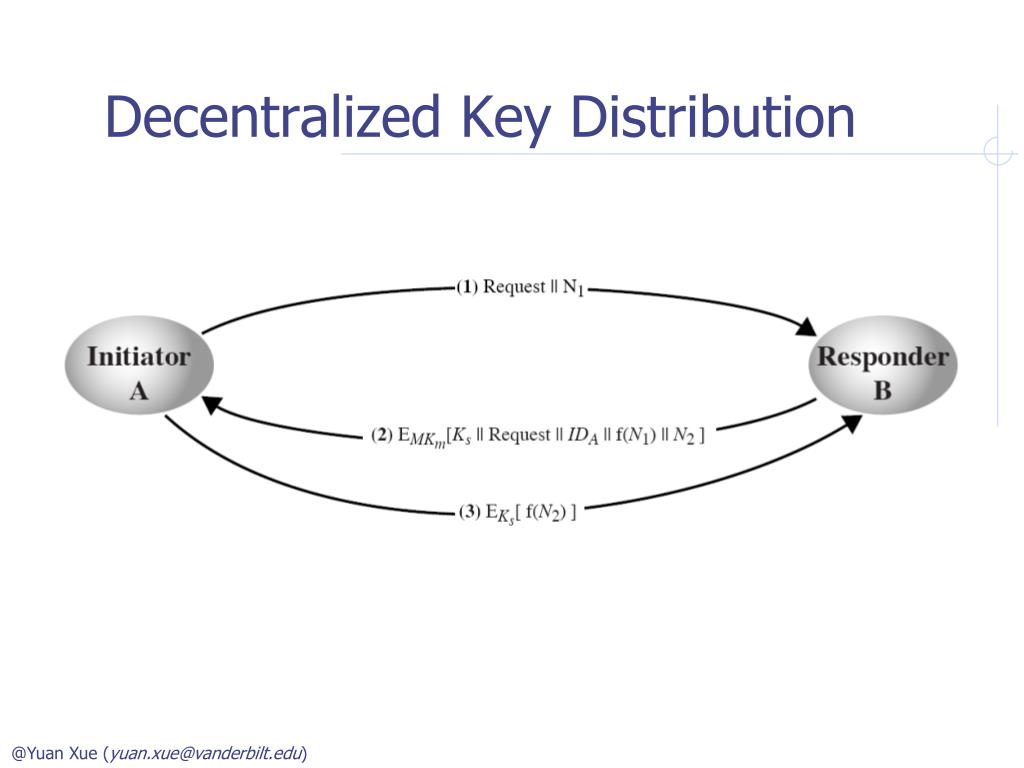

  9. Decentralized Key Distribution

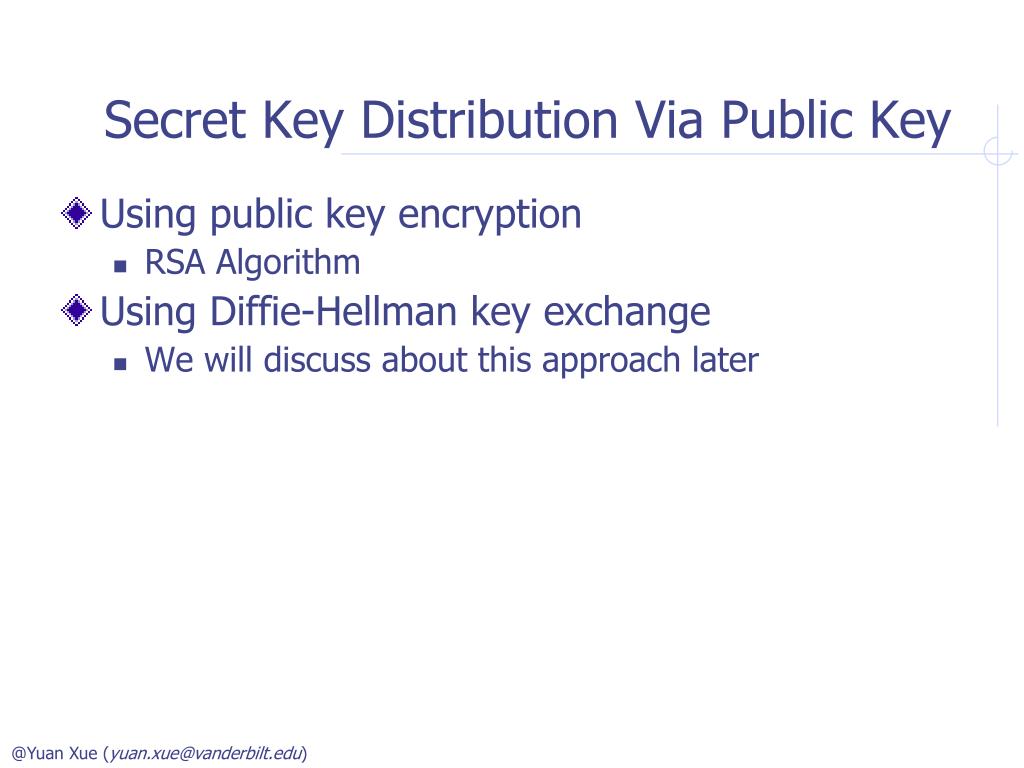

  10. Secret Key Distribution Via Public Key • Using public key encryption • RSA Algorithm • Using Diffie-Hellman key exchange • We will discuss about this approach later

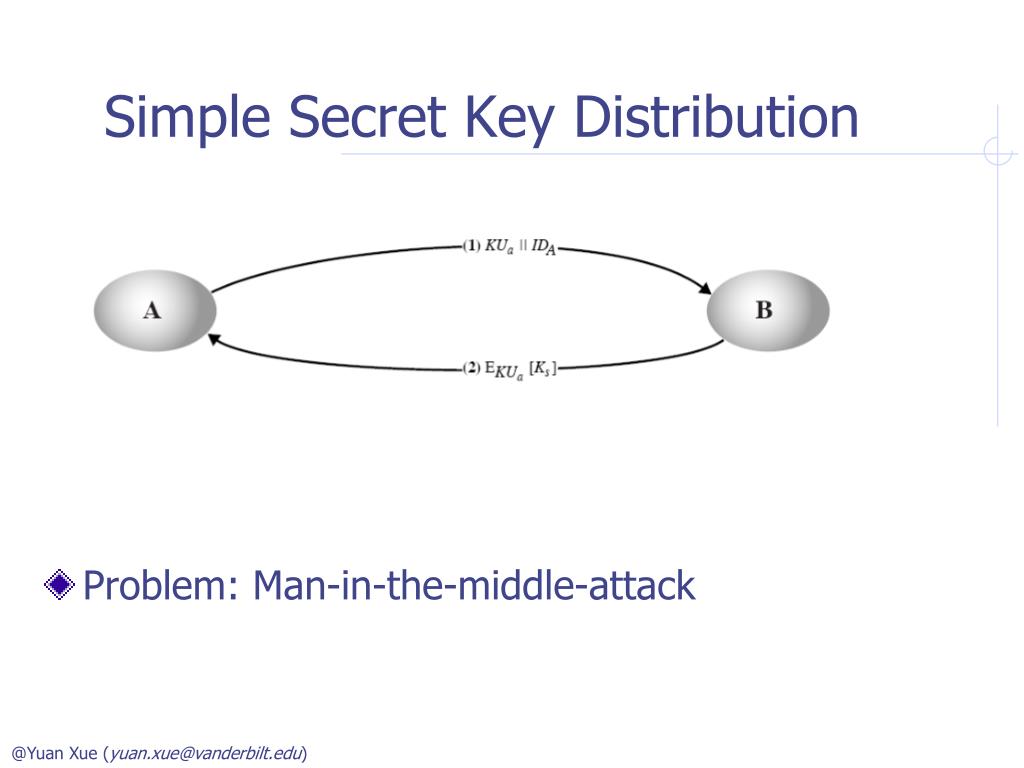

  11. Simple Secret Key Distribution • Problem: Man-in-the-middle-attack

  12. Man-in-the-middle Attack KUA||IDA KUD||IDA A B D E[KUD, Ks] E[KUA, Ks]

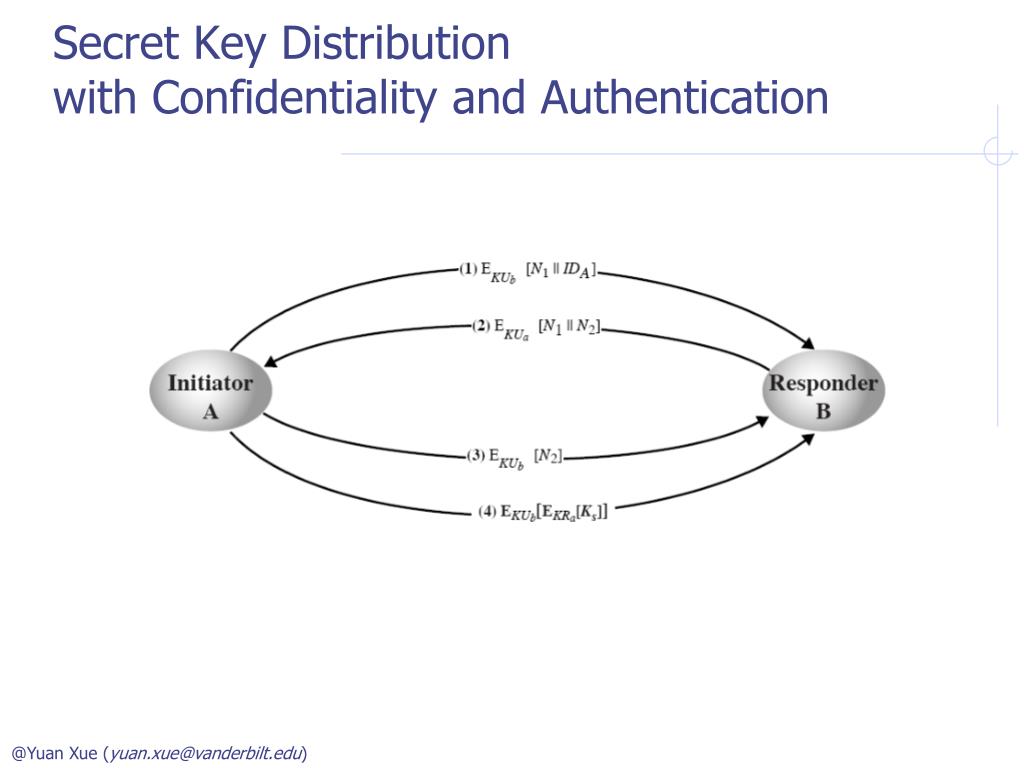

  13. Secret Key Distribution with Confidentiality and Authentication

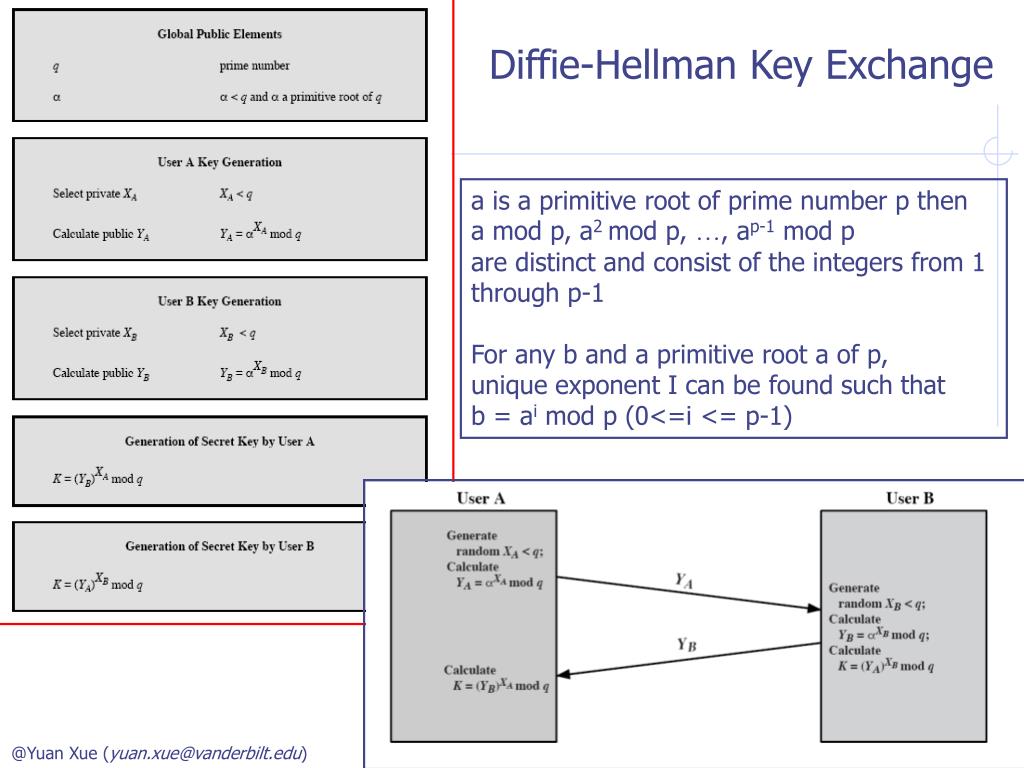

  14. Diffie-Hellman Key Exchange a is a primitive root of prime number p then a mod p, a2 mod p, …, ap-1 mod p are distinct and consist of the integers from 1 through p-1 For any b and a primitive root a of p, unique exponent I can be found such that b = ai mod p (0<=i <= p-1)

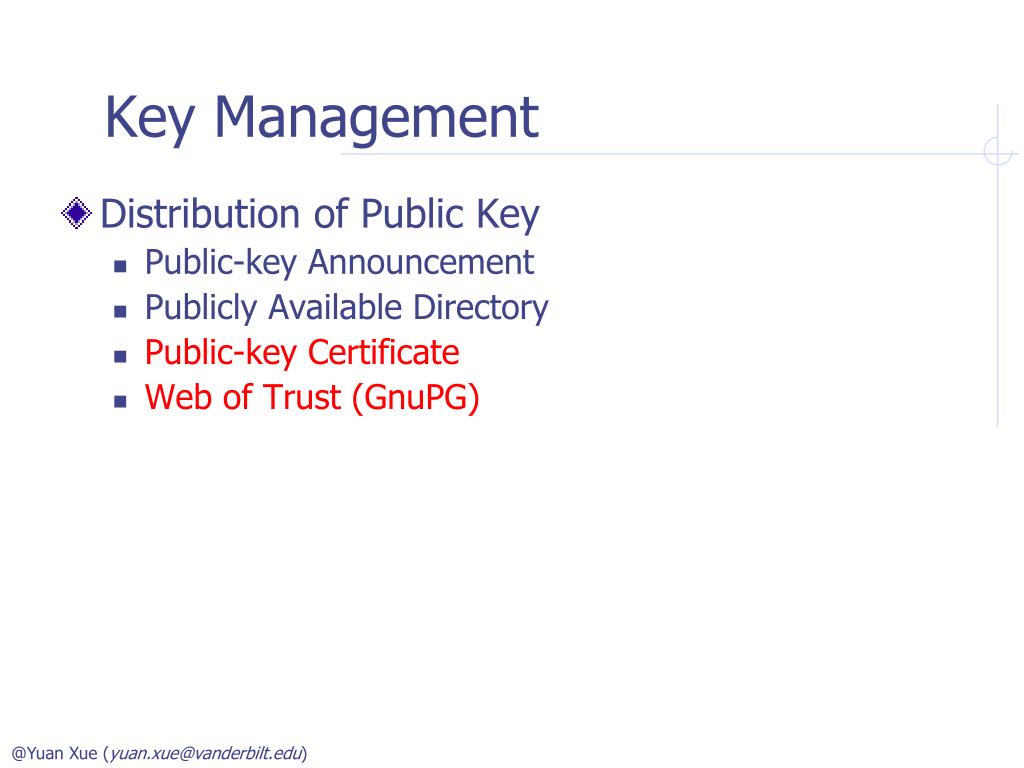

  15. Key Management • Distribution of Public Key • Public-key Announcement • Publicly Available Directory • Public-key Certificate • Web of Trust (GnuPG)

  16. Public Announcement • No Authentication Key Issue: Binding ID <-> Public key

  17. Publicly Available Directory • Directory [ID, public key] • A securely registers its public key • In person • Secure communication • The entire directory is published periodically • B can access the directory via secure authenticated communication

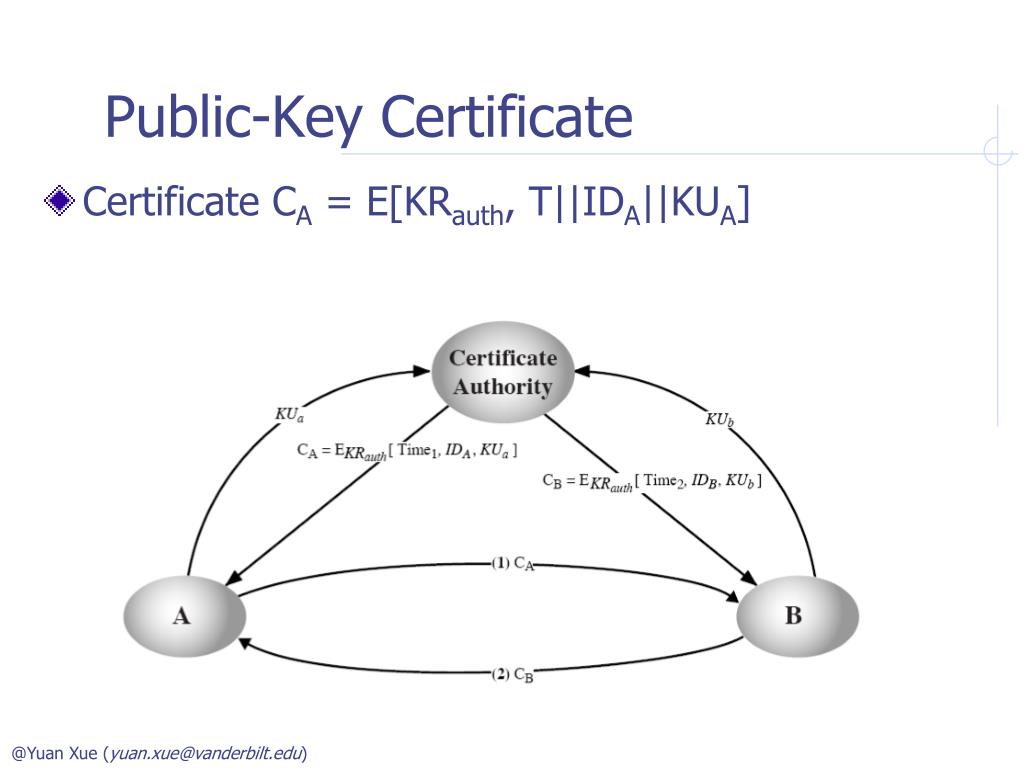

  18. Public-Key Certificate • Certificate CA = E[KRauth, T||IDA||KUA]

  19. KDC-based Announcement In A Nutshell Decentralized (Web of Trust) Decentralized Directory Public-key-based RSA, Diffei-Hellman Certificate Public-key management Secret Key Distribution Public Keys Message Encryption Message Authentication Session Keys

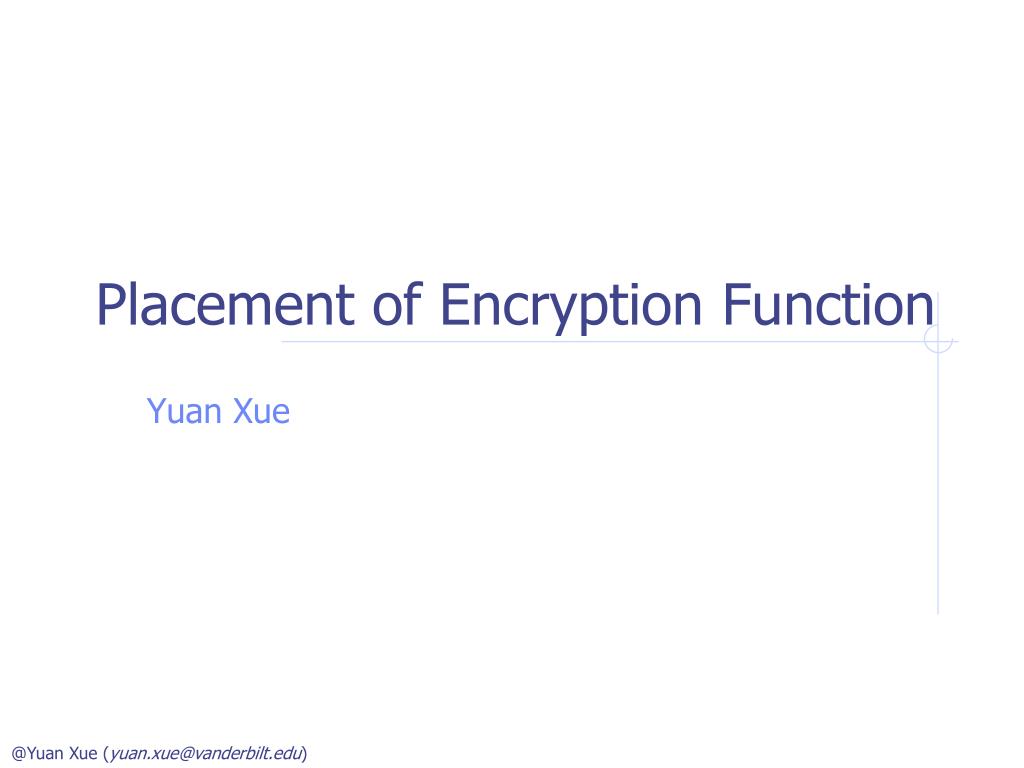

  20. Placement of Encryption Function Yuan Xue

  21. Placement of Encryption Function • What to encrypt • Message format • Where the encryption function should be located? • Network stack • Link vs. End-to-end • Where each layer is located and how it may get attacked • Aspects to consider • Message security • Number of keys required • Number of encryption/decryptions • Transparency to users/end hosts

  22. Potential Locations of Attacks Alice Bob Darth Application Application TCP/UDP TCP/UDP IP IP IP IP Link Link Link Link Internet

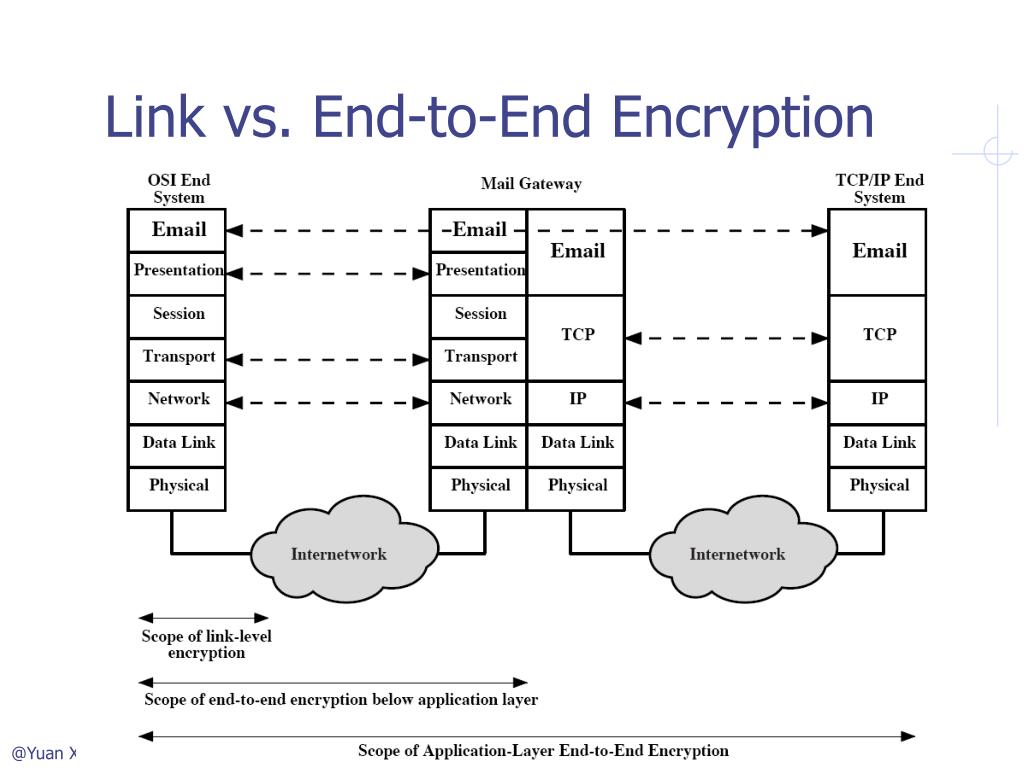

  23. Link vs. End-to-End Encryption

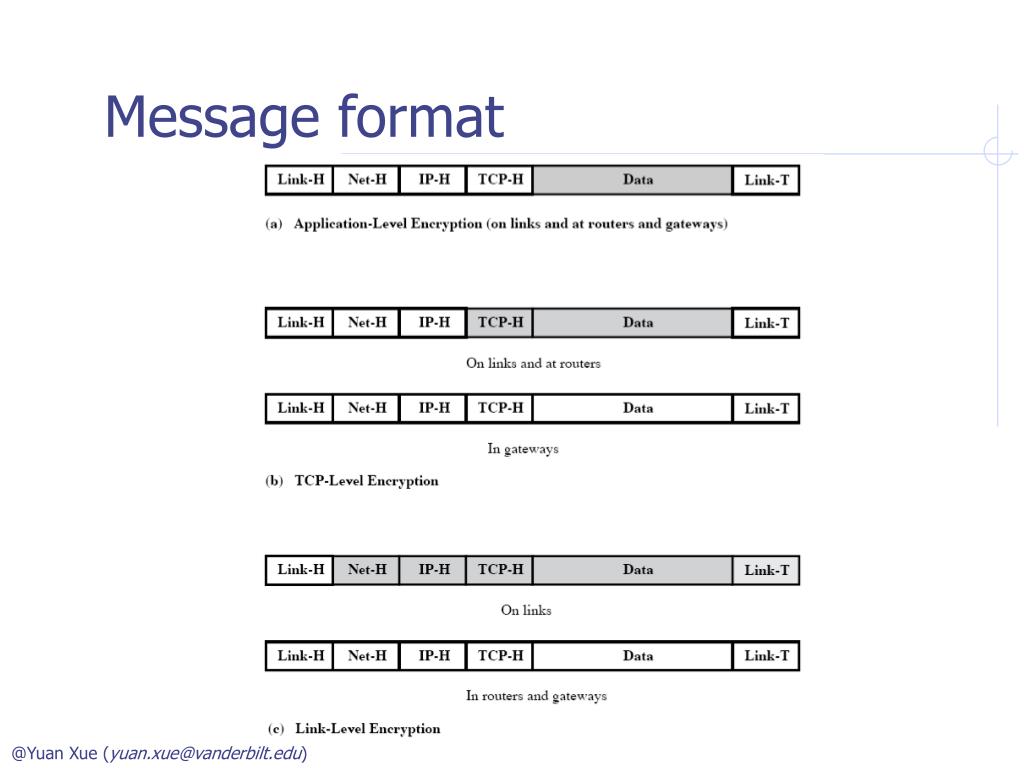

  24. Message format
