  1. TDC 461: Session 9 DePaul University Spring Quarter, 2001

  2. Agenda • FDDI • ATM • Internetworking • IPv6

  3. FDDI (Fiber Data Distributed Interface)

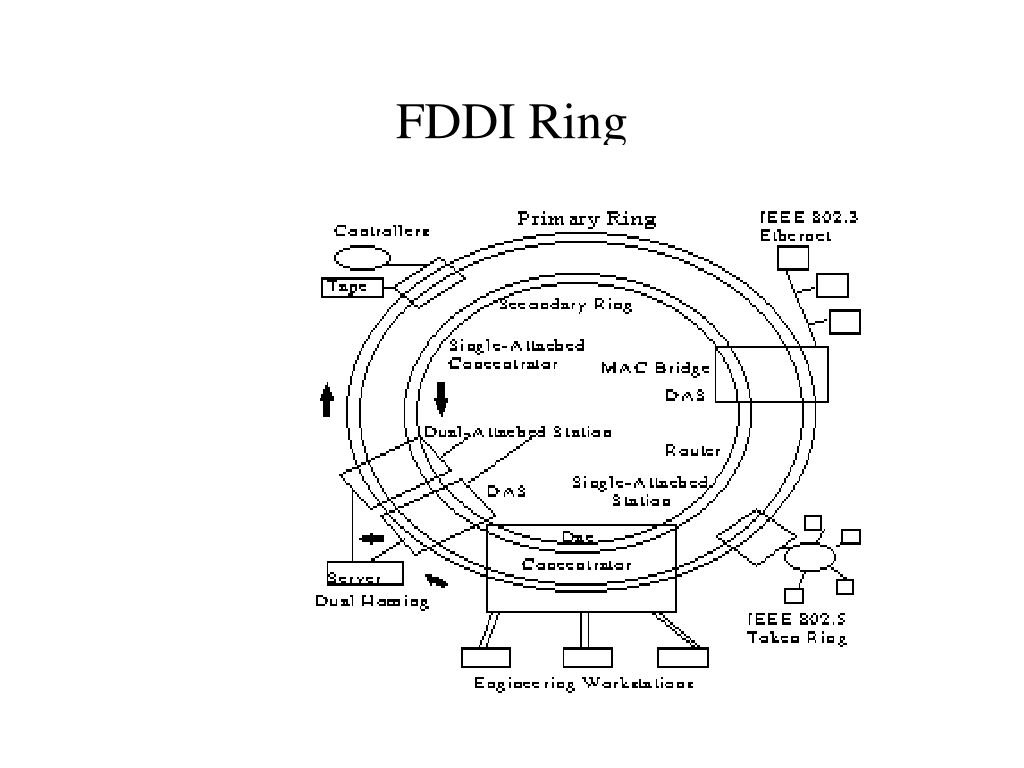

  4. FDDI Ring

  5. ATM

  6. ATM Details • Cell size fixed at 53 bytes (5 byte header and 48 byte payload). • Multiple logical connections over a physical connection. • Minimal error and flow control.

  7. ATM vs. OSI • ATM layers do not map well onto the OSI layers • The ATM Layer does many network functions (routing, switching, addressing) but also does a few data link functions (flow control and frame packaging).

  8. Logical Connections • A logical connection is called a virtual channel connection (VCC). • Virtual path connection (VPC)=> • VCCs are established for data transfer, control signaling, and network management and routing.

  9. Logical Connections, Cont. • VCCs can be established: • Between two end users (data and control signals). • Between end user and a network entity (user to network control signaling) (User-Network Interface) • Between two network entities (network management and routing signals) (Network-Network Interface)

  10. Characteristics of VCCs: • Quality of service • Switched virtual channel(circuit) and semi-permanent virtual channel connections • Cell sequence integrity • Traffic parameter negotiation and usage monitoring, such as average rate, peak rate, burstiness, peak duration.

  11. Connection Setup of Switched Virtual Channels • Connection setup actually handled by complex ITU protocol called Q.2931. • Nonetheless, basic idea is as follows: • 1. Must first acquire a virtual channel for signaling. To establish a channel, a request is sent over virtual path 0, virtual channel 5. • 2. Host issues a SETUP message, saying "Please establish a circuit." • 3. Network responds with a CALL PROCEEDING message. As the SETUP message propagates toward the destination, it is acknowledged at each hop by another CALL PROCEEDING. • 4. SETUP arrives at destination, and if connection accepted, a CONNECT is returned. As CONNECT propagates back through network, CONNECT ACKs are returned. • 5. Release of connection works similarly.

  12. Routing and Switching • No particular routing algorithm specified. • However, routes are only established for virtual path, not virtual channels. Once a path has been established, additional channels may be established over that path. This keeps routing table smaller (212 virtual paths, where each path can have 216 channels).

  13. Service Categories • 4 Kinds of traffic an can ATM network carry • 1. Constant Bit Rate (CBR) • 2. Variable Bit Rate (VBR ) • 3. Available Bit Rate (ABR) • 4. Unspecified Bit Rate (UBR)

  14. Quality of Service • User at transport layer and network agree upon a certain level of service. • This contract consists of three parts: • 1. • 2. • 3.

  15. Congestion Control • But congestion in ATM is tricky, because: • 1. Stop and wait • 2. Small header • 3. One policy for all traffic types will not work • 4. The high switching speeds in ATM can produce some serious bottlenecks REAL fast.

  16. Three ways ATM controls congestion: • 1. Admission control - • 2. Resource reservation - • 3. Rate-based congestion control -

  17. ATM Cells • 53 byte cell - small so switching can be performed in hardware. • Generic flow control - • Virtual path identifier - • Virtual channel identifier –

  18. Cell Payload Type • Payload type - user data or management data, congestion experienced or not. • For example: 000 User data cell, no congestion, cell type 0. • 001 User data cell, no congestion, cell type 1. • 010 User data cell, congestion experienced, cell type 0. • Cell loss priority -

  19. Header Error Control • Header error control - 8 bit CRC (x8 + x2 + x + 1) which error checks the first 4 bytes of the header (not the data!). ATM can perform single-bit error correction or multi-bit error detection. How? ATM uses an adaptation of the Hamming code technique known as Bose-Chadhuri-Hocquenghem (BCH) codes. • A 40-bit field (the cell header) needs 8 protection bits of BCH code to achieve 89% detection of multiple bits, and correction of a single bit.

  20. ATM Adaptation Layer (AAL) • The AAL is the transport layer of ATM. • AAL can provide the following services: • 1. • 2. • 3. • 4.

  21. Internetworking=> the process of enabling multiple and diverse networks to communicate with one another via bridges and/or routers. Subnetwork=> a constituent network of an internet. Making Networks Talk to Each Other

  22. Internetworking Accommodation • Different addressing schemes • Different maximum packet size • Different network-access methods • Different timeouts • Error recovery • Status Reporting • Routing techniques • User-access control • Connection/Connectionless

  23. Connection-Mode Operations • Intermediate Systems • For data transmission • End-to-end connections

  24. Connection-Oriented Routers • Intermediate internetworking systems that operate at Layer 3 of the OSI model. • Relaying=> • Routing=>

  25. Connectionless-Mode Operations • Different routes • Independent routing decisions

  26. Bridge Operations • aka MAC-level relay • Connectionless operation, but at layer 2 rather than layer 3 • Works with only like-network technologies (e.g., ethernet to ethernet)

  27. Bridges

  28. Why Use Bridges • Reliability=> • Performance=>

  29. Why Use Bridges, cont. • Security=> • Geography=>

  30. Bridge Functions

  31. Requirements of Internetworking

  32. Connectionless Internetworking (IP) • Advantages • Flexibility=> • Highly robust=> • Connectionless Transport Protocols=>

  33. ICMP • =>internet control message protocol

  34. ICMP Messages • Destination unreachable=> router is unable to complete message delivery • Time Exceeded=> lifetime of datagram has expired • Source-Squench=> simple version of flow control • Redirect=> redirect the PDU onto a better alternative route • Echo and echo-reply=> tests communication viability

  35. ICMP Messages, cont. • Timestamp and timestamp reply=> • Address mask request/reply=>

  36. Routing Protocols • Routing information=> • Routing algorithm=>

  37. Different Types of Routing • Routing between End Systems and routers • Routing between routers

  38. Border Gateway Protocol (BGP) • =>

  39. IPv6 (IP Next Generation) • Motivations • limitation of the 32-bit address field • 2-level address scheme wasteful (network number and host number) • IP model requires a unique network address even if network isn’t connected • Rapid growth in number of internets • Demand for unique Ips will outstrip availability • Desire to assign multiple Ips to a single host

  40. IPv6 New Developments • 128-bit address space • Better options management=> • Address AutoConfiguration=> • Addressing flexibility=>

  41. IPv6 New Developments, cont. • Support for resource allocation=> • Security capabilities=>
