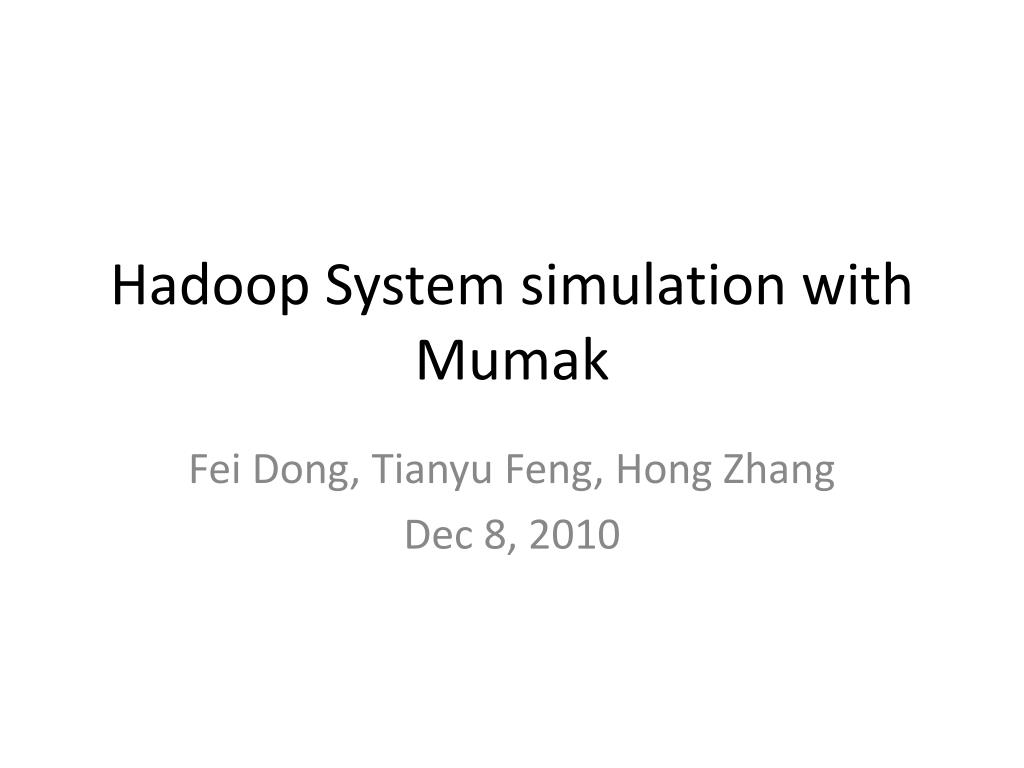

  1. Hadoop System simulation with Mumak Fei Dong, TianyuFeng, Hong Zhang Dec 8, 2010

  2. Agenda • Objective • Comparison between MRPerf and Mumak • Modifications to Mumak • Results and discussion • Conclusion

  3. Objective • Large scale distributed system has enormous amount of parameters. • Running time of a user program depends non-linearly on these parameters. • Predict the running time under various settings to help user choose the “optimal” setting. • We start by varyingthe most basic parameter: cluster size.

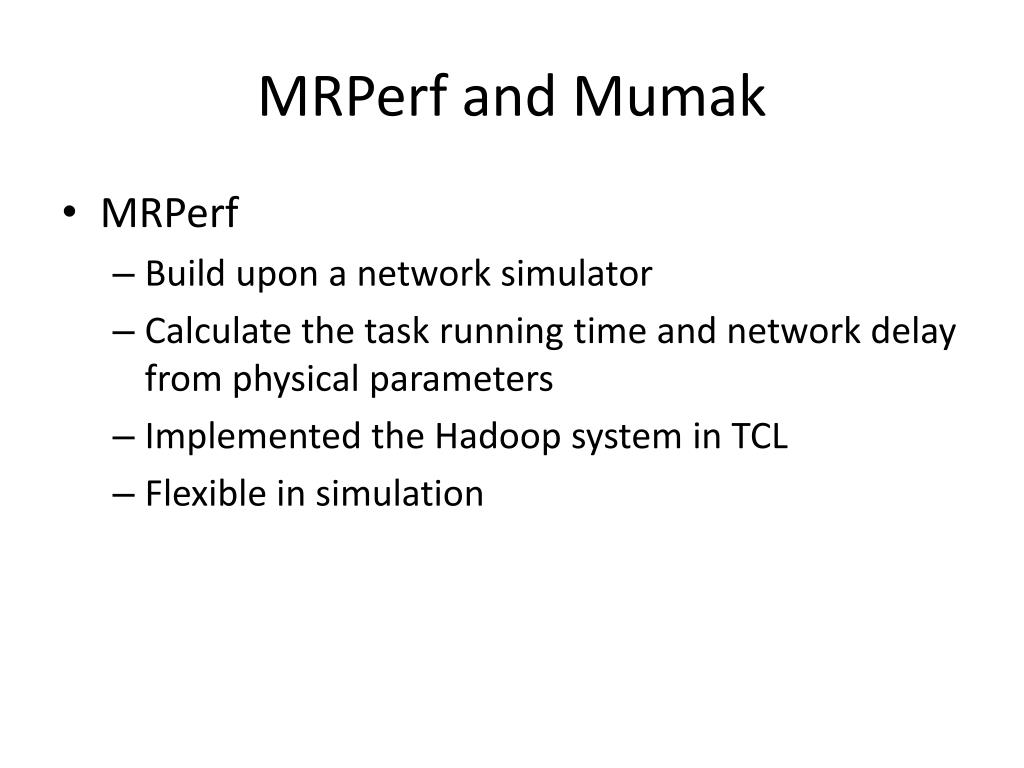

  4. MRPerf and Mumak • MRPerf • Build upon a network simulator • Calculate the task running time and network delay from physical parameters • Implemented the Hadoop system in TCL • Flexible in simulation

  5. MRPerf and Mumak Running Time Map slots per node Reduce slots per node 4 nodes double rack data center (Chunk Size = 64M) By MRPerf

  6. MRPerf and Mumak 4 nodes (Chunk Size = 64M) By Mumak

  7. MRPerf and Mumak • Mumak • Inherit the JobTracker class from Hadoop and only defines the simulation interface • Use trace file to build the cluster topology / job story, then feed it into simulator • Can only reproduce previous finished experiment • Designed to verify/debug Hadoop system design • Only simulate the Map/Reduce tasks, no sort phase and shuffle phase

  8. MRPerf and Mumak • The approach taken by MRPerf is better • Take in parameters to estimate running time • Can make predictions • MRPerf is simulating their implementation of Hadoop • The design of Mumak is better • Inherit source code from Hadoop • Easy to understand and to extend • We decide to take the good parts of MRPerf and then implement them in the framework of Mumak • Modify the Rumen log to change the parameters • Modify Mumak source code to add network simulator

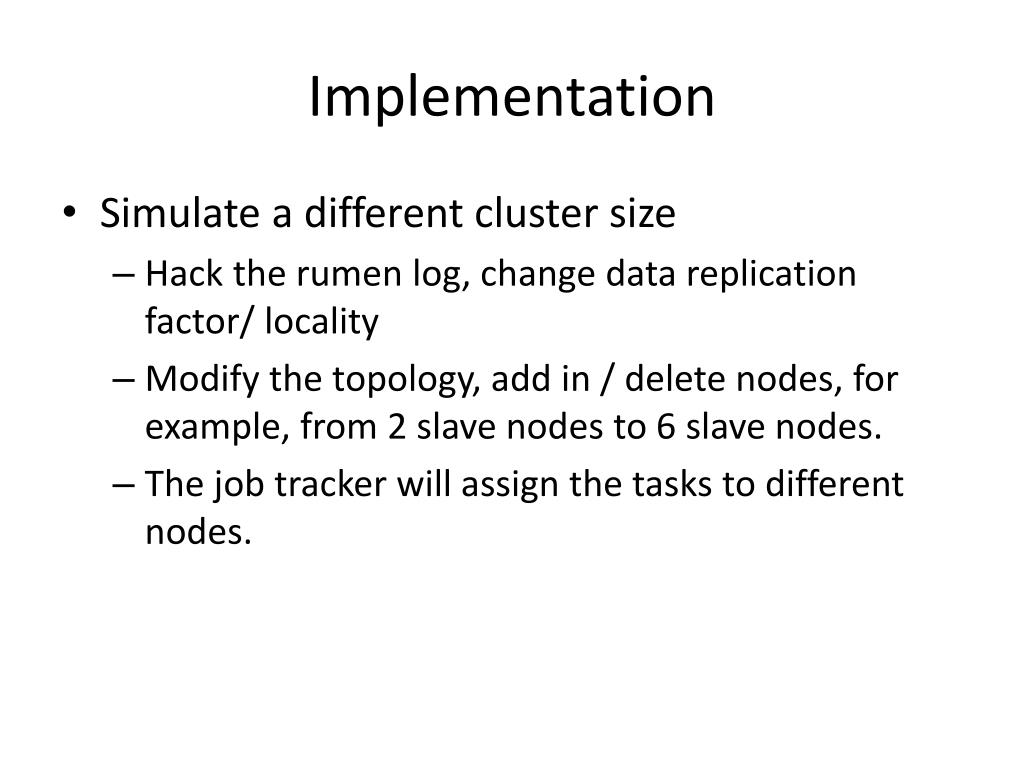

  9. Implementation • Simulate a different cluster size • Hack the rumen log, change data replication factor/ locality • Modify the topology, add in / delete nodes, for example, from 2 slave nodes to 6 slave nodes. • The job tracker will assign the tasks to different nodes.

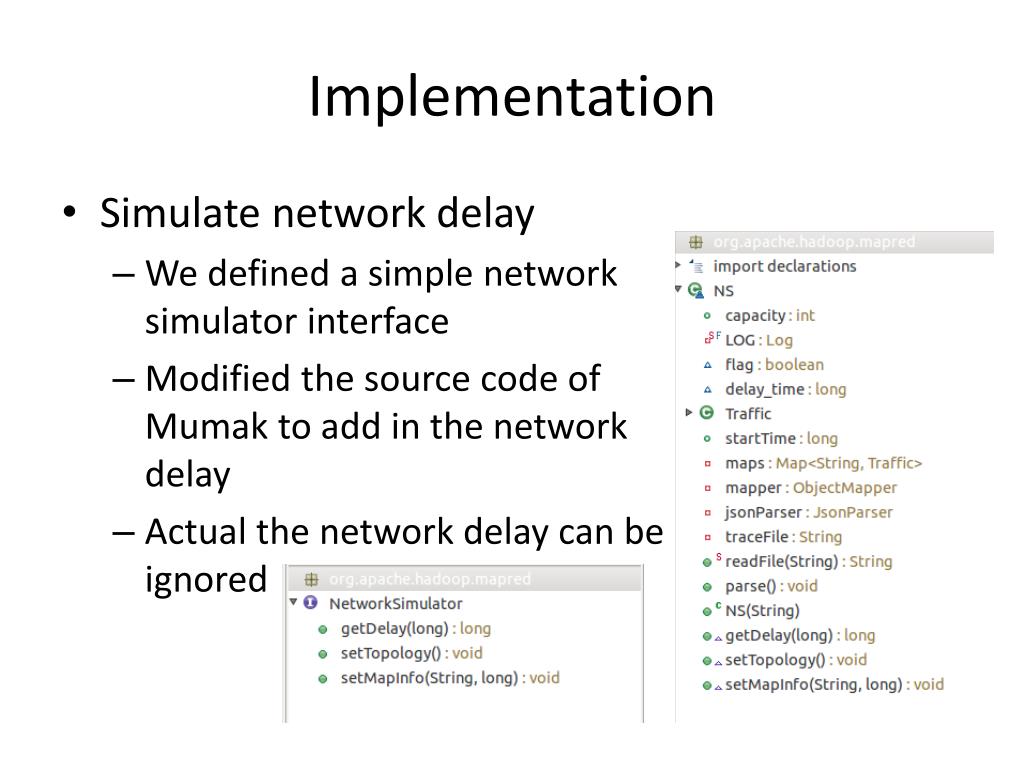

  10. Implementation • Simulate network delay • We defined a simple network simulator interface • Modified the source code of Mumak to add in the network delay • Actual the network delay can be ignored

  11. Results and Discussion

  12. Results and Discussion

  13. Results and Discussion

  14. Results and Discussion • Limitations and future work • Sort phase time not included • Only used single rack topology • Prediction is not always consistent for the same job with the same configuration

  15. Conclusion • Our objective is to predict the running time with different parameters • We take the methods of MRPerf and implemented it on Mumak • To have more flexible and accurate prediction, more modification to Mumak is needed • Independent from trace file • Solve the unstable problem

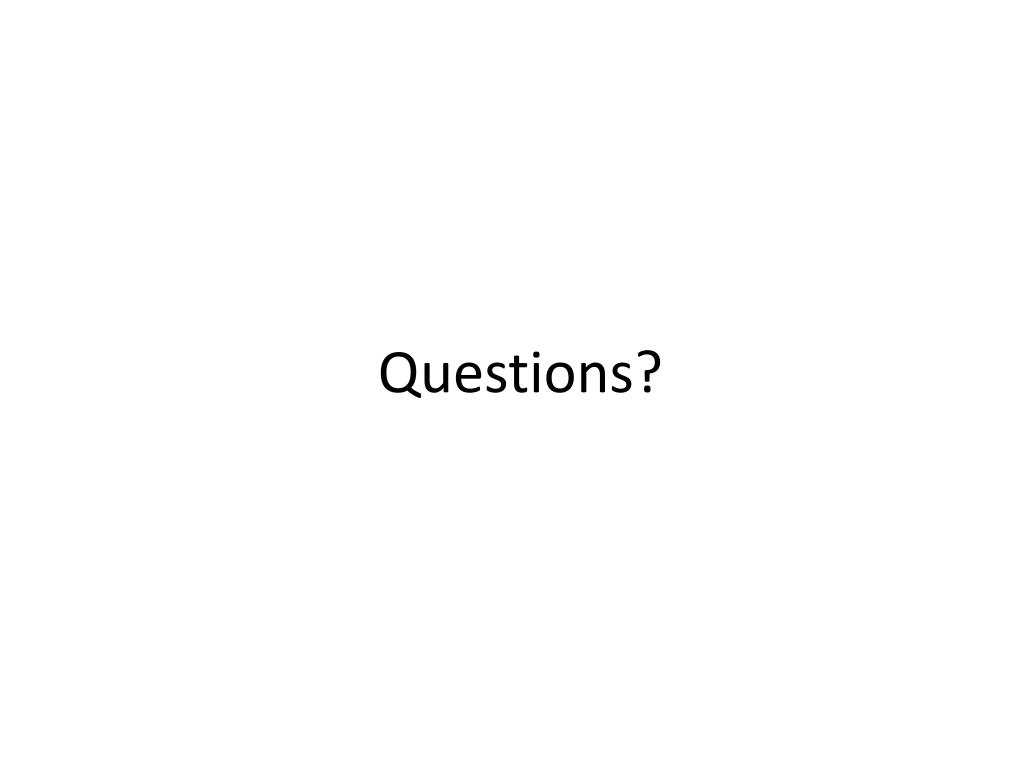

  16. Questions?
