  1. Theme 2: Modeling, Data Assimilationand Advanced Computing Stephen S. Weygandt Regional and Global Data Assimilation

  2. Longstanding expertise in the development and application of innovative regional and global data assimilation techniques • Rapid Update Cycle & Rapid Refresh • Local Analysis and Prediction System • Space-Time Mesoscale Analysis System • Global ensemble Kalman Filter assimilation Data Assimilation at ESRL ESRL Physical Sciences Review 9-12 March 2009

  3. Each hour, blend observations and background to get the freshest forecast Data types used Rawinsondes Wind Profilers (405, 915 MHz) RASS virtual temperatures VAD winds (WSR-88D radars) Aircraft (ACARS, TAMDAR) Surface (METAR), Buoy, Mesonet Precipitable water (GPS, GOES, SSM/I) GOES cloud-top pressure/temp GOES cloud-drift winds Radar reflectivity, lightning Ship reports/dropsondes Rapid Update Cycle 1-hr fcst 1-hr fcst 1-hr fcst Back- ground Fields Analysis Fields 3DVAR 3DVAR Obs Obs Time (UTC) 11 12 13 ESRL Physical Sciences Review 9-12 March 2009

  4. Expand high frequency updating concept to full North American domain Rapid Refresh • Use Gridpoint Statistical Interpolation (GSI) and WRF-ARW model • Hourly updating including use of novel observations (satellite clouds & moisture, lighting, air quality data) Rapid Refresh RUC ESRL Physical Sciences Review 9-12 March 2009

  5. A convection resolving nest with radar assimilation to initialize thunderstorms High Resolution Rapid Refresh • Use Gridpoint Statistical Interpolation (GSI) and WRF-ARW model • Detailed forecasts from 3-km HRRR for NextGen, Warn on Forecast, and other applications Rapid Refresh HRRR ESRL Physical Sciences Review 9-12 March 2009

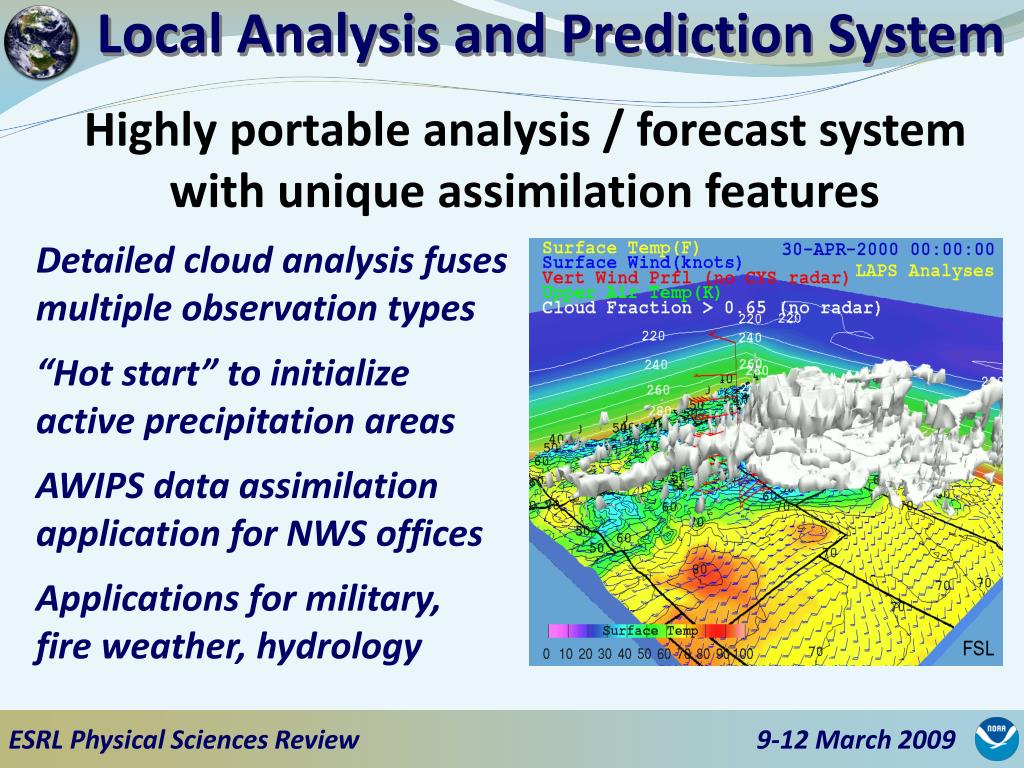

  6. Highly portable analysis / forecast system with unique assimilation features • Detailed cloud analysis fuses multiple observation types • “Hot start” to initialize active precipitation areas • AWIPS data assimilation application for NWS offices • Applications for military, fire weather, hydrology Local Analysis and Prediction System ESRL Physical Sciences Review 9-12 March 2009

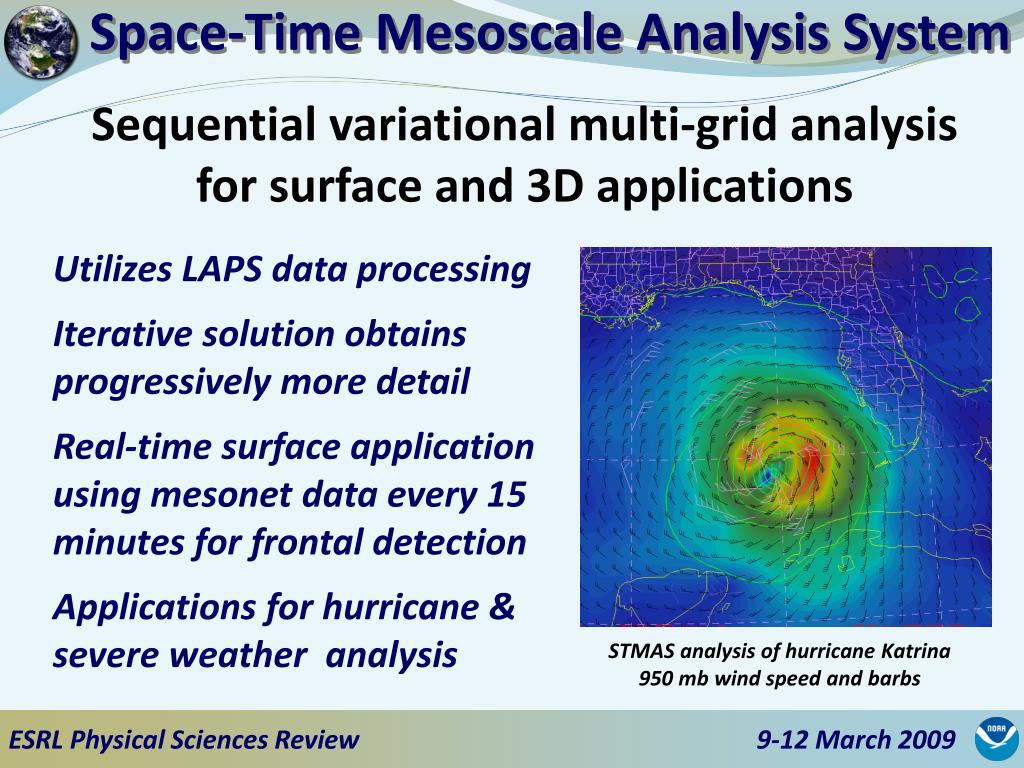

  7. Sequential variational multi-grid analysis for surface and 3D applications Space-Time Mesoscale Analysis System • Utilizes LAPS data processing • Iterative solution obtains progressively more detail • Real-time surface application using mesonet data every 15 minutes for frontal detection • Applications for hurricane & severe weather analysis STMAS analysis of hurricane Katrina 950 mb wind speed and barbs ESRL Physical Sciences Review 9-12 March 2009

  8. Placeholder – have material from Jeff Whitaker Global Ensemble Kalman Filter ESRL Physical Sciences Review 9-12 March 2009

  9. Success in assimilation of remotely sensed observations (radar, satellite, lightning) and development of advanced techniques • Cloud and hydrometeor analysis • Initializing convective storms • Use of surface observations • Flow-dependent error covariances Data Assimilation at ESRL ESRL Physical Sciences Review 9-12 March 2009

  10. Incremental adjustment based on information from multiple observation types Cloud and Hydrometeor Analysis adjustment to background observations data fusion ESRL Physical Sciences Review 9-12 March 2009

  11. Digital Filter-based reflectivity assimilation greatly improves thunderstorm prediction Initializing Convective Storms RUC radar assimilation NSSL radar verification No radar assimilation Hi-Res Rapid Refresh 6-h forecasts 06 UTC 16 Aug. 2007 ESRL Physical Sciences Review

  12. Placeholder – have material from AMB/FAB Use of surface Observations ESRL Physical Sciences Review 9-12 March 2009

  13. Placeholder – have material from Jeff Whitaker Flow-Dependent Error Covariances ESRL Physical Sciences Review 9-12 March 2009

  14. Continued development in collaboration with NCEP, JCSDA, NCAR, AFWA, CAPS, others on: • Advanced techniques (EnKF, hybrid approaches) • Specific observing systems, phenomena • (radar, satellite, surface – thunderstorms, clouds, hurricanes) • Foci: overall accuracy, specific applications (NextGen) Data Assimilation at ESRL ESRL Physical Sciences Review 9-12 March 2009

  15. Continued development in collaboration with NCEP, JCSDA, NCAR, AFWA, CAPS, others on: • Advanced techniques (EnKF, hybrid approaches) • Specific observing systems, phenomena • (radar, satellite, surface – thunderstorms, clouds, hurricanes) • Foci: overall accuracy, specific applications (NextGen) Data Assimilation at ESRL DA critical for successful prediction… ESRL Physical Sciences Review 9-12 March 2009

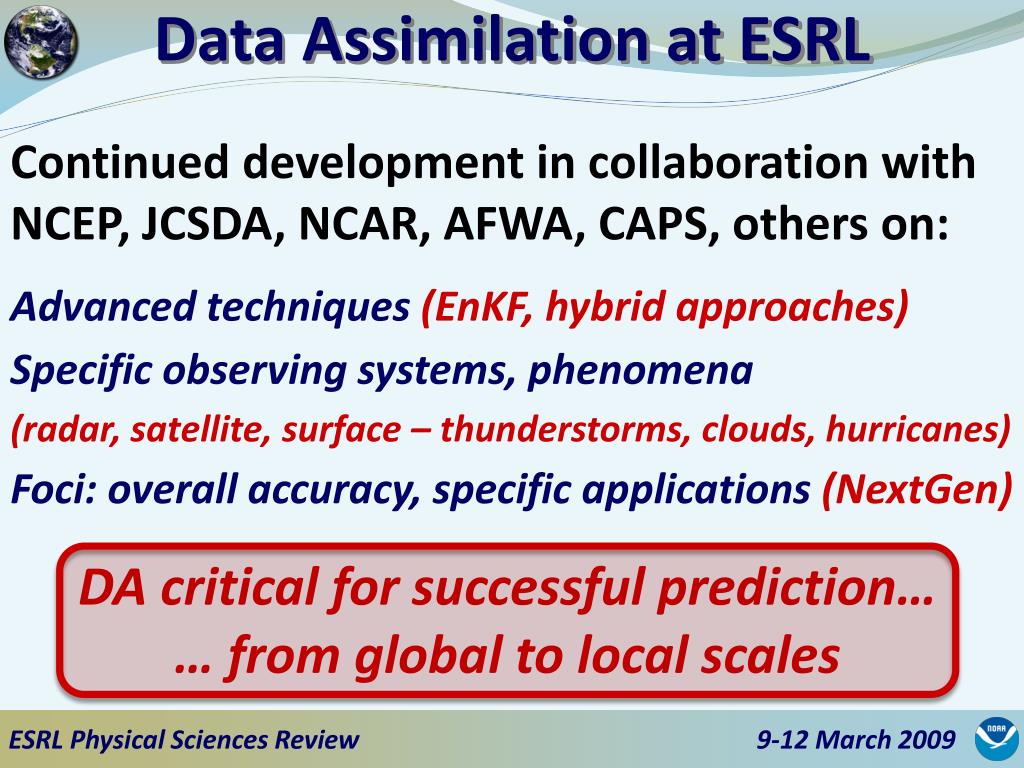

  16. Continued development in collaboration with NCEP, JCSDA, NCAR, AFWA, CAPS, others on: • Advanced techniques (EnKF, hybrid approaches) • Specific observing systems, phenomena • (radar, satellite, surface – thunderstorms, clouds, hurricanes) • Foci: overall accuracy, specific applications (NextGen) Data Assimilation at ESRL DA critical for successful prediction… … from global to local scales ESRL Physical Sciences Review 9-12 March 2009
