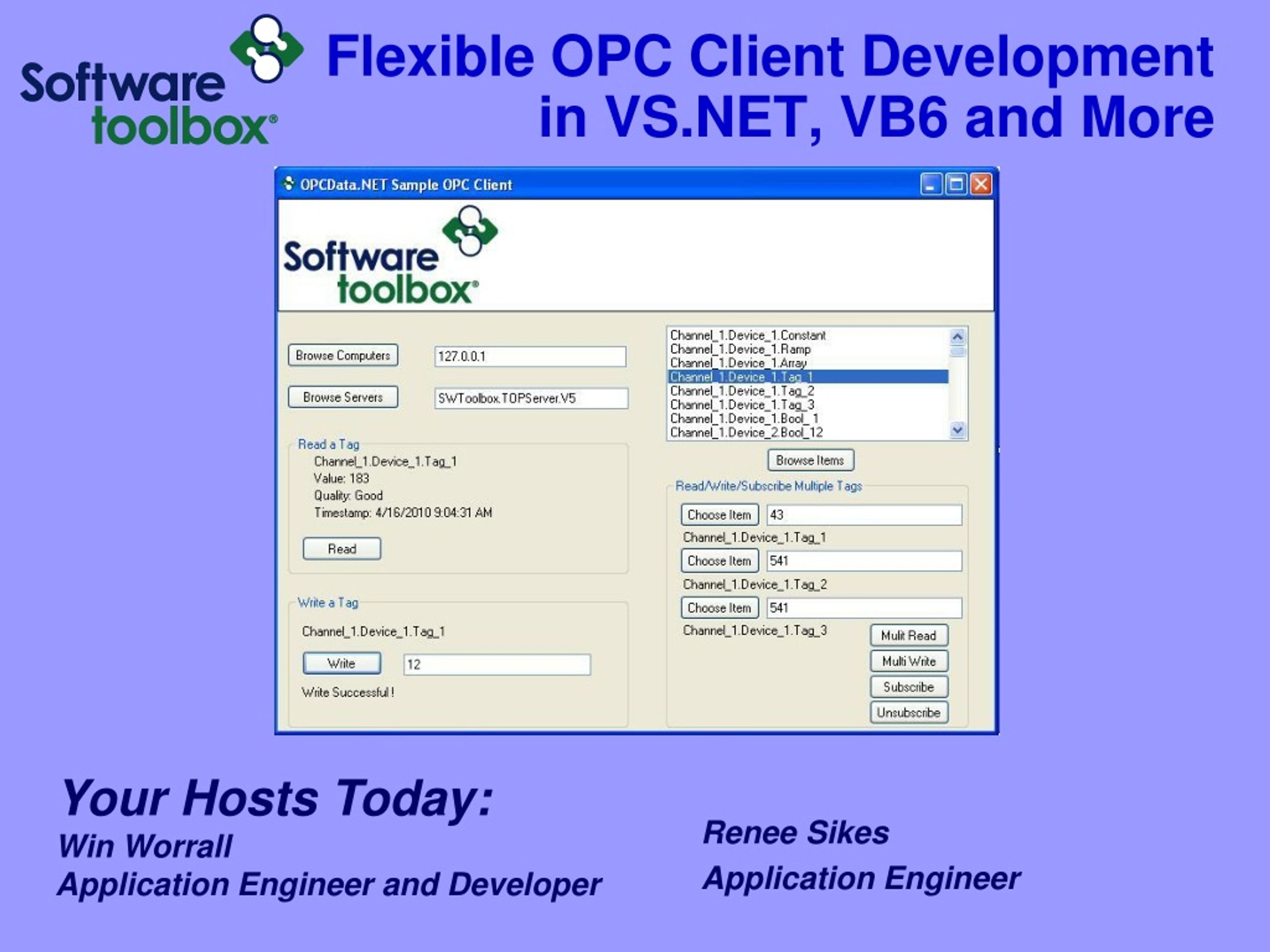

  1. Flexible OPC Client Development in VS.NET, VB6 and More Got a snazzy graphic mike – remove this and put it here! Your Hosts Today: Win Worrall Application Engineer and Developer Renee Sikes Application Engineer

  2. Flexible OPC Client Development in VS.NET, VB6 and More Agenda – 45 Minutes • OPC to Visual Studio.NET Overview • OPCData.NET Overview • Live training • Basic OPC functions • Reading, Writing, Subscribing • Browsing via code and dialog • Windows application • Web application • Connect to OPC UA Server • Discussion, Questions & Answers

  3. Using Visual Studio as an OPC Client • When you configure an HMI, you configure an OPC client connection to the OPC Server. • In VS.NET you need an OPC client plug-in tool • Good Design and Planning Still Required • Systems are only as good as weakest link Visual Basic to 1 OPC Server to 1-N Devices

  4. Client ToolPlug-In Putting it to Work Server Application

  5. OPC Client Plug-In Tools • Two Types – Free & Commercial • Free Wrapper Objects • Available from OPC Foundation • Requires understanding of key OPC interfaces and working with handles & collections • Community support only – no phone or email support • Commercial Software Tools • Variety of types & languages available • Details of OPC implementation abstracted for user • User focuses on “read this”, “write that” • Phone, email support usually included • OPC Certified solutions are available

  6. OPCData.NET • 100% managed, native 32 and 64 bit .NET component • Targeted to Microsoft .NET Framework 2.0 or 4.0 • Works with VS 2005 and higher. • Easy to use API • Abstracts much of the OPC work under the hood • Includes UA COM wrapper • Multi-threaded, non-blocking design for high performance • Self-optimizing • OPC Certified • OPCData-COM available for ActiveX users

  7. Your application with OPCData.NET Typical Usage • Can be used from within any tool based on the Microsoft .NET Framework • Thick-client .NET applications • Windows Forms or Windows Services • Thin-client web applications • Building your own web service • Your OPC-DA Server • Your OPC-DA Server

  8. OPCData.NET API • Three main assemblies • EasyOpcCommonNet.dll • Classes that hold common OPC information • EasyOpcDANet.dll • Classes that work with OPC Data Access • EasyOpcDANetForms.dll • Classes that work with OPC-DA from Windows Forms applications (browsing dialogs)

  9. OPCData.NET API • EasyDAClient is the main object that allows access to OPC DA servers • Browsing via dialog or code • Allows simultaneous operations • multiple threads for improved efficiency • Error handling • OPC-related errors, COM/DCOM errors, errors returned from OPC server, errors detected by OPCData.NET library • Helper properties for increased control • Synchronous and asynchronous operations, timeout and hold periods, percent deadband

  10. What is OPC UA? Unified Architecture A collaborative working effort of the OPC Foundation and it’s members since 1994 Objective to create a standard that Isn’t dependent on DCOM Can interoperate with non-Windows platforms Is more secure than the original OPC Removes redundant code across interfaces

  11. Value of OPC UA Data Access (DA) Batch Alarms & Events (A&E) • Common Usage Interface • DA, A&E, HDA, Security, etc OPCUnifiedArchitecture(UA) Commands Historical Data Access (HDA) XML Data Access (XMLDA) Security Data Exchange (DX)

  12. Value of OPC UA • Common Usage Interface • DA, A&E, HDA, Security, etc • Requires less programming: eliminates/combines many OPC calls OPC Classic OPC Unified Architecture • DA: • IOPCSyncIO::Read • IOPCAsyncIO::Read • IOPCAsyncIO2::Read • IOPCAsyncIO3::Read • IOPCItemIO::Read • A&E: • IOPCEventServer::GetConditionState • HDA: • IOPCHDA_SyncRead::ReadRaw • IOPCHDA_SyncRead::ReadProcessed • IOPCHDA_SyncRead::ReadAtTime • IOPCHDA_SyncRead::ReadModified • IOPCHDA_SyncRead::ReadAttribute • IOPCHDA_AsyncRead::ReadRaw • IOPCHDA_AsyncRead::AdviseRaw • IOPCHDA_AsyncRead::ReadProcessed • IOPCHDA_AsyncRead::AdviseProcessed • IOPCHDA_AsyncRead::ReadAtTime • IOPCHDA_AsyncRead::ReadModified • IOPCHDA_AsyncRead::ReadAttribute • Read • ReadHistory

  13. Value of OPC UA • Common Usage Interface • DA, A&E, HDA, Security, etc • Requires less programming: eliminates/combines many OPC calls • Built-in Security through certificate exchange • No DCOM! • Enterprise Data Communications • Enables data sharing across enterprise Unified Architectureenables communicationsand data sharingenterprise-wide Enterprise Servers Workstations Mobile Controllers Embedded

  14. Live Demo • Basic OPC functions • Reading and Multi Reads • Writing and Multi Writes • Subscribing • Browsing via code and dialog • Windows application (VB.NET) • Web application (C Sharp) • Connect to OPC UA Server • Smart Client Deployment

  15. What Tools are Needed? • For all usage scenarios • No tag count limits • No limits on # of clients, # of servers • OPCData.NET Single PC Usage License (p/n 41283501) $595 • OPCData.NET Single Developer + Runtime Free License (p/n 41283502) $995 • OPCData.NET Additional Developers License (p/n 41283503) $395 • OPC Data Client (p/n 41283508) $1495 • OPCData.NET • OPCData-COM • Support contracts also available (20% of List Price) • Contact us for upgrade pricing from OPCWebClient 3.02

  16. Contact Information & Other Learning Opportunities • Free Demo: http://opcwebclient.com/html/free_demo.asp • Questions later? • Win Worrall • wworrall@softwaretoolbox.com • 888-665-3678 x 1329 or 704-849-2773 x1329 • Renee Sikes • rsikes@softwaretoolbox.com • 888-665-3678 x 1328 or 704-849-2773 x 1328 • www.opcwebclient.com • Other learning opportunities • Recording of this webinar • Visit www.softwaretoolbox.com/webinars
