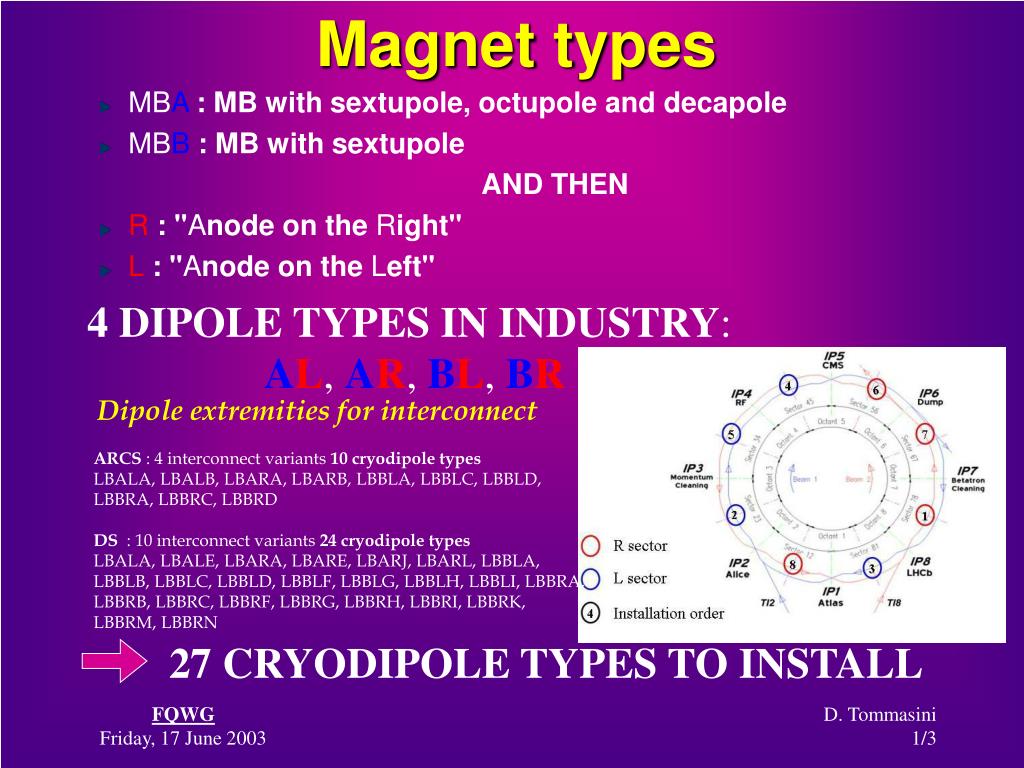

  1. Magnet types • MBA: MB with sextupole, octupole and decapole • MBB: MB with sextupole AND THEN • R : "Anode on the Right" • L : "Anode on the Left" 4 DIPOLE TYPES IN INDUSTRY: AL, AR, BL, BR • Dipole extremities for interconnect • ARCS : 4 interconnect variants 10 cryodipole types • LBALA, LBALB, LBARA, LBARB, LBBLA, LBBLC, LBBLD, LBBRA, LBBRC, LBBRD • DS : 10 interconnect variants 24 cryodipole types • LBALA, LBALE, LBARA, LBARE, LBARJ, LBARL, LBBLA, LBBLB, LBBLC, LBBLD, LBBLF, LBBLG, LBBLH, LBBLI, LBBRA, LBBRB, LBBRC, LBBRF, LBBRG, LBBRH, LBBRI, LBBRK, LBBRM, LBBRN 27 CRYODIPOLE TYPES TO INSTALL

  2. Main steps before installation WP01 COLD MASS RECEPTION Visual inspection, mechanical & electrical checks WP02-WP03 CRYOSTATING & PREPARATION Simplified electrical checks for IFS WP04-WP05-WP06-WP07 POWER TESTS WP08A STRIPPING-FIDUCIALIZATION-WMM Geometrical - Warm Magnetic measurements OK by CC (Cryodipole Coordinator) STORAGE CC provides ID-card x - MEB decides dipole class CC assigns dipole type and position in the tunnel WP08B-WP09 BEAM SCREEN Cartography of extremities – Electrical checks OK by Cryodipole Coordinator TO THE TUNNEL SMA18 SM18 PREV SMI2

  3. Sorting ? • Possible, to a certain extent, for the first octant • Thereafter no longer possible due to installation planning and storage capacities • Magnets with specific peculiarities can be put apart waiting for the good slot (~25/octant ?) • Definition of magnet classes (MEB): • Can be installed anywhere • To install in the middle of a half cell • Other (not close to another red magnets for ex.)
