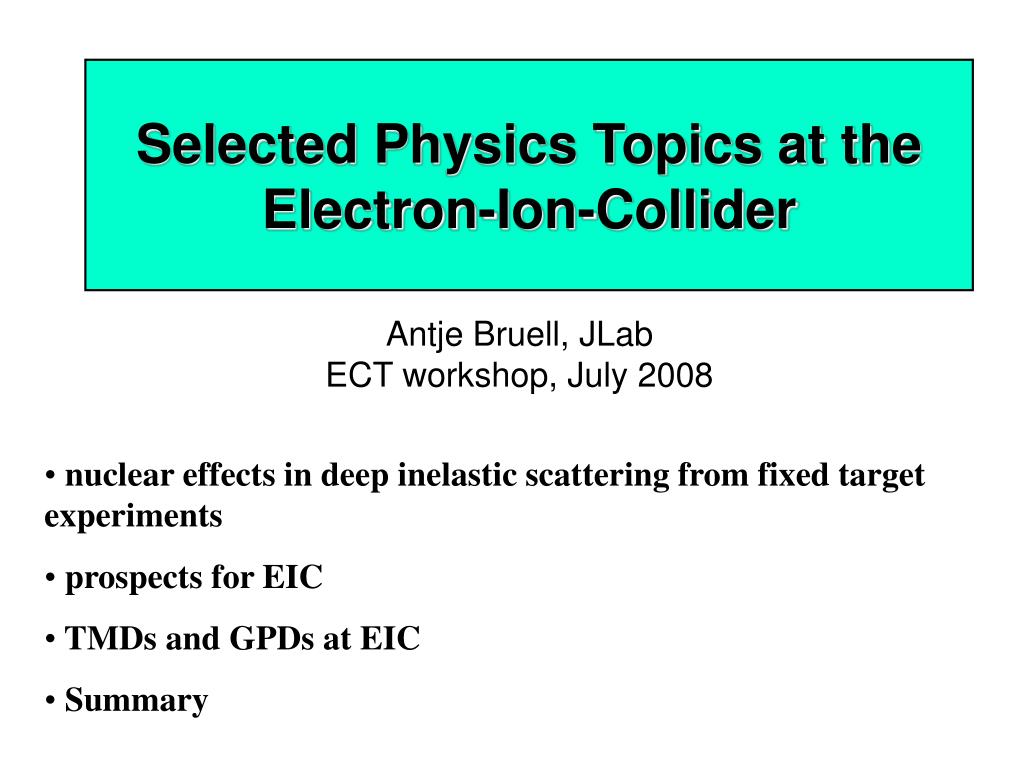

  1. Selected Physics Topics at the Electron-Ion-Collider Antje Bruell, JLab ECT workshop, July 2008 • nuclear effects in deep inelastic scattering from fixed target experiments • prospects for EIC • TMDs and GPDs at EIC • Summary

  2. x and A dependence of the EMC effect

  3. Q2 dependence of the EMC effect

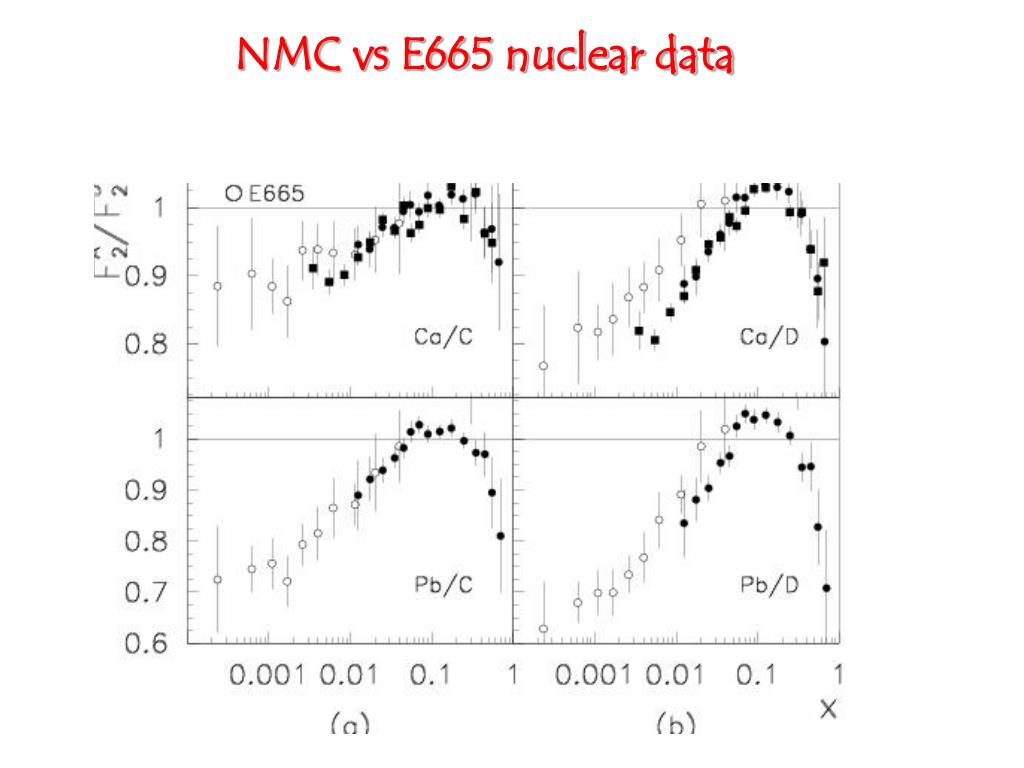

  4. NMC vs E665 nuclear data

  5. NMC experimental set-up cancellation of acceptance and luminosity

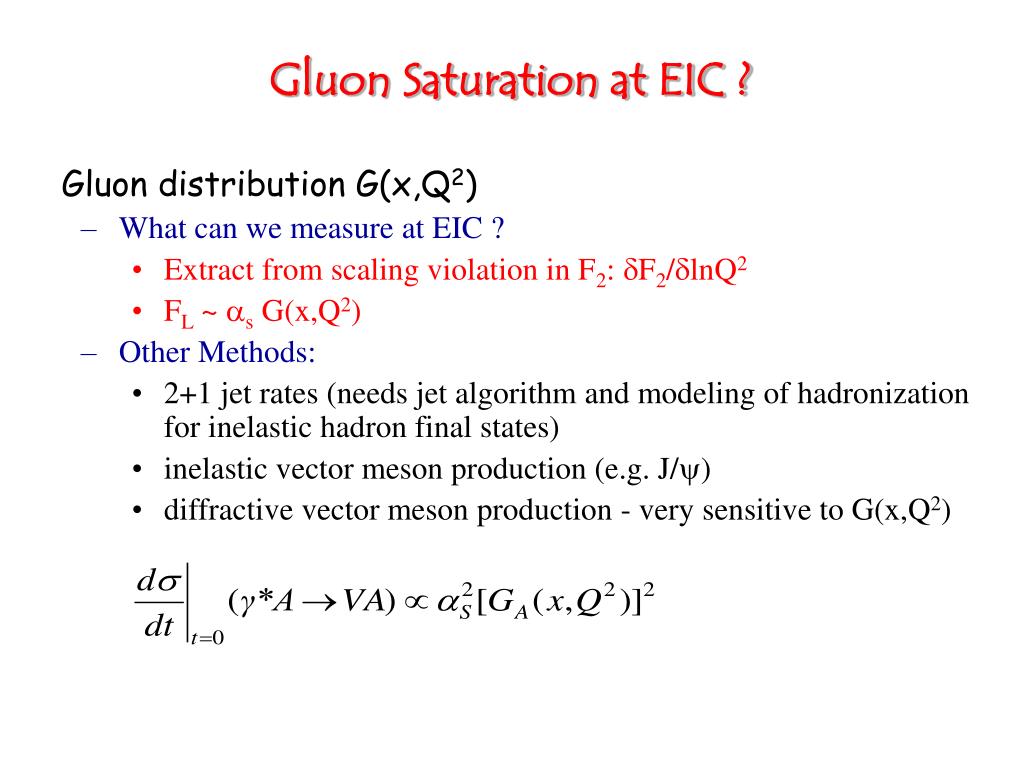

  6. Gluon Saturation at EIC ? Gluon distribution G(x,Q2) • What can we measure at EIC ? • Extract from scaling violation in F2: dF2/dlnQ2 • FL ~ as G(x,Q2) • Other Methods: • 2+1 jet rates (needs jet algorithm and modeling of hadronization for inelastic hadron final states) • inelastic vector meson production (e.g. J/) • diffractive vector meson production - very sensitive to G(x,Q2)

  7. Gluon Saturation at EIC ?

  8. The Gluon Contribution to the Nucleon Spin Antje Bruell, Jlab EIC meeting, MIT, April 7 2007 • Introduction • G from scaling violations of g1(x,Q2) • The Bjorken Sum Rule • G from charm production

  9. The Gluon Contribution to the Nucleon Spin Antje Bruell, Jlab EIC meeting, MIT, April 7 2007 • Introduction • G from scaling violations of g1(x,Q2) • The Bjorken Sum Rule • G from charm production

  10. The Gluon Contribution to the Nucleon Spin Antje Bruell, Jlab EIC meeting, MIT, April 7 2007 • Introduction • G from scaling violations of g1(x,Q2) • The Bjorken Sum Rule • G from charm production

  11. The Gluon Contribution to the Nucleon Spin Antje Bruell, Jlab EIC meeting, MIT, April 7 2007 • Introduction • G from scaling violations of g1(x,Q2) • The Bjorken Sum Rule • G from charm production

  12. Exclusive Processes: Collider Energies

  13. Exclusive Processes: EIC Potential and Simulations

  14. The Gluon Contribution to the Nucleon Spin Antje Bruell, Jlab EIC meeting, MIT, April 7 2007 • Introduction • G from scaling violations of g1(x,Q2) • The Bjorken Sum Rule • G from charm production

  15. The Gluon Contribution to the Nucleon Spin Antje Bruell, Jlab EIC meeting, MIT, April 7 2007 • Introduction • G from scaling violations of g1(x,Q2) • The Bjorken Sum Rule • G from charm production

  16. 5 GeV  50 GeV/c (e P) • Q2=4 GeV2 • 2= 0.2 • P’ tagging required • Exclusivity •  Resolution • () ≈ 0.3GeV2 without tagging • Transverse Imaging

  17. Exclusive charged pion production Assume: 100 days, Luminosity=10E34 Detect the neutron Ep=50 GeV Ee=5 GeV Missing mass reconstruction 10<Q2<15 10<Q2<15 15<Q2<20 15<Q2<20 35<Q2<40 35<Q2<40 Γ dσ/dt (ub/GeV2) Γ dσ/dt (ub/GeV2) 0.02<x<0.05 0.05<x<0.1 0.01<x<0.02 0.05<x<0.1 -t (GeV2) -t (GeV2) • Neutron acceptance limits the t-coverage • The missing mass method gives full t-coverage for x<0.2 Assume dp/p=1% (pπ<5 GeV)

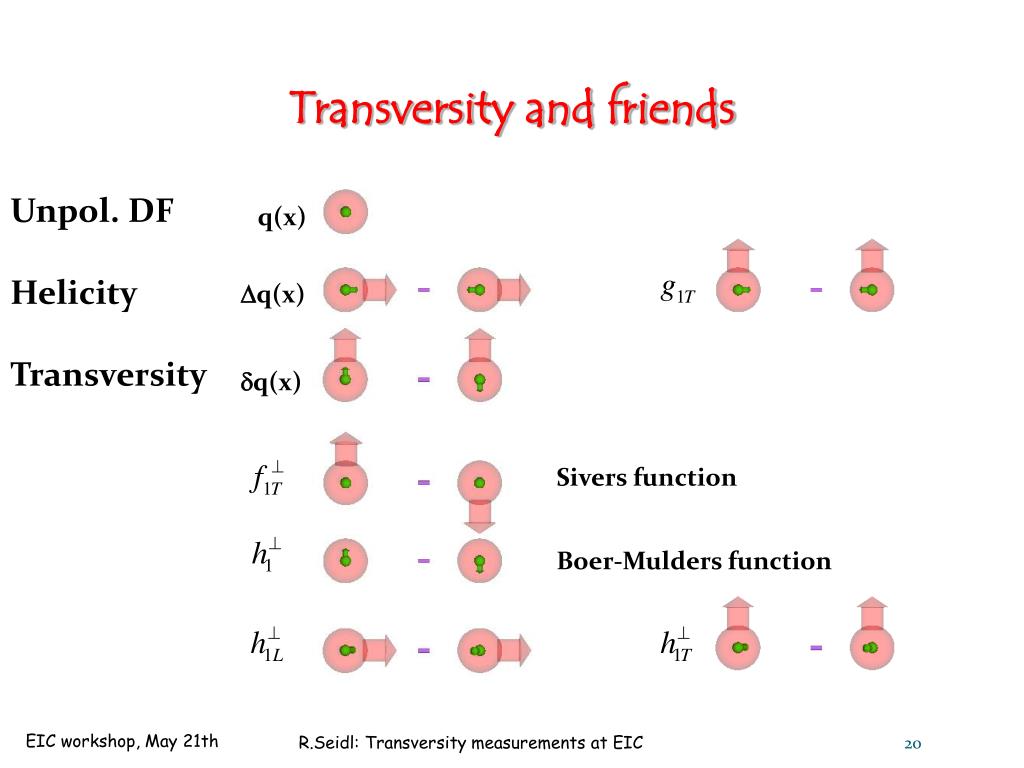

  18. Transversity and friends Unpol. DF Helicity Transversity q(x) Dq(x) dq(x) Sivers function Boer-Mulders function EIC workshop, May 21th R.Seidl: Transversity measurements at EIC 20

  19. First successful attempt at a global analysis for the transverse SIDIS and the BELLE Collins data HERMES AUTp data COMPASS AUT d data Belle e+ e- Collins data Kretzer FF  First extraction of transversity (up to a sign) Anselmino et al: hep-ex 0701006 R.Seidl: Transversity measurements at EIC 21 EIC workshop, May 21th

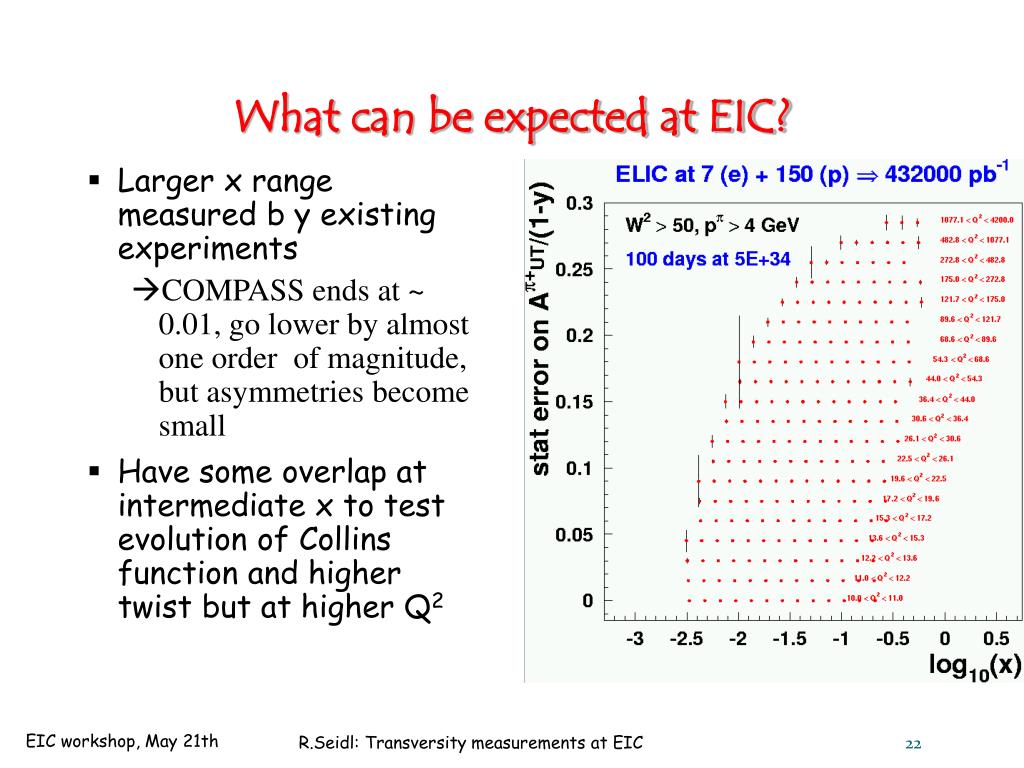

  20. What can be expected at EIC? • Larger x range measured b y existing experiments COMPASS ends at ~ 0.01, go lower by almost one order of magnitude, but asymmetries become small • Have some overlap at intermediate x to test evolution of Collins function and higher twist but at higher Q2 EIC workshop, May 21th R.Seidl: Transversity measurements at EIC 22

  21. The Gluon Contribution to the Nucleon Spin Antje Bruell, Jlab EIC meeting, MIT, April 7 2007 • Introduction • G from scaling violations of g1(x,Q2) • The Bjorken Sum Rule • G from charm production

  22. Sivers effect: Kaon electroproduction EIC CLAS12 • The low x of EIC makes it ideal place to study the Sivers asymmetry in Kaon production (in particular K-). • Combination with CLAS12 data will provide almost complete coverage in x

  23. Correlation between Transverse Spin and Momentum of Quarks in Unpolarized Target All Projected Data Perturbatively Calculable at Large pT Vanish like 1/pT (Yuan) ELIC

  24. Summary • eA data from fixed target experiments insufficient to constrain nuclear gluon distribution • large kinematic range of EIC will provide precision data on e.g. Q2 dependence of F2A/F2D and x dependence of FLA/FLD and will thus allow to investigate the low x phyiscs of saturation in the nucleus • high luminosity and large kinematic coverage will allow to do gluon and quark “tomography” via exclusive processes (measurement of fully differential cross sections for diffractive and non-diffractive channels) • single spin asymmetries will determine transverse spin effects and get access to orbital momenta
