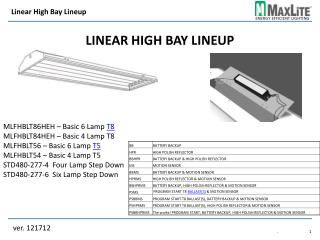

  1. Linear High Bay Lineup Linear High Bay Lineup MLFHBLT86HEH – Basic 6 Lamp T8 MLFHBLT84HEH – Basic 4 Lamp T8 MLFHBLT56 – Basic 6 Lamp T5 MLFHBLT54 – Basic 4 Lamp T5 STD480-277-4 Four Lamp Step Down STD480-277-6 Six Lamp Step Down • PROGRAM START T8 BALLAST(S) & MOTION SENSOR ver. 121712

  2. Linear High Bay Lineup Features & Benefits Battery Backup Operation; When AC power fails, Philips Bodine LP emergency ballasts immediately switch into emergency mode and, depending on LP model and fixture, operate one or two lamps for a minimum of 90 minutes. They provide up to 1325 lumens initial emergency light output. http://www.bodine.com/downloads/broch/LP.brochure.L0000043.pdf High Polish Reflector; This high reflectance material will meet 91% efficiency requirements High Bay 360º Lens • Best choice for 15 to 45 ft (4.57 to 13.72 m) mounting heights • 15 to 20 ft (4.57 to 6.10 m) radial coverage overlaps area lit by a typical high bay fixture • Large Motion (e.g. walking) detection up to a 35 ft (10.76 m) mounting height • Extra Large Motion (e.g. forklifts) detection up to a 45 ft (13.72 m) mounting height

  3. Linear High Bay Lineup Features & Benefits Step Down Transformer GE LFL ProLine™ Magnetic Core & Coil Ballast • Precision-wound coils, ensuring even heat dissipation and the highest electrical integrity. • Non-Isolated Autotransformer designed specifically for lighting applications to step down 480V to 277V or 347V to 200V with universal voltage 120-277V ballasts. • For use with one or more electronic 277V or universal voltage ballasts within max total system power of autotransformer • 480Vrms Input, 60Hz Only, 277Vrms Full Load Output • For loads with total system power <250VA (480V) or <180VA (347V) • Internal Auto Reset Thermal Protector Rated 100C • For use on single phase • Five Year Limited Warranty • 93% electrical efficiency

  4. Linear High Bay Lineup Certifying Bodies Yes - UL Yes - Rohs Yes - Cul No - Energy Star No - DLC No - Lighting Facts
