  1. Logistics Master Data Design Manufacturing SAP Best Practices Baseline V1.603

  2. This data is created in BB 104 Product HierarchyLogistics 00001 Top Level Level 1 Level 2 00001P0001 Products A 00001P0002 Products B Level 3 00001P000100000001 Products A.01 (MTO) 00001P000100000002 Products A.02 (MTS) 00001P000100000003 Parts A.03 00001P000200000001 Products B.01 00001P000200000002 Products B.02 All material master records assigned to product hierarchy level 3 NOT USED IN BL SCOPE SO FAR CO-PA SOP Interface Product Hierarchy Level 3 Product GroupLevel 2

  3. Product GroupManufacturing / Trading This data is created in BB 143 Plant BP01 Level 1 00001P001 Products A Level 2 00001P000100000001 Products A.01 (MTO) 00001P000100000002 Products A.02 (MTS) 00001P000100000003 Parts A.03 Plant BP01 Material*: F226 F100-M1 F1000-P1 Material*: F126 F29 Material*: H11 S23 S25 * Not all materials used are assigned to sample product groups CO-PA SOP Interface Product Hierarchy Level 3 Product GroupLevel 2

  4. Classification Class & Characteristics for Batches This data is created in BB 117 Class - 023 YB_EXP_DATE_001 Batch Products with Expiration Date Class - 023 YB_EXP_DATE_002 Batch Search class with expiration date Char.LOBM_RLZRemaining Shelf Life for Batch Char.LOBM_LFDATBatch Determin. Delivery Date Char.LOBM_VFDATExpiration date, shelf life Char.LOBM_VFDATExpiration date, shelf life Used in all processes which are using batch materials Class - 023 YB_BATCHBatch FIFO1 Char.YB_BATCH_NUMBERBatch Number Char.YB_SUPPLIER_BATCH_NUMBERVendor Batch Number

  5. Class 032 R 2 R _ CL _ REL _ CEKKO PO Release at Header Level Char Char Char R 2 R _ PURCH _ ORD _ TYPE R 2 R _ PURCH _ ORD _ VALUE R 2 R _ PURCH _ GRP Order type ( Purchasing ) Total net order value Purchasing group Values Values Values FO Framework Amount and Local Purchase Group NB Standard PO Currency UB Stock transport order This data is created in BB 104 Classification Class & Characteristics for PO Release Procurement Processes using PO release strategy

  6. This master data is created in BB 152 Trading Goods Product Structure H12 Trading Good, Reorder Point, Reg. Trading (HAWA-VB) H11 Trading Good, Reg.Trading(HAWA-PD) Used in all MM/SD Scenarios for Man (reused from Trade).* H12 Trading Good, Reorder Point, Third Party (HAWA-VB) H11 Trading Good, Third Party(HAWA-PD) Used in Third Party w. / w/o Shipping Notification Master Data Enhancement in BB (126 – Layer 2 Used in all MM /SD Scenarios for Man. (reused from Trade) showing (Serial Nos) H20 Trading Good, Reorder Point, Serial No(HAWA-VB) SN Master Data Enhancement in BB (117 – Layer 2 Used in all MM /SD Scenarios for Man. (reused fromTrade)(Batch Man. Funct.) H20 Trading Good, Reorder Point,Batch-FIFO(HAWA-VB) H21 Trading Good, Reorder Point, Batch Exp.Date(HAWA-VB) B B H14 Trading Good, Bought-In (HAWA-PD) Used in Sales Bought in Item Serial Numbers SN Batch Management B * Except Sceanrios: Third Party Order Proc. and Sales Bought In item

  7. This master data is created in BB 152 Returnables Product Structure L001 Empties(LEIH-ND) Returnables Processing

  8. S2301 Semifinihed GoodPhantom Ass.,Plastic (HALB-50-PD) SC R1301 RAW Mat., Plastic (ROH-PD) R1401 RAW Mat., Plastic (ROH-PD) S2302 Semifinihed GoodPhantom Ass.,Metal (HALB-50-PD) SC R1302 RAW Mat., Plastic (ROH-PD) R1402 RAW Mat., Plastic (ROH-PD) S2303 Semifinihed GoodPhantom Ass.,Golden (HALB-50-PD) SC R1303 RAW Mat., Golden (ROH-PD) R1403 RAW Mat., Golden (ROH-PD) Configurable CF Subcontracting SC This data is created in BB 143 & 147 MTO with Variant ConfigurationProduct Structure F1000-M1 – Metal with Normal Shrink Wrap F1000-P1 – Plastic with Normal Shrink Wrap F1000-G1 – Golden with Normal Shrink Wrap F1000-G2 –Golden with Special Packaging F100 Finished Good MTO VCConfigurable (KMAT-PD) MTO with Variant Configuration CF S21 Semifinsihed Good, Repetitive Manuf. Initial (HALB-20 PD)  (HALB-PD) K-Item Category Class-Component 1 Class-Component 2 S25 Semifinished Good, Repetitive Manuf. (HALB-20-PD) R20 Raw Material (ROH-PD) R28 Raw Material,Packaging Foil (ROH-PD) R27 Raw Material,Packaging Box (ROH-PD) Class: YB_CL_TYPE_COMP_1 (S2201, S2202, S2203) VC Dependencies:YB_PACKAGING_1= NORMAL VC Dependencies:YB_PACKAGING_2= SPECIAL Master Data Enhancement in BB 149 Layer 2 Repetitive Manufact uring Class: YB_CL_TYPE_COMP_2 (S2301, S2302, S2303) S2201 Semifinihed GoodPhantom Ass.,Plastic (HALB-50-PD) R1601 RAW Mat., Plastic (ROH-PD) R1701 RAW Mat., Plastic (ROH-PD) R1801 RAW Mat., Plastic (ROH-PD) S2202 Semifinihed GoodPhantom Ass.,Metal (HALB-50-PD) Master Data Enhancement in BB 138 Layer 2 MM Sub-contracting R1602 RAW Mat., Metal (ROH-PD) R1702 RAW Mat., Metal (ROH-PD) R1802 RAW Mat., Metal (ROH-PD) S2203 Semifinihed GoodPhantom Ass.,Goldenl (HALB-50-PD) R1603 RAW Mat., Golden (ROH-PD) R1703 RAW Mat., Golden (ROH-PD) R1803 RAW Mat., Golden (ROH-PD)

  9. This data is created in BB 147 MTO Production – Variant ConfigurationBOM Allocation Variant Links to maximum material BOM F1000 Finished Good MTO VCConfigurable (KMAT-PD) F1000-M1 Finished Good Material variant, Metal,Foiled(FERT-PD) F1000-P1 Finished Good Material variant, Plastic,Foiled(FERT-PD) F1000-G1 Finished Good Material variant, Golden,Foiled(FERT-PD) F1000-G2 Finished Good Material variant, Golden,Boxed(FERT-PD) CF Type of Material Metallic - Component 1 Type of Material Plastic - Component 1 Type of Material Golden - Component 1 Type of Material Golden - Component 1 K-Item Category Class-Component 1 Class-Component 2 Type of Material Metallic - Component 2 Type of Material Plastic - Component 2 Type of Material Golden - Component 2 Type of Material Golden - Component 2 S25 Semifinished Good, External Procurement (HALB-20-PD) S25 Semifinished Good, External Procurement (HALB-20-PD) S25 Semifinished Good, External Procurement (HALB-20-PD) S25 Semifinished Good, External Procurement (HALB-20-PD) S25 Semifinished Good, External Procurement (HALB-20-PD) R20 Raw Material (ROH-PD) R20 Raw Material (ROH-PD) R20 Raw Material (ROH-PD) R20 Raw Material (ROH-PD) R20 Raw Material (ROH-PD) S21 Semifinsihed Good, Repetitive Manuf. Initial (HALB-20 PD)  (HALB-PD) S21 Semifinsihed Good, Repetitive Manuf. Initial (HALB-20 PD)  (HALB-PD) S21 Semifinsihed Good, Repetitive Manuf. Initial (HALB-20 PD)  (HALB-PD) S21 Semifinsihed Good, Repetitive Manuf. Initial (HALB-20 PD)  (HALB-PD) S21 Semifinsihed Good, Repetitive Manuf. Initial (HALB-20 PD)  (HALB-PD) R28 Raw Material,Packaging Foil (ROH-PD) R27 Raw Material,Packaging Box (ROH-PD) Shrink-Wrap Packaging Shrink-Wrap Packaging Shrink-Wrap Packaging Packaging Box Configurable CF

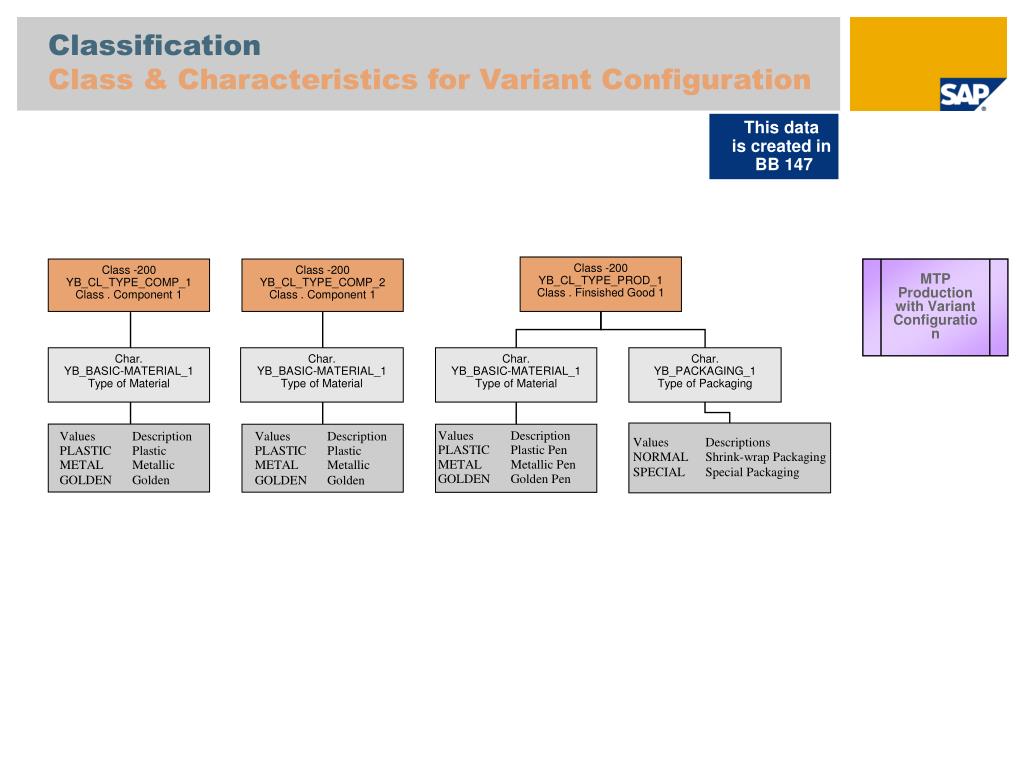

  10. ClassificationClass & Characteristics for Variant Configuration This data is created in BB 147 Class -200YB_CL_TYPE_PROD_1 Class . Finsished Good 1 Class -200YB_CL_TYPE_COMP_1Class . Component 1 Class -200YB_CL_TYPE_COMP_2Class . Component 1 MTP Production with Variant Configuration Char.YB_BASIC-MATERIAL_1 Type of Material Char.YB_BASIC-MATERIAL_1 Type of Material Char.YB_BASIC-MATERIAL_1 Type of Material Char.YB_PACKAGING_1 Type of Packaging Values Description Values Description Values Description Values Descriptions PLASTIC Plastic Pen PLASTIC Plastic PLASTIC Plastic NORMAL Shrink - wrap Packaging METAL Metallic Pen METAL Metallic METAL Metallic SPECIAL Special Packaging GOLDEN Golden Pen GOLDEN Golden GOLDEN Golden

  11. B S24 Semifinished Good Batch-FIFO, Liquid (HALB-PD) FIFO FIFO FIFO B B B This master data is created in BB 143 MTS Production - Process IndustryProduct Structure PI-Sheet not included in process Exp. date F29 Finished Good MTS PI (FERT-PD) MTS Production – Process Industry B Master Recipe F29 All SD processes For Manu-facturing* 10 - Final Operation R15 RAW Material (ROH - PD) FIFO R09 RAW MaterialBatch FIFO (ROH - PD) Master Recipe S24 All other Raw Materials used in MM / Procurement Processes 10 - Operation 1 20 - Operation 2 R19 RAW MaterialBatch FIFO, Lean QM (ROH - PD) LQ Bulk Material R30 RAW Material, Batch FIFO, Reorder Point (ROH - VB) Lean QM LQ B Batch Management * Except Sceanrios: Third Party Order Proc. Sales Bought In item, Returnables Processing

  12. Routing Subassembly10 Mechan. Processing CNC This master data is created in BB 143 MTS Production - Discrete IndustryProduct Structure MTS Production – Discrete Industry Routing FERT 10 Assembly 20 Final Acceptance 30 Painting (Ext. Processsing) 40 Packaging 50 GR w. Serial No Ass. All SD processes For Man. ** FIFO F126 Finished Good, MTS-DI,Batch-FIFO, Serial No (FERT-PD) B EP PP-Subcon. (External Processing) Master Data Enhancement in BBs in Layer 2 Rep. Manufactr. SN RL* RW Rework Processes *Can be used but not particulary explained in process FIFO S21 Semifinsihed Good, Repetitive Manuf. Initial (HALB-20 PD)  (HALB-PD) S22 Semifinihed GoodPhantom Ass. (HALB-50-PD) R122 RAW Material Batch-FIFO, Import(ROH-PD) B S23 Semifinished GoodSubcontracting initial (HALB-20-PD) (HALB-30-PD) S25 Semifinsihed Good,Ext. Procurement (HALB-20-PD) S124 Semifinsihed Good Subassembly (HALB - PD) R20 RAW Material(ROH - PD) R27RAW Material Packaging Box (ROH - PD) SC CP R128 RAW Material Consignment (ROH - PD) R120 RAW Material QualityManaged (ROH - PD) QM IM R16 RAW Material (ROH-PD) R13 RAW Material (ROH-PD) R124 Raw Material,Consumption,FixedBin (ROH-VB) FB R17 RAW Material (ROH-PD) R14 RAW Material (ROH-PD) SN Serial Nos Import IM Master Data Enhancement in BB 127 Layer 2 Master Data Enhancement in BB 139 Layer 2 Fixed Bin Master Data Enhancement in BB 138 Layer 2 FB Quality Mgmt QM R18 RAW Material (ROH-PD) Rework RW Subcontracting SC Procurement & Consumpt. of Consigned Inventory Quality Management for Procurement with vendor Evaluation MM Subcon-tracting All other Raw, SF- Goods used in MM / Procurement Processes External processing EP B Batch Management Consignment Processing CP Revision Level RL * Except Sceanrios: Third Party Order Proc. and Sales Bought In item

  13. This master data is created in BB 143 Repetitive Manufacturing Product Structure S21 Semifinished Good, Repetitive Manuf. (HALB-PD) Repetitive Manu-facturing Master Data Enhancement in BB 149Layer 2 Routing Rep. Manufacturing 10 Assembly Repetitive Raw Material used in MM / Procurement Processes for Man. R12 RAW Material, Rep. Manufacturing (ROH - PD)

  14. Routing Subassembly10 Mechan. Processing CNC MTO Production – without Variant Config.Product Structure This master data is created in BB 143 MTO Production – Discrete Industry Routing FERT 10 Assembly 20 Final Acceptance 30 Painting (Ext. Processsing) 40 Packaging 50 GR w. Serial No Ass. FIFO F226 Finished Good, MTS-DI,Batch-FIFO, Serial No (FERT-PD) B EP* SD processes in Layer 1/2 ** Master Data Enhancement in BBs in Layer 2 Rep. Manufactr. SN RL* RW* *Can be used but not particulary explained in process FIFO S21 Semifinsihed Good, Repetitive Manuf. Initial (HALB-20 PD)  (HALB-PD) S22 Semifinihed GoodPhantom Ass. (HALB-50-PD) R122 RAW Material Batch-FIFO, Import(ROH-PD) B S23 Semifinished GoodSubcontracting initial (HALB-20-PD) (HALB-30-PD) S25 Semifinsihed Good,Ext. Procurement (HALB-20-PD) S224 Semifinsihed Good Subassembly (HALB - PD) R20 RAW Material(ROH - PD) R27RAW Material Packaging Box (ROH - PD) SC CP R128 RAW Material Consignment (ROH - PD) R120 RAW Material QualityManaged (ROH - PD) QM IM R16 RAW Material (ROH-PD) R13 RAW Material (ROH-PD) R124 Raw Material,Consumption,FixedBin (ROH-VB) FB R17 RAW Material (ROH-PD) R14 RAW Material (ROH-PD) Serial Nos SN Import IM Master Data Enhancement in BB 127 Layer 2 Master Data Enhancement in BB 139 Layer 2 Fixed Bin Master Data Enhancement in BB 138 Layer 2 FB Quality Mgmt QM R18 RAW Material (ROH-PD) Rework RW Subcontracting SC Procurement & Consumpt. of Consigned Inventory Quality Management for Procurement with vendor Evaluation MM Subcon-tracting All other Raw, SF- Goods used in MM / Procurement Processes for Man. External processing EP B Batch Management Consignment Processing CP Revision Level RL * Except Sceanrios: Third Party Order Proc. and Sales Bought In item; Sell from Stock, Returnables Processing

  15. Routing Subassembly10 Mechan. Processing CNC MTS Production – Internal Product Dev. Product Structure This master data is created in BB 143 Routing FERT 10 Assembly 20 Final Acceptance 30 Painting (Ext. Processsing) 40 Packaging 50 GR w. Serial No Ass. FIFO F326 Finished Good, PLM,Batch-FIFO, Serial No (FERT-PD) B* EP* BOM, Routing creation in BB 210 PLM - Internal Product Dev. Rep. Manufactr. RL SN* RW* *Can be used but not particulary explained in process FIFO S21 Semifinsihed Good, Repetitive Manuf. Initial (HALB-20 PD)  (HALB-PD) S22 Semifinihed GoodPhantom Ass. (HALB-50-PD) R122 RAW Material Batch-FIFO, Import(ROH-PD) B S23 Semifinished GoodSubcontracting initial (HALB-20-PD) (HALB-30-PD) S325A Semifinsihed Good,Ext. Procurement (HALB-20-PD) S124 Semifinsihed Good Subassembly (HALB - PD) R20 RAW Material(ROH - PD) R27RAW Material Packaging Box (ROH - PD) SC CP R128 RAW Material Consignment (ROH - PD) R120 RAW Material Quality Managed (ROH - PD) QM IM R16 RAW Material (ROH-PD) R13 RAW Material (ROH-PD) R124 Raw Material,Consumption,FixedBin (ROH-VB) FB R17 RAW Material (ROH-PD) R14 RAW Material (ROH-PD) S325B Semifinsihed Good,Ext. Procurement (HALB-20-PD) SN Serial Nos Import IM Master Data Enhancement in BB 127 Layer 2 Master Data Enhancement in BB 139 Layer 2 Replacement in ECM subprocess Fixed Bin Master Data Enhancement in BB 138 Layer 2 FB Quality Mgmt QM R18 RAW Material (ROH-PD) Rework RW Subcontracting SC Procurement & Consumpt. of Consigned Inventory Quality Management for Procurement with vendor Evaluation MM Subcon-tracting All other Raw, SF- Goods used in MM / Procurement Processes External processing EP B Batch Management Consignment Processing CP Revision Level RL

  16. This master data is created in BB 143 SAP Best Practices Work center Hierarchy TOT_PLNT Plant - Top Level 0001 PVRSN_MF Process / REM Manufacutring- Top Level0001 (Cap 001/002) DISCR_MF Discrete Manufacturing - Top Level0001 (Cap 001/002) MANU_SERV Manufacturing Service - Top Level 0001 (Cap 001) MIXING Mixing Liquid 0008 (Cap 001/002) PACK01Packing Line 0001 (Cap 001) PLANT_MC Plant Maintenance 0005 Bottling Bottling Liquid 0008 (Cap: 001/002) PACK02 Hand Packing Work Center 0001 (Cap: 002) Service 0003 Service 1 0003 Packing Packing Liquid 0008 (Cap: 001/002) ASSEMBLY Capacity Machine0001 (Cap 001) Service 2 0003 Winding Winding REM0007 (Cap 001) TESTINGCapacity Machine 0001 (Cap 001) Not realized in BL V5.600 - Possible enhancement for Manufacturing related Service Management Scenarios TECHNIC CNC processing 0001 (Cap 001) WORKWork Machine / Person 0001 (Cap: 001/002)
