PHY221 Ch3: Rel. Motion and Circular Motion

PHY221 Ch3: Rel. Motion and Circular Motion. Relative Motion Accelerated frames and inertial frames Circular motion. PHY221 Ch3: Rel. Motion and Circular Motion. Main Points. Relative Motion: The relationship between expressed in F and F’. P. y’. y. x’. O’. O. x.

deidra
Télécharger la présentation

PHY221 Ch3: Rel. Motion and Circular Motion

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. PHY221 Ch3: Rel. Motion and Circular Motion Relative Motion Accelerated frames and inertial frames Circular motion

  2. PHY221 Ch3: Rel. Motion and Circular Motion Main Points Relative Motion: The relationship between expressed in F and F’ P y’ y x’ O’ O x Example: swimming in a river:

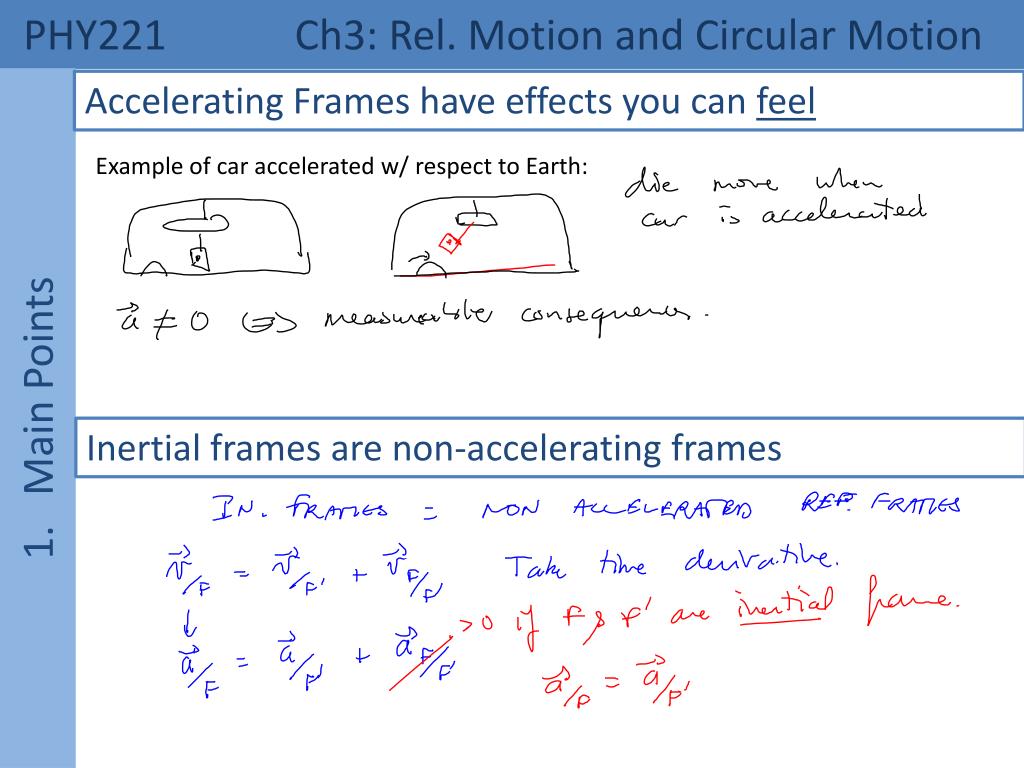

  3. PHY221 Ch3: Rel. Motion and Circular Motion Main Points Accelerating Frames have effects you can feel Example of car accelerated w/ respect to Earth: Inertial frames are non-accelerating frames

  4. PHY221 Ch3: Rel. Motion and Circular Motion Main Points Uniform Circular Motion with v=cst at Radius=r Kinematics: relationship r, v and w: Components of : Velocity vector Changes and acceleration from : Centripetal acceleration in terms of v and r , or w and r :

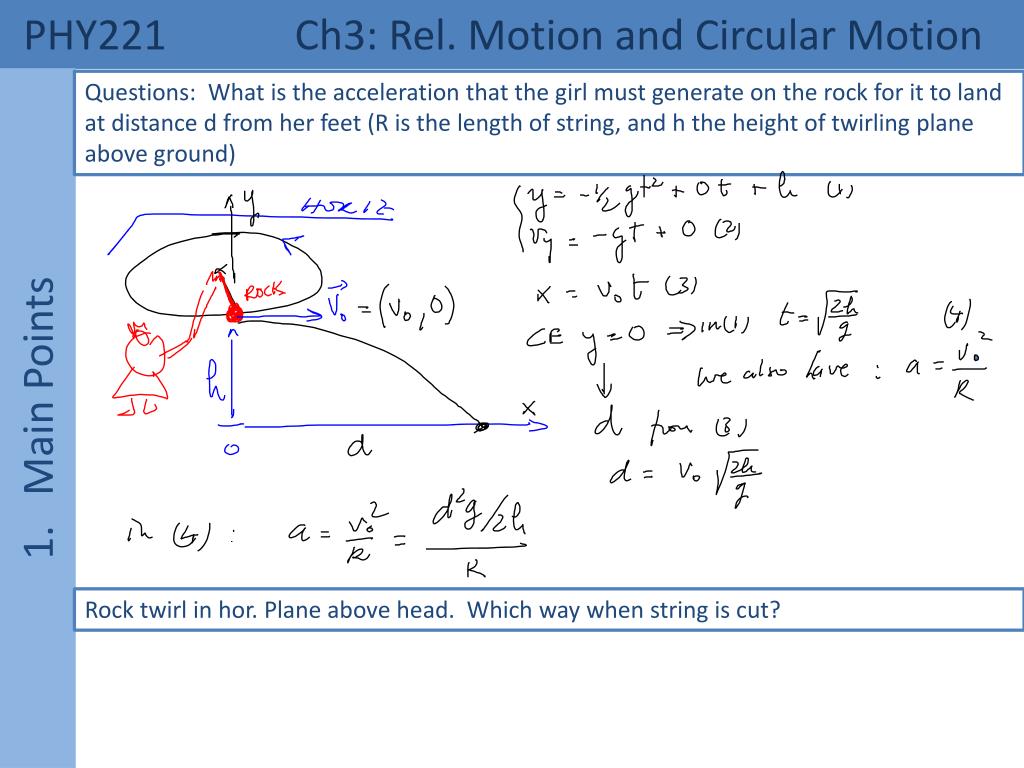

  5. PHY221 Ch3: Rel. Motion and Circular Motion Main Points Questions: What is the acceleration that the girl must generate on the rock for it to land at distance d from her feet (R is the length of string, and h the height of twirling plane above ground) Rock twirl in hor. Plane above head. Which way when string is cut?

  6. Ch 3: Assignments

  7. Ch 3: Assignments
