Presentation Transcript

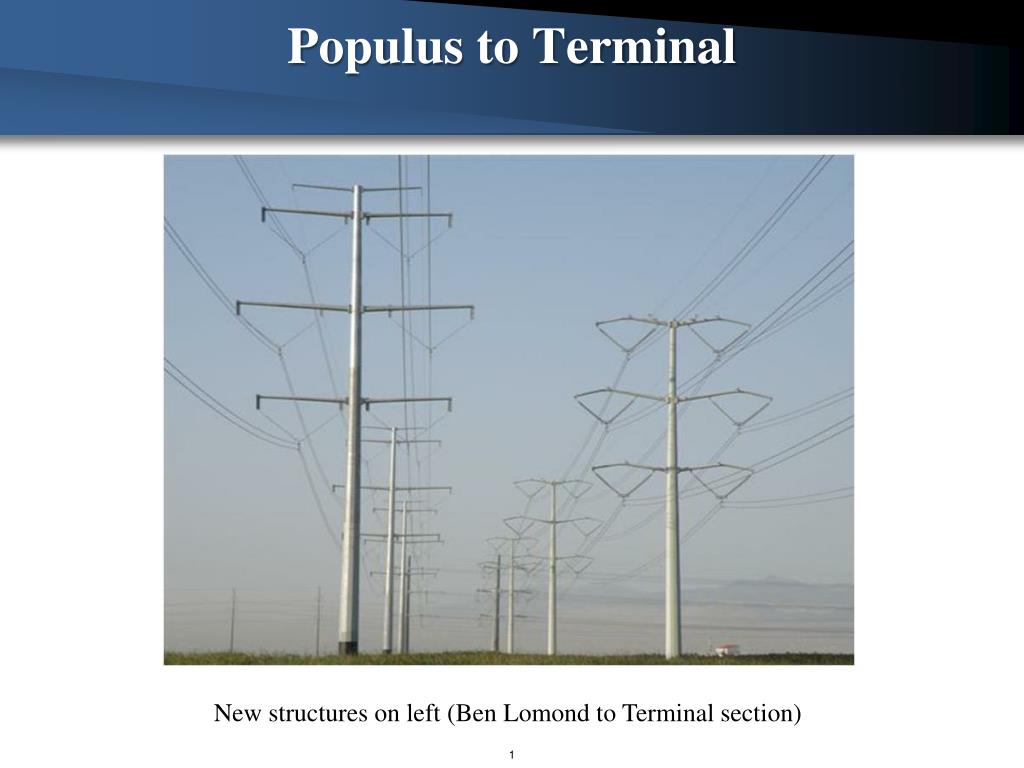

  1. Populus to Terminal New structures on left (Ben Lomond to Terminal section)

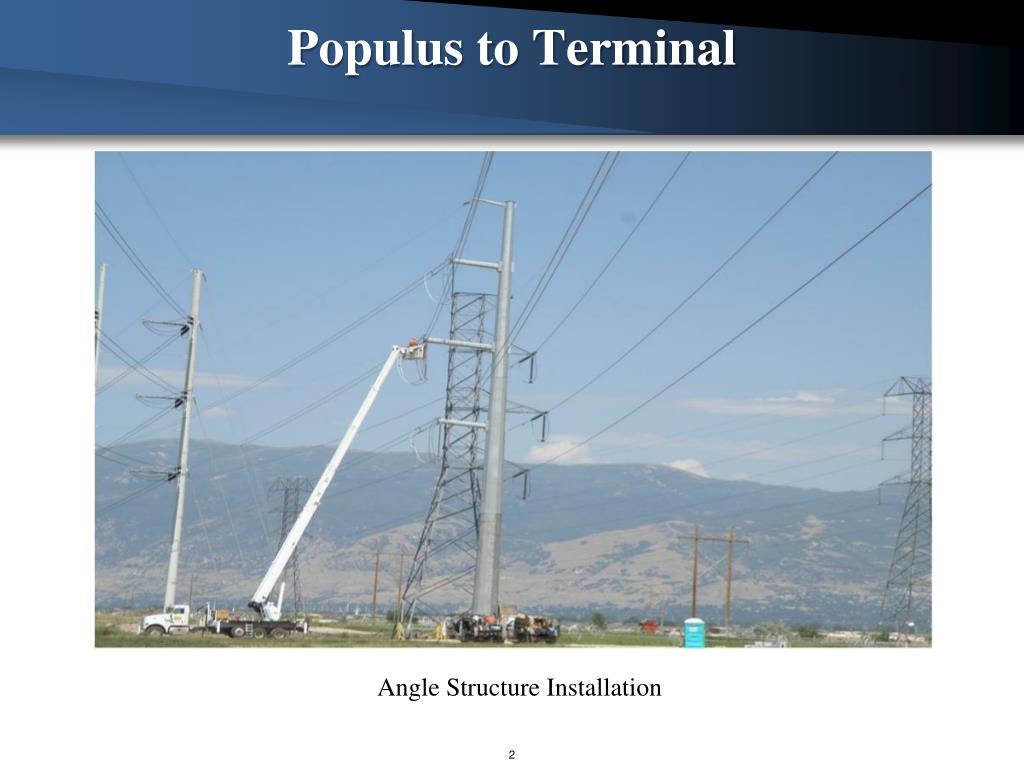

  2. Populus to Terminal Angle Structure Installation

  3. Populus Substation Populus substation (Downey Idaho) – Sized to integrate Populus Terminal, existing Bridger West lines (from Wyoming) and future Gateway West 500kV line (from Wyoming)

  4. Populus Substation Populus substation– Placing 345kV circuit breaker

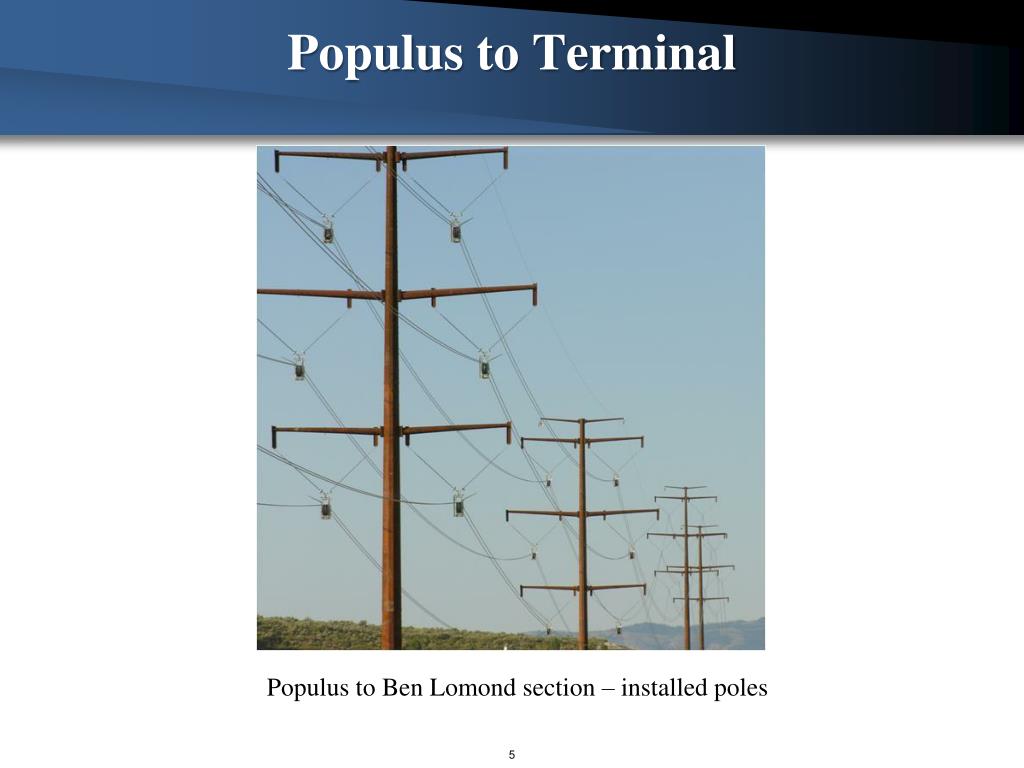

  5. Populus to Terminal Populus to Ben Lomond section – installed poles
