  1. Wall Mounted J series Introduction

  2. Air Filter Bio AB + Titanium Apatite Introduction 1st Joint – Development project btw Daikin Japan & OYLM * Stylish Flat Panel • *Higher Energy Efficiency • Certified model in Eurovent Directory • 5WM10JR – participate in Programme (AC1) • European Energy Rating of A/A INTRODUCTION • *Better IAQ using Bio-Engineering • IAQ solution which combines superior air purifying of bio filter with deodorizing features of titanium filter. • * 5 Selectable Fan Speeds • New SCR Indoor fan motor • Given more choice on preferable fan speed. • New Handset G17/18 • Silent & Turbo function

  3. EUROVENT www.eurovent-certification.com OYL R&D participated: • Comfort Air Conditioners up to 12 kW (AC1) • Fan Coil Unit (FC) • Liquid Chilling Packages (LCP)

  4. CERTIFICATES: AC1 OYL RESEARCH Diploma 2007

  5. PRODUCT RANGE Introduction AVAILABLE UNDER DEVELOPMENT

  6. APPEARANCE DIFFERENTIATION MCQUAY Grille ACSON Grille

  7. FEATURES HIGHLIGHTS 1 BETTER INDOOR AIR QUALITY by using Bio-Engineering Technology • Anti-Virus – Bio Antibody Filter • A special moisture-retaining filter material contains with lgY antibody which obtain from Extraction Technique. • Deactivates up to 99.99% various airborne infectious viruses within 1 minute.* • Neutralization of virus as a result of natural antigen-antibody reaction. • * Proven through joint research with Waseda University (Japan) , Japanese Ministry of Health, • Labour and Welfare and National Institute of Infectious Diseases (Japan). PROTECTION 1 • Photo Catalytic Deodorizing – Titanium Apatite Filter • A new material combining the absorption capability of apatite and the photo catalyst capability of titanium oxide • Dissolves absorbed substance such as odors and harmful airborne particles into harmless Water (H2O) and Carbon Dioxide (CO2) by photo catalytic. PROTECTION 2

  8. IgY Extraction Technique Introduction

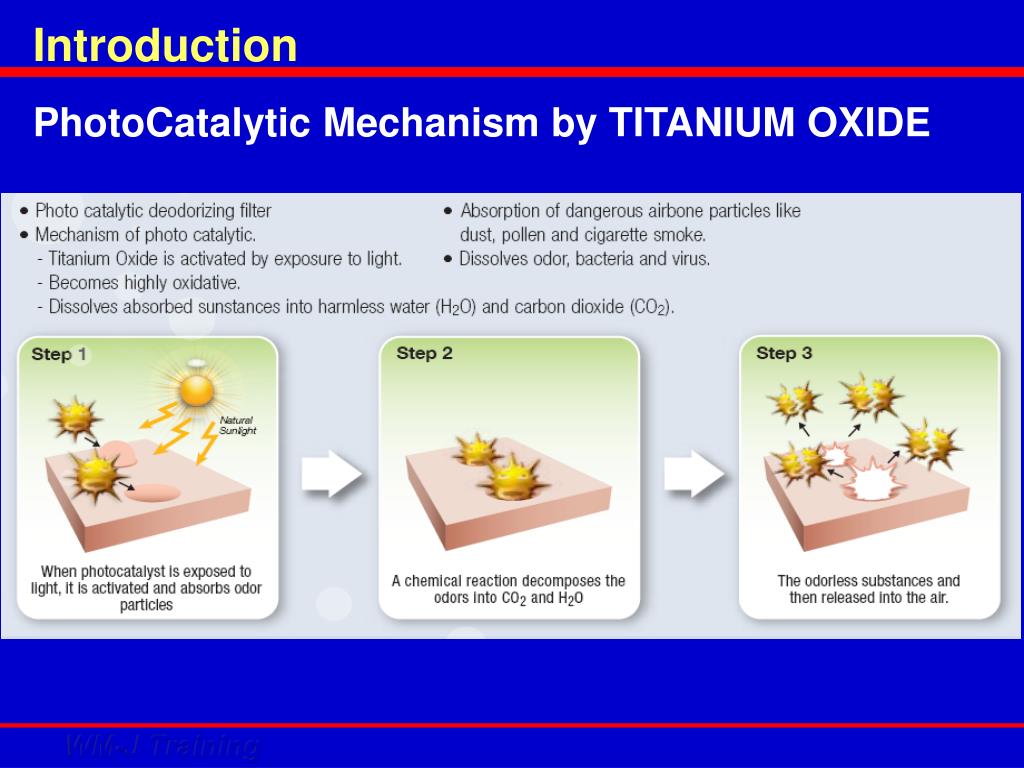

  9. Introduction PhotoCatalytic Mechanism by TITANIUM OXIDE

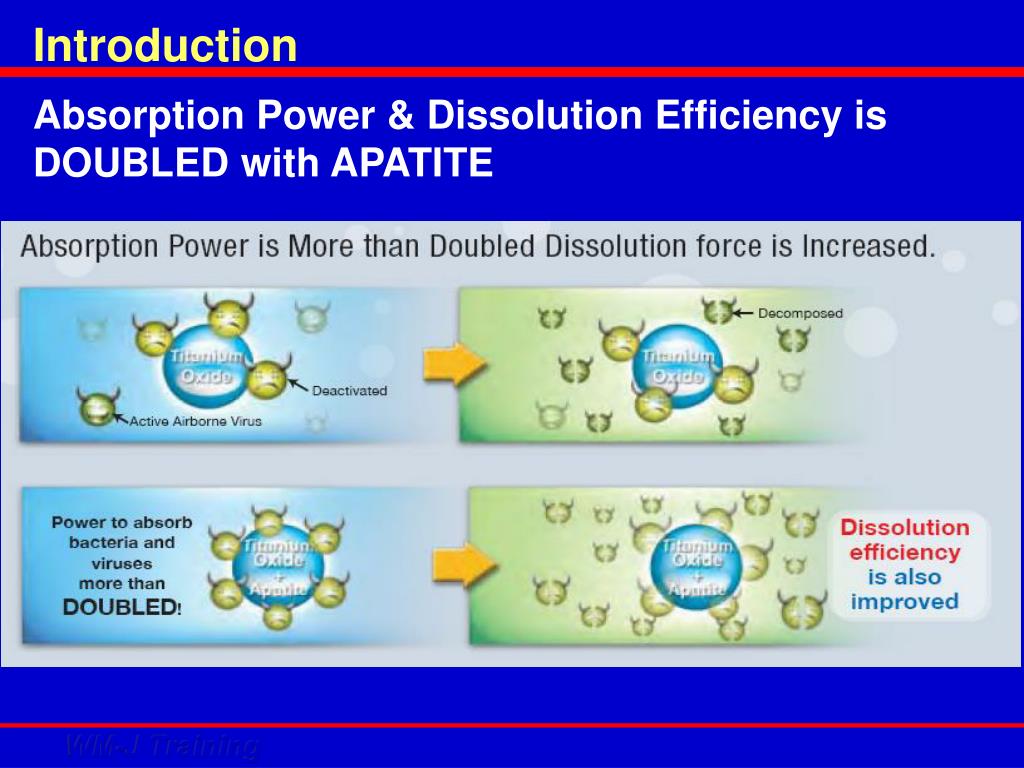

  10. Introduction Absorption Power & Dissolution Efficiency is DOUBLED with APATITE

  11. 2. Remove only prior to installation 1. Bio AB filter is packed inside hermitically sealed bag. 3. Slip the filter in between filter frame and titanium apatite filter. Filter Frame Bio AB Filter Titanium Apatite Filter Introduction INSTALLATION PROCEDURE of Bio Antibody Filter & Titanium Apatite Filter • Bio Antibody Filter • Storage period – 3 years • Effectiveness period – 12 months after unpacking. • Titanium Apatite Filter • Effectiveness period – 3 years • Maintenance – wash with pure water every 6 months.

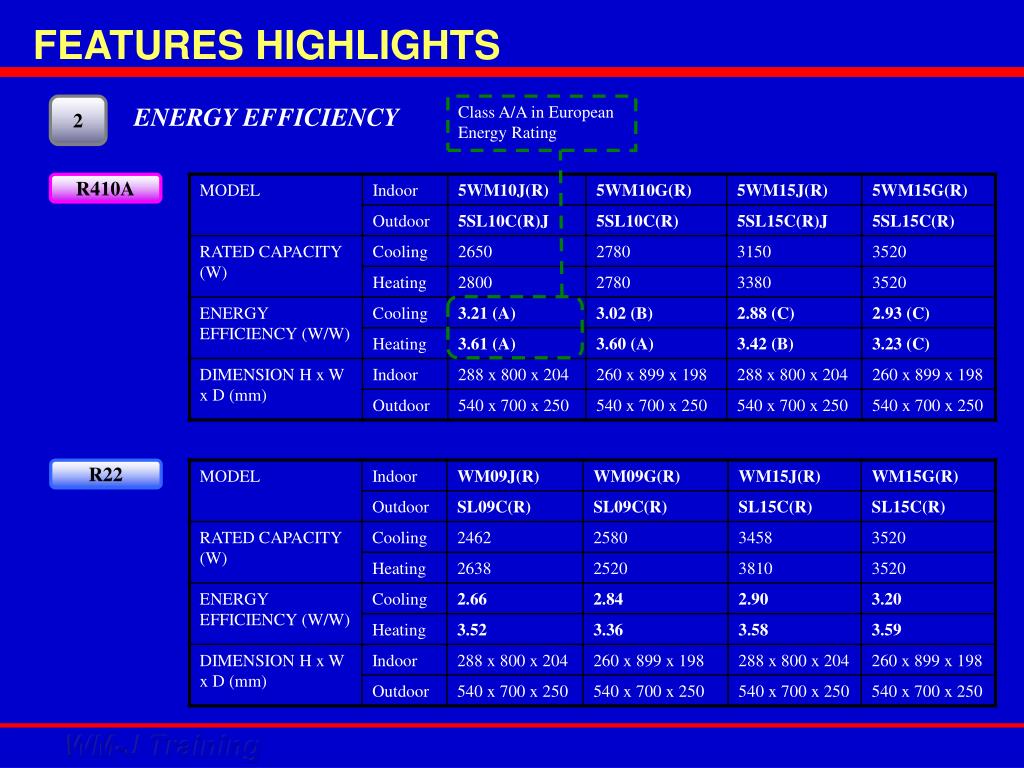

  12. FEATURES HIGHLIGHTS 2 ENERGY EFFICIENCY Class A/A in European Energy Rating R410A R22

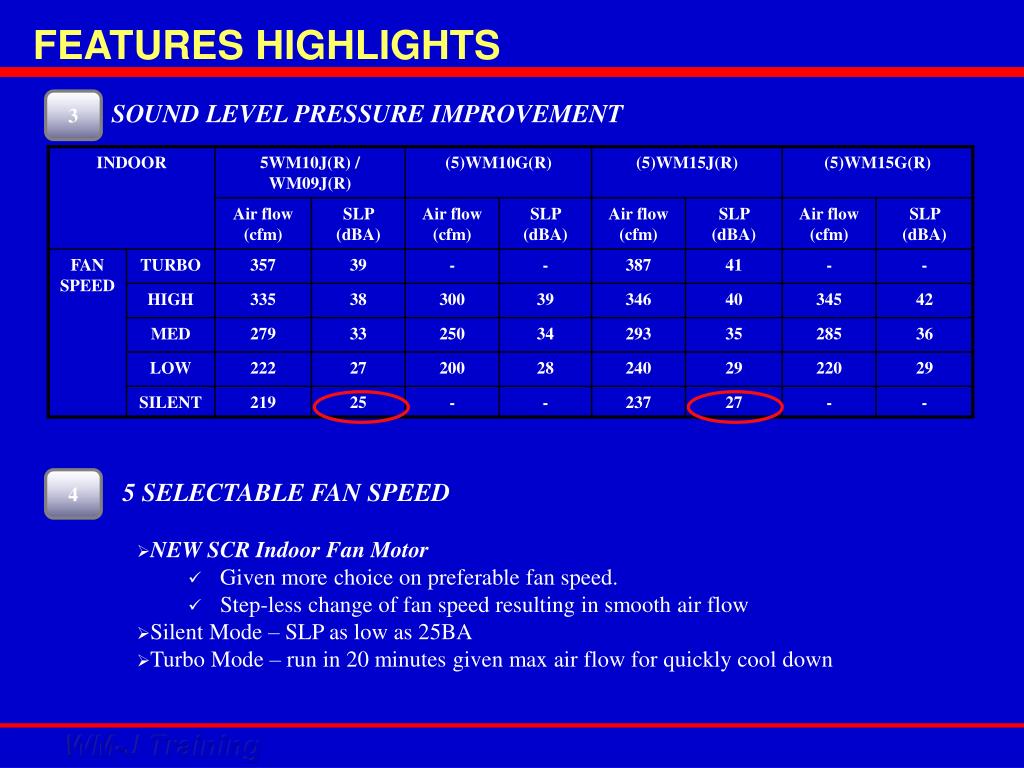

  13. FEATURES HIGHLIGHTS 3 SOUND LEVEL PRESSURE IMPROVEMENT 4 5 SELECTABLE FAN SPEED • NEW SCR Indoor Fan Motor • Given more choice on preferable fan speed. • Step-less change of fan speed resulting in smooth air flow • Silent Mode – SLP as low as 25BA • Turbo Mode – run in 20 minutes given max air flow for quickly cool down

  14. FEATURES HIGHLIGHTS 5 NEW LCD REMOTE CONTROLLER G17/18 * Bigger LCD Display * Real Time Clock Display * 2 sets of Personalized Setting - Operating mode (Heat, Cool, Dry, Fan, Auto), ON/OFF Timer, Temperature & Fan Speed * Turbo Mode * Sleep Mode (WM-J series only) * Silent Mode (WM-J series only) * Ionizer (WM-G series only) Sleep Mode Set temperature is increased / decreased gradually once sleep mode is activated to ensures a comfortable environment for restful sleep. Turbo Mode Indoor fan will running at TURBO speed (at HIGH speed in WM-G) for 20 minutes enables required set temperature achieved in a short time.

  15. WM-J vs WM-G CONCLUSION

  16. THANK YOU
