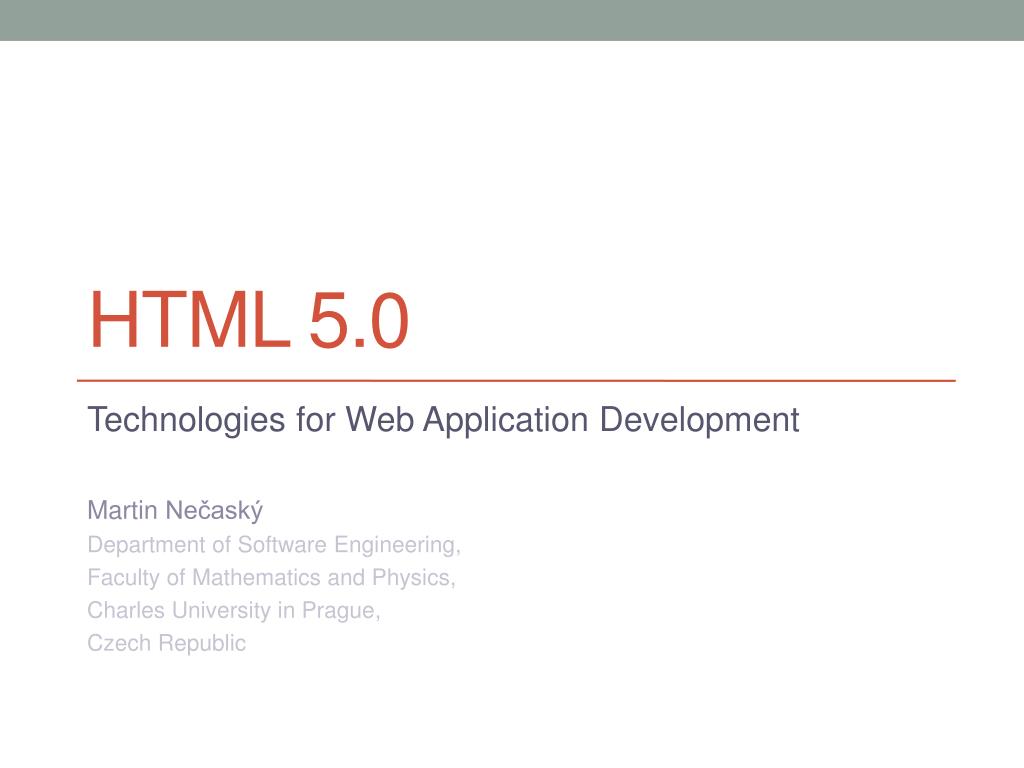

  1. HTML 5.0 Technologies for Web Application Development Martin Nečaský Department of Software Engineering, Faculty of Mathematics and Physics, Charles University in Prague, Czech Republic

  2. History

  3. Document Structure <!DOCTYPE html> <html lang="en"> <head> <!– document metadata --> </head> <body> Document data … </body> </html> There is no need for mime type. The document will be transmitted with text/html Compare with HTML 4.1 or earlier.

  4. Document Metadata • data about document inside head • title • document’s title or name • should identify document for users even used out of context • base • specifies document base URL for resolving relative URLs • link • links document to other resources • style • embeds style information inside document • meta • other metadata

  5. Document Structure … <head> <title>Technologies for …</title> <base href="http://www.ksi.mff.cuni.cz/index.html" /> <link rel="stylesheet" href="default.css" /> <meta http-equiv="content-type" content="text/html; charset=utf-8“ /> </head> …

  6. More on Links • link represents relationship of particular type between current document and other web resource • elements link and a • two kinds of links (according to HTML 5.0 specification) • links to external resources • links to resources which augment current document • hyperlinks • links to resources which are exposed to user of current document to navigate to those resources • kind depends on element used and relationship type

  7. More on Links • href attribute • URL of resource linked by relationship • rel attribute • type of relationship • media attribute • media linked resource applies to • e.g. print, screen, all • type attribute • MIME type of linked resource • text/html, application/xhtml+xml, text/css, application/pdf

  8. More on Links

  9. More on Links <head> <title>NSWI117 – Materials</title> <link rel="stylesheet" href="default.css" type="text/css" media="screen" /> <link rel="stylesheet" href="default-print.css" type="text/css" media="print" /> <link rel="alternate" href="materials.pdf“ type="application/pdf" media="print" /> </head> <body> <footer>Author: <a href="http://www.ksi.mff.cuni.cz/~necasky" rel="author"> Martin Nečaský</a> </footer> </body>

  10. Sectioning Content • content of document is divided into sections • sections are divided to subsections • section element • generic section • article element • self-contained section • independently distributable and reusable • e.g. blog post or newspaper article • aside element • denotes section related to content around and is considered separate around that content • e.g. did-you-know aside box • nav element • denotes section with navigation links

  11. Sectioning Content <article> <p>This article summarizes technologies ...</p> <nav> <a href="...">HTML</a><a href="...">CSS</a> </nav> <section> <p>We will start with HTML.</p> <section><p>First, we will go to history.</p></section> <section><p>Then, we will deal with actual 5.0.</p></section> </section> <aside> <p>Did you know that SGML is a predecessor of HTML?</p> </aside> <section><p>CSS is the second technology.</p></section> <nav> <div><a href="...">Home</a><a href="...">Contact</a></div> </nav> </article> <article>Another article</article>

  12. Sectioning Content • there are so called sectioning roots which have own sectioning separate from the outside content: • blockquote • body • details • fieldset • figure • td

  13. Section Headers and Footers • header element • distinguishes header of the nearest section (hierarchically) • intended (but not required) to contain heading (h1 – h6) • footer element • distinguishes footer of the nearest section (hierarchically)

  14. Sectioning Content <article> <header> <h1>NSWI117 – Summary of technologies</h1> </header> <section> <header> <h1>HTML</h1> </header> <p>We will start with HTML.</p> </section> <footer> <nav> <div><a href="...">Home</a><a href="...">Contact</a></div> </nav> </footer> </article>

  15. Section Headings • h1 – h6 element • heading of nearest section • number gives relative rank • hM has higher rank than hN if one of the following is true • M < N and hMand hNare in the same section • hNis in subsection of section of hM • hM has the same rank as hNiff they are both from the same section and M= N • hgroupelement • heading of nearest section • groups a set of h1 – h6 elements when heading has multiple levels (e.g. heading with subheadings or alternative titles)

  16. Section Headings <hgroup> <h1>NSWI117 - ...</h1> <h2>Summary ...</h2> </hgroup> <p>At this page, ...</p> <h2>HTML</h2> <p>About HTML ...</p> <h3>HTML History</h3> <h3>HTML Today</h3> <h2>CSS</h2> <p>About CSS ...</p> • NSWI117 - … • HTML • HTML History • HTML Today • CSS

  17. Section Headings <body> <hgroup> <h1>NSWI117 - ...</h1> <h2>Summary ...</h2> </hgroup> <p>At this page, ...</p> <section> <h2>HTML</h2> <p>About HTML ...</p> <section> <h3>HTML History</h3> </section> <section> <h3>HTML Today</h3> </section> </section> <section> <h2>CSS</h2> <p>About CSS ...</p> </section> </body> • NSWI117 - … • HTML • HTML History • HTML Today • CSS

  18. Section Headings <body> <hgroup> <h1>NSWI117 - ...</h1> <h2>Summary ...</h2> </hgroup> <p>At this page, ...</p> <section> <h1>HTML</h1> <p>About HTML ...</p> <section> <h1>HTML History</h1> </section> <section> <h6>HTML Today</h6> </section> </section> <section> <h1>CSS</h1> <p>About CSS ...</p> </section> </body> • NSWI117 - … • HTML • HTML History • HTML Today • CSS

  19. Document Edits • we can specify that given part of document was inserted or removed • ins element • represents addition to document • delelement • represents removal from document • datetimeattribute • time of the change

  20. Document Edits <p>TODO:</p> <ol> <li> <ins datetime="2011-02-27">Buy food ...</ins> </li> <li> <del datetime="2011-02-26"> <ins datetime="2011-02-23">Wash car ...</ins> </del> </li> <li> <ins datetime="2009-06-17">Clean room ...</ins> </li> </ol> <footer> Author: <a href="mailto:mywife"rel="author">My wife</a> </footer>

  21. Forms as you (do not) know them • form is component of Web page composed of form controls • user can interact with form controls by providing data which can be sent to server for further server-side processing • form element • form itself • input, textareaand select elements • various types of controls for providing data by user • button element • buttons

  22. Forms as you (do not) know them <form> <p>Name: <input /></p> <p>Phone: <input /></p> <p>Email: <input /></p> <p>Preferred delivery time: <input /></p> <p>Comments: <textarea></textarea></p> <button>Submit order</button> </form>

  23. Forms as you (do not) know them • form may be made better readable • fieldset element • Groups semantically related fields • legend element • field-set label • label element • field label • title attribute • may serve as hint for input field • note: this is general attribute (may be used with any HTML element)

  24. Forms as you (do not) know them <form> <p><label>Name: <input /></label></p> <fieldset> <legend>Contact information</legend> <p><label>Phone: <input /></label></p> <p><label>Email: <input /></label></p> </fieldset> <fieldset> <legend>Timing</legend> <p><label>Preferred delivery time: <input /></label></p> </fieldset> <p><label>Comments: <textarea></textarea></label></p> <button>Submit order</button> </form>

  25. Forms as you (do not) know them <form> <input title="First name followed by family name." /> <button>Submit order</button> </form>

  26. Forms as you (do not) know them • each field should have name • specified by name attribute

  27. Forms as you (do not) know them <form> <input title="First name followed by family name.“ name="full_name" /> <button>Submit order</button> </form>

  28. Forms as you (do not) know them • each field has type • specified by type attribute • default type is text • prior to HTML 5 • text (regular text field) • password(password field) • checkbox (checkbox field) • radio (radio button field) • button (regular button) • submit (field submit button) • reset (field reset button) • file (file button and file path field) • hidden (hidden field)

  29. Forms as you (do not) know them <form> <fieldset> <legend>Pizza Size</legend> <p><label><input type="radio" name="size">Small</label></p> <p><label><input type="radio" name="size">Medium</label></p> <p><label><input type="radio" name="size">Large</label></p> </fieldset> <fieldset> <legend>Pizza Toppings</legend> <p><label><input type="checkbox">Bacon</label></p> <p><label><input type="checkbox">Extra Cheese</label></p> <p><label><input type="checkbox">Onion</label></p> <p><label><input type="checkbox">Mushroom</label></p> </fieldset> </form>

  30. Forms as you (do not) know them • each field has type • specified by type attribute • default type is text • new types in HTML 5 • search(search field) • tel(phone field) • url(absolute URL field) • email(email field) • date, time,datetime(date/time field) • number (number field) • range (number field) • color(color field)

  31. Forms as you (do not) know them <form> <p>Search <input name="search_field" type="search" /></p> <p>Phone <input name="tel_field" type="tel" /></p> <p>URL <input name="url_field" type="url" /></p> <p>Email <input name="email_field" type="email" /></p> <p>Date <input name="date_field" type="date" /></p> <p>Time <input name="time_field" type="time" /></p> <p>Datetime <input name="datetime_field" type="datetime" /></p> <p>Number <input name="number_field" type="number" /></p> <p>Range <input name="range_field" type="range" /></p> <p>Color <input name="color_field" type="color" /></p> <button>Submit</button> </form>

  32. Forms as you (do not) know them • field might be further specified • name attribute • field name • used when form is submitted • maxlengthattribute • maximum number of characters allowed in field • size attribute • number of characters visible in field • value attribute • specifies default field value • disabled attribute • specifies that field is disabled when form loads

  33. Forms as you (do not) know them <form> <input name="full_name" maxlength="32" size="16" value="Martin Nečaský" disabled="true" title="First name followed by family name." /> <button>Submit order</button> </form>

  34. Forms as you (do not) know them • field might be further specified (HTML 5) • autocomplete attribute • values on/off • allows to disable field value autocomplete • autofocus attribute • gives field focus when page loads • pattern attribute • regular pattern for field value validation • placeholder attribute • hint for user to help with filling the field • required attribute • field value is required

  35. Forms as you (do not) know them <form> <input name="phone" autocomplete="off" autofocus="autofocus" pattern="[0-9]{9}" placeholder="Fill in your 9-digit phone number." required="required" /> <button>Submit order</button> </form>

  36. Forms as you (do not) know them • … and even more (HTML 5) • min attribute • minimal value of numerical field • max attribute • maximal value of numerical field • step attribute • step for numerical field • etc.

  37. Forms as you (do not) know them • select element • enables to select from more options • option element • one of the options to select • inside select element • multiple attribute • if present multiple options may be selected • datalist element • contains one or more predefined options for other field • each option is specified with option element

  38. Forms as you (do not) know them <form> <p>Select predefined pizza: <select name="predefined_pizza"> <option value="1">Formaggi</option> <option value="2">Prosciuto e mozzarella</option> <option value="3">Pattatinefritte</option> <option value="4">Pattatinefritteall'ischitana</option> </select> </p> <p>Or write your own: <input type="text" name=“user_pizza" list="pizza_dl"> <datalist id="pizza_dl"> <option value="Formaggi" /> <option value="Prosciuto e mozzarella" /> <option value="Pattatinefritte" /> <option value="Pattatinefritteall'ischitana" /> </datalist> </p> </form>

  39. Forms as you (do not) know them • when form is submitted data is converted by encoding algorithm and send to selected destination using given method • submission parameters are specified by attributes of form element • enctype attribute • specifies encoding algorithm • application/x-www-form-urlencoded • multipart/form-data • text/plain • action attribute • specifies destination • URL • method attribute • get or post

  40. Forms as you (do not) know them <form enctype="application/x-www-form-urlencoded" action="http://www.pizzeria.it/order" method="get"> </form>

  41. Video • video element • allows for embedding video • src, preload, autoplay, controls attributes • their purpose is clear …

  42. Video <video controls autoplay> <source src="video.mp4" type="video/mp4; codecs='avc1.42E01E, mp4a.40.2'"> <source src="video.ogv" type="video/ogg; codecs='theora, vorbis'"> </video>

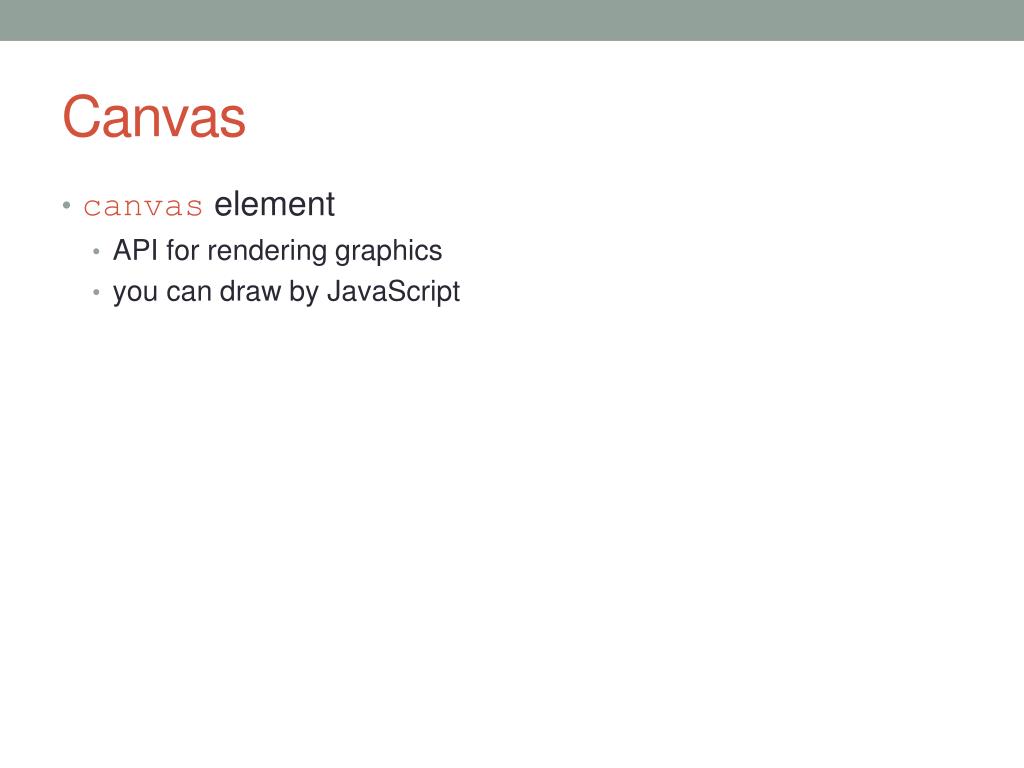

  43. Canvas • canvas element • API for rendering graphics • you can draw by JavaScript

  44. Canvas <canvas id="myCanvas" width="500" height="500" /> <script type="text/javascript"> varcanvas=document.getElementById('myCanvas'); varcontext=canvas.getContext('2d'); for (var x = 0.5; x < 500; x += 10) { context.moveTo(x, 0); context.lineTo(x, 500); } context.strokeStyle= "#eee"; context.stroke(); context.fillStyle='#FF0000'; context.fillRect(250,250,10,20); context.fillRect(100,80,10,40); </script>

  45. Microformats
