  1. Introduction to T-SQL G. Green

  2. Using SQL... • Interactively… • SQL*Plus (Oracle) • QBE (Access) • SSMS (SQL Server) • In application programs/environments...

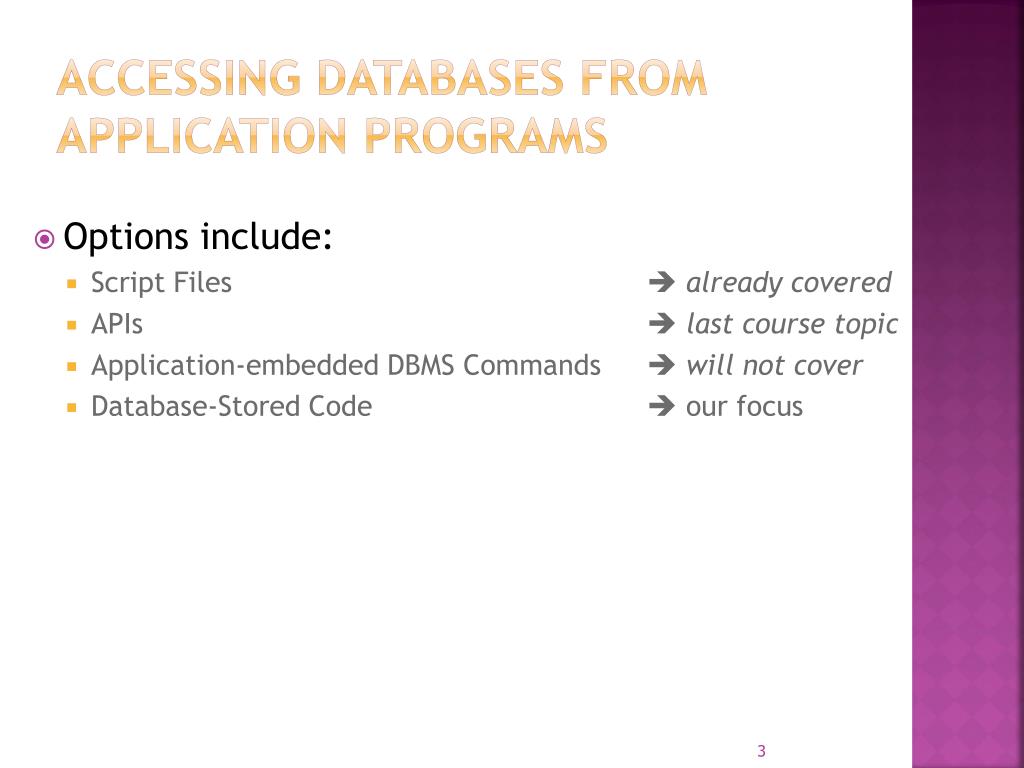

  3. Accessing Databases from Application Programs • Options include: • Script Files  already covered • APIs  last course topic • Application-embedded DBMS Commands  will not cover • Database-Stored Code  our focus

  4. Internet resources • T-SQL Basics http://www.sql-server-performance.com/articles/dba/stored_procedures_basics_p2.aspx • Cursors http://www.sqlteam.com/article/cursors-an-overview • Parameters http://www.mssqltips.com/sqlservertutorial/162/how-to-create-a-sql-server-stored-procedure-with-parameters/

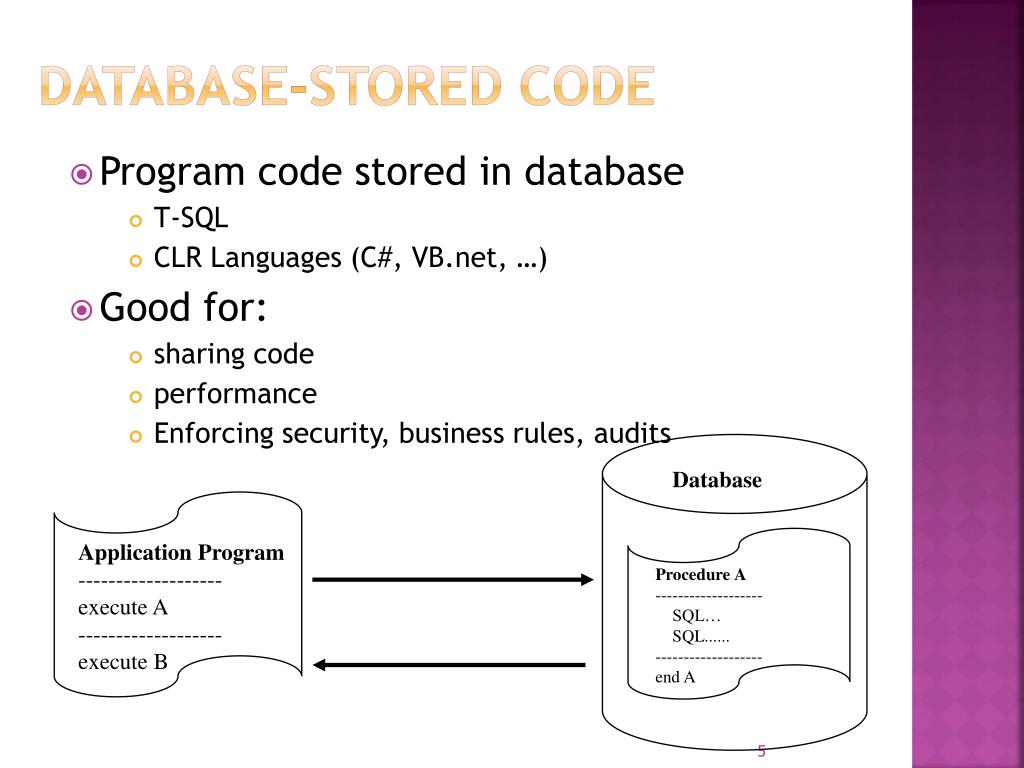

  5. Database-Stored Code • Program code stored in database • T-SQL • CLR Languages (C#, VB.net, …) • Good for: • sharing code • performance • Enforcing security, business rules, audits Database Application Program ------------------- execute A ------------------- execute B Procedure A ------------------- SQL… SQL...... ------------------- end A

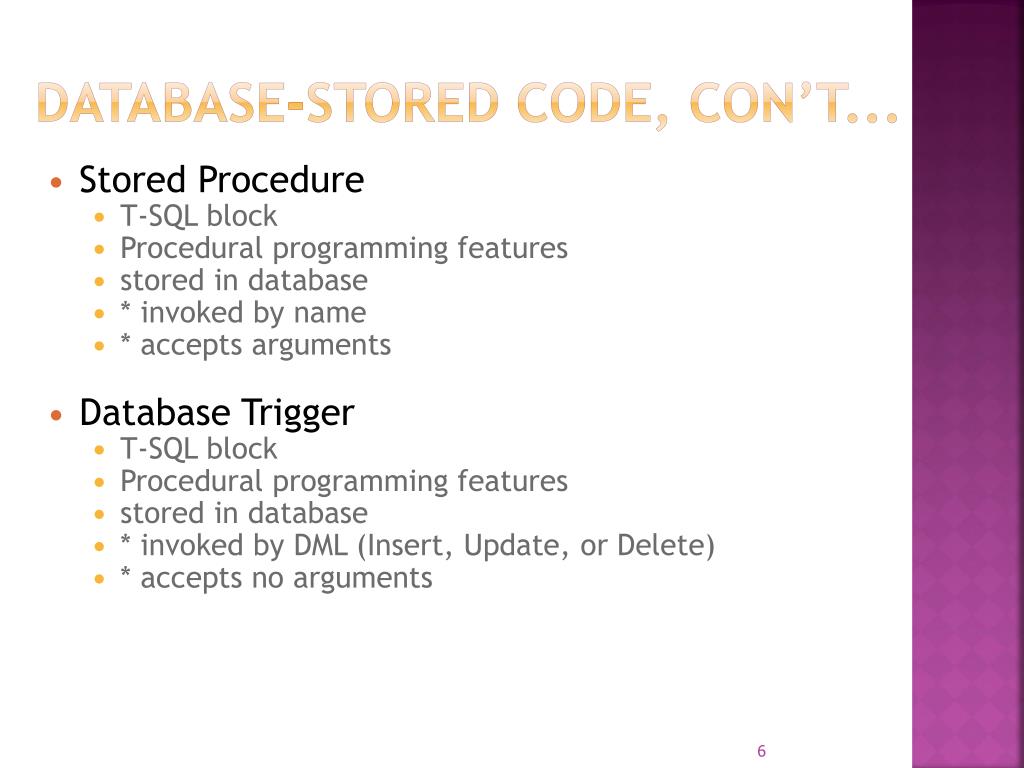

  6. Database-stored code, con’t... • Stored Procedure • T-SQL block • Procedural programming features • stored in database • * invoked by name • * accepts arguments • Database Trigger • T-SQL block • Procedural programming features • stored in database • * invoked by DML (Insert, Update, or Delete) • * accepts no arguments

  7. Create stored procedure: template CREATE PROCEDURE <procedure_name> [parameter_information] AS DECLARE /* program variables defined here */ BEGIN /* program logic goes here */ END

  8. Example 1: Simple proc /* retrieves and displays all customer records */ IF EXISTS (SELECT NAME FROM SYSOBJECTS WHERE NAME = 'show_all_customers' AND TYPE = 'P') DROP PROCEDURE show_all_customers; GO CREATE PROCEDURE show_all_customers AS BEGIN SELECT customer_id, customer_name, postal_code FROM customer_t; END; GO

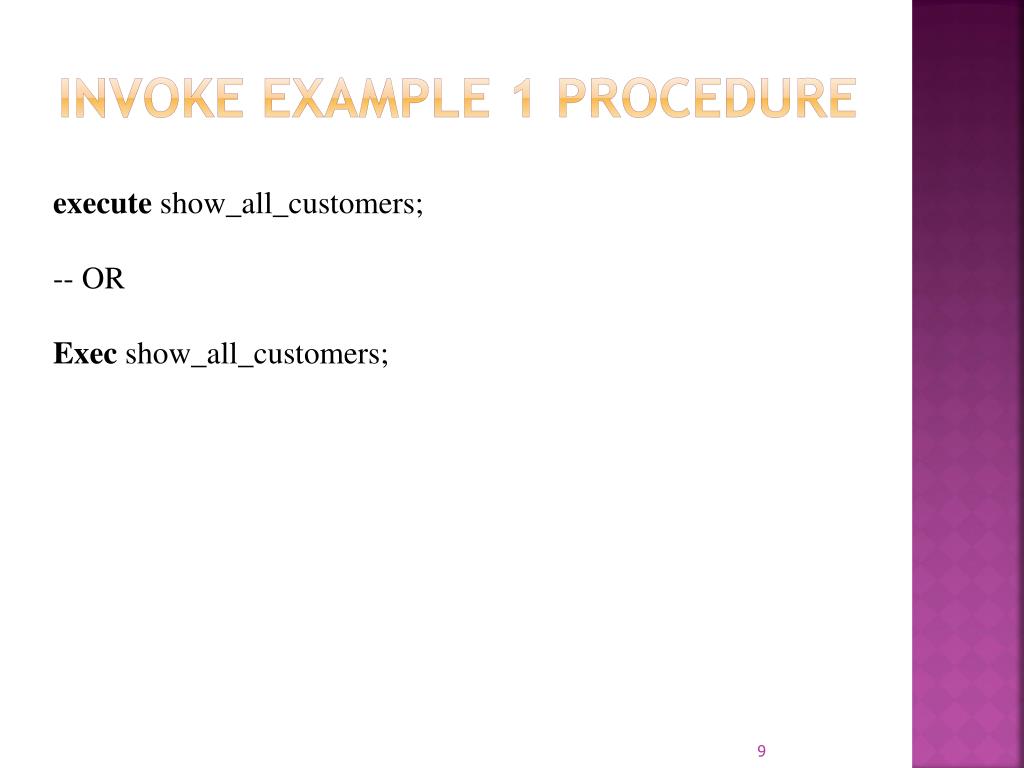

  9. Invoke Example 1 Procedure executeshow_all_customers; -- OR Exec show_all_customers;

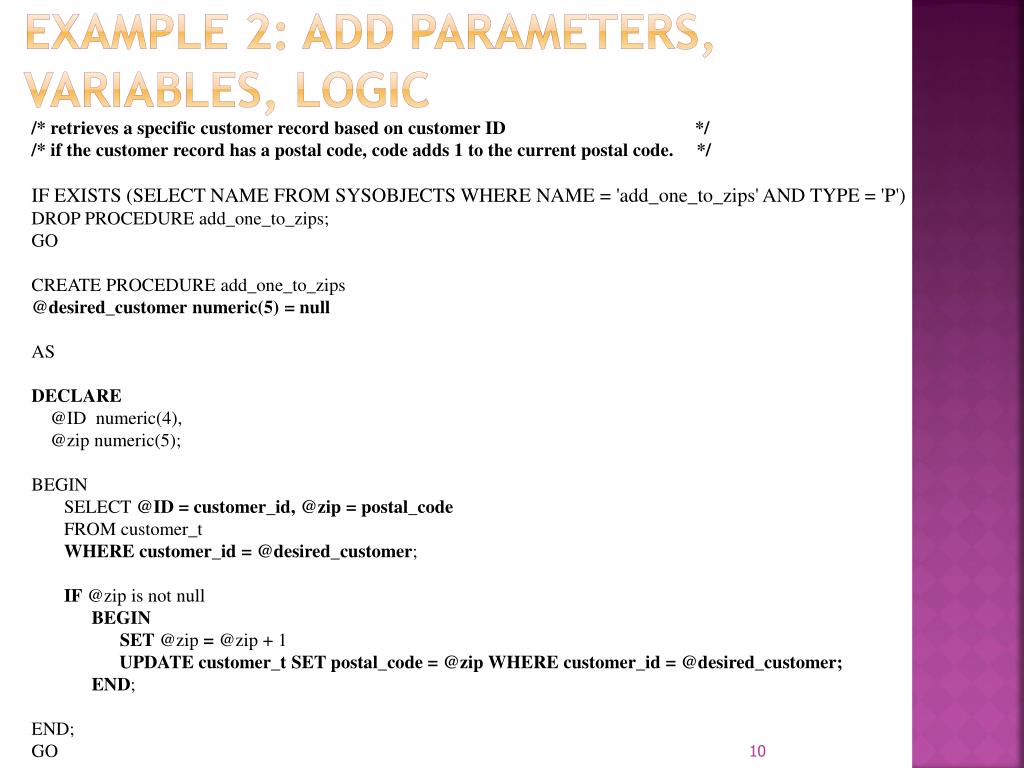

  10. Example 2: Add Parameters, variables, logic • /* retrieves a specific customer record based on customer ID */ • /* if the customer record has a postal code, code adds 1 to the current postal code. */ • IF EXISTS (SELECT NAME FROM SYSOBJECTS WHERE NAME = 'add_one_to_zips' AND TYPE = 'P') • DROP PROCEDURE add_one_to_zips; • GO • CREATE PROCEDURE add_one_to_zips • @desired_customer numeric(5) = null • AS • DECLARE • @ID numeric(4), • @zip numeric(5); • BEGIN • SELECT @ID = customer_id, @zip = postal_code • FROM customer_t • WHERE customer_id = @desired_customer; • IF @zip is not null • BEGIN • SET @zip = @zip + 1 • UPDATE customer_t SET postal_code = @zip WHERE customer_id = @desired_customer; • END; • END; • GO

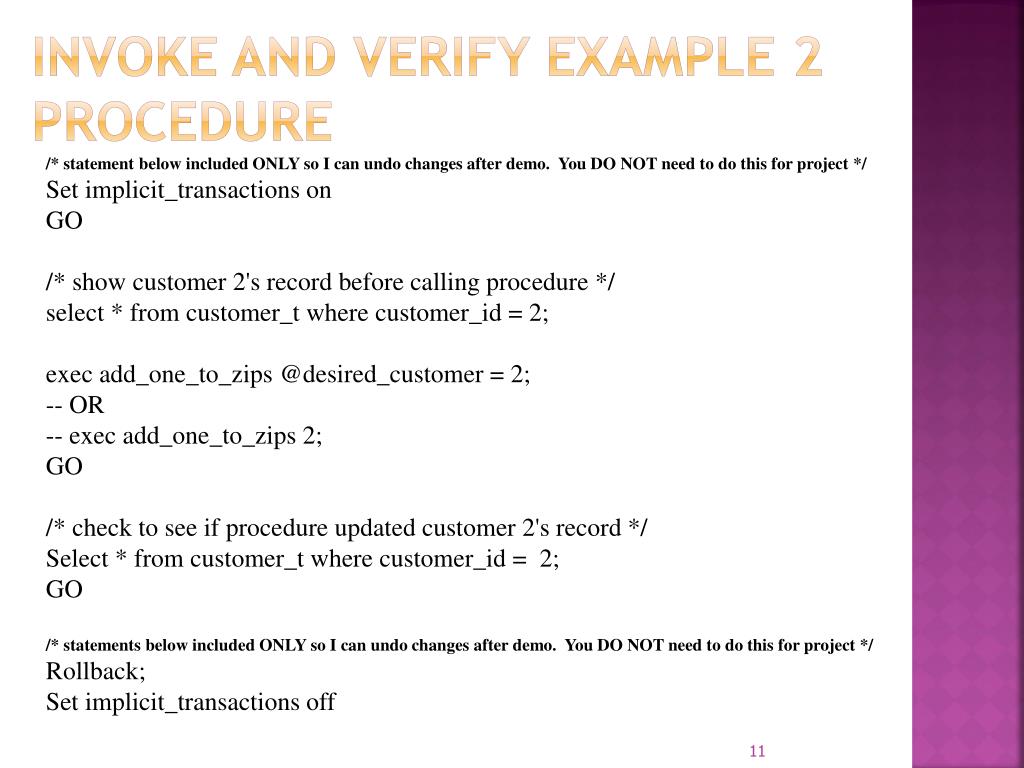

  11. Invoke and verify example 2 Procedure /* statement below included ONLY so I can undo changes after demo. You DO NOT need to do this for project */ Set implicit_transactions on GO /* show customer 2's record before calling procedure */ select * from customer_t where customer_id = 2; exec add_one_to_zips @desired_customer = 2; -- OR -- exec add_one_to_zips2; GO /* check to see if procedure updated customer 2's record */ Select * from customer_t where customer_id = 2; GO /* statements below included ONLY so I can undo changes after demo. You DO NOT need to do this for project */ Rollback; Set implicit_transactionsoff

  12. Example 3: Printing from stored procedure /* retrieves a specific customer record based on customer ID */ /* if the customer record has a postal code, it will change the postal code to all 9’s & print a message to user */ /* CONVERTs needed since we're concatenating numeric data to text data */ IF EXISTS (SELECT NAME FROM SYSOBJECTS WHERE NAME = 'change_zip_to_nines_and_print' AND TYPE = 'P') DROP PROCEDURE change_zip_to_nines_and_print; GO CREATE PROCEDURE change_zip_to_nines_and_print @desired_customer numeric(5) = null AS DECLARE @ID numeric(4), @zip numeric(5); BEGIN SELECT @ID = customer_id, @zip = postal_code FROM customer_t WHERE customer_id = @desired_customer; IF @zip IS NOT NULL BEGIN SET @zip = 99999 UPDATE customer_t SET postal_code = @zip WHERE customer_id = @desired_customer; print 'cust#: ' + convert(varchar, @desired_customer)+' zipcode changed to: ' + convert(varchar,@zip); END; END; GO

  13. Invoke and verify example 3 Procedure /* statement below included ONLY so I can undo changes after demo. You DO NOT need to do this for project */ Set implicit_transactions on GO Select * from customer_t where customer_id = 2; exec change_zip_to_nines_and_print @desired_customer = 2; GO Select * from customer_t where customer_id = 2; GO /* statement below included ONLY so I can undo changes after demo. You DO NOT need to do this for project */ Rollback; Set implicit_transactionsoff

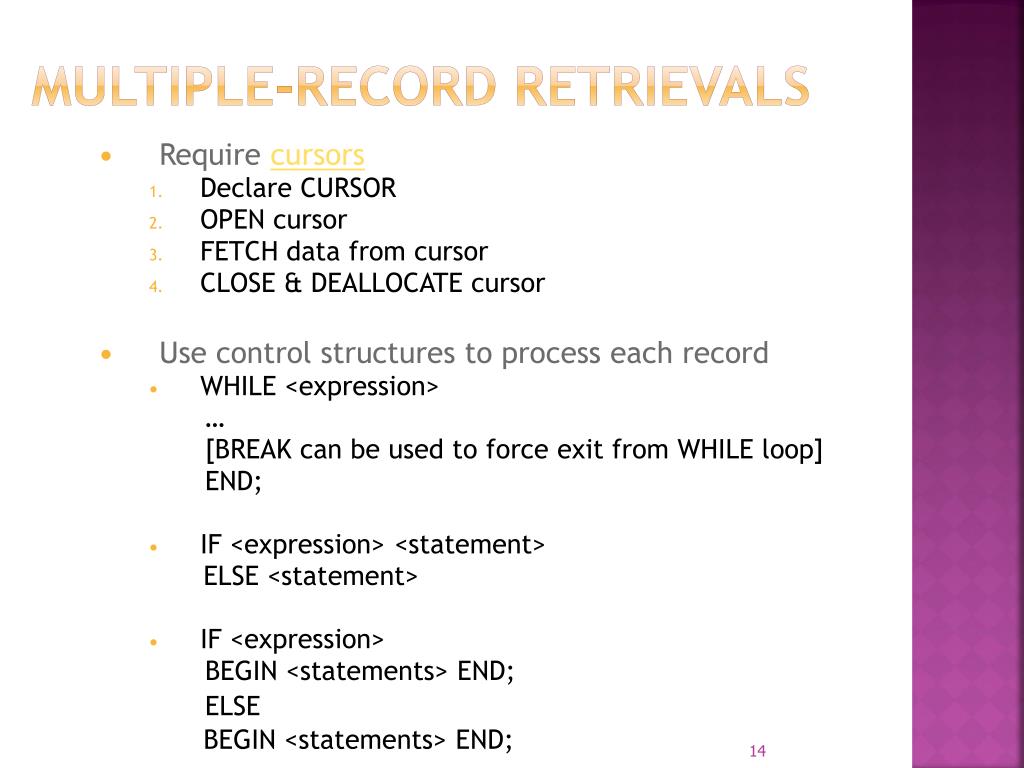

  14. MULTIPLE-RECORD RETRIEVALS • Require cursors • Declare CURSOR • OPEN cursor • FETCH data from cursor • CLOSE & DEALLOCATE cursor • Use control structures to process each record • WHILE <expression> … [BREAK can be used to force exit from WHILE loop] END; • IF <expression> <statement> ELSE <statement> • IF <expression> BEGIN <statements> END; ELSE BEGIN <statements> END;

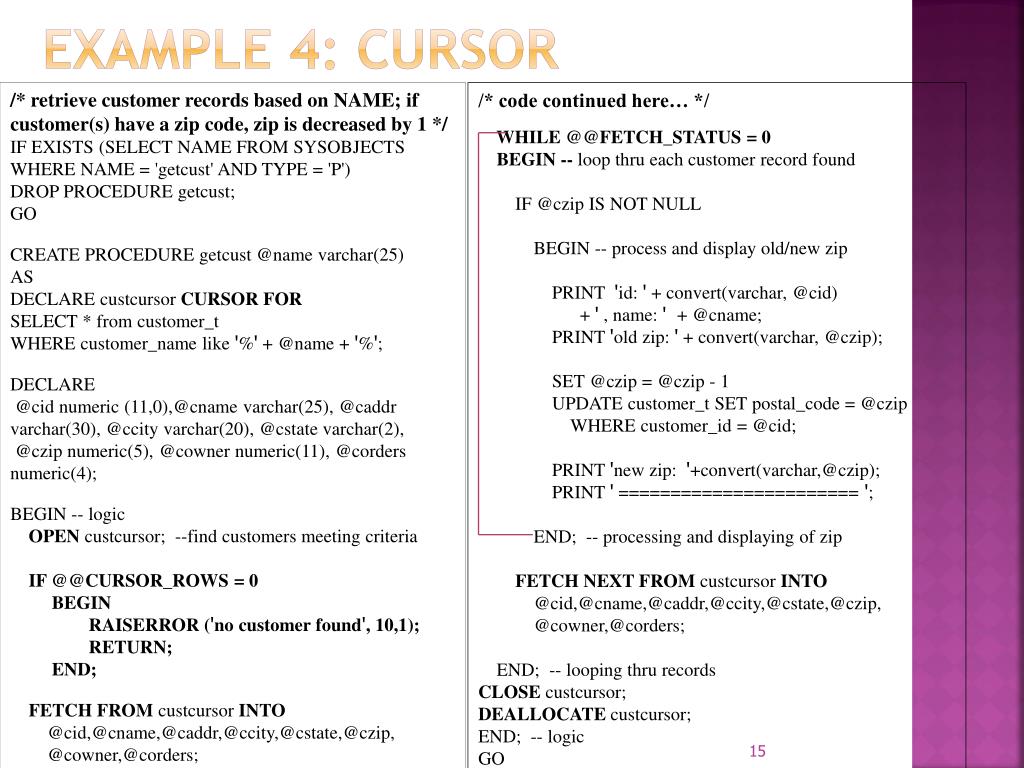

  15. Example 4: CURSOR /* retrieve customer records based on NAME; if customer(s) have a zip code, zip is decreased by 1 */ IF EXISTS (SELECT NAME FROM SYSOBJECTS WHERE NAME = 'getcust' AND TYPE = 'P') DROP PROCEDURE getcust; GO CREATE PROCEDURE getcust @name varchar(25) AS DECLARE custcursorCURSOR FOR SELECT * from customer_t WHERE customer_name like '%' + @name + '%'; DECLARE @cid numeric (11,0),@cnamevarchar(25), @caddrvarchar(30), @ccityvarchar(20), @cstatevarchar(2), @czip numeric(5), @cowner numeric(11), @corders numeric(4); BEGIN -- logic OPENcustcursor; --find customers meeting criteria IF @@CURSOR_ROWS = 0 BEGIN RAISERROR ('no customer found', 10,1); RETURN; END; FETCHFROMcustcursorINTO @cid,@cname,@caddr,@ccity,@cstate,@czip, @cowner,@corders; /* code continued here… */ WHILE @@FETCH_STATUS = 0 BEGIN -- loop thru each customer record found IF @czipIS NOT NULL BEGIN -- process and display old/new zip PRINT 'id: ' + convert(varchar, @cid) + ' , name: ' + @cname; PRINT 'old zip: ' + convert(varchar, @czip); SET @czip = @czip - 1 UPDATE customer_t SET postal_code = @czip WHERE customer_id = @cid; PRINT 'new zip: '+convert(varchar,@czip); PRINT ' ======================= '; END; -- processing and displaying of zip FETCHNEXT FROMcustcursorINTO @cid,@cname,@caddr,@ccity,@cstate,@czip, @cowner,@corders; END; -- looping thru records CLOSE custcursor; DEALLOCATEcustcursor; END; -- logic GO

  16. Invoke and verify example 4 Procedure Set implicit_transactions on GO Select * from customer_t where customer_name like '%furn%'; Exec getcust'furniture' GO Select * from customer_t where customer_name like '%furn%'; GO Rollback; Set implicit_transactions off

  17. Example 5: another cursor /* for a given order, show the total number of products on the order, and the description of each product on the order */ IF EXISTS (SELECT NAME FROM SYSOBJECTS WHERE NAME = 'showordereditems' AND TYPE = 'P') DROP PROCEDURE showordereditems; GO CREATE PROCEDURE showordereditems @orderid numeric(11) AS DECLARE ordercursor CURSOR FOR select ol.order_id, ol.product_id, p.product_description from order_line_tol, product_t p where ol.order_id = @orderid and ol.product_id = p.product_id; DECLARE @oloid numeric(11), -- storing order # @olpid numeric(11), -- storing product # @pdescvarchar(50), -- storing product description @mycount numeric(4); -- to store the number of products on order BEGIN -- logic SET @mycount=0; -- initialize the counter OPEN ordercursor; -- find the products associated with the given order IF @@CURSOR_ROWS=0 BEGIN RAISERROR ('order not found',10,1) RETURN; END; SELECT @mycount = count(*) FROM order_line_tol WHERE ol.order_id = @orderid; -- calculate total # of products on given order PRINT '** order# ' + convert(varchar,@orderid) + ' has ' + convert(varchar,@mycount) + ' products on it **'; -- print the total # of products on the order PRINT '** the products are listed below **'; FETCH FROM ordercursor INTO @oloid, @olpid, @pdesc; WHILE @@FETCH_STATUS = 0 -- loop thru each product on the order BEGIN PRINT 'product#: ' + convert (varchar, @olpid ) + ' product desc: ' + @pdesc; -- print each product on the order FETCH NEXT FROM ordercursor INTO @oloid, @olpid, @pdesc; END; CLOSE ordercursor; DEALLOCATE ordercursor; END; -- logic

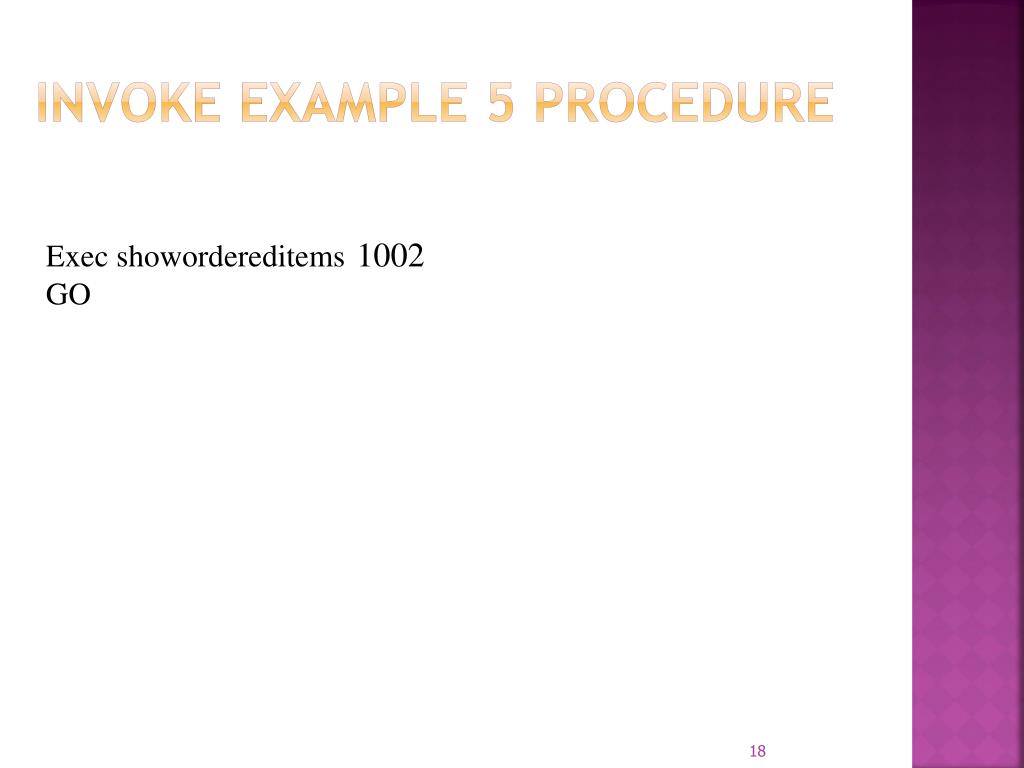

  18. Invoke example 5 Procedure Exec showordereditems1002 GO

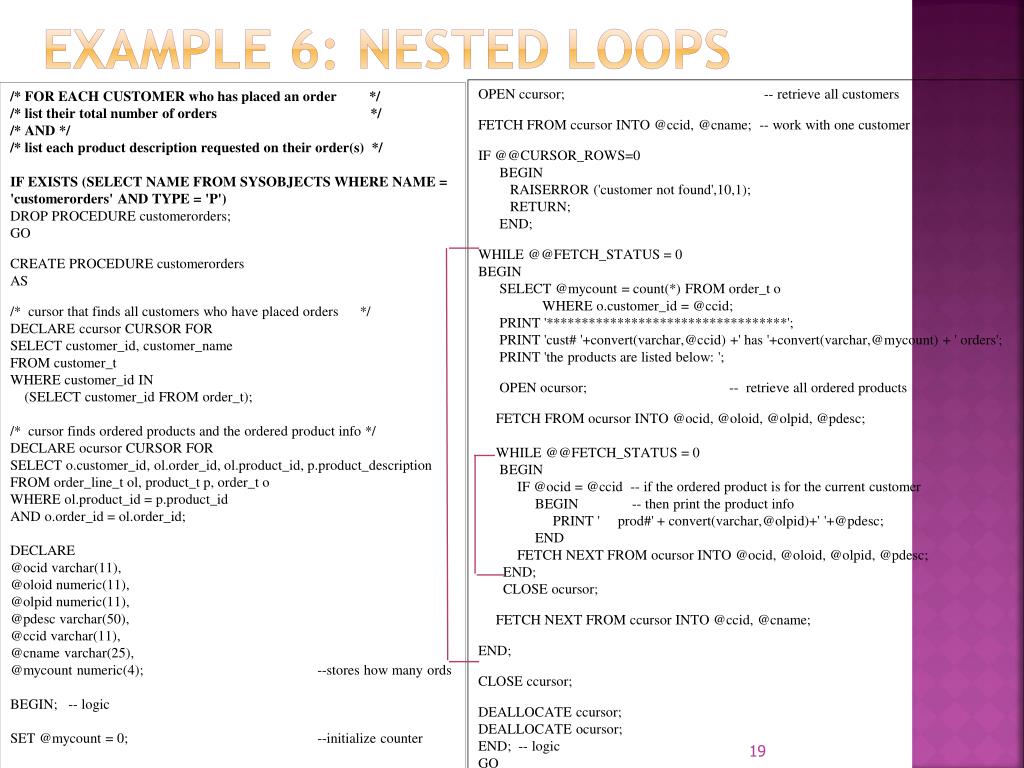

  19. Example 6: nested loops OPEN ccursor; -- retrieve all customers FETCH FROM ccursor INTO @ccid, @cname; -- work with one customer IF @@CURSOR_ROWS=0 BEGIN RAISERROR ('customer not found',10,1); RETURN; END; WHILE @@FETCH_STATUS = 0 BEGIN SELECT @mycount = count(*) FROM order_t o WHERE o.customer_id = @ccid; PRINT '**********************************'; PRINT 'cust# '+convert(varchar,@ccid) +' has '+convert(varchar,@mycount) + ' orders'; PRINT 'the products are listed below: '; OPEN ocursor; -- retrieve all ordered products FETCH FROM ocursor INTO @ocid, @oloid, @olpid, @pdesc; WHILE @@FETCH_STATUS = 0 BEGIN IF @ocid = @ccid -- if the ordered product is for the current customer BEGIN -- then print the product info PRINT ' prod#' + convert(varchar,@olpid)+' '+@pdesc; END FETCH NEXT FROM ocursor INTO @ocid, @oloid, @olpid, @pdesc; END; CLOSE ocursor; FETCH NEXT FROM ccursor INTO @ccid, @cname; END; CLOSE ccursor; DEALLOCATE ccursor; DEALLOCATE ocursor; END; -- logic GO /* FOR EACH CUSTOMER who has placed an order */ /* list their total number of orders */ /* AND */ /* list each product description requested on their order(s) */ IF EXISTS (SELECT NAME FROM SYSOBJECTS WHERE NAME = 'customerorders' AND TYPE = 'P') DROP PROCEDURE customerorders; GO CREATE PROCEDURE customerorders AS /* cursor that finds all customers who have placed orders */ DECLARE ccursor CURSOR FOR SELECT customer_id, customer_name FROM customer_t WHERE customer_id IN (SELECT customer_id FROM order_t); /* cursor finds ordered products and the ordered product info */ DECLARE ocursor CURSOR FOR SELECT o.customer_id, ol.order_id, ol.product_id, p.product_description FROM order_line_tol, product_t p, order_t o WHERE ol.product_id = p.product_id AND o.order_id = ol.order_id; DECLARE @ocidvarchar(11), @oloid numeric(11), @olpid numeric(11), @pdescvarchar(50), @ccidvarchar(11), @cnamevarchar(25), @mycount numeric(4); --stores how many ords BEGIN; -- logic SET @mycount = 0; --initialize counter

  20. Invoke example 6 Procedure Exec customerorders GO

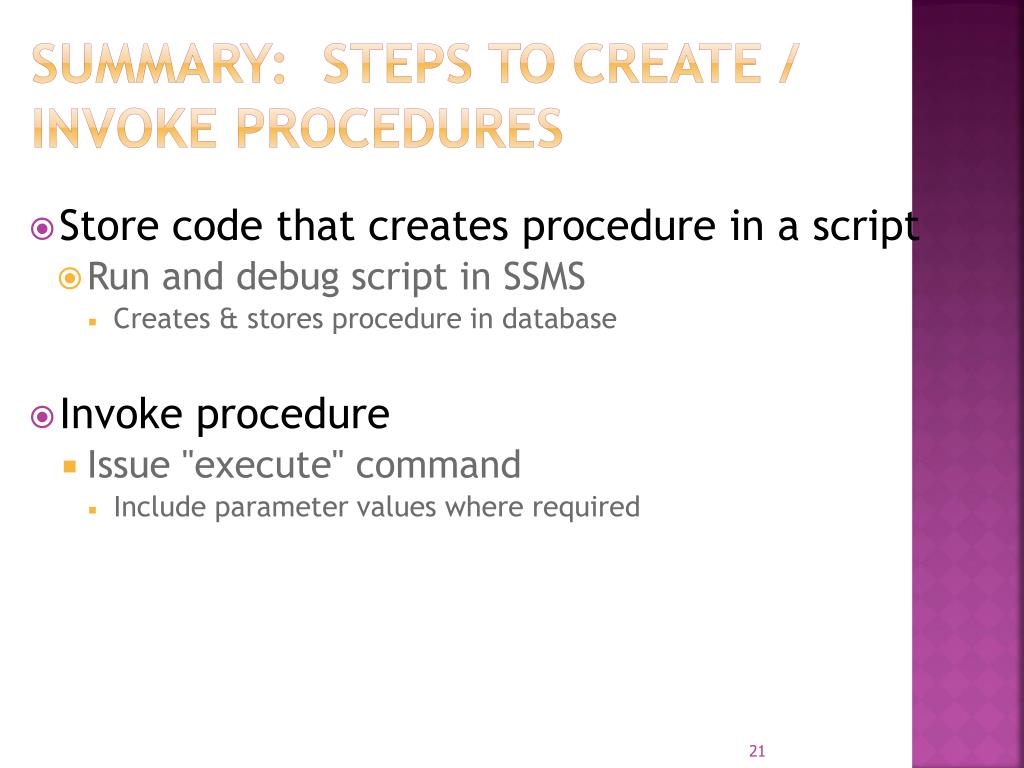

  21. Summary: Steps to Create / Invoke Procedures • Store code that creates procedure in a script • Run and debug script in SSMS • Creates & stores procedure in database • Invoke procedure • Issue "execute" command • Include parameter values where required

  22. triggers • Common Uses: • Implementing RI • Complex defaults • Interrelation constraints/updates • Updating views • Auditing business activities • 3 Kinds: • Before  Not supported in SQL Server • After • Instead of • A trigger can execute: • Once for each command • Once for each row impacted by a command  Not supported in SQL Server

  23. Create trigger: from scratch CREATE TRIGGER <trigger_name> ON <table_name> <AFTER | INSTEAD OF> <INSERT [,] UPDATE [,] DELETE> AS DECLARE /* program variables defined here */ BEGIN /* program logic goes here */ END

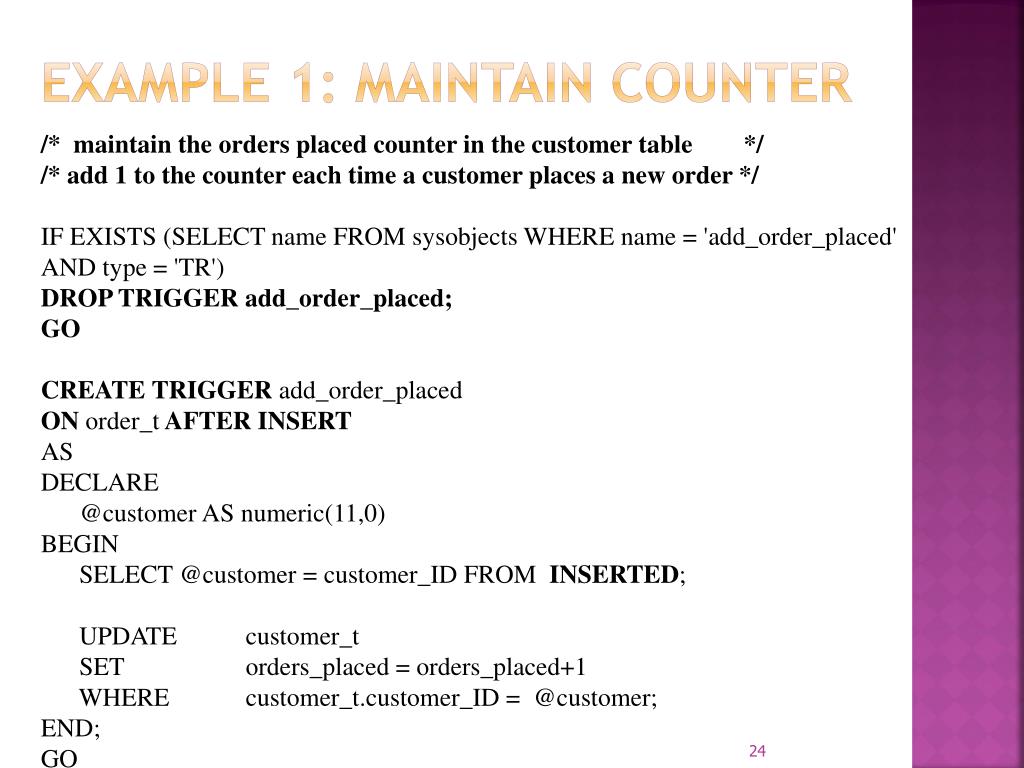

  24. Example 1: Maintain Counter /* maintain the orders placed counter in the customer table */ /* add 1 to the counter each time a customer places a new order */ IF EXISTS (SELECT name FROM sysobjects WHERE name = 'add_order_placed' AND type = 'TR') DROP TRIGGER add_order_placed; GO CREATE TRIGGER add_order_placed ON order_t AFTER INSERT AS DECLARE @customer AS numeric(11,0) BEGIN SELECT @customer = customer_ID FROM INSERTED; UPDATE customer_t SET orders_placed = orders_placed+1 WHERE customer_t.customer_ID = @customer; END; GO

  25. Example 1: maintain counter, cont… /* Maintain the orders placed counter in the customer table */ /* Every time the customer# on an order is changed, the orders_placed column in the customer table is updated */ /* to reflect the # of orders placed by both the original and new customer */ IF EXISTS (SELECT name FROM sysobjects WHERE name = 'change_order_placed' AND type = 'TR') DROP TRIGGER change_order_placed; GO CREATE TRIGGER change_order_placed ONorder_tAFTER UPDATE AS DECLARE @newcustomer AS numeric(11,0), @oldcustomer AS numeric(11,0) BEGIN SELECT @newcustomer = customer_ID FROMINSERTED; SELECT @oldcustomer = customer_ID FROM DELETED; UPDATE customer_t SET orders_placed = orders_placed+1 WHERE customer_t.customer_ID = @newcustomer; UPDATE customer_t SET orders_placed = orders_placed-1 WHERE customer_t.customer_ID = @oldcustomer; END; GO

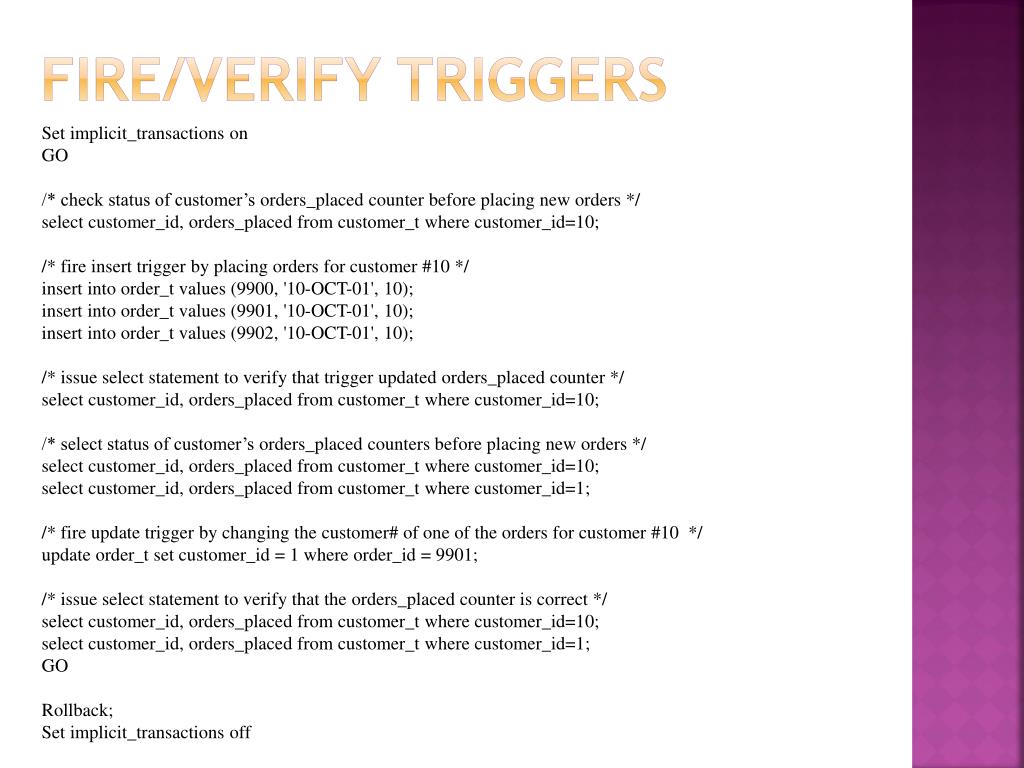

  26. FirE/Verify Triggers Set implicit_transactions on GO /* check status of customer’s orders_placed counter before placing new orders */ select customer_id, orders_placed from customer_t where customer_id=10; /* fire insert trigger by placing orders for customer #10 */ insert into order_t values (9900, '10-OCT-01', 10); insert into order_t values (9901, '10-OCT-01', 10); insert into order_t values (9902, '10-OCT-01', 10); /* issue select statement to verify that trigger updated orders_placed counter */ select customer_id, orders_placed from customer_t where customer_id=10; /* select status of customer’s orders_placed counters before placing new orders */ select customer_id, orders_placed from customer_t where customer_id=10; select customer_id, orders_placed from customer_t where customer_id=1; /* fire update trigger by changing the customer# of one of the orders for customer #10 */ update order_t set customer_id = 1 where order_id = 9901; /* issue select statement to verify that the orders_placed counter is correct */ select customer_id, orders_placed from customer_t where customer_id=10; select customer_id, orders_placed from customer_t where customer_id=1; GO Rollback; Set implicit_transactions off

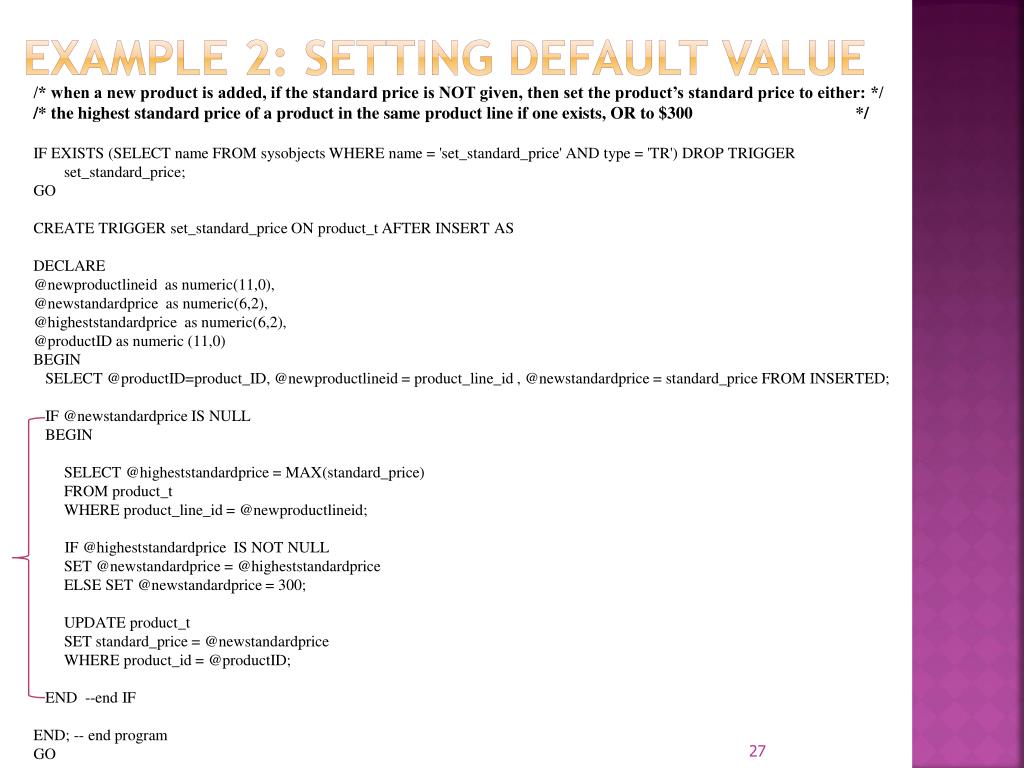

  27. Example 2: setting default value /* when a new product is added, if the standard price is NOT given, then set the product’s standard price to either: */ /* the highest standard price of a product in the same product line if one exists, OR to $300 */ IF EXISTS (SELECT name FROM sysobjects WHERE name = 'set_standard_price' AND type = 'TR') DROP TRIGGER set_standard_price; GO CREATE TRIGGER set_standard_price ON product_t AFTER INSERTAS DECLARE @newproductlineid as numeric(11,0), @newstandardprice as numeric(6,2), @higheststandardprice as numeric(6,2), @productID as numeric (11,0) BEGIN SELECT @productID=product_ID, @newproductlineid= product_line_id , @newstandardprice = standard_price FROM INSERTED; IF @newstandardprice IS NULL BEGIN SELECT @higheststandardprice = MAX(standard_price) FROM product_t WHERE product_line_id = @newproductlineid; IF @higheststandardprice IS NOT NULL SET @newstandardprice = @higheststandardprice ELSE SET @newstandardprice = 300; UPDATE product_t SET standard_price = @newstandardprice WHERE product_id= @productID; END --end IF END; -- end program GO

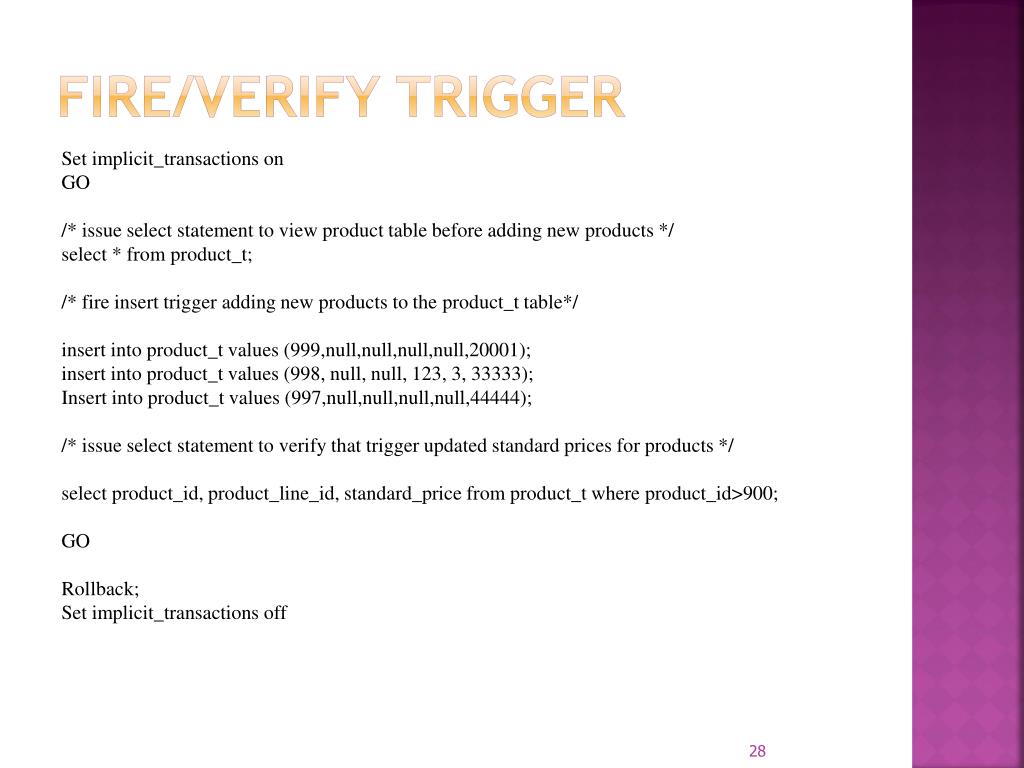

  28. FirE/Verify Trigger Set implicit_transactions on GO /* issue select statement to view product table before adding new products */ select * from product_t; /* fire insert trigger adding new products to the product_t table*/ insert into product_t values (999,null,null,null,null,20001); insert into product_t values (998, null, null, 123, 3, 33333); Insert into product_t values (997,null,null,null,null,44444); /* issue select statement to verify that trigger updated standard prices for products */ select product_id, product_line_id, standard_price from product_t where product_id>900; GO Rollback; Set implicit_transactions off

  29. Next Time… • 4/17 Internet Database Environment • Chapter 8, pages 337-360 • 4/24 Team Assignment Part 2 DUE
