Presentation Transcript

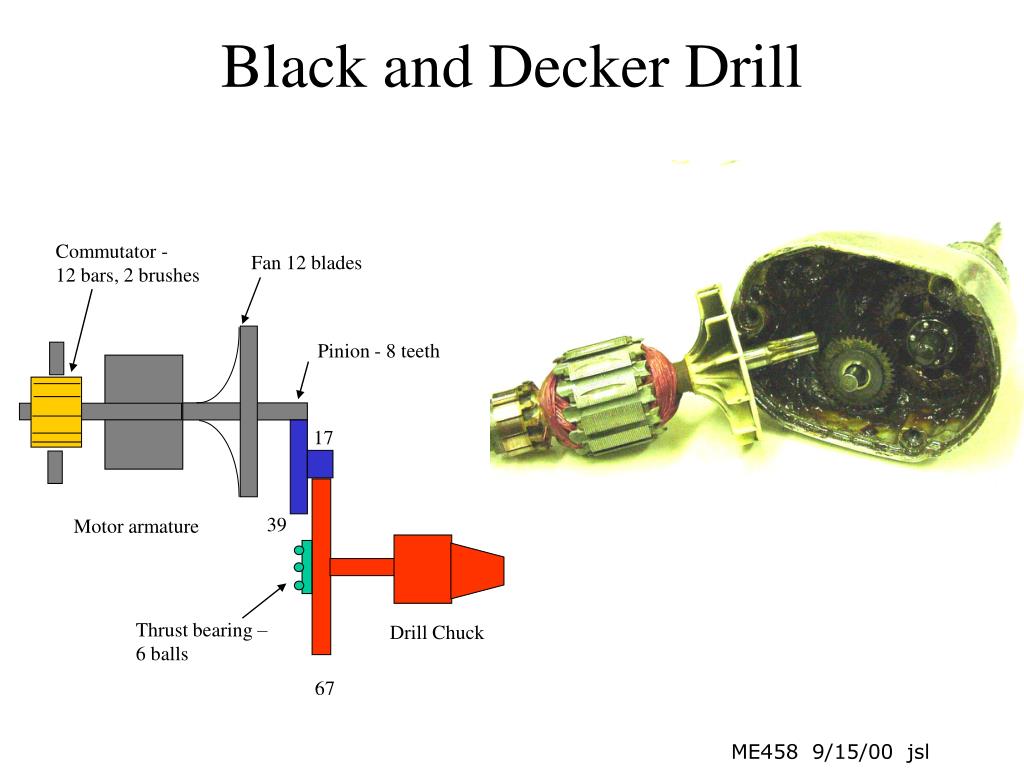

  1. Black and Decker Drill Commutator - 12 bars, 2 brushes Fan 12 blades Pinion - 8 teeth 17 39 Motor armature Thrust bearing – 6 balls Drill Chuck 67 ME458 9/15/00 jsl
