  1. Activities at IEAP CTU Prague T. Slavíček, V. Linhart, S. Pospíšil Institute of Experimental and Applied Physics, Czech Technical University in Prague, Czech Republic

  2. Outline • Introduction of IEAP CTU • Developement of test setup • New test box • Laser system developement and test • IV measurement • Idea of measurement • Results • Conclusion Tomáš Slavíček

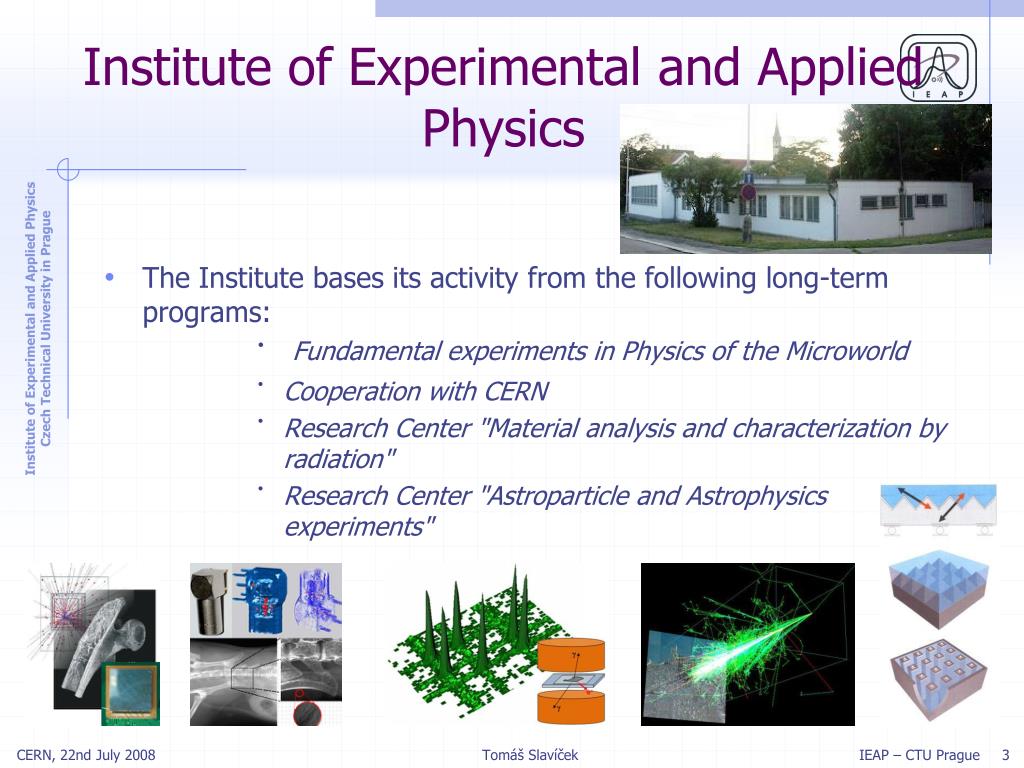

  3. Institute of Experimental and Applied Physics • The Institute bases its activity from the following long-term programs: • Fundamental experiments in Physics of the Microworld • Cooperation with CERN • Research Center "Material analysis and characterization by radiation" • Research Center "Astroparticle and Astrophysics experiments" Tomáš Slavíček

  4. New test box Test box is suitable for: • IV, CV • Tests with radiation sources (alphas, MIPs, etc.) • Tests with lasers Characteristic of test box • Shielded box • Inside flow box with supply of clean air Equipped • Cooling system up to -10°C and dry air supply • Set of microprobes Future development • Improvement of cooling system – supply of cold air • Precise positioning system for lasers Tomáš Slavíček

  5. Si red infra Pulse laser system Light attenuation Intensity attenuated to 1/e in Si: 660 nm ... 3mm 1060 nm ... 3mm • wave lengths • 660 nm (red) • 1060 nm (infra-red) • pulse length ~2 ns (FWHM) • can generate energy equivalent up to ~MeV • current preamps Phillips Scientific (bandwidth 1GHz) • current signals sampled with a digital scope (10 Gs/s, bandwidth 1GHz) a equivalent MIP equivalent Tomáš Slavíček

  6. Results from laser system Tomáš Slavíček

  7. IV measurement • Plan of measurement • IV at 20C, 0C & -10C before annealing • Annealing performed by leaving the samples at room temperature for a week • during annealing repeat measurements every 2-3 days • Used instruments • Precise current-meter KIETHLEY 6517a and bias driver KEITHLEY 2410 • Microprobes SUSS PH100 • Measurement settings • Step = 1 V, delay = 2 s X => tested samples Tomáš Slavíček

  8. Results – IV of 3E and 4E NI sample Tomáš Slavíček

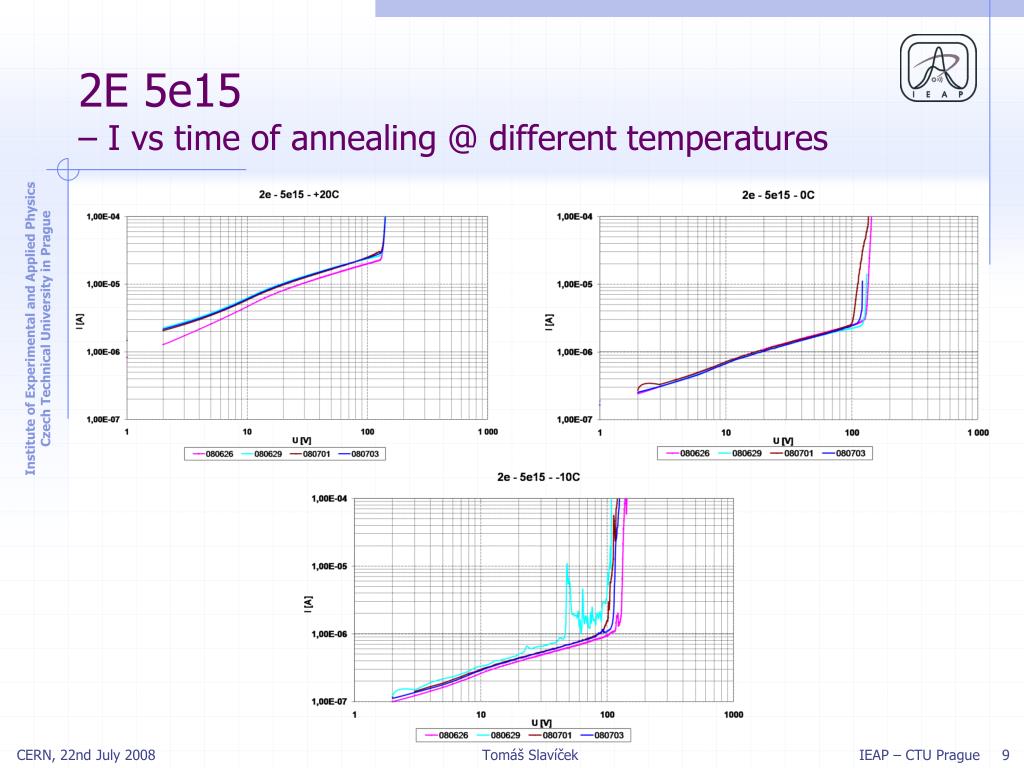

  9. 2E 5e15 – I vs time of annealing @ different temperatures Tomáš Slavíček

  10. 2E 1e16 – I vs time of annealing @ different temperatures Tomáš Slavíček

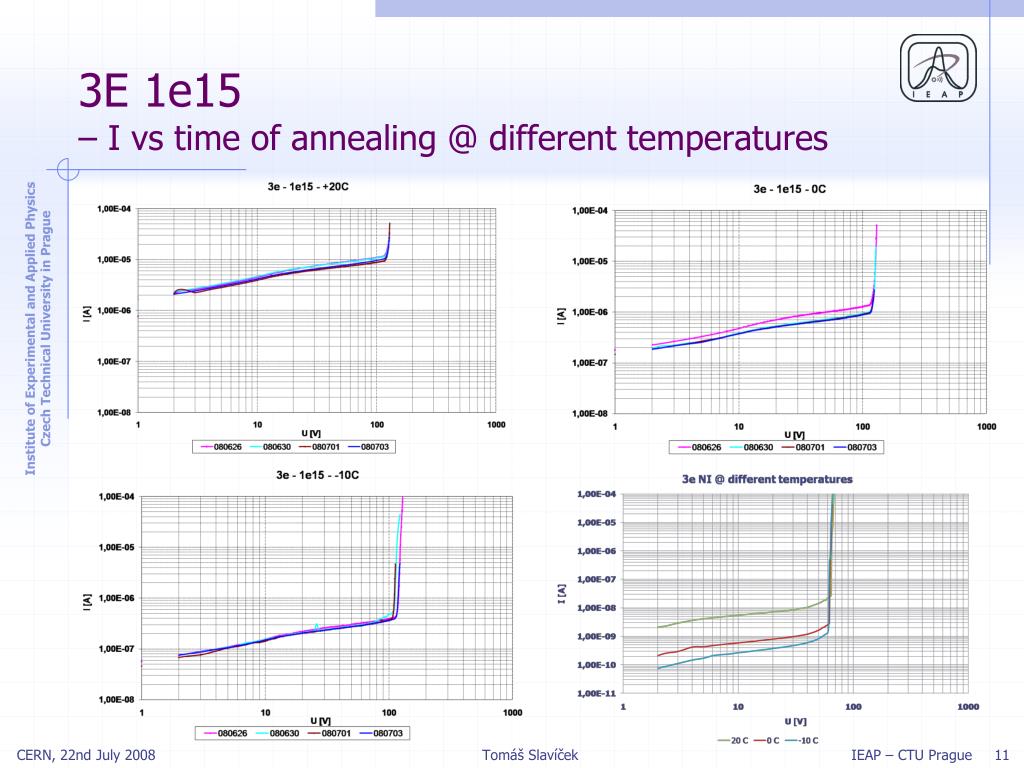

  11. 3E 1e15 – I vs time of annealing @ different temperatures Tomáš Slavíček

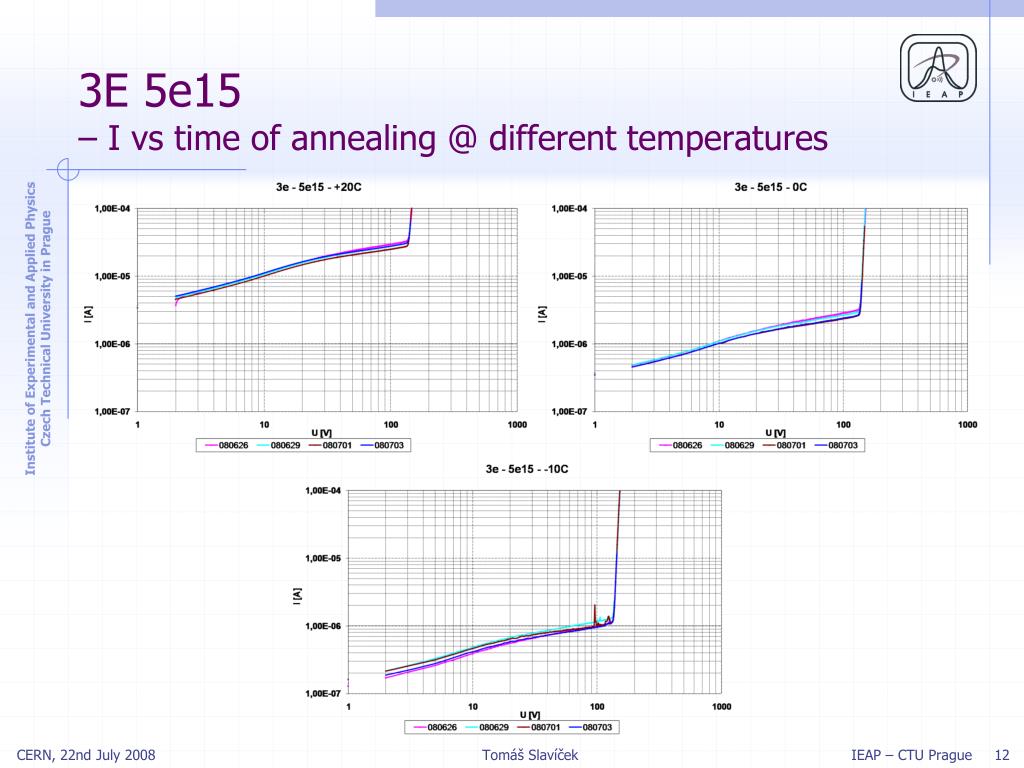

  12. 3E 5e15 – I vs time of annealing @ different temperatures Tomáš Slavíček

  13. 3E 1e16 – I vs time of annealing @ different temperatures Tomáš Slavíček

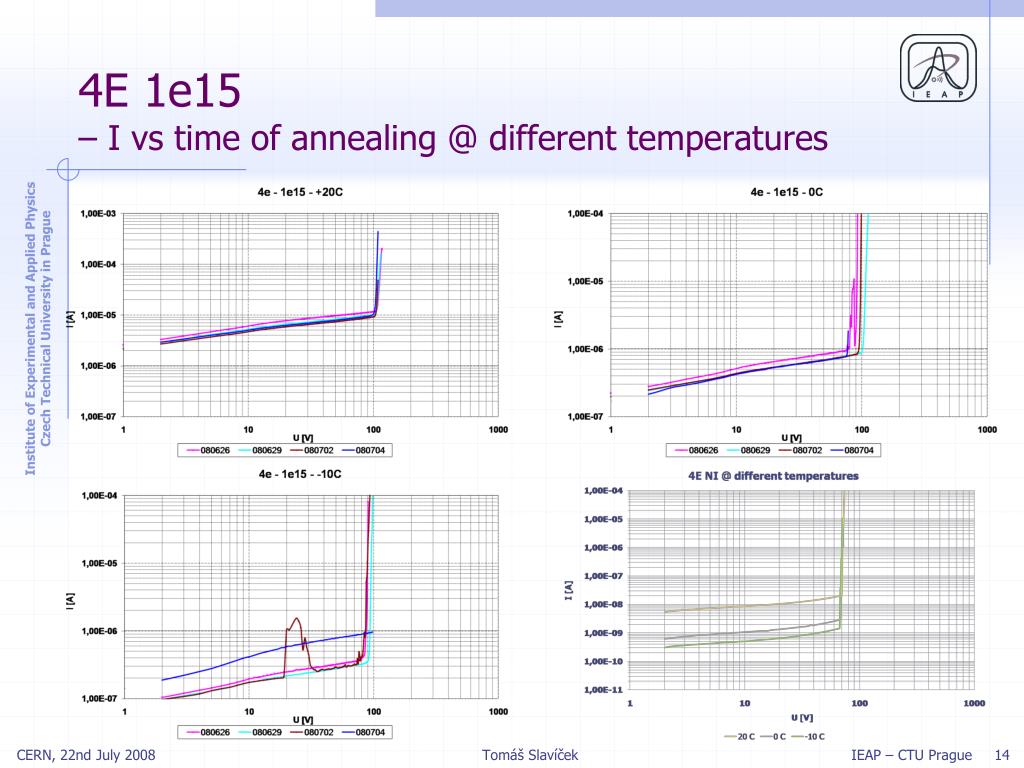

  14. 4E 1e15 – I vs time of annealing @ different temperatures Tomáš Slavíček

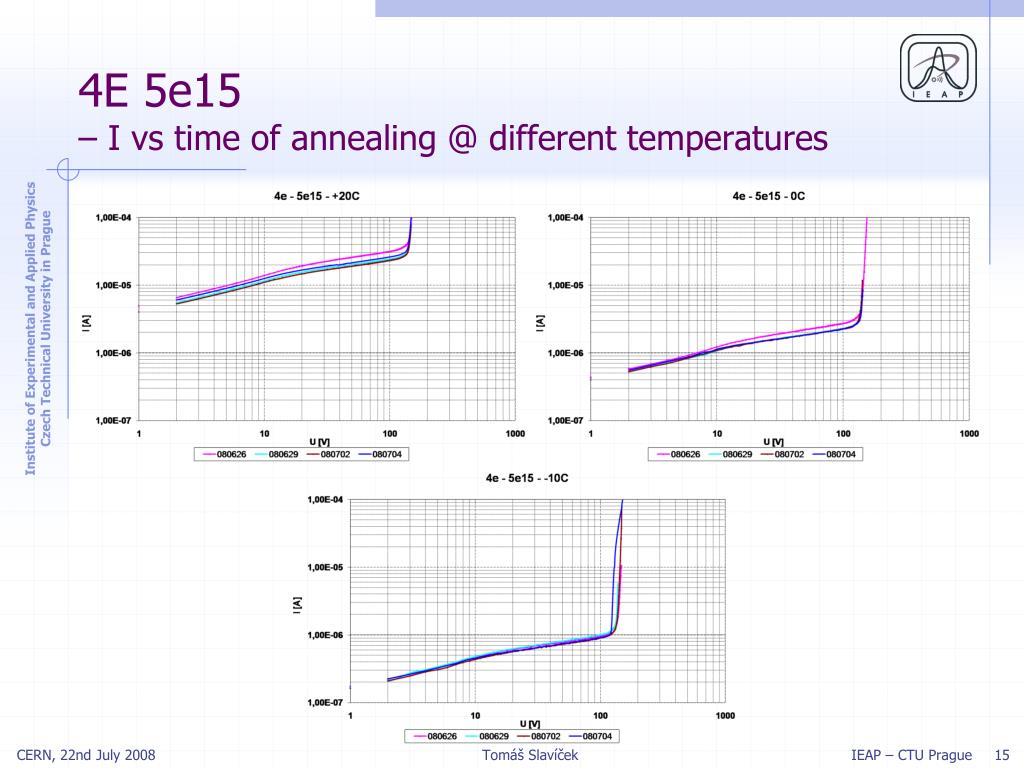

  15. 4E 5e15 – I vs time of annealing @ different temperatures Tomáš Slavíček

  16. 4E 1e16 – I vs time of annealing @ different temperatures Tomáš Slavíček

  17. Conclusion • … • … Tomáš Slavíček
