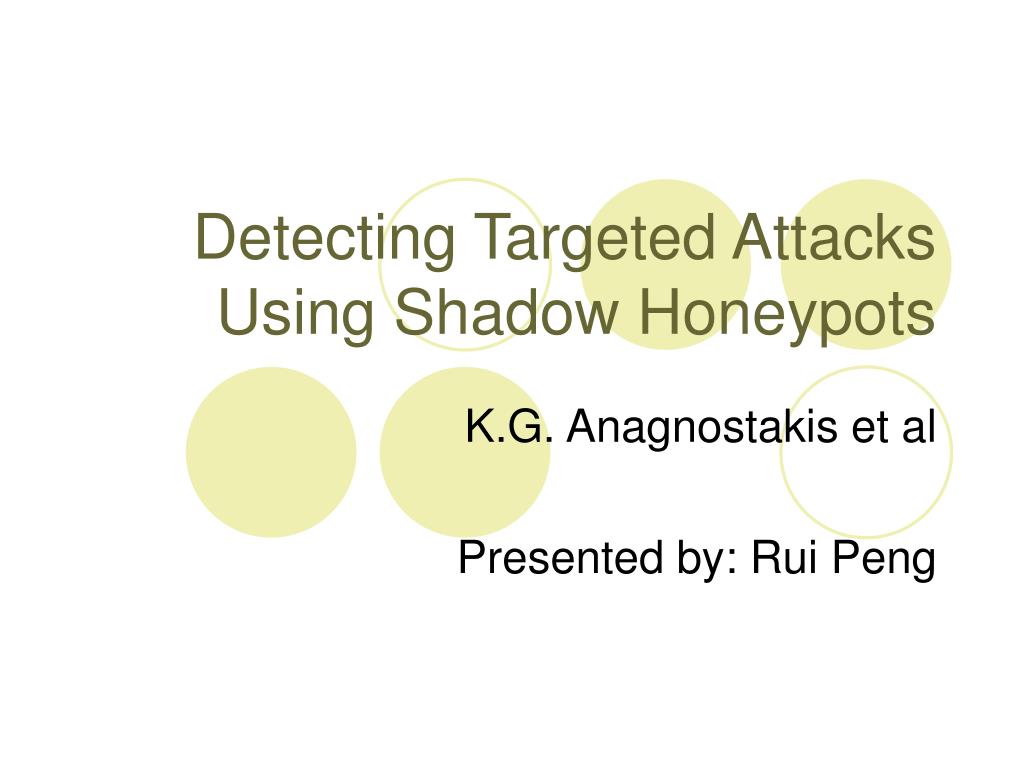

  1. Detecting Targeted Attacks Using Shadow Honeypots K.G. Anagnostakis et al Presented by: Rui Peng

  2. Outline • Honeypots & anomaly detection systems • Design of shadow honeypots • Implementation of a shadow honeypot • Performance evaluation • Discussion and conclusion

  3. Basic Concepts • IPS: Intrusion Prevention Systems • IDS: Intrusion Detection Systems • Rule-based • Limited for known attacks • For previously unknown attacks • Honeypots • Anomaly detection systems (ADS)

  4. A Simple Classification

  5. What is a shadow honeypot? • An instance of the protected application • Shares all internal state with the normal instance • Attacks will be detected • Legitimate traffic misclassified as attacks will be validated

  6. Key components • Filtering: blocks known attacks • Drops certain requests before processing • ADS: labels traffic as malicious or benign • Malicious traffic directed to shadow honeypot • Benign traffic to normal application • Shadow honeypot: detects attacks • State changes by attacks discarded • State changes by misclassified traffic preserved

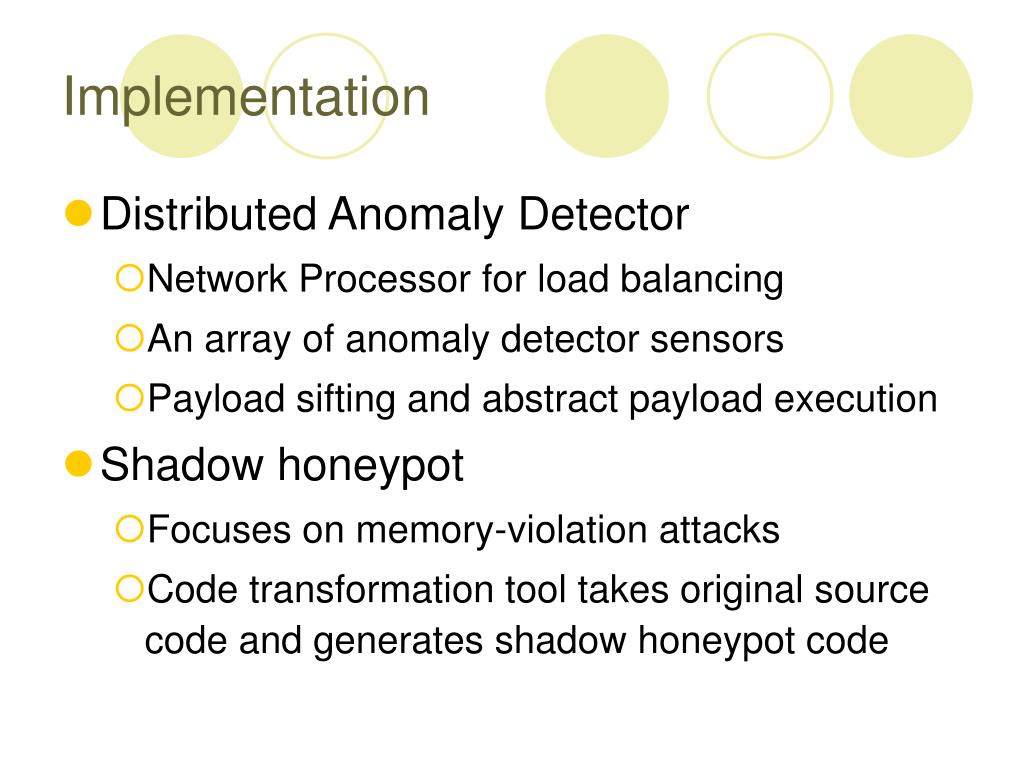

  7. Implementation • Distributed Anomaly Detector • Network Processor for load balancing • An array of anomaly detector sensors • Payload sifting and abstract payload execution • Shadow honeypot • Focuses on memory-violation attacks • Code transformation tool takes original source code and generates shadow honeypot code

  8. Creating a shadow honeypot • Move all static memory buffers to the heap • Dynamically allocate memory using pmalloc() • Two additional write-protected pages to bracket the allocated buffer

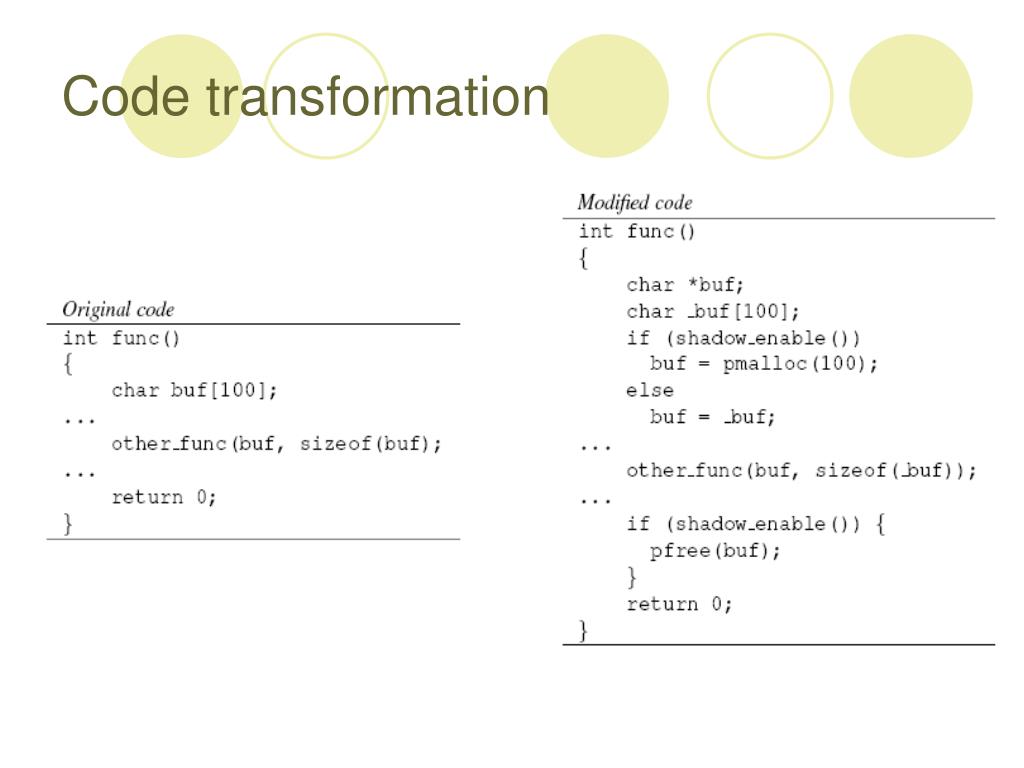

  9. Code transformation

  10. Performance results • Capable of processing all false-positives and detecting attacks. • Instrumentation is expensive: 20% - 50% overhead. • Still, overhead is within the processing budget.

  11. Benefits • Allow AD be tuned towards high sensitivity • Less undetected attacks • More false positives, but still ok because they will be processed as normal • Self-train and fine-tune • Attacks detected by shadow honeypot is used to train filtering component • Benign traffic validated by shadow honeypot is used to train anomaly detectors

  12. Limitations • Creating a shadow honeypot requires source code transformation. • Can only detect memory-violation attacks. • Apache web server and Mozilla Firefox are the only tested applications. • No mention of how filtering component and anomaly detectors can be trained.

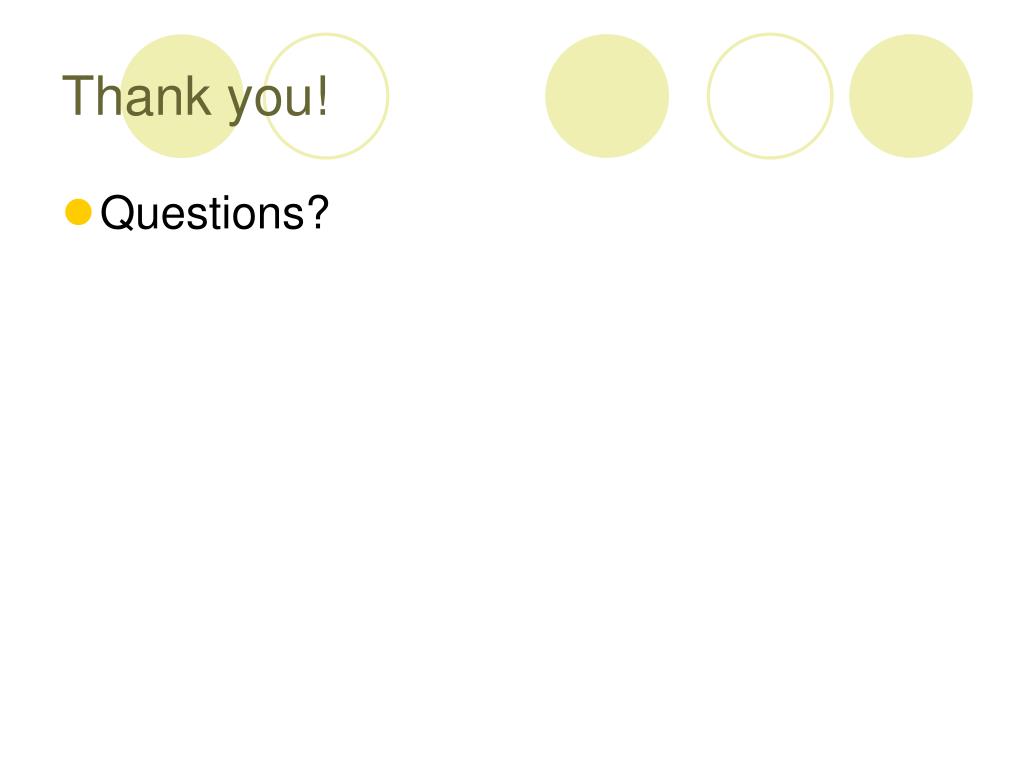

  13. Thank you! • Questions?
