  1. Senior Design Project – Fall 2007 Wireless Surveillance Vehicle Lance P. Riegert Rodrigo A. Urra Steve C. Wilson Wireless Surveillance Vehicle

  2. Agenda • Project Description and Requirements • System Overview • User Interface • System Hardware • ALIX.1C Microcontroller • HCS12 Microcontroller • DC Motor Drive • Speed Detection • Power • System Integration • Testing Strategies • Cost • Questions Wireless Surveillance Vehicle

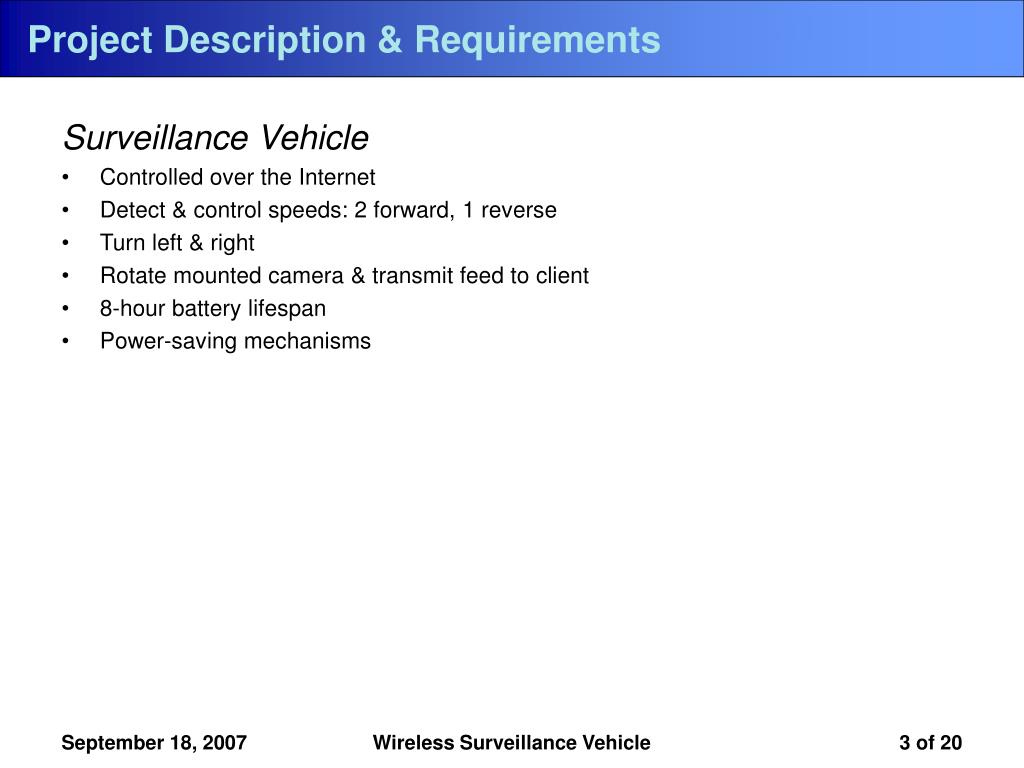

  3. Project Description & Requirements • Surveillance Vehicle • Controlled over the Internet • Detect & control speeds: 2 forward, 1 reverse • Turn left & right • Rotate mounted camera & transmit feed to client • 8-hour battery lifespan • Power-saving mechanisms September 18, 2007 Wireless Surveillance Vehicle 3 of 20

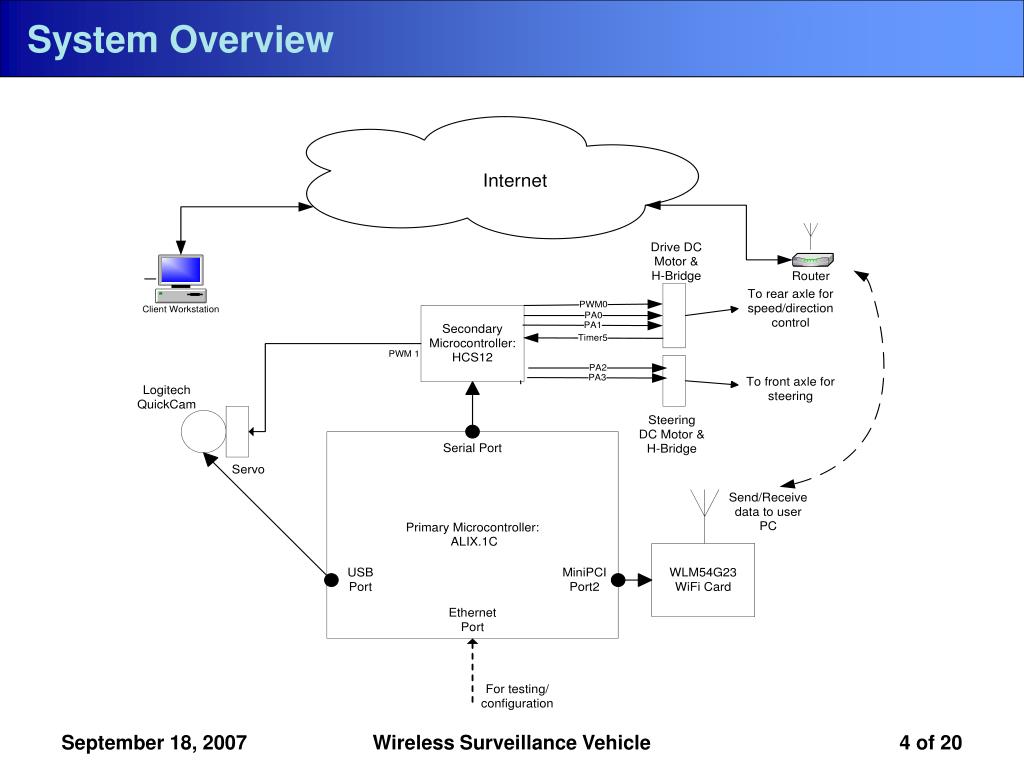

  4. System Overview Wireless Surveillance Vehicle

  5. User Interface – offline Wireless Surveillance Vehicle

  6. User Interface – online Wireless Surveillance Vehicle

  7. System Components Wireless Surveillance Vehicle

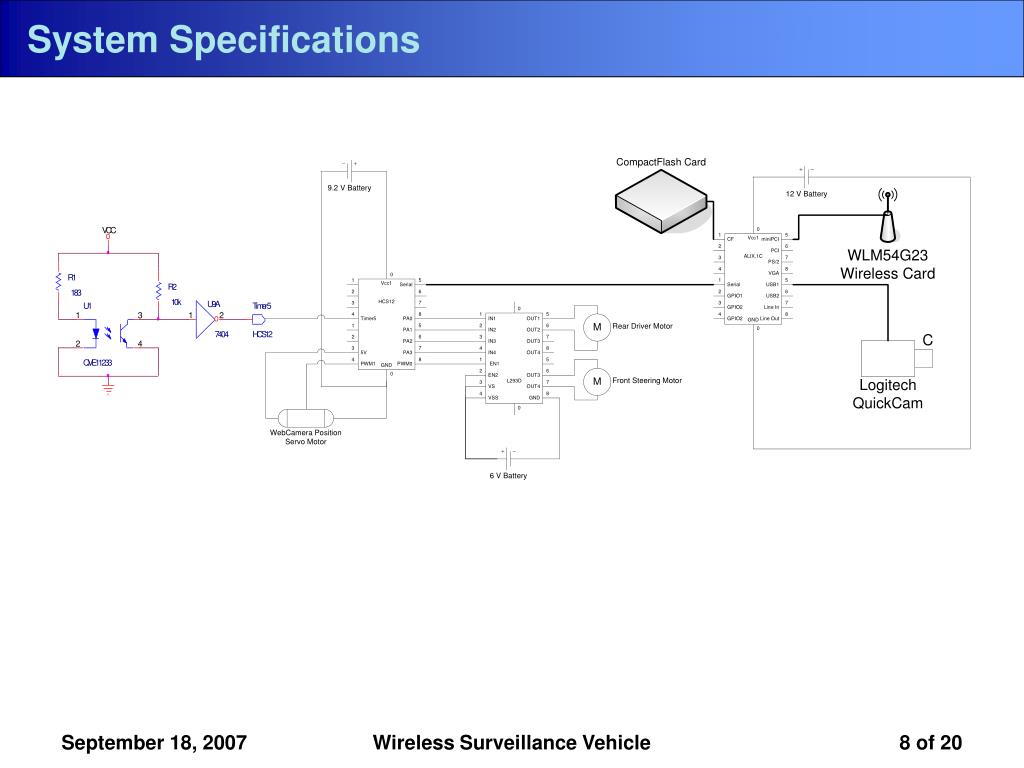

  8. System Specifications Wireless Surveillance Vehicle

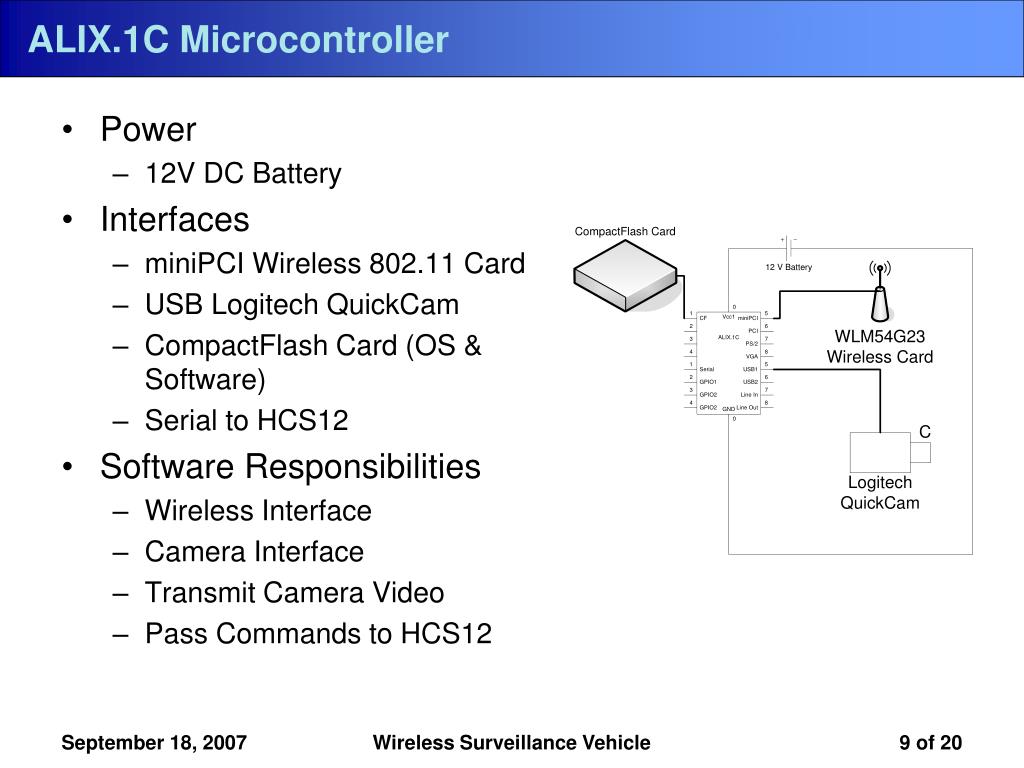

  9. ALIX.1C Microcontroller • Power • 12V DC Battery • Interfaces • miniPCI Wireless 802.11 Card • USB Logitech QuickCam • CompactFlash Card (OS & Software) • Serial to HCS12 • Software Responsibilities • Wireless Interface • Camera Interface • Transmit Camera Video • Pass Commands to HCS12 Wireless Surveillance Vehicle

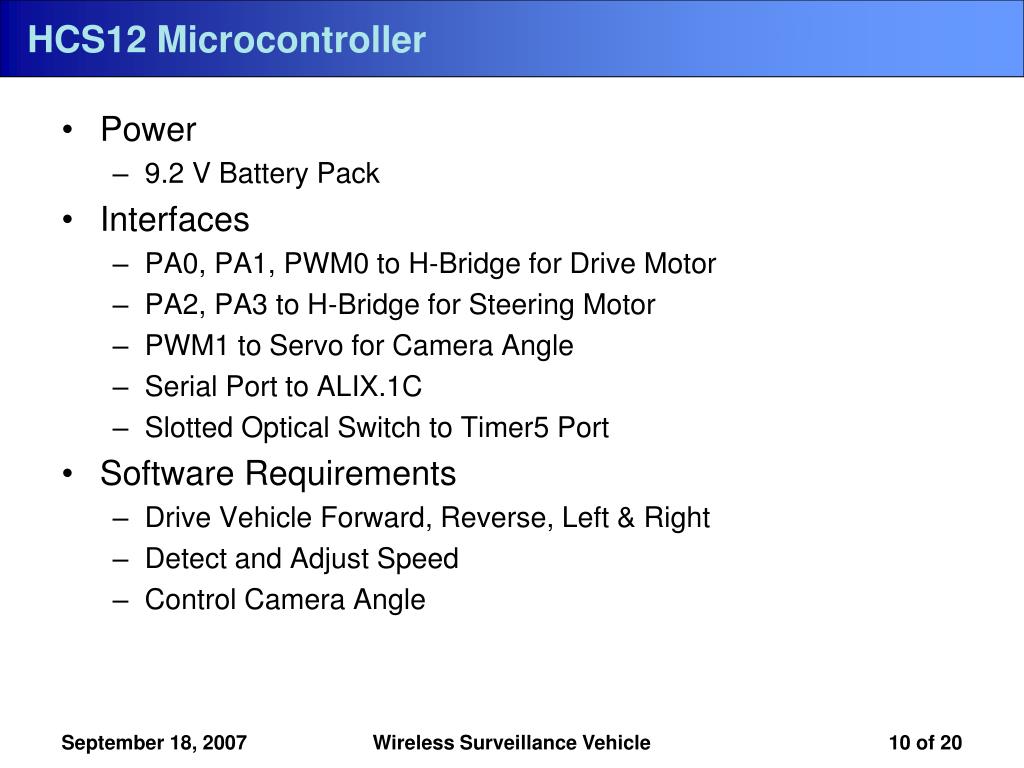

  10. HCS12 Microcontroller • Power • 9.2 V Battery Pack • Interfaces • PA0, PA1, PWM0 to H-Bridge for Drive Motor • PA2, PA3 to H-Bridge for Steering Motor • PWM1 to Servo for Camera Angle • Serial Port to ALIX.1C • Slotted Optical Switch to Timer5 Port • Software Requirements • Drive Vehicle Forward, Reverse, Left & Right • Detect and Adjust Speed • Control Camera Angle Wireless Surveillance Vehicle

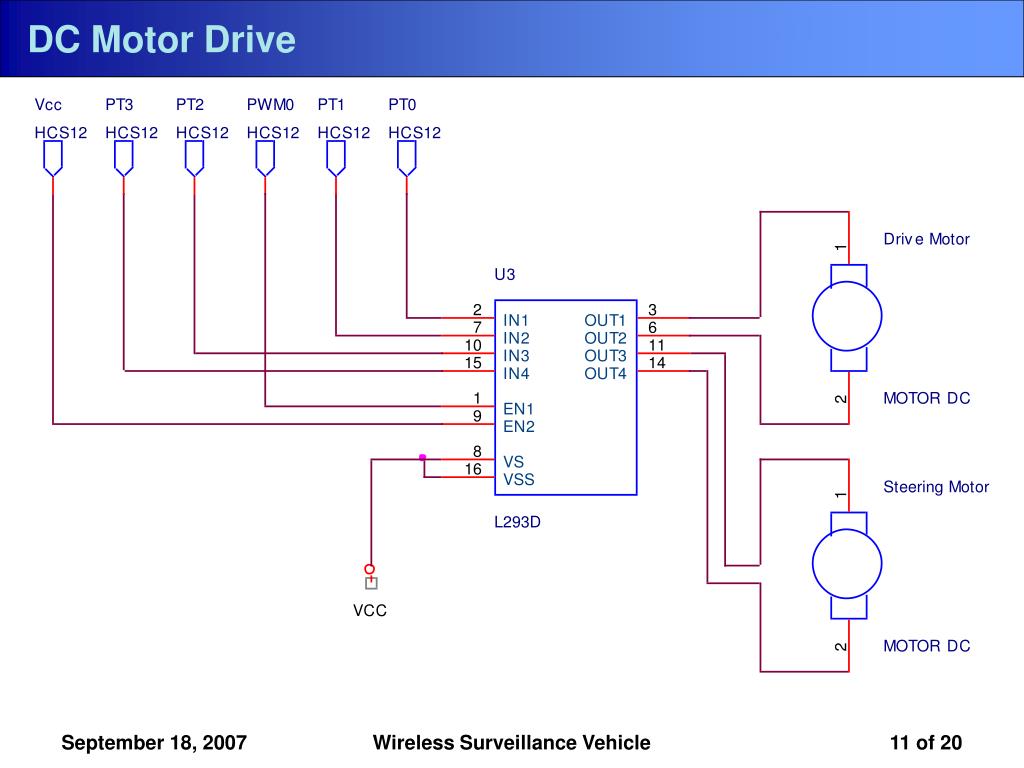

  11. DC Motor Drive Wireless Surveillance Vehicle

  12. Speed Detection Wireless Surveillance Vehicle

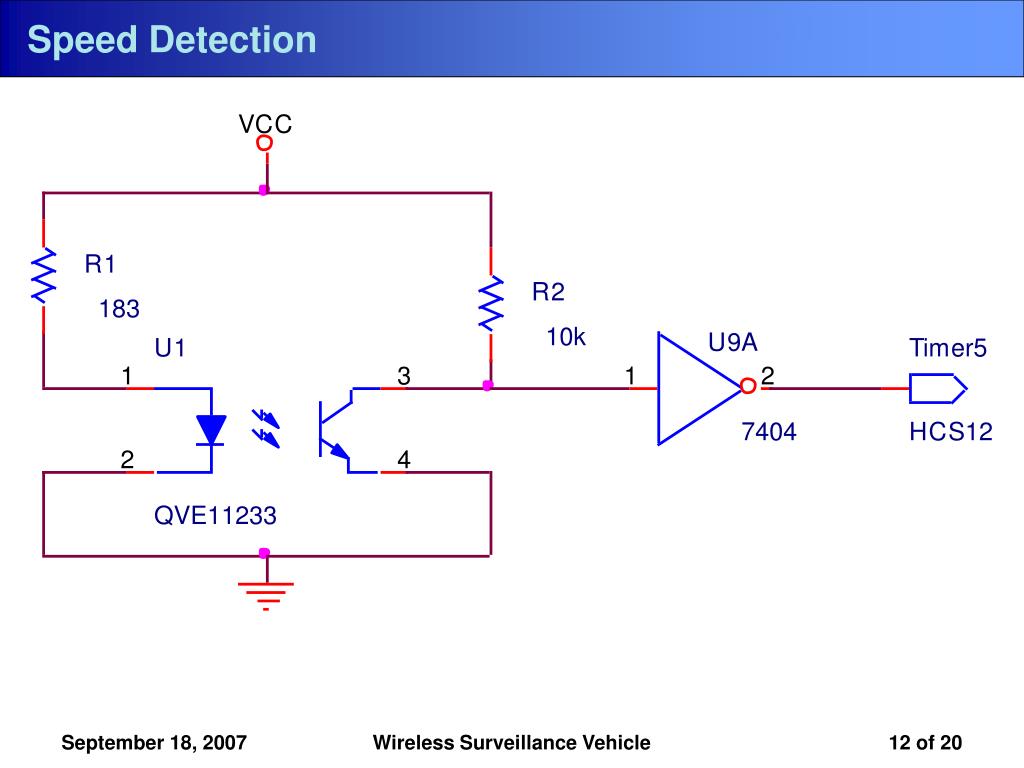

  13. Speed Detection Flowchart for Interrupt Handler Flowchart for Background Job September 18, 2007 Wireless Surveillance Vehicle 13 of 20

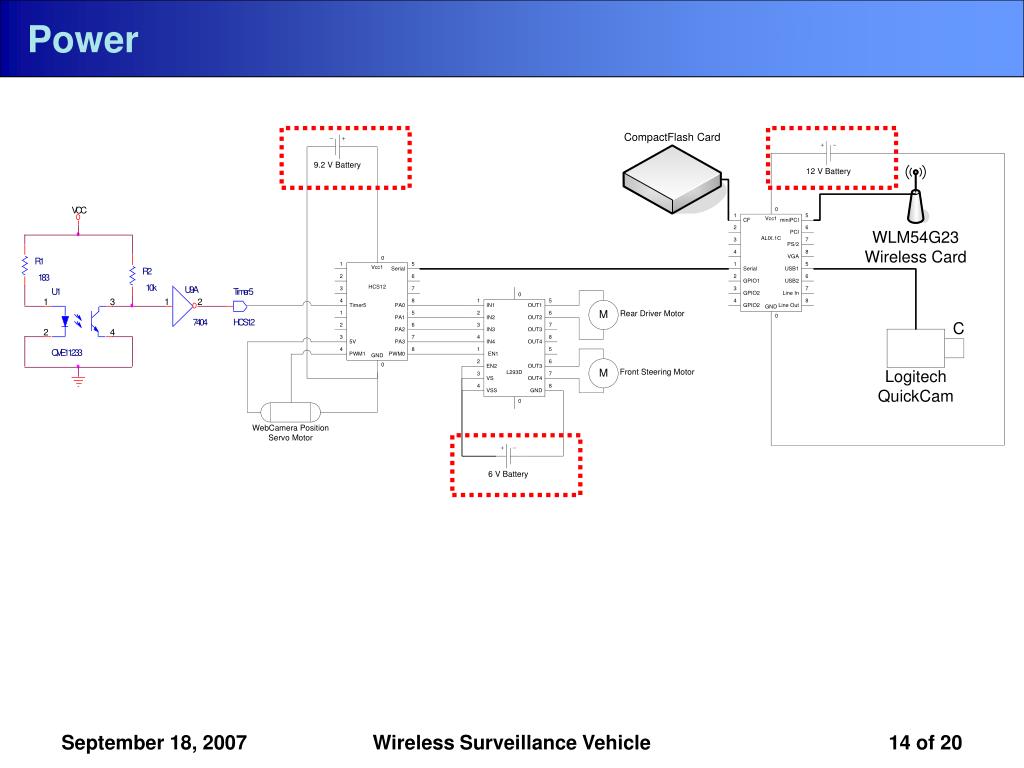

  14. Power Wireless Surveillance Vehicle

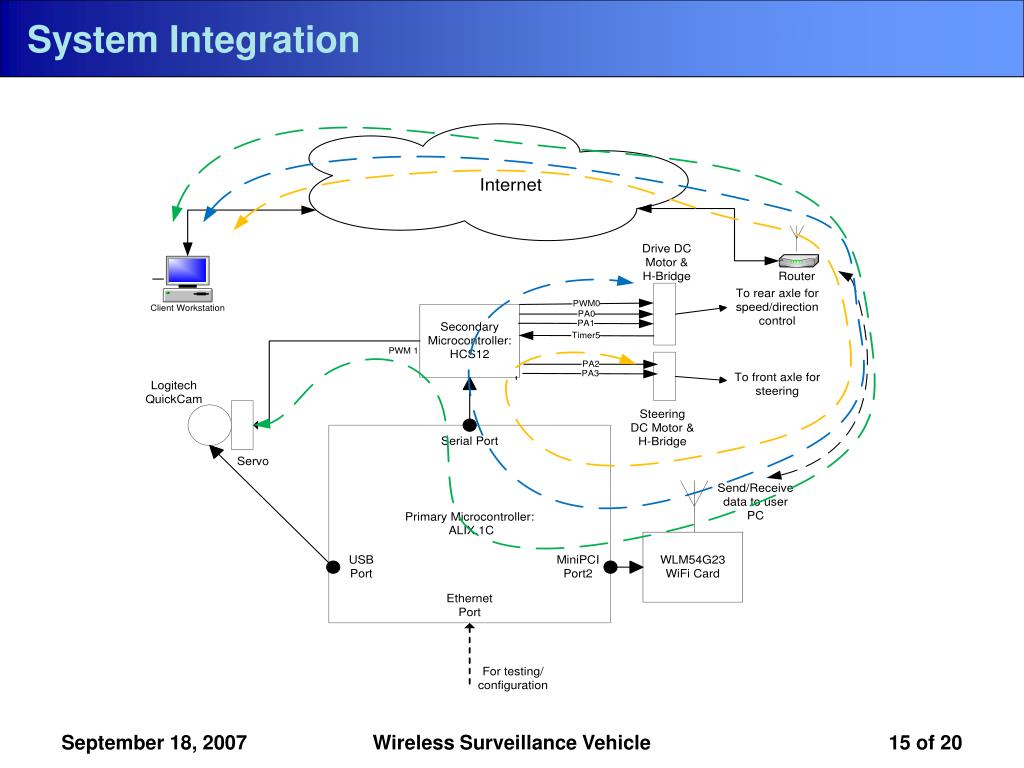

  15. System Integration Wireless Surveillance Vehicle

  16. Command & Video Transmission FTP (video/screenshots) TCP (commands) September 18, 2007 Wireless Surveillance Vehicle 16 of 20

  17. Testing Strategies • 1. Hardware • ALIX.1C   HCS12 serial interface • ALIX.1C 802.11 Internet connection • ALIX.1C webcam recognition • HCS12 output voltages • Vehicle control (Steering, Speed) • 2. Software • Client   server command transmission • Client   Spook video transmission • HCS12 response to serial stimulus • 3. Incremental System Integration Wireless Surveillance Vehicle

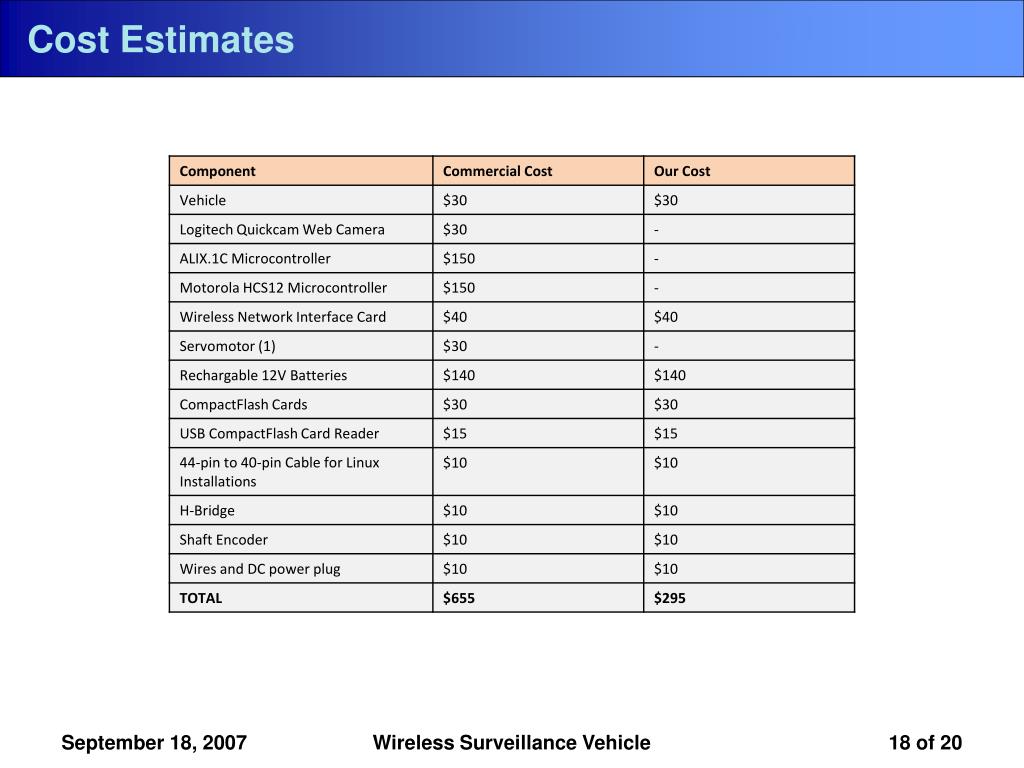

  18. Cost Estimates Wireless Surveillance Vehicle

  19. Possible Difficulties • Obtaining stable video frame rates • Vehicle recovery if outside of wi-fi radius • Keeping aligned steering • Maintaining stable speed control • Implementation of power-saving features September 18, 2007 Wireless Surveillance Vehicle 19 of 20

  20. Questions Questions? Wireless Surveillance Vehicle
