  1. Rule-based generation of requirements traceability relations

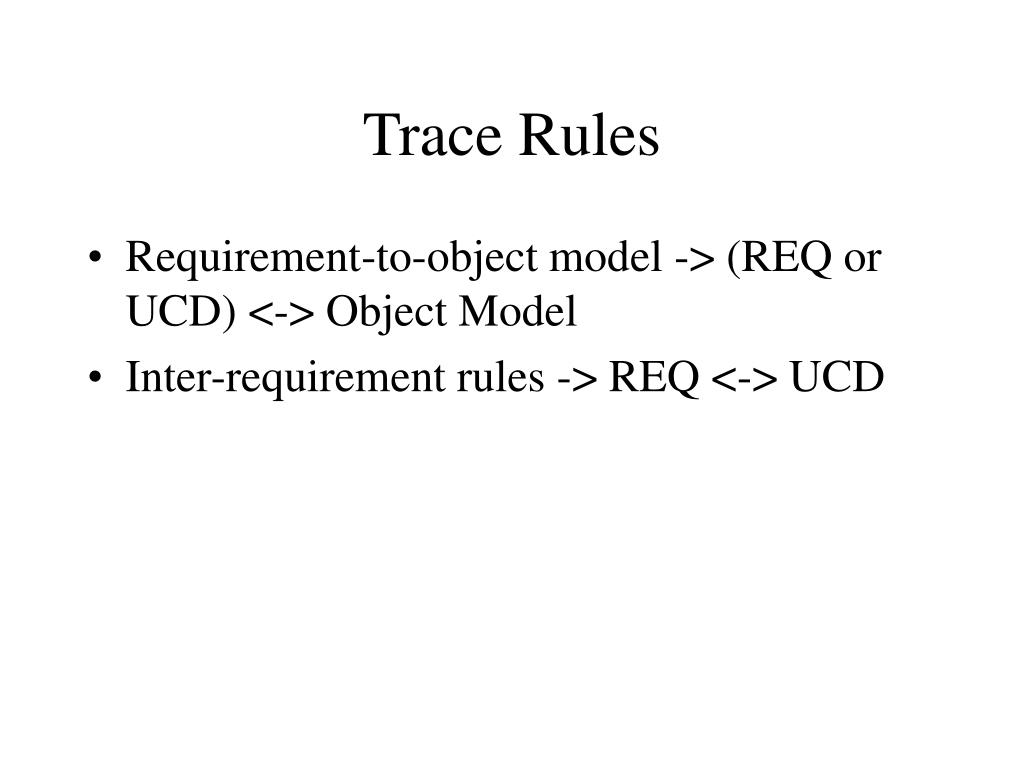

  2. Trace Rules • Requirement-to-object model -> (REQ or UCD) <-> Object Model • Inter-requirement rules -> REQ <-> UCD

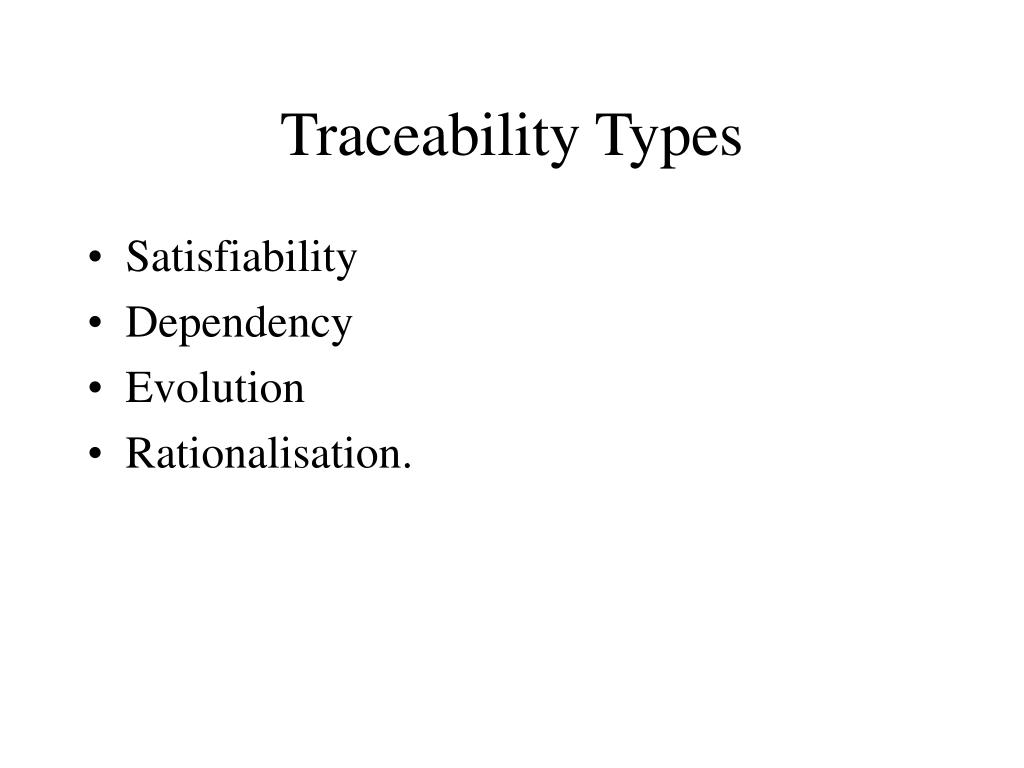

  3. Traceability Types • Satisfiability • Dependency • Evolution • Rationalisation.

  4. RTOM rules • 利用RSD上句法(syntactically)的上的分析跟Object Model上特定fields 的關係，如class, attribute, operations 產生關係。

  5. IREQ Rules • Between Requirements • Between USD events. • Between Requirement and USD • 特點是要有trace to AOM才會產生IREQ trace.

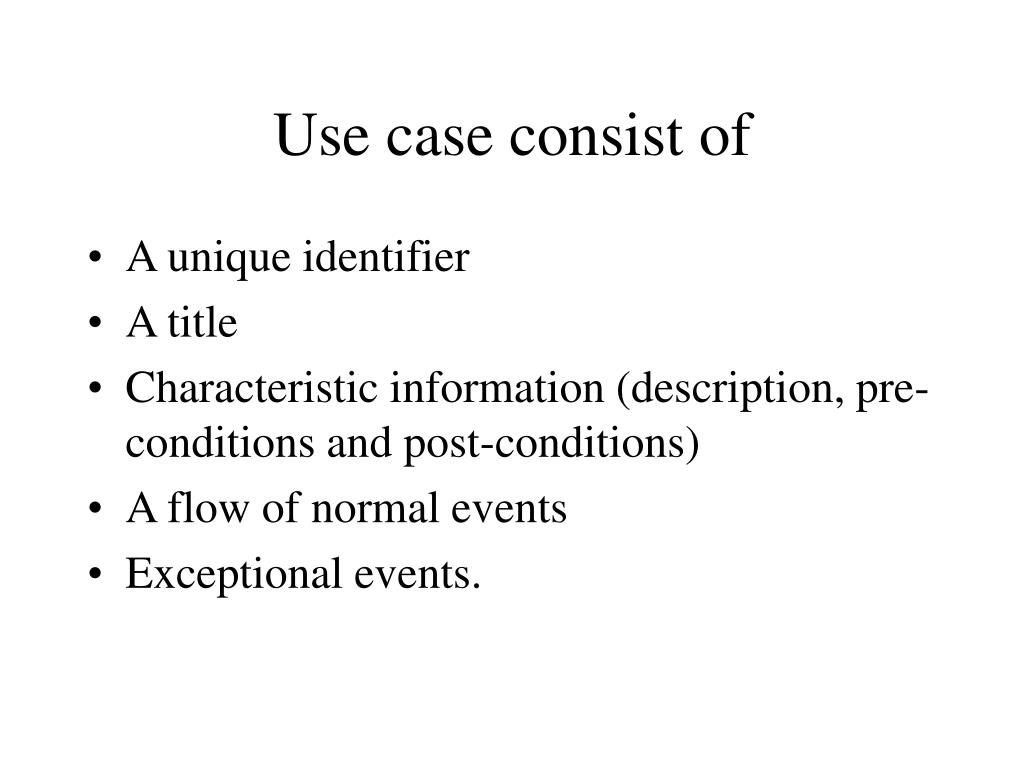

  6. Use case consist of • A unique identifier • A title • Characteristic information (description, pre-conditions and post-conditions) • A flow of normal events • Exceptional events.

  7. Four stages to proceed • Grammatical tagging • XML conversion • Generate RTOM relations • Generate IREQ relations

  8. Four types of relations • Overlap • Requires_Executions_Of • Requires_Feature_In • Can_Partially_Realise

  9. Overlap Relation • An overlap relation 重疊 denotes that the connected elements refer to a common feature of the underlying system or its domain. • 一個common的功能 • 例: Treble levels

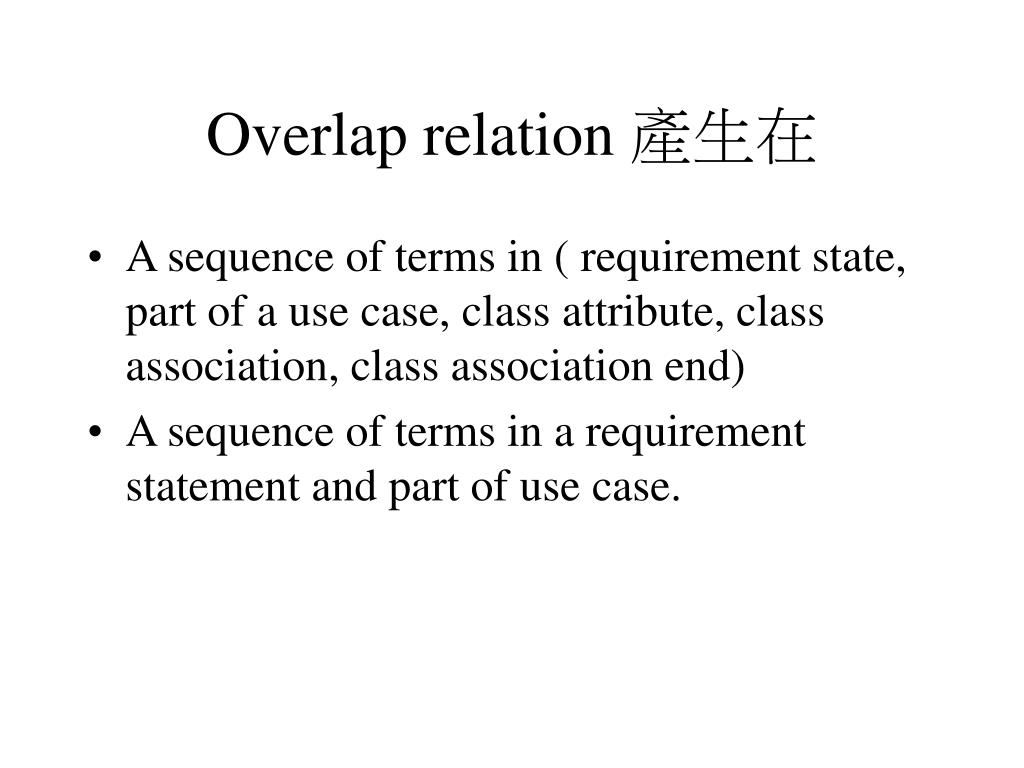

  10. Overlap relation 產生在 • A sequence of terms in ( requirement state, part of a use case, class attribute, class association, class association end) • A sequence of terms in a requirement statement and part of use case.

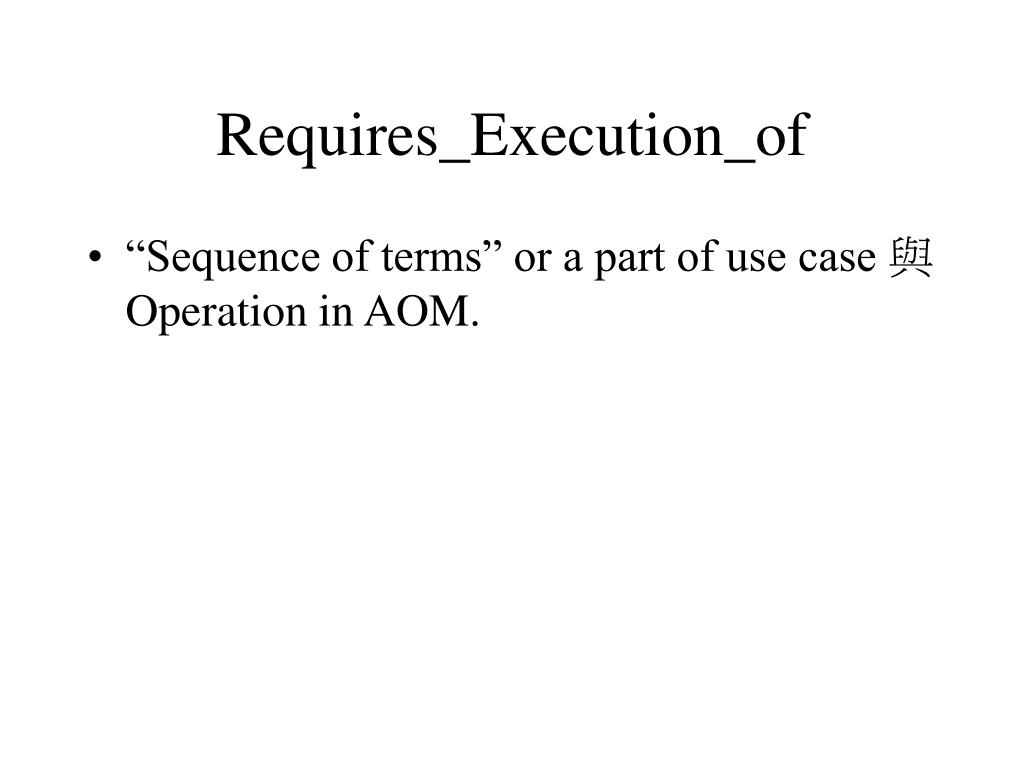

  11. Requires_Execution_of • “Sequence of terms” or a part of use case 與 Operation in AOM.

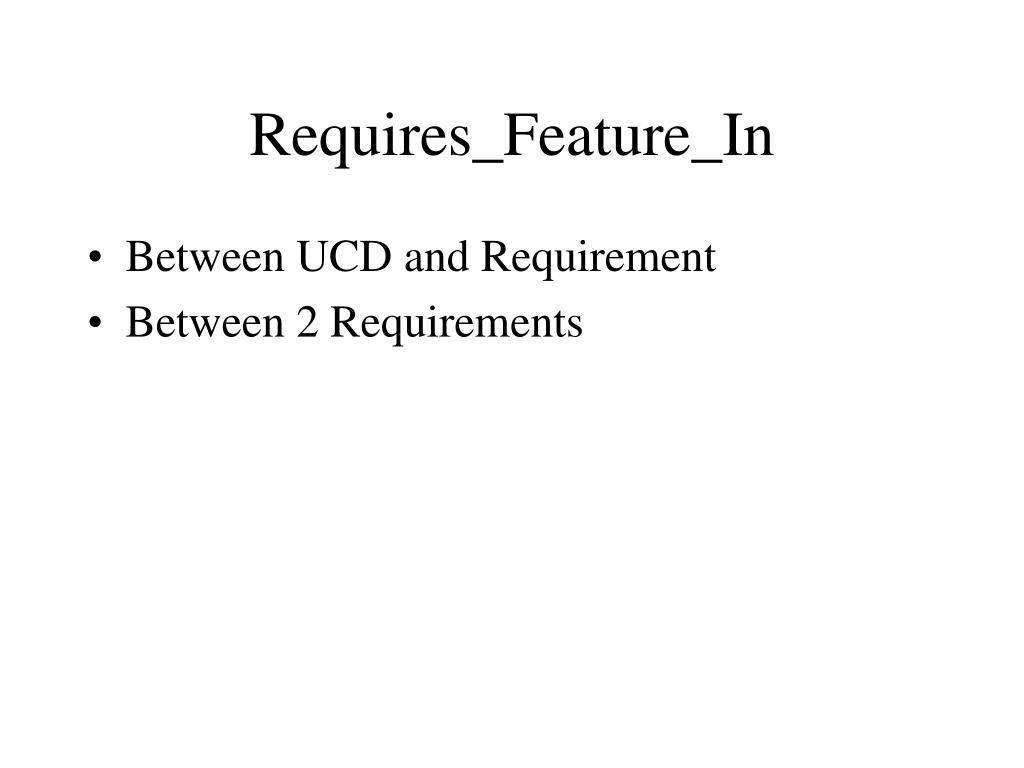

  12. Requires_Feature_In • Between UCD and Requirement • Between 2 Requirements

  13. Can_Partially_Realise • Between (description, event and post-condition in UCD) and Requirements

  14. CLAWS tags set samples

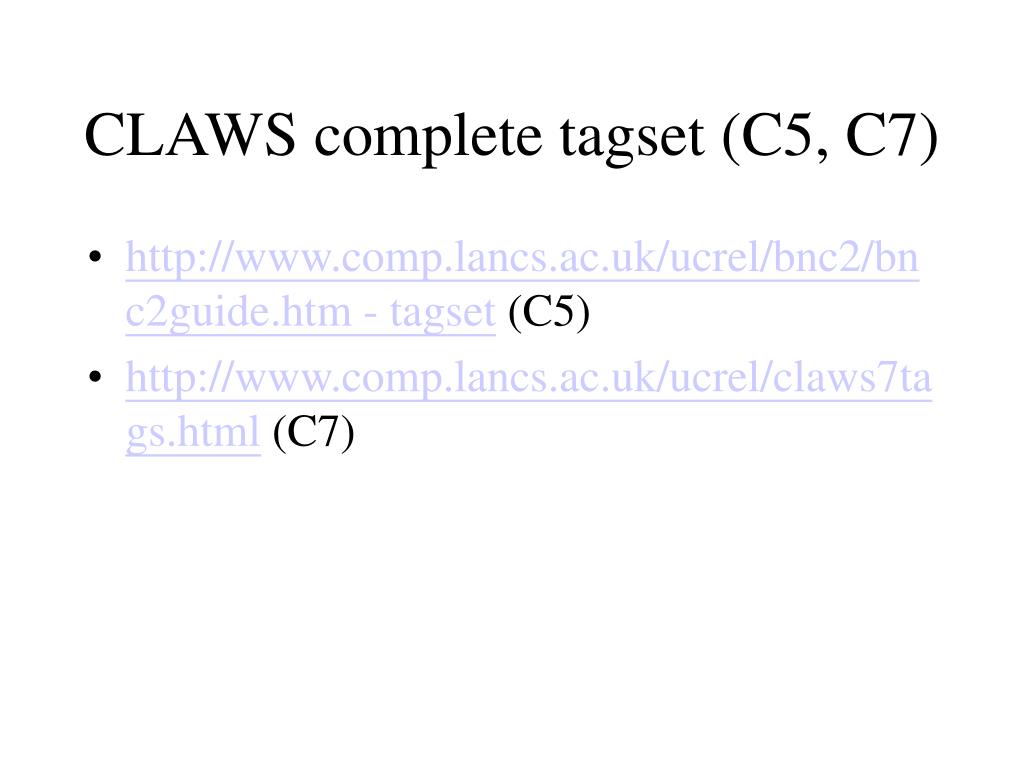

  15. CLAWS complete tagset (C5, C7) • http://www.comp.lancs.ac.uk/ucrel/bnc2/bnc2guide.htm - tagset (C5) • http://www.comp.lancs.ac.uk/ucrel/claws7tags.html (C7)

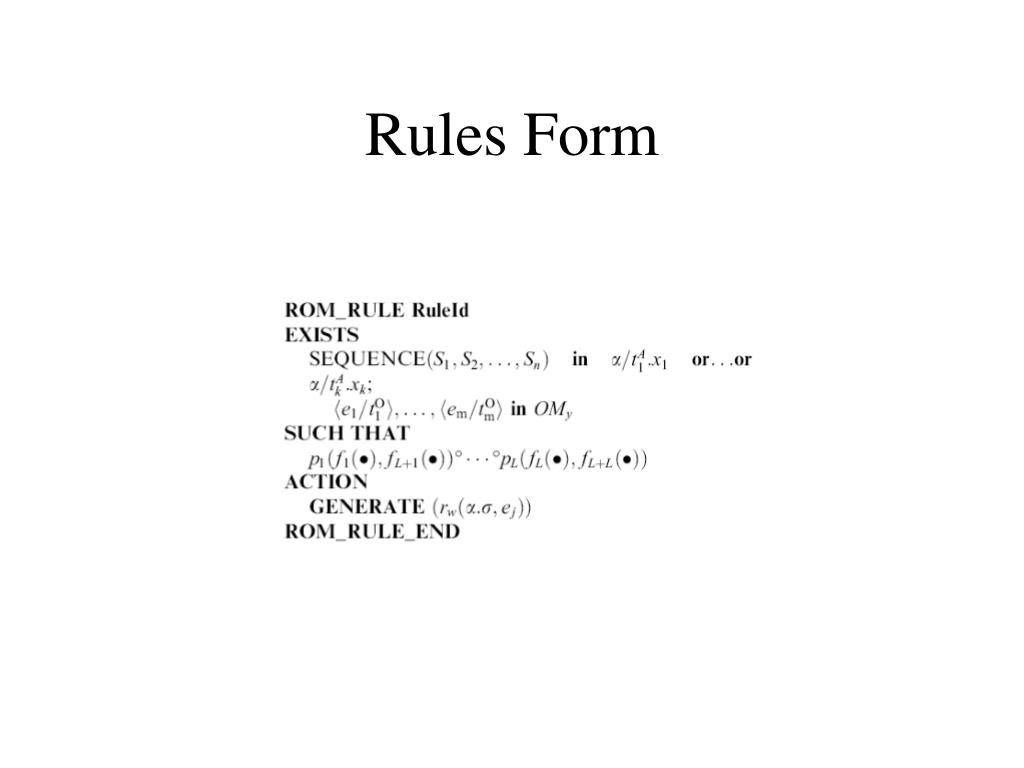

  16. Rules Form

  17. Sample of Prediction • Where P is defined as • ATTRIBUTE_OF(Id1, Id2) • Id1 is an attribute, and Id2 is a class. • Id1 is an attribute of Id2 or inherited by Id2

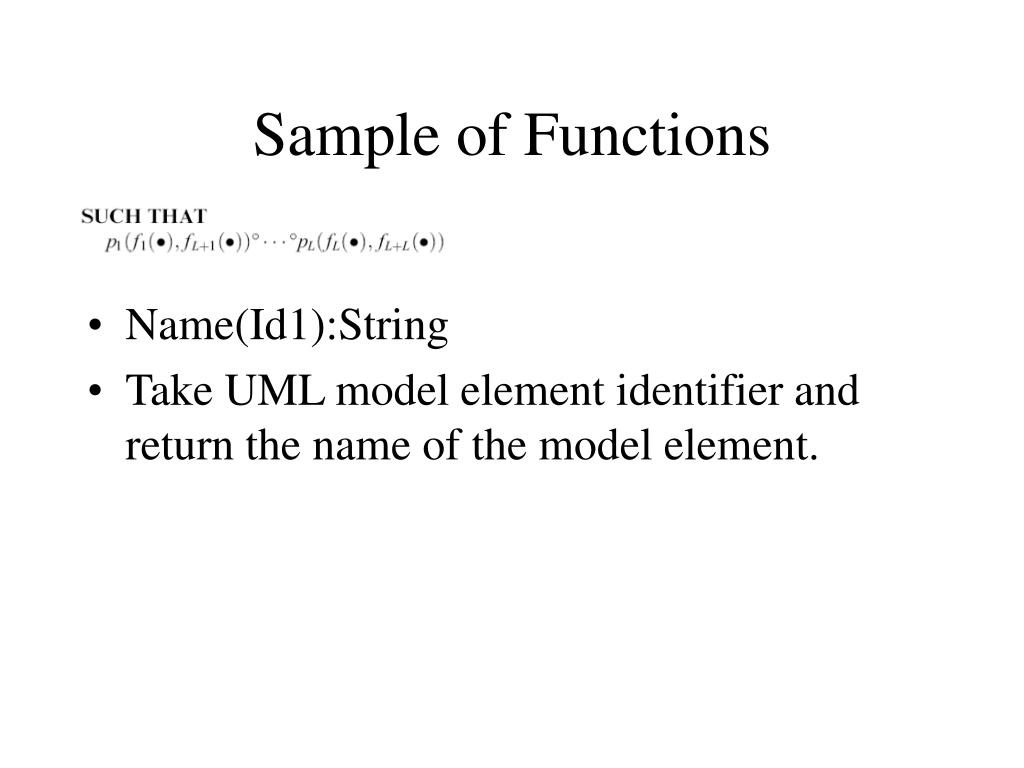

  18. Sample of Functions • Name(Id1):String • Take UML model element identifier and return the name of the model element.

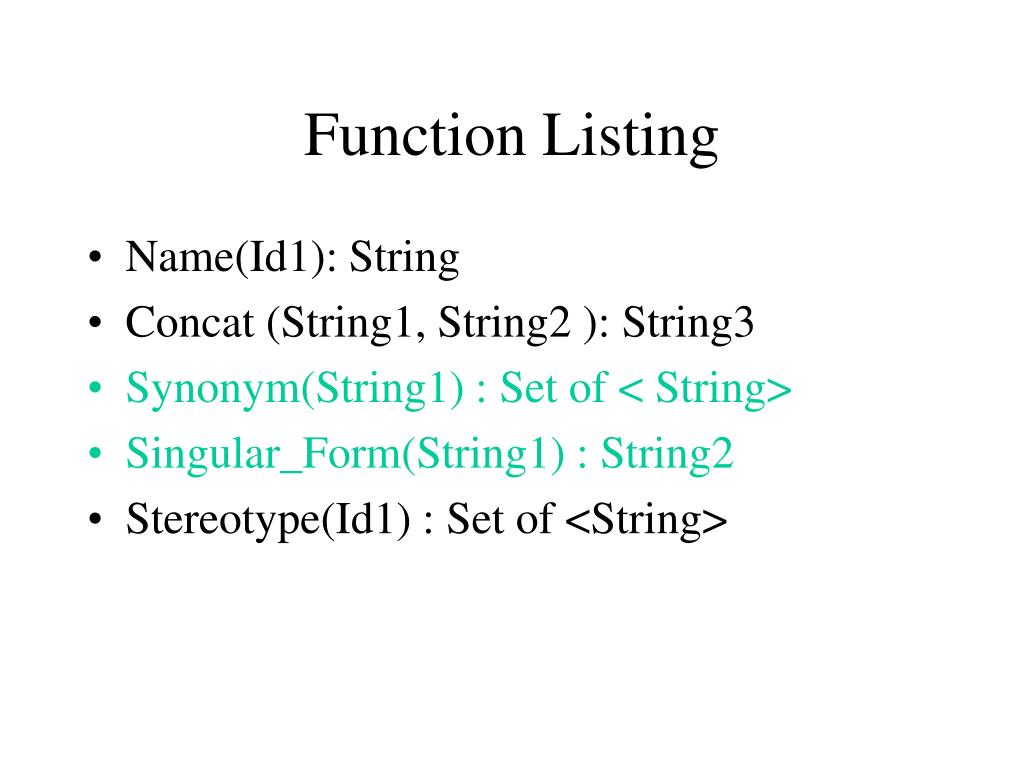

  19. Function Listing • Name(Id1): String • Concat (String1, String2 ): String3 • Synonym(String1) : Set of < String> • Singular_Form(String1) : String2 • Stereotype(Id1) : Set of <String>

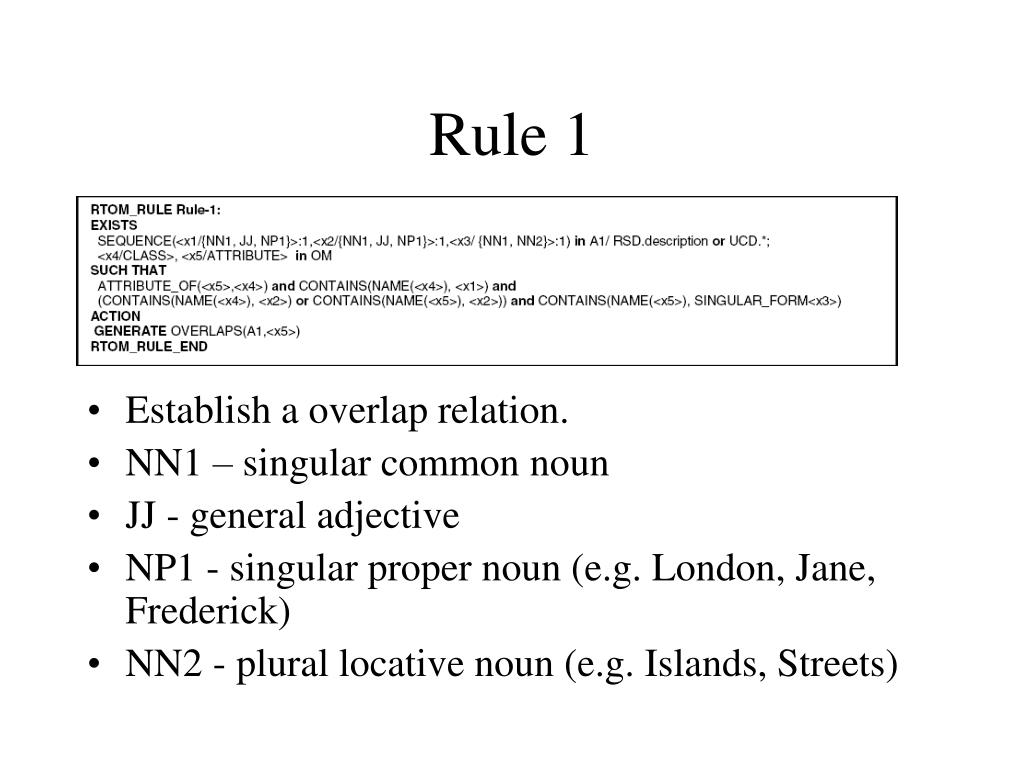

  20. Rule 1 • Establish a overlap relation. • NN1 – singular common noun • JJ - general adjective • NP1 - singular proper noun (e.g. London, Jane, Frederick) • NN2 - plural locative noun (e.g. Islands, Streets)

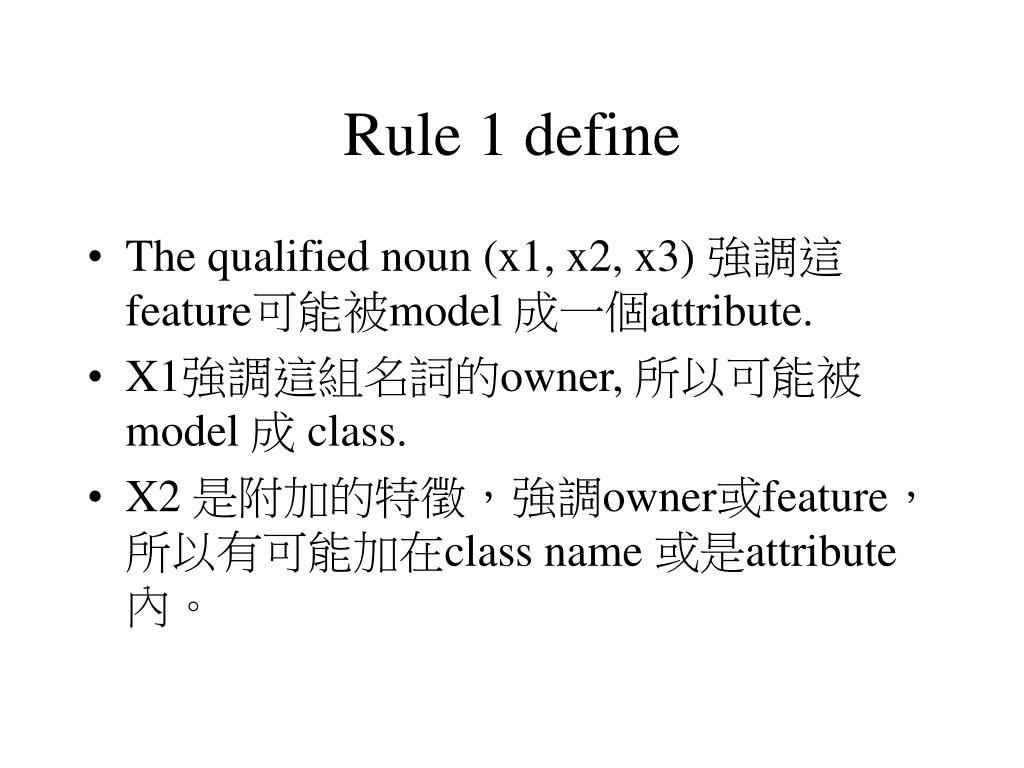

  21. Rule 1 define • The qualified noun (x1, x2, x3) 強調這feature可能被model 成一個attribute. • X1強調這組名詞的owner, 所以可能被model 成 class. • X2 是附加的特徵，強調owner或feature，所以有可能加在class name 或是attribute 內。

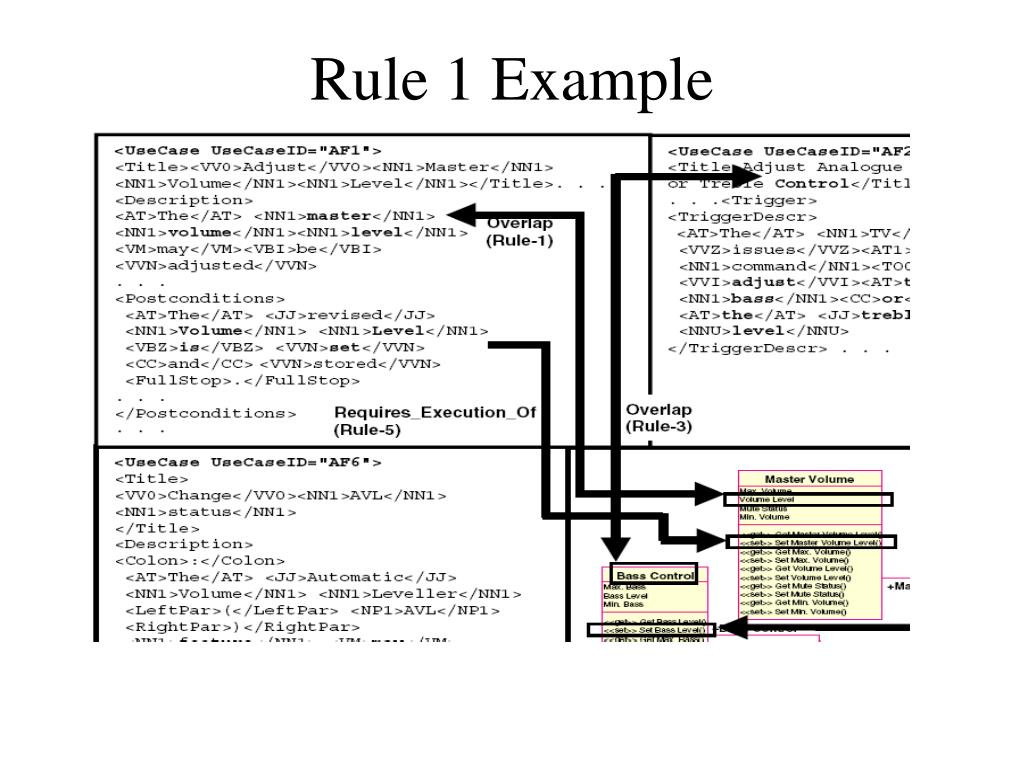

  22. Rule 1 Example

  23. Rule 2 • VVI – infinitive 原形動詞 • AT - article (e.g. the, no) 冠詞 • CC - coordinating conjunction (e.g. and, or)

  24. Rule 2 • Match 一個主動作 <x1/{VVI}:1> 跟一個物件，這個動作要出現在OM的Class Operation中。

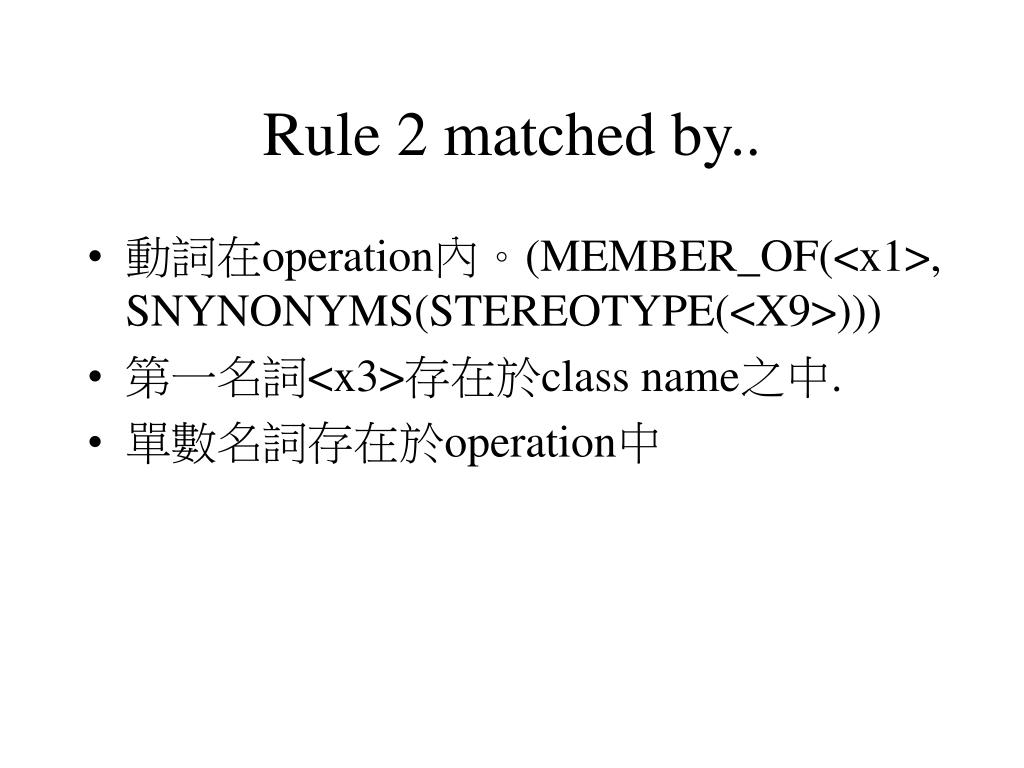

  25. Rule 2 matched by.. • 動詞在operation內。(MEMBER_OF(<x1>, SNYNONYMS(STEREOTYPE(<X9>))) • 第一名詞<x3>存在於class name之中. • 單數名詞存在於operation中

  26. Rule 2 Example

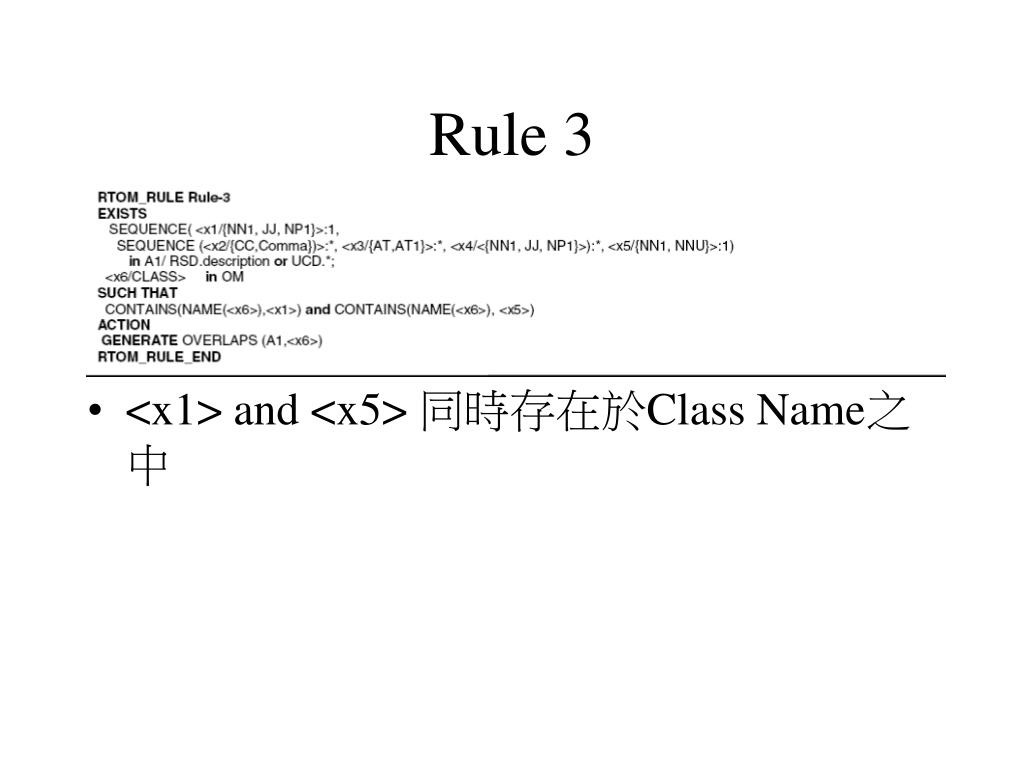

  27. Rule 3 • <x1> and <x5> 同時存在於Class Name之中

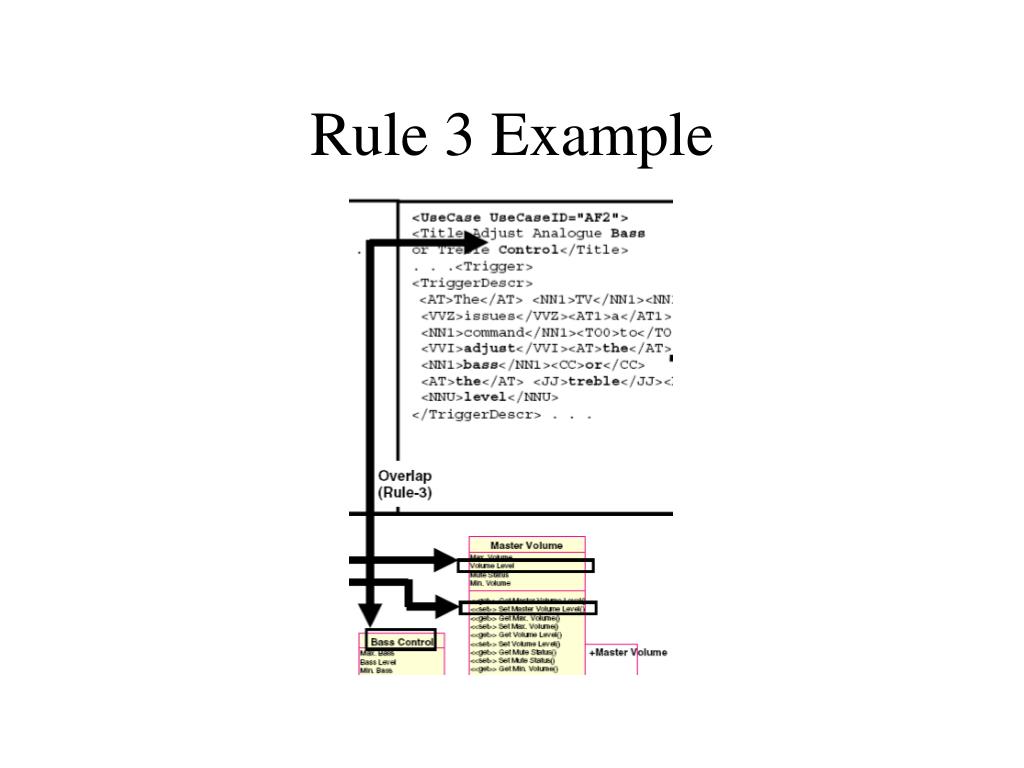

  28. Rule 3 Example

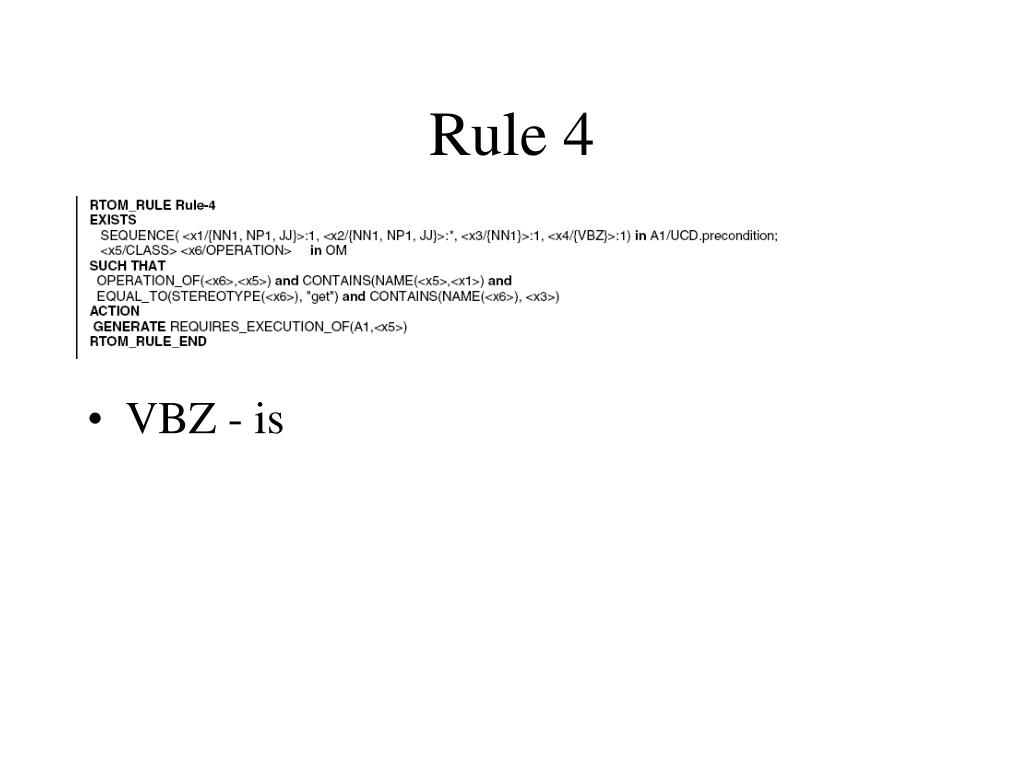

  29. Rule 4 • VBZ - is

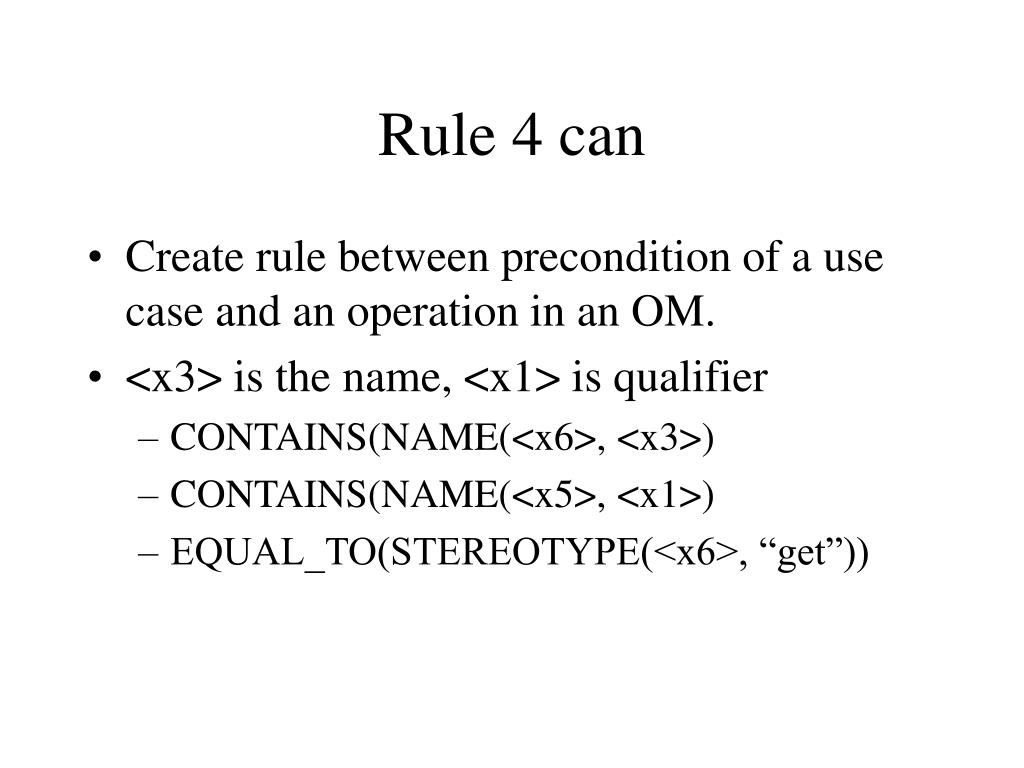

  30. Rule 4 can • Create rule between precondition of a use case and an operation in an OM. • <x3> is the name, <x1> is qualifier • CONTAINS(NAME(<x6>, <x3>) • CONTAINS(NAME(<x5>, <x1>) • EQUAL_TO(STEREOTYPE(<x6>, “get”))

  31. Rule 4 Example

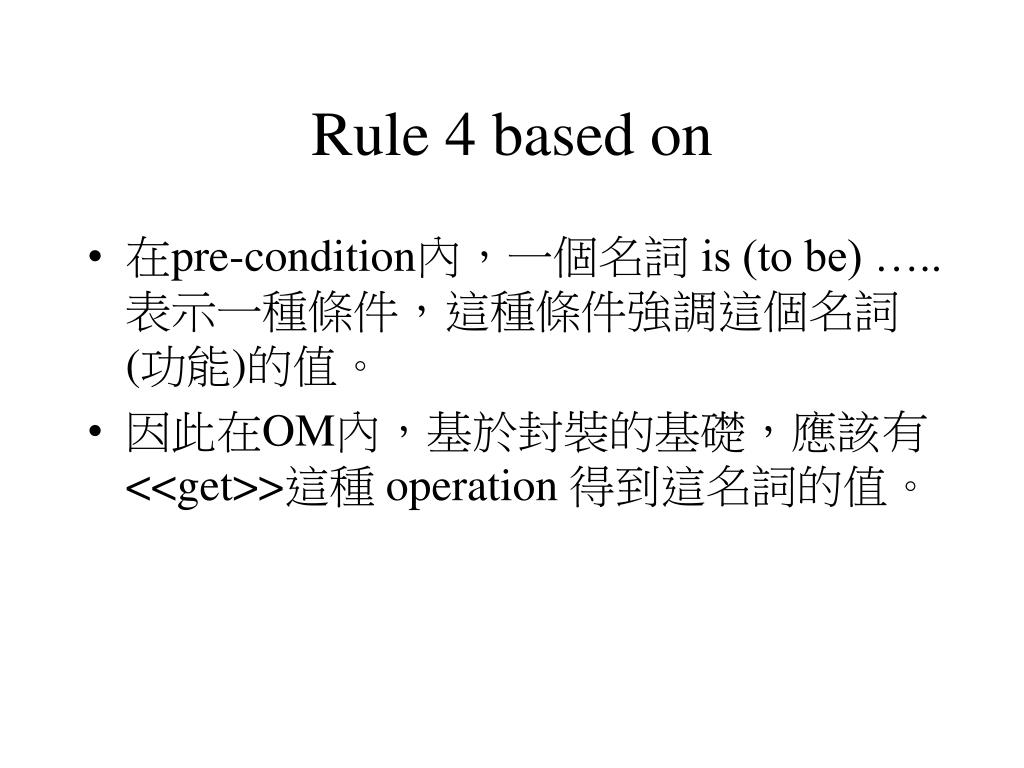

  32. Rule 4 based on • 在pre-condition內，一個名詞 is (to be) ….. 表示一種條件，這種條件強調這個名詞(功能)的值。 • 因此在OM內，基於封裝的基礎，應該有<<get>>這種 operation 得到這名詞的值。

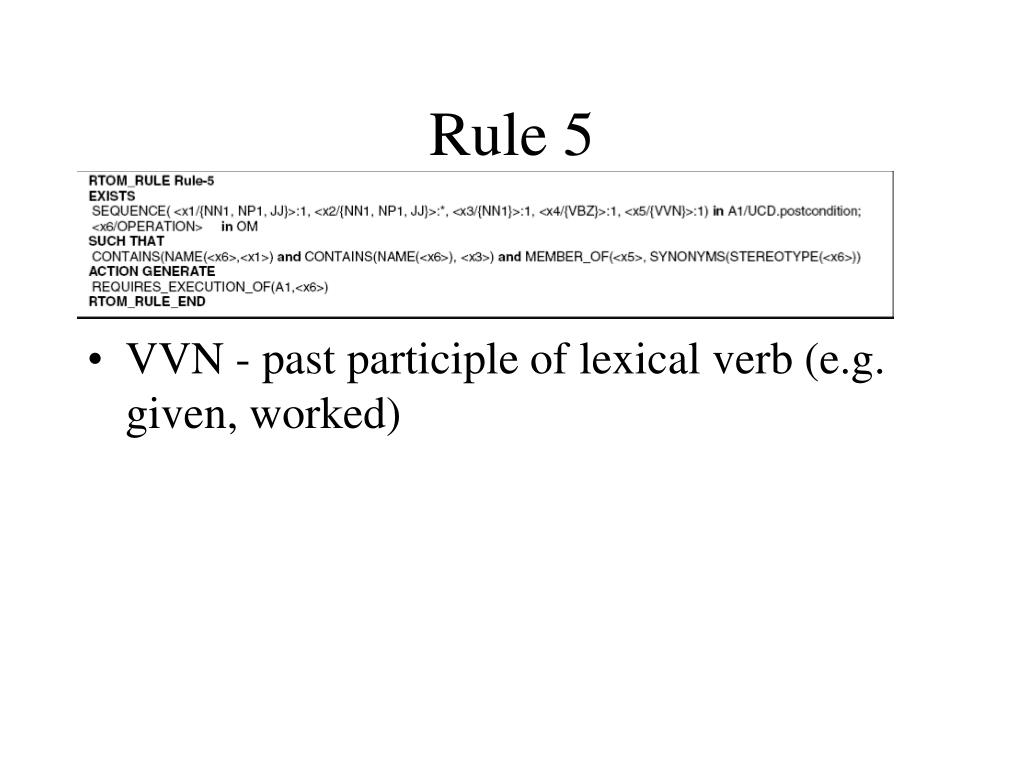

  33. Rule 5 • VVN - past participle of lexical verb (e.g. given, worked)

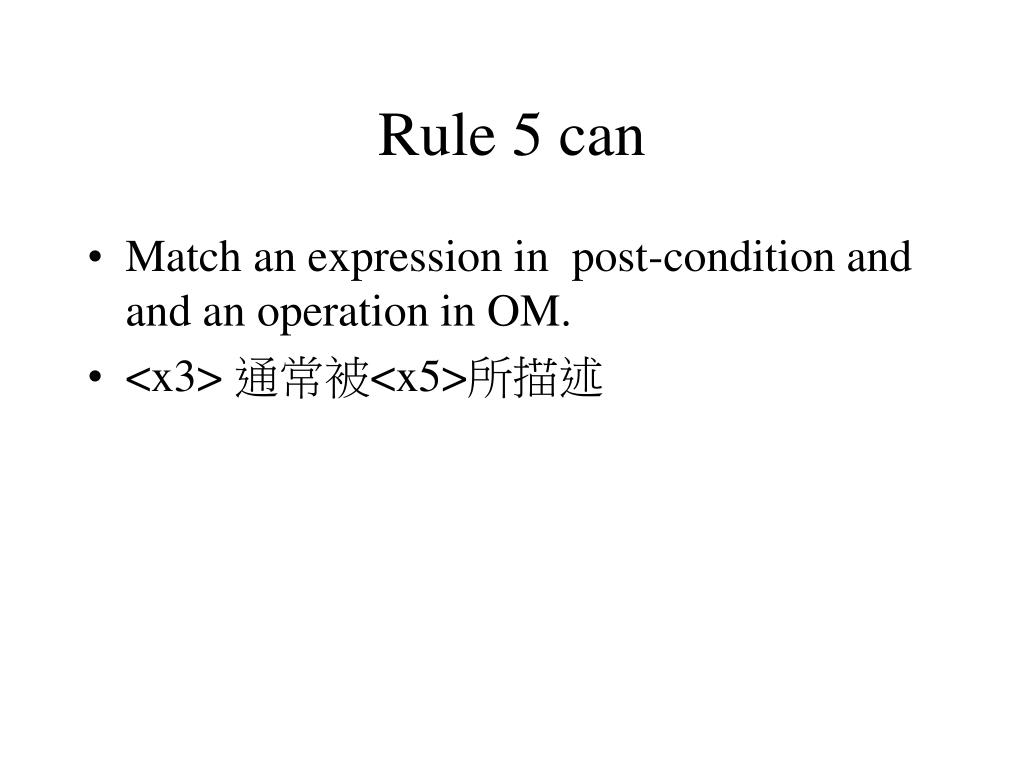

  34. Rule 5 can • Match an expression in post-condition and and an operation in OM. • <x3> 通常被<x5>所描述

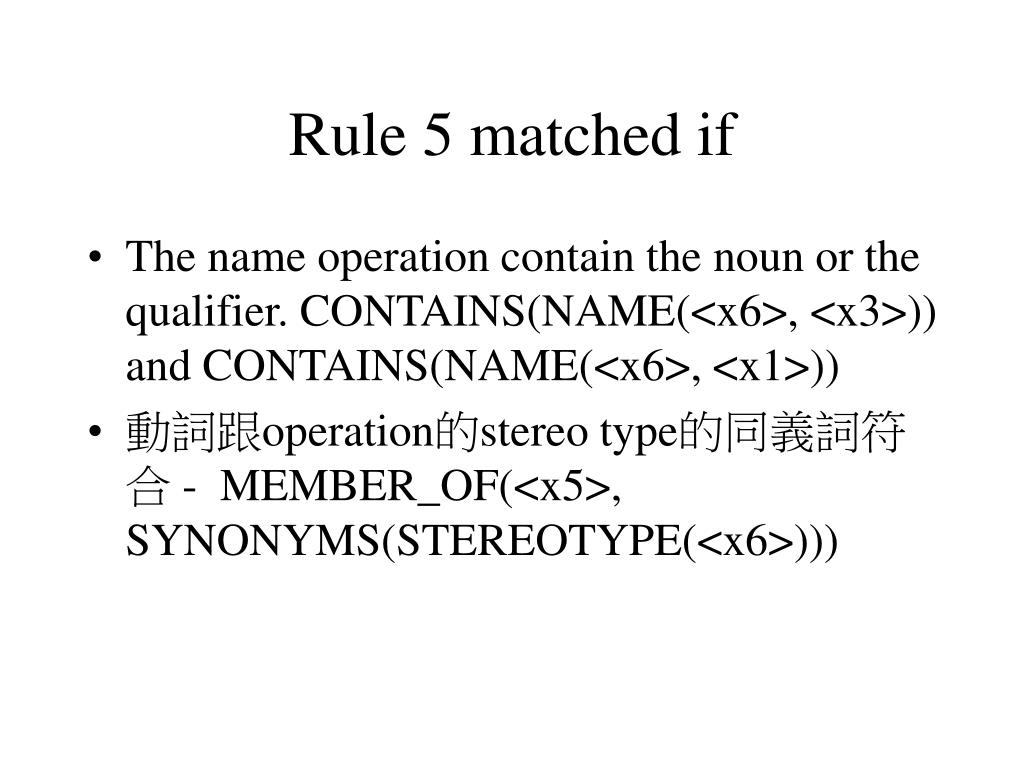

  35. Rule 5 matched if • The name operation contain the noun or the qualifier. CONTAINS(NAME(<x6>, <x3>)) and CONTAINS(NAME(<x6>, <x1>)) • 動詞跟operation的stereo type的同義詞符合 - MEMBER_OF(<x5>, SYNONYMS(STEREOTYPE(<x6>)))

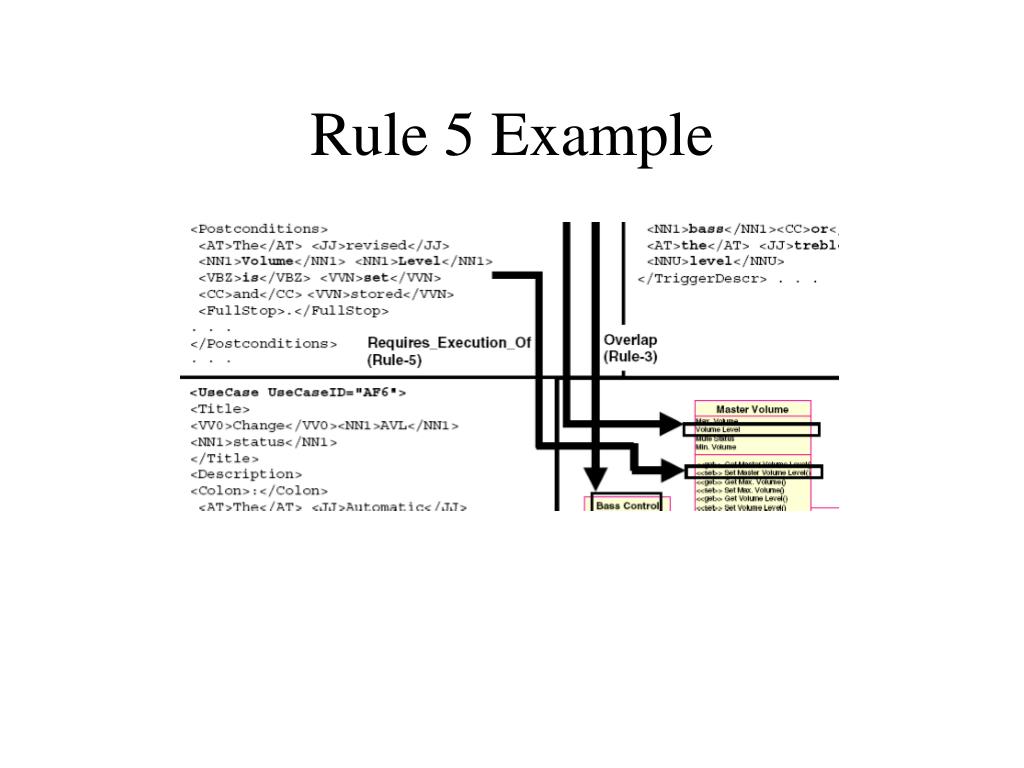

  36. Rule 5 Example

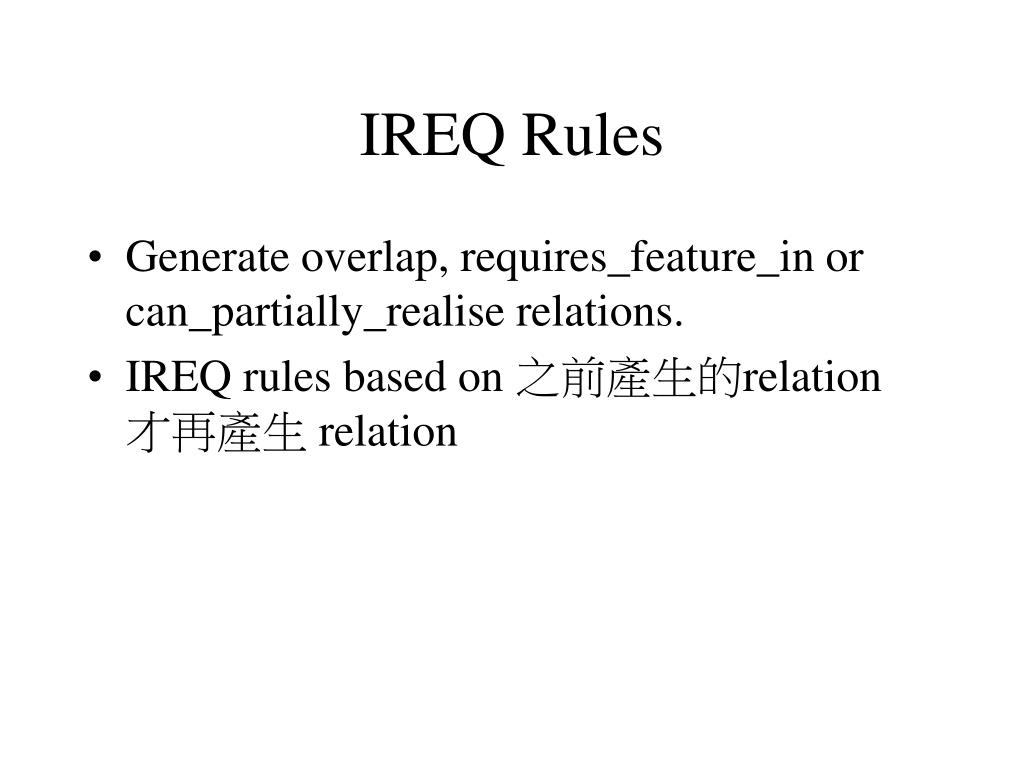

  37. IREQ Rules • Generate overlap, requires_feature_in or can_partially_realise relations. • IREQ rules based on 之前產生的relation 才再產生 relation

  38. IREQ Form

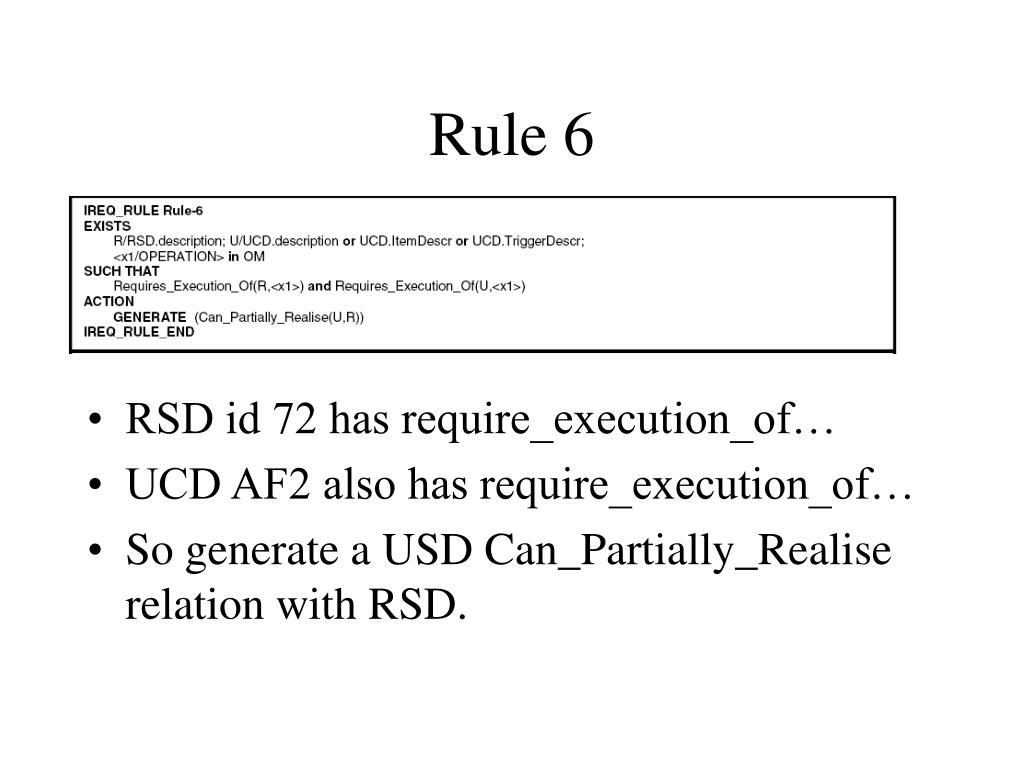

  39. Rule 6 • RSD id 72 has require_execution_of… • UCD AF2 also has require_execution_of… • So generate a USD Can_Partially_Realise relation with RSD.

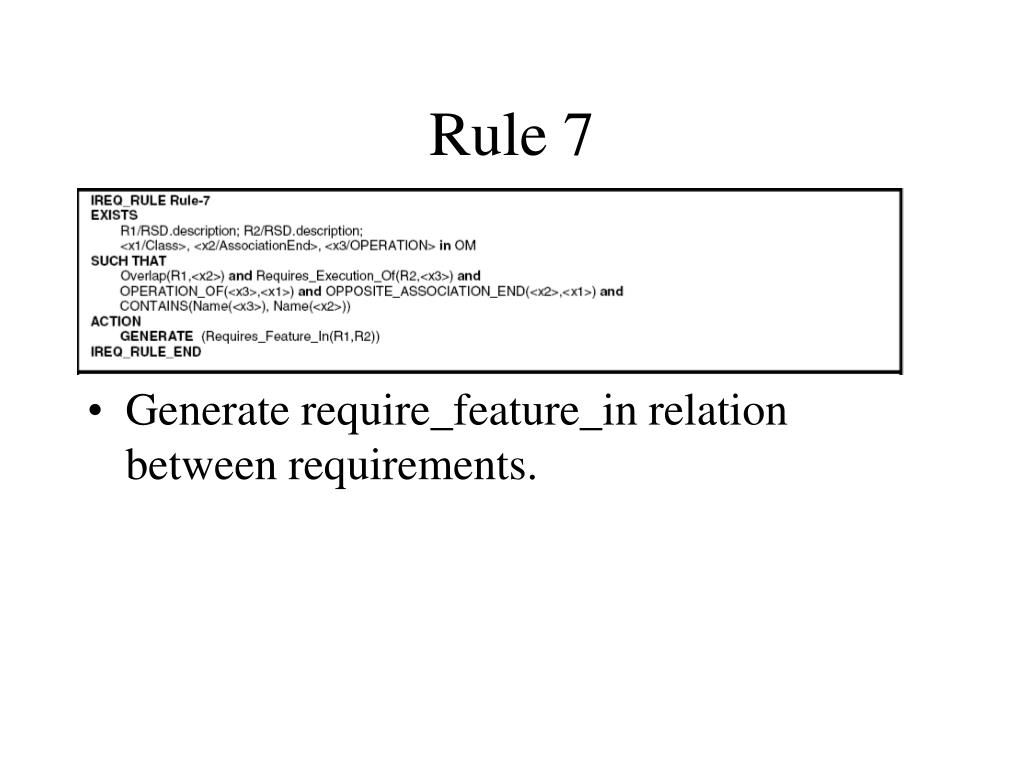

  40. Rule 7 • Generate require_feature_in relation between requirements.

  41. Rule 7 matched if • One of the requirement linked with <x2> , which is a association end of a class <x1> by an overlap relation. • Other requirement is linked with operation <x3> defined in class <x1> by require_execution_of relation. • The name of operation includes the name of the association end.

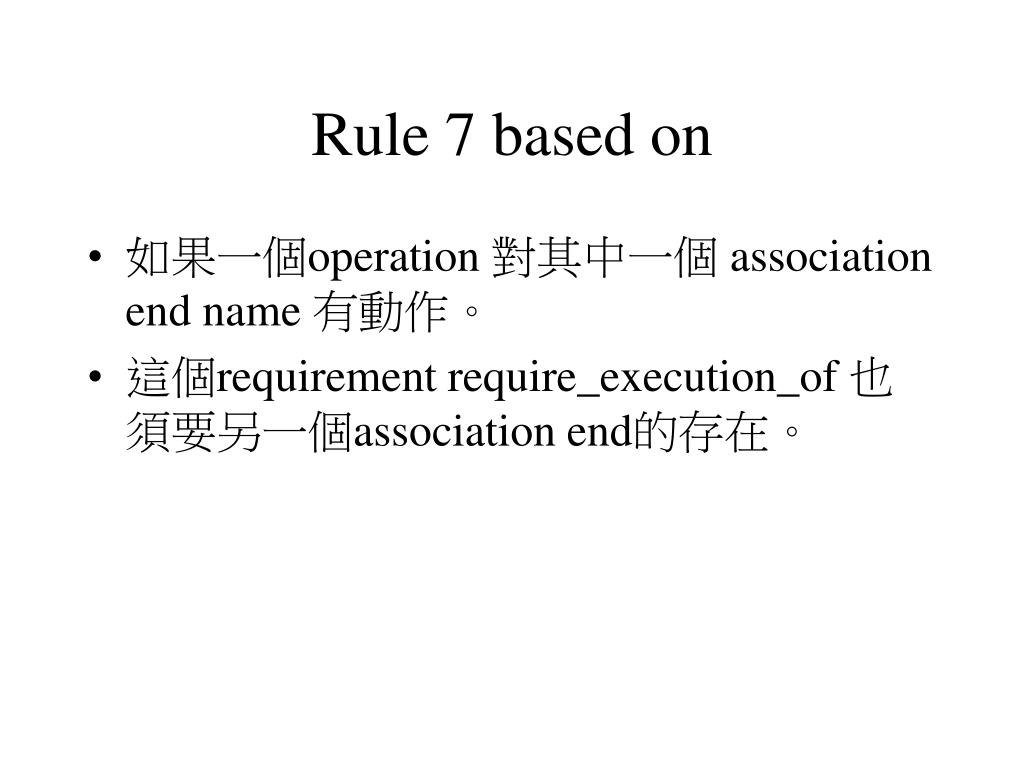

  42. Rule 7 based on • 如果一個operation 對其中一個 association end name 有動作。 • 這個requirement require_execution_of 也須要另一個association end的存在。

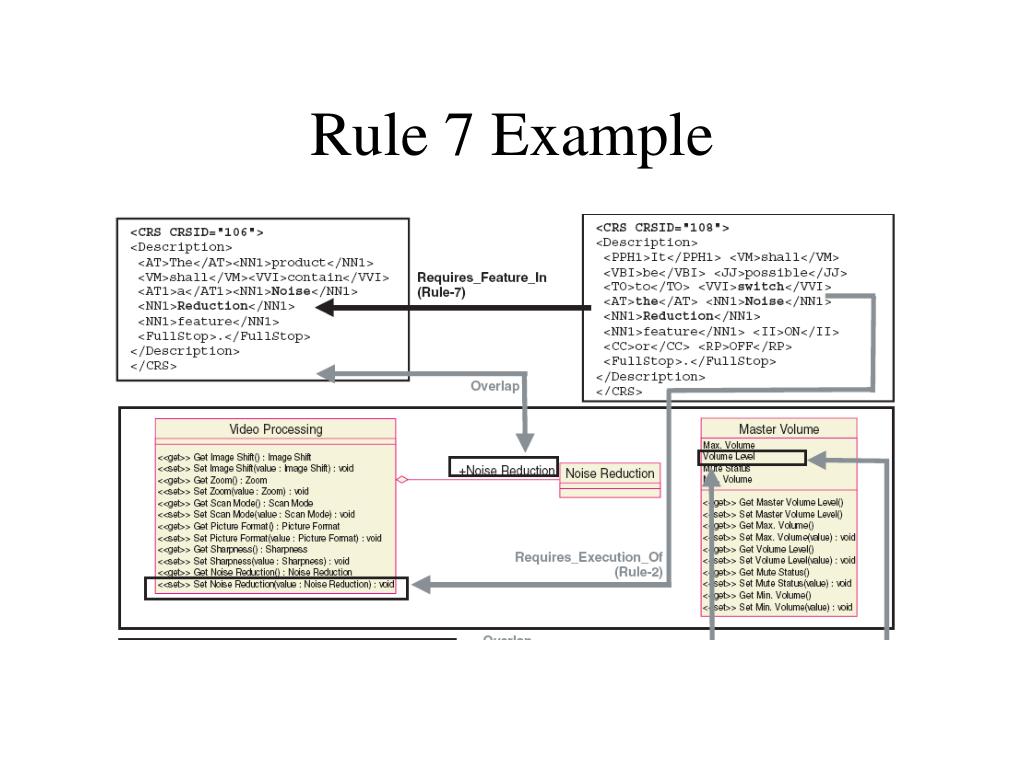

  43. Rule 7 Example

  44. Rule 8

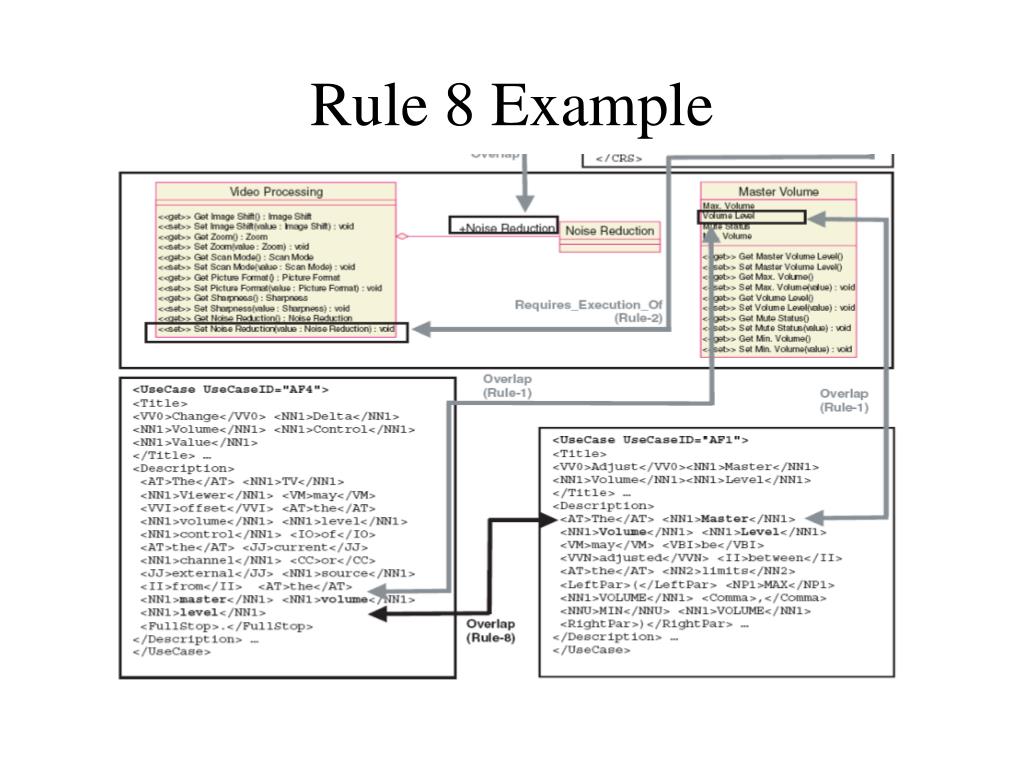

  45. Rule 8 Example
