  1. welcome TO A CompanySellingTechnologyand not just a Product

  2. What is Network? • A network is a group of two or more computer systems linked together. • Integrated Services Digital Network allows data to be transmitted simultaneously across the world using end to-end digital connectivity. • Ethernet provides the embedded world with a powerful ‘Internet engine’ to a Browser-based interface over the Internet. • Local-area networks (LANs):The computers are geographically close together (that is, in the same building). A CompanySellingTechnologyand not just a Product

  3. Products offered by Akademika • NL-SBPT : System Bus And Protocol Analyzer Trainer • NL-ISDN : ISDN Trainer • NL–ETHERNET : Ethernet Protocol Trainer Kit • NT-LTS : Local Area Network Trainer • NL-NSIM : Network Simulation Software • NL-NISS : Network And Internet Security Simulation Software A CompanySellingTechnologyand not just a Product

  4. NL-SBPT : System Bus And Protocol Analyzer Trainer • NL-SBPT : System Bus And Protocol Analyzer Trainer features Proprietary protocol simulator for different bus standards and supports communication standards like I2C, SPI, UART, MOD BUS,I2S, IRDA, CAN, USB, SSI and JTAG2.0 • Processor : ARM 7 TDMI • Operating frequency : 4.75 MHz • Operating voltage : 3.3 V EXPERIMENTSI2C Protocol, SPI Protocol, I2S Protocol, SSI Protocol,UART Protocol, IRDA Protocol, Can 2.0B Protocol, USB1.0 Protocol, MODBUS Protocol A CompanySellingTechnologyand not just a Product

  5.  NL-SBPT : System Bus And Protocol Analyzer Trainer A CompanySellingTechnologyand not just a Product

  6. NL-ISDN : ISDN Trainer NL-ISDN, which stands for Integrated Services Digital Network, is a system of digital phone connections, which has been available for over a decade. This system allows data to be transmitted simultaneously across the world using end to-end digital connectivity Integrated Services Digital Network (NL-ISDN) is a state-of-the-art Public Switched Digital Network for provisioning of different services - voice, data & image transmission over the telephone line through the telephone network. With NL-ISDN, voice and data are carried by bearer channels (B channels) occupying a bandwidth of 64 kb/s (bits per second). Some switches limit B channels to a capacity of 56 kb/s. A data channel (D channel) handles signalling at 16 kb/s or 64 kb/s, depending on the service type. A CompanySellingTechnologyand not just a Product

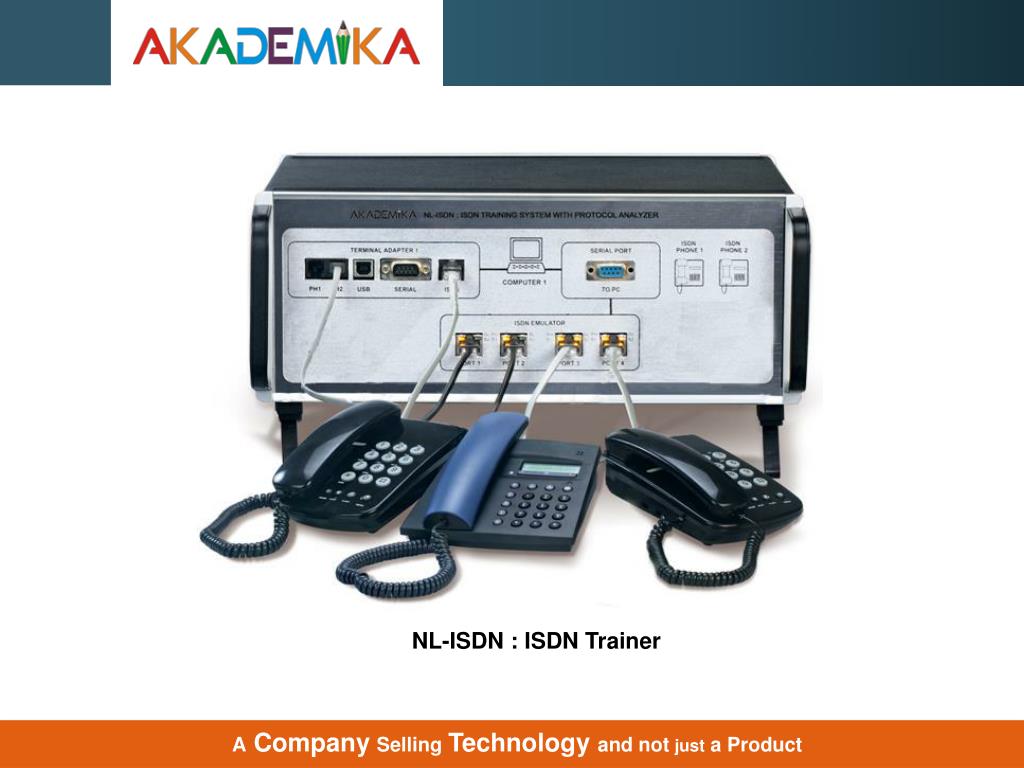

  7.  NL-ISDN : ISDN Trainer A CompanySellingTechnologyand not just a Product

  8. NL- ETHERNET : Ethernet Protocol Trainer Kit The Ethernet Module which is fixed on the Mother Board is a miniature web server module featuring a fully integrated LAN Base-T 10/100 interface and several interfaces to the ‘real world’. This module integrates a powerful 16 bit processor which runs custom applications and an Ethernet transceiver which handles the connectivity. An RJ45 connector with magnetic is provided needed on the mother board. This Trainer provides the embedded world with a powerful ‘Internet engine’ to a Browser-based interface over the Internet. Real time data can be both displayed and/or updated from a standard web browser, even on smart phone or tablets, because the module supports dynamic web pages A CompanySellingTechnologyand not just a Product

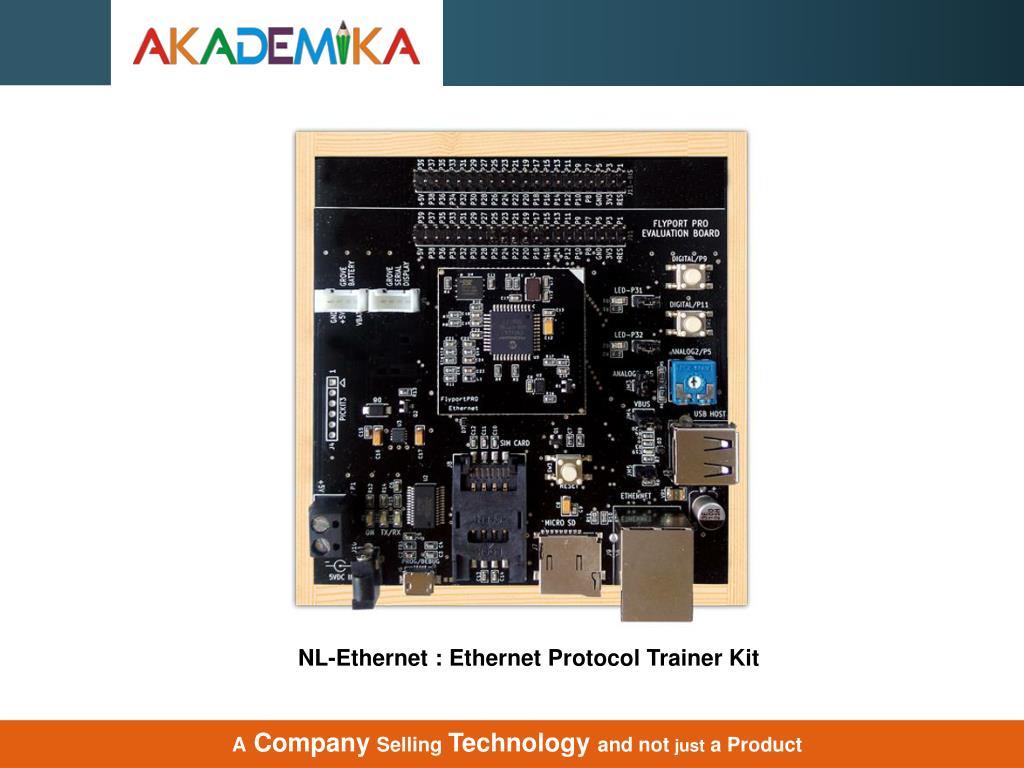

  9.  NL-Ethernet : Ethernet Protocol Trainer Kit A CompanySellingTechnologyand not just a Product

  10. NL-LTS : Local Area Network Trainer NT-LTS Local area network / wireless local area network trainer system is designed to help students understand the basic concepts, modes of operation and protocols involved in networking. On panel board for better understanding of different types of LAN topologies involved in networking and is provided with windows-based user friendly software with analysis of protocols, different layers, network and measurement of error rate and throughput. Students can easily do connections in different topologies and can learn actual data transfer either through hardware or through simulated network concept. Facility is provided into system software to introduce errors into packets being sent and analyzer the effect of error on different protocols and hence find the effect on through put graph as well. A CompanySellingTechnologyand not just a Product

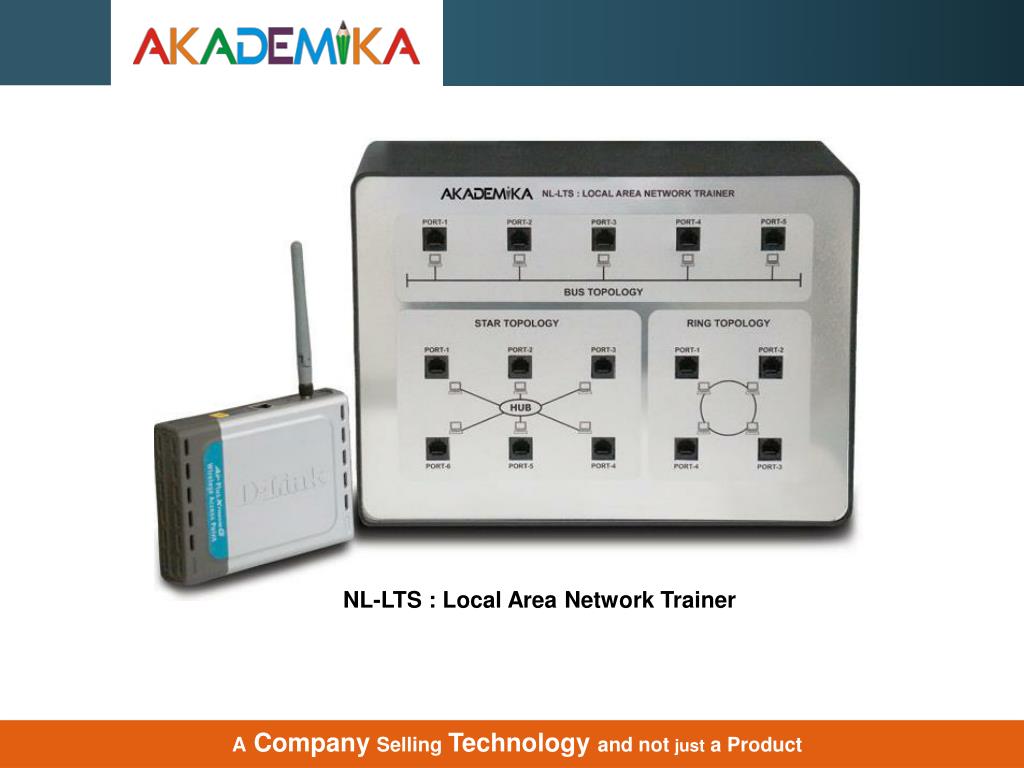

  11. NL-LTS : Local Area Network Trainer A CompanySellingTechnologyand not just a Product

  12. NL-NSIM : Network Simulation Software NL-NSIM: Network Simulation And Learning Resource Software Features explains all the major topics in networking, Theory in detail for each topic, Animations included in theory for better explanations and understanding, Simulation of various network components, Facility to create user defined network, Simulation of created network and Measurement of various parameters in the network. N-SIM network simulation software can be directly clubbed with L-SIM LAN protocol simulator and analyzer software to facilitate real-time packet capture from the network already available in the institution. L-SIM software helps in understanding the internal working of the protocol stack, analyze network traffic and protocol overheads. Comparison between the performance of simulated and real-time network is facilitated. Hub/Switch connectivity is required for capturing real time data. A CompanySellingTechnologyand not just a Product

  13. NL-NSIM : Network Simulation Software A CompanySellingTechnologyand not just a Product

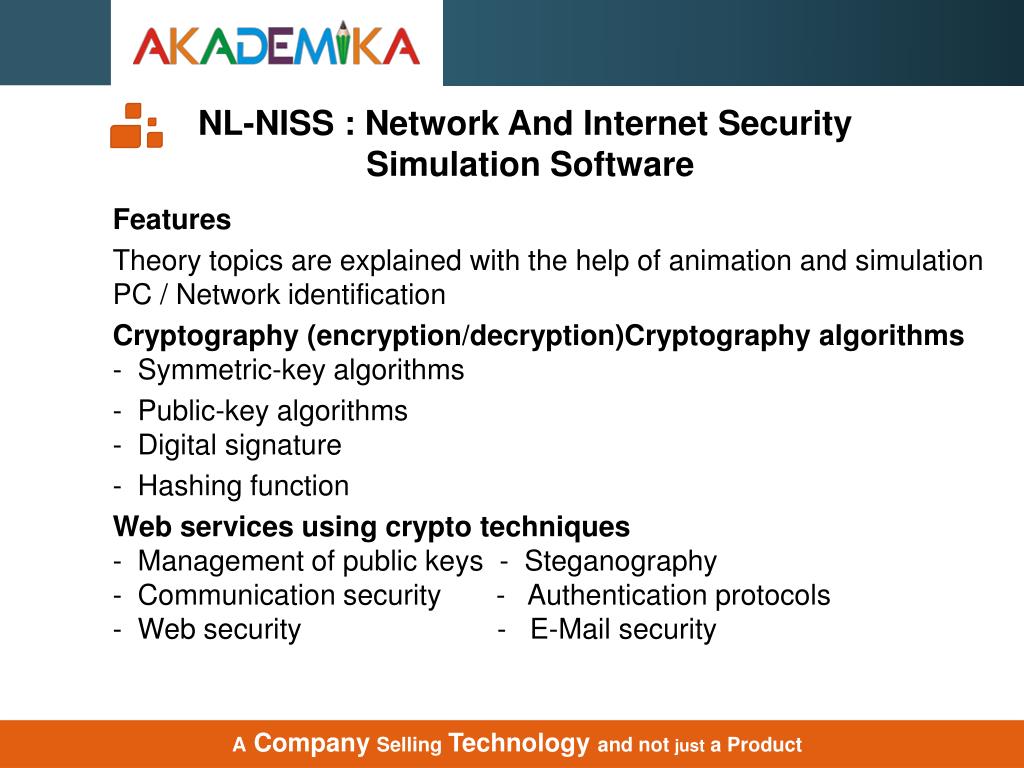

  14. NL-NISS : Network And Internet Security Simulation Software Features Theory topics are explained with the help of animation and simulation PC / Network identification Cryptography (encryption/decryption)Cryptography algorithms- Symmetric-key algorithms Public-key algorithms- Digital signature Hashing function Web services using crypto techniques- Management of public keys - Steganography- Communication security - Authentication protocols- Web security - E-Mail security A CompanySellingTechnologyand not just a Product

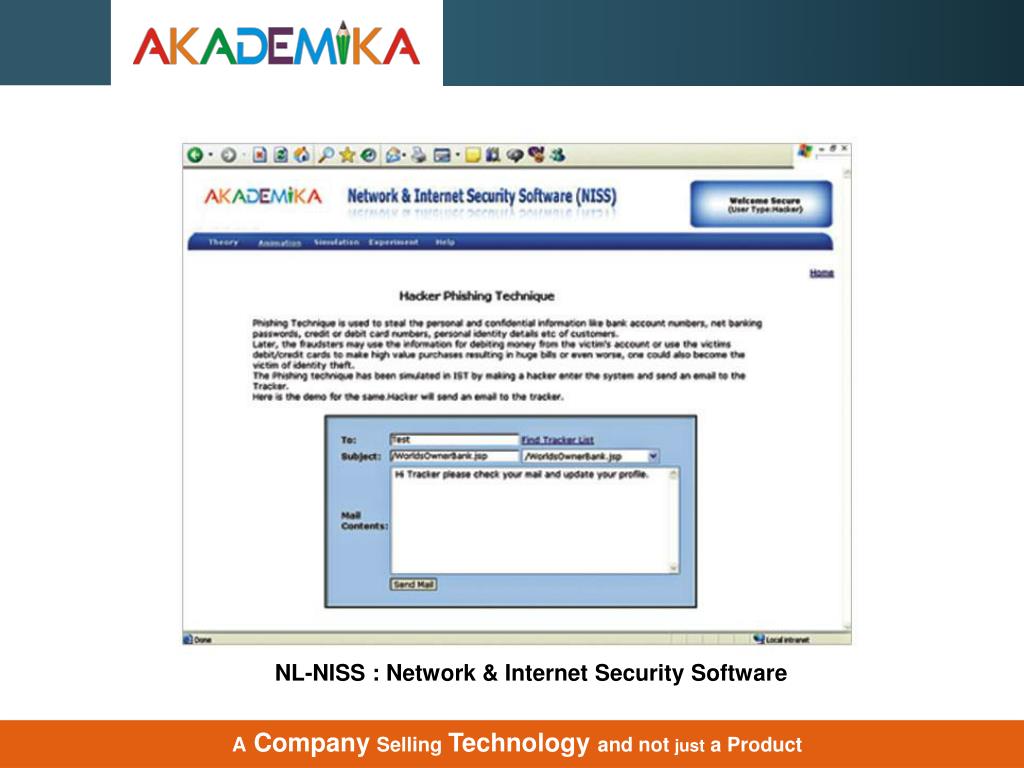

  15. NL-NISS : Network & Internet Security Software A CompanySellingTechnologyand not just a Product

  16. AKADEMIKA LAB SOLUTIONS • EL-107, MIDC,T.T.C. Electronic Zone, Mahape, Navi Mumbai - 400710. • Tel. : +91 22 27670581/82/83 Fax : +91 22 27670583 • E-mail : lab@akademika.in, Website : www.akademika.in A CompanySellingTechnologyand not just a Product
