Stateless Source Address Mapping for ICMPv6 Packets

This document explores the intricacies of Stateless Source Address Mapping for ICMPv6 packets, addressing the challenges posed by non-IPv4-translatable addresses. It discusses the requirements and methodologies for implementing effective address translation, focusing on the need for distinguishable IPv6 ICMPv6 origination. Key recommendations from RFC5837 on filtering and rate-limiting ICMP messages are outlined, emphasizing the importance of security in the context of public networks. Additionally, it highlights critical requirements for source address identification and offers guidelines for effective traffic management.

dermot
Télécharger la présentation

Stateless Source Address Mapping for ICMPv6 Packets

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

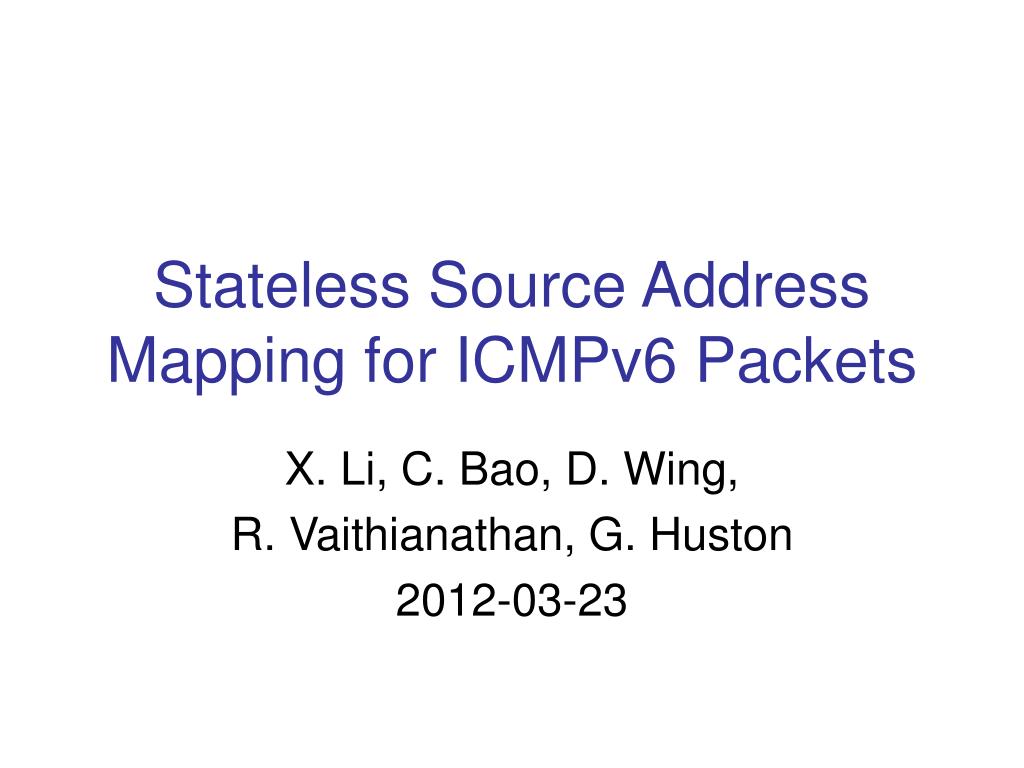

  1. Stateless Source Address Mapping for ICMPv6 Packets X. Li, C. Bao, D. Wing, R. Vaithianathan, G. Huston 2012-03-23

  2. Non-IPv4-translatable address 2001:db8:1::1 1.1.1.1 2001:db8:2::2.2.2.2 H4 R4 XLAT R6 H6 Normal traffic: dst=1.1.1.1 srct=2.2.2.2 dst=2001:db8:2::1.1.1.1 src=2001:db8:2::2.2.2.2 ICMP: dst=1.1.1.1 srct=???? dst=2001:db8:2::1.1.1.1 src=2001:db8:1::1 ICMP PTB ICMPv6 PTB Introduction IPv4-translatable address RFC6145: The IPv6 addresses in the ICMPv6 header may not be IPv4-translatable addresses. … A mechanism by which the translator can instead do stateless translation is left for future work.

  3. ICMP: dst=1.1.1.1 srct=10.0.0.1 dst=2001:db8:2::1.1.1.1 src=2001:db8:1::1 ICMP PTB ICMPv6 PTB Requirements (1) Non-IPv4-translatable address • uRPF  cannot use RFC1918 addresses • IPv4 address depletion  hard to use public IPv4 addresses 2001:db8:1::1 IPv4-translatable address 1.1.1.1 2001:db8:2::2.2.2.2 H4 R4.1 R4 .2 XLAT R6 H6

  4. H4 H6 IVI 1 2 3 4 5 7 8 9 10 11 12 3.3.3.3 3.3.3.3 3.3.3.3 3.3.3.3 3.3.3.3 3.3.3.3 Requirements (2) • IPv4 recipient of the ICMP message should be able to distinguish between different IPv6 ICMPv6 origination needs a pool X

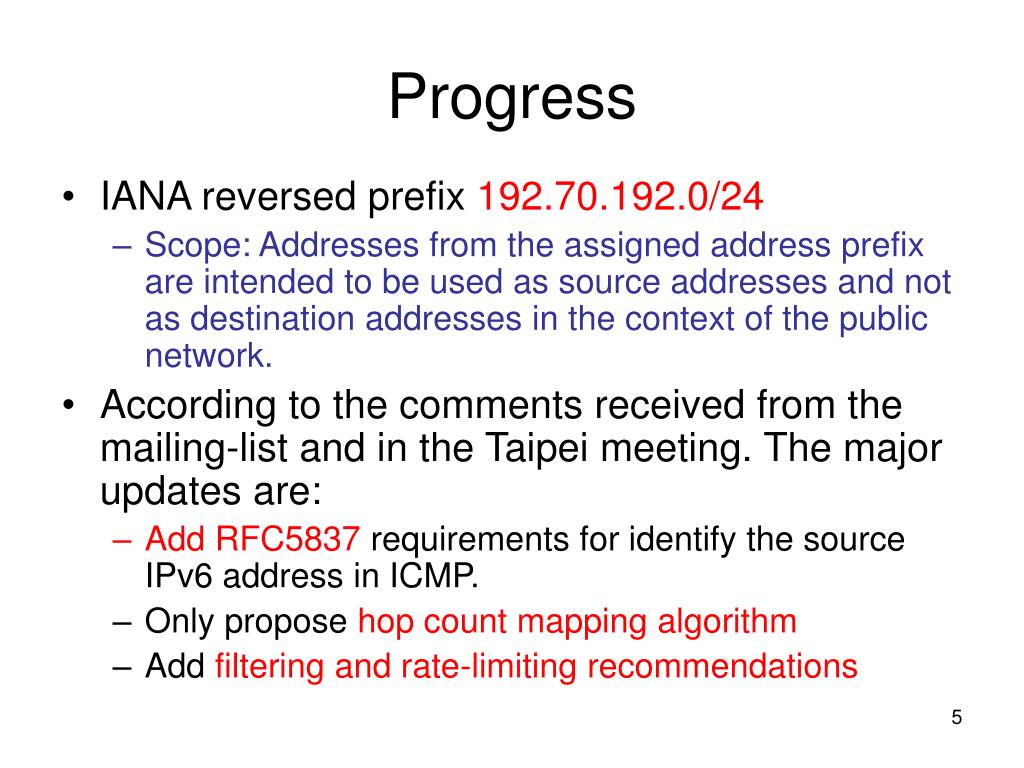

  5. Progress • IANA reversed prefix 192.70.192.0/24 • Scope: Addresses from the assigned address prefix are intended to be used as source addresses and not as destination addresses in the context of the public network. • According to the comments received from the mailing-list and in the Taipei meeting. The major updates are: • Add RFC5837 requirements for identify the source IPv6 address in ICMP. • Only propose hop count mapping algorithm • Add filtering and rate-limiting recommendations

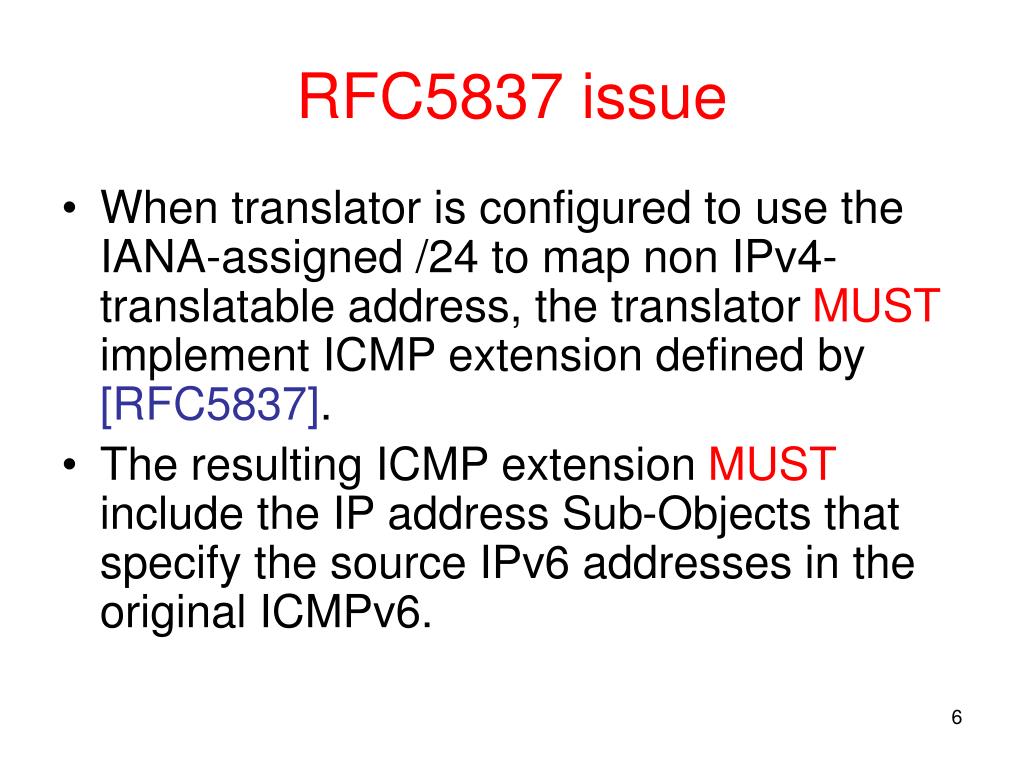

  6. RFC5837 issue • When translator is configured to use the IANA-assigned /24 to map non IPv4-translatable address, the translator MUST implement ICMP extension defined by [RFC5837]. • The resulting ICMP extension MUST include the IP address Sub-Objects that specify the source IPv6 addresses in the original ICMPv6.

  7. Filtering and rate-limiting recommendations • Filtering Recommendations • SHOULD allow ICMP type 3 - Destination Unreachable (inc PTB). • SHOULD allow ICMP type 11 - Time Exceeded. • MAY allow ICMP type 12 - Parameter Problem. • SHOULD NOT allow any of the various ICMP request messages. • Rate-limiting Recommendations • The rate limiting of traffic from the prefix SHOULD also be enabled as additional countermeasure against abuse of this prefix. • The methods presented in [RFC4443] [RFC5597] [RFC6192] [RFC6398] [RFC6450] can be used. • RFC5837 Recommendations • Advanced filtering and rate-limiting techniques which can process the ICMP extension defined in [RFC5837] MAY also be used to control the source of the ICMP.

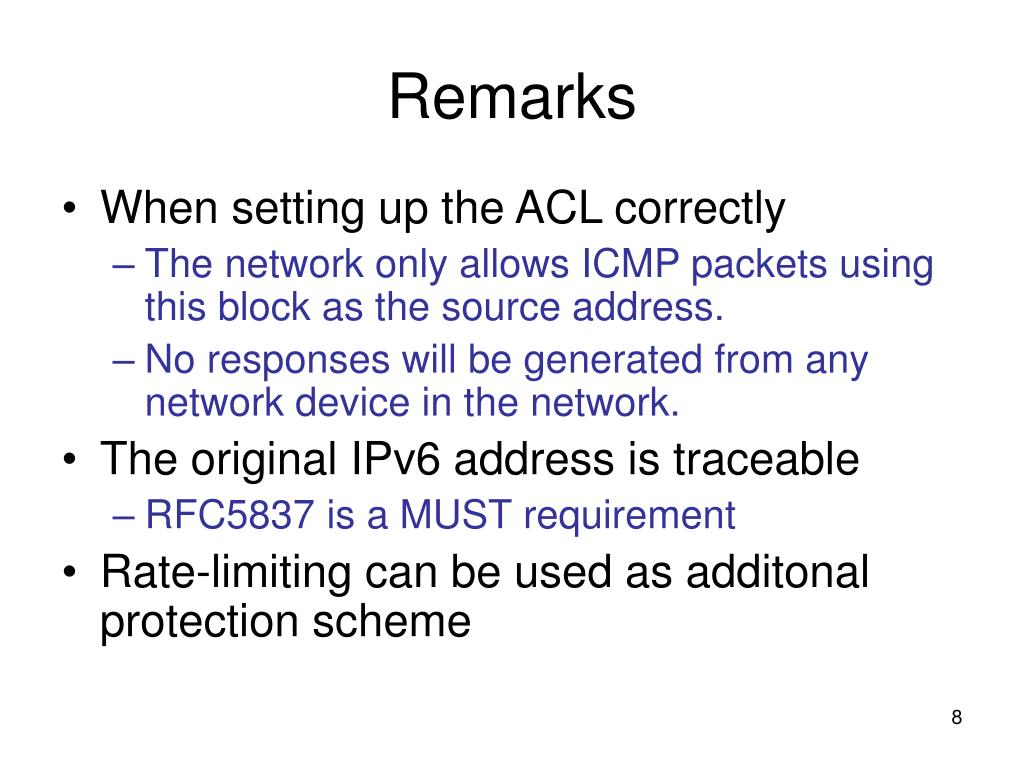

  8. Remarks • When setting up the ACL correctly • The network only allows ICMP packets using this block as the source address. • No responses will be generated from any network device in the network. • The original IPv6 address is traceable • RFC5837 is a MUST requirement • Rate-limiting can be used as additonal protection scheme
