  1. A Newton Method for Linear Programming Olvi L. Mangasarian University of California at San Diego

  2. Outline • Fast Newton method for class of linear programs • Large number of constraints (millions) • Moderate number of variables (hundreds) • Method is based on an overlooked fact • Dual of asymptotic exterior penalty problem of primalLP • Provides an exact least 2-norm solution of the dual LP • Use a finite value of the penalty parameter • Exact least 2-norm dual solution generates: • Highly accurate primal solution when it is unique • Globally convergent Newton method established • Eleven lines of MATLAB code • Method solves LP with 2-million constraints & 100 variables • 14-place accuracy in 17.4 minutes on 400Mhzmachine • CPLEX 6.5 ran out of memory on same problem • Dual method for million-variable LP

  3. Primal LP: Dual LP: Asymptotic Primal Exterior Penalty: Exact Dual Least 2-Norm: Primal-Dual LPsPrimal Exterior Penalty & Dual Least 2-Norm Problem

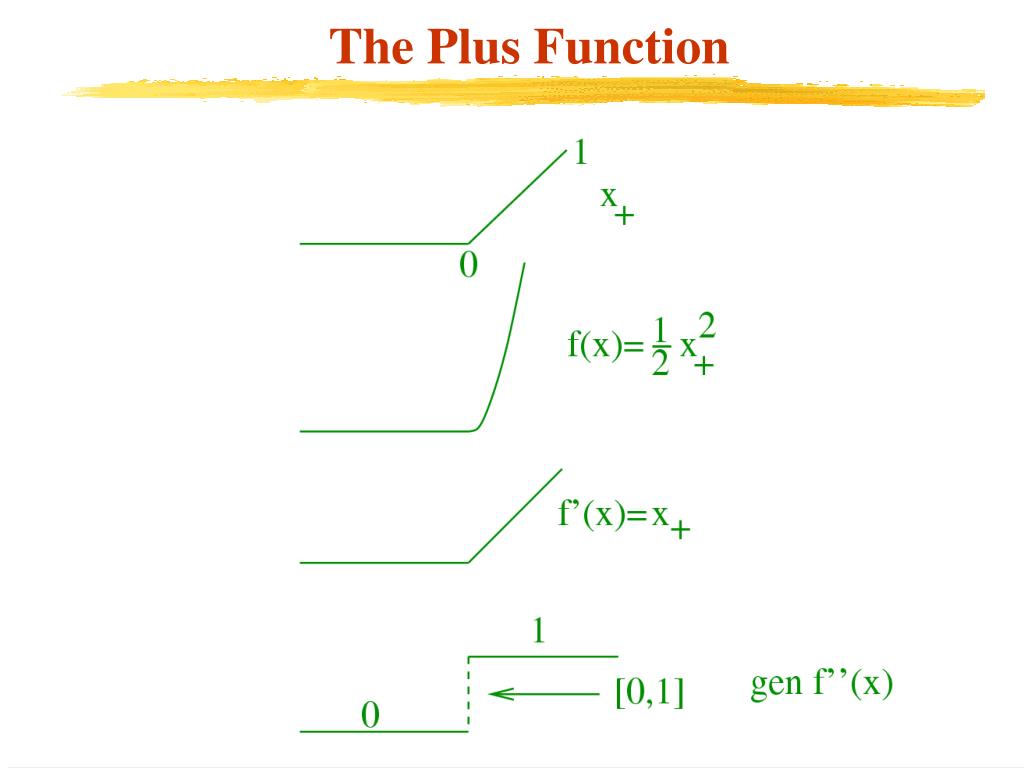

  4. The Plus Function

  5. Karush-Kuhn-Tucker Optimality Conditionsfor Least 2-Norm Dual Lagrangian: KKT Conditions: Dual Least 2-Norm: Equivalently:

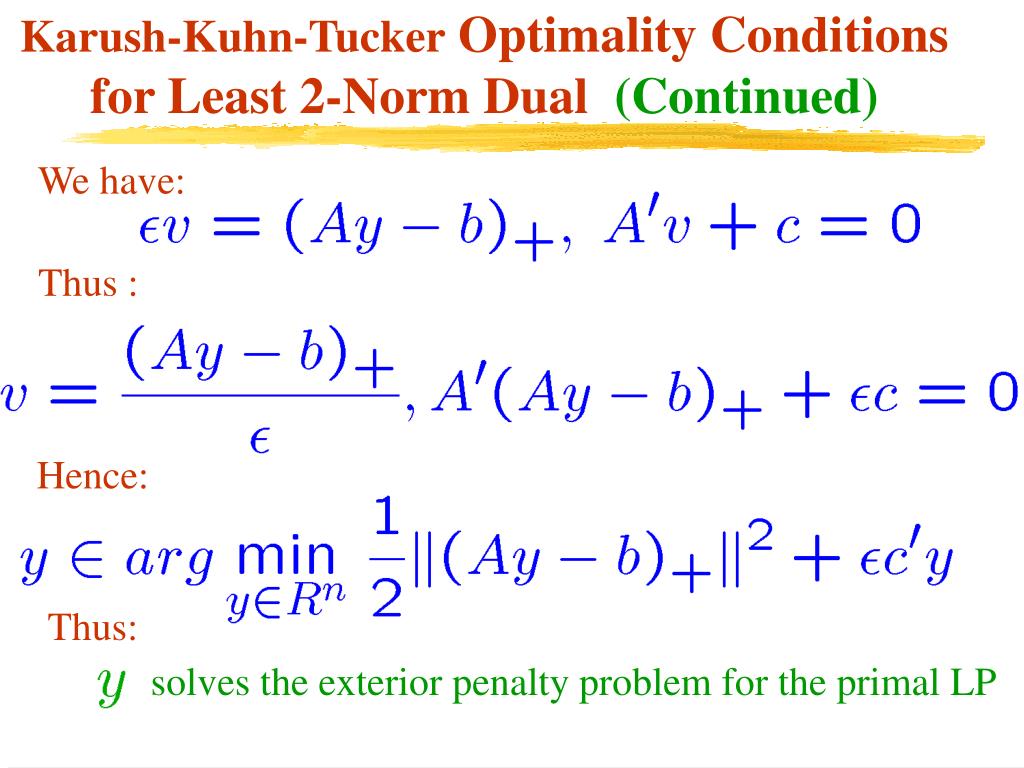

  6. We have: Thus : Hence: Thus: solves the exterior penalty problem for the primal LP Karush-Kuhn-Tucker Optimality Conditionsfor Least 2-Norm Dual (Continued)

  7. Equivalence of Exact Least 2-Norm Dual Solution to Finite-Parameter Primal Penalty Minimization

  8. Gradient: Generalized Hessian: where: Primal Exterior Penalty Primal Exterior Penalty(exact least 2-norm dual solution) :

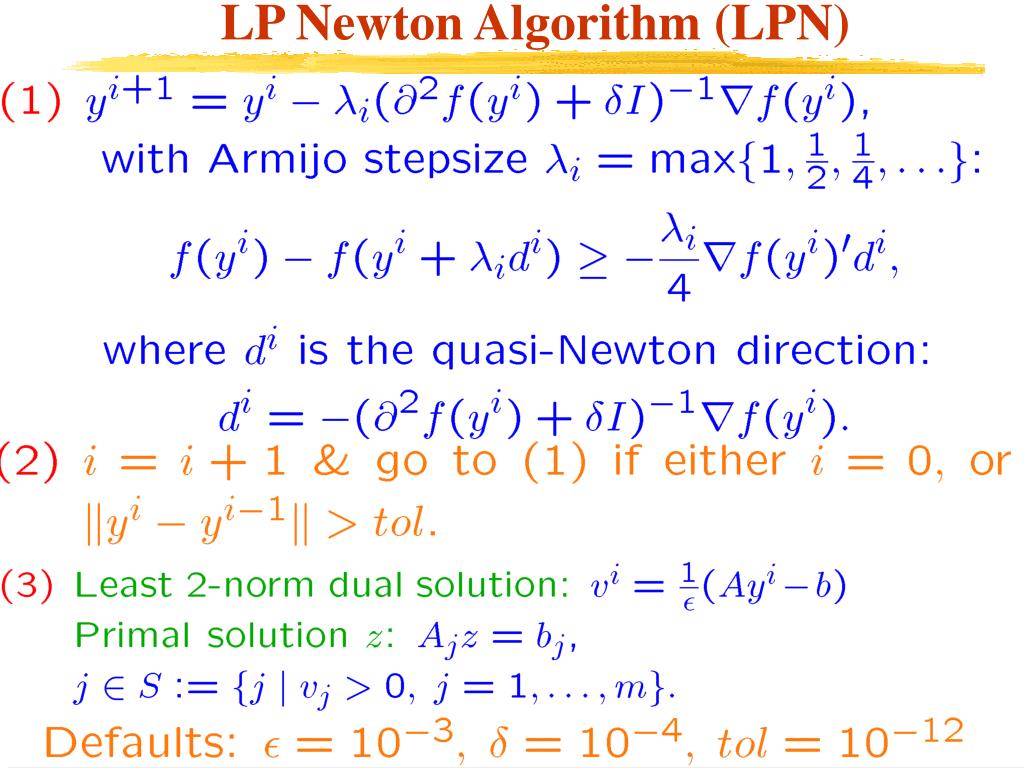

  9. LP Newton Algorithm (LPN)

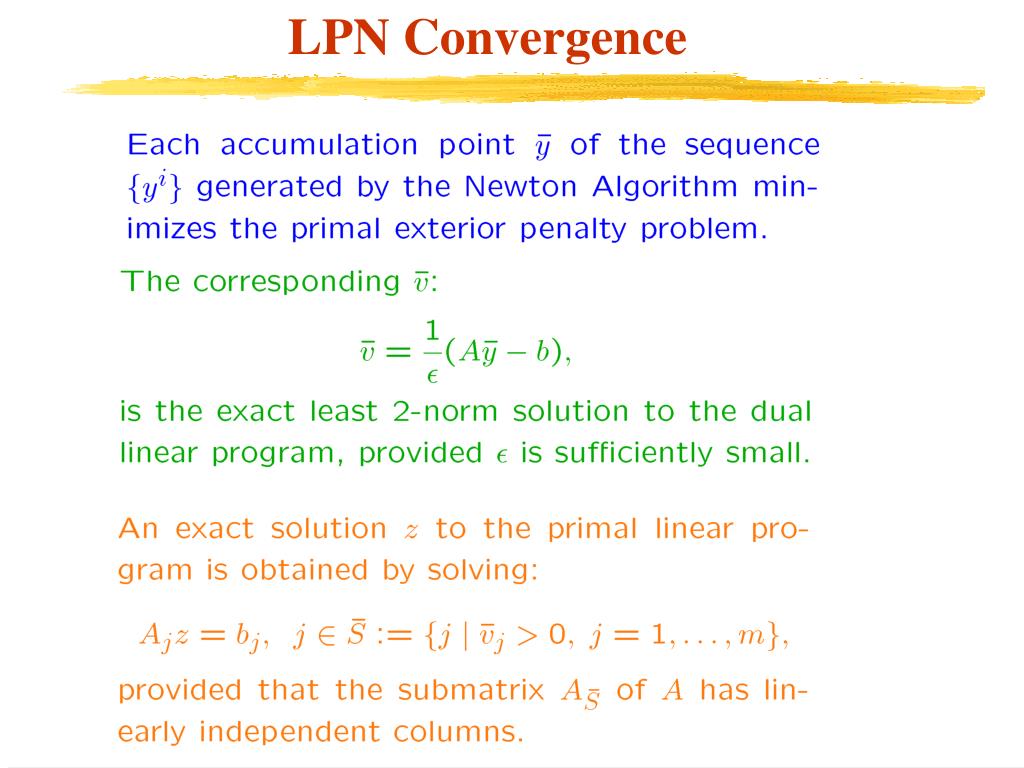

  10. LPN Convergence

  11. Remarks on LPN

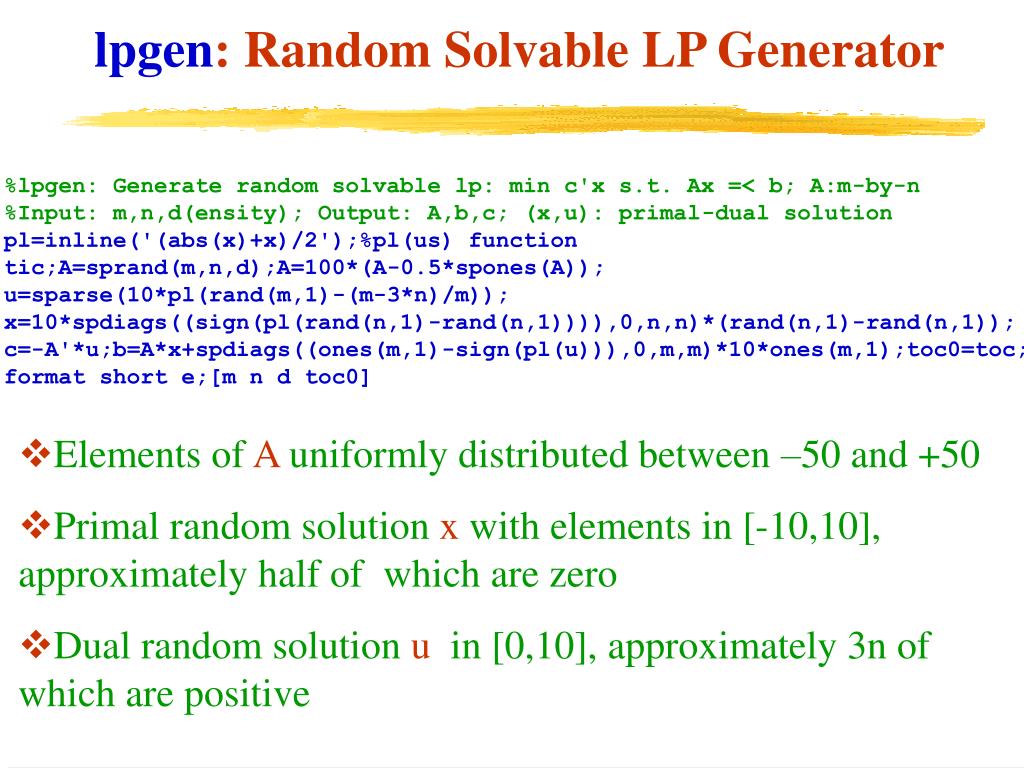

  12. lpgen: Random Solvable LP Generator %lpgen: Generate random solvable lp: min c'x s.t. Ax =< b; A:m-by-n%Input: m,n,d(ensity); Output: A,b,c; (x,u): primal-dual solutionpl=inline('(abs(x)+x)/2');%pl(us) function tic;A=sprand(m,n,d);A=100*(A-0.5*spones(A));u=sparse(10*pl(rand(m,1)-(m-3*n)/m));x=10*spdiags((sign(pl(rand(n,1)-rand(n,1)))),0,n,n)*(rand(n,1)-rand(n,1));c=-A'*u;b=A*x+spdiags((ones(m,1)-sign(pl(u))),0,m,m)*10*ones(m,1);toc0=toc;format short e;[m n d toc0] • Elements of A uniformly distributed between –50 and +50 • Primal random solution x with elements in [-10,10], approximately half of which are zero • Dual random solution u in [0,10], approximately 3n of which are positive

  13. lpnewt1: MATLAB LPN Algorithm without Armijo %lpnewt1: Solve primal LP: min c'x s.t. Ax=<b %Via Newton for least 2-norm dual LP: max -b'v s.t. -A'v=c, v>=0%Input: c,A,b,epsi,delta,tol,itmax;Output:v(l2norm dual sol),z primal solepsi=1e-3;tol=1e-12;delta=1e-4;itmax=100;%default inputspl=inline('(abs(x)+x)/2');%pl(us) functiontic;i=0;z=0;y=((A(1:n,:))'*A(1:n,:)+epsi*eye(n))\(A(1:n,:))'*b(1:n);%y0while (i<itmax & norm(y-z,inf)>tol & toc<1800) df=A'*pl((A*y-b))+epsi*c; d2f=A'*spdiags(sign(pl(A*y-b)),0,m,m)*A+delta*speye(n); z=y;y=y-d2f\df; i=i+1;endtoc1=toc;v=pl(A*y-b)/epsi;t=find(v);z=A(t,:)\b(t);toc2=toc;format short e;[epsi delta tol i-1 toc1 toc2 norm(x-y,inf) norm(x-z,inf)]

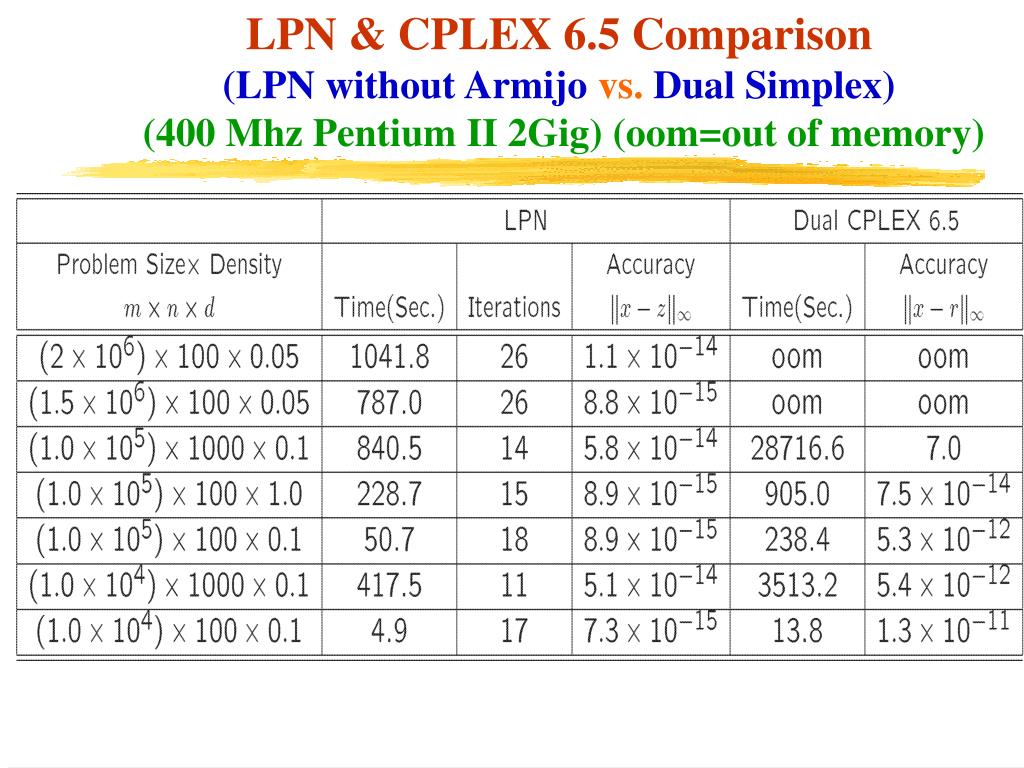

  14. LPN & CPLEX 6.5 Comparison(LPN without Armijo vs. Dual Simplex) (400 Mhz Pentium II 2Gig) (oom=out of memory)

  15. What About the Case of: n>> m ? • LPN is not appropriate • LPN needs to invert a very large n-by-n matrix • Use instead DLPN (Dual LPN): • Find least 2-normprimal solution • By solving dualexterior penalty problem with finite penalty parameter

  16. Equivalence of Exact Least 2-Norm Primal Probelmand Asymptotic Dual Penalty Problem

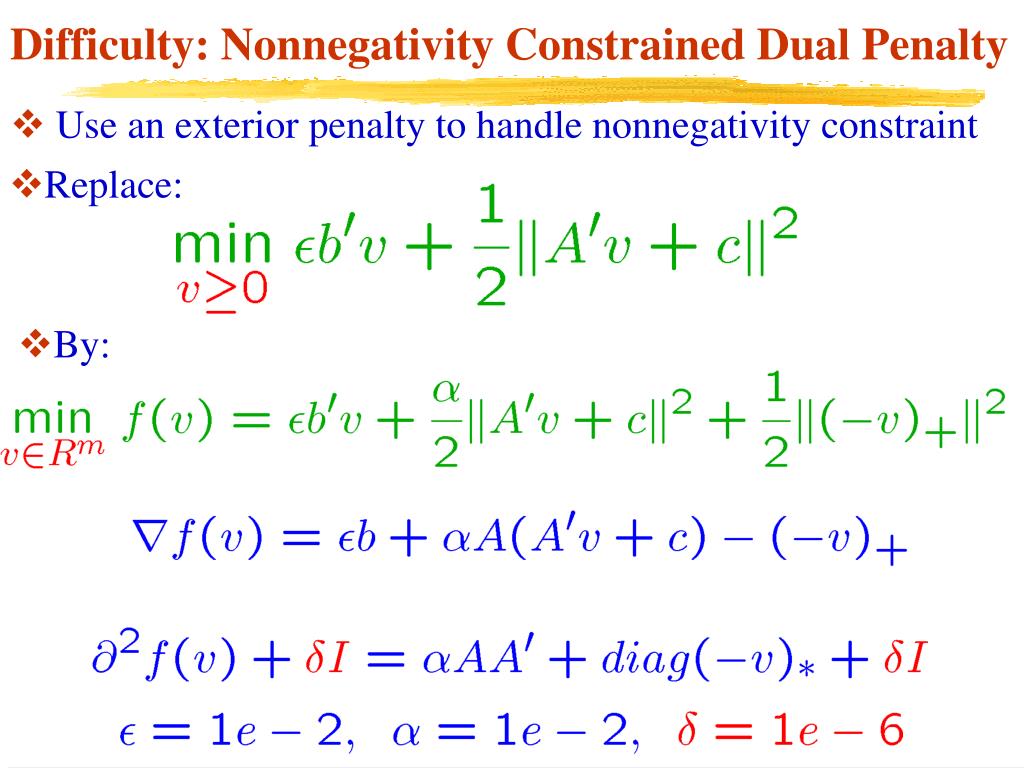

  17. Replace: • By: Difficulty: Nonnegativity Constrained Dual Penalty • Use an exterior penalty to handle nonnegativity constraint

  18. DLPN & CPLEX 7.5 Comparison(DLPN without Armijo vs. Primal Simplex )(1.8 MHz Pentium 4 1Gig)(oom=out of memory;error 1001)(infs/unbd=presolve determines infeasibility/unboundedness;error 1101)

  19. Conclusion • LPN & DLPN: Fast new methods for solving linear programs • LPN capable of solving problems with millions ofconstraints and hundreds of variables • DLPN capable of solving problems with hundreds ofconstraints and millions of variables • Eleven lines of MATLAB code for each of LPN & DLPN • Competitive with state-of-the-art CPLEX • Very suitable for classification problems • Armijo stepsize not needed in many applications • Typical termination in 3 to 30 steps

  20. Future Work • Investigate & establish finite termination for LPN • Extend to convex quadratic programming • Establish convergence/termination under no assumptions for LPN • Generate self-contained codes for classification and data-mining problems

  21. Paper & MATLAB Code Available www.cs.wisc.edu/~olvi
