Optic Flow QuadCopter Control

Update Presentation 2 Weeks 5-10. Optic Flow QuadCopter Control. Oscar Merry. Contents. Work Update Project Aims Optic Flow Magnitude Rotational Optic Flow Cancellation Obstacle Avoidance LabVIEW AR Drone Toolkit Demo Plan. Work Update. What have I been doing? Reading Literature

desma
Télécharger la présentation

Optic Flow QuadCopter Control

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Update Presentation 2 Weeks5-10 Optic Flow QuadCopter Control Oscar Merry

  2. Contents • Work Update • Project Aims • Optic Flow Magnitude • Rotational Optic Flow Cancellation • Obstacle Avoidance • LabVIEW • AR Drone Toolkit Demo • Plan

  3. Work Update • What have I been doing? • Reading Literature • General Research • OpenCV • Optic Flow • Quadrotor Dynamics • AR Drone • LabVIEW

  4. Project Aims • Specific objectives to address fundamentals of optic flow based control: • Rotational Optic Flow Cancellation • Velocity Estimation • Optic Flow Magnitude • Final objective: • Autonomous obstacle avoidance based on optic flow. • Note – No attitude control from optic flow.

  5. Optic Flow Magnitude • 2 methods to be tested: • ‘Dense’ or global optic flow based on Horn-Schunck • ‘Sparse’ or local optic flow on pyramidal Lucas-Kanade • OpenCV implementations will be used as starting point for both methods

  6. Rotational Optic Flow Cancellation • Problem: • Quadrotor’s attitude rotates when moving • This produces additional optic flow • Optic flow based on rotation is not wanted for obstacle avoidance • Solution: • Theoretical optic flow can be calculated: • Use IMU data to cancel rotational optic flow leaving translation and Yaw

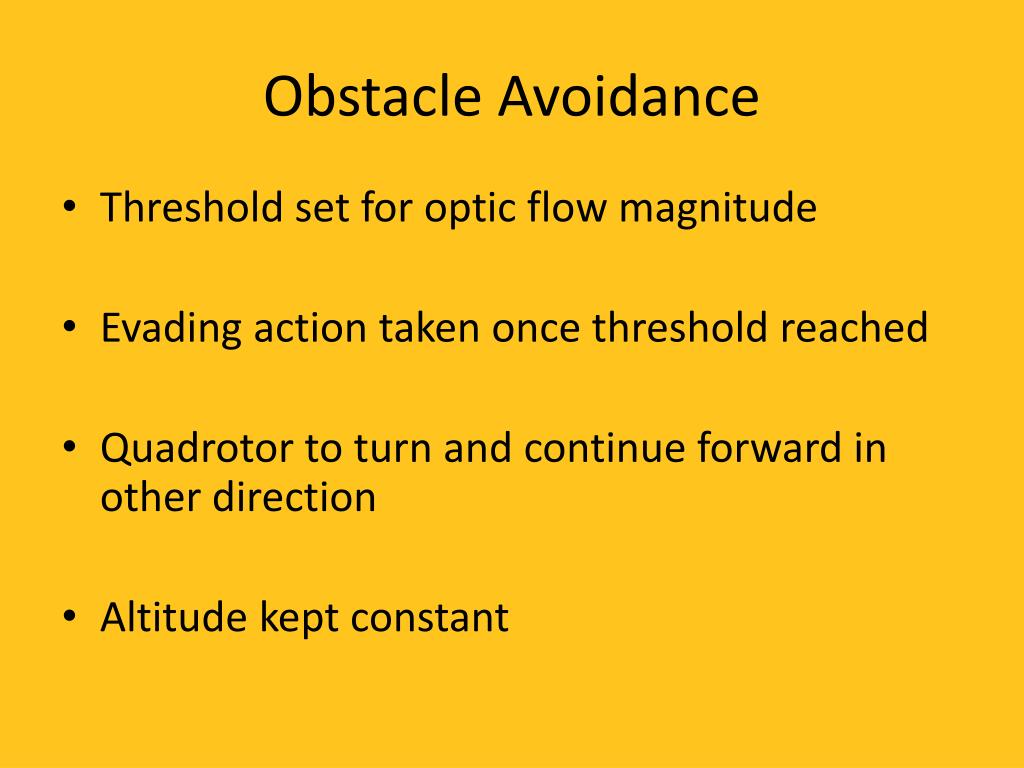

  7. Obstacle Avoidance • Threshold set for optic flow magnitude • Evading action taken once threshold reached • Quadrotor to turn and continue forward in other direction • Altitude kept constant

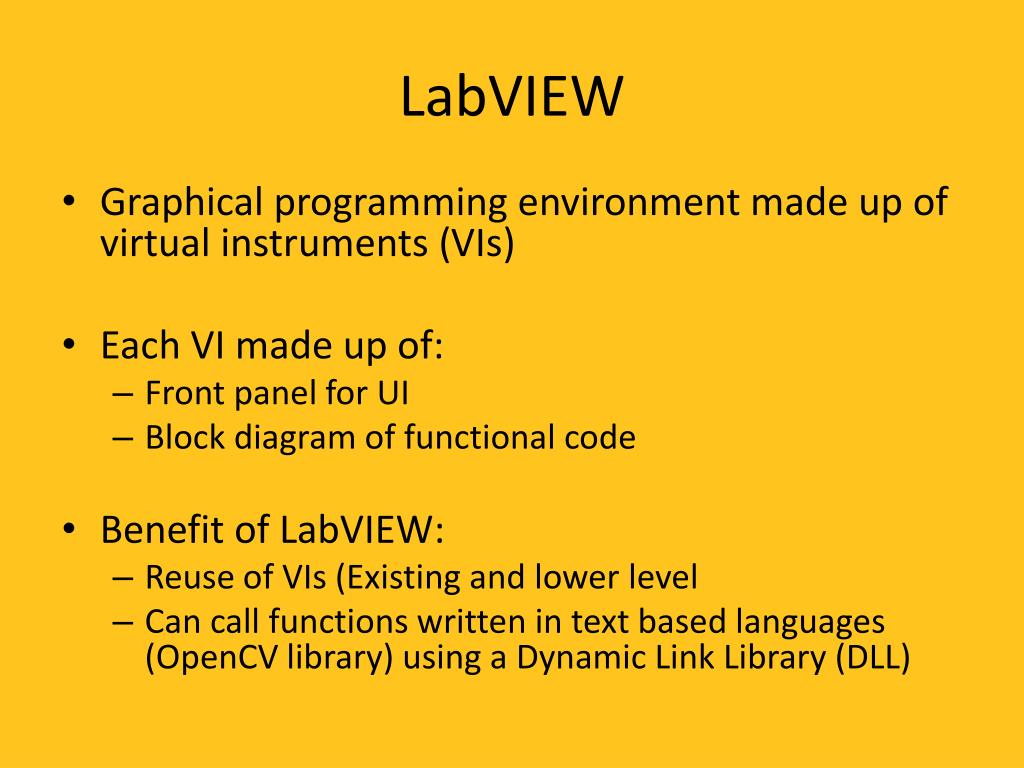

  8. LabVIEW • Graphical programming environment made up of virtual instruments (VIs) • Each VI made up of: • Front panel for UI • Block diagram of functional code • Benefit of LabVIEW: • Reuse of VIs (Existing and lower level • Can call functions written in text based languages (OpenCV library) using a Dynamic Link Library (DLL)

  9. AR Drone Toolkit Demo • Overview of VIs • AR Drone VIs on lab PC are located at: • C:\Program Files (x86)\National Instruments\LabVIEW 2013\examples\LVH\AR Drone Toolkit • Shortcut created on desktop • Example – Simple Control VI • Example – Simple NavData VI

  10. Plan • Next 2 weeks • Research and fully understand function of different AR Drone VIs • Research and experiment with linking OpenCV libraries into LabVIEW • Start work on first specific objective: • Optic flow magnitude
