  1. UAB VPN Service David Wolford, Communications Network Specialist

  2. UAB Virtual Private Network • User Services has provided VPN for many years • First service was called PopTop and used PPTP • Second and current service uses a Cisco 3060 VPN concentrator and uses IPSEC • We currently average ~ 50 IPSEC concurrent users

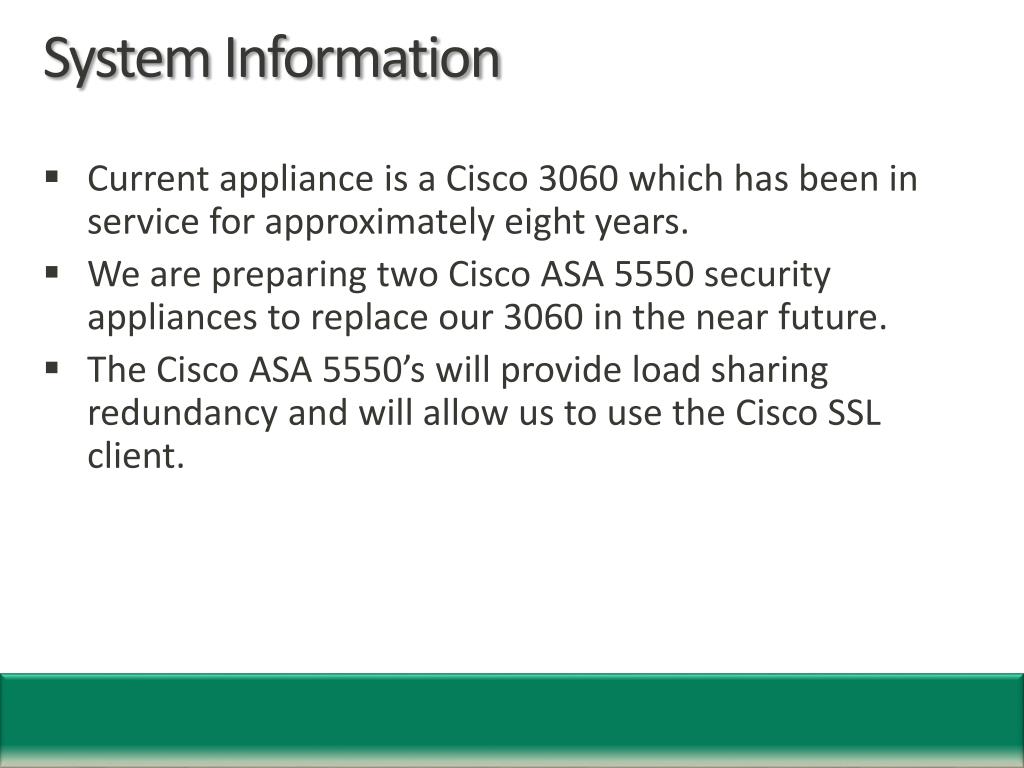

  3. System Information • Current appliance is a Cisco 3060 which has been in service for approximately eight years. • We are preparing two Cisco ASA 5550 security appliances to replace our 3060 in the near future. • The Cisco ASA 5550’s will provide load sharing redundancy and will allow us to use the Cisco SSL client.

  4. Reasons to Upgrade Service • Cisco 3060 was originally purchased for wireless users. It was pressed into service with the blocking of Microsoft ports and is now end-of-life by Cisco. • Implementation of border firewall and plans of tighter border security will increase the need. • Cisco is favoring SSL for newer OS platforms like Windows 64-bit.

  5. ASA5550

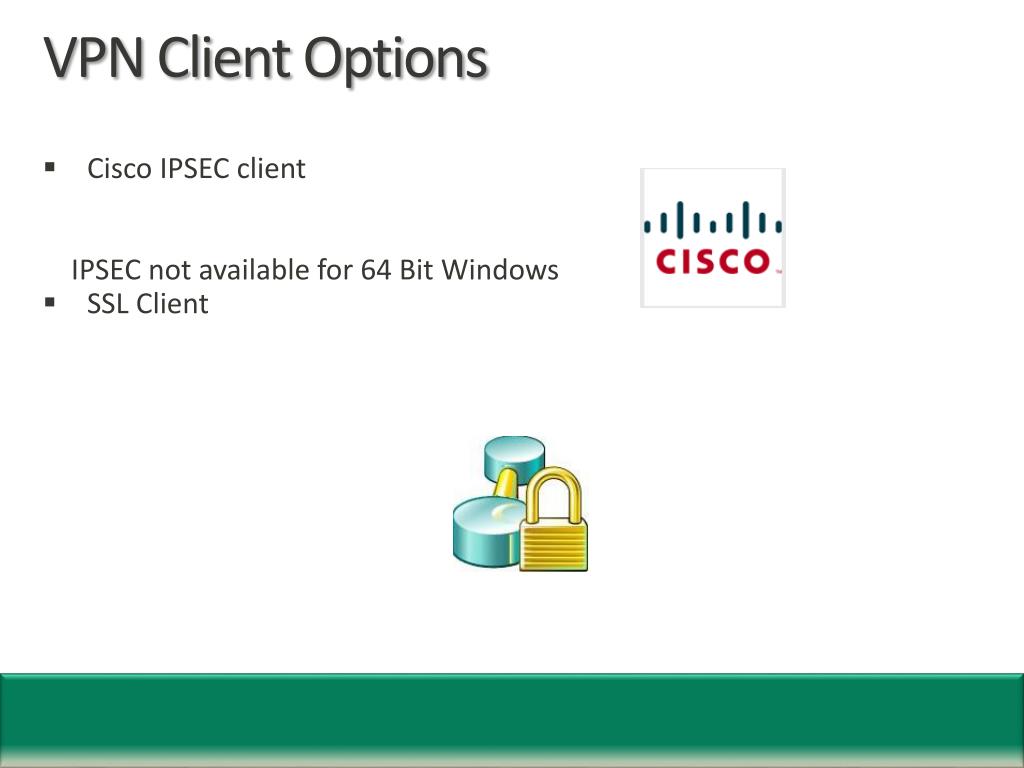

  6. VPN Client Options • Cisco IPSEC client IPSEC not available for 64 Bit Windows • SSL Client

  7. Client Downloadhttps://vpndpo.dpo.uab.edu

  8. SSL VPN Client

  9. Cisco IPSEC Client

  10. Departmental VPN Groups • Offers IP addresses from a defined pool of addresses for firewall traversal and resource access • DCNS can add or remove users from groups • Works with SSL and IPSEC VPN

  11. Network Diagram

  12. Split Tunneling

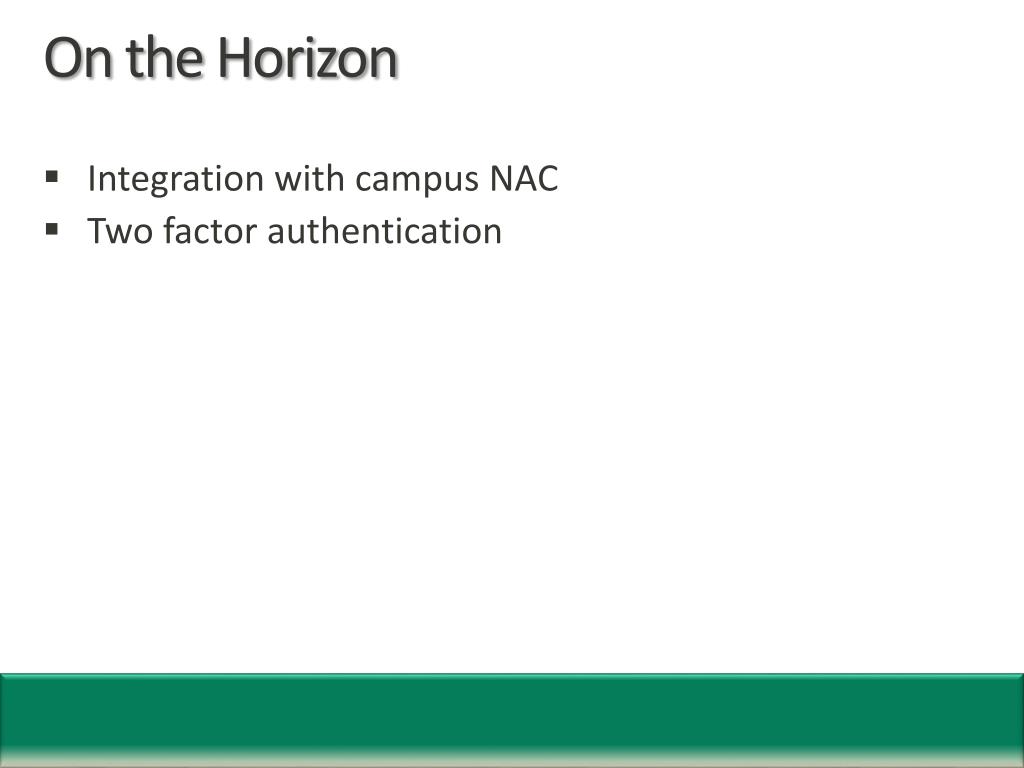

  13. On the Horizon • Integration with campus NAC • Two factor authentication
