Name: ___________________ Quiz 1 Problem 3 Exploration

Because this skill of SEEING a drawing will be vital to your success, we are going to work on it A LOT! Here are two good student examples that we will examine. One possible solution by Miss Kim (with both pictures and words) is on the back. A. A. A. A. 27°. B. D. B. B. B.

Télécharger la présentation

Name: ___________________ Quiz 1 Problem 3 Exploration

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

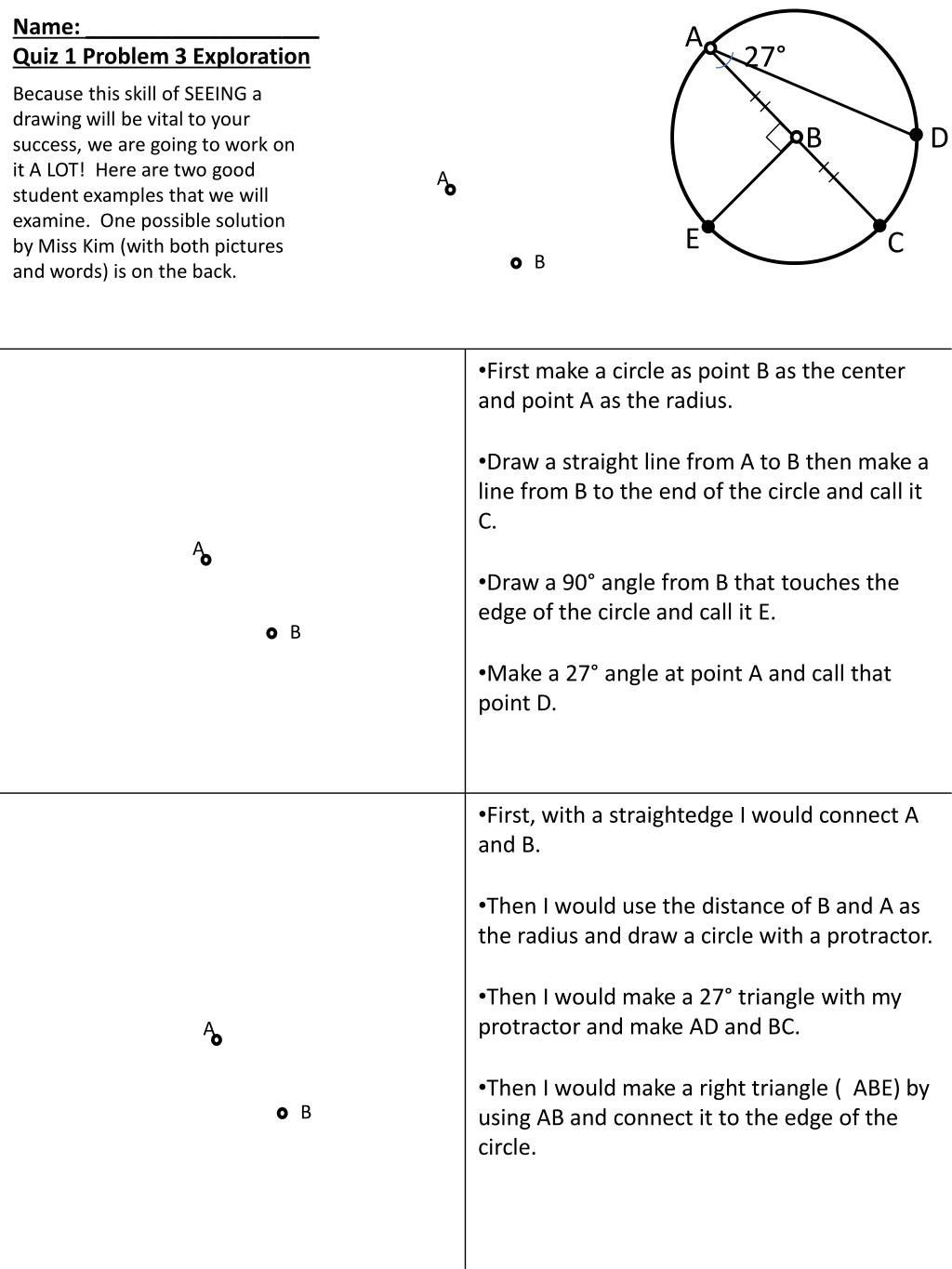

  1. Because this skill of SEEING a drawing will be vital to your success, we are going to work on it A LOT! Here are two good student examples that we will examine. One possible solution by Miss Kim (with both pictures and words) is on the back. A A A A 27° B D B B B • First make a circle as point B as the center and point A as the radius. • Draw a straight line from A to B then make a line from B to the end of the circle and call it C. • Draw a 90° angle from B that touches the edge of the circle and call it E. • Make a 27° angle at point A and call that point D. Name: ___________________ Quiz 1 Problem 3 Exploration E C • First, with a straightedge I would connect A and B. • Then I would use the distance of B and A as the radius and draw a circle with a protractor. • Then I would make a 27° triangle with my protractor and make AD and BC. • Then I would make a right triangle ( ABE) by using AB and connect it to the edge of the circle.

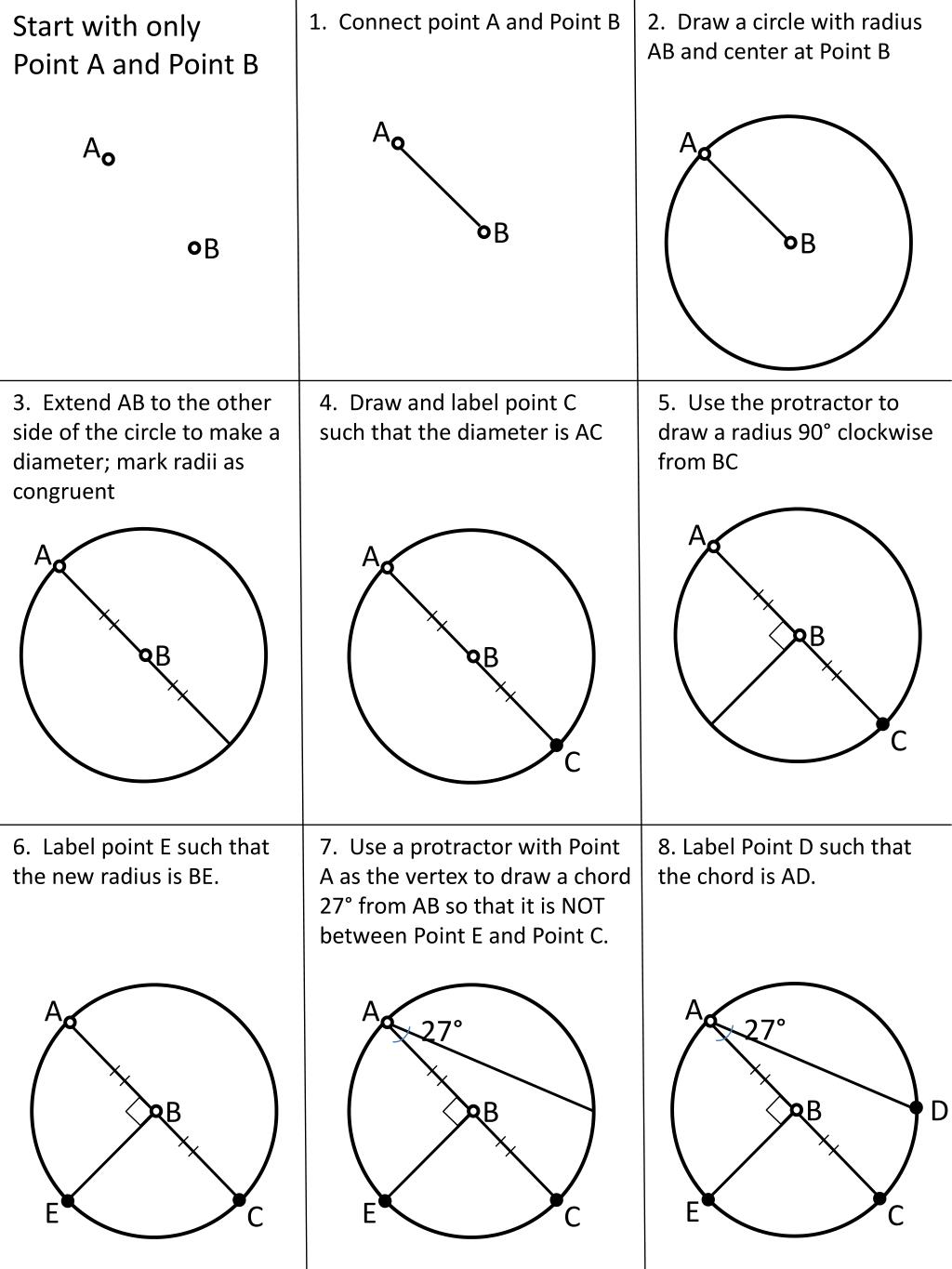

  2. Start with only Point A and Point B 1. Connect point A and Point B 2. Draw a circle with radius AB and center at Point B A A A B B B 3. Extend AB to the other side of the circle to make a diameter; mark radii as congruent 4. Draw and label point C such that the diameter is AC 5. Use the protractor to draw a radius 90° clockwise from BC A A A B B B C C 6. Label point E such that the new radius is BE. 7. Use a protractor with Point A as the vertex to draw a chord 27° from AB so that it is NOT between Point E and Point C. 8. Label Point D such that the chord is AD. A A A 27° 27° B D B B E E E C C C
