  1. Oracle WebLogic on IBM System z Linux Under z/VM Installation Quick Start z10 Spencer V. Krueger Elizabeth A. Somers IBM Advanced Technical Skills

  2. The following are trademarks of the International Business Machines Corporation in the United States and/or other countries. APPN CICS* DB2* e-business logo* Enterprise Storage Server ESCON* FICON FICON Express GDPS HiperSockets IBM* IBM eServer HiperSockets IBM logo* IMS MQSeries* OS/390* Parallel Sysplex* PR/SM Resource Link S/390* Sysplex Timer* Tivoli* Total Storage VM/ESA* WebSphere* z/Architecture z/OS z/VM zSeries * Registered trademarks of IBM Corporation The following are trademarks or registered trademarks of other companies. Intel is a trademark of the Intel Corporation in the United States and other countries. Java and all Java-related trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc, and Oracle Corp, in the United States and other countries. Oracle Corp. Siebel registered trademark Lotus, Notes, and Domino are trademarks or registered trademarks of Lotus Development Corporation. Linux is a registered trademark of Linus Torvalds. Microsoft, Windows and Windows NT are registered trademarks of Microsoft Corporation. Penguin (Tux) compliments of Larry Ewing. SET and Secure Electronic Transaction are trademarks owned by SET Secure Electronic Transaction LLC. UNIX is a registered trademark of The Open Group in the United States and other countries. * All other products may be trademarks or registered trademarks of their respective companies. Notes: Performance is in Internal Throughput Rate (ITR) ratio based on measurements and projections using standard IBM benchmarks in a controlled environment. The actual throughput that any user will experience will vary depending upon considerations such as the amount of multiprogramming in the user's job stream, the I/O configuration, the storage configuration, and the workload processed. Therefore, no assurance can be given that an individual user will achieve throughput improvements equivalent to the performance ratios stated here. IBM hardware products are manufactured from new parts, or new and serviceable used parts. Regardless, our warranty terms apply. All customer examples cited or described in this presentation are presented as illustrations of the manner in which some customers have used IBM products and the results they may have achieved. Actual environmental costs and performance characteristics will vary depending on individual customer configurations and conditions. This publication was produced in the United States. IBM may not offer the products, services or features discussed in this document in other countries, and the information may be subject to change without notice. Consult your local IBM business contact for information on the product or services available in your area. All statements regarding IBM's future direction and intent are subject to change or withdrawal without notice, and represent goals and objectives only. Information about non-IBM products is obtained from the manufacturers of those products or their published announcements. IBM has not tested those products and cannot confirm the performance, compatibility, or any other claims related to non-IBM products. Questions on the capabilities of non-IBM products should be addressed to the suppliers of those products. Prices subject to change without notice. Contact your IBM representative or Business Partner for the most current pricing in your geography. This presentation and the claims outlined in it were reviewed for compliance with US law. Adaptations of these claims for use in other geographies must be reviewed by the local country counsel for compliance with local laws. Trademarks

  3. WebLogic on Linux for System z - Topics • z/VM, LPARs, IFLs, Linux on System z • Virtualization • Which Linux do I install on System z? • Planning Prerequisites(Linux, JAVA, Disk) • WebLogic Architecture (formally BEA) • WebLogic Install • WebLogic 10.3.1/2 & 10.3.3 • WebLogic Server (WLS) Administration • Start Server, Update WLS Domains • Sample Application • IBM ATS Assistance • References

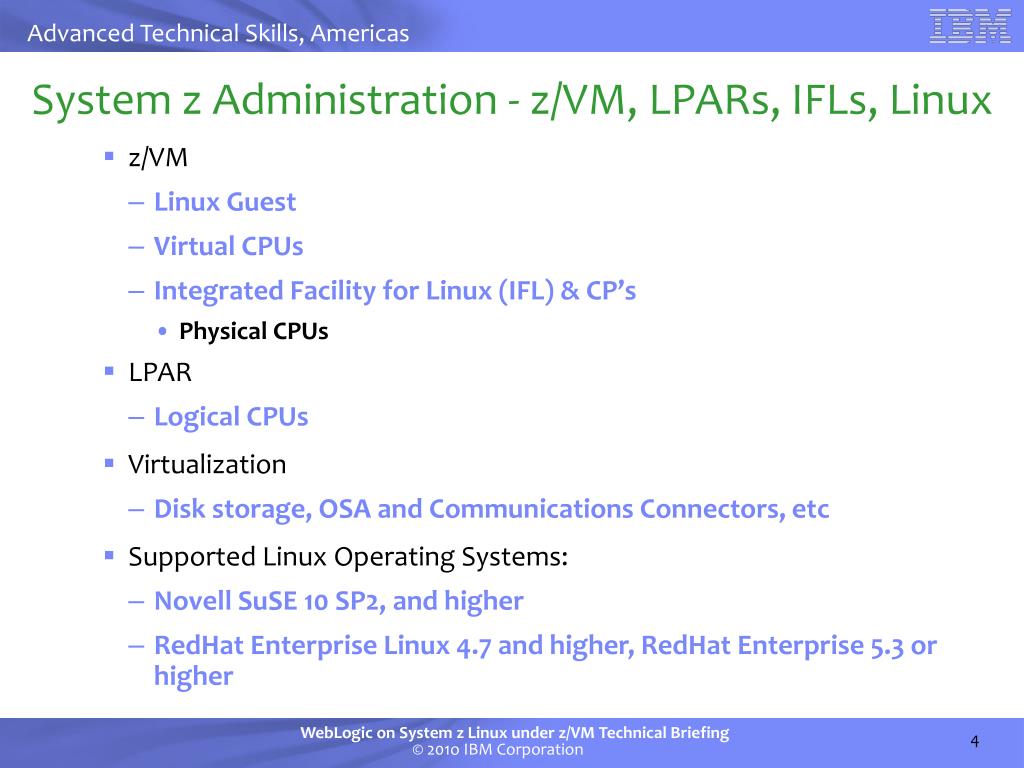

  4. System z Administration - z/VM, LPARs, IFLs, Linux • z/VM • Linux Guest • Virtual CPUs • Integrated Facility for Linux (IFL) & CP’s • Physical CPUs • LPAR • Logical CPUs • Virtualization • Disk storage, OSA and Communications Connectors, etc • Supported Linux Operating Systems: • Novell SuSE 10 SP2, and higher • RedHat Enterprise Linux 4.7 and higher, RedHat Enterprise 5.3 or higher

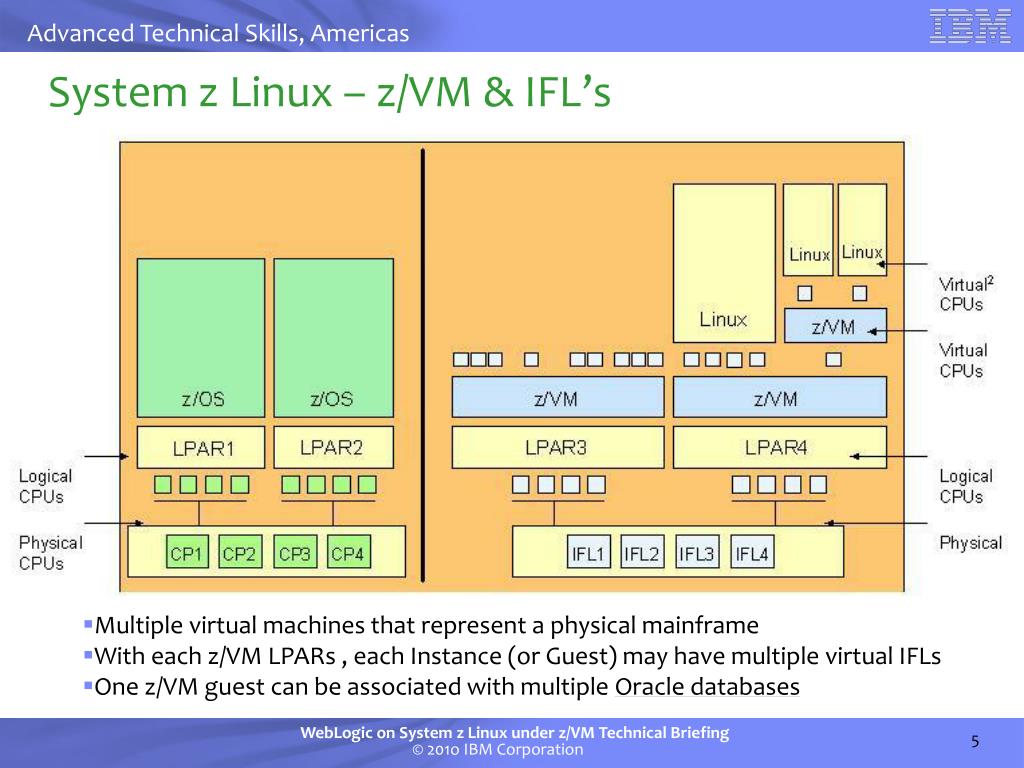

  5. System z Linux – z/VM & IFL’s • Multiple virtual machines that represent a physical mainframe • With each z/VM LPARs , each Instance (or Guest) may have multiple virtual IFLs • One z/VM guest can be associated with multiple Oracle databases

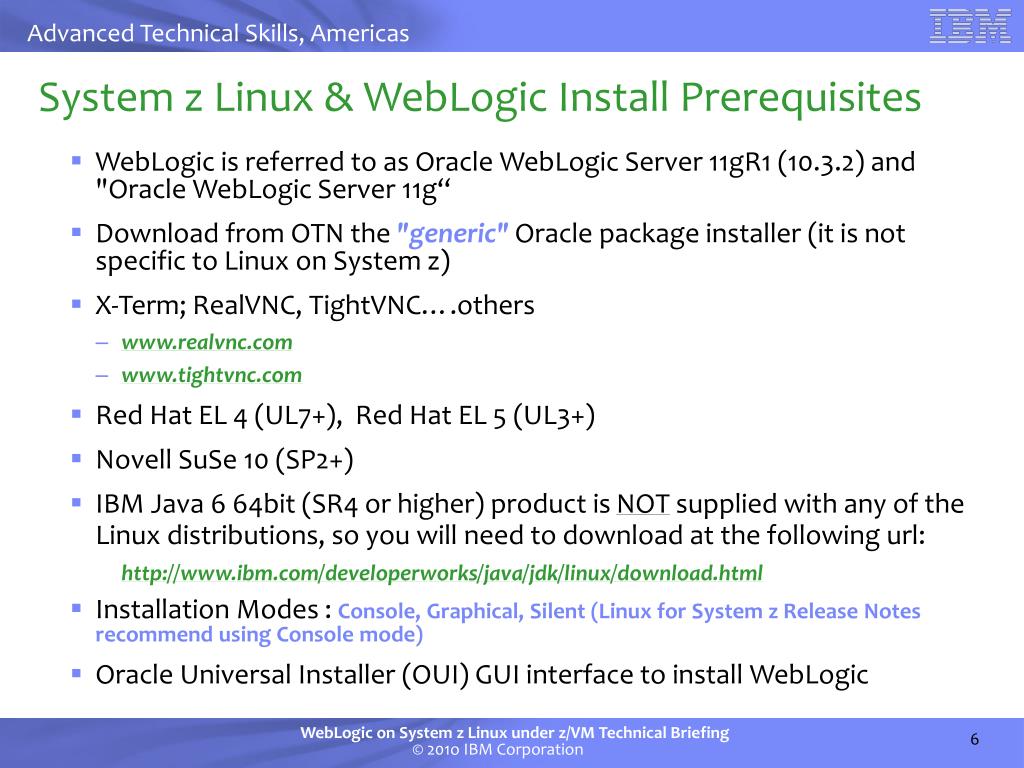

  6. System z Linux & WebLogic Install Prerequisites • WebLogic is referred to as Oracle WebLogic Server 11gR1 (10.3.2) and "Oracle WebLogic Server 11g“ • Download from OTN the "generic" Oracle package installer (it is not specific to Linux on System z) • X-Term; RealVNC, TightVNC….others • www.realvnc.com • www.tightvnc.com • Red Hat EL 4 (UL7+), Red Hat EL 5 (UL3+) • Novell SuSe 10 (SP2+) • IBM Java 6 64bit (SR4 or higher) product is NOT supplied with any of the Linux distributions, so you will need to download at the following url: http://www.ibm.com/developerworks/java/jdk/linux/download.html • Installation Modes : Console, Graphical, Silent (Linux for System z Release Notes recommend using Console mode) • Oracle Universal Installer (OUI) GUI interface to install WebLogic

  7. Component Installation Steps… • Preparation for Linux Install on System z (SLES10 or RedHat) • Install Novell SLES10 SP2 or RedHat • Novell SLES10 used in examples that follow • Install IBM Java 6 64bit (SP7) • Install WebLogic

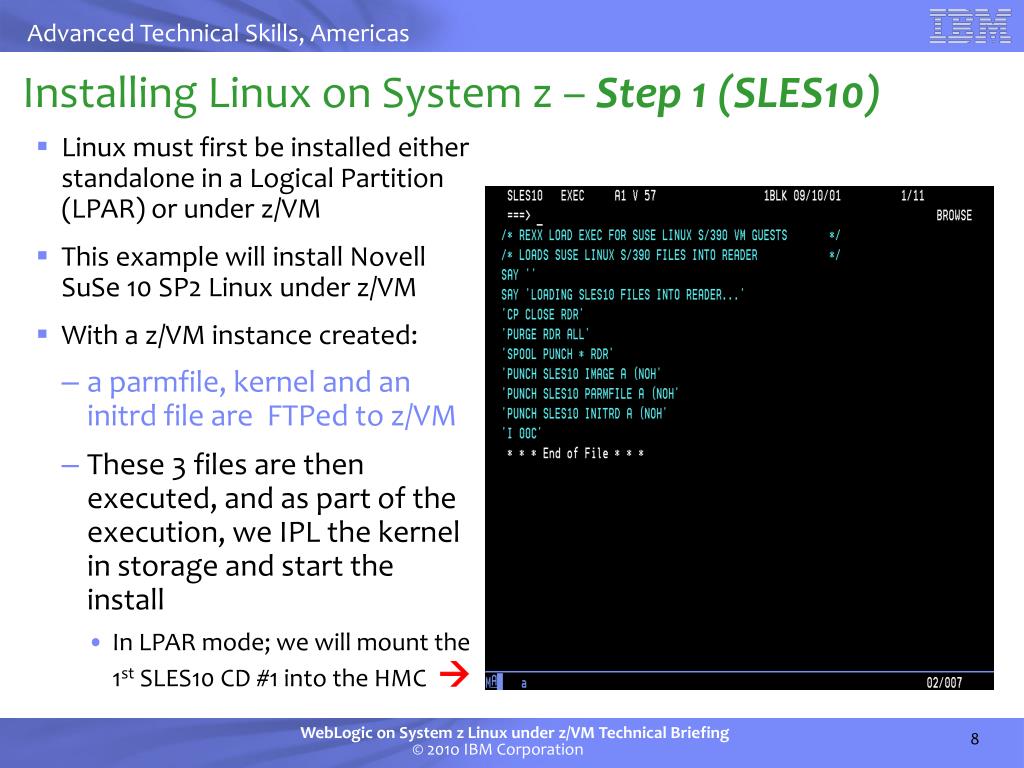

  8. Installing Linux on System z – Step 1 (SLES10) • Linux must first be installed either standalone in a Logical Partition (LPAR) or under z/VM • This example will install Novell SuSe 10 SP2 Linux under z/VM • With a z/VM instance created: • a parmfile, kernel and an initrd file are FTPed to z/VM • These 3 files are then executed, and as part of the execution, we IPL the kernel in storage and start the install • In LPAR mode; we will mount the 1st SLES10 CD #1 into the HMC 

  9. Installing Novell SLES10 SP2 – Step 2 • Easier to unload the SuSE CDs (usually 4 of them) to disk prior to starting the install • Verify that all the media is unloaded and a mount point has been established • Install using an X-Term session or your Browser • http://xx.xx.xx.xx:5801 (where xx.xx.xx.xx is your IP address) to access the install panels within z/VM • Start an X-Term (VNC) session • All examples that follow use a VNC X-Term session

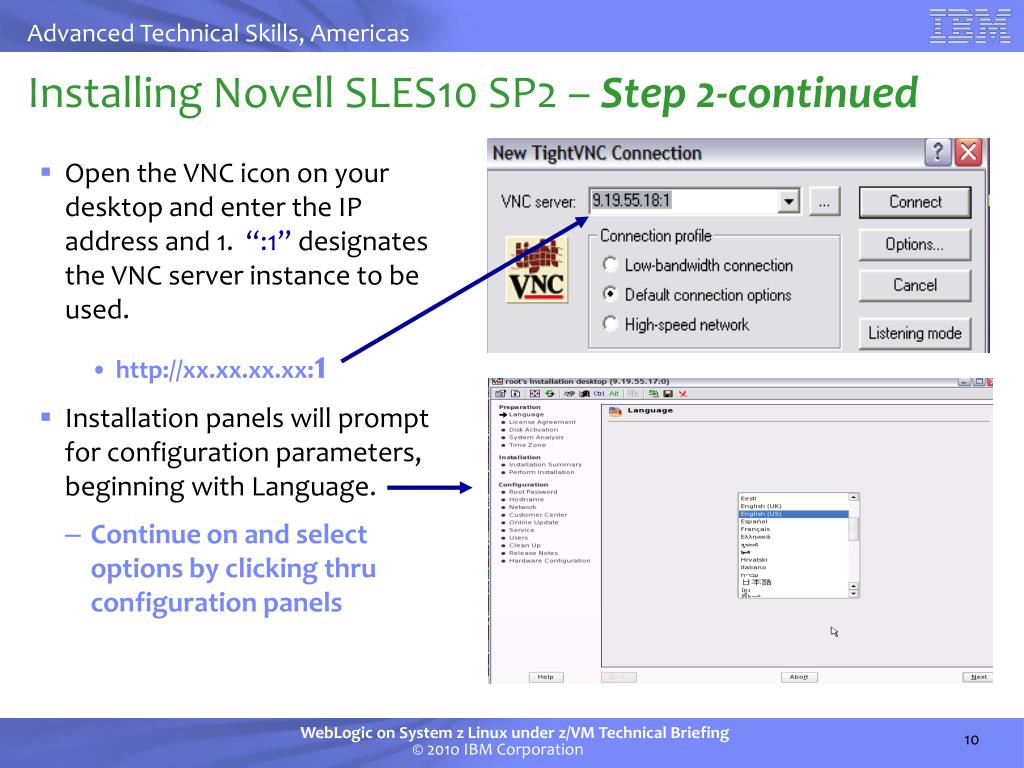

  10. Installing Novell SLES10 SP2 – Step 2-continued • Open the VNC icon on your desktop and enter the IP address and 1. “:1” designates the VNC server instance to be used. • http://xx.xx.xx.xx:1 • Installation panels will prompt for configuration parameters, beginning with Language. • Continue on and select options by clicking thru configuration panels

  11. Installing IBM Java 6 64bit – Step 3 • Download: www.ibm.com/developerworks/java/jdk/linux/download.html • SR7 under ‘Download’ in the row for 64Bit System z Java(User registration required)

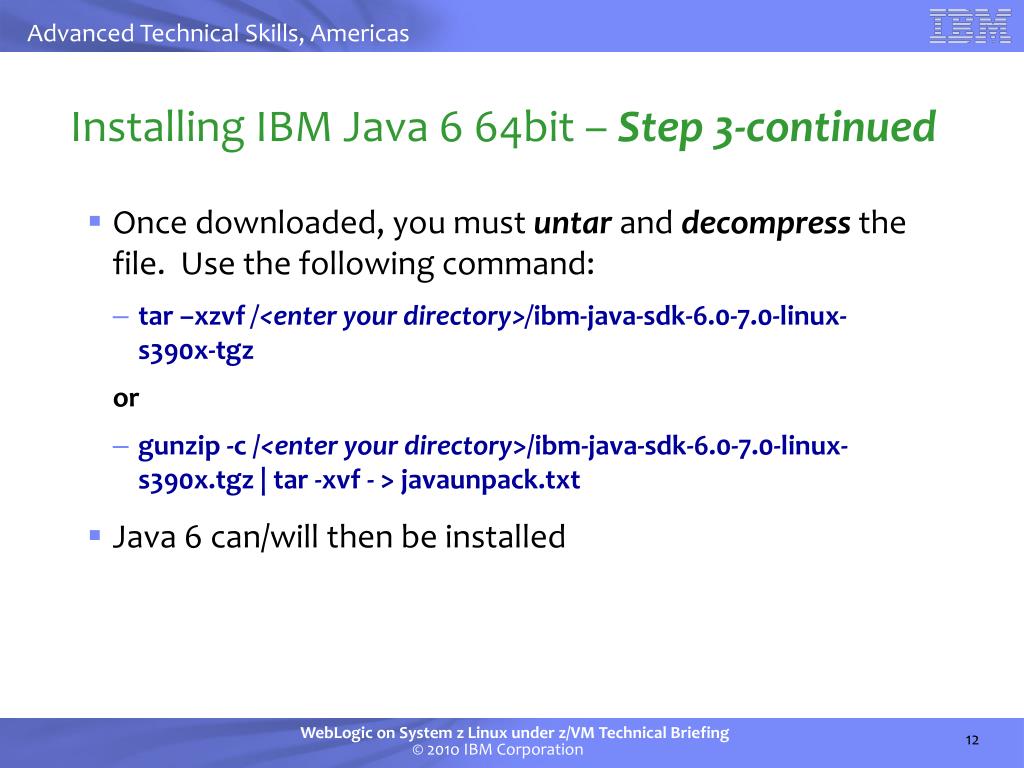

  12. Installing IBM Java 6 64bit – Step 3-continued • Once downloaded, you must untar and decompress the file. Use the following command: • tar –xzvf /<enter your directory>/ibm-java-sdk-6.0-7.0-linux-s390x-tgz or • gunzip -c /<enter your directory>/ibm-java-sdk-6.0-7.0-linux-s390x.tgz | tar -xvf - > javaunpack.txt • Java 6 can/will then be installed

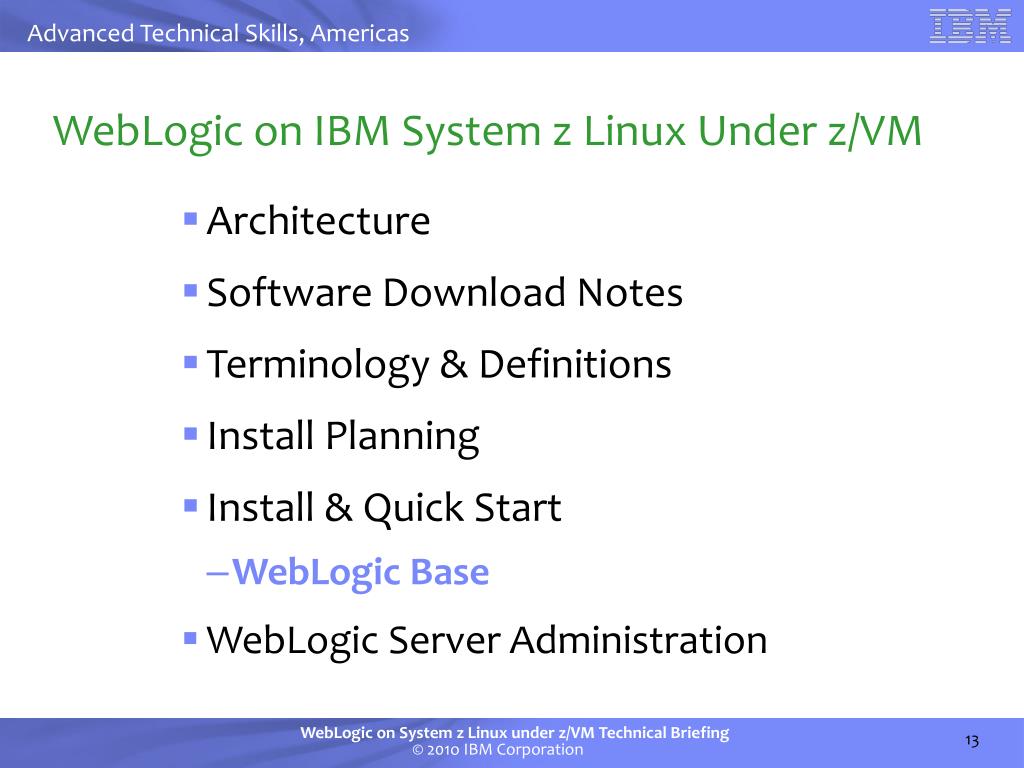

  13. WebLogic on IBM System z Linux Under z/VM • Architecture • Software Download Notes • Terminology & Definitions • Install Planning • Install & Quick Start • WebLogic Base • WebLogic Server Administration

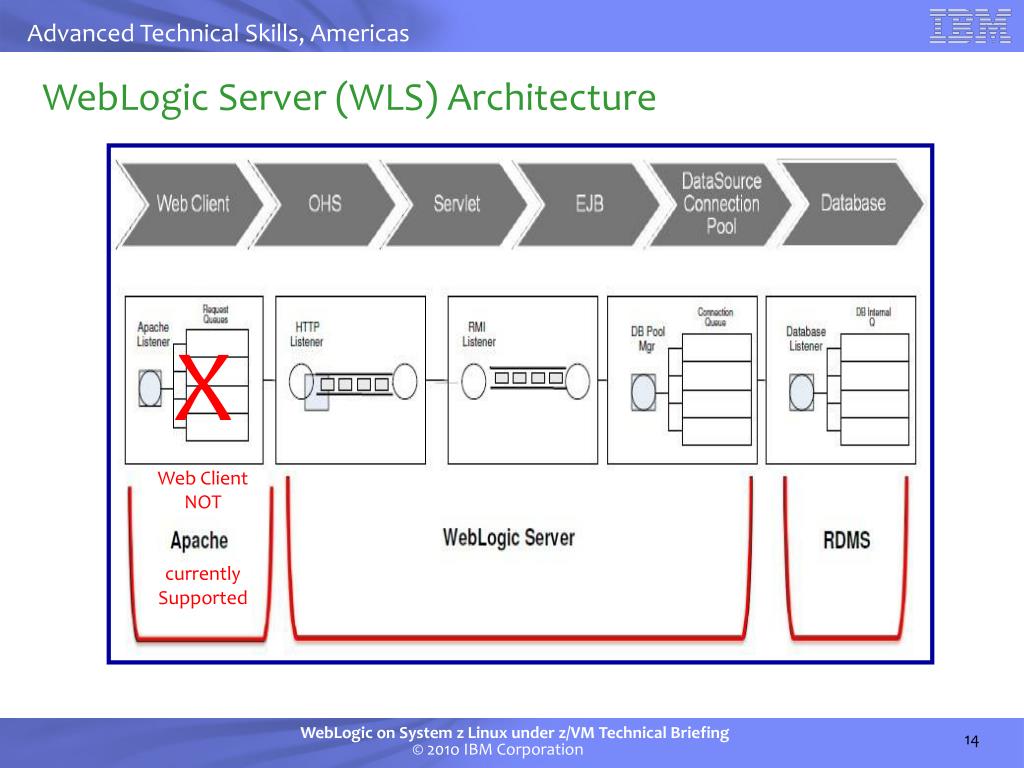

  14. WebLogic Server (WLS) Architecture X Web Client NOT currently Supported

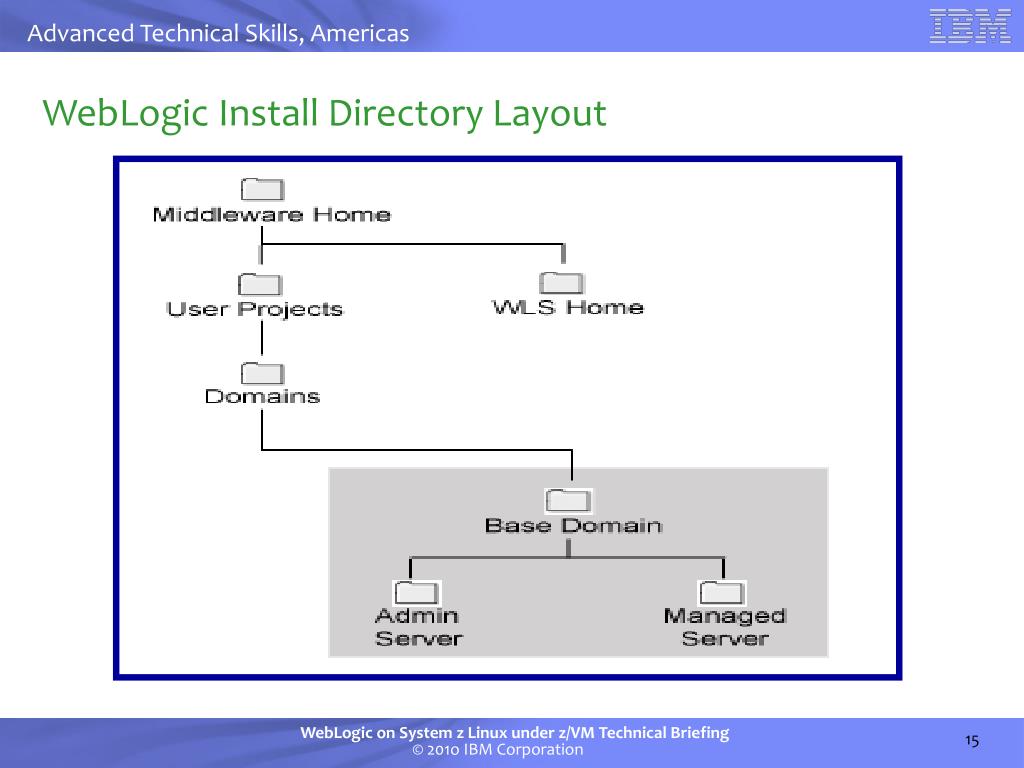

  15. WebLogic Install Directory Layout

  16. Software Download Notes • A complete list of supported configurations can be found at: • http://download.oracle.com/docs/cd/E13196_01/platform/suppconfigs/index.html • Release Notes Middleware 11gR1 for IBM: Linux on System z (WLS 10.3.2) are accessible: http://download.oracle.com/docs/cd/E15523_01/doc.1111/e15731/toc.htm • Verify you have adequate “tmp” space when you unzip • You will notice WebLogic is referred to as Oracle WebLogic Server 11gR1 (10.3.2) and "Oracle WebLogic Server 11g". • You download from OTN the "generic" package installer. It is not specific to Linux on z. • The IBM Java SDK 6 64-bit SR4 (or higher) is required. At this time we recommend you stay with SR4" • At this time the download is only on OTN - it is not yet on edelivery.oracle.com even though the release notes point to that url (as of 4/2010).

  17. WebLogic Terminology & Definitions • WebLogic Domain • A WebLogic Server administration domain is a logically related group of WebLogic Server resources. • Domains include a special WebLogic Server instance called the Administration Server, and you configure a domain to include additional WebLogic Server instances called Managed Servers. • Administrative Server • One instance of WebLogic Server in each domain acts as an Administration Server. The Administration Server provides a central point for managing a WebLogic Server domain. • Managed Server • All other WebLogic Server instances in a domain are called Managed Servers. • In a domain with only a single WebLogic Server instance, that server functions both as Administration Server and Managed Server. • Node Manager • Utility which allows lifecycle control of an Administration Server and Managed Server instances from a remote location. A Node Manager process is associated with a specific machine.

  18. WebLogic Installation Planning Requirements • Default Ports; 7001, 7010 • URL • WLS 10.3.2 Base Install Disk Requirements • Net Installer ~39M Install on demand • Enterprise Installer footprint from 179M • Delivered with installer • WebLogic Server • 742M – Full distribution • Apache Web Plug-In (not currently supported as of 10.3.2 for Linux on System z)

  19. WebLogic Installation – Step 4 • Start an X-Term SERVER session using a PUTTY session • VNCSERVER is designated by a session instance # • Start an X-Term CLIENT session

  20. WebLogic Installation – Step 4.1 • Use Oracle Universal Installer (OUI) to install WebLogic • ./java -Djava.io.tmpdir=/dev -jar /wlogic/tmp/wls1032_generic.jar

  21. WebLogic Installation – Step 4.1-continued • A series of install panels will display, complete entries and click Next.Below are key panels to note: • Verify/Enter the “Middleware Home Directory”. • Select “Custom” install WebLogic Server type. This will allow you to view specific components to be installed. • Make sure the “Server Examples” component is checked. • Select the local IBM JDK to be used. • Specify the WLS directory for the install within the Middleware directory. • “Installation Summary” panel is displayed, click “Next” to start the Install.

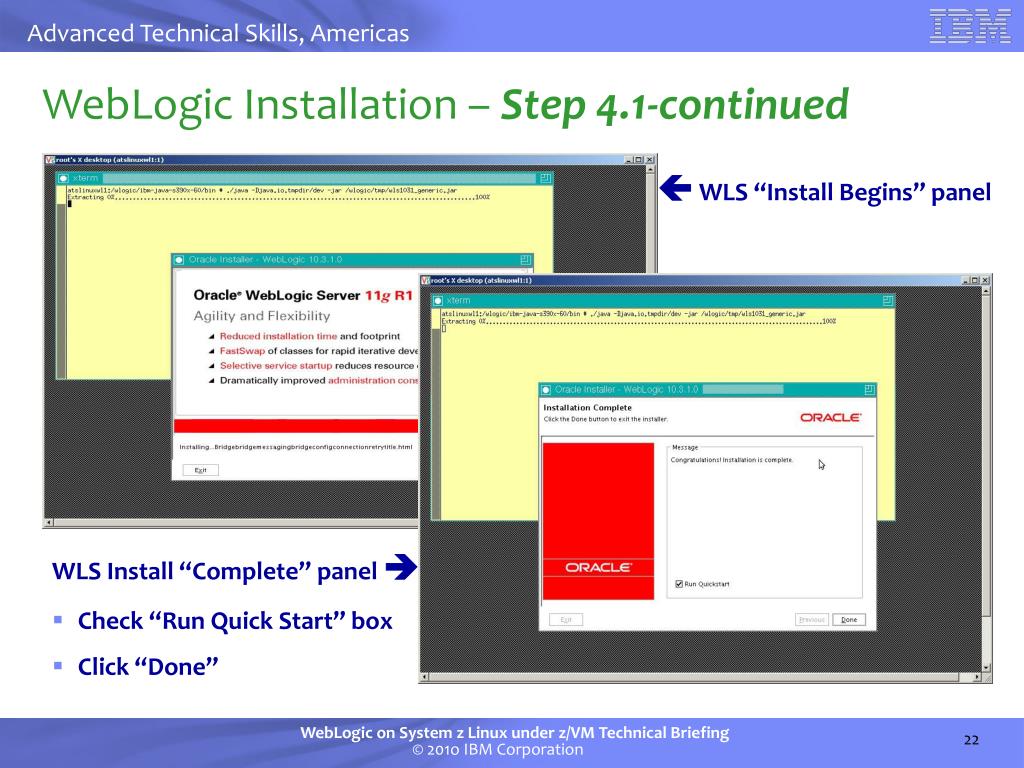

  22. WebLogic Installation – Step 4.1-continued WLS “Install Begins” panel WLS Install “Complete” panel  • Check “Run Quick Start” box • Click “Done”

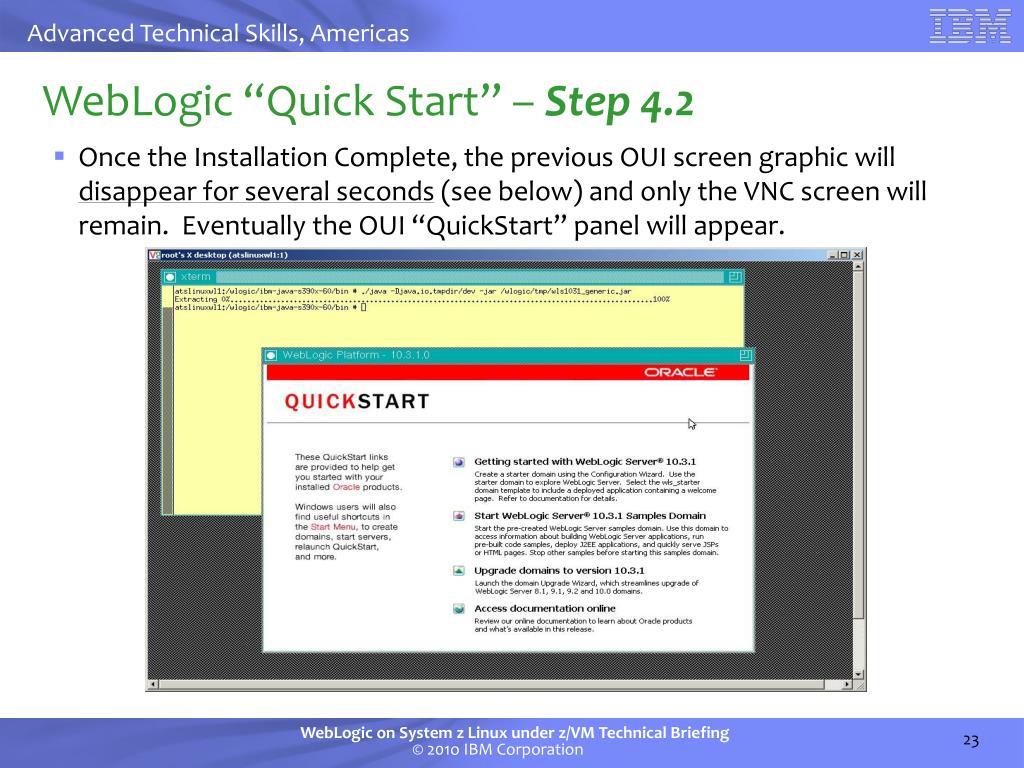

  23. WebLogic “Quick Start” – Step 4.2 • Once the Installation Complete, the previous OUI screen graphic will disappear for several seconds (see below) and only the VNC screen will remain. Eventually the OUI “QuickStart” panel will appear.

  24. WebLogic “Quick Start” – Step 4.2-continued • The “Getting Started with WebLogic Server 10.3.2” button is highlighted. Clicking on this button will start the WLS “Configuration Wizard”. • Our first configuration step will be to Create a WLS Domain.

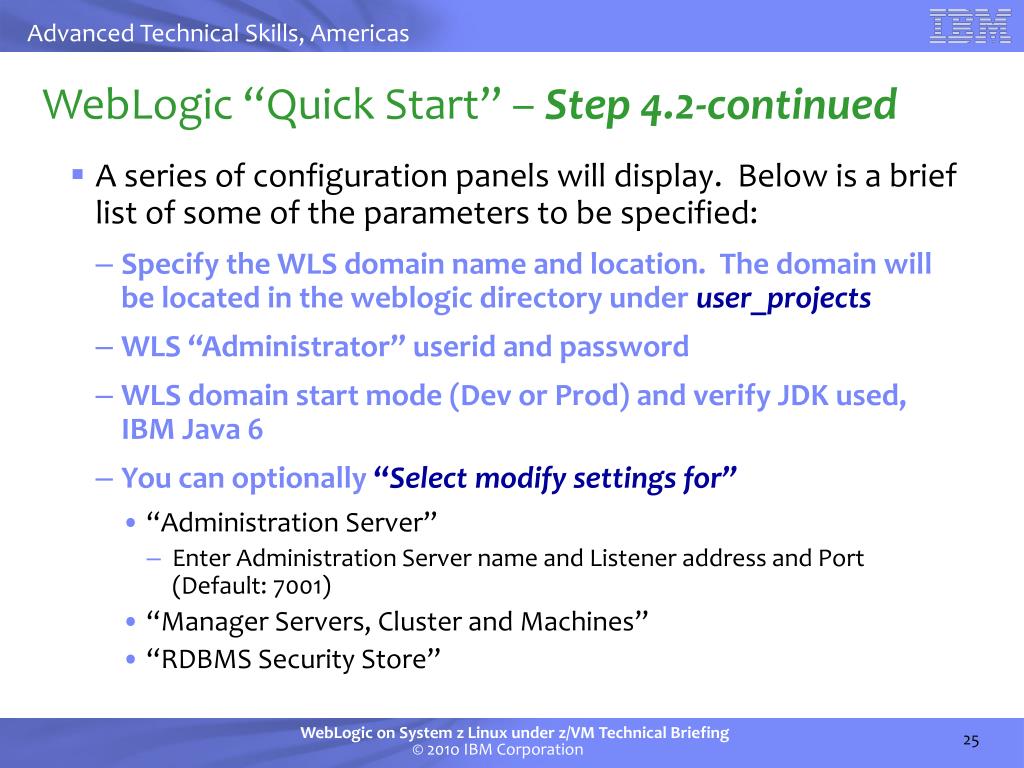

  25. WebLogic “Quick Start” – Step 4.2-continued • A series of configuration panels will display. Below is a brief list of some of the parameters to be specified: • Specify the WLS domain name and location. The domain will be located in the weblogic directory underuser_projects • WLS “Administrator” userid and password • WLS domain start mode (Dev or Prod) and verify JDK used, IBM Java 6 • You can optionally “Select modify settings for” • “Administration Server” • Enter Administration Server name and Listener address and Port (Default: 7001) • “Manager Servers, Cluster and Machines” • “RDBMS Security Store”

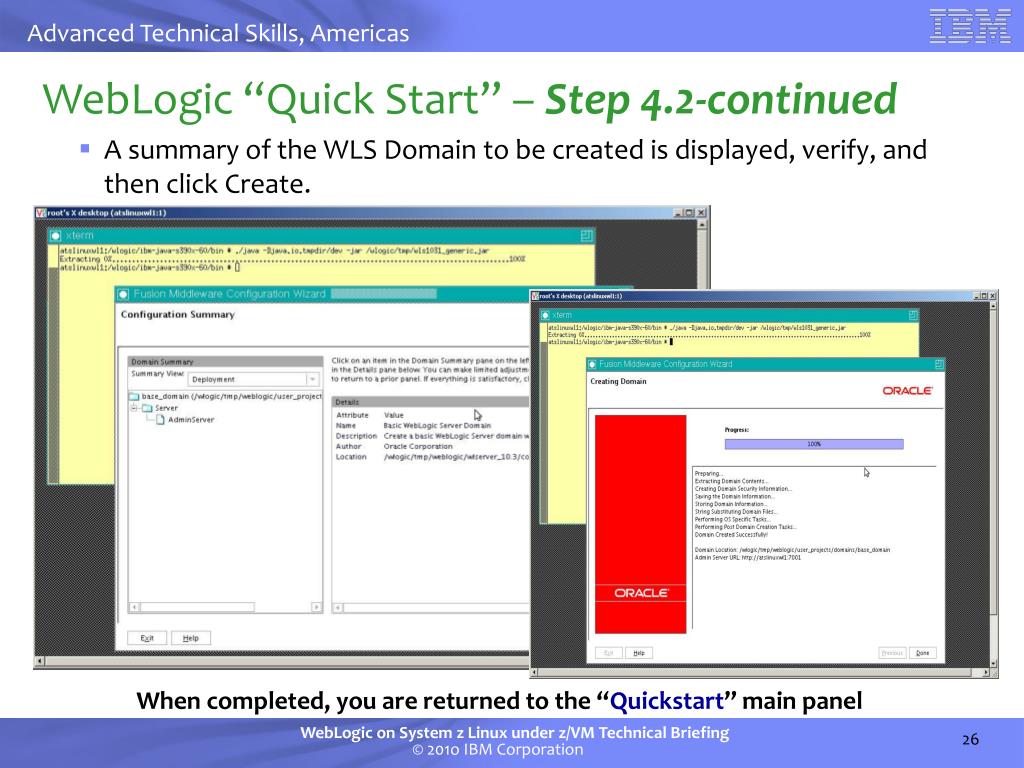

  26. WebLogic “Quick Start” – Step 4.2-continued • A summary of the WLS Domain to be created is displayed, verify, and then click Create. When completed, you are returned to the “Quickstart” main panel

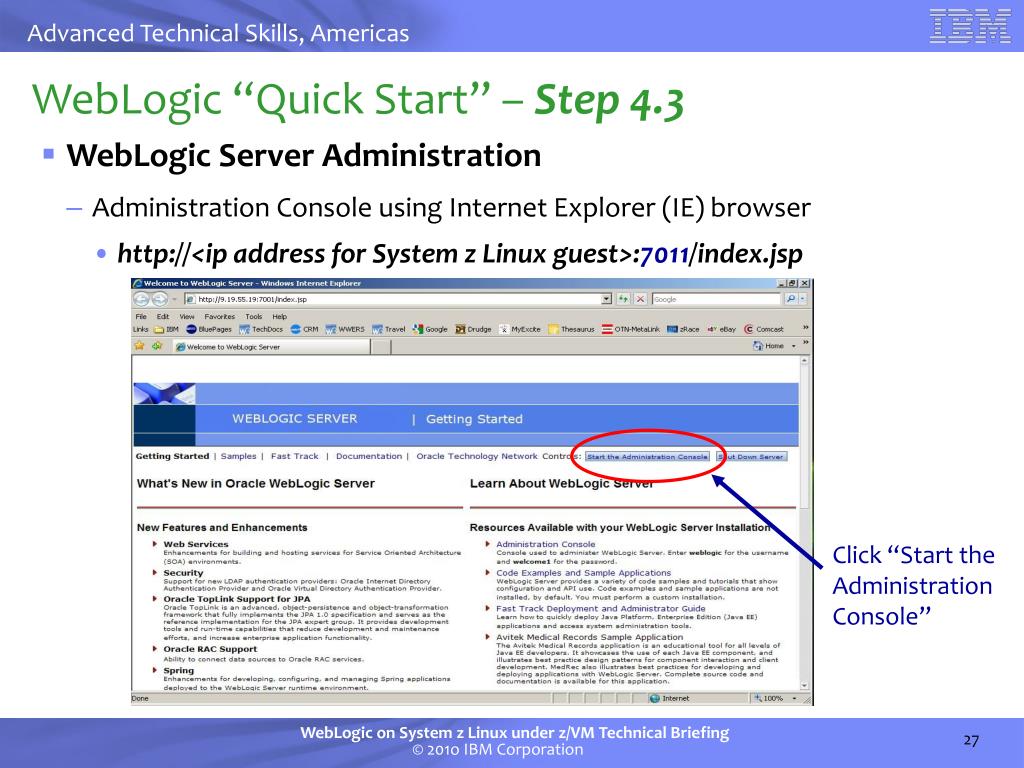

  27. Click “Start the Administration Console” WebLogic “Quick Start” – Step 4.3 • WebLogic Server Administration • Administration Console using Internet Explorer (IE) browser • http://<ip address for System z Linux guest>:7011/index.jsp

  28. WebLogic “Quick Start” – Step 4.3-continued Enter Userid and default password “welcome1” WLS Administration Console

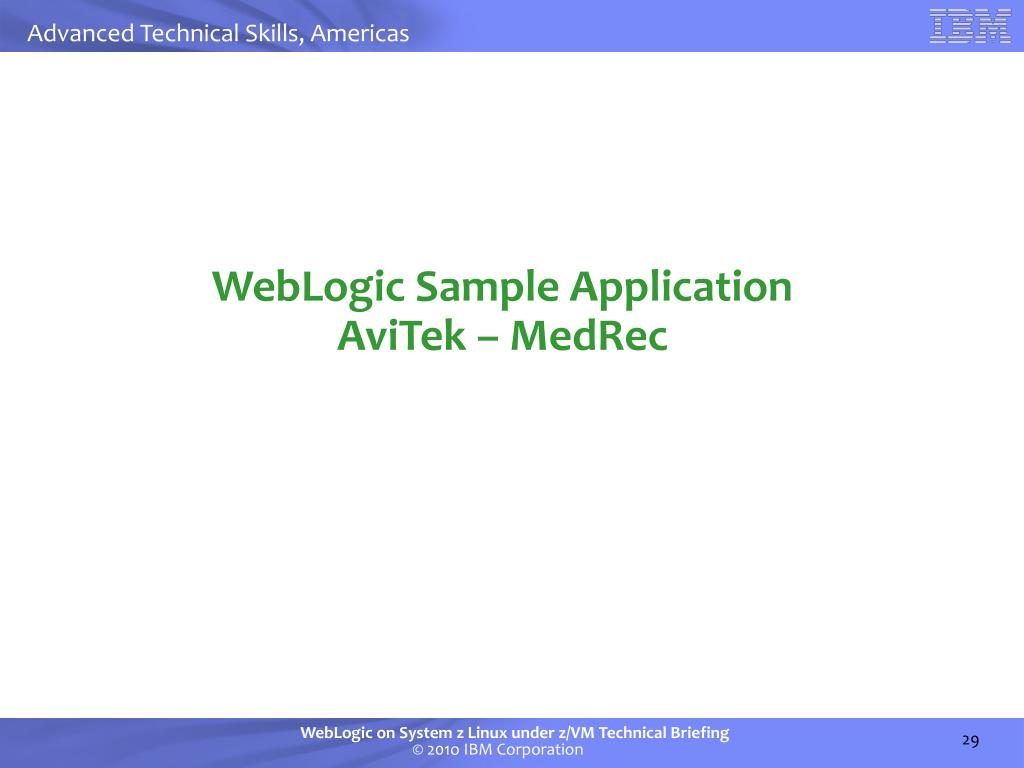

  29. WebLogic Sample Application AviTek – MedRec

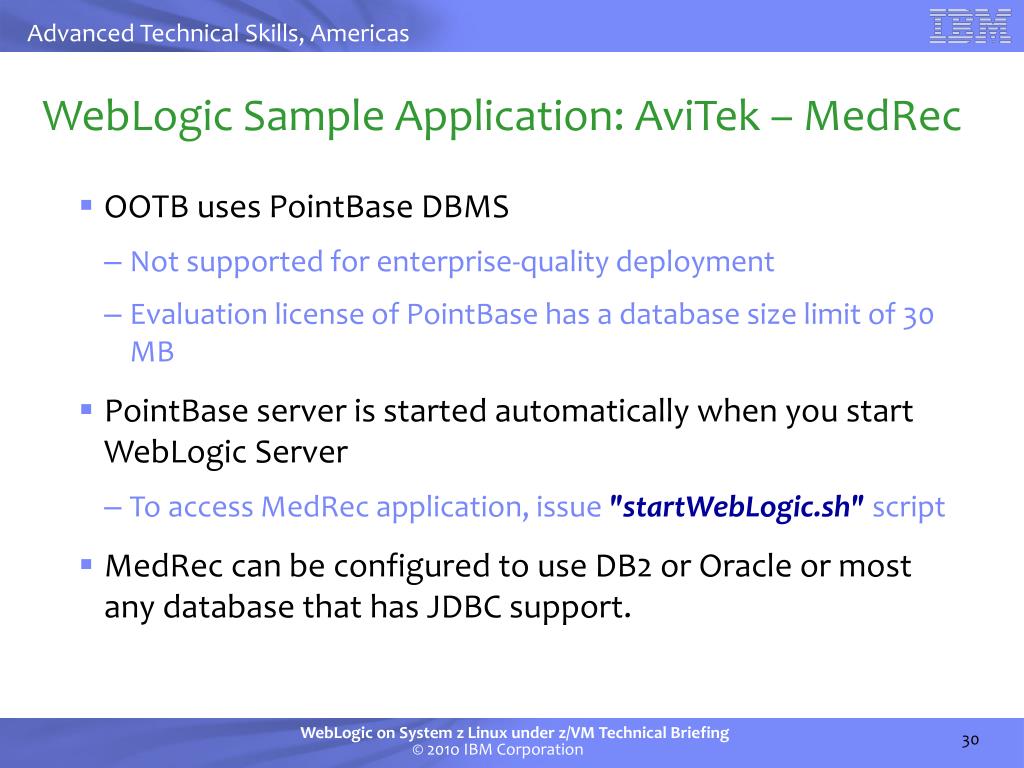

  30. WebLogic Sample Application: AviTek – MedRec • OOTB uses PointBase DBMS • Not supported for enterprise-quality deployment • Evaluation license of PointBase has a database size limit of 30 MB • PointBase server is started automatically when you start WebLogic Server • To access MedRec application, issue "startWebLogic.sh" script • MedRec can be configured to use DB2 or Oracle or most any database that has JDBC support.

  31. WebLogic Sample Application: AviTek – MedRec To launch the Medical Records Application, first shut down the current WebLogic Server instance using the Shut Down Server button in the top right corner of this panel

  32. WebLogic Sample Application: AviTek – MedRec

  33. WebLogic Sample Application: AviTek – MedRec In the VNC session, the Firefox browser will start automatically. http://localhost:7011/medrec

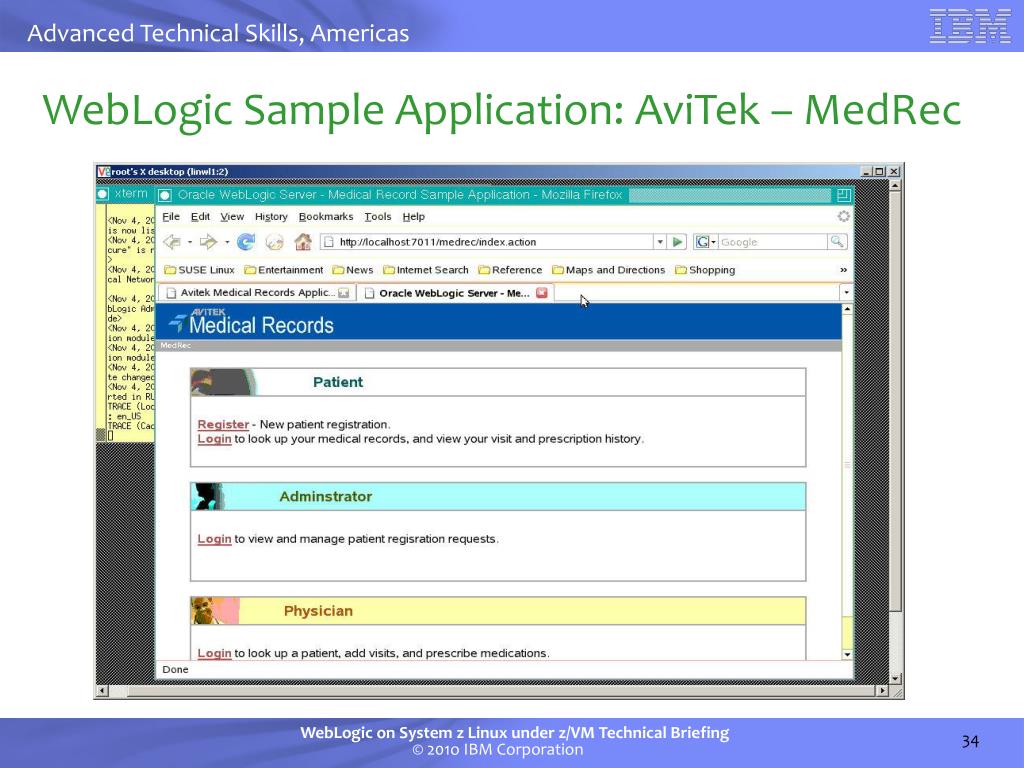

  34. WebLogic Sample Application: AviTek – MedRec

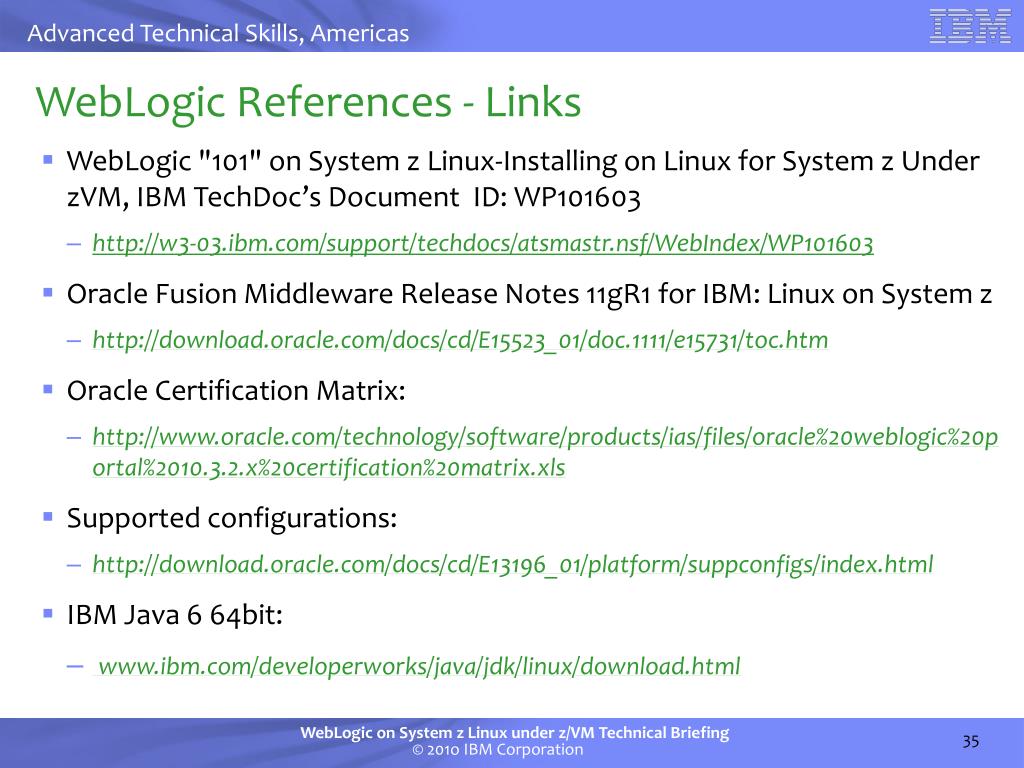

  35. WebLogic References - Links • WebLogic "101" on System z Linux-Installing on Linux for System z Under zVM, IBM TechDoc’s Document ID: WP101603 • http://w3-03.ibm.com/support/techdocs/atsmastr.nsf/WebIndex/WP101603 • Oracle Fusion Middleware Release Notes 11gR1 for IBM: Linux on System z • http://download.oracle.com/docs/cd/E15523_01/doc.1111/e15731/toc.htm • Oracle Certification Matrix: • http://www.oracle.com/technology/software/products/ias/files/oracle%20weblogic%20portal%2010.3.2.x%20certification%20matrix.xls • Supported configurations: • http://download.oracle.com/docs/cd/E13196_01/platform/suppconfigs/index.html • IBM Java 6 64bit: • www.ibm.com/developerworks/java/jdk/linux/download.html

  36. IBM Advanced Technical Skills (ATS)Contacts • Tim Thompson, Manager - timt@us.ibm.com • Sam Amsavelu - samvelu@us.ibm.com • David Simpson - simpson.david@us.ibm.com • Beth Somers – esomers@us.ibm.com • Spencer Krueger - skrueger@us.ibm.com

  37. Oracle WebLogic on IBM System z Linux Under z/VM Thank You… Installation Quick Start z10

  38. Optional Slides • Installing Novell SLES10 SP2 • Preparation: Installing Linux on System z - Step 1 • Installing Linux on System z – Step 2

  39. Installing Linux on System z – Step 1.1 • Source Medium: Network (2) • Network Protocal: FTP (1) • Network Device: OSA-2 (1) • Main Menu: Start the Installation or Update (4) • Start the Installation or Update: Start the Installation or Update (1) More…Press the “CLEAR” key to move to the next screen.

  40. Installing Linux on System z – Step 1.2 • Enable OSI Level 2 Support?: No (2) • Selecting NO, will use OSI Layer 3 • Bus Interface: QDIO (1) • Portname usually blank, so as to not interfere with other systems in other LPARs that may use this card • Physical Medium: Ethernet (1) More…Press the “CLEAR” key to move to the next screen.

  41. Installing Linux on System z – Step 1.3 • Anonymous FTP? Yes (1) • ID/Name to access FTP server: _______ • Password to access FTP server: ______ • Auto DHCP?: Yes (1) • Enter Your IP Address: nnn.nnn.nnn.nnn • Enter Network Mask: 255.255.255.0

  42. Installing Linux on System z – Step 1.4 • A series of messages will be display, indicating VNC Server started and Starting YaST2… • Use a HTTP proxy?: No (2) • Display Type: VNC (2) • VNC Password: ________

  43. Installing Novell SLES10 SP2 – Step 2 • Installation Prompts: • Accept License • Configure Disk: Use EKCD disk for Linux • Select New Installation: • Set/Select Region and Time Zone • Summary list of the installation items is displayed • Confirm license agreement “I Agree” • Install Begins: • Creating mount point for /etc/fstab • …several panel messages will appear… • Confirm hardware Network cards • Installation Complete message/panel
