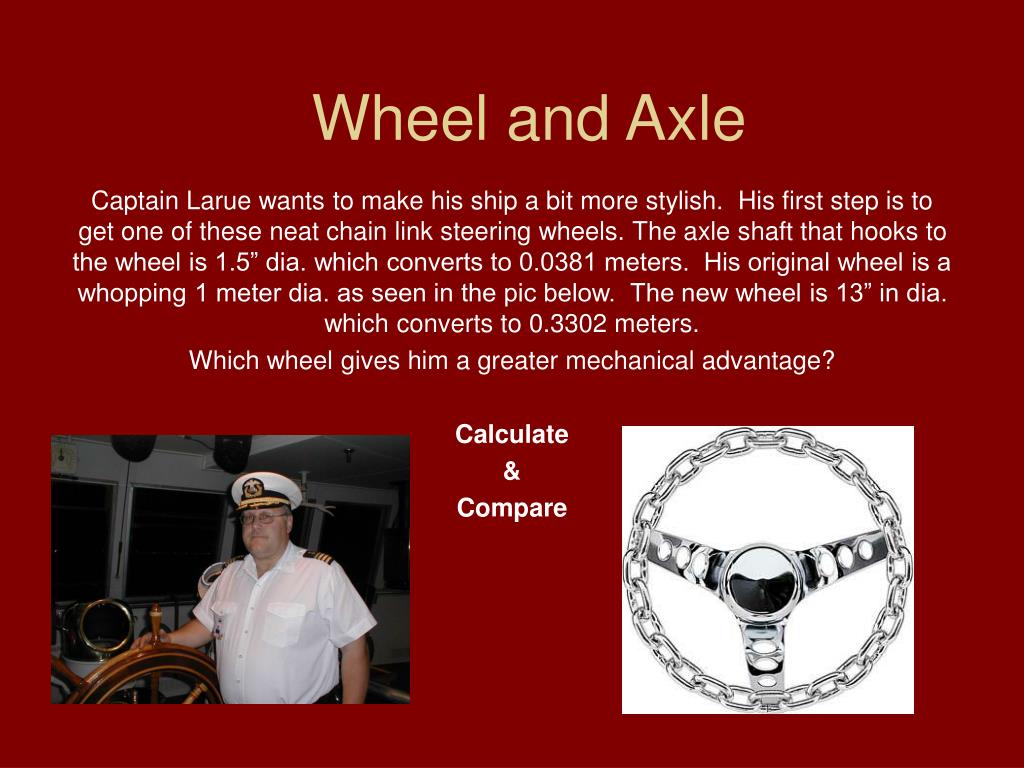

  1. Wheel and Axle Captain Larue wants to make his ship a bit more stylish. His first step is to get one of these neat chain link steering wheels. The axle shaft that hooks to the wheel is 1.5” dia. which converts to 0.0381 meters. His original wheel is a whopping 1 meter dia. as seen in the pic below. The new wheel is 13” in dia. which converts to 0.3302 meters. Which wheel gives him a greater mechanical advantage? Calculate & Compare

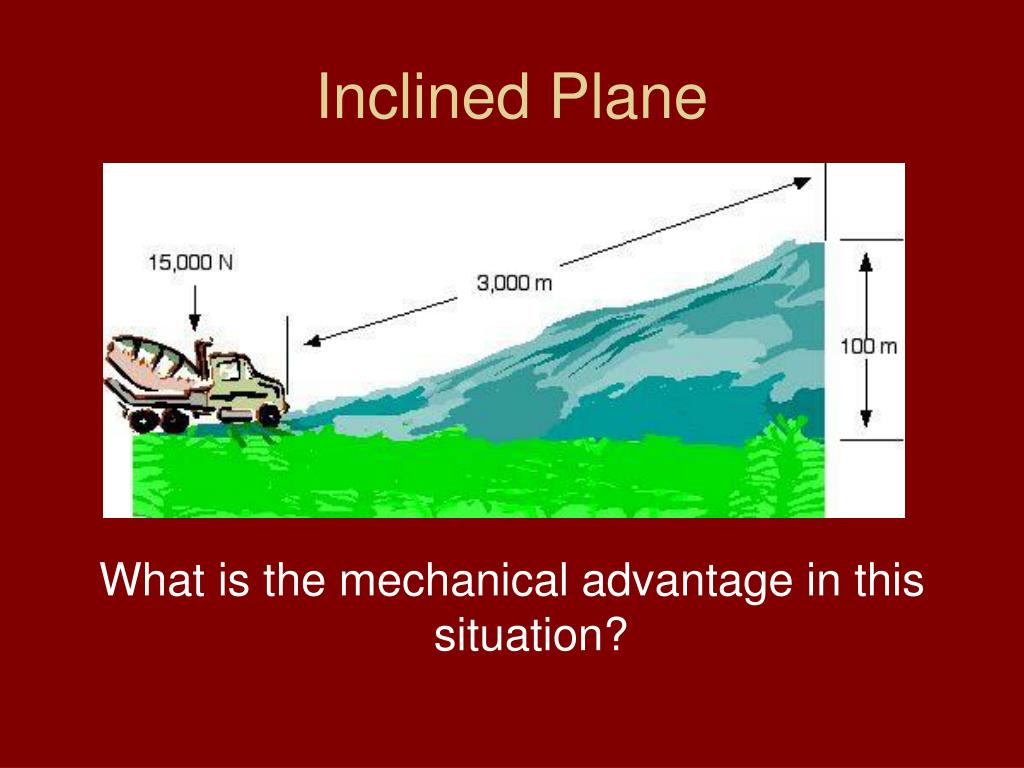

  2. Inclined Plane What is the mechanical advantage in this situation?
