Understanding Binary Addition and Overflow Errors in 4- and 8-Bit Numbers

In this lesson, students will learn how to add 4-bit and 8-bit binary numbers and understand the concept of overflow errors. The objectives include mastering binary addition, successful addition of both 4-bit and 8-bit numbers, and discussing why overflow occurs. Through examples demonstrating carryover in binary addition, students will recognize the limits of binary representation and how overflow errors can lead to incorrect results. The session culminates with practical exercises and peer testing to reinforce learning.

devlin
Télécharger la présentation

Understanding Binary Addition and Overflow Errors in 4- and 8-Bit Numbers

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Lesson Objectives • To understand how to add 4 and 8 bit binary numbers together • To understand what is meant by the term “Overflow” • ALL students will add 4 bit binary numbers successfully • MOST students will add 8 bit binary numbers successfully • SOME students will be able to discuss why overflow errors occur

  2. Adding Denary Numbers + 2 8 1 7 1 Carryover What are the steps that we do to add 2 denary numbers together?

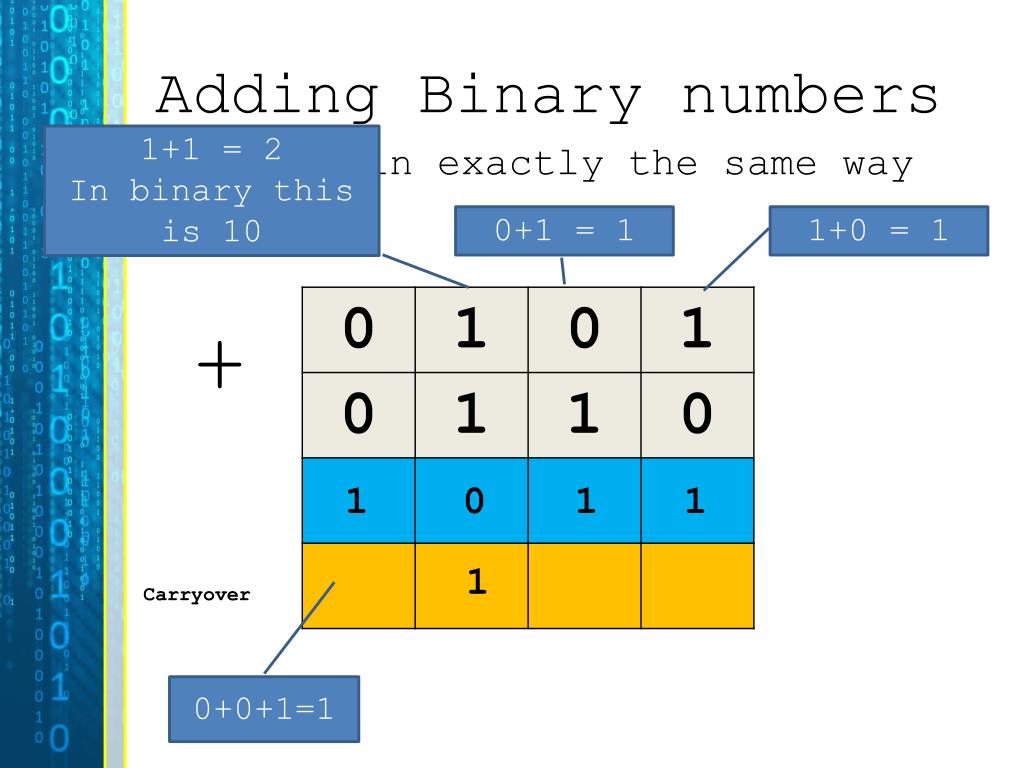

  3. Adding Binary numbers 1+1 = 2 In binary this is 10 0+1 = 1 1+0 = 1 + 1 0 1 1 1 Carryover 0+0+1=1 We do it in exactly the same way

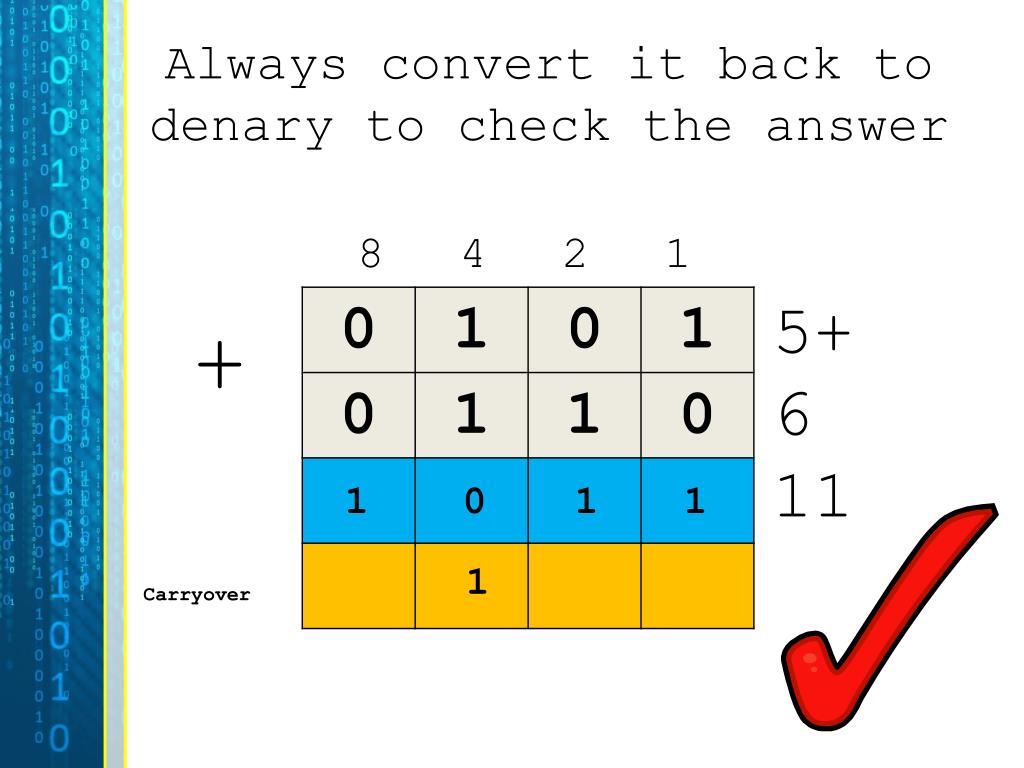

  4. Always convert it back to denary to check the answer 8 4 2 1 5+ 6 11 + 1 0 1 1 1 Carryover

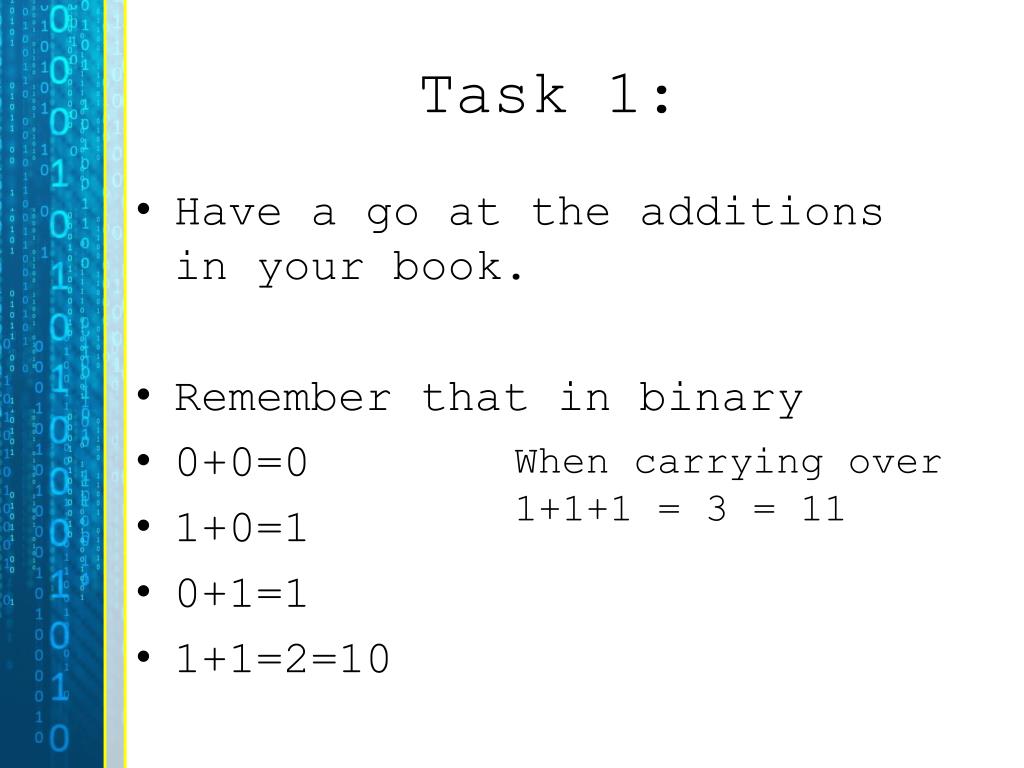

  5. Task 1: When carrying over 1+1+1 = 3 = 11 Have a go at the additions in your book. Remember that in binary 0+0=0 1+0=1 0+1=1 1+1=2=10

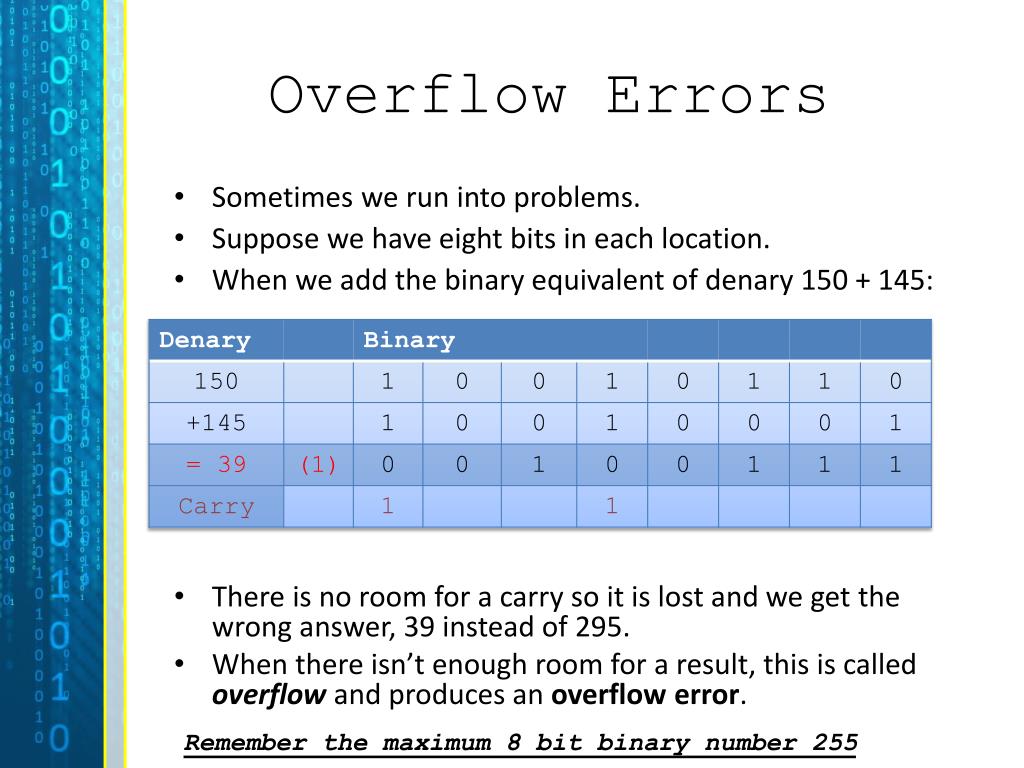

  6. Overflow Errors • Sometimes we run into problems. • Suppose we have eight bits in each location. • When we add the binary equivalent of denary 150 + 145: • There is no room for a carry so it is lost and we get the wrong answer, 39 instead of 295. • When there isn’t enough room for a result, this is called overflow and produces an overflow error. Remember the maximum 8 bit binary number 255

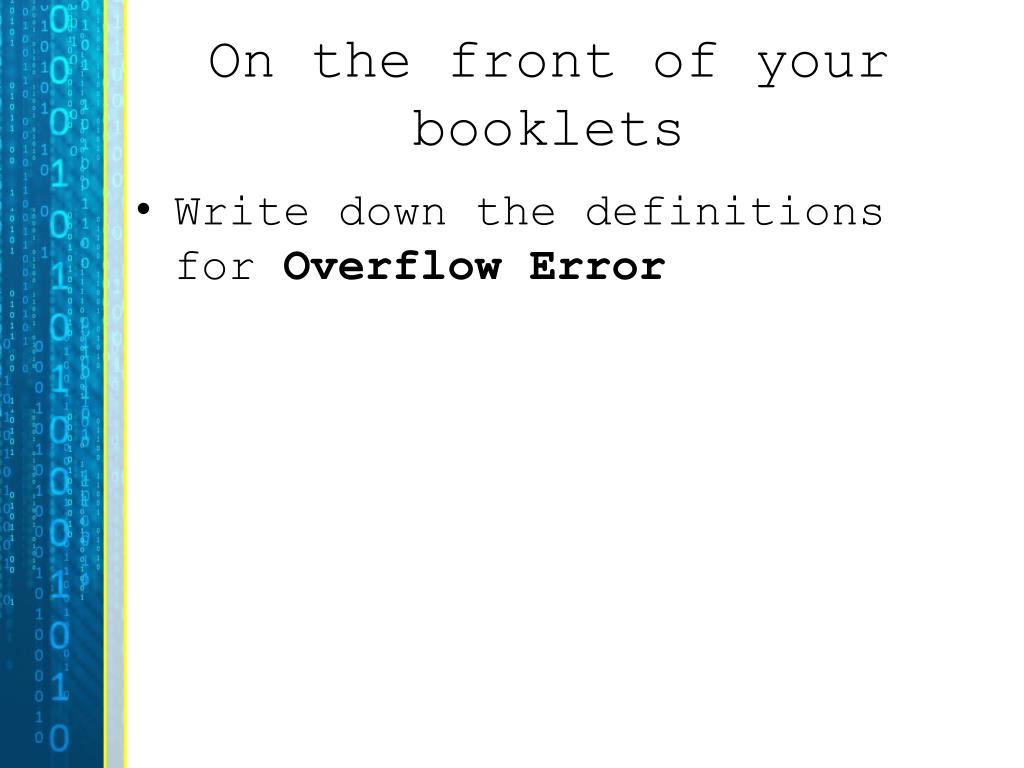

  7. On the front of your booklets Write down the definitions for Overflow Error

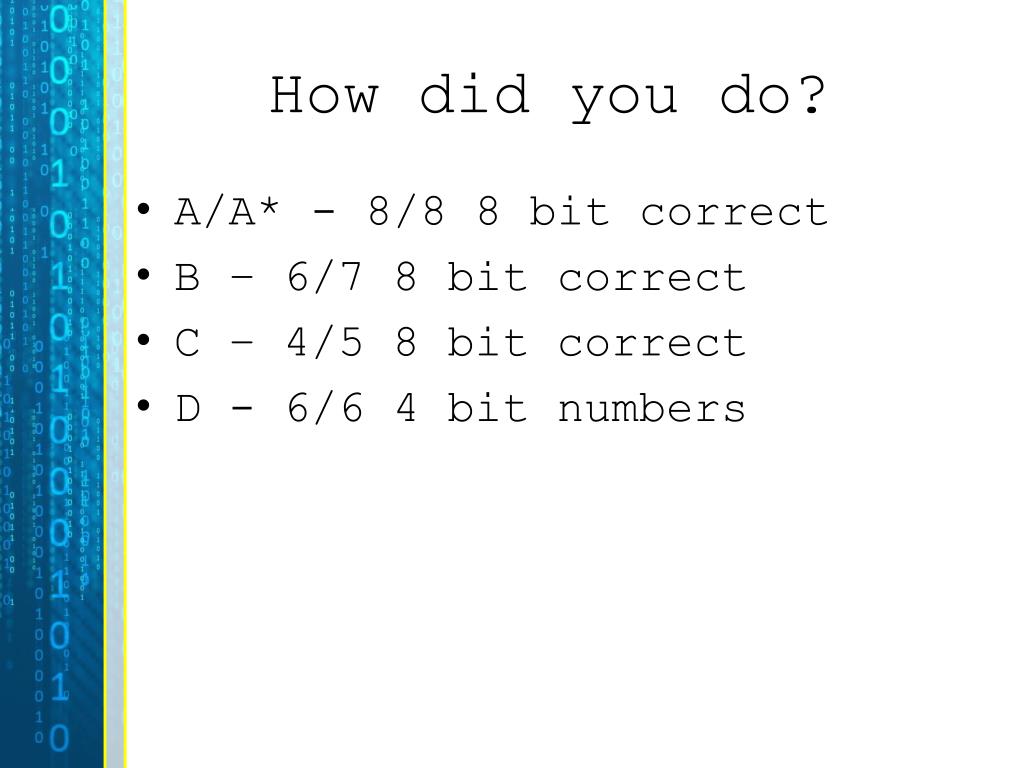

  8. How did you do? A/A* - 8/8 8 bit correct B – 6/7 8 bit correct C – 4/5 8 bit correct D - 6/6 4 bit numbers

  9. Plenary https://www.youtube.com/watch?v=OCYZTg3jahU

  10. In pairs Count up the binary numbers using your fingers to represent the digits. Test each other –
