Left clavicle, superior view

1. 2. acromial end s ternal end. Left clavicle, superior view. 4. 3. subscapular fossa 4. coracoid process 5. acromial process 6. glenoid cavity 7. medial border 8. l ateral border. 5. 6. 3. 7. 8. Left scapula, anterior view. 4. coracoid process 5. acromial process

dfuentes
Télécharger la présentation

Left clavicle, superior view

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

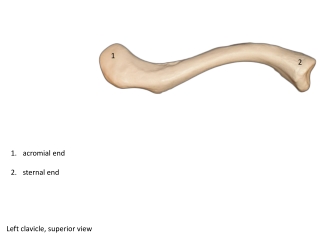

  1. 1 2 acromial end sternal end Left clavicle, superior view

  2. 4 3. subscapular fossa 4. coracoid process 5. acromial process 6. glenoid cavity 7. medial border 8. lateral border 5 6 3 7 8 Left scapula, anterior view

  3. 4. coracoid process 5. acromial process 6. glenoid cavity 7. medial border 8. lateral border 5 4 6 8 Left scapula, posterolateral view

  4. 4. coracoid process 5. acromial process 6. glenoid cavity 7. medial border 8. lateral border 9. spine 10. supraspinous fossa 11. infraspinous fossa 10 5 9 4 7 6 11 8

  5. 1 2 lesser tubercle greater tubercle deltoid tuberosity medial epicondyle lateral epicondyle trochlea capitulum coronoid fossa 3 8 5 4 7 6 left humerus, anterior view

  6. head lesser tubercle greater tubercle intertubercular groove 1 3 2 4 proximal end of left humerus anterior view

  7. coronoid fossa medial epicondyle lateral epicondyle trochlea capitulum 2 1 3 4 5 distal end of left humerus, anterior view

  8. 2 greater tubercle head deltoid tuberosity olecranon fossa medial epicondyle lateralepicondyle trochlea 1 3 4 5 6 left humerus, posterior view 7

  9. olecranon fossa lateral epicondyle medial epicondyle trochlea 1 3 4 2 distal end of left humerus, posterior view

  10. 2 radial tuberosity head of radius 1 radius

  11. 2 3 4 1 styloid process coronoid process olecranon process trochlear notch ulna

  12. 1-8 = carpals Scaphoid Lunate Triquetrum Pisiform Hamate Capitate Trapezoid trapezium 10 10 10 9 = metacarpals 9 9 9 9 10 = phalanges 9 6 5 7 4 8 3 2 1

  13. 1-8 = carpals 10 10 10 scaphoid lunate triquetrum 5. hamate capitate trapezoid trapezium 10 10 10 10 10 10 10 10 10 10 9 = metacarpals 10 9 9 10 = phalanges 9 9 9 6 5 3 7 8 2 1

  14. 1 2 3 6 4 5 Iliac crest Iliac fossa Sacroiliac joint Acetabulum Obturator foramen Pubic symphysis Pubic arch 7

  15. Iliac crest Posterior superior iliac spine Posterior inferior iliac spine Anterior superior iliac spine Anterior inferior iliac spine Iliac tuberosity for sacroiliac joint Greater sciatic notch Lesser sciatic notch Ischial spine Obturator foramen Ischium Pubic symphysis 1 6 4 2 5 3 7 9 8 10 12 11 Left hip bone, medial view

  16. Iliac crest Posterior superior iliac spine Posterior inferior iliac spine Anterior superior iliac spine Anterior inferior iliac spine 10. Obturator foramen 12. Ischial tuberosity 13. acetabulum 14. Pubic bone 1 4 2 5 3 13 14 10 12 Left hip bone, lateral view

  17. 2 1 3 Head of femur Neck Greater trochanter Lesser trochanter Patellar surface Lateral epicondyle Medial epicondyle Lateral condyle Medial condyle 4 6 7 5 Right femur, anterior view 8 9

  18. 1 2 Fovea capitis Greater trochanter Lesser trochanter Linea aspera Medial epicondyle Medial condyle Lateral condyle 3 4 7 5 Right femur, posterior view 6

  19. Fovea capitis Head of femur Neck Greater trochanter Lesser trochanter 2 1 4 3 5 Proximal end of right femur, posterior view

  20. 2 1 3 Medial condyle Lateral condyle Tibial tuberosity Anterior crest Medial malleolus 4 Left tibia, anterior view 5

  21. 3 Medial condyle Lateral condyle Intercondylar eminence Tibialtuberosisty 1 2 4 Proximal end of tibia

  22. 2 1 Head Lateral malleolus fibula

  23. 6 2 7 5 8 9 8 4 9 8 9 3 9 9 1 9 8 9 9 9 9 9 8 9 9 1 – 7 = tarsals 8 = metatarsals 9 = phalanges Calcaneus Talus Cuboid Lateral cuneiform Intermediate cuneiform Medial cuneiform navicular Right foot, lateral view

  24. 9 9 1 – 7 = tarsals 9 9 9 Calcaneus Talus Cuboid Lateral cuneiform Intermediate cuneiform Medial cuneiform navicular 9 9 9 9 9 9 9 9 9 8 8 8 8 8 8 = metatarsals 4 5 6 7 9 = phalanges 3 1 2 Left foot, superior view
