  1. …the Self-Service Revolution

  2. Star Micronics now has World’s Largest Range of product for Kiosk Printing solutions

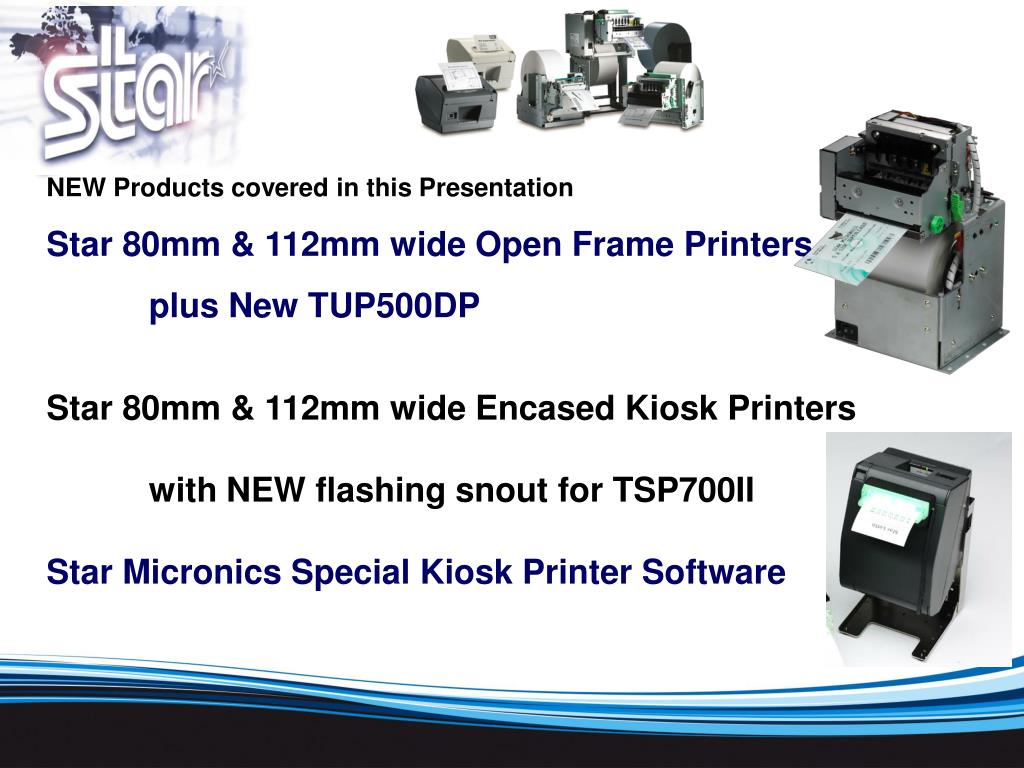

  3. NEW Products covered in this Presentation Star 80mm & 112mm wide Open Frame Printers plus plus New TUP500DP Star 80mm & 112mm wide Encased Kiosk Printers with NEW flashing snout for TSP700II Star Micronics Special Kiosk Printer Software

  4. Star Micronics “Open-Frame” Mechanisms

  5. Star Micronics EMEA is responsible for the largest European kiosk printer roll-out ever 8,400 x TUP992 in 2 months

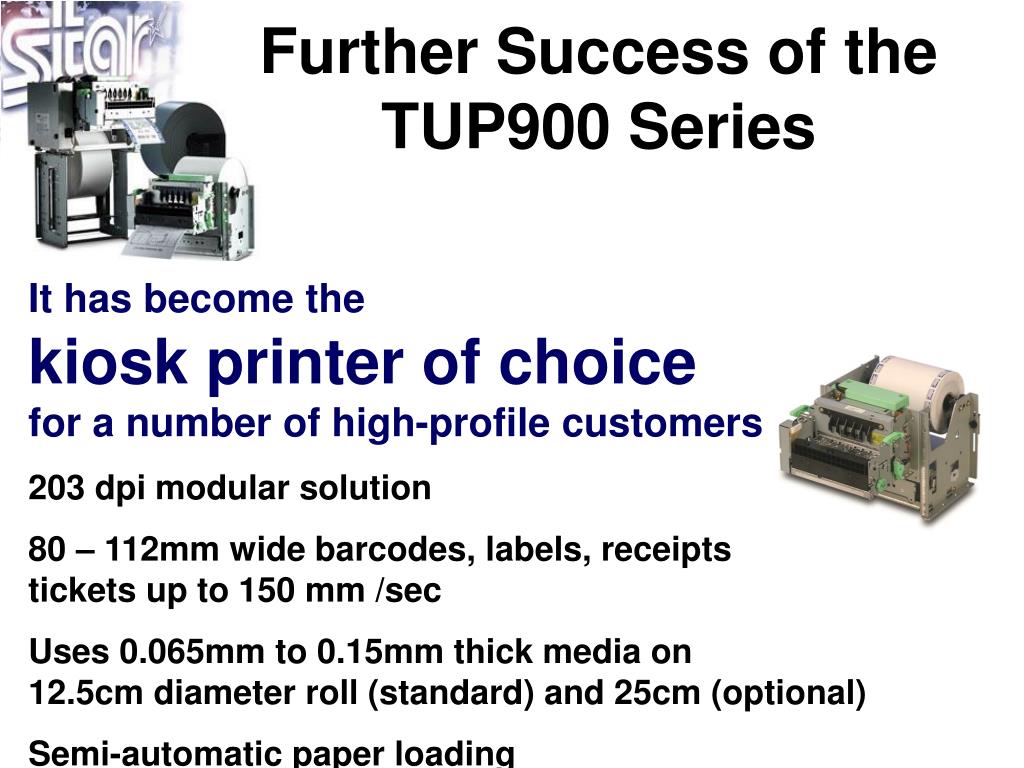

  6. Further Success of the TUP900 Series It has become the kiosk printer of choice for a number of high-profile customers 203 dpi modular solution 80 – 112mm wide barcodes, labels, receipts tickets up to 150 mm /sec Uses 0.065mm to 0.15mm thick media on 12.5cm diameter roll (standard) and 25cm (optional) Semi-automatic paper loading

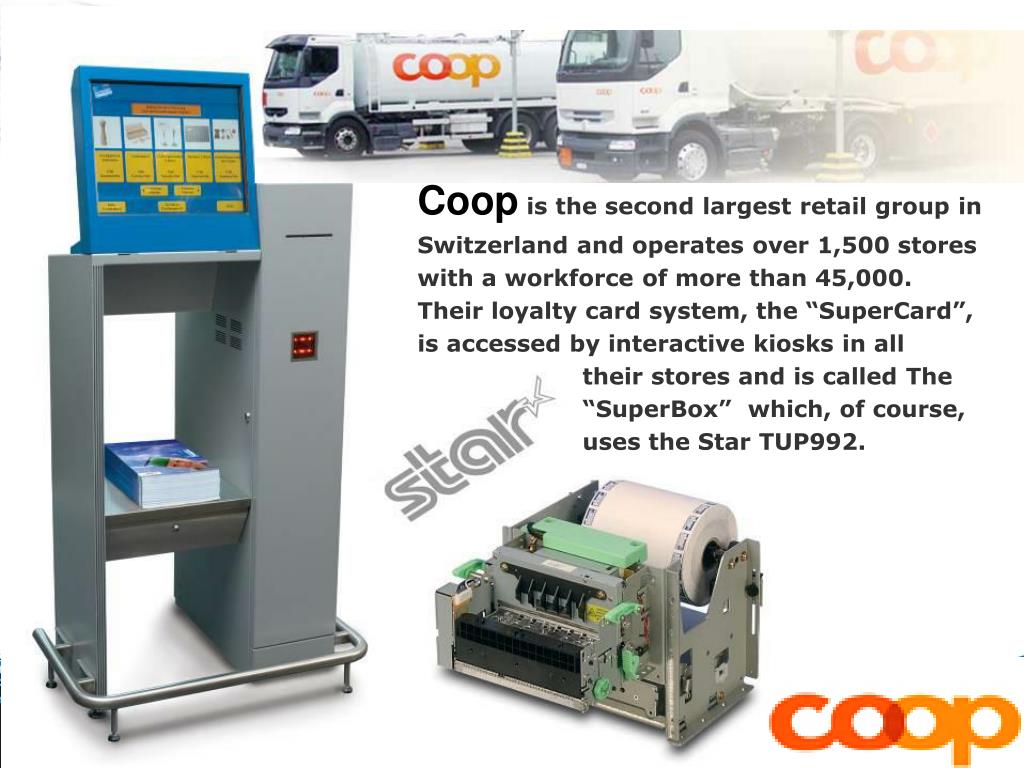

  7. Coopis the second largest retail group in Switzerland and operates over 1,500 stores with a workforce of more than 45,000. Their loyalty card system, the “SuperCard”, is accessed by interactive kiosks in all their stores and is called The “SuperBox” which, of course, uses the Star TUP992.

  8. Star TUP900 Open Frame Series

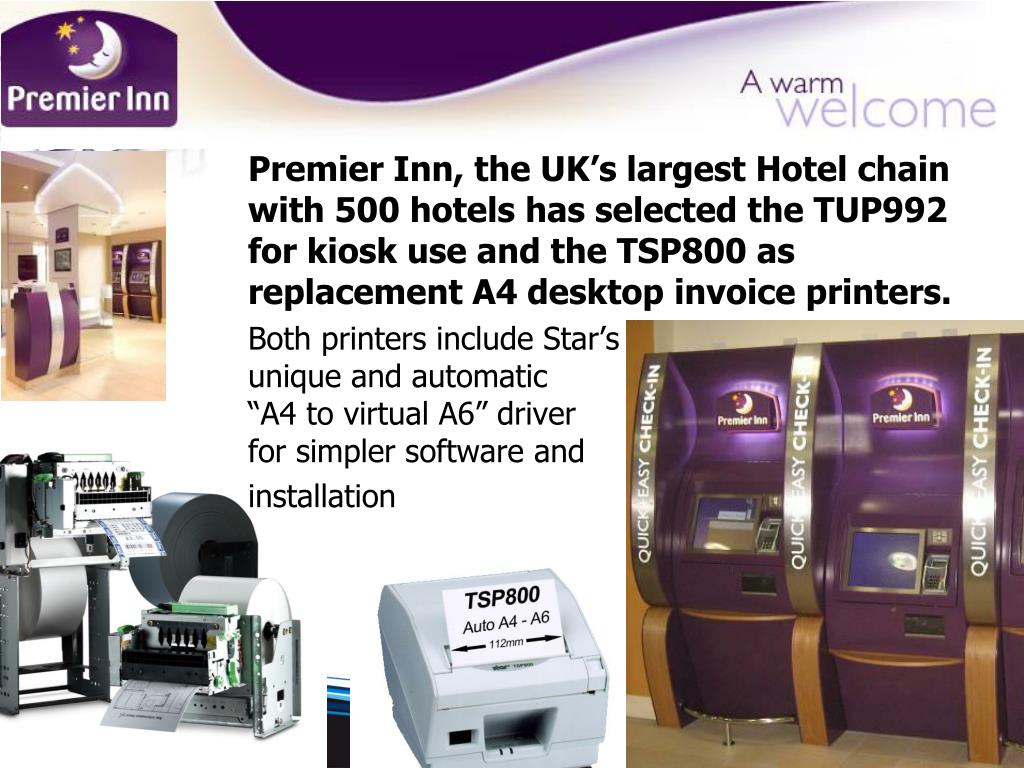

  9. Premier Inn, the UK’s largest Hotel chain with 500 hotels has selected the TUP992 for kiosk use and the TSP800 as replacement A4 desktop invoice printers. Both printers include Star’sunique and automatic “A4 to virtual A6” driver for simpler software and installation

  10. The TUP500 Series

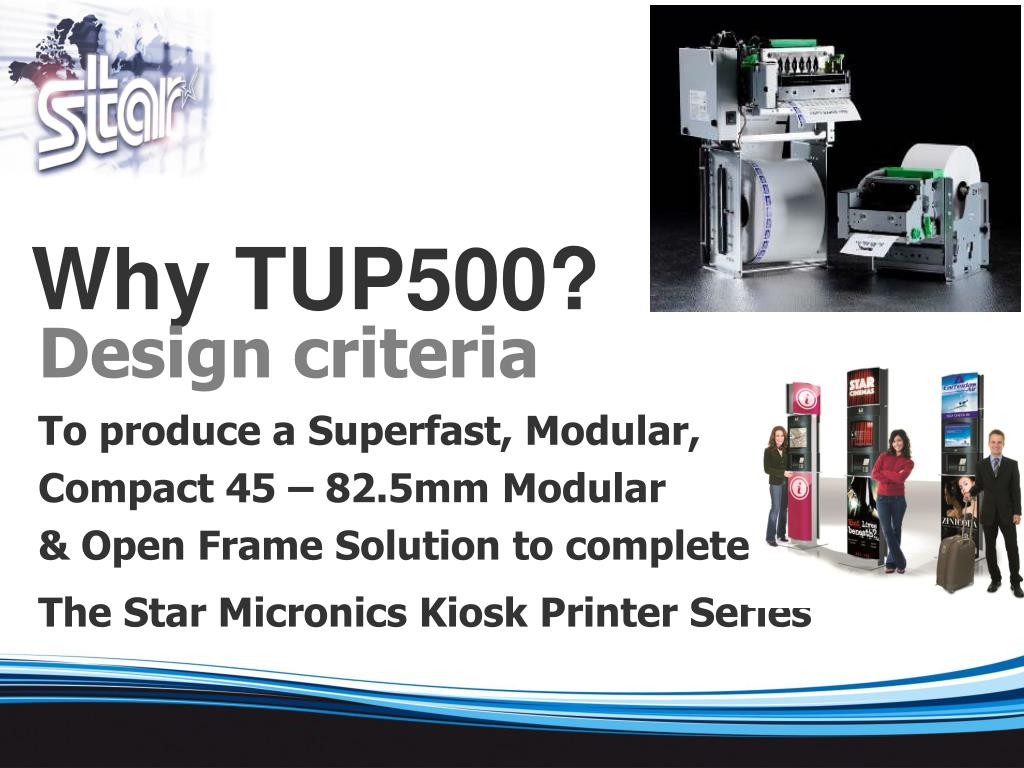

  11. Why TUP500? Design criteriaTo produce a Superfast, Modular, Compact 45 – 82.5mm Modular & Open Frame Solution to complete The Star Micronics Kiosk Printer Series

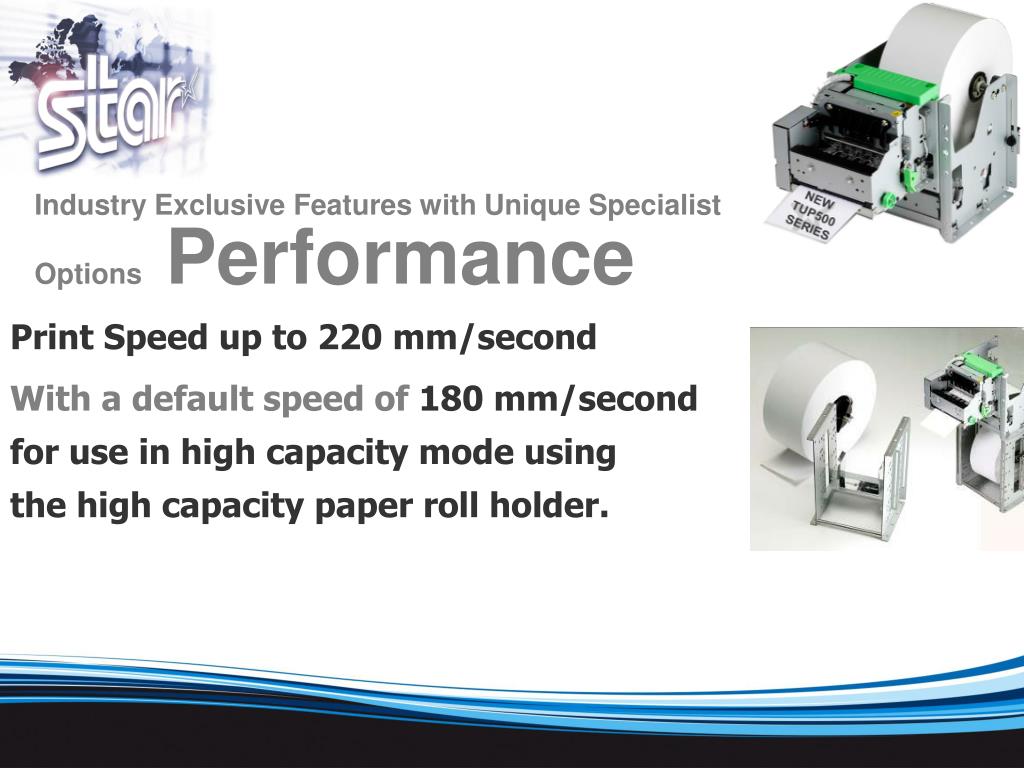

  12. Industry Exclusive Features with Unique Specialist OptionsPerformance Print Speed up to 220 mm/second With a default speed of 180 mm/second for use in high capacity mode using the high capacity paper roll holder.

  13. Industry Exclusive Features with Unique Specialist OptionsOpen Frame & Modular Format For complete versatility PRINTER UNITS MODULAR COMPONENTSTUP592 Open Frame Printer TMP542 Mechanism with Cutter TUP542 Open Frame without Presenter TBD500 Control Board Printer supplied without Interface PR500 PresenterIFBD- Interface Options Snout T500 Flashing Paper Exit guide HE05 Ethernet PNE-500 Paper Near End Sensor HU05 USB DRU-T500 Damper Roll HD03 Serial HN03 9-pin Serial HC03 Parallel

  14. Industry Exclusive Features with Unique Specialist OptionsFlashing Snout/Paper Exit Guide Option The new programmable paper exit guide features two colour flashing LEDS (green to highlight emerging printed document & red to indicate paper out) and can be attached simply to the presenter unit and easily connected to the control board.

  15. Simple & So Effective Paper Management Easy Paper Loadingfor media up to 0.15mm thick “Lift and Tilt” Mechanism allows for easy semi-automatic paper insertion while decreasing kiosk design cost by eliminating the requirement for rails when mounting the printer. 15cm Standard paper Roll size 25cm Maximum Paper Roll size using optional high capacityroll holder(Max 18cm rolls for Vertical use) C

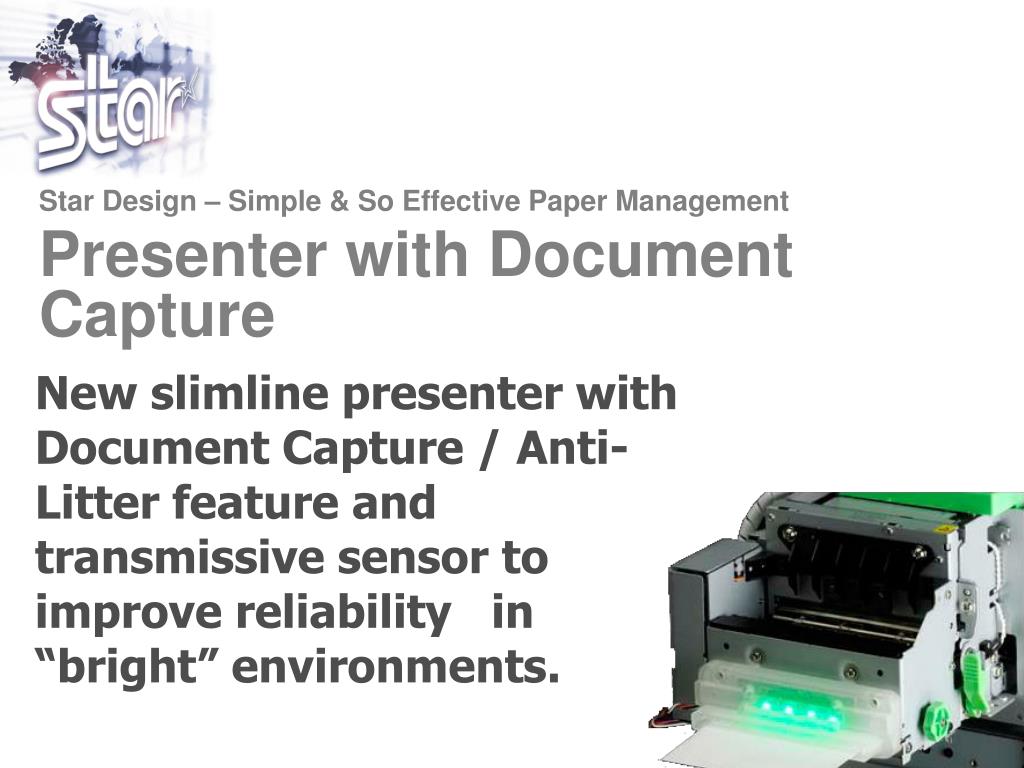

  16. Star Design – Simple & So Effective Paper Management Presenter with DocumentCapture New slimline presenter with Document Capture / Anti-Litter feature and transmissive sensor to improve reliability in “bright” environments.

  17. Star Design – Simple & So Effective Reliable Paper Management The TUP500 Series features a unique new spindle design with new “lock-in-place” mechanism making it even easier to securely fix and centre the paper core holders to the exact width of the stock. Graduations make it easy to place each core holder equidistant from the end of the spindle. Core sizes of 1” , 2” and 3” are supported out of the box Presenter Weight Bar supplied for 0.15mm paper weight use

  18. Star Design – Simple & So Effective Reliable Paper Management High quality tension bar to maintain paper tension and decrease paper roll acceleration while the Damper Roller option will reduce inertia and improve reliability with high capacity paper roll usage. Easily adjustable, 45 – 82.5mm self centring manual guides which can be “locked” in place for variable paper widths (TUP900 - 80 / 102mm only) High Quality Tension Bar Damper Roller option for high capacity 25cm paper roll use b

  19. Star Design – Simple & So Effective High Quality Output 203 dpi head with Double Density Mode at 406 x 203 dpi for high quality text and graphicsHigh quality barcode output including 2D – PDF417 & QR Labels can be printed using the TUP542 supplied without presenter Two colour output capable using special paper

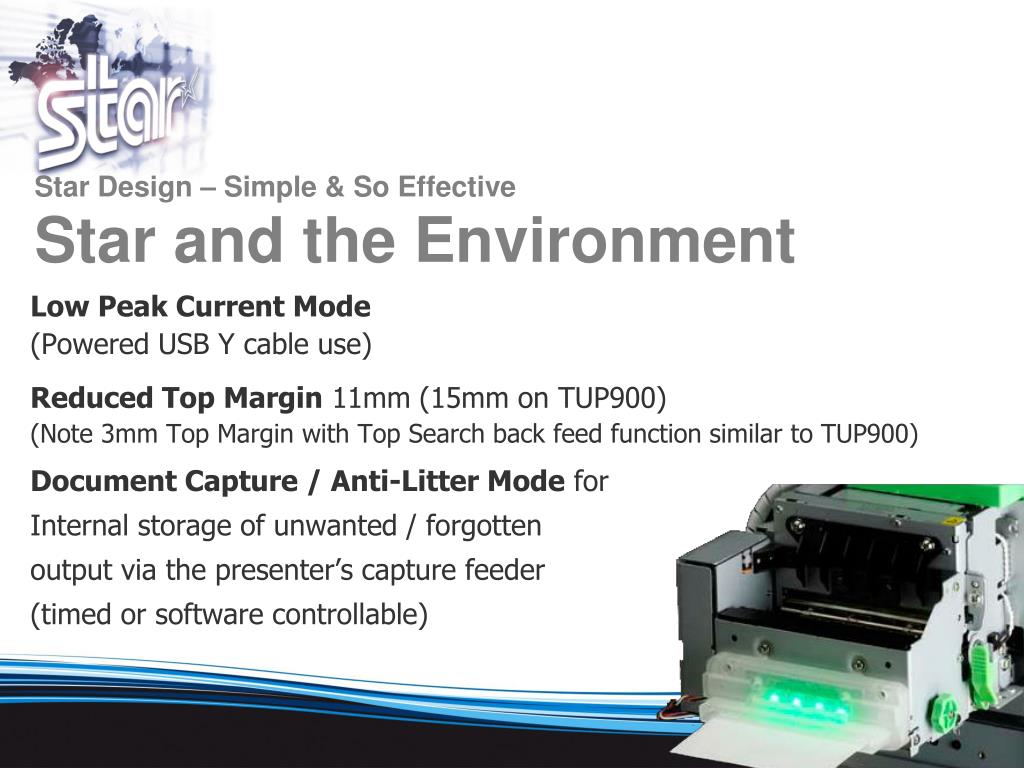

  20. Star Design – Simple & So Effective Star and the Environment Low Peak Current Mode (Powered USB Y cable use) Reduced Top Margin 11mm (15mm on TUP900) (Note 3mm Top Margin with Top Search back feed function similar to TUP900) Document Capture / Anti-Litter Mode for Internal storage of unwanted / forgotten output via the presenter’s capture feeder (timed or software controllable)

  21. Star Design – Simple & So Effective Easy Installation / Configuration Flexible location for control panel Back view with Interface module space z

  22. TUP500DP Chassis Option Design Brief To produce a kiosk printer with all the same features of the TUP500 but with a smaller footprint Star re-designed & re-built the TUP500 with a new chassis

  23. TUP500DP Chassis Option Design Brief • All the speed & reliability of the TUP500 but with the footprint of the TSP700 in vertical mode (150mm deep)

  24. TUP500DP Chassis Option • Available for you now with or without presenter • The “DP” chassis is available to purchase separately • Takes 25% less space than the TUP500 Series & still with a 10cm paper roll

  25. Kiosk Printer Software Tools • Remote Firmware Update Capability - all the latest thermal printers can be sent remote upgrades • Auto Recovery after Power Loss - ensuring printer resumes operation regardless of at what point the power was lost

  26. Kiosk Printer Software Tools • Actual Print Verification / Status - accurate status reports verify when & whether a ticket has been printed • Star Operating Platform Support - close relationship with industry giants including Microsoft, Apple & the UPOS committee - source code available for direct communication

  27. Industry Research Nextgen states “the world-wide installed kiosk base will more than double in 2014 to over 2.5 million” With the Star Printer Range you can be part of this

  28. .. Star Micronics “Setting standards in Kiosk Printing”
