  1. Using Source Code Control Effectively Gang Cheng gacheng@syr.edu

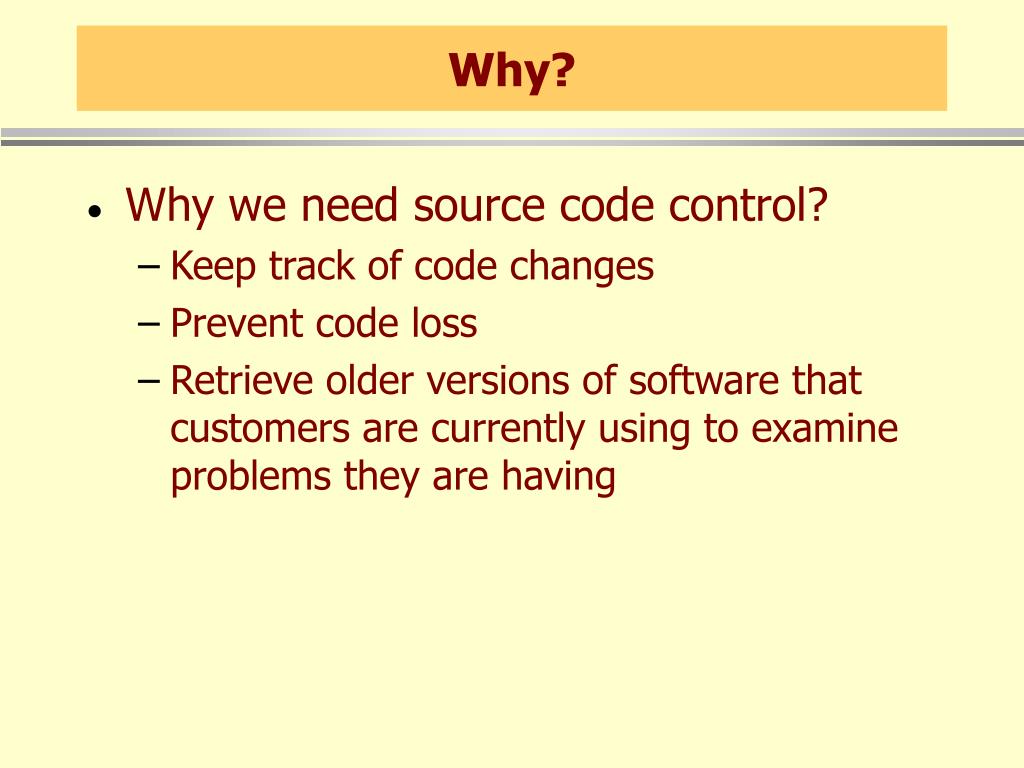

  2. Why? • Why we need source code control? • Keep track of code changes • Prevent code loss • Retrieve older versions of software that customers are currently using to examine problems they are having

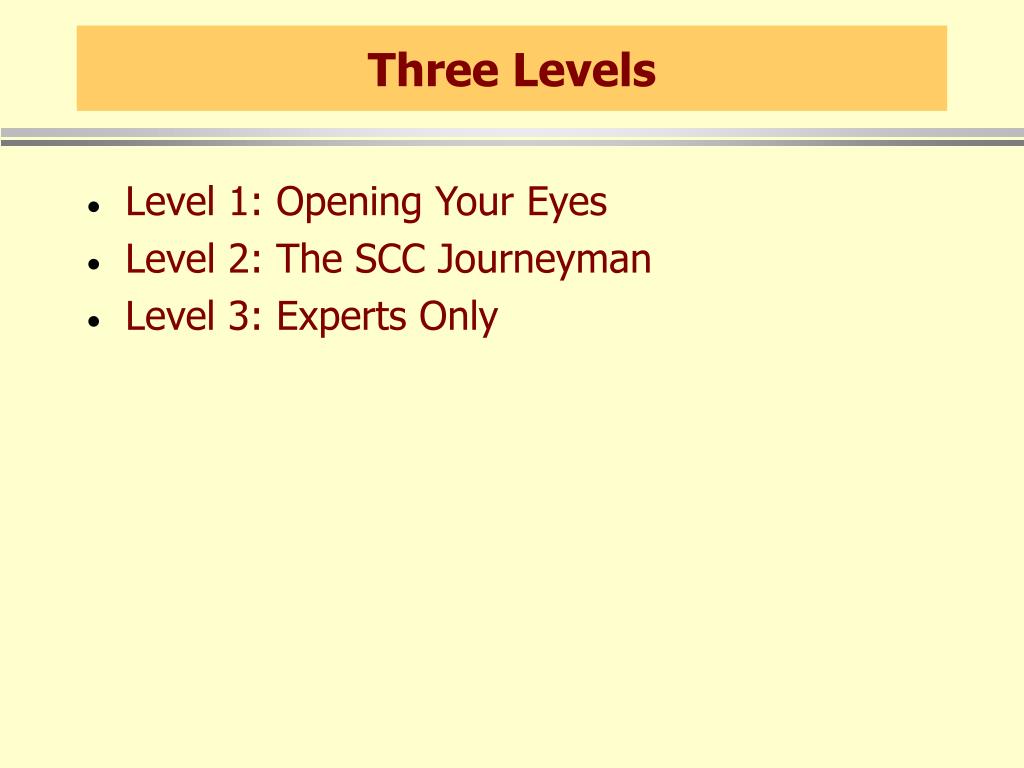

  3. Three Levels • Level 1: Opening Your Eyes • Level 2: The SCC Journeyman • Level 3: Experts Only

  4. Level 1 • Opening Your Eyes • Create: creates a new area in the repository • Add: adds a file to the repository • Get: gets the current version of a file from the repository • Checkout: works on a particular file actively • Undo Checkout: throws away any changes and unlocks the file • Checkin: puts the current version of the file back to the repository

  5. Level 2 • The SCC Journeyman • Label: assigns a name to a specific version of a file • Share: allows a file to appear in more than one project • Branch: lets development diverge • Merge: takes changes from one branch and applies them to another branch

  6. Level 3 • Experts Only • Cloak: hides a project in the repository • Delete: removes a file from the repository • Move: relocates a file or subproject to a new parent project • Pin: freezes a shared file at a particular version • Rename: rename a file or project • Rollback: reverts a file to an earlier version

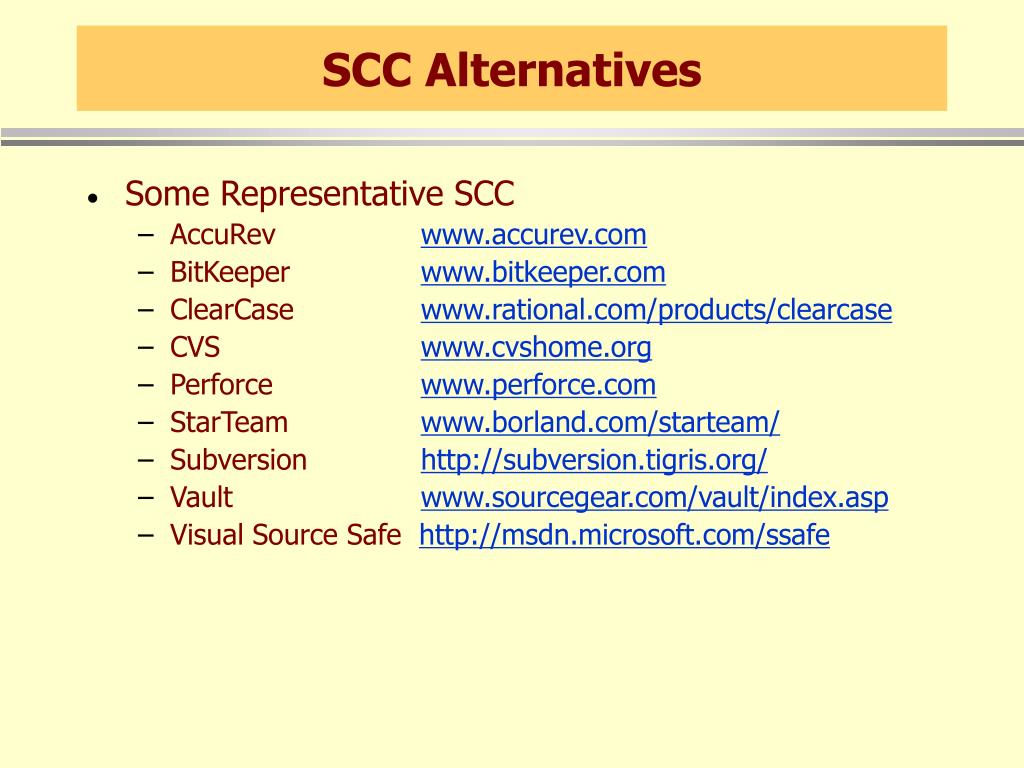

  7. SCC Alternatives • Some Representative SCC • AccuRev www.accurev.com • BitKeeper www.bitkeeper.com • ClearCase www.rational.com/products/clearcase • CVS www.cvshome.org • Perforce www.perforce.com • StarTeam www.borland.com/starteam/ • Subversion http://subversion.tigris.org/ • Vault www.sourcegear.com/vault/index.asp • Visual Source Safe http://msdn.microsoft.com/ssafe

  8. Choose? • Price • Concurrent Development Style • Checkout/edit/checkin (VSS) • Edit/merge/commit (CVS) • The repository • Internet Friendliness • IDE Integration • Advanced Commands • Cross-Platform Support

  9. Discussion • SCC Etiquette • Work with as few files as possible at one time • Two styles compare • Proper use of Label (Tags) • Easy to remember and find • At significant points • Branching Discipline • When different developers in the same project follows different rules • Create only when needed • Handles branching by actually creating branches • Miscellaneous Rules • Use the integration • Chapter 9 “Tracking and Squashing Bugs”

  10. SCC Checklist • Use it • Use command efficiently • Choose your SCC • Place all dev. Artifacts to SCC • Checkout only when you need it • Comment changes when checkin • Label at significant points • Create a branch whenever the rules change • Use SCC with bug tracking

  11. CVS • General • CVS Homepage https://www.cvshome.org/ • Introducton ppt http://www.geocities.com/durairaj_77/wincvs.ppt • CVS Book http://cvsbook.red-bean.com/cvsbook.html • CVS Commmand http://www.cvsnt.org/wiki/CvsCommand • CVSNT (CVS Window Server) • CVSNT Homepage http://www.cvsnt.org • Installation Guide http://w1.862.telia.com/~u86216121/InstallCVSNT.html • WinCVS (CVS Window Client) • WinCVS Homepage http://www.wincvs.org/index.html • Installation & Config Guide http://www.cmcrossroads.com/ubbthreads/showflat.php?Cat=0&Number=31083&page=0&view=collapsed&sb=2&o=&fpart=1

  12. CVS • RCS (Revision Control System) • By Walter Tichy, Purdue University • software tool for UNIX systems which lets people work on system control • Reference http://www.csc.calpoly.edu/~dbutler/tutorials/winter96/rcs/ • SharpCVSLib (CVS Client Library) • A Client API for the CVS protocol, written in C# • SCVSLib Homepage http://sharpcvslib.sourceforge.net/

  13. CVS • CVSNT Running

  14. CVS • WinCVS Login

  15. CVS • WinCVS: User Gang Import module

  16. CVS • WinCVS: User Charlie checkout module

  17. CVS • WinCVS: User Charlie Edit a file

  18. CVS • WinCVS: User Charlie commits the file

  19. CVS • WinCVS: User Gang edits the same file, commits his version and causes a conflict

  20. CVS • WinCVS: User Gang checks version tree

  21. CVS • WinCVS: User Gang retrieves the old version

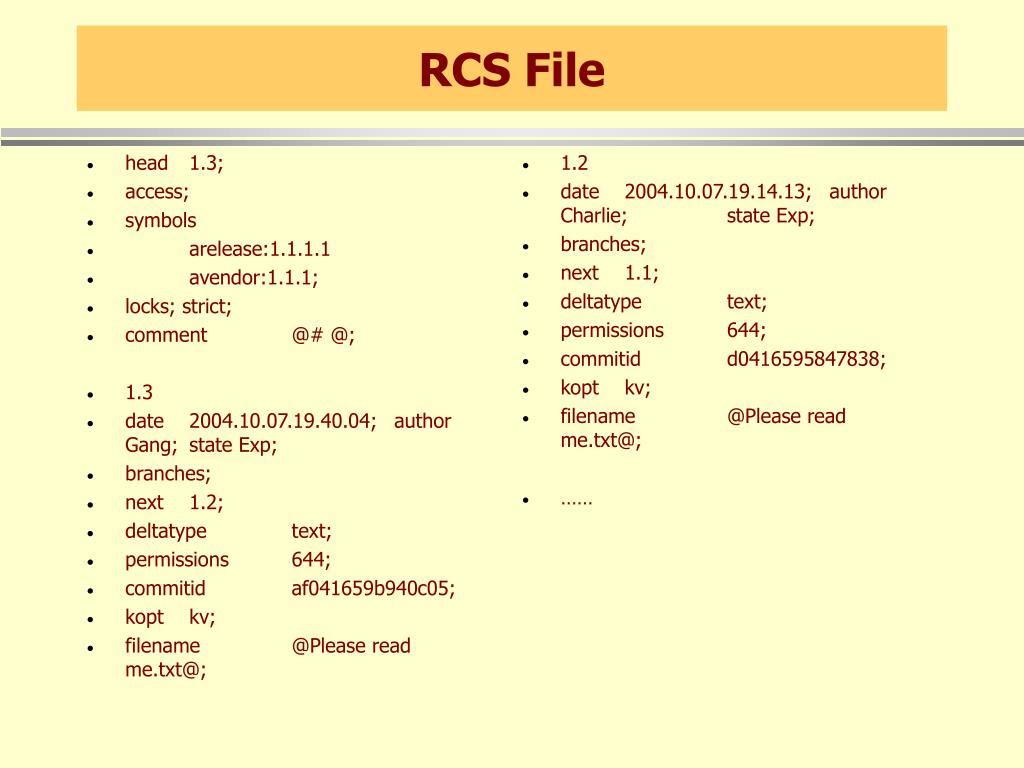

  22. head 1.3; access; symbols arelease:1.1.1.1 avendor:1.1.1; locks; strict; comment @# @; 1.3 date 2004.10.07.19.40.04; author Gang; state Exp; branches; next 1.2; deltatype text; permissions 644; commitid af041659b940c05; kopt kv; filename @Please read me.txt@; 1.2 date 2004.10.07.19.14.13; author Charlie; state Exp; branches; next 1.1; deltatype text; permissions 644; commitid d0416595847838; kopt kv; filename @Please read me.txt@; …… RCS File

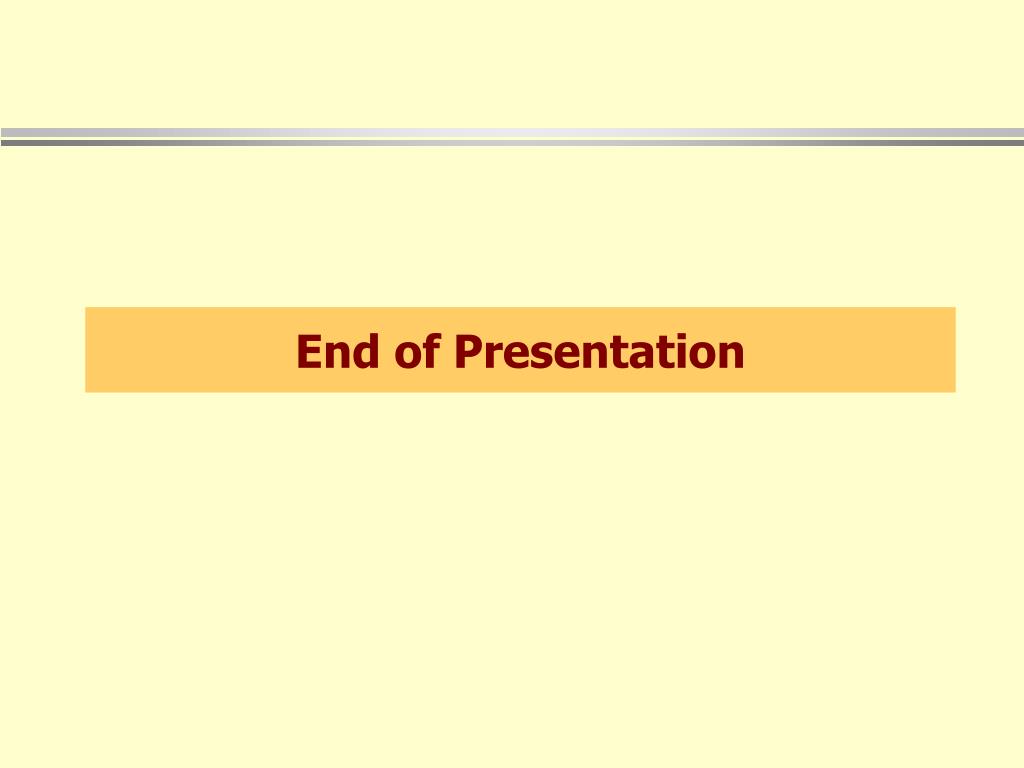

  23. End of Presentation
