Mechanical Vibrations Lecture 13

DESCRIPTION

Mechanical Vibrations Lecture 13. Multi-Degree of Freedom Force Vibration The Eigen -Value Problem Modal Analysis Solution. Mass Normalisation of Mode Shapes. Properties in Eigen Vector Matrices. Modal Analysis. Scale the mode shapes so that

1 / 8

Télécharger la présentation

Mechanical Vibrations Lecture 13

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

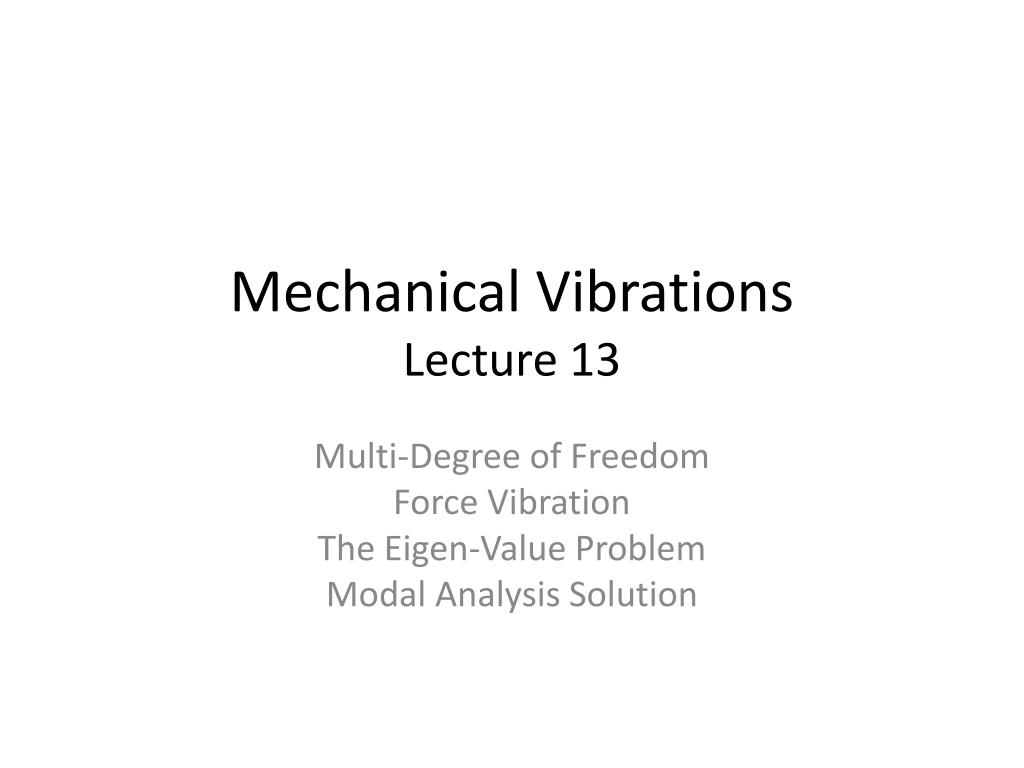

  1. Mechanical VibrationsLecture 13 Multi-Degree of Freedom Force Vibration The Eigen-Value Problem Modal Analysis Solution

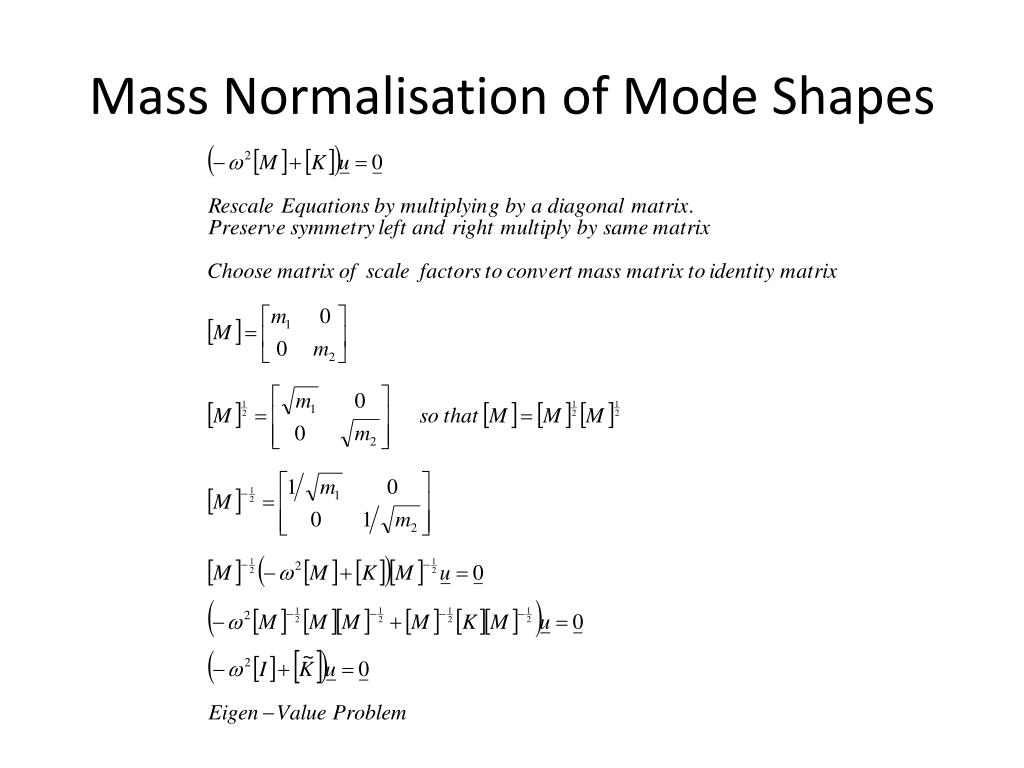

  2. Mass Normalisation of Mode Shapes

  3. Properties in Eigen Vector Matrices

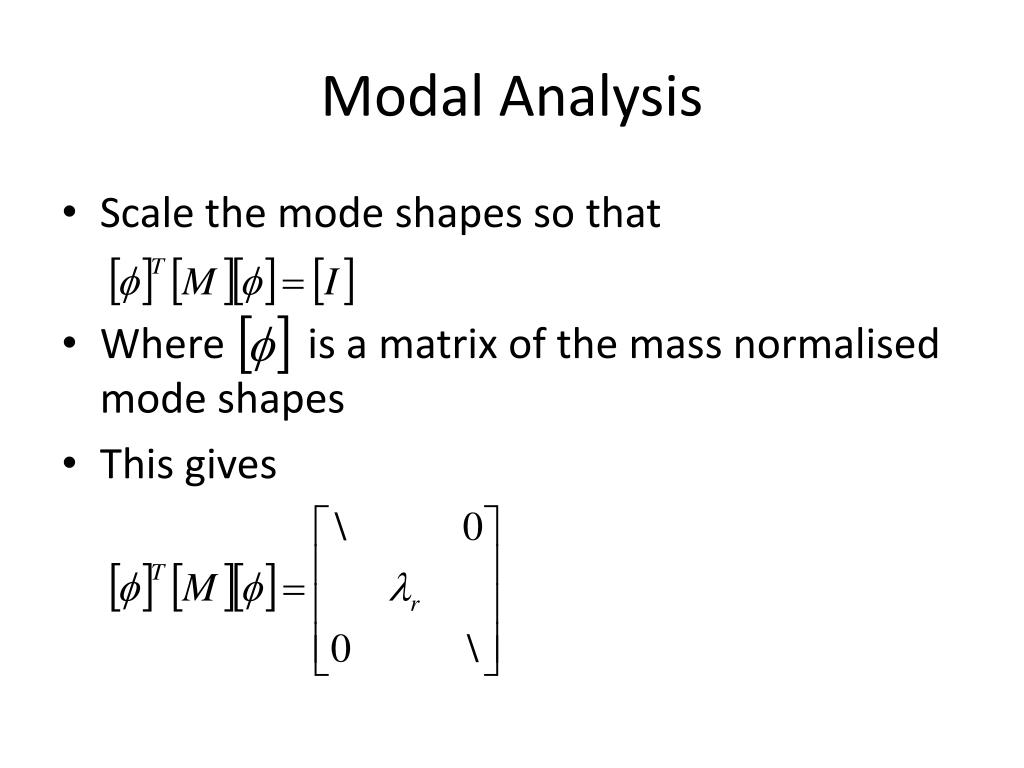

  4. Modal Analysis • Scale the mode shapes so that • Where is a matrix of the mass normalised mode shapes • This gives

  5. Calculation of Mass Normalised mode shapes

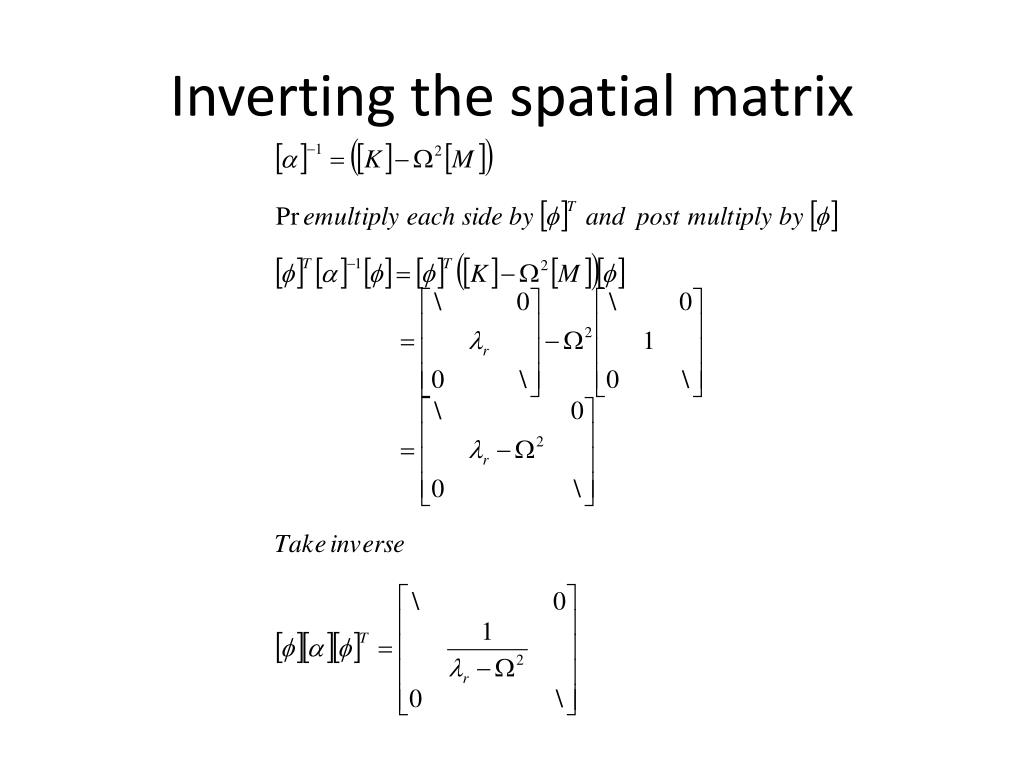

  6. Inverting the spatial matrix

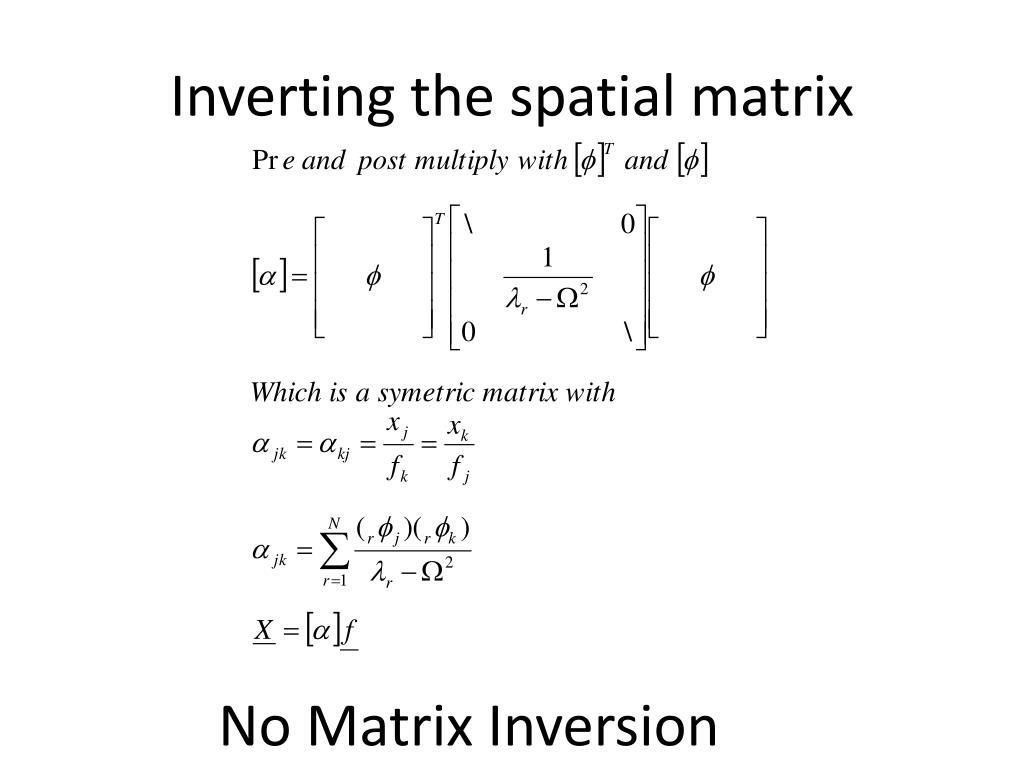

  7. Inverting the spatial matrix No Matrix Inversion

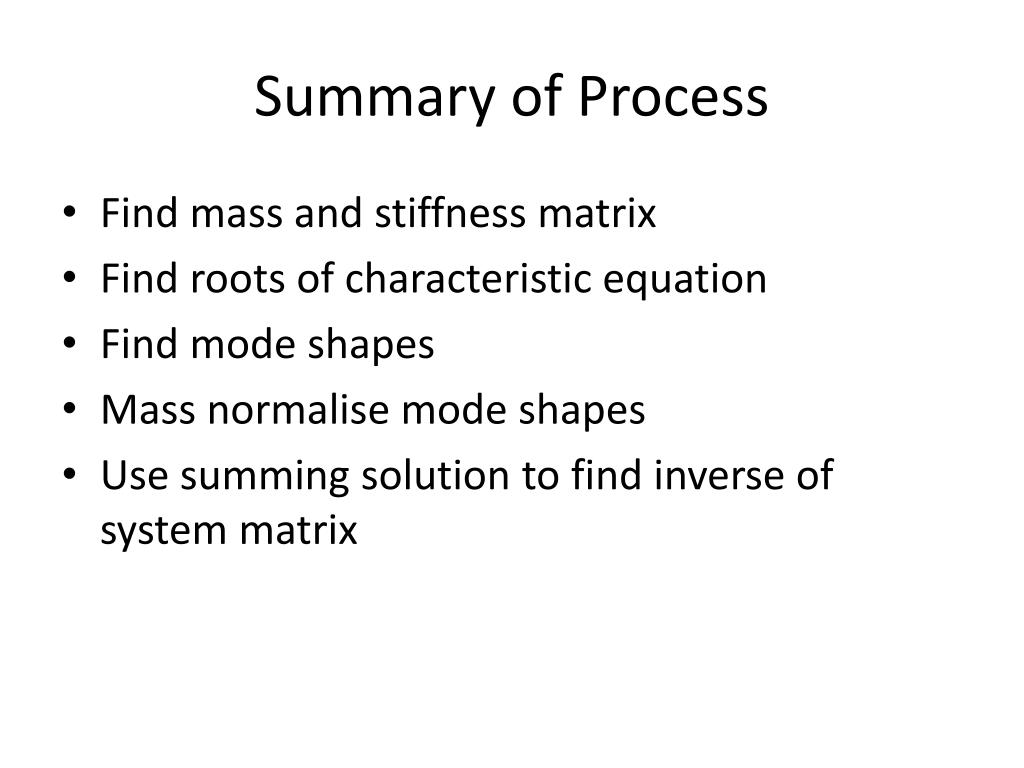

  8. Summary of Process • Find mass and stiffness matrix • Find roots of characteristic equation • Find mode shapes • Mass normalise mode shapes • Use summing solution to find inverse of system matrix
