  1. Cooperating Intelligent Systems Inference in first-order logic Chapter 9, AIMA

  2. Reduce to propositional logic • Reduce the first order logic sentences to propositional (boolean) logic. • Use the inference systems in propositional logic. We need a system for transfering sentences with quantifiers to sentences without quantifiers 

  3. FOL inference rules All the propositional rules (Modus Ponens, And Elimination, And introduction, etc.) plus: Universal Instantiation (UI) Where the variable x is replaced by the ground term a everywhere in the sentence w. Example: ∀x P(x,f(x),B) ⇒ P(A,f(A),B) Existential Instantiation (EI) Where the variable x is replaced by a ground term a (that makes the sentence true) in the sentence w. Example: ∃x Q(x,g(x),B) ⇒ Q(A,g(A),B) A must be a new symbol. Ground term = a term without variables

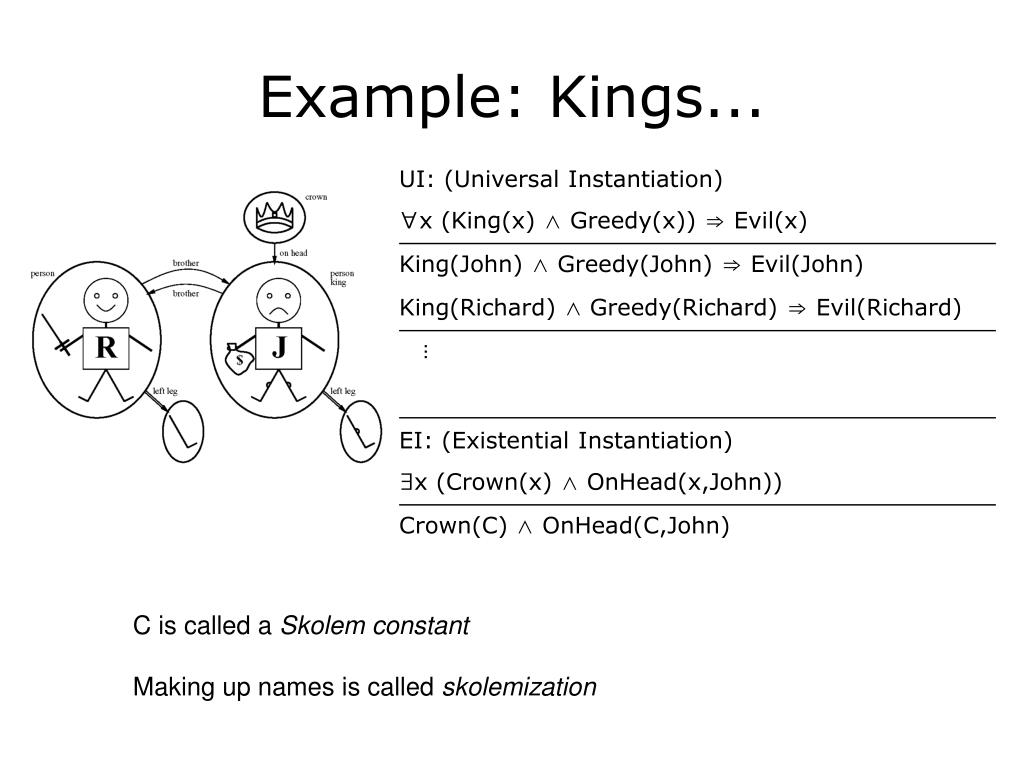

  4. Example: Kings... C is called a Skolem constant Making up names is called skolemization

  5. Example: Kings... C is called a Skolem constant Making up names is called skolemization

  6. Propositionalization Apply Universal Instantiation (UI) and Existential Instantiation (EI) so that every FOL KB is made into a propositional KB. ⇒ We can use the tools from propositional logic to prove theorems. Problem with function constants: Father(A), Father(Father(A)), Father(Father(Father(A))), etc. ad infinitum...infinite number of sentences...how can we prove this in finite time? Theorem: We can find every entailed sentence [Gödel, Herbrand], but the search is not guaranteed to stop for nonentailed sentences.(”Solution”: negation-as-failure, stop after a certain time and assume the sentence is false) Inefficient...generalized (lifted) inference rules better

  7. Notation: Substitution Subst(q,a) = Apply the substitution q to the sentence a. Example: • = {x/John} (replace x with John) a = (King(x) ∧ Greedy(x)) ⇒ Evil(x) (King(John) ∧ Greedy(John)) ⇒ Evil(John) General form: q = {v/g} where v is a variable and g is a ground term.

  8. KB p1 = King(John) q1 = King(x) ∀x (King(x) ∧ Greedy(x) ⇒ Evil(x)) p2 = Greedy(John) q2 = Greedy(x) q = {x/John} r = Evil(x) Generalized (lifted) Modus Ponens For atomic sentences pi, qi, and r where there exists a substitution q such that Subst(q,pi) = Subst(q,qi) for all i

  9. KB p1 = King(John) q1 = King(x) ∀x (King(x) ∧ Greedy(x) ⇒ Evil(x)) p2 = Greedy(John) q2 = Greedy(x) q = {x/John} r = Evil(x) Generalized (lifted) Modus Ponens For atomic sentences pi, qi, and r where there exists a substitution q such that Subst(q,pi) = Subst(q,qi) for all i

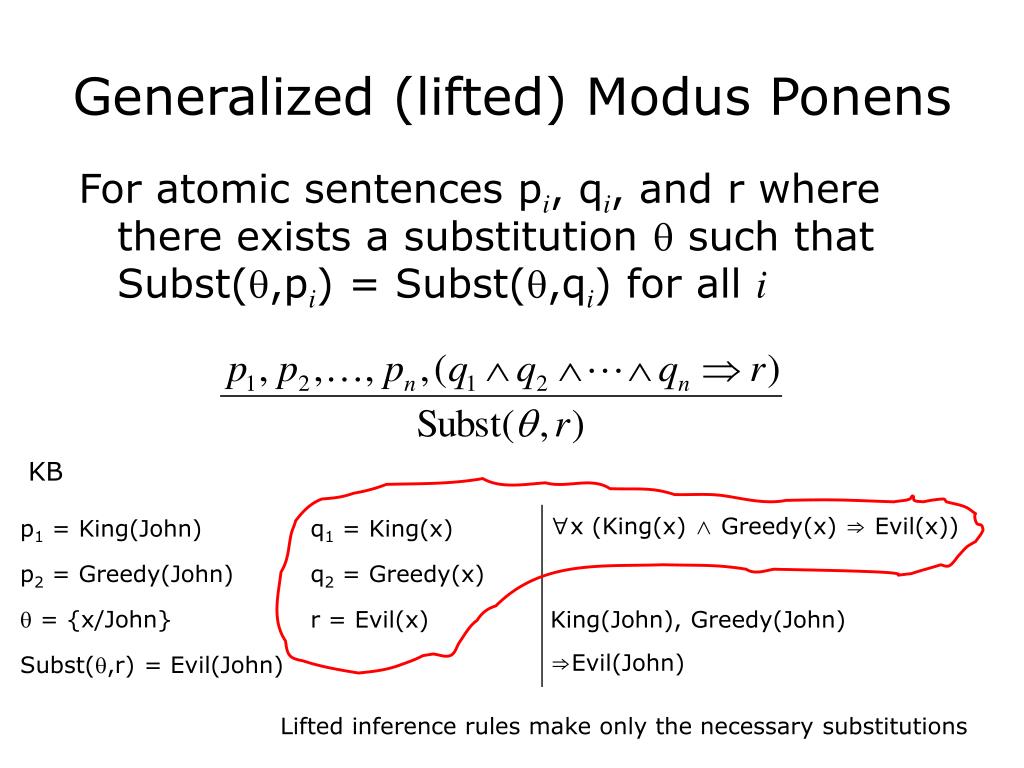

  10. KB p1 = King(John) q1 = King(x) ∀x (King(x) ∧ Greedy(x) ⇒ Evil(x)) p2 = Greedy(John) q2 = Greedy(x) q = {x/John} r = Evil(x) King(John), Greedy(John) Subst(q,r) = Evil(John) ⇒Evil(John) Generalized (lifted) Modus Ponens For atomic sentences pi, qi, and r where there exists a substitution q such that Subst(q,pi) = Subst(q,qi) for all i Lifted inference rules make only the necessary substitutions

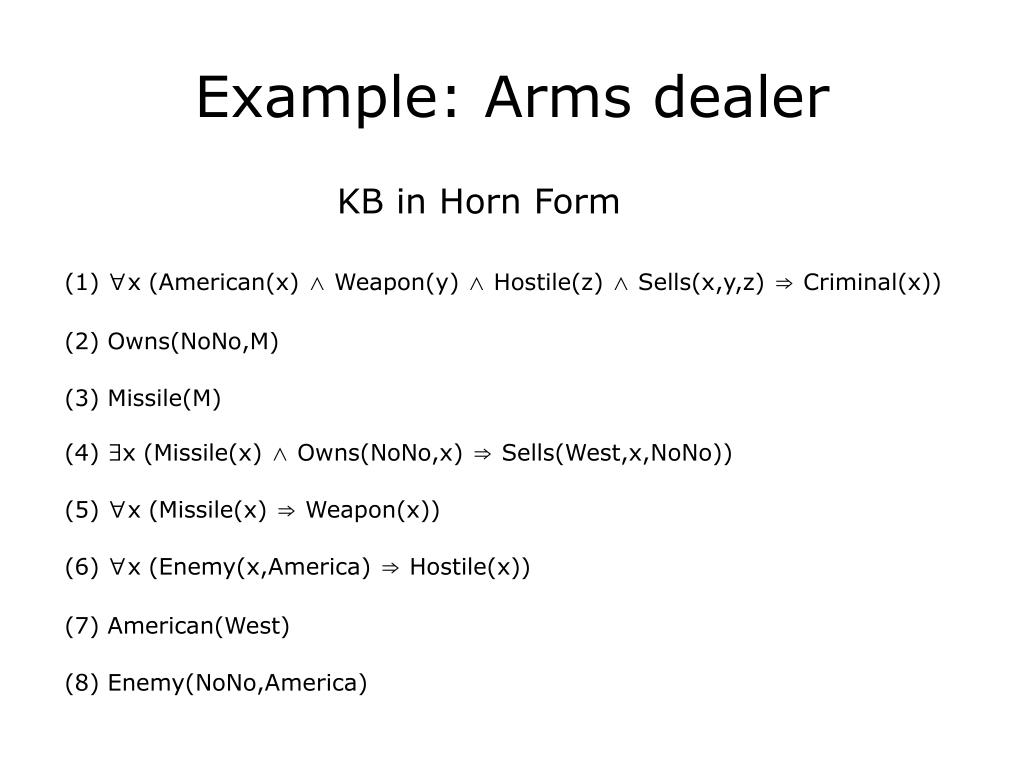

  11. Example: Arms dealer KB in Horn Form

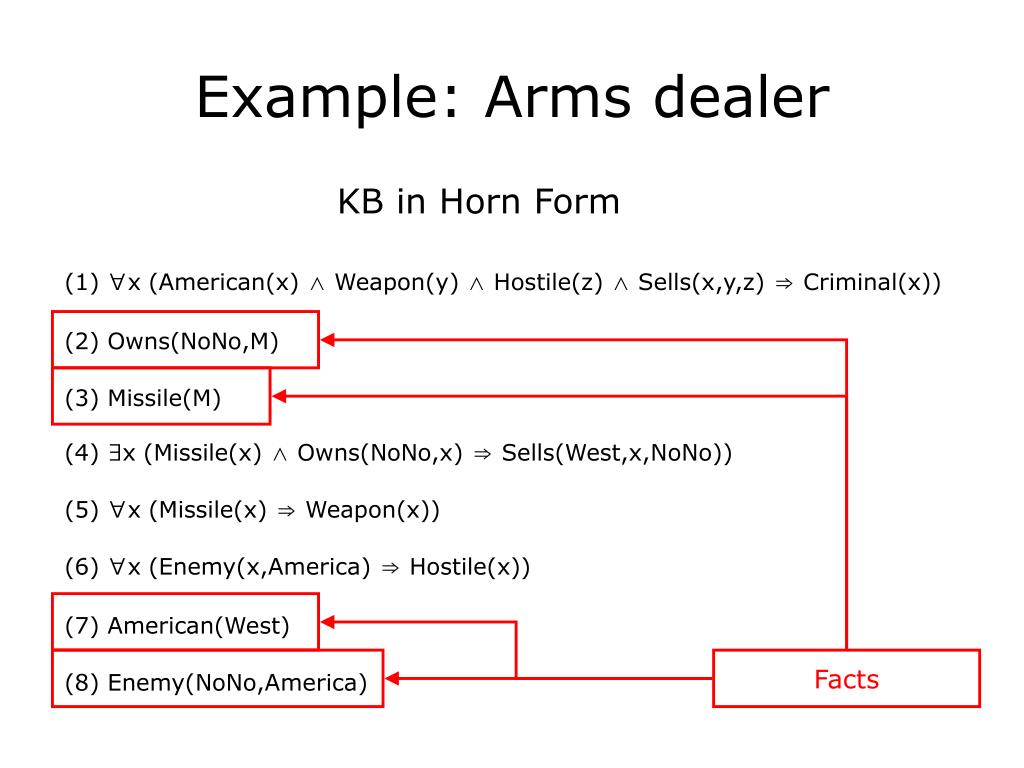

  12. Example: Arms dealer KB in Horn Form Facts

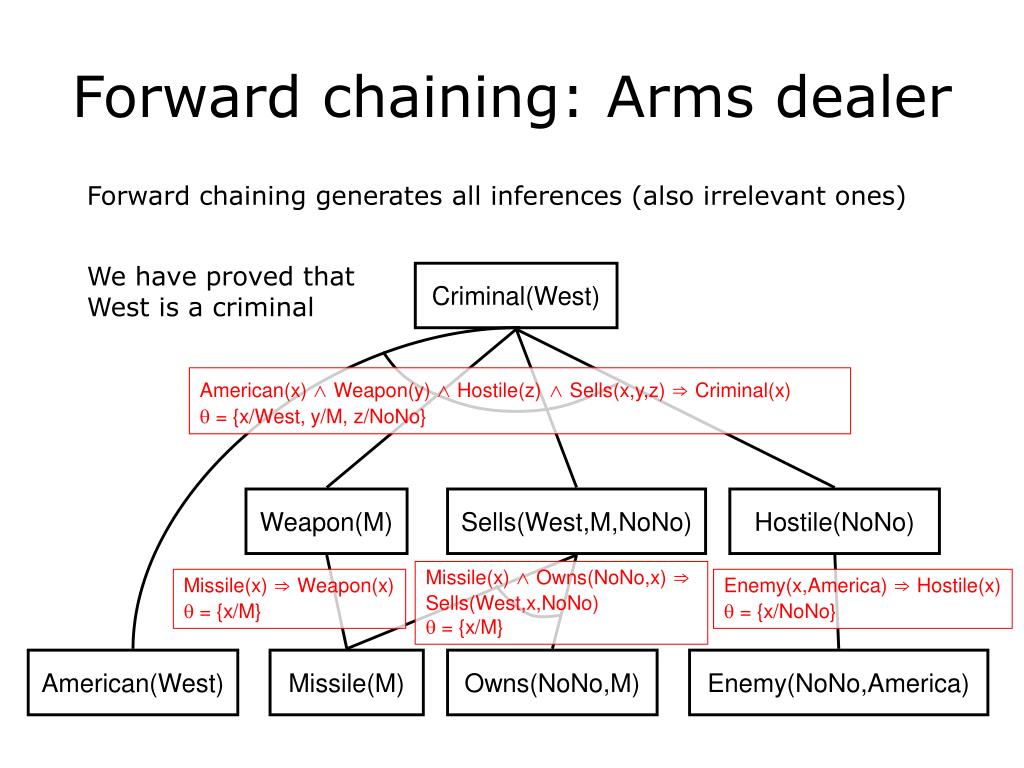

  13. Forward chaining: Arms dealer Forward chaining generates all inferences (also irrelevant ones) We have proved thatWest is a criminal Criminal(West) American(x) ∧ Weapon(y) ∧ Hostile(z)∧ Sells(x,y,z) ⇒ Criminal(x)q = {x/West, y/M, z/NoNo} Weapon(M) Sells(West,M,NoNo) Hostile(NoNo) Missile(x) ∧ Owns(NoNo,x) ⇒Sells(West,x,NoNo)q = {x/M} Missile(x) ⇒ Weapon(x)q = {x/M} Enemy(x,America) ⇒ Hostile(x)q = {x/NoNo} American(West) Missile(M) Owns(NoNo,M) Enemy(NoNo,America)

  14. Example: Financial advisor KB in Horn Form • SavingsAccount(Inadequate) ⇒ Investments(Bank) • SavingsAccount(Adequate) ∧ Income(Adequate) ⇒ Investments(Stocks) • SavingsAccount(Adequate) ∧ Income(Inadequate) ⇒ Investments(Mixed) • ∀x (AmountSaved(x) ∧∃y (Dependents(y) ∧ Greater(x,MinSavings(y))) ⇒ SavingsAccount(Adequate)) • ∀x (AmountSaved(x) ∧∃y (Dependents(y) ∧¬Greater(x,MinSavings(y))) ⇒ SavingsAccount(Inadequate)) • ∀x (Earnings(x,Steady) ∧∃y (Dependents(y) ∧ Greater(x,MinIncome(y))) ⇒ Income(Adequate)) • ∀x (Earnings(x,Steady) ∧∃y (Dependents(y) ∧¬Greater(x,MinIncome(y))) ⇒ Income(Inadequate)) • ∀x (Earnings(x,UnSteady) ⇒ Income(Inadequate)) • AmountSaved($22000) • Earnings($25000,Steady) • Dependents(3) MinSavings(x) ≡ $5000•xMinIncome(x) ≡ $15000 + ($4000•x) Example from G.F. Luger, ”Artificial Intelligence” 2002

  15. FC financial advisor Investments(Mixed) SavingsAccount(Adequate) Income(Inadequate) ¬Greater($25000,MinIncome) Greater($22000,MinSavings) MinIncome = $27000MinSavings = $15000 AmountSaved($22000) Dependents(3) Earnings($25000,Steady)

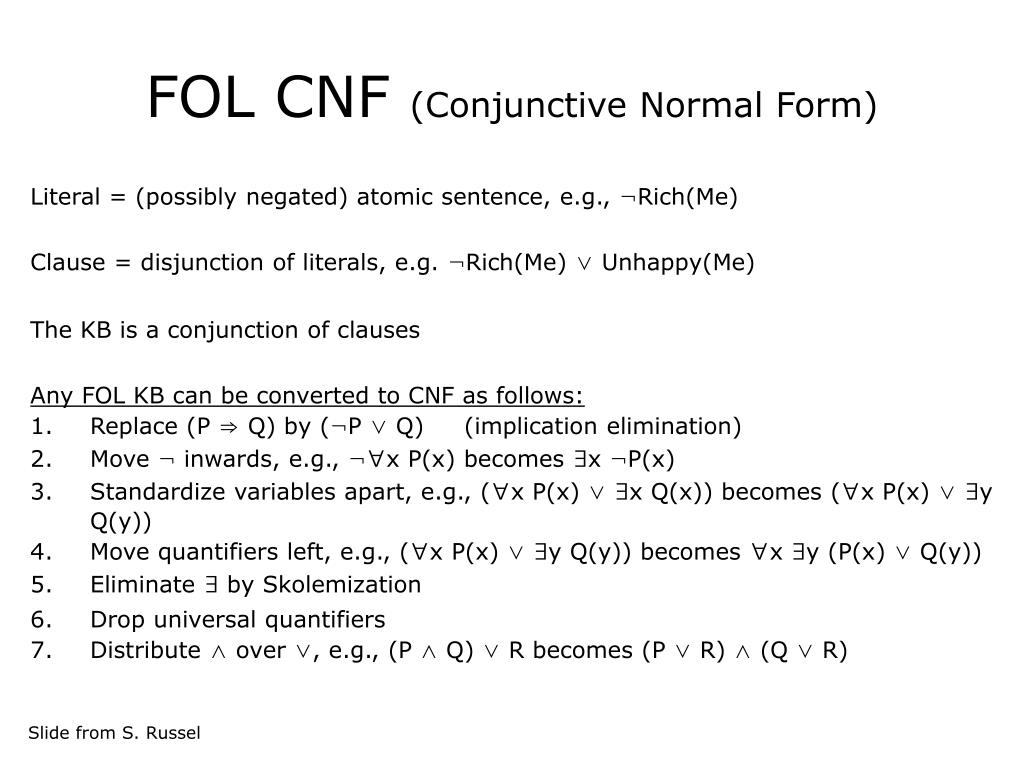

  16. FOL CNF (Conjunctive Normal Form) Literal = (possibly negated) atomic sentence, e.g., ¬Rich(Me) Clause = disjunction of literals, e.g. ¬Rich(Me) ∨ Unhappy(Me) The KB is a conjunction of clauses Any FOL KB can be converted to CNF as follows: • Replace (P ⇒ Q) by (¬P ∨ Q) (implication elimination) • Move ¬ inwards, e.g., ¬∀x P(x) becomes ∃x ¬P(x) • Standardize variables apart, e.g., (∀x P(x) ∨∃x Q(x)) becomes (∀x P(x) ∨∃y Q(y)) • Move quantifiers left, e.g., (∀x P(x) ∨∃y Q(y)) becomes ∀x ∃y (P(x) ∨ Q(y)) • Eliminate ∃ by Skolemization • Drop universal quantifiers • Distribute ∧ over ∨, e.g., (P ∧ Q) ∨ R becomes (P ∨ R) ∧ (Q ∨ R) Slide from S. Russel

  17. CNF example ”Everyone who loves all animals is loved by someone” ∀x [∀y Animal(y) ⇒ Loves(x,y)] ⇒ ∃y Loves(y,x) Implication elimination∀x ¬[∀y ¬Animal(y) ∨ Loves(x,y)] ∨ ∃y Loves(y,x) Move ¬ inwards (¬∀y P becomes ∃y ¬P)∀x [∃y ¬(¬Animal(y) ∨ Loves(x,y))] ∨ ∃y Loves(y,x)∀x [∃y (Animal(y) ∧¬Loves(x,y))] ∨ ∃y Loves(y,x)∀x [∃y Animal(y) ∧¬Loves(x,y)] ∨ ∃y Loves(y,x) Standardize variables individually∀x [∃y Animal(y) ∧¬Loves(x,y)] ∨ ∃z Loves(z,x) Skolemize (Replace ∃ with constants)∀x [Animal(F(x)) ∧¬Loves(x,F(x))] ∨ Loves(G(x),x)Why not ∀x [Animal(A) ∧¬Loves(x,A)] ∨ Loves(B,x) ?? Drop ∀[Animal(F(x)) ∧¬Loves(x,F(x))] ∨ Loves(G(x),x) Distribute ∨ over ∧[Animal(F(x)) ∨ Loves(G(x),x)] ∧ [¬Loves(x,F(x)) ∨ Loves(G(x),x)]

  18. Notation: Unification Unify(p,q) = q means that Subst(q,p) = Subst(q,q)

  19. FOL resolution inference rule First-order literals are complementary if one unifies with the negation of the other Where Unify(li,¬mj) = q. Note that li and mj are removed

  20. Resolution proves KB ⊨a by proving (KB ∧¬a) is unsatisfiable Start fromthe top ¬ Arms dealer example

  21. Resolution proves KB ⊨a by proving (KB ∧¬a) is unsatisfiable ∀x (American(x)∧Weapon(y)∧Hostile(z)∧Sells(x,y,z)⇒Criminal(x)) Translate to CNF: ∀x (¬(American(x)∧Weapon(y)∧Hostile(z)∧Sells(x,y,z))∨Criminal(x)) ∀x ((¬American(x)∨¬Weapon(y)∨¬Hostile(z)∨¬Sells(x,y,z))∨Criminal(x)) ∀x (¬American(x)∨¬Weapon(y)∨¬Hostile(z)∨¬Sells(x,y,z)∨Criminal(x)) ¬American(x)∨¬Weapon(y)∨¬Hostile(z)∨¬Sells(x,y,z)∨Criminal(x) • Any FOL KB can be converted to CNF as follows: • Replace (P ⇒ Q) by (¬P ∨ Q) (implication elimination) • Move ¬ inwards, e.g., ¬∀x P(x) becomes ∃x ¬P(x) • Standardize variables apart, e.g., (∀x P(x) ∨ ∃x Q(x)) becomes (∀x P(x) ∨ ∃y Q(y)) • Move quantifiers left, e.g., (∀x P(x) ∨ ∃y Q(y)) becomes ∀x ∃y (P(x) ∨ Q(y)) • Eliminate ∃ by Skolemization • Drop universal quantifiers • Distribute ∧ over ∨, e.g., (P ∧ Q) ∨ R becomes (P ∨ R) ∧ (Q ∨ R) ¬ Arms dealer example

  22. Resolution proves KB ⊨a by proving (KB ∧¬a) is unsatisfiable ∀x (American(x)∧Weapon(y)∧Hostile(z)∧Sells(x,y,z)⇒Criminal(x)) Translate to CNF: ∀x (¬(American(x)∧Weapon(y)∧Hostile(z)∧Sells(x,y,z))∨Criminal(x)) ∀x ((¬American(x)∨¬Weapon(y)∨¬Hostile(z)∨¬Sells(x,y,z))∨Criminal(x)) ∀x (¬American(x)∨¬Weapon(y)∨¬Hostile(z)∨¬Sells(x,y,z)∨Criminal(x)) ¬American(x)∨¬Weapon(y)∨¬Hostile(z)∨¬Sells(x,y,z)∨Criminal(x) • Any FOL KB can be converted to CNF as follows: • Replace (P ⇒ Q) by (¬P ∨ Q) (implication elimination) • Move ¬ inwards, e.g., ¬∀x P(x) becomes ∃x ¬P(x) • Standardize variables apart, e.g., (∀x P(x) ∨ ∃x Q(x)) becomes (∀x P(x) ∨ ∃y Q(y)) • Move quantifiers left, e.g., (∀x P(x) ∨ ∃y Q(y)) becomes ∀x ∃y (P(x) ∨ Q(y)) • Eliminate ∃ by Skolemization • Drop universal quantifiers • Distribute ∧ over ∨, e.g., (P ∧ Q) ∨ R becomes (P ∨ R) ∧ (Q ∨ R) ¬ Arms dealer example

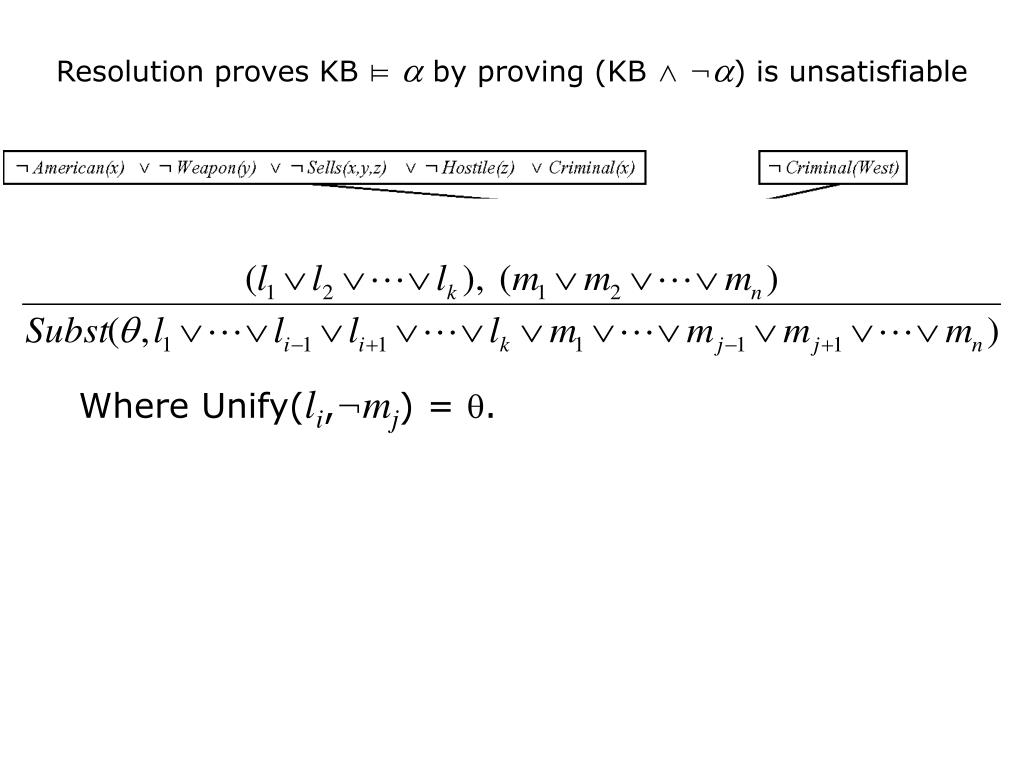

  23. Resolution proves KB ⊨a by proving (KB ∧¬a) is unsatisfiable Where Unify(li,¬mj) = q. ¬ Arms dealer example

  24. Resolution proves KB ⊨a by proving (KB ∧¬a) is unsatisfiable Where Unify(li,¬mj) = q. l1 = ¬American(x) l2 = ¬Weapon(y) l3 = ¬Sells(x,y,z) l4 = ¬Hostile(z) l5 = Criminal(x) m1 = Criminal(West) Unify(l5,¬m1) = q= {x/West} Subst(q,l1∨ l2∨ l3∨ l4) =... ¬ Arms dealer example

  25. Resolution proves KB ⊨a by proving (KB ∧¬a) is unsatisfiable ¬ Arms dealer example

  26. Resolution proves KB ⊨a by proving (KB ∧¬a) is unsatisfiable l1 = ¬American(x) l2 = ¬Weapon(y) l3 = ¬Sells(x,y,z) l4 = ¬Hostile(z) l5 = Criminal(x) m2 = American(West) Unify(l1,¬m2) = q= {x/West} Subst(q,l2∨ l3∨ l4) =... ¬ Arms dealer example

  27. Resolution proves KB ⊨a by proving (KB ∧¬a) is unsatisfiable ¬ Arms dealer example

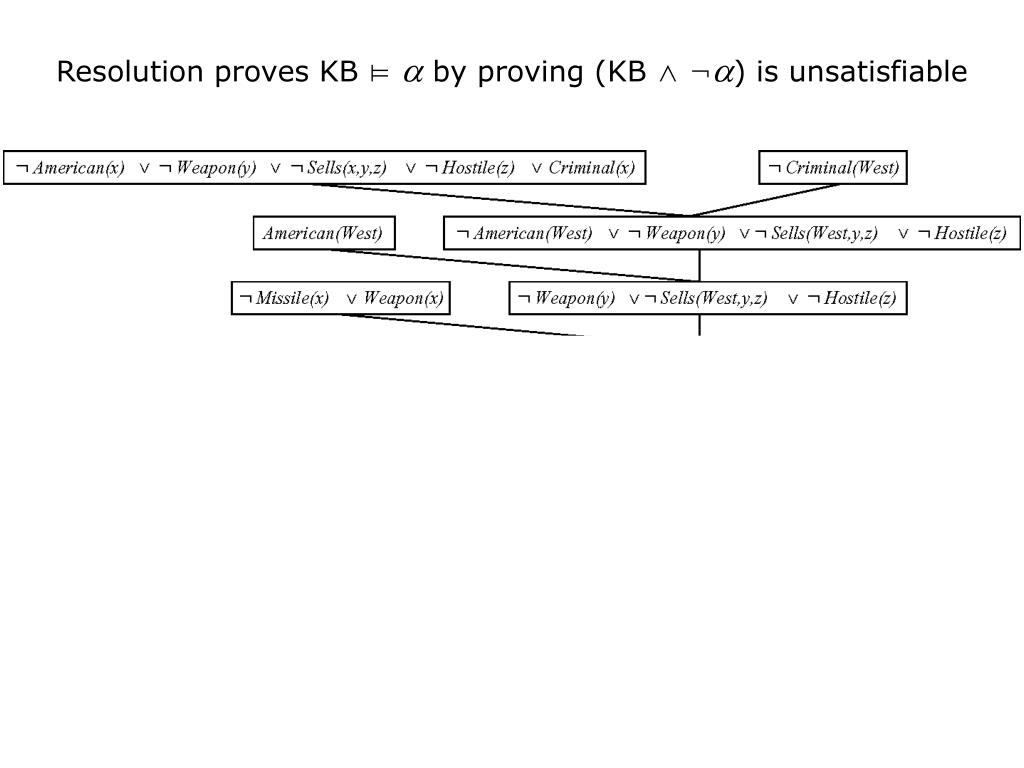

  28. Resolution proves KB ⊨a by proving (KB ∧¬a) is unsatisfiable ¬ Arms dealer example

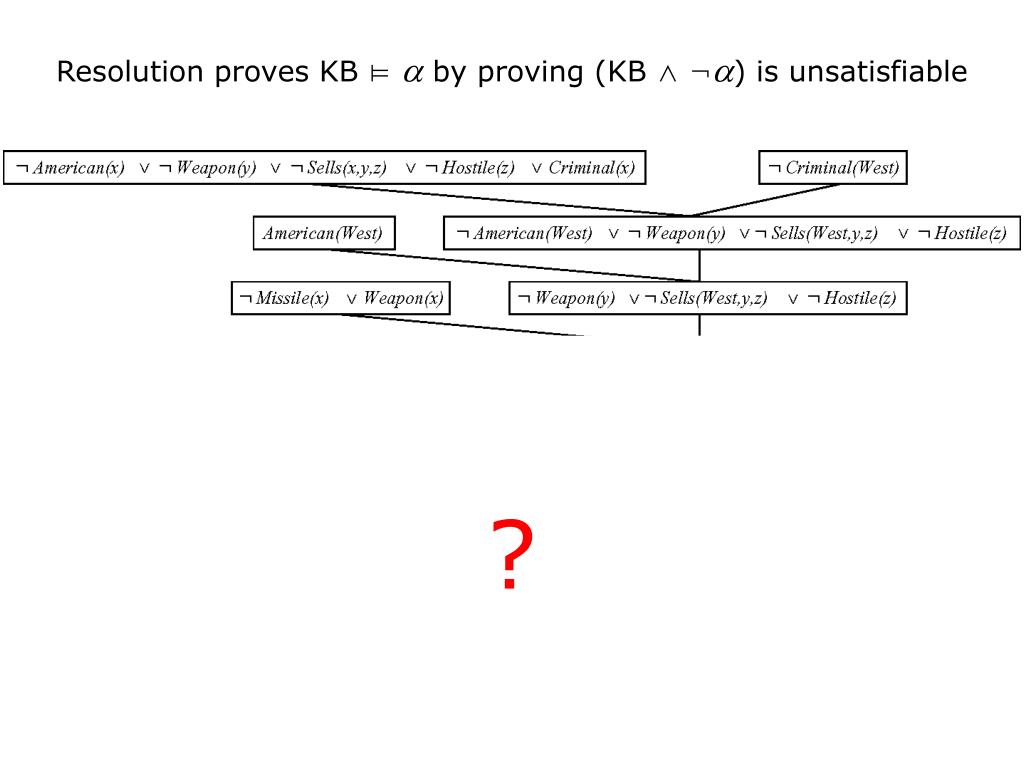

  29. Resolution proves KB ⊨a by proving (KB ∧¬a) is unsatisfiable ? ¬ Arms dealer example

  30. Resolution proves KB ⊨a by proving (KB ∧¬a) is unsatisfiable l2 = ¬Weapon(y) l3 = ¬Sells(x,y,z) l4 = ¬Hostile(z) m3 = Weapon(x) m4 = Missile(x) Unify(l2,¬m3) = q= {y/x} Subst(q,l2∨ l3∨ l4 ∨ m4) =... ¬ Arms dealer example

  31. Resolution proves KB ⊨a by proving (KB ∧¬a) is unsatisfiable ? ¬ Arms dealer example

  32. Resolution proves KB ⊨a by proving (KB ∧¬a) is unsatisfiable ¬ Arms dealer example

  33. Resolution proves KB ⊨a by proving (KB ∧¬a) is unsatisfiable ¬ Arms dealer example

  34. Resolution proves KB ⊨a by proving (KB ∧¬a) is unsatisfiable ¬ Arms dealer example

  35. Resolution proves KB ⊨a by proving (KB ∧¬a) is unsatisfiable ¬ Arms dealer example

  36. Resolution proves KB ⊨a by proving (KB ∧¬a) is unsatisfiable ¬ Arms dealer example ∅
