  1. Intro to HTML/CGI/JavaScript • How the Web Works • HTML: Basic Concept • CGI: Basic Concept • JavaScript: It Is Dying • Example 1: Test CGI with printenv • Some Server Stuffs • Example 2: Sort Cell Statistics Introduction to HTML/CGI/JavaScript

  2. The Evolution of HTTP process process process Inter-Process Communication Models Client-Server Computing Model server client HyperText Transport Protocol (HTTP) • Client sends a request http server web browser • Server responds In the beginning … • Shared memory • Message passing Introduction to HTML/CGI/JavaScript

  3. Browser-Server Interaction Javascript makes the browser do extra things cgi-bin/* will cause server to execute the file HTML htdocs/ “root” 5 4 3 1 2 asic/ index.html URL cgi-bin/ content of request * IP_Adr[:Port] Protocol (ftp, file) httpd (server) browser http://www1/asic Introduction to HTML/CGI/JavaScript

  4. Summary • HTML files are consumed by the browsers • Markers (Tags) tell the browser how to present the materials with the built-in GUI widgets • Text objects like tables, fonts, paragraphs • Graphic images • UI FORM widgets like selection, checkbox, radio, button, etc. • Embedded URLs (links) enable browser to communicate w/ server • CGI scripts work on the server side • Invoked by the ‘cgi-bin/’ entry in the request part of the URL • Additional information from FORM is passed to the server • Server then passes the info to script thru a set of env variables • The script generates responses sent back to the browser by the server • JavaScripts are embedded in the HTML files and work on the browser side (initially) • Example: Check of valid data in forms Introduction to HTML/CGI/JavaScript

  5. HTML: Structure of Non-Frame Files Container-type of tags has the form <name>… </name> The <pre> tag tells the browser just display the text as is. <br> is an example of one of the few non-container tags Displays are controlled by tags. Multiple spaces are treated as just one space. <html> <header><title>Whatever</title> <!-- Start of comment lines JavaScripts, if present, appear in the header section Header section has no effect on the browser display --> </header> <body> <pre> Most of the HTML constructs are shown up here<br> </body> </html> Introduction to HTML/CGI/JavaScript

  6. HTML: Structure of Frame Files Note: Cannot have body in Frame Files unit: pixel <html> <head><title>Frame Example</title></head> <frameset rows=250,*> <frame src=top_frame.html> <frameset cols=20%,60%,20%> <frame src=left_panel.html> <frameset rows=33%,33%,*> <frame name=“Mid1” src=mid1.html> <frame name=“Mid2” src=mid2.html> <frame name=“Mid3” src=mid3.html> </frameset> <frame name=“Right” src=right_panel.html> </frameset> </frameset> </html> Introduction to HTML/CGI/JavaScript

  7. HTML: Some General Tips • General structure of tags • Beginning tag: <name [attribute1=“value” attribute2=“value” … ]> • Optional ending tag: </name> • The “container” (nested) image: Apply intuitively/sensibly • Keep in mind the picture of the 3 functions of the Browser • Generate the webpage display – the bulk of HTML tags • Accept user inputs – via the form elements • Send request messages to servers – Link, Source Attribute, and Form • Form combines all of the above 3 functions and it’s where the CGI scripts come into the picture • Two very convenient reverse engineering tools • View source in the browser • Netscape Composer • The Bare Bones Guide to HTML Introduction to HTML/CGI/JavaScript

  8. HTML Form Made Simple Additional Attributes size=# maxlength=# text checked radio checked checkbox submit/reset button (In 4.0: button becomes a form object itself) • <select name=name> options </select> • <input type=ui_type name=name value=val > • <form action=url method=get|post [target=frame]> • Options: <option value=val [selected]> … </select> • <textarea rows=# cols=# name=name> … </textarea> • </form> Introduction to HTML/CGI/JavaScript

  9. CGI (Common Gateway Interface) when req starts with cgi-bin/* CGI cgi-lib.pl browser httpd (server) perl script executable FORM Program returns a header: Content-type: text/html or Location: <URL> Header must end with a blank line. var1 = val1 var2 = val2 var1 = val1 var2 = val2 static html . . . . . . Server passes req info thru ~20 env variables: QUERY_STRING REQUEST_METHOD CONTENT_LENGTH … GET: Form data appended to URL, limited size POST: Form data not passed thru URL, unlimited size. Program obtains form data thru STDIN. Introduction to HTML/CGI/JavaScript

  10. Javascript HTML JS Netscape’s Document Object Model browser • Problem: IE and Netscape have some slight differences • Allow webpage internal data to be changed on the client side Introduction to HTML/CGI/JavaScript

  11. CGI: Printenv with Get Method Introduction to HTML/CGI/JavaScript

  12. CGI: Printenv with Post Method Introduction to HTML/CGI/JavaScript

  13. Some Server Stuffs On file server nfs05: /import/departments/ asic/ cgi-bin/ dev/ On www1: /… /htdocs/asic@ cgi-bin/asic@ • Mosaic  Netscape  Apache • Installation using port 80 (default) requires root password • Child server daemon httpd assumes uid of nobody • User/Group configurable • The root path / in URL received maps to the DocumentRoot dir. (in the httpd.conf file), not the machine’s root directory • When the server executes the cgi script, it assumes the uid of nobody, which normally has the least access rights • Symbolic links depend on the configuration setup Introduction to HTML/CGI/JavaScript

  14. Example: Initial Page Introduction to HTML/CGI/JavaScript

  15. Example: Sort By Area/Descending Introduction to HTML/CGI/JavaScript

  16. Example: Sort with Data Plot Introduction to HTML/CGI/JavaScript

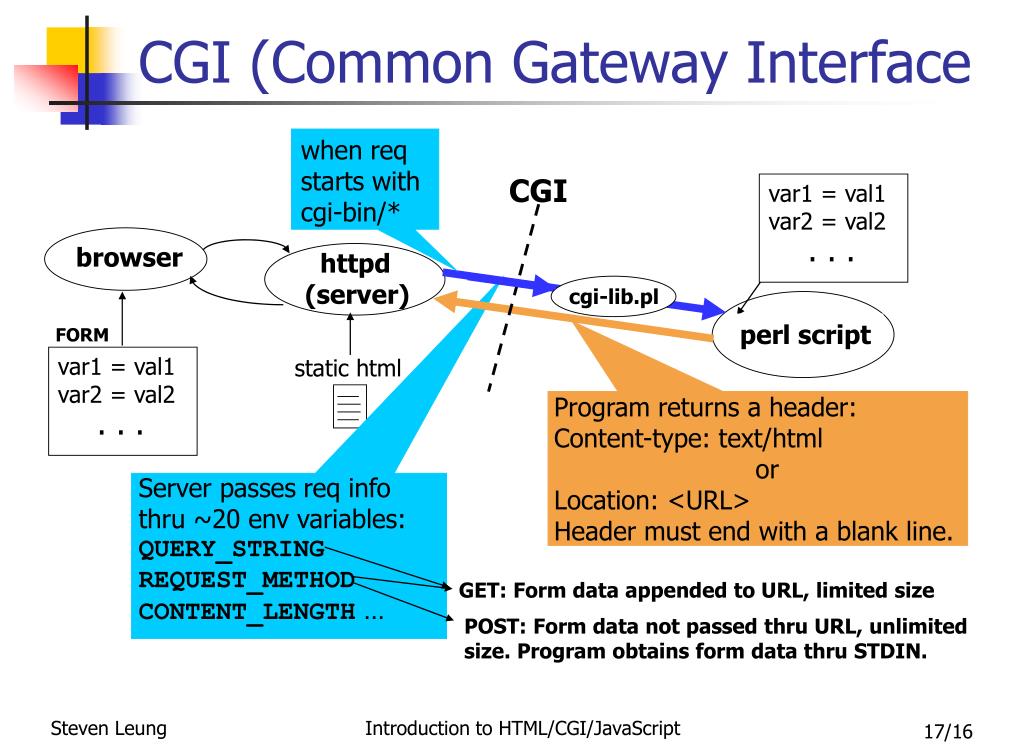

  17. CGI (Common Gateway Interface when req starts with cgi-bin/* CGI cgi-lib.pl browser httpd (server) perl script executable FORM Program returns a header: Content-type: text/html or Location: <URL> Header must end with a blank line. var1 = val1 var2 = val2 var1 = val1 var2 = val2 static html . . . . . . Server passes req info thru ~20 env variables: QUERY_STRING REQUEST_METHOD CONTENT_LENGTH … GET: Form data appended to URL, limited size POST: Form data not passed thru URL, unlimited size. Program obtains form data thru STDIN. Introduction to HTML/CGI/JavaScript

  18. Algorithm of sort_cell_stat_png • Save header lines to @header • Insert <img src=/cgi-bin/serve_png?pngfile> • Save the rest of the lines (table) to @lines • Sort the table according to the user criteria and save the line index into array @sorted_line_idx • Generate 2 png files: • Write out the data files to /tmp • Left-shift the line number as x-coordinates for plotting • Write out the CMD files (Bulks of sub gen_png) • Execute gen_png csh script to actually (at end of sub gen_png) • Generate 2 png files • Delete the data file • Write out the saved header • Write out the table according to the sorted line index order Introduction to HTML/CGI/JavaScript
