Introducing Silverlight 2

Introducing Silverlight 2. Agenda. Silverlight architecture XAML CoreCLR The Silverlight Base Class Library Silverlight security Your first Silverlight application Mouse and keyboard handling. Silverlight. Formerly known as "WPF/E"

domani
Télécharger la présentation

Introducing Silverlight 2

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Introducing Silverlight 2

  2. Agenda • Silverlight architecture • XAML • CoreCLR • The Silverlight Base Class Library • Silverlight security • Your first Silverlight application • Mouse and keyboard handling

  3. Silverlight • Formerly known as "WPF/E" • Microsoft's platform for rich, highly interactive Web experiences and RIAs • Cross-platform (browsers and OSes) • Windows, Mac OS, Linux ("Moonlight") • Internet Explorer, Firefox, Safari, and more • XAML-based rendering (subset of WPF XAML) • Implemented as browser plug-in • Quick, easy install experience

  4. Versions • Silverlight 1.0 • Shipped September 2007 • XAML rendering and JavaScript API • Silverlight 2 • Beta 2 currently available • XAML, .NET Framework, managed code, dynamic languages (e.g., IronRuby) • Ships in 2008

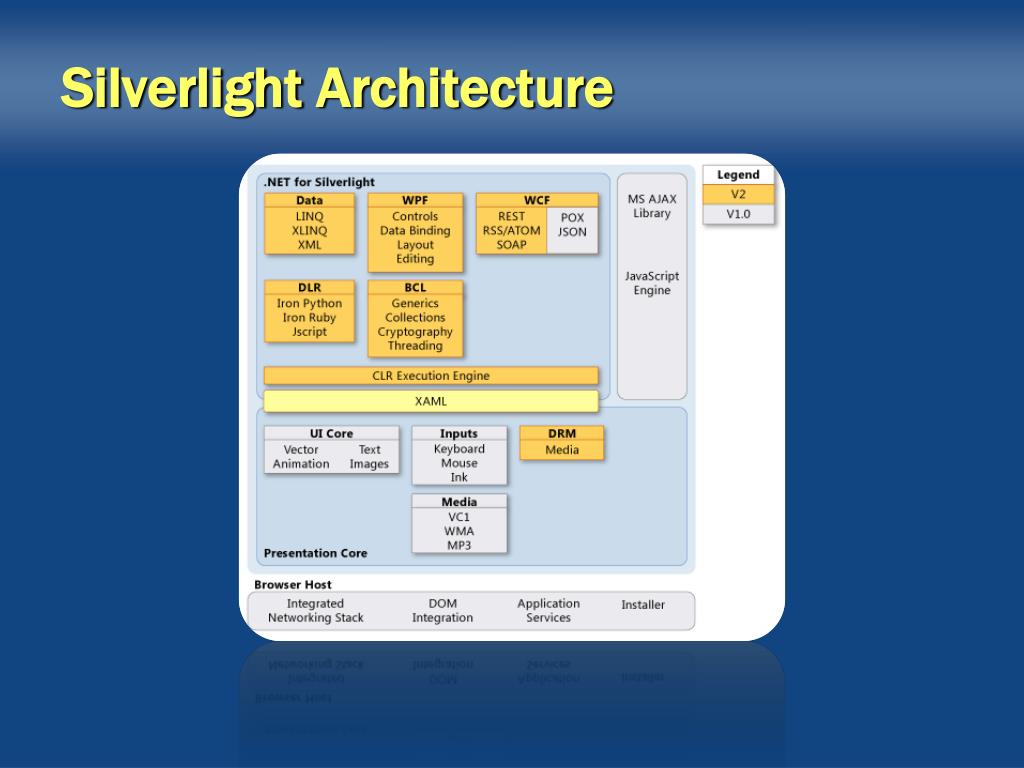

  5. Silverlight Architecture

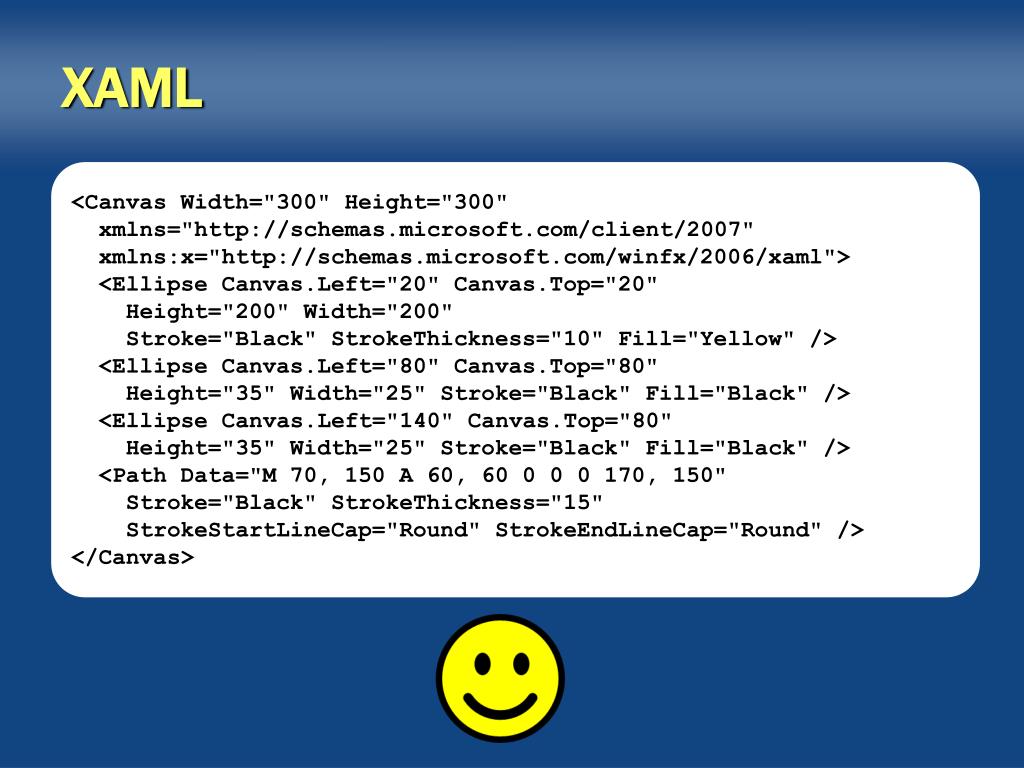

  6. XAML <Canvas Width="300" Height="300" xmlns="http://schemas.microsoft.com/client/2007" xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"> <Ellipse Canvas.Left="20" Canvas.Top="20" Height="200" Width="200" Stroke="Black" StrokeThickness="10" Fill="Yellow" /> <Ellipse Canvas.Left="80" Canvas.Top="80" Height="35" Width="25" Stroke="Black" Fill="Black" /> <Ellipse Canvas.Left="140" Canvas.Top="80" Height="35" Width="25" Stroke="Black" Fill="Black" /> <Path Data="M 70, 150 A 60, 60 0 0 0 170, 150" Stroke="Black" StrokeThickness="15" StrokeStartLineCap="Round" StrokeEndLineCap="Round" /> </Canvas>

  7. XAML DOM <html> <body> ... <div id="SilverlightDiv"> </div> ... </body> </html> Web page Silverlight control Canvas Canvas TextBlock XAML objects Other Objects

  8. Naming XAML Objects • Use x:Name attributes to assign names to XAML objects (analogous to IDs in ASP.NET) <Rectangle Canvas.Left="50" Canvas.Top="50" Fill="Yellow" Width="300" Height="200" Stroke="Black" StrokeThickness="10" x:Name="YellowRect" /> Object can now be referred to as "YellowRect" in code

  9. The Silverlight 2 CLR ("CoreCLR") • Refactored version of full-size CLR • Same core type system, JIT compiler, etc. • COM interop, remoting, binary serialization, server GC, and other features removed • CAS replaced with transparency model • Multiple CLR instances per process supported • Most globalization support pushed down to OS • Dynamic Language Runtime (DLR) added • Small footprint (< 2MB), cross-platform

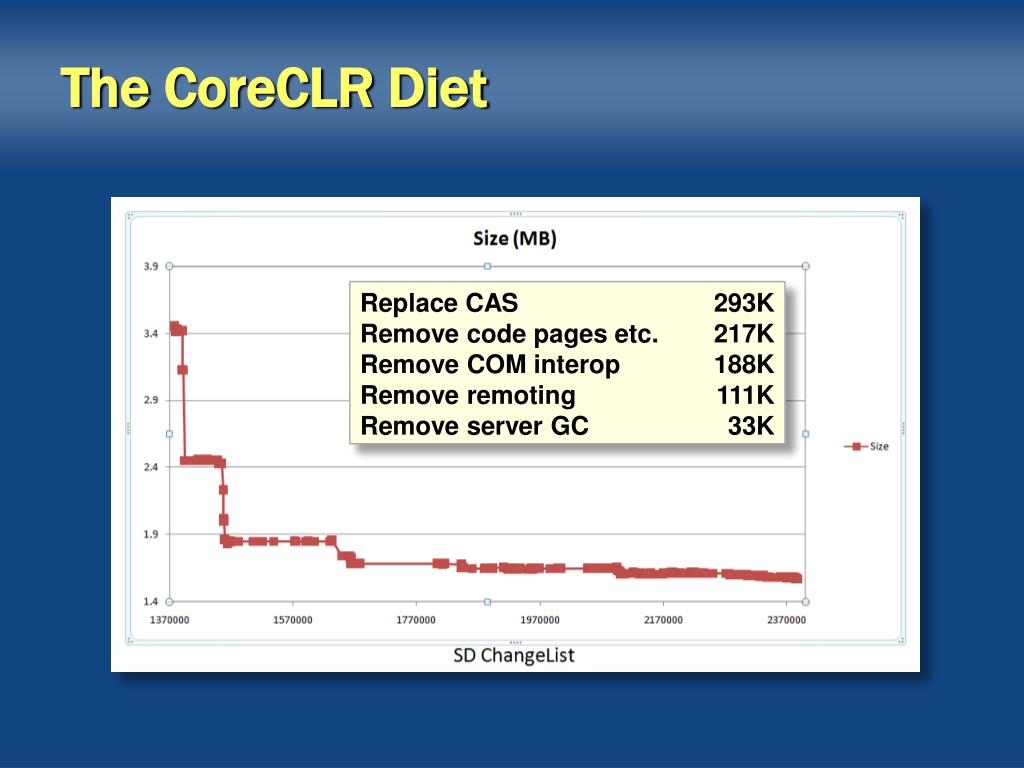

  10. The CoreCLR Diet Replace CAS Remove code pages etc. Remove COM interop Remove remoting Remove server GC 293K 217K 188K 111K 33K

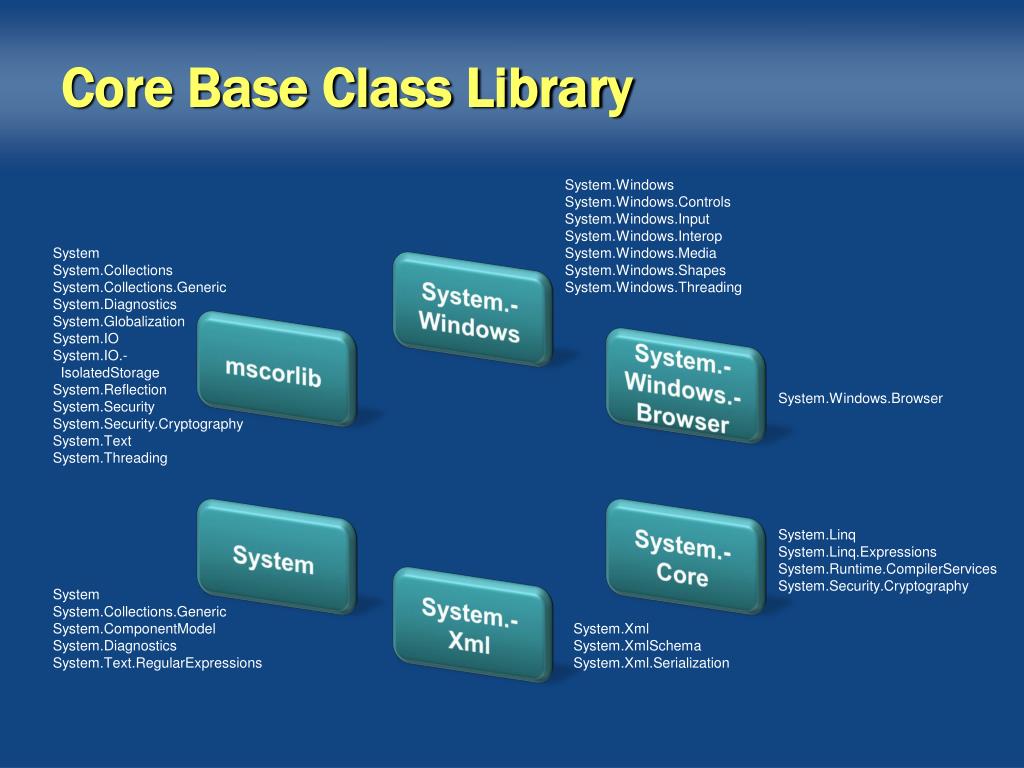

  11. Core Base Class Library System.Windows System.Windows.Controls System.Windows.Input System.Windows.Interop System.Windows.Media System.Windows.Shapes System.Windows.Threading System System.Collections System.Collections.Generic System.Diagnostics System.Globalization System.IO System.IO.- IsolatedStorage System.Reflection System.Security System.Security.Cryptography System.Text System.Threading System.- Windows mscorlib System.- Windows.- Browser System.Windows.Browser System System.- Core System.Linq System.Linq.Expressions System.Runtime.CompilerServices System.Security.Cryptography System System.Collections.Generic System.ComponentModel System.Diagnostics System.Text.RegularExpressions System.- Xml System.Xml System.XmlSchema System.Xml.Serialization

  12. Extended Base Class Library

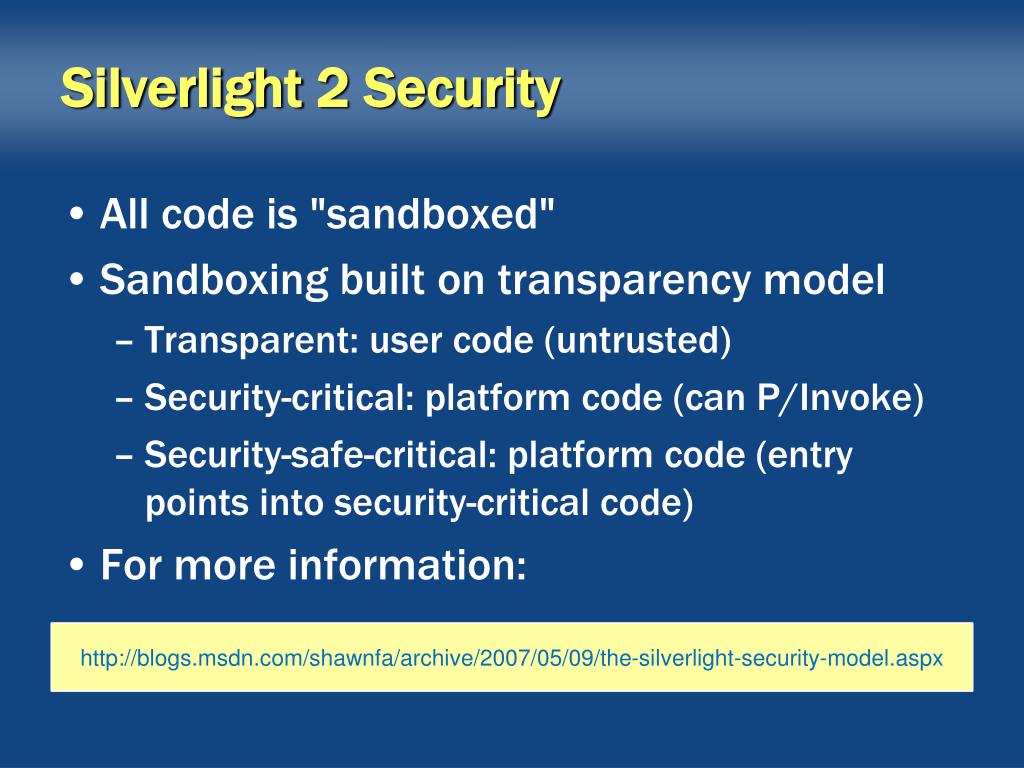

  13. Silverlight 2 Security • All code is "sandboxed" • Sandboxing built on transparency model • Transparent: user code (untrusted) • Security-critical: platform code (can P/Invoke) • Security-safe-critical: platform code (entry points into security-critical code) • For more information: http://blogs.msdn.com/shawnfa/archive/2007/05/09/the-silverlight-security-model.aspx

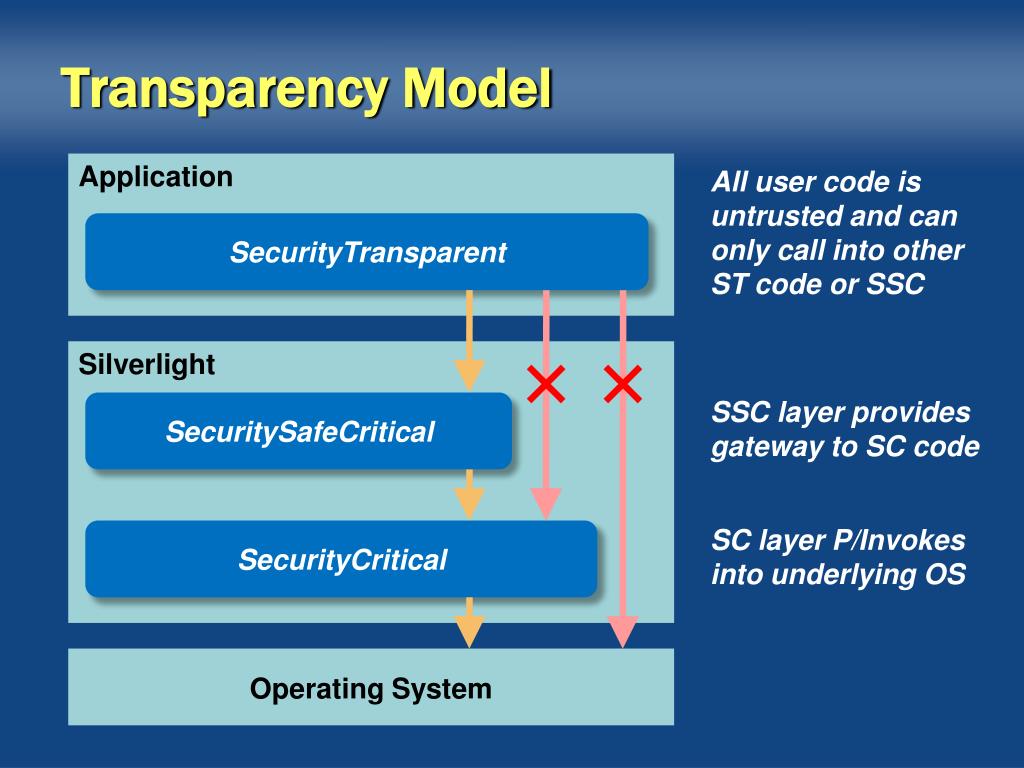

  14. Transparency Model Application All user code is untrusted and can only call into other ST code or SSC SecurityTransparent Silverlight SSC layer provides gateway to SC code SecuritySafeCritical SC layer P/Invokes into underlying OS SecurityCritical Operating System

  15. Your First Silverlight Application

  16. Input Events • XAML objects input fire events • Mouse events • Keyboard events • Most input events "bubble up" XAML DOM • Also known as "event routing" • Use RoutedEventArgs.Handled controls routing • RoutedEventArgs.Source refers to originator • Handlers can be registered declaratively or programmatically

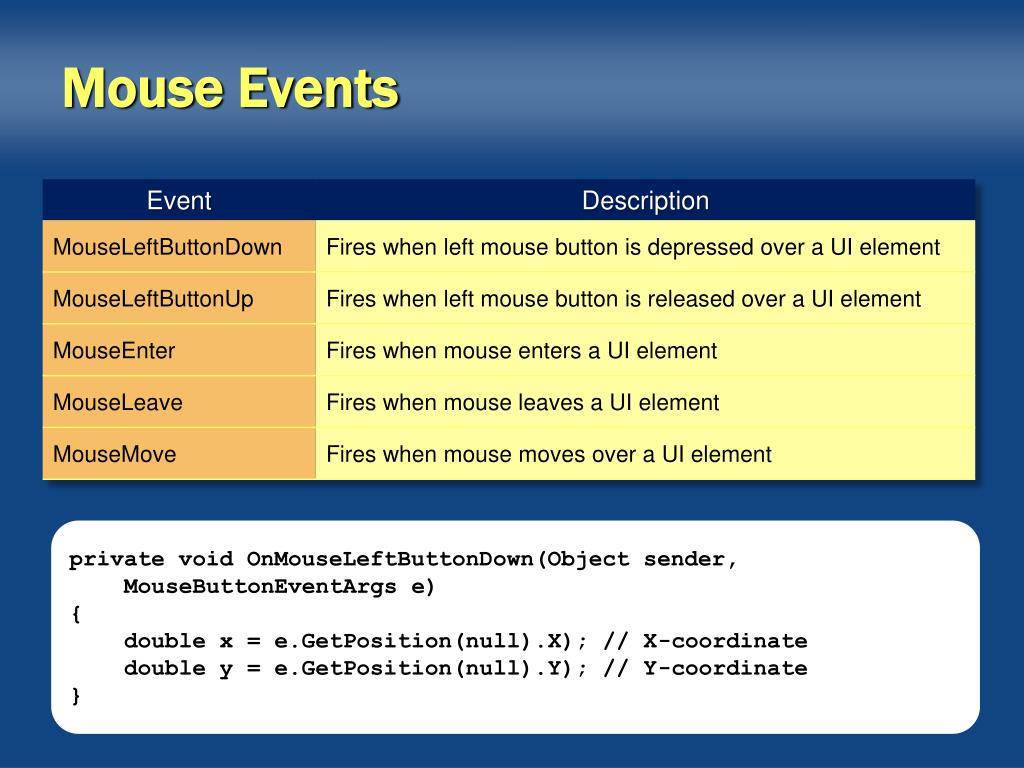

  17. Mouse Events private void OnMouseLeftButtonDown(Object sender, MouseButtonEventArgs e) { double x = e.GetPosition(null).X); // X-coordinate double y = e.GetPosition(null).Y); // Y-coordinate }

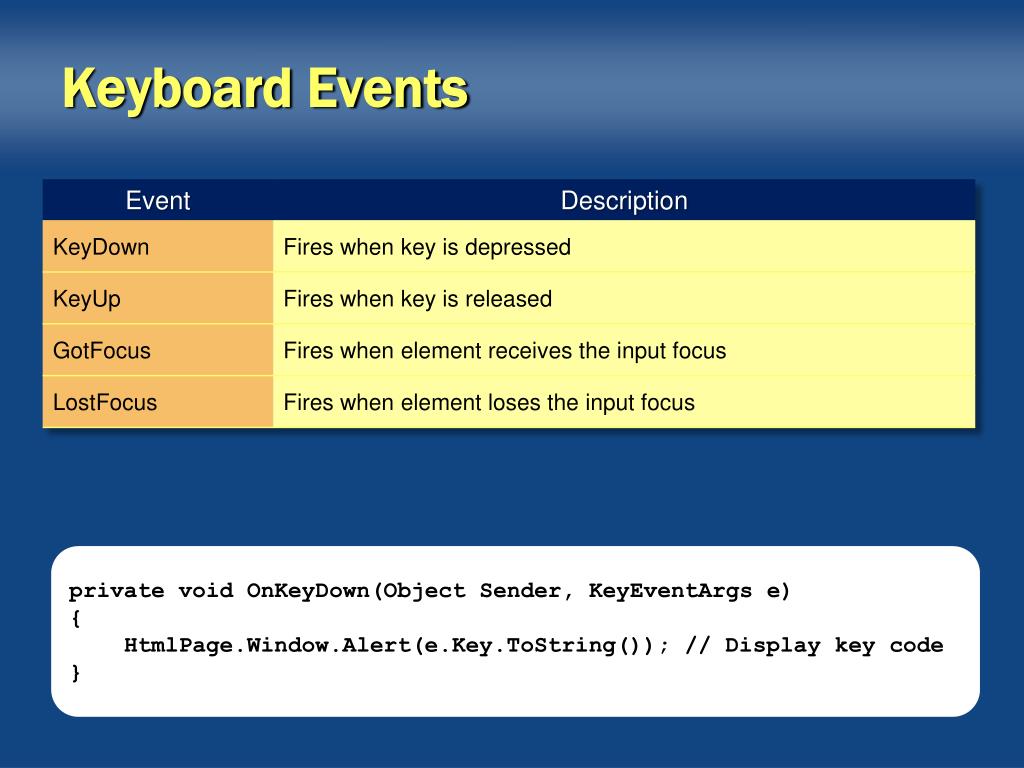

  18. Keyboard Events private void OnKeyDown(Object Sender, KeyEventArgs e) { HtmlPage.Window.Alert(e.Key.ToString()); // Display key code }

  19. Declarative Handler Registration <Rectangle Canvas.Left="50" Canvas.Top="50" Fill="Yellow" Width="300" Height="200" Stroke="Black" StrokeThickness="10" MouseLeftButtonDown="OnClick" /> private void OnClick(Object sender, MouseButtonEventArgs e) { ((Rectangle)sender).Fill = new SolidColorBrush(Colors.Red); }

  20. Mouse Wheel Events • Silverlight doesn't fire mouse wheel events • Mouse wheel events can be handled directly from browser (even in managed code) • Use Silverlight browser integration features • Handle DOM events in managed code • Requires manual handling of differences in ways browsers report mouse wheel events • Great for mouse wheel zooms and other features

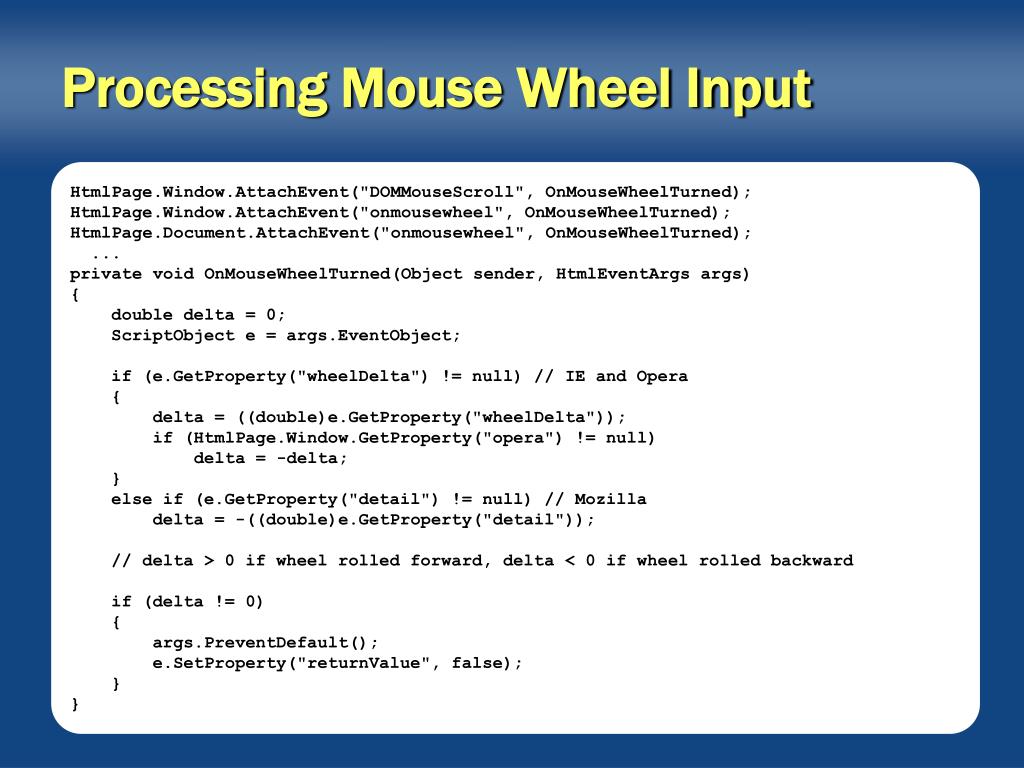

  21. Processing Mouse Wheel Input HtmlPage.Window.AttachEvent("DOMMouseScroll", OnMouseWheelTurned); HtmlPage.Window.AttachEvent("onmousewheel", OnMouseWheelTurned); HtmlPage.Document.AttachEvent("onmousewheel", OnMouseWheelTurned); ... private void OnMouseWheelTurned(Object sender, HtmlEventArgs args) { double delta = 0; ScriptObject e = args.EventObject; if (e.GetProperty("wheelDelta") != null) // IE and Opera { delta = ((double)e.GetProperty("wheelDelta")); if (HtmlPage.Window.GetProperty("opera") != null) delta = -delta; } else if (e.GetProperty("detail") != null) // Mozilla delta = -((double)e.GetProperty("detail")); // delta > 0 if wheel rolled forward, delta < 0 if wheel rolled backward if (delta != 0) { args.PreventDefault(); e.SetProperty("returnValue", false); } }

  22. Event Handling

  23. Discussion
