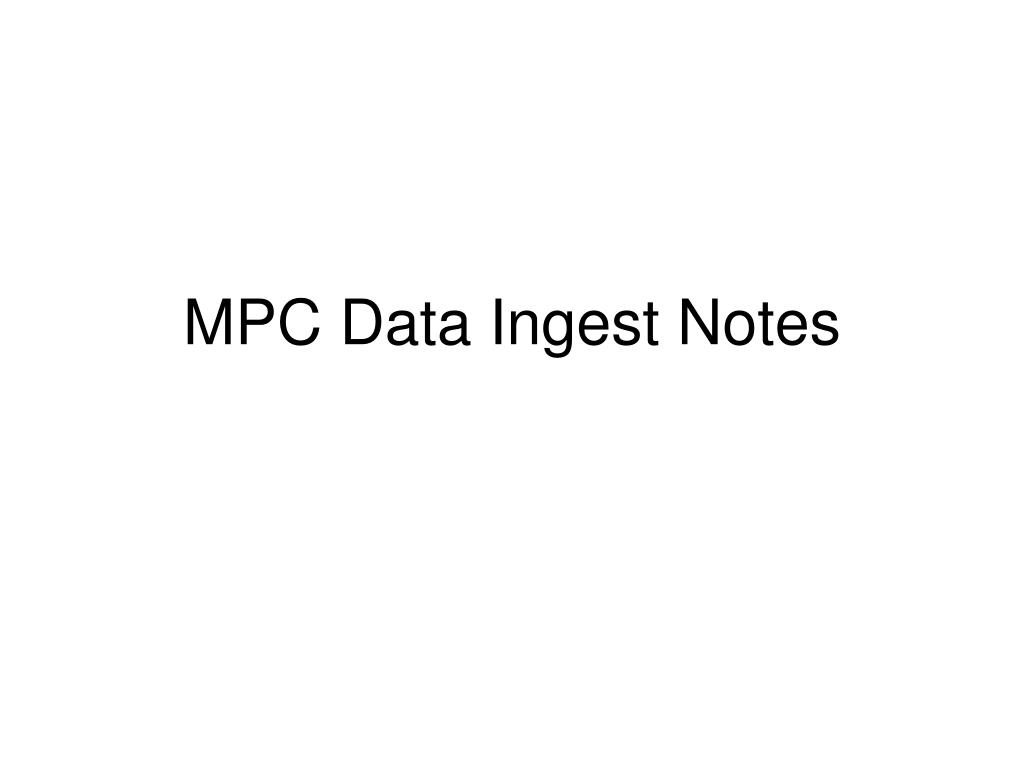

  1. MPC Data Ingest Notes

  2. Orbit calculation and creation of MOPS objects • Objects include Detections, Orbits (original MPC orbits), Orbits (JPL-calculated) • Stored to disk • ~19 h running time with one CPU

  3. Additional object creation and DB insertion via MOPS routines • Object creation includes Tracklets, DerivedObjects • 159366 Tracklets • 159357 DerivedObjects • DB insertion includes Detections, Tracklets, DerivedObjects • 31778048 Detections • 32096771 or ~32.09*10^6 objects

  4. DB transaction rates • Additional object creation and DB insertion via MOPS routines • 32.09*10^6 objects + 159357 records in table derivedobject_attrib = ~32.25*10^6 records • 36.5 h running time or ~245 transactions/sec

  5. DB transaction rates • Batch DB insert using optimized SQL directly on the database server • 32.25*10^6 records • 8.73 h running time • ~1025 transactions/sec • Batch DB insert using optimized SQL over the network • 9.75 h running time • ~918 transactions/sec

  6. MOPS overhead • Retrieving MOPS objects from disk and calling the insert method for each object • Includes various data integrity checks • Prepares SQL statements • Executes SQL statements • Processes database return values • 26.75 h additional processing time versus straight SQL insert

  7. Improving the situation • Reducing number of detections • Date-limiting observations • Optimizing the detections table definition • Removing indexes

  8. DB transaction rates • Batch DB insert using optimized SQL with the removal of six indexes in detections table • 32.25*10^6 records • 55 min running time • ~9772 transactions/sec • Undetermined how indexes affect performance using MOPS routines

  9. Conclusions • 245 transactions/sec is a realistic value for object insertion (mostly Detections) via MOPS • Scale of MPC data and/or my implementation may be problematic • Inserted Spacewatch fields and detections along with NEOS model SSM to MPC data instance • Normal runtime for MOPS simulation using Spacewatch data and NEOS model is reported to be half a night • Started DTCTL on Friday, still running… • Received two interruptions with error “Too many links” in attributeOrbits
