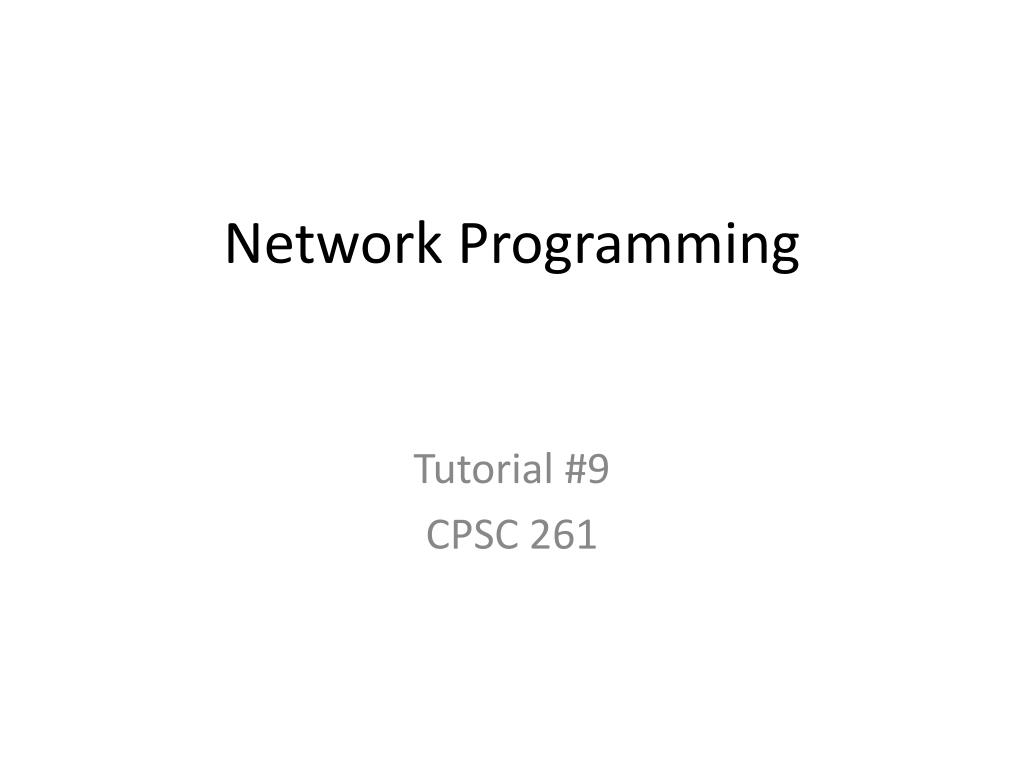

  1. Network Programming Tutorial #9 CPSC 261

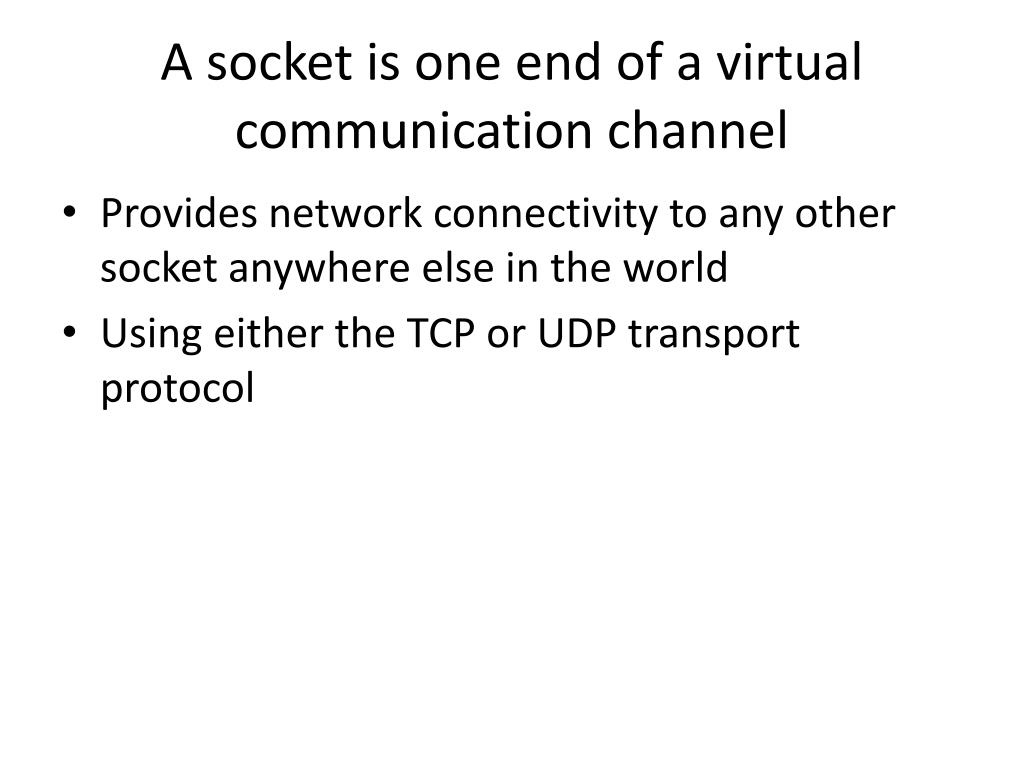

  2. A socket is one end of a virtual communication channel • Provides network connectivity to any other socket anywhere else in the world • Using either the TCP or UDP transport protocol

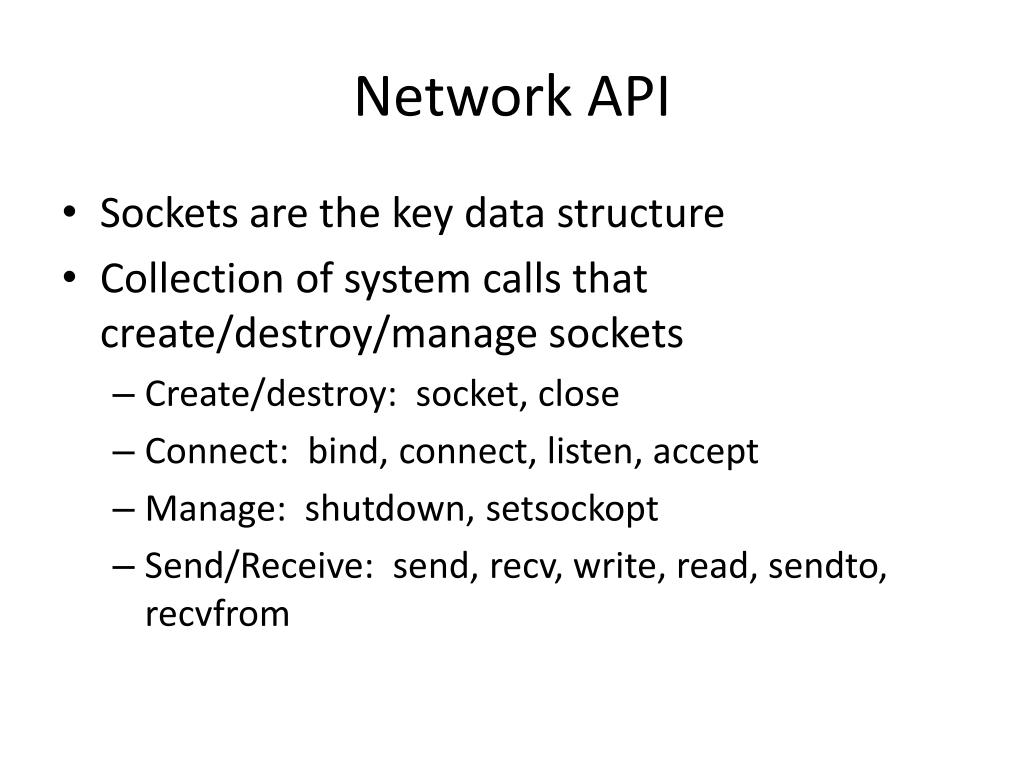

  3. Network API • Sockets are the key data structure • Collection of system calls that create/destroy/manage sockets • Create/destroy: socket, close • Connect: bind, connect, listen, accept • Manage: shutdown, setsockopt • Send/Receive: send, recv, write, read, sendto, recvfrom

  4. Socket calls in sequence (UDP) • Client side Socket Bind Sendto Recvfrom Close • Server side Socket Bind Recvfrom Sendto Close

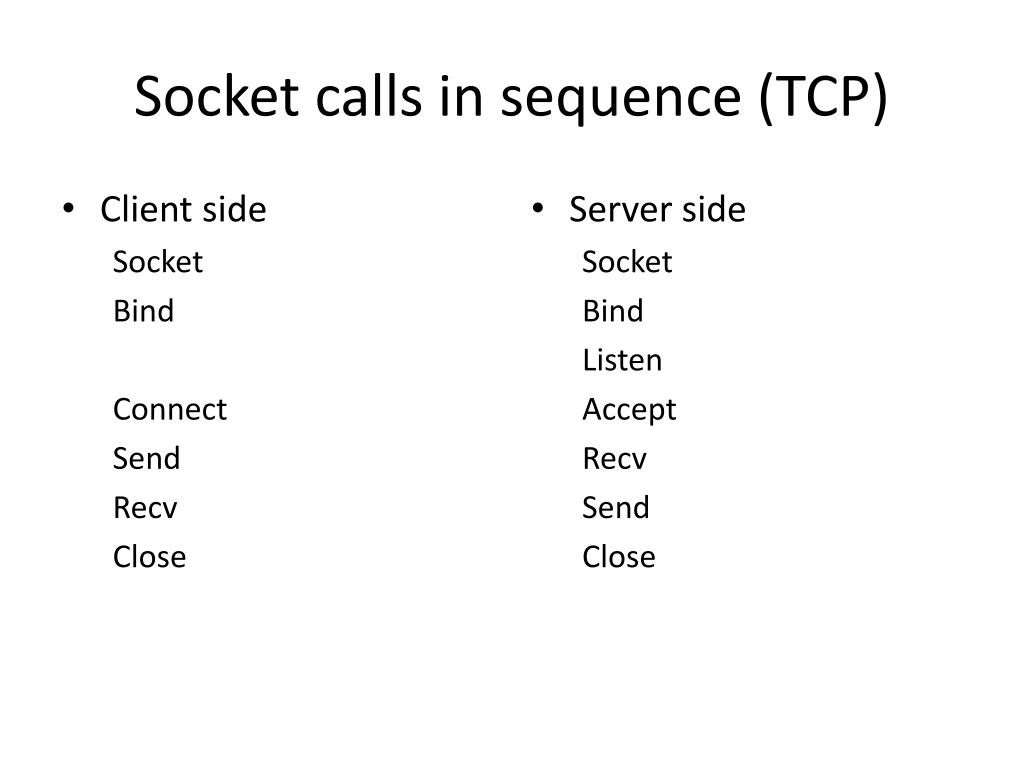

  5. Socket calls in sequence (TCP) • Client side Socket Bind Connect Send Recv Close • Server side Socket Bind Listen Accept Recv Send Close

  6. Socket programming is ... baroque* • The socket calls were standardized a long time ago • There were lots of different network standards • Each with their own addressing information • The socket calls need to be general enough to handle them all (and any other ones that might come along) • Easy things are much harder than they should need to be *Extravagant, complex, or bizarre

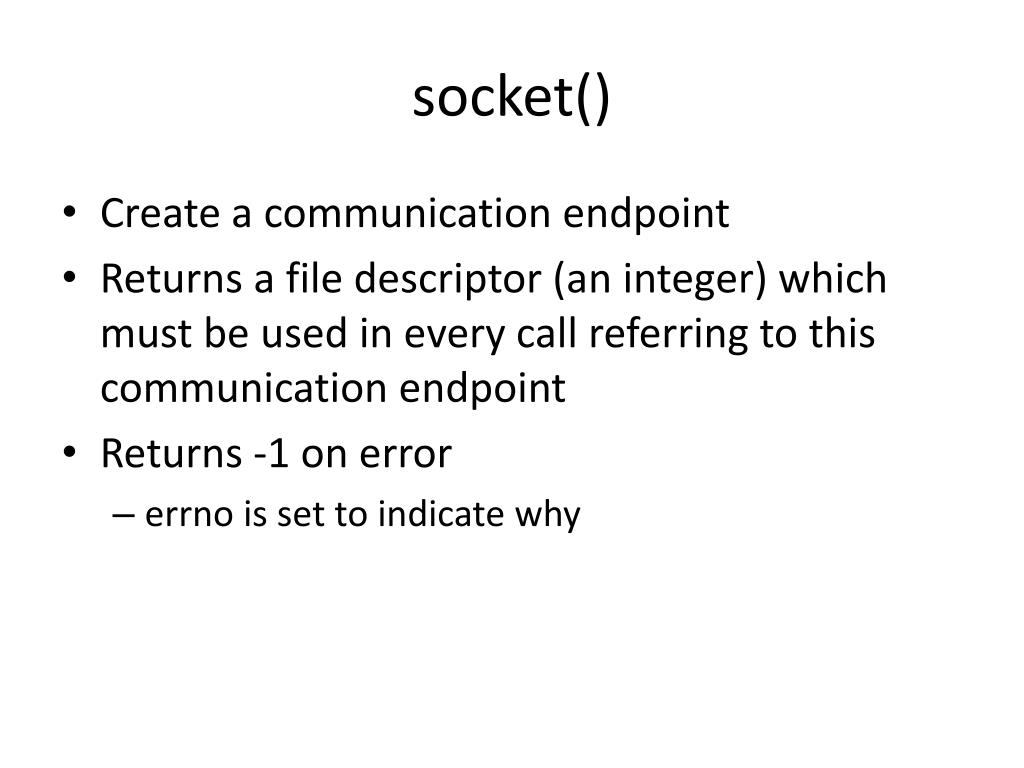

  7. socket() • Create a communication endpoint • Returns a file descriptor (an integer) which must be used in every call referring to this communication endpoint • Returns -1 on error • errno is set to indicate why

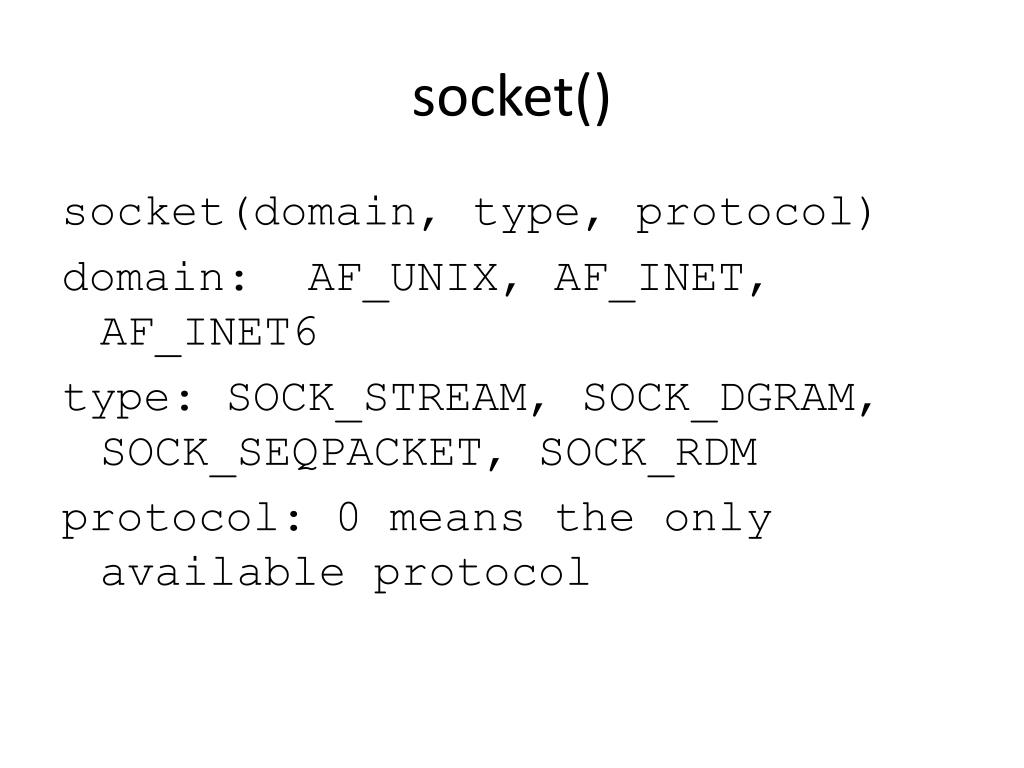

  8. socket() socket(domain, type, protocol) domain: AF_UNIX, AF_INET, AF_INET6 type: SOCK_STREAM, SOCK_DGRAM, SOCK_SEQPACKET, SOCK_RDM protocol: 0 means the only available protocol

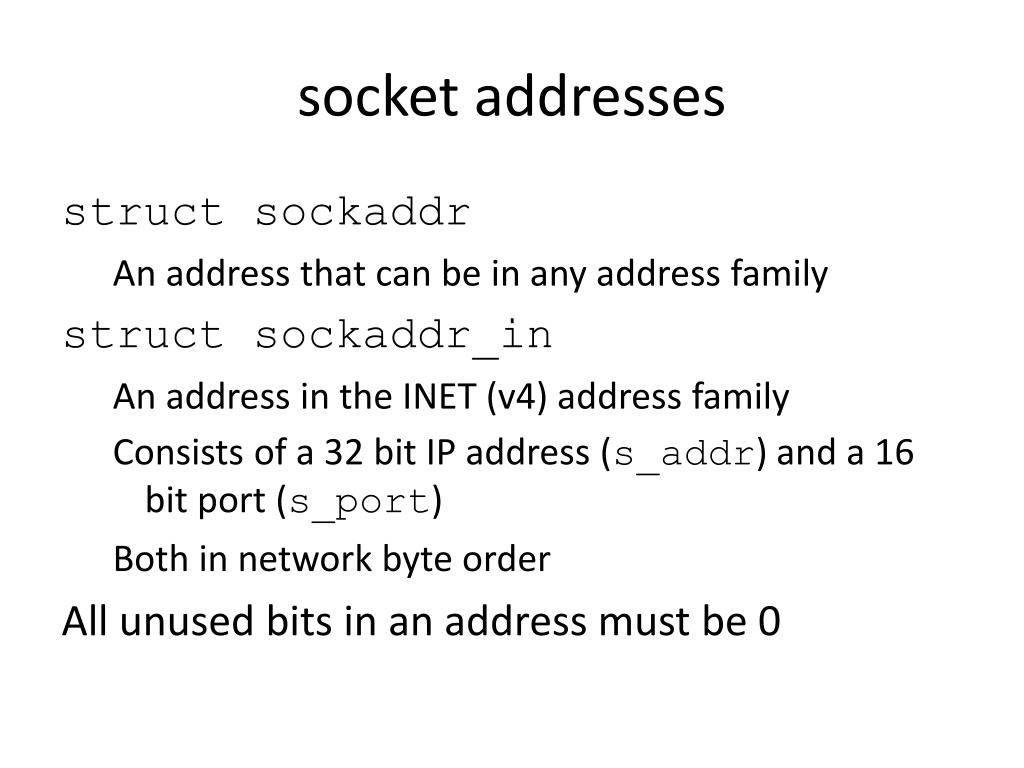

  9. socket addresses structsockaddr An address that can be in any address family structsockaddr_in An address in the INET (v4) address family Consists of a 32 bit IP address (s_addr) and a 16 bit port (s_port) Both in network byte order All unused bits in an address must be 0

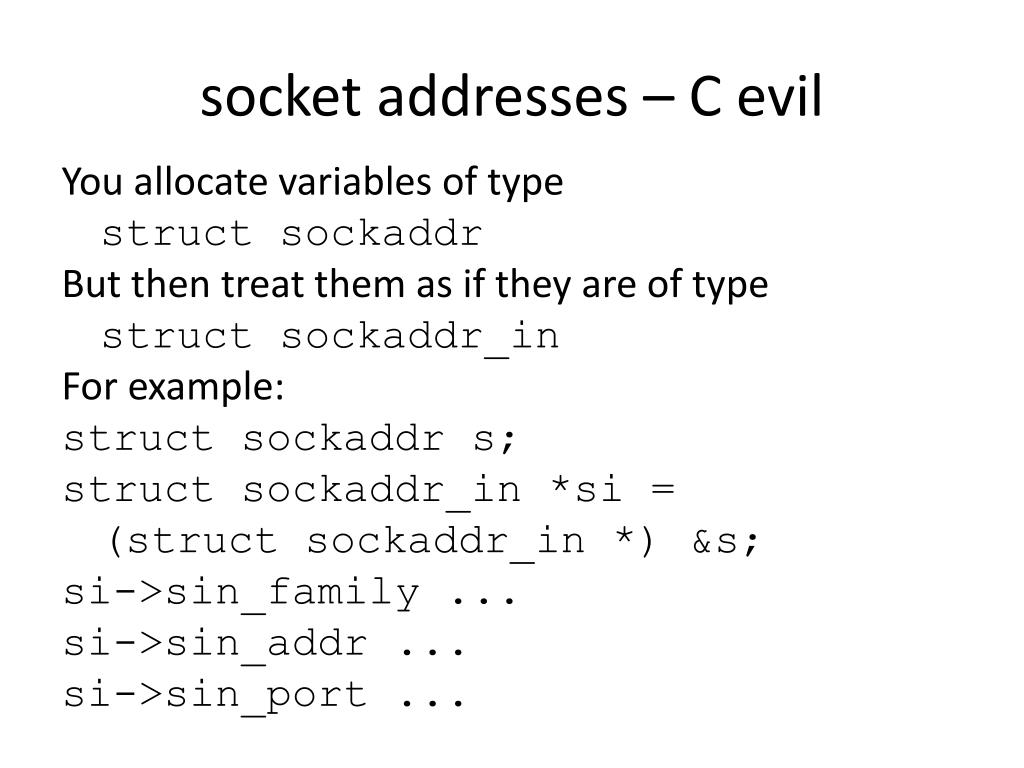

  10. socket addresses – C evil You allocate variables of type structsockaddr But then treat them as if they are of type structsockaddr_in For example: structsockaddrs; structsockaddr_in *si = (structsockaddr_in *) &s; si->sin_family ... si->sin_addr ... si->sin_port ...

  11. bind() • Establish a local address for a socket • The local address is the address of this endpoint, so will be the current machine’s IP address and a port • Returns 0 on success • Returns -1 on error • errno is set to indicate why

  12. bind() bind(socket, addr, addrlen) socket: a file descriptor returned from socket() addr: a pointer to a structsockaddr addrlen: the length of the addr

  13. sendto() • Sends data through an unconnected socket • The destination address is specified each time • Returns the number of bytes sent on success • Returns -1 on error • errno is set to indicate why

  14. sendto() sendto(socket, buf, len, flags, destaddr, addrlen) socket: the socket file descriptor buf: pointer to data to send len: length of data to send flags: almost always 0 destaddr: a structsockaddr * indicating the destination socket addrlen: the length of destaddr

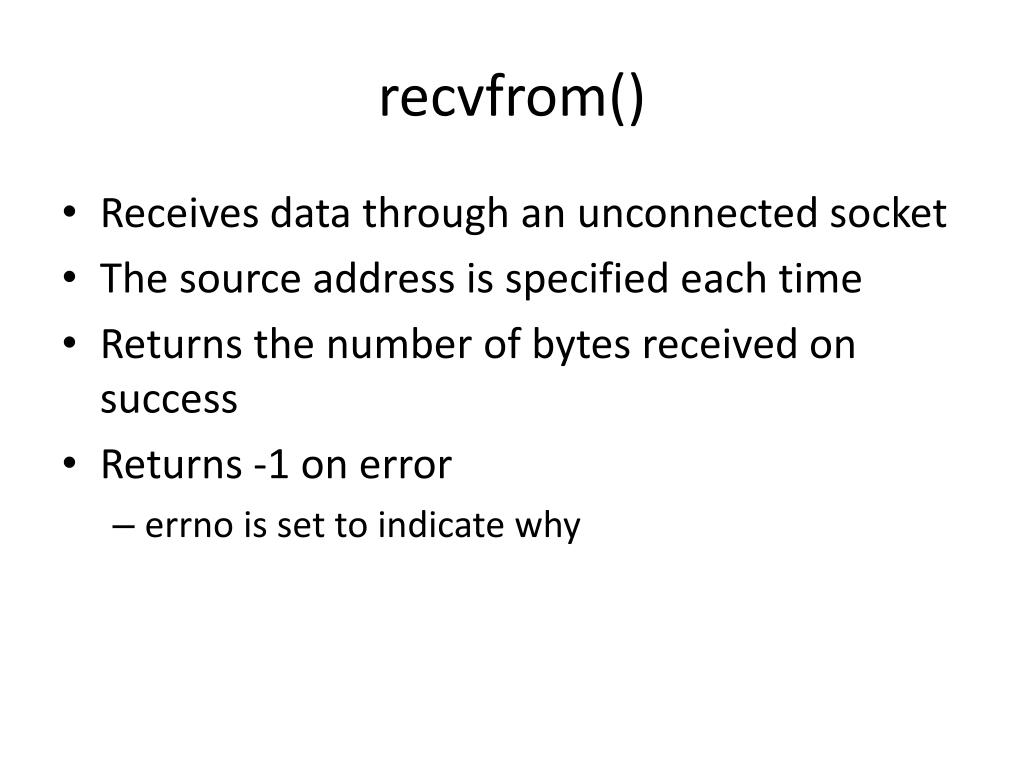

  15. recvfrom() • Receives data through an unconnected socket • The source address is specified each time • Returns the number of bytes received on success • Returns -1 on error • errno is set to indicate why

  16. recvfrom() recvfrom(socket, buf, len, flags, srcaddr, addrlen) socket: the socket file descriptor buf: pointer to recv buffer len: length of recv buffer flags: almost always 0 srcaddr: a structsockaddr * for receiving the source socket addr addrlen: a pointer to the length of srcaddr, changed by the call

  17. close() • closes a socket • makes it unusable in the future for sending or receiving • Returns 0 on success • Returns -1 on error • errno is set to indicate why

  18. close() close(socket) socket: the socket file descriptor

  19. Look at a couple of examples • All are in the network directory of the lectures repository • receive.c • send.c • shared.c

  20. Socket calls in sequence (TCP) • Client side Socket Bind Connect Send Recv Close • Server side Socket Bind Listen Accept Recv Send Close

  21. listen() • Indicates that the socket is to be used for accepting incoming connections • Done on the “server” side only • Returns 0 on success • Returns -1 on error • errno is set to indicate why

  22. listen() listen(socket, backlog) socket: a file descriptor returned from socket() backlog: the number of incoming connection requests to allow to queue

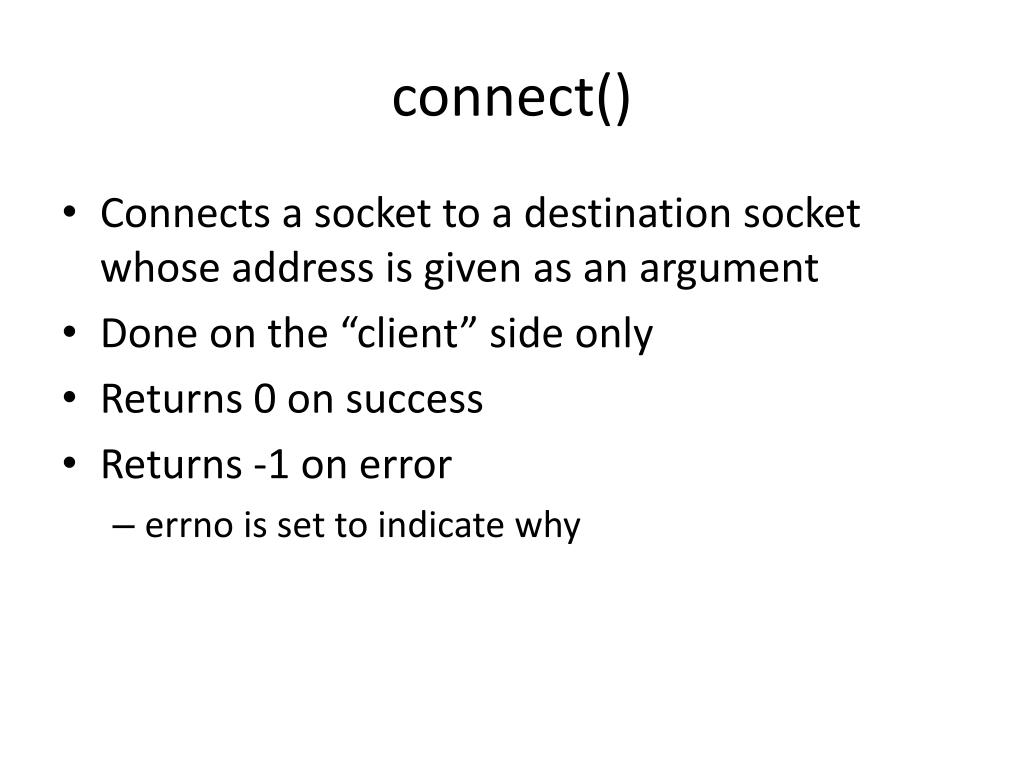

  23. connect() • Connects a socket to a destination socket whose address is given as an argument • Done on the “client” side only • Returns 0 on success • Returns -1 on error • errno is set to indicate why

  24. connect() connect(socket, addr, addrlen) socket: a file descriptor returned from socket() addr: a pointer to a structsockaddr addrlen: the length of the addr

  25. accept() • Accepts an incoming connection • waits for an incoming connection request • Done on the “server” side only • Returns a new socket file descriptor on success • Returns -1 on error • errno is set to indicate why

  26. accept() accept(socket, addr, addrlen) socket: a file descriptor returned from socket() addr: a pointer to a structsockaddr addrlen: a pointer to the length of the addr, changed by the call

  27. send() • Sends data through a connected socket • No destination address is specified • Returns the number of bytes sent on success • Returns -1 on error • errno is set to indicate why

  28. send() send(socket, buf, len, flags) socket: the socket file descriptor buf: pointer to data to send len: length of data to send flags: almost always 0

  29. recv() • Receives data through a connected socket • No source address is indicated • Returns the number of bytes received on success • 0 usually means “end-of-file”, meaning there will be no more data to receive, ever again • Returns -1 on error • errno is set to indicate why

  30. recv() recv(socket, buf, len, flags) socket: the socket file descriptor buf: pointer to recv buffer len: length of recv buffer flags: almost always 0

  31. shutdown() • Indicates that an application is done with either sending or receiving data on a socket • When a connected stream socket is shutdown for sends, then the other side receives “end-of-file” • Returns 0 on success • Returns -1 on error • errno is set to indicate why

  32. shutdown() shutdown(socket, how) socket: a file descriptor returned from socket() how: SHUT_RD no more receives SHUT_WR no more sends SHUT_RDWR no more communication at all

  33. Web resources • There are lots of network programming guides on the net • The “standard” reference is Beej’s guide • It has become way too long over the years • The 1999 version is pretty good • On the web pointed to by the lab page

  34. Bits of advice • Pay very close attention to the arguments to every network call • Especially addresses • Check the returned value from every network call • If something goes wrong, you need to know about it early • And bail out, or start over and try again
