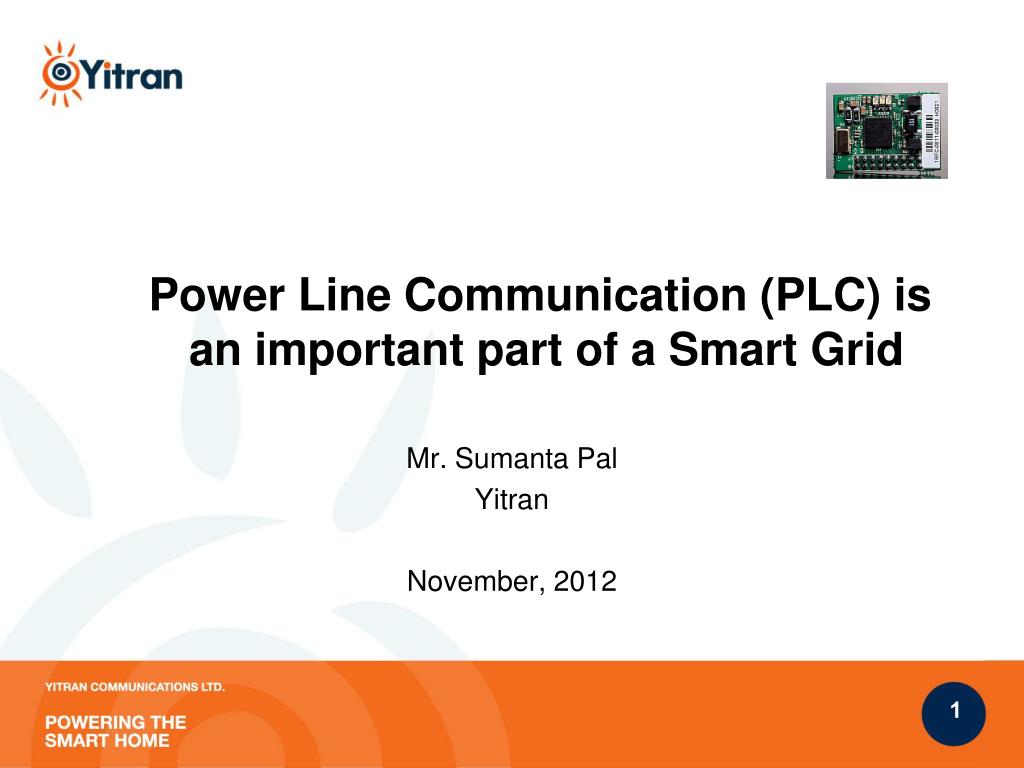

  1. Power Line Communication (PLC) is an important part of a Smart Grid Mr. Sumanta Pal Yitran November, 2012

  2. Agenda • What is Smart Grid ? • About PLC • Where does PLC fit in Smart Grid? • About PLC Standard activities • Applications and Markets • Case studies • About Yitran

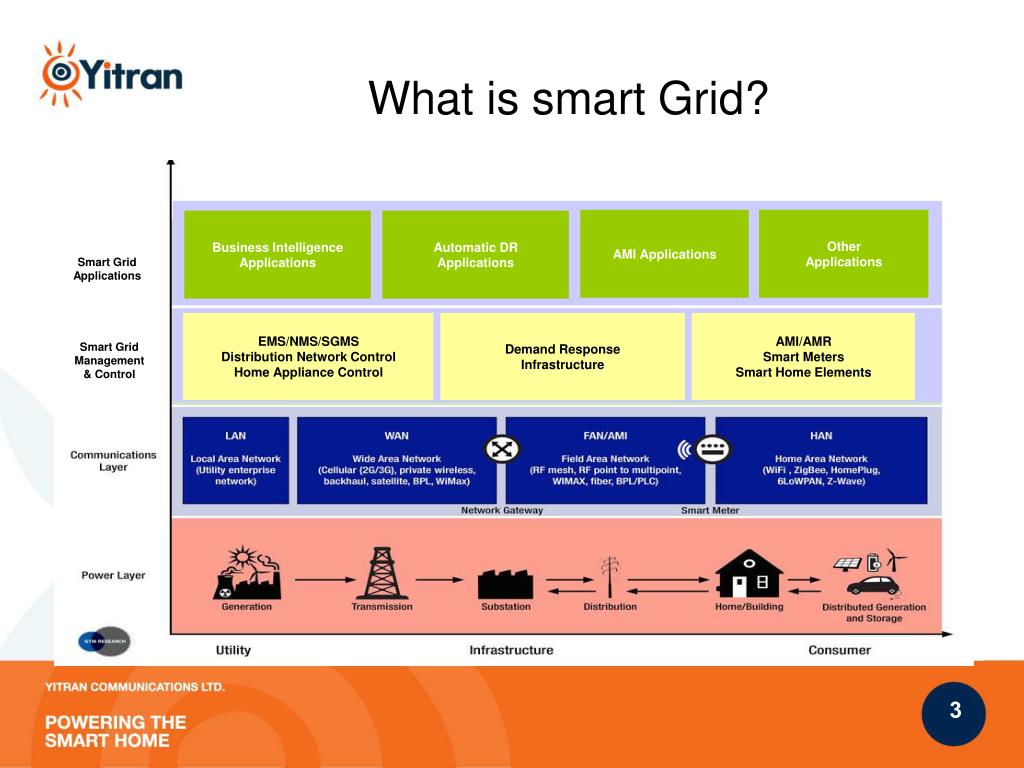

  3. Smart Grid Applications AMI Applications Other Applications Business Intelligence Applications Automatic DR Applications Smart Grid Management & Control EMS/NMS/SGMS Distribution Network Control Home Appliance Control Demand Response Infrastructure AMI/AMR Smart Meters Smart Home Elements What is smart Grid?

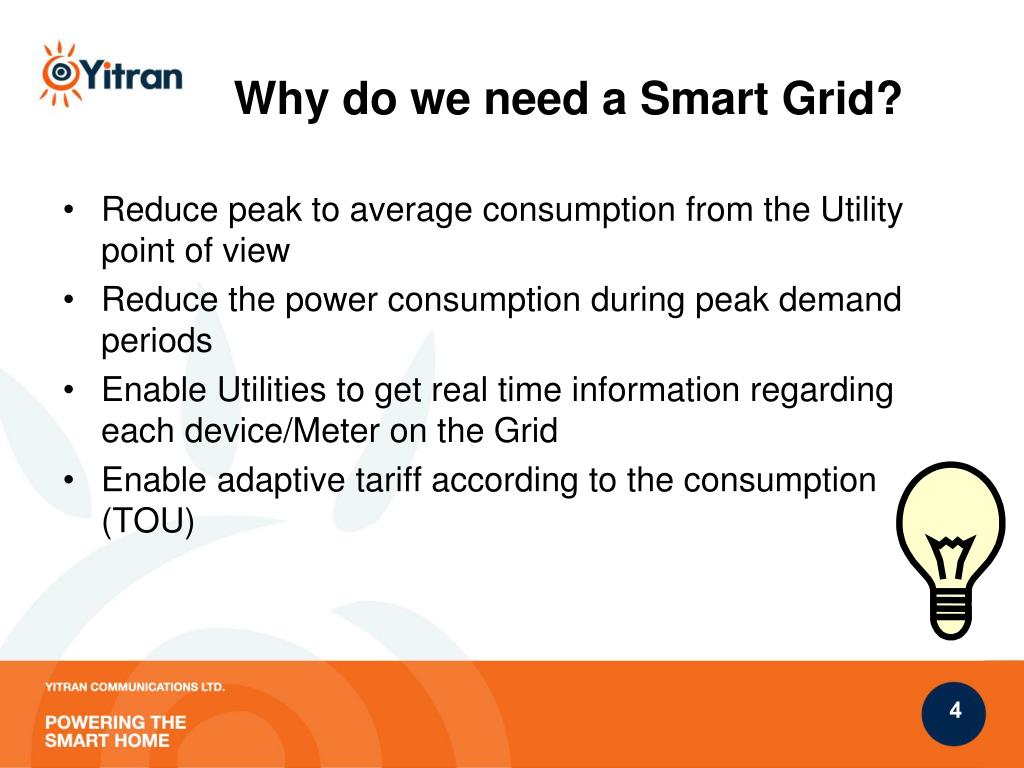

  4. Why do we need a Smart Grid? • Reduce peak to average consumption from the Utility point of view • Reduce the power consumption during peak demand periods • Enable Utilities to get real time information regarding each device/Meter on the Grid • Enable adaptive tariff according to the consumption (TOU)

  5. About PLC • PLCis a “No New Wires” technology, which uses the standard existing electrical wiring as the physical medium for communication. • The electrical wiring medium was originally devised for transmission of power at 50-60 Hz !! • Signal attenuation at frequencies that can be utilized for PLC is fairly high. • Electrical appliances introduce a variety of noise signals and interferences such as carrier wave signals, spikes, pulses, bursts and more. • Conclusion – Reliable and robust modem, yet low cost, is a MUST to enable ubiquitous networking and control using PLC.

  6. Smart Grid Applications AMI Applications Other Applications Business Intelligence Applications Automatic DR Applications Smart Grid Management & Control EMS/NMS/SGMS Distribution Network Control Home Appliance Control Demand Response Infrastructure AMI/AMR Smart Meters Smart Home Elements Where PLC can fit?

  7. Utility Grid GPRS GPRS GPRS 1 1 1 2 2 2 3 3 3 PLC Network #1 PLC Network #2 PLC Network #N 220 200 300 GPRS CFE Sub Station Back Office

  8. LV Transformer PLC – GPRS Bridge 1 Concentrator GPRS 2 3 400 PLC Network PLC Remote 1. One Concentrator under the transformer 2. Up to 1000 Smart Meters 3. Each Meter can serve as a repeater PLC Remote

  9. Home Demand Response: Higher price indication, encourages consumers to reduce demand, thereby reduce the peak demand for electricity.

  10. PLC Communication PLC Modem • TDD – Time Division Duplexing • Operate between 9Khz-500Khz • Rates 5Kbps up to 500Kps • Modulation: Spread Spectrum, OFDM, SFSK • PLC Networking Layer – “Mesh”

  11. Standards Activities • HomePlug CC • ITU G.hnem activity • IEEE P1901.2 activity • PRIME – Ibedrola initiative • G3 PLC – Cooperate with EDF • Others Yitran is a main contributor of HomePlug CC, ITUG.hnem, IEEE P1901.2 and lately G3-PLC

  12. Markets & Applications

  13. AMR/AMM/AMI Products

  14. Split Meter/Load Control ESKOM / UtilLabs Load Shifting System IT700 Inside Metering outside the Homes Display in the Home

  15. Smart Home Product

  16. Street Light Products Status: Ok Bulb Life: 1 week

  17. Solar Panel Products

  18. Case Study

  19. Last Mile Communications System Case Study – PLC – Eskom Utilities, South Africa Challenge • Eskom needs to perform load management among the residential and industrial customers in order to meet the demands for energy from the industrial sector for economic growth. • The deployment of Universal Load Controller device that allows every household to apply load-shedding to itself, rather than have Eskom do it on a broad scale. Concept • Use of PLC technology to provide the last mile access from the substation to the distribution box outside the home • The PLC communication network to connect 30,000 homes, next stage is in plan. Result The use of the PLC communication network enables the ULC pilot to conclude successfully. Approach • The distance between the substation and the distribution box at the home can sometimes exceed 1Km. • A robust PLC technology is used to provide the reach without the use of any repeaters

  20. Last Mile Communications System Case Study – PLC – Belgorod, Russia Challenge An AMR solution is required for the city of Belgorod, Russia. Concept The use of PLC technology for the last mile communication network for the AMR solution. Approach • The inherent condition of the power grid in Belgorod poses a great challenge to the use of PLC technology • A robust PLC is deployed, including full AMR and networking firmware, to overcome the challenges. Result Use of the PLC technology enables the success of the AMR project. Already installed 150K units.

  21. Last Mile Communications System Case Study – PLC – Mexico Challenge An AMR solution is required for Mexico – Antitheft System Concept The use of PLC technology for the last mile communication network from the transformer into an IHD device within the home. Approach • The losses of electricity are close to 30%. Measuring modules are installed on top of the MV/LV transformer. In the home there is only an In Home Display • A robust PLC is deployed, including full AMR firmware, to overcome the challenges. Result Use of the PLC technology enables the success of the project. Already order 200K units.

  22. Yitran is a leading fabless IC company, developing and providing state of the art Narrowband Powerline Communication (PLC) ICs and solutions. Technology Features • Highly robust, low cost and simple setup solutions • Unique DCSK patented modulation techniques • Over 25 issued patents and more pending • Baseline technology for setting new OFDM based industry standards • Applications • Energy Management/Smart Grid • Home/Building Automation • Commercial Automation and Management • Solar Panel Monitoring and Control • Street Lights Monitoring and Control Location • Headquarters – Beer Sheva • Global offices in U.S., Russia, China, India. Personnel • 40 total employees / 19 in R&D Product Offerings • Yitran IT800/700/900/1000 PLC chips • IT700/900/1000 Modules • ZigBee+ Residential RF-PLC solution • Y-Net/Y-Net+ RF-PLC dual network platform • Y-Net Evaluation / Development Tools

  23. The benefits of using Yitran’s PLC • Using the existing Power Line infrastructure • Simple installation • PLC unit integrated in the unit • No need for additional components ( e.g. antenna ) • Automatic network creation • Cost effective • One chip solution including AFE • Application embedded in the PLC chip • Support - Remote software download ( maintenance) • Performance • More then 90dB dynamic range • Distance – can communicate over 1Km point to point • Designed for Command and Control • High reliability • Low power consumption

  24. THANK YOU Yitran Communications Ltd. Sumanta Pal Technical Marketing & Support Manager Sumanta.pal@yitran.com Mob: +91 9930789945 www.yitran.com
