Solids of revolution

Solids of revolution. When an area is rotated through 2 , a solid object is formed. If a curve is rotated, a hollow object is formed. Both are known as solids of revolution. Volume of revolution about the x-axis.

dore
Télécharger la présentation

Solids of revolution

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Solids of revolution When an area is rotated through 2, a solid object is formed. If a curve is rotated, a hollow object is formed. Both are known as solids of revolution. Volume of revolution about the x-axis The area is bounded by the curve y = f(x) , the x-axis , x = a and x = b, is rotated through 2 radians (360), about the x-axis. The volume of the solid is given by:

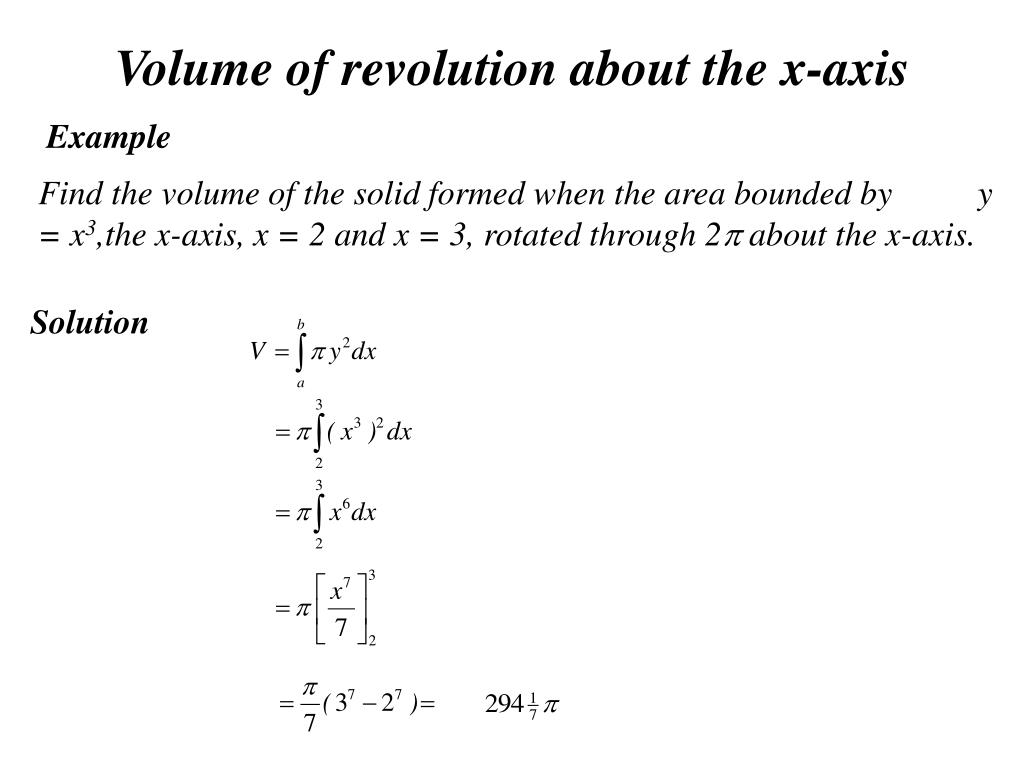

  2. Volume of revolution about the x-axis Example Find the volume of the solid formed when the area bounded by y = x3,the x-axis, x = 2 and x = 3, rotated through 2 about the x-axis. Solution

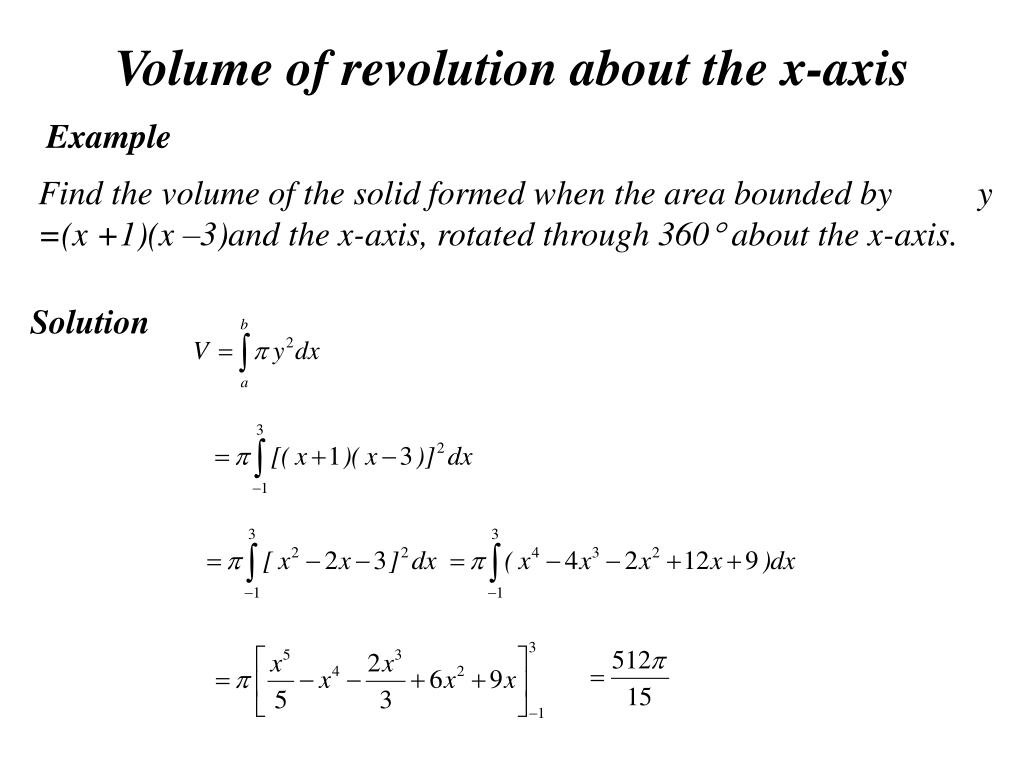

  3. Volume of revolution about the x-axis Example Find the volume of the solid formed when the area bounded by y =(x +1)(x –3)and the x-axis, rotated through 360about the x-axis. Solution

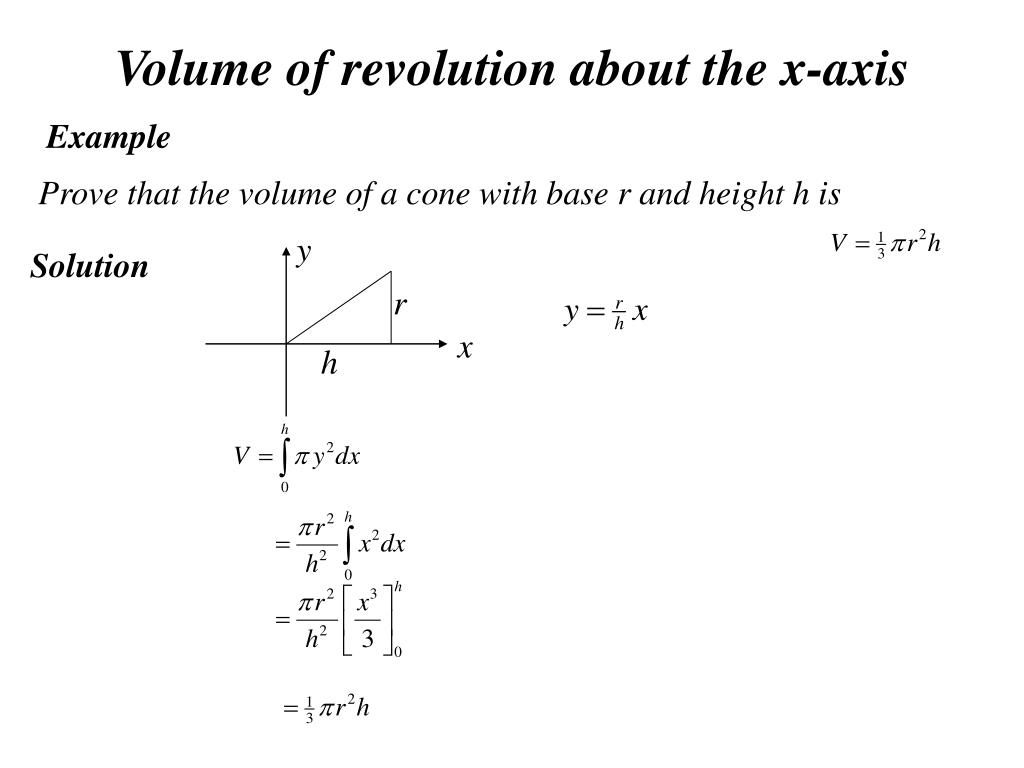

  4. y r x h Volume of revolution about the x-axis Example Prove that the volume of a cone with base r and height h is Solution

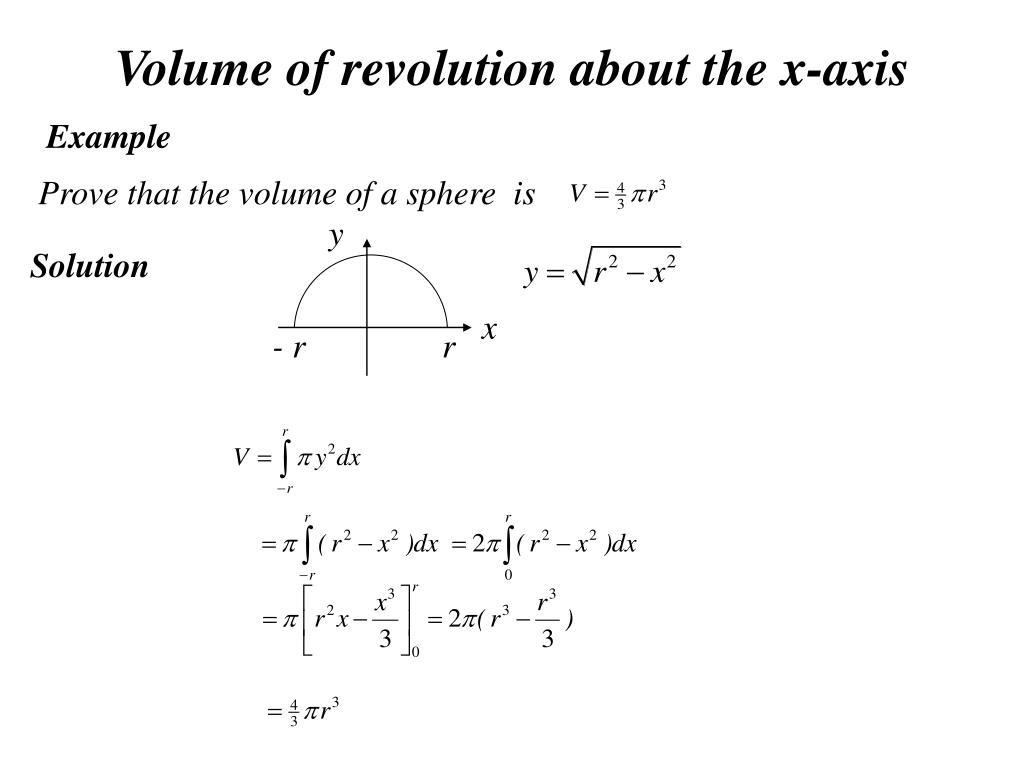

  5. y x - r r Volume of revolution about the x-axis Example Prove that the volume of a sphere is Solution

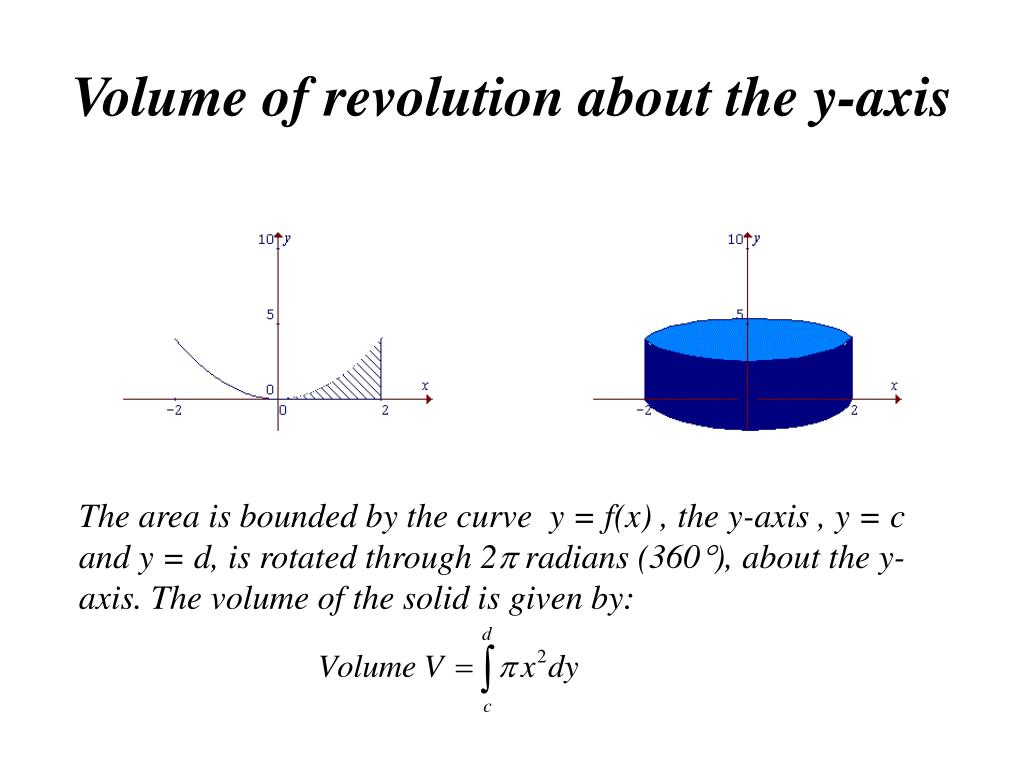

  6. Volume of revolution about the y-axis The area is bounded by the curve y = f(x) , the y-axis , y = c and y = d, is rotated through 2 radians (360), about the y-axis. The volume of the solid is given by:

  7. Volume of revolution about the y-axis Example Find the volume of the solid formed when the area bounded by y = x, the y-axis, y = 1 and y = 2, rotated through 2 about the y-axis. Solution

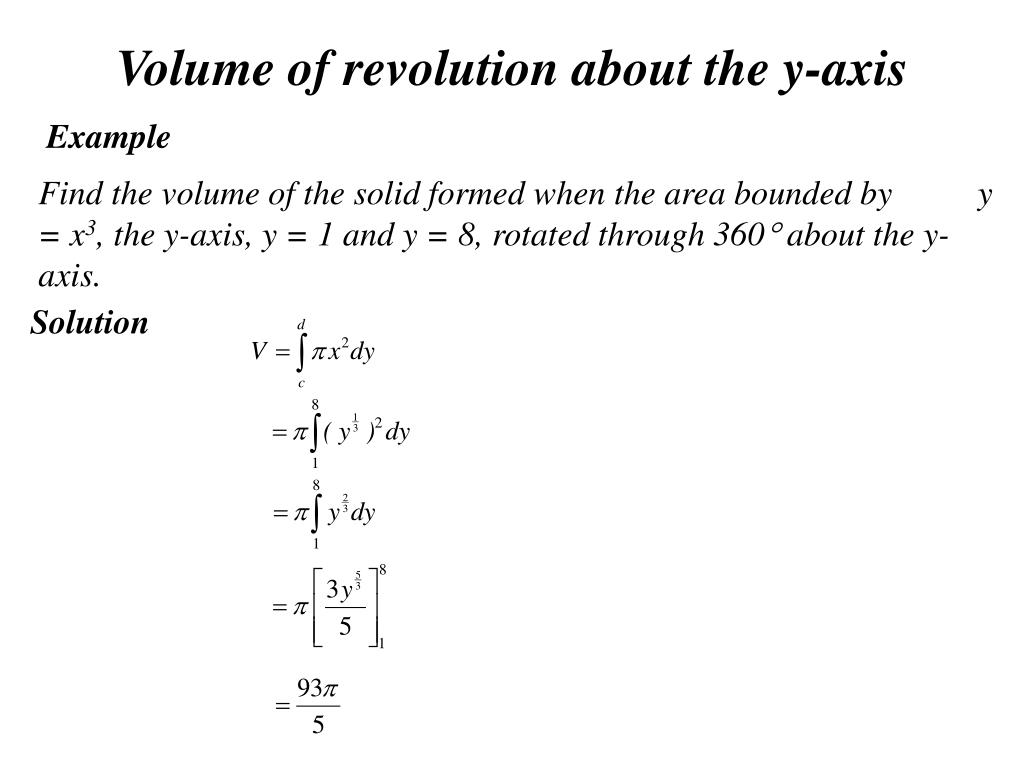

  8. Volume of revolution about the y-axis Example Find the volume of the solid formed when the area bounded by y = x3, the y-axis, y = 1 and y = 8, rotated through 360 about the y-axis. Solution

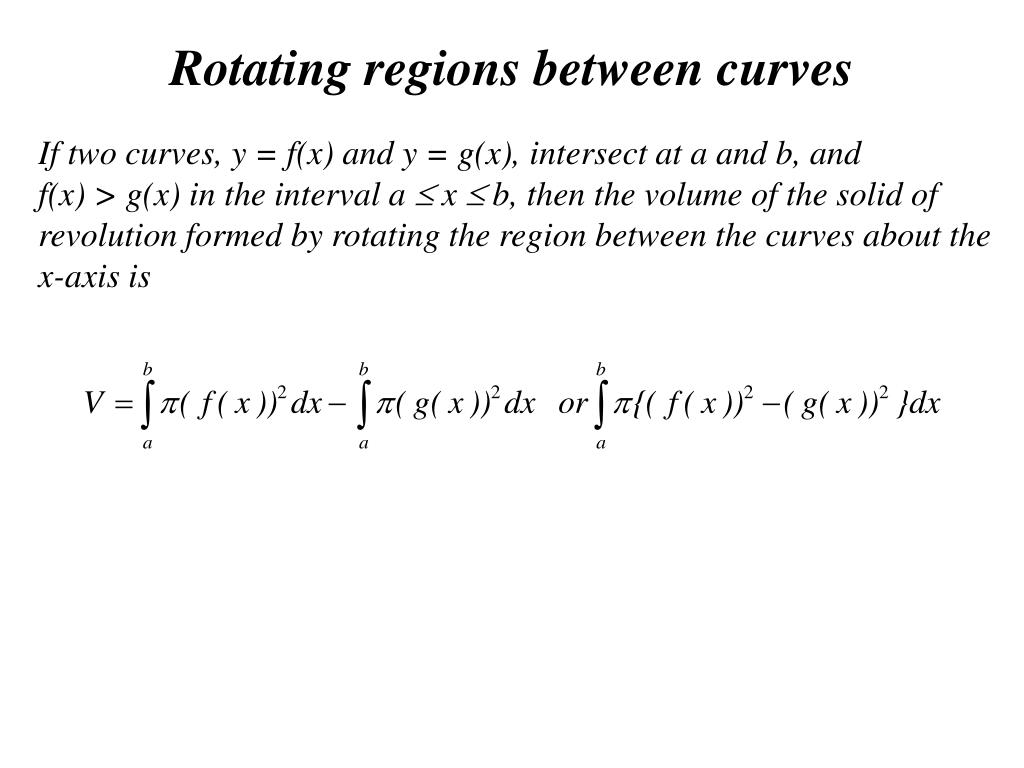

  9. Rotating regions between curves If two curves, y = f(x) and y = g(x), intersect at a and b, and f(x) > g(x) in the interval a  x  b, then the volume of the solid of revolution formed by rotating the region between the curves about the x-axis is

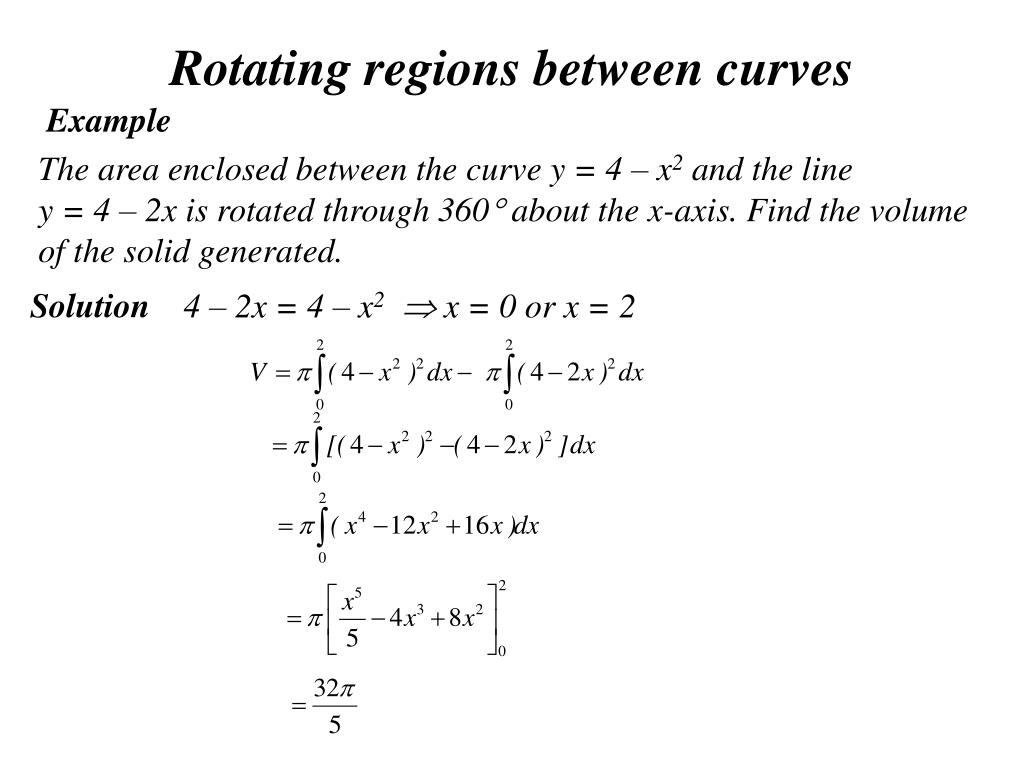

  10. Rotating regions between curves Example The area enclosed between the curve y = 4 – x2 and the line y = 4 – 2x is rotated through 360 about the x-axis. Find the volume of the solid generated. Solution 4 – 2x = 4 – x2 x = 0 or x = 2
