Cryptography and Network Security Chapter 9

1. Cryptography and Network SecurityChapter 9 Fifth Edition by William Stallings Lecture slides by Lawrie Brown

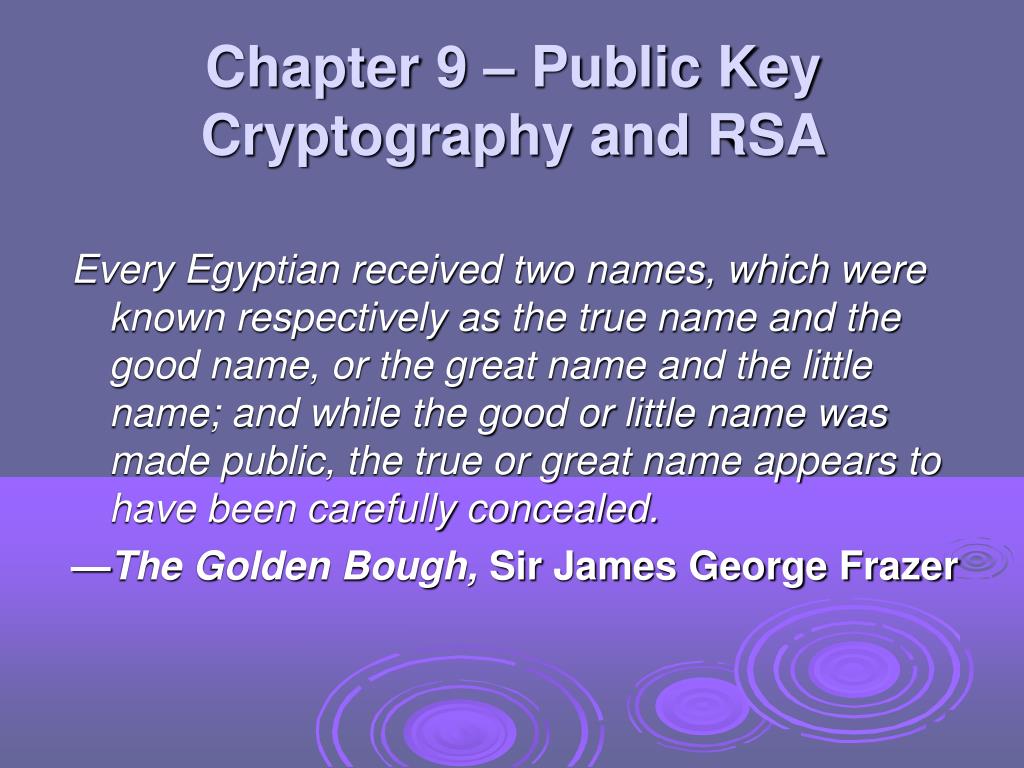

2. Chapter 9 – Public Key Cryptography and RSA Every Egyptian received two names, which were known respectively as the true name and the good name, or the great name and the little name; and while the good or little name was made public, the true or great name appears to have been carefully concealed. —The Golden Bough, Sir James George Frazer

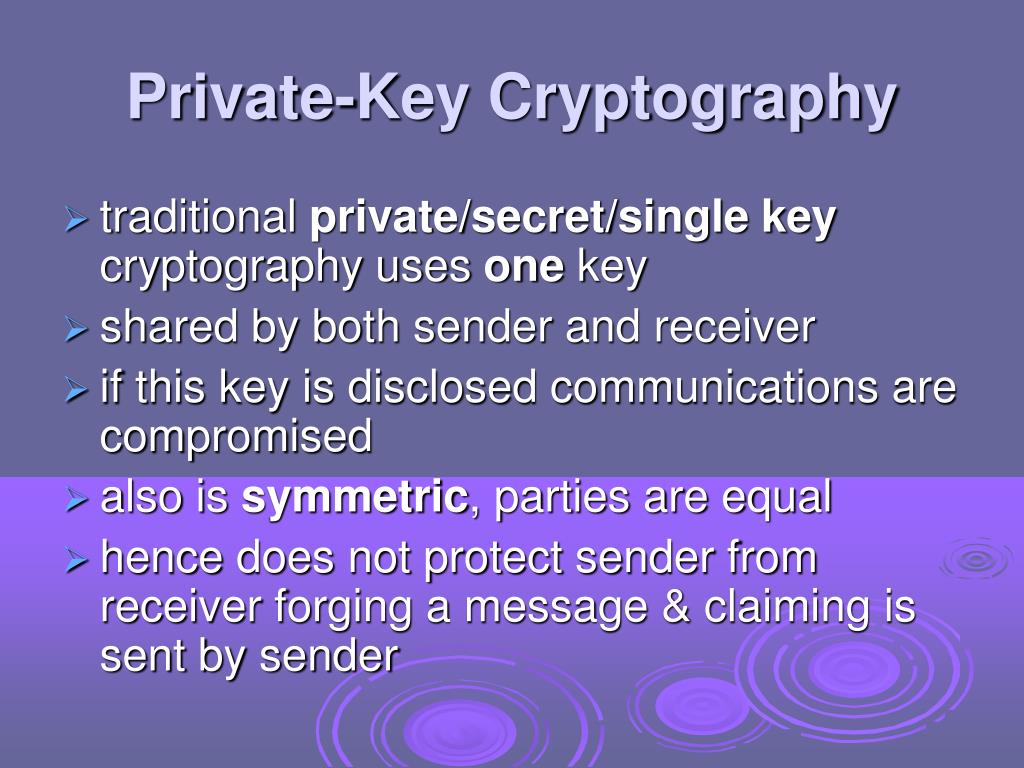

3. Private-Key Cryptography • traditional private/secret/single key cryptography uses one key • shared by both sender and receiver • if this key is disclosed communications are compromised • also is symmetric, parties are equal • hence does not protect sender from receiver forging a message & claiming is sent by sender

4. Public-Key Cryptography • probably most significant advance in the 3000 year history of cryptography • uses two keys – a public & a private key • asymmetric since parties are not equal • uses clever application of number theoretic concepts to function • complements rather than replaces private key crypto

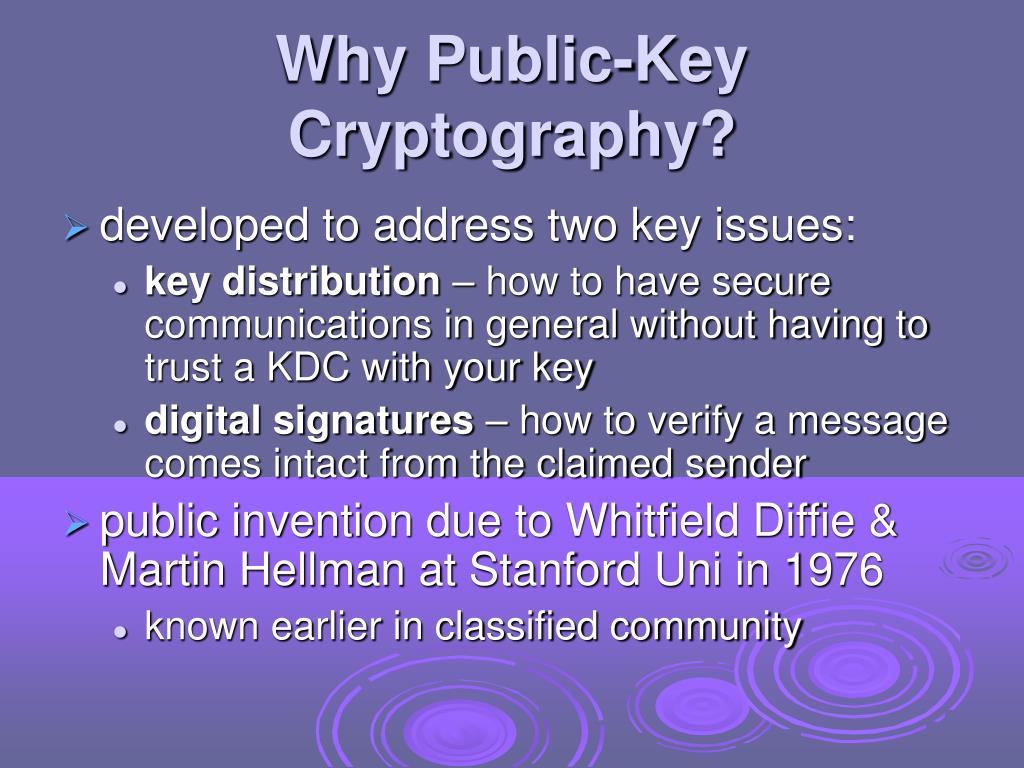

5. Why Public-Key Cryptography? • developed to address two key issues: • key distribution – how to have secure communications in general without having to trust a KDC with your key • digital signatures – how to verify a message comes intact from the claimed sender • public invention due to Whitfield Diffie & Martin Hellman at Stanford Uni in 1976 • known earlier in classified community

6. Public-Key Cryptography • public-key/two-key/asymmetric cryptography involves the use of two keys: • a public-key, which may be known by anybody, and can be used to encrypt messages, and verify signatures • a related private-key, known only to the recipient, used to decrypt messages, and sign (create) signatures • infeasible to determine private key from public • is asymmetric because • those who encrypt messages or verify signatures cannot decrypt messages or create signatures

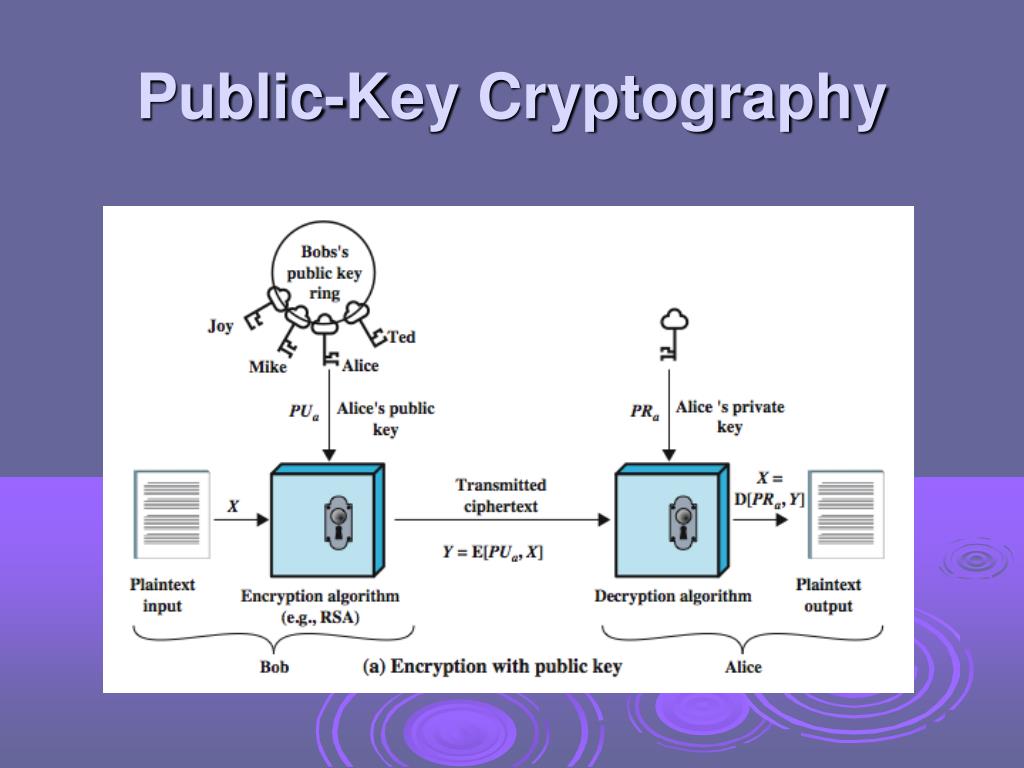

7. Public-Key Cryptography

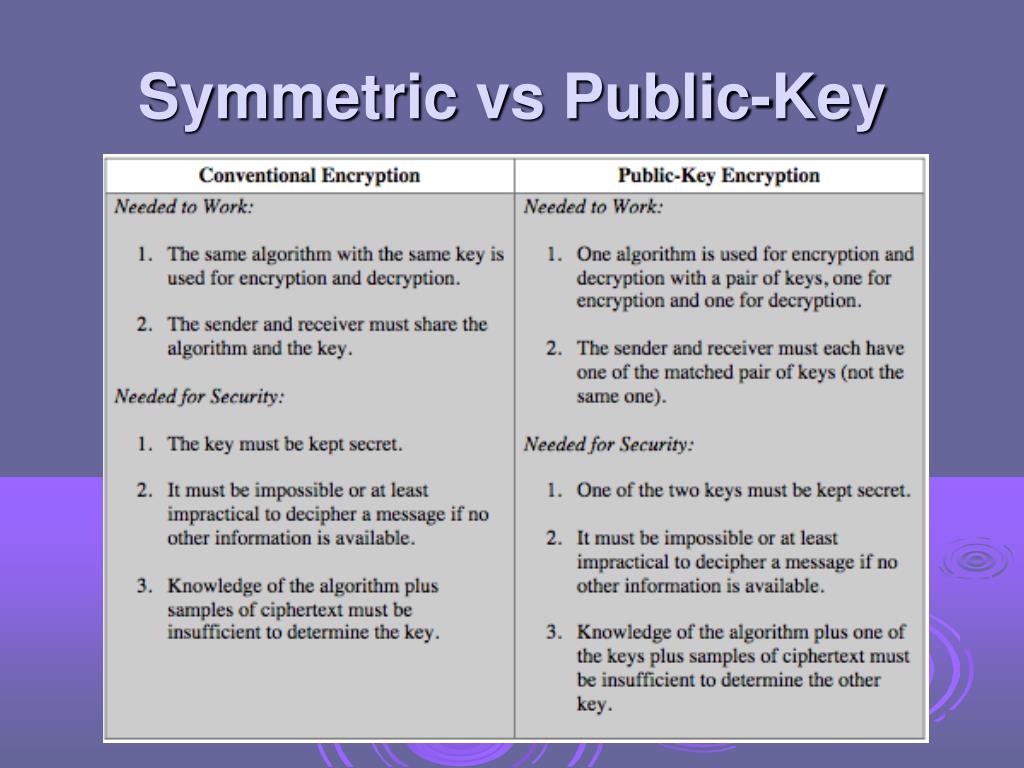

8. Symmetric vs Public-Key

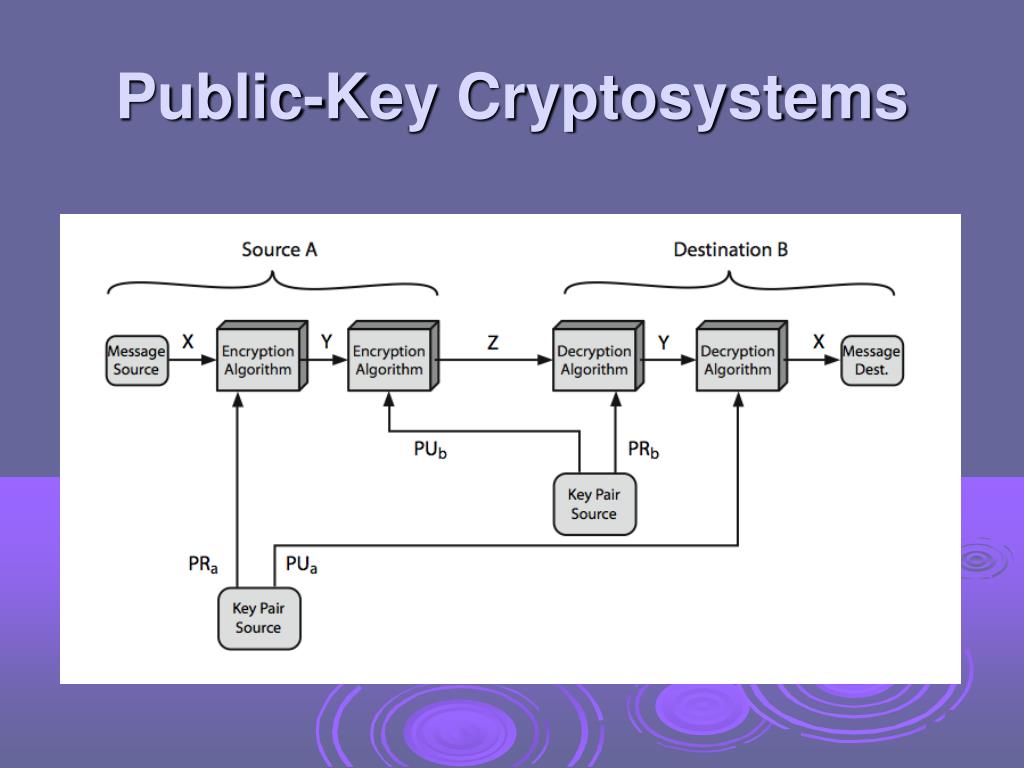

9. Public-Key Cryptosystems

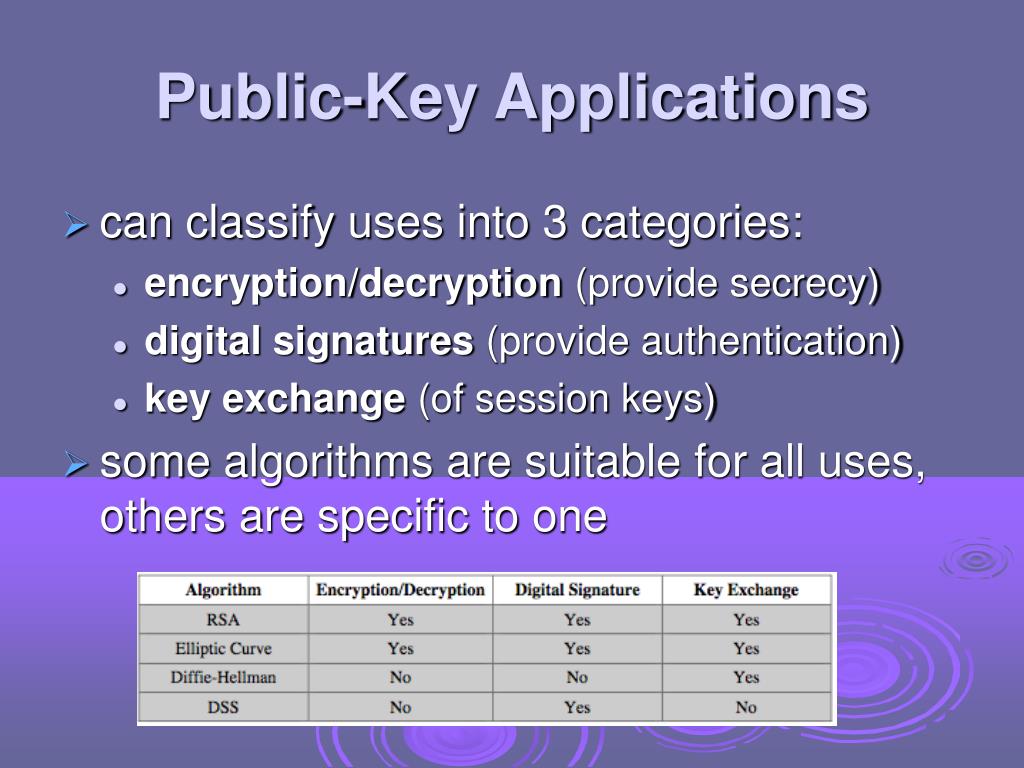

10. Public-Key Applications • can classify uses into 3 categories: • encryption/decryption (provide secrecy) • digital signatures (provide authentication) • key exchange (of session keys) • some algorithms are suitable for all uses, others are specific to one

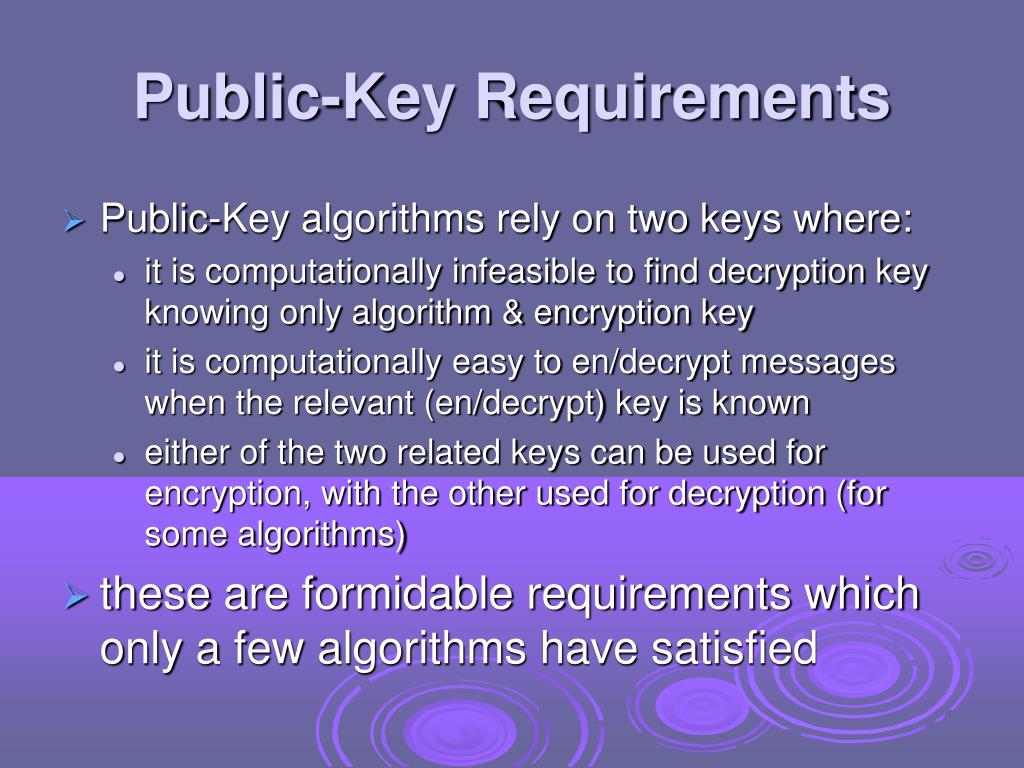

11. Public-Key Requirements • Public-Key algorithms rely on two keys where: • it is computationally infeasible to find decryption key knowing only algorithm & encryption key • it is computationally easy to en/decrypt messages when the relevant (en/decrypt) key is known • either of the two related keys can be used for encryption, with the other used for decryption (for some algorithms) • these are formidable requirements which only a few algorithms have satisfied

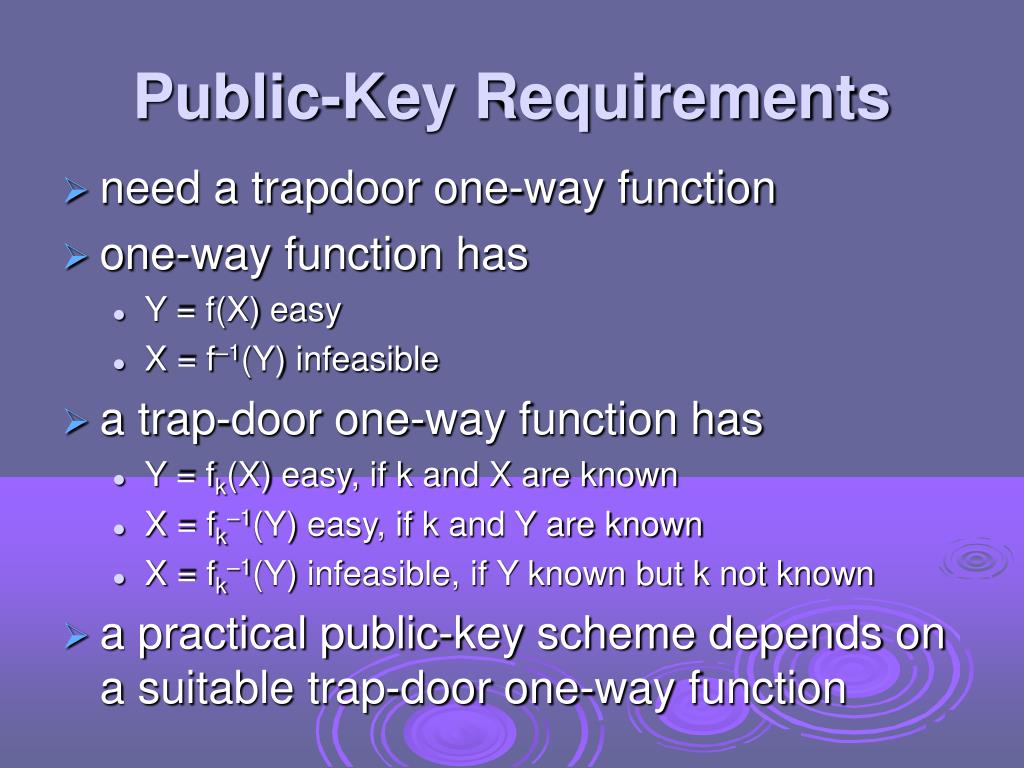

12. Public-Key Requirements • need a trapdoor one-way function • one-way function has • Y = f(X) easy • X = f–1(Y) infeasible • a trap-door one-way function has • Y = fk(X) easy, if k and X are known • X = fk–1(Y) easy, if k and Y are known • X = fk–1(Y) infeasible, if Y known but k not known • a practical public-key scheme depends on a suitable trap-door one-way function

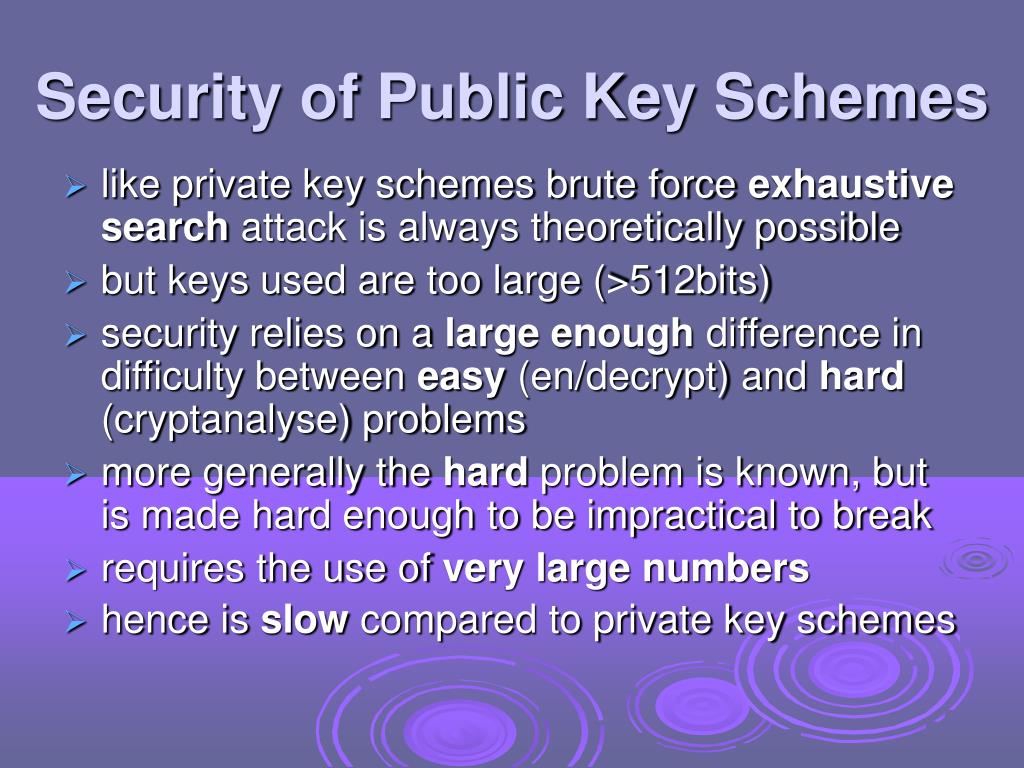

13. Security of Public Key Schemes • like private key schemes brute force exhaustive search attack is always theoretically possible • but keys used are too large (>512bits) • security relies on a large enough difference in difficulty between easy (en/decrypt) and hard (cryptanalyse) problems • more generally the hard problem is known, but is made hard enough to be impractical to break • requires the use of very large numbers • hence is slow compared to private key schemes

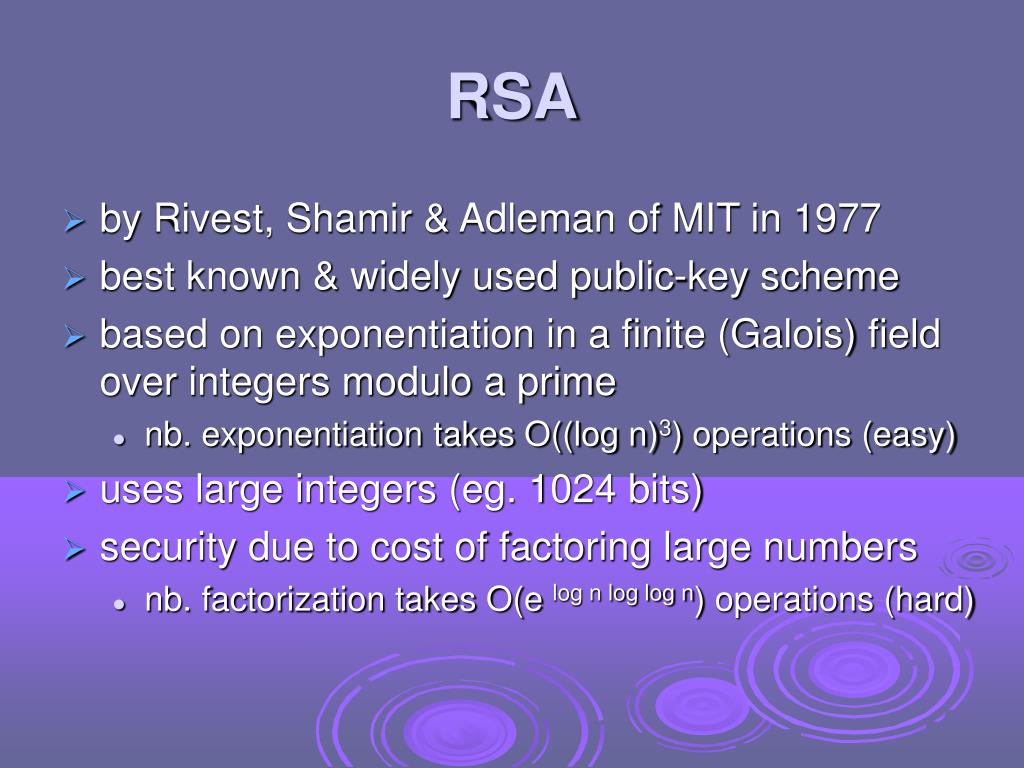

14. RSA • by Rivest, Shamir & Adleman of MIT in 1977 • best known & widely used public-key scheme • based on exponentiation in a finite (Galois) field over integers modulo a prime • nb. exponentiation takes O((log n)3) operations (easy) • uses large integers (eg. 1024 bits) • security due to cost of factoring large numbers • nb. factorization takes O(e log n log log n) operations (hard)

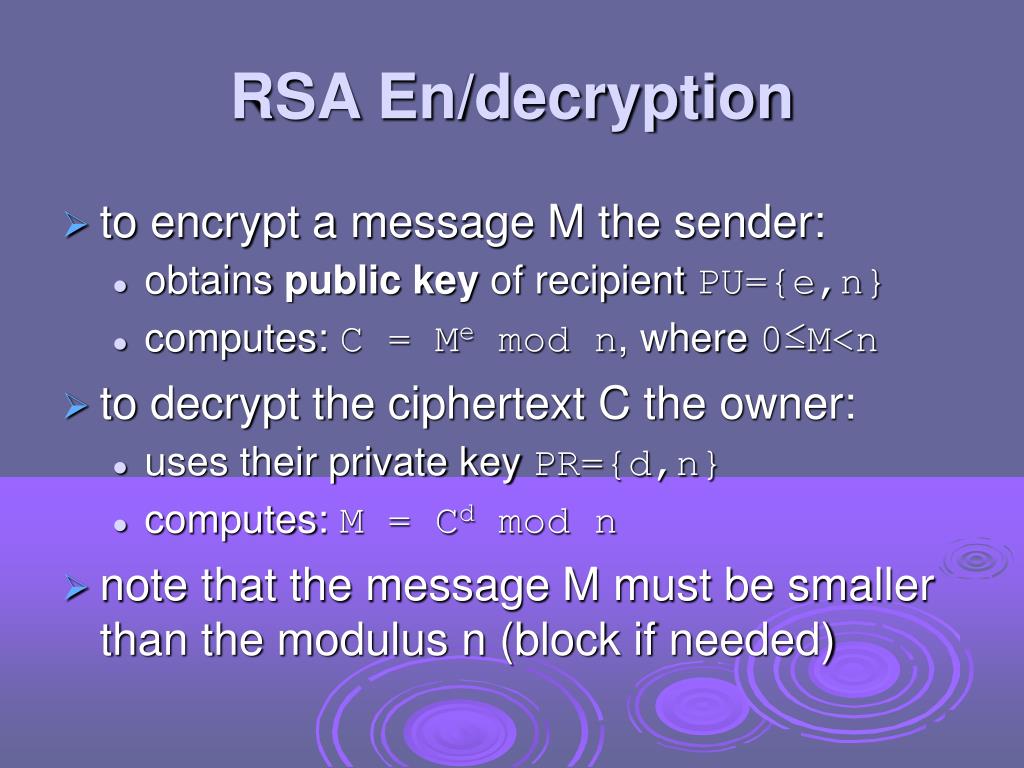

15. RSA En/decryption • to encrypt a message M the sender: • obtains public key of recipient PU={e,n} • computes: C = Me mod n, where 0≤M<n • to decrypt the ciphertext C the owner: • uses their private key PR={d,n} • computes: M = Cd mod n • note that the message M must be smaller than the modulus n (block if needed)

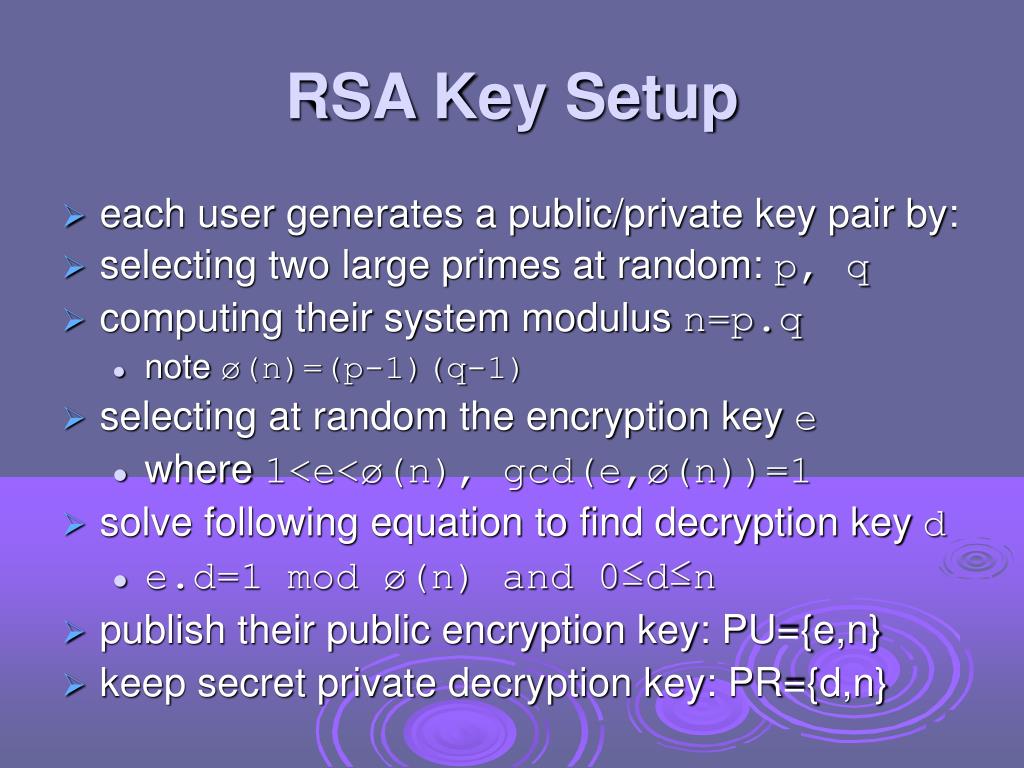

16. RSA Key Setup • each user generates a public/private key pair by: • selecting two large primes at random: p, q • computing their system modulus n=p.q • note ø(n)=(p-1)(q-1) • selecting at random the encryption key e • where 1<e<ø(n), gcd(e,ø(n))=1 • solve following equation to find decryption key d • e.d=1 mod ø(n) and 0≤d≤n • publish their public encryption key: PU={e,n} • keep secret private decryption key: PR={d,n}

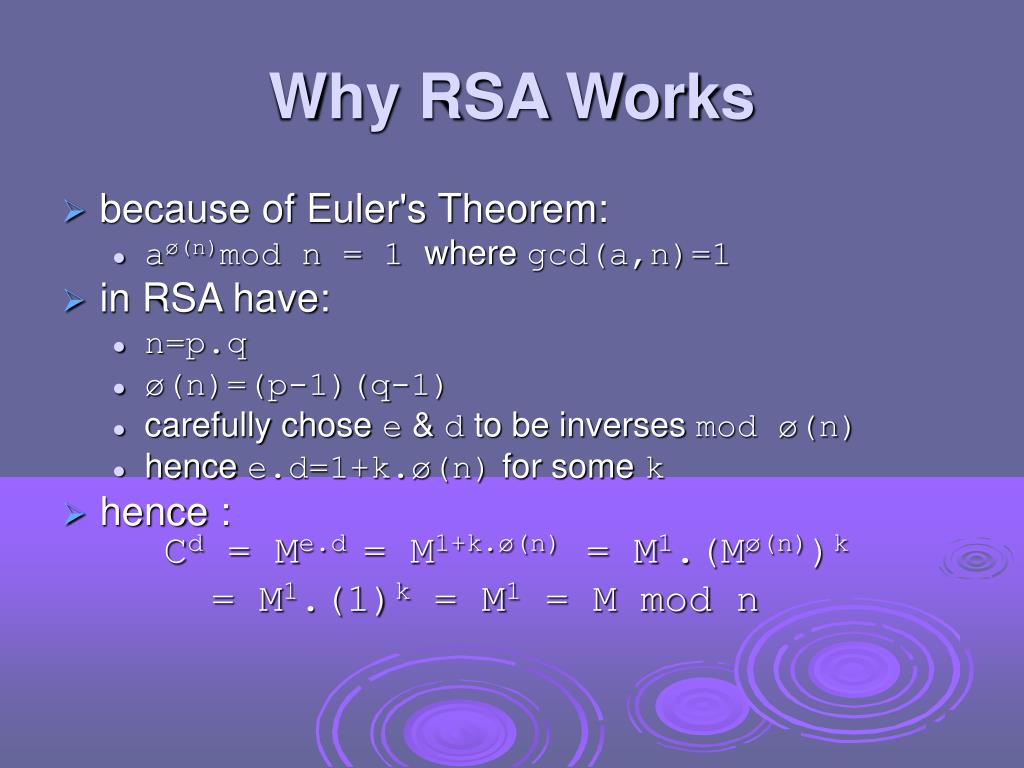

17. Why RSA Works • because of Euler's Theorem: • aø(n)mod n = 1 where gcd(a,n)=1 • in RSA have: • n=p.q • ø(n)=(p-1)(q-1) • carefully chose e & d to be inverses mod ø(n) • hence e.d=1+k.ø(n) for some k • hence :Cd = Me.d = M1+k.ø(n) = M1.(Mø(n))k = M1.(1)k = M1 = M mod n

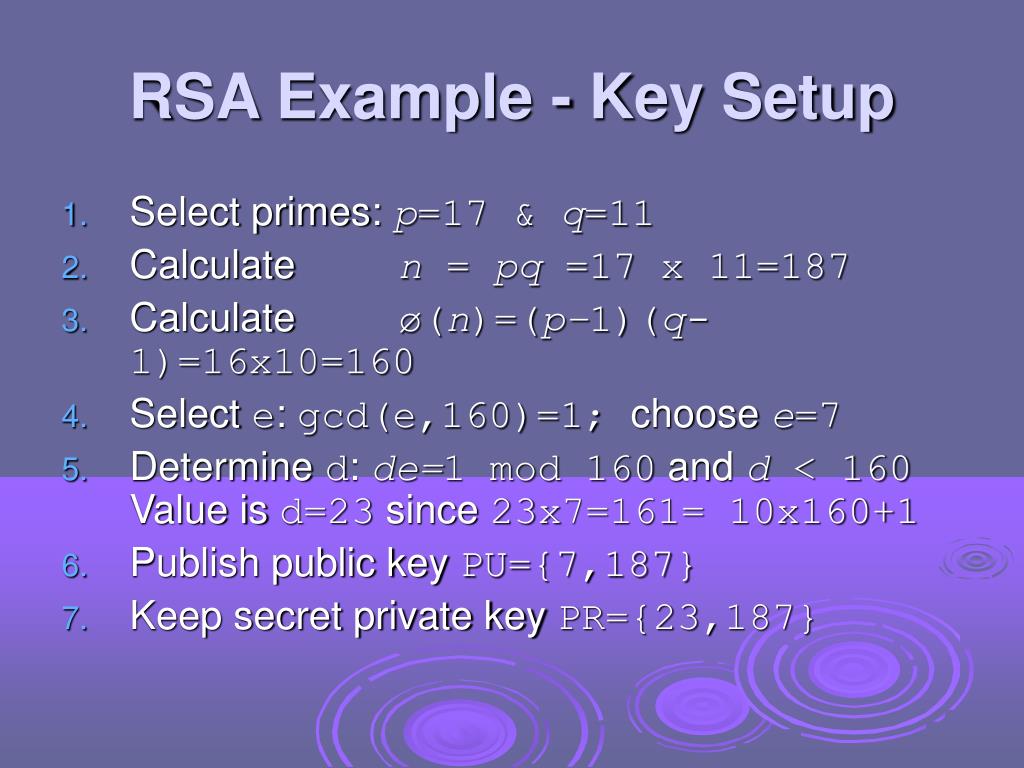

18. RSA Example - Key Setup Select primes: p=17 & q=11 Calculate n = pq =17 x 11=187 Calculate ø(n)=(p–1)(q-1)=16x10=160 Select e:gcd(e,160)=1; choose e=7 Determine d:de=1 mod 160 and d < 160 Value is d=23 since 23x7=161= 10x160+1 Publish public key PU={7,187} Keep secret private key PR={23,187}

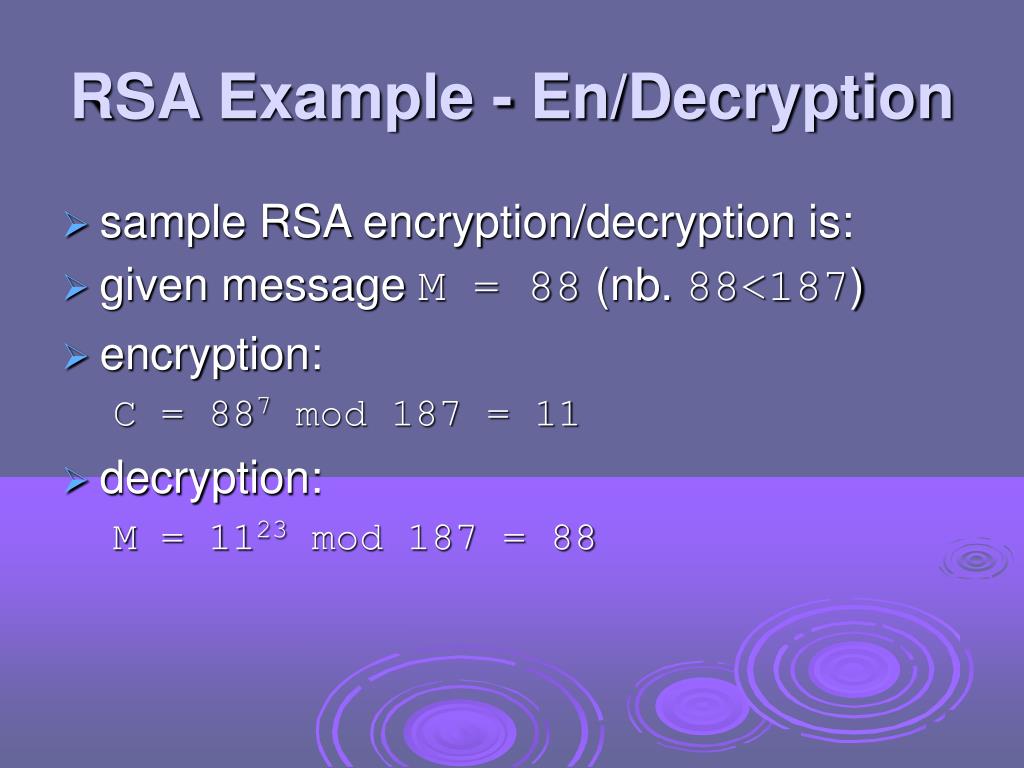

19. RSA Example - En/Decryption • sample RSA encryption/decryption is: • given message M = 88 (nb. 88<187) • encryption: C = 887 mod 187 = 11 • decryption: M = 1123 mod 187 = 88

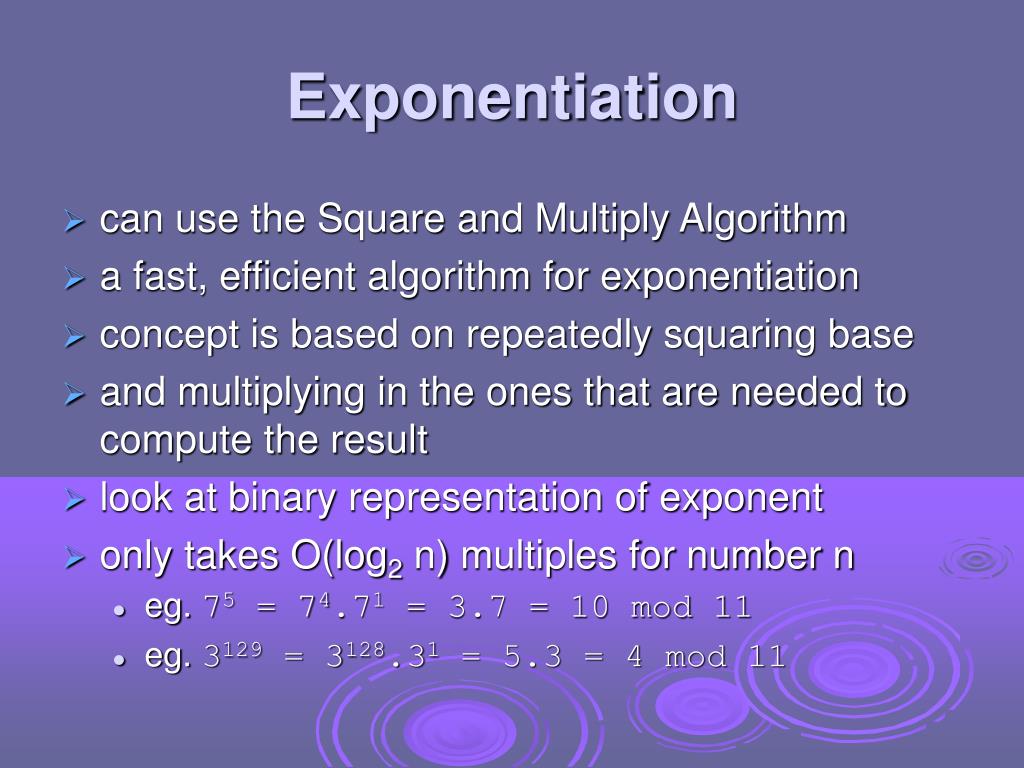

20. Exponentiation • can use the Square and Multiply Algorithm • a fast, efficient algorithm for exponentiation • concept is based on repeatedly squaring base • and multiplying in the ones that are needed to compute the result • look at binary representation of exponent • only takes O(log2 n) multiples for number n • eg. 75 = 74.71 = 3.7 = 10 mod 11 • eg. 3129 = 3128.31 = 5.3 = 4 mod 11

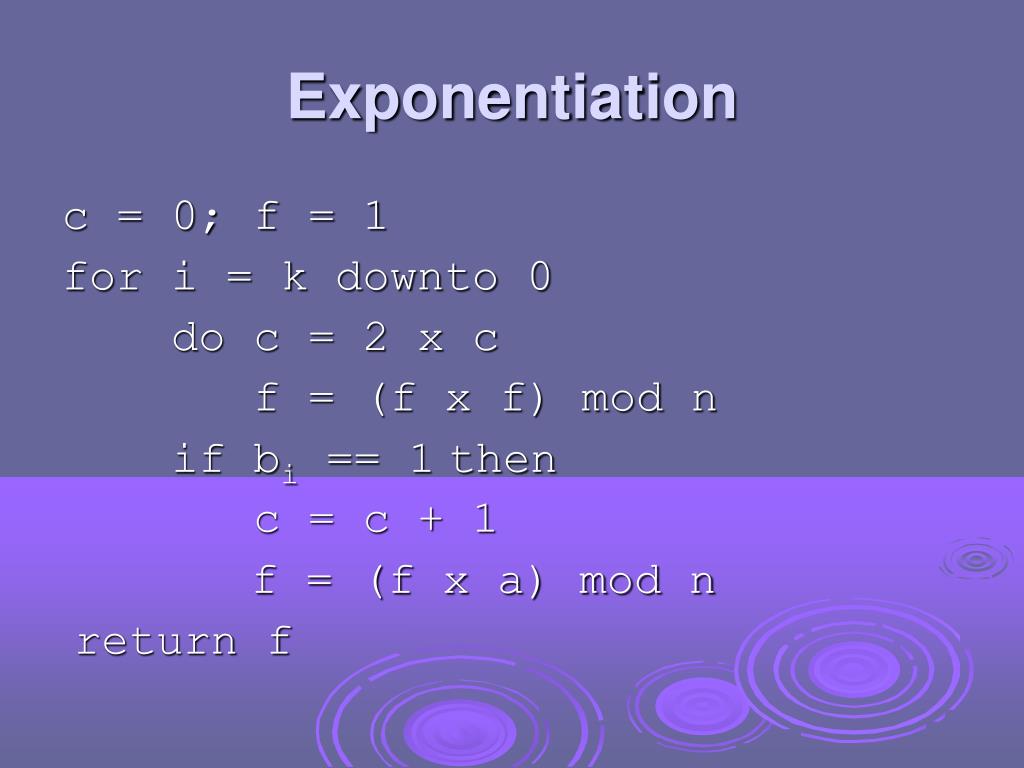

21. Exponentiation c = 0; f = 1 for i = k downto 0 do c = 2 x c f = (f x f) mod n if bi == 1then c = c + 1 f = (f x a) mod n return f

22. Efficient Encryption • encryption uses exponentiation to power e • hence if e small, this will be faster • often choose e=65537 (216-1) • also see choices of e=3 or e=17 • but if e too small (eg e=3) can attack • using Chinese remainder theorem & 3 messages with different modulii • if e fixed must ensure gcd(e,ø(n))=1 • ie reject any p or q not relatively prime to e

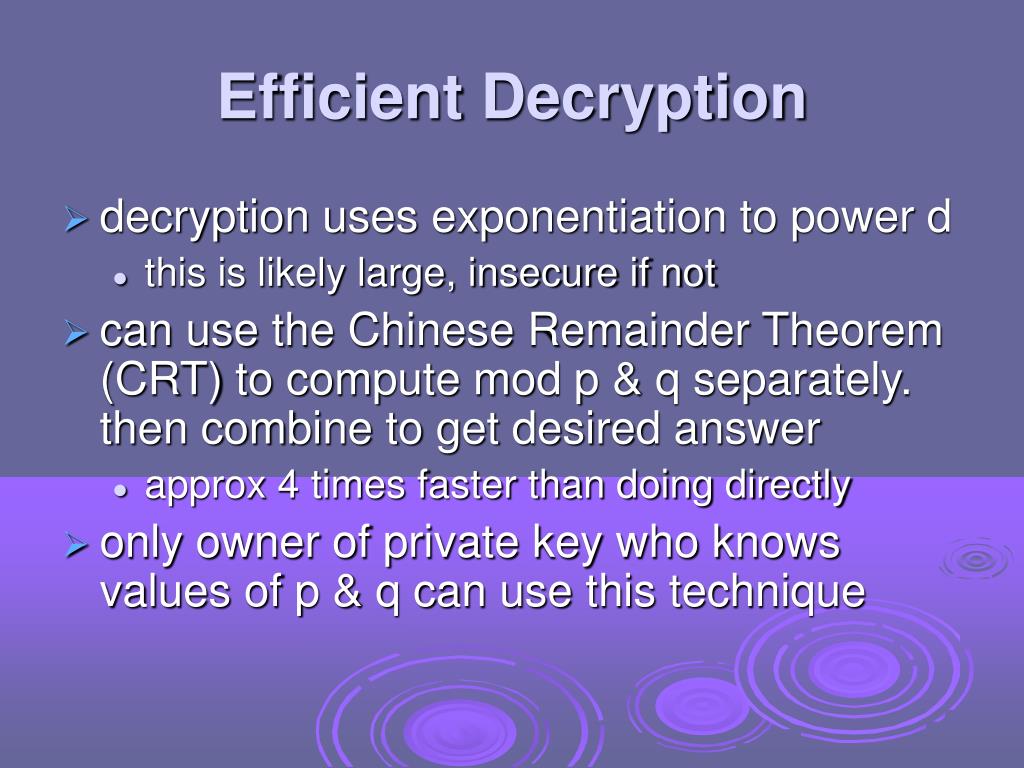

23. Efficient Decryption • decryption uses exponentiation to power d • this is likely large, insecure if not • can use the Chinese Remainder Theorem (CRT) to compute mod p & q separately. then combine to get desired answer • approx 4 times faster than doing directly • only owner of private key who knows values of p & q can use this technique

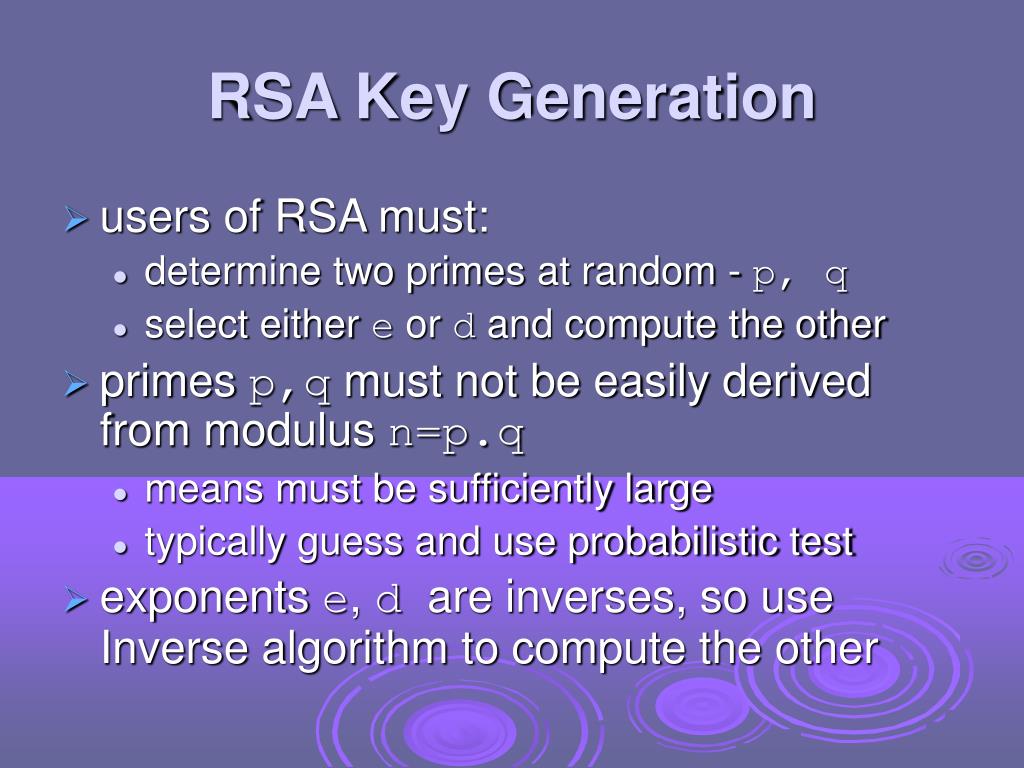

24. RSA Key Generation • users of RSA must: • determine two primes at random - p, q • select either e or d and compute the other • primes p,qmust not be easily derived from modulus n=p.q • means must be sufficiently large • typically guess and use probabilistic test • exponents e, d are inverses, so use Inverse algorithm to compute the other

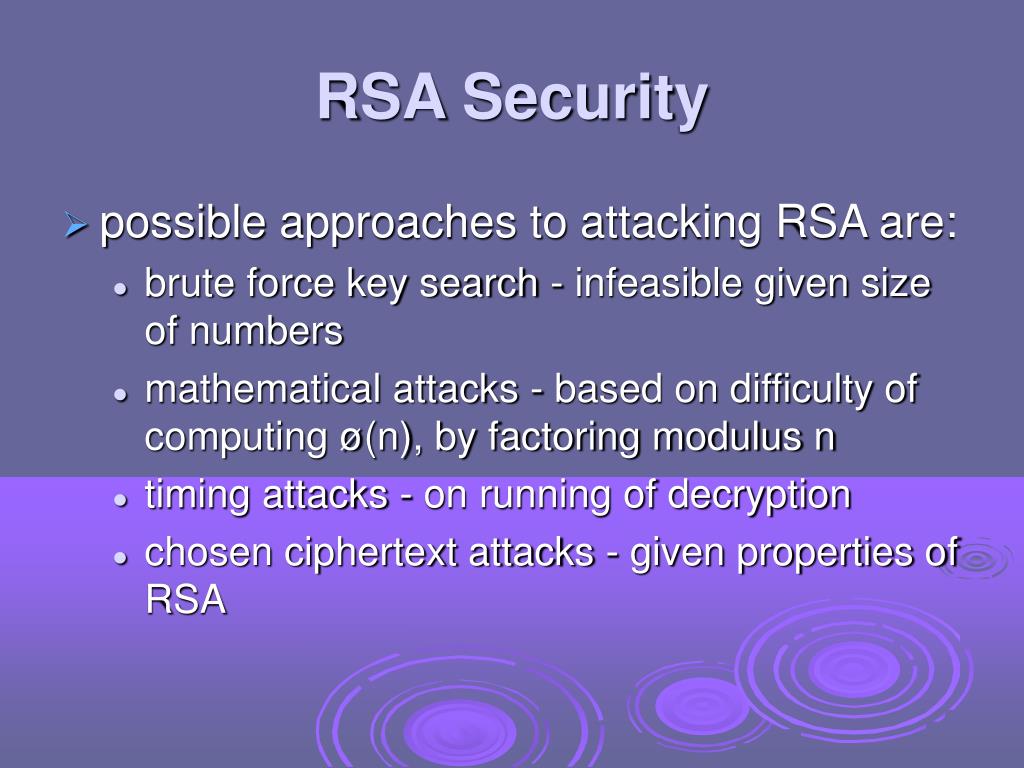

25. RSA Security • possible approaches to attacking RSA are: • brute force key search - infeasible given size of numbers • mathematical attacks - based on difficulty of computing ø(n), by factoring modulus n • timing attacks - on running of decryption • chosen ciphertext attacks - given properties of RSA

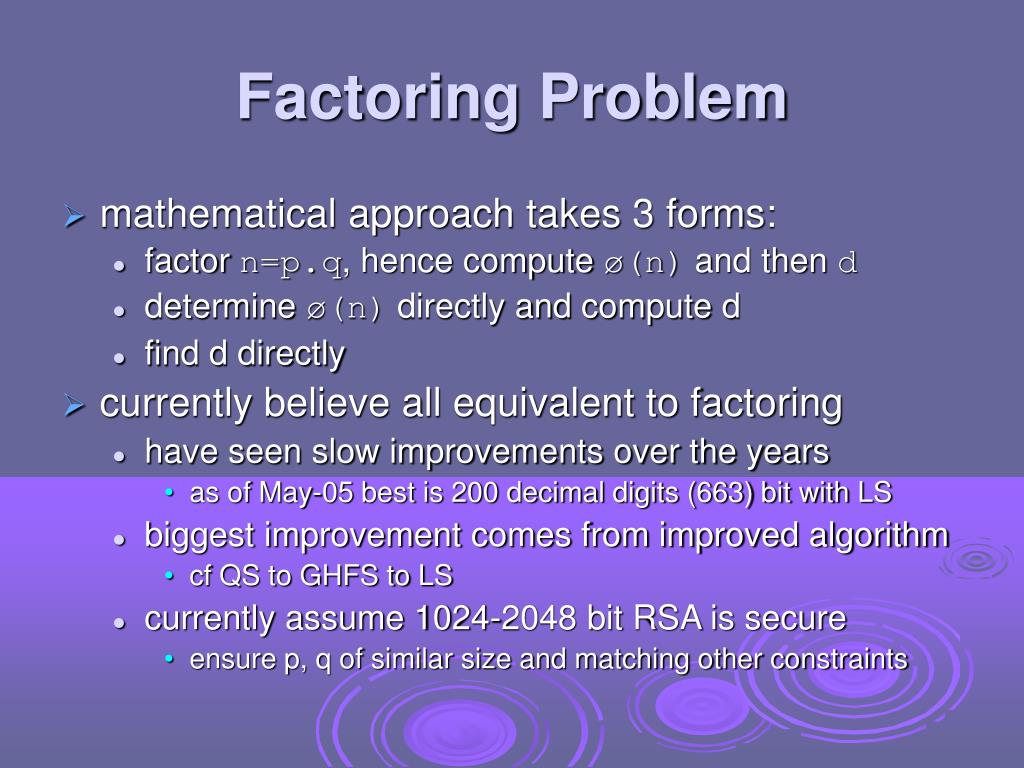

26. Factoring Problem • mathematical approach takes 3 forms: • factor n=p.q, hence compute ø(n) and then d • determine ø(n) directly and compute d • find d directly • currently believe all equivalent to factoring • have seen slow improvements over the years • as of May-05 best is 200 decimal digits (663) bit with LS • biggest improvement comes from improved algorithm • cf QS to GHFS to LS • currently assume 1024-2048 bit RSA is secure • ensure p, q of similar size and matching other constraints

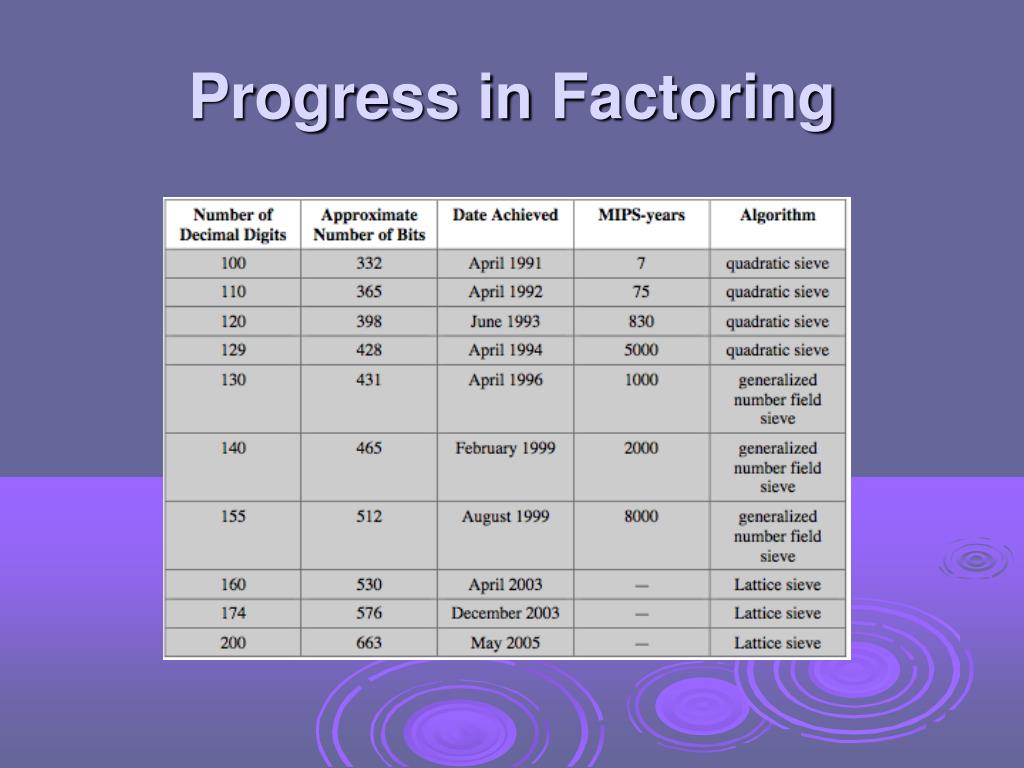

27. Progress in Factoring

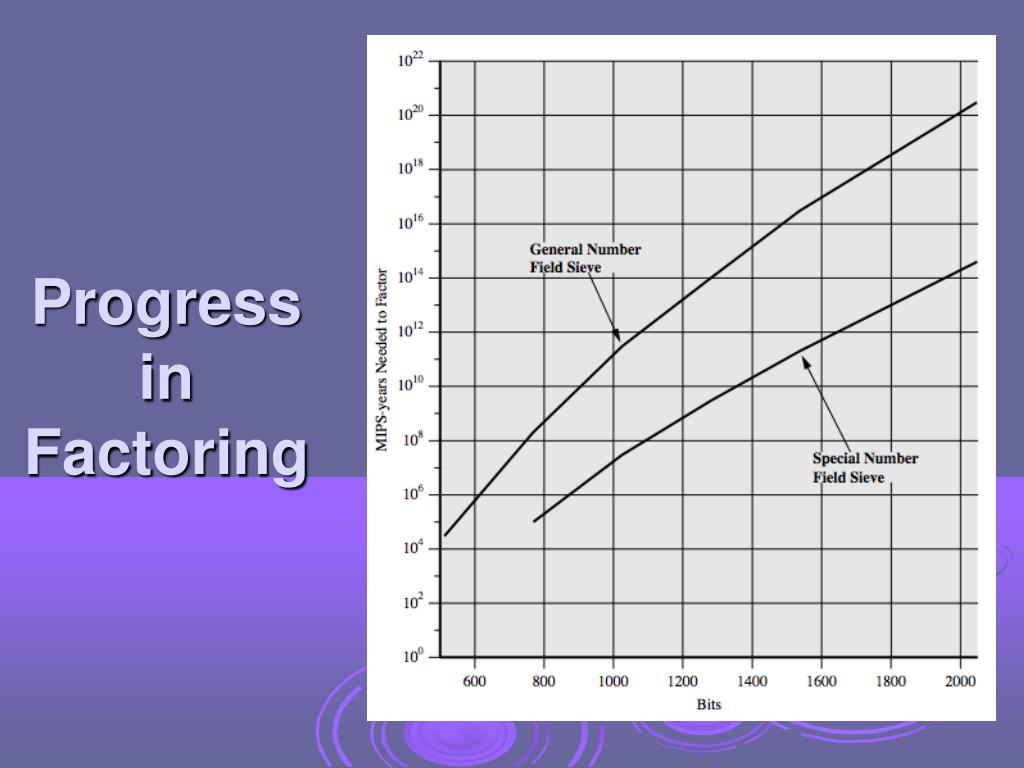

28. Progress in Factoring

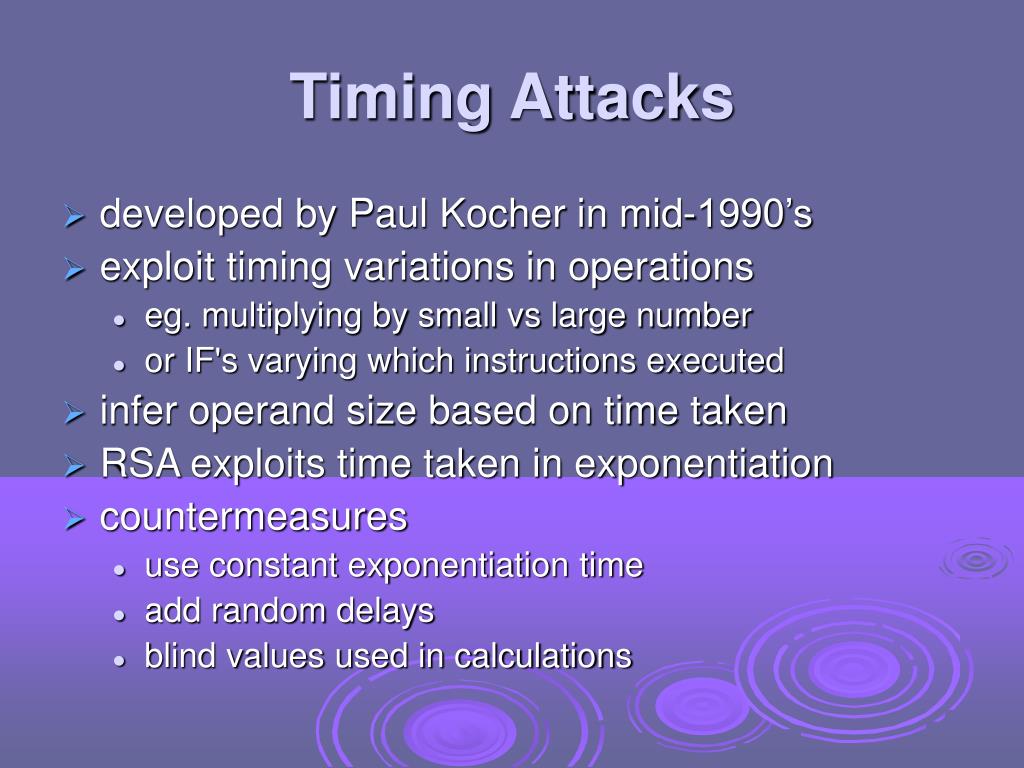

29. Timing Attacks • developed by Paul Kocher in mid-1990’s • exploit timing variations in operations • eg. multiplying by small vs large number • or IF's varying which instructions executed • infer operand size based on time taken • RSA exploits time taken in exponentiation • countermeasures • use constant exponentiation time • add random delays • blind values used in calculations

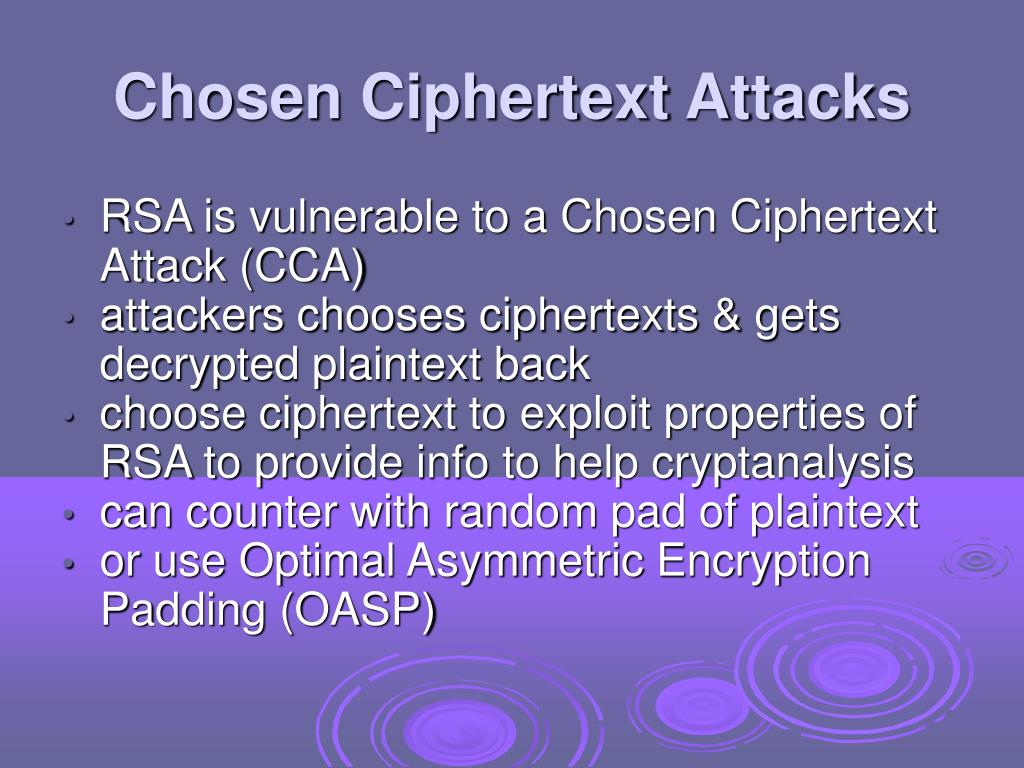

30. Chosen Ciphertext Attacks • RSA is vulnerable to a Chosen Ciphertext Attack (CCA) • attackers chooses ciphertexts & gets decrypted plaintext back • choose ciphertext to exploit properties of RSA to provide info to help cryptanalysis • can counter with random pad of plaintext • or use Optimal Asymmetric Encryption Padding (OASP)

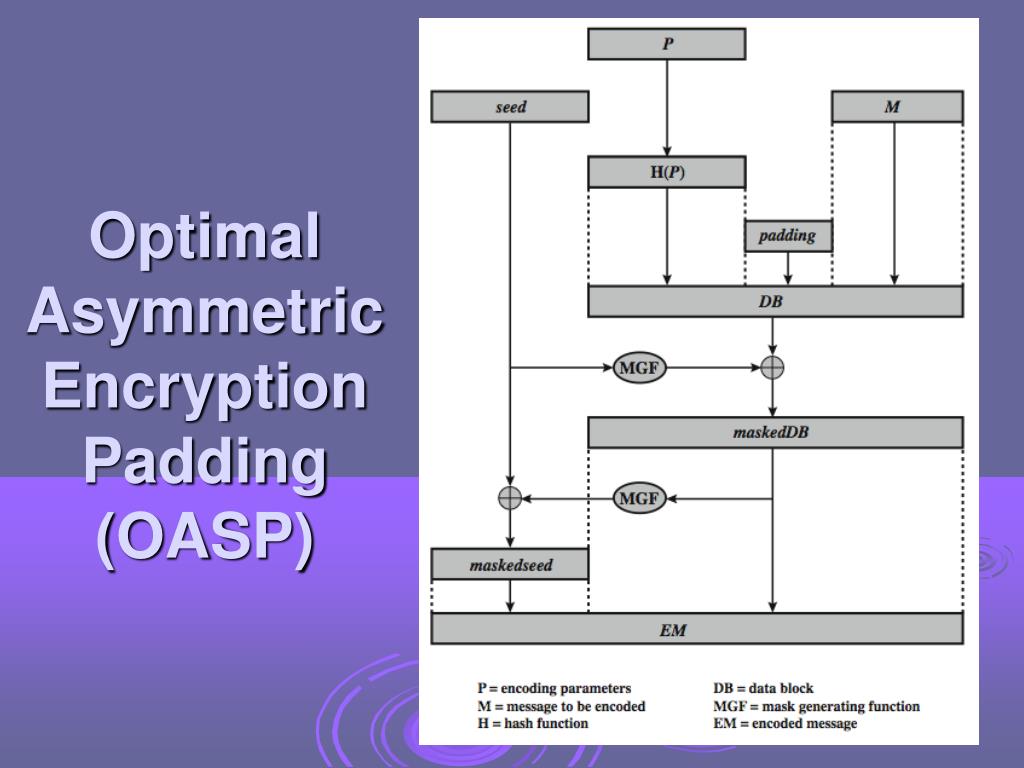

31. Optimal Asymmetric Encryption Padding (OASP)

32. Summary • have considered: • principles of public-key cryptography • RSA algorithm, implementation, security
