  1. Preliminary Design Review forThe SNS Video Profile Monitor SystemDave GassnerBrookhaven National Laboratory Part I: Overview

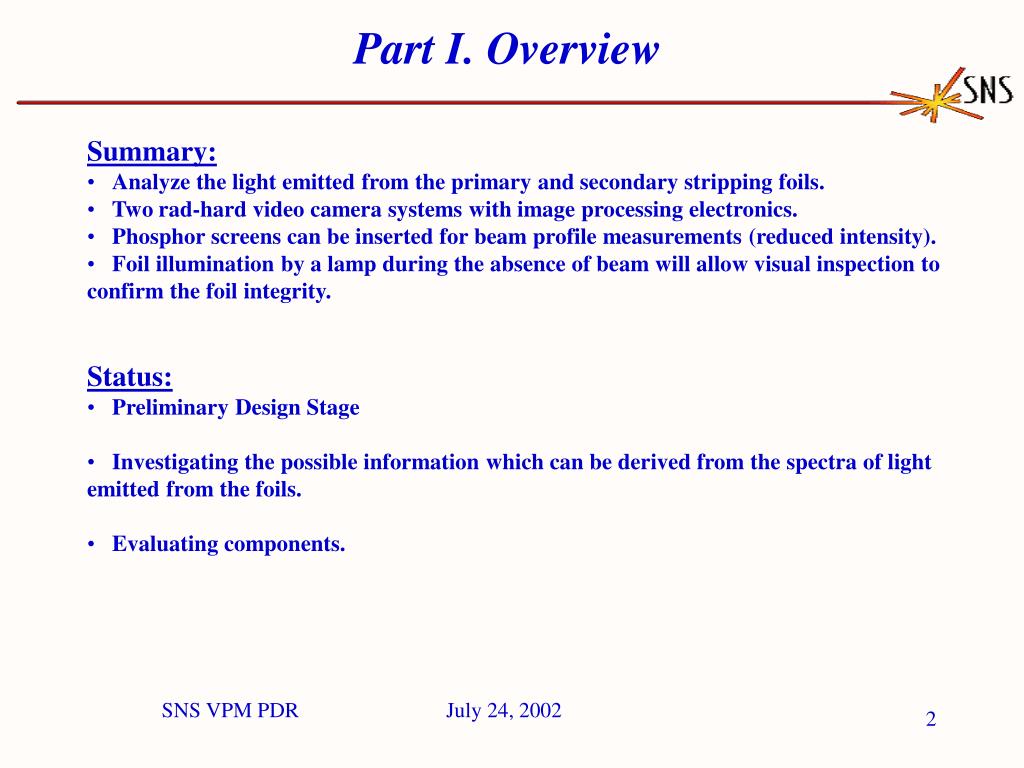

  2. Part I. Overview • Summary: • Analyze the light emitted from the primary and secondary stripping foils. • Two rad-hard video camera systems with image processing electronics. • Phosphor screens can be inserted for beam profile measurements (reduced intensity). • Foil illumination by a lamp during the absence of beam will allow visual inspection to confirm the foil integrity. • Status: • Preliminary Design Stage • Investigating the possible information which can be derived from the spectra of light emitted from the foils. • Evaluating components. SNS VPM PDR

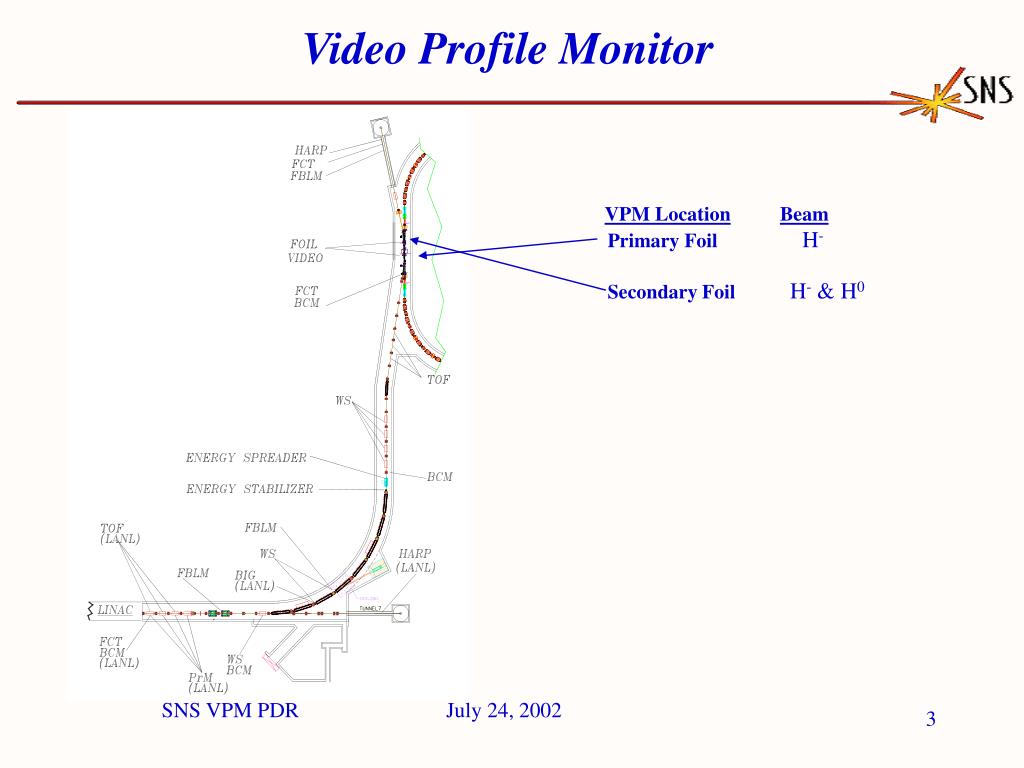

  3. Video Profile Monitor VPM LocationBeam Primary Foil H- Secondary Foil H- & H0 SNS VPM PDR

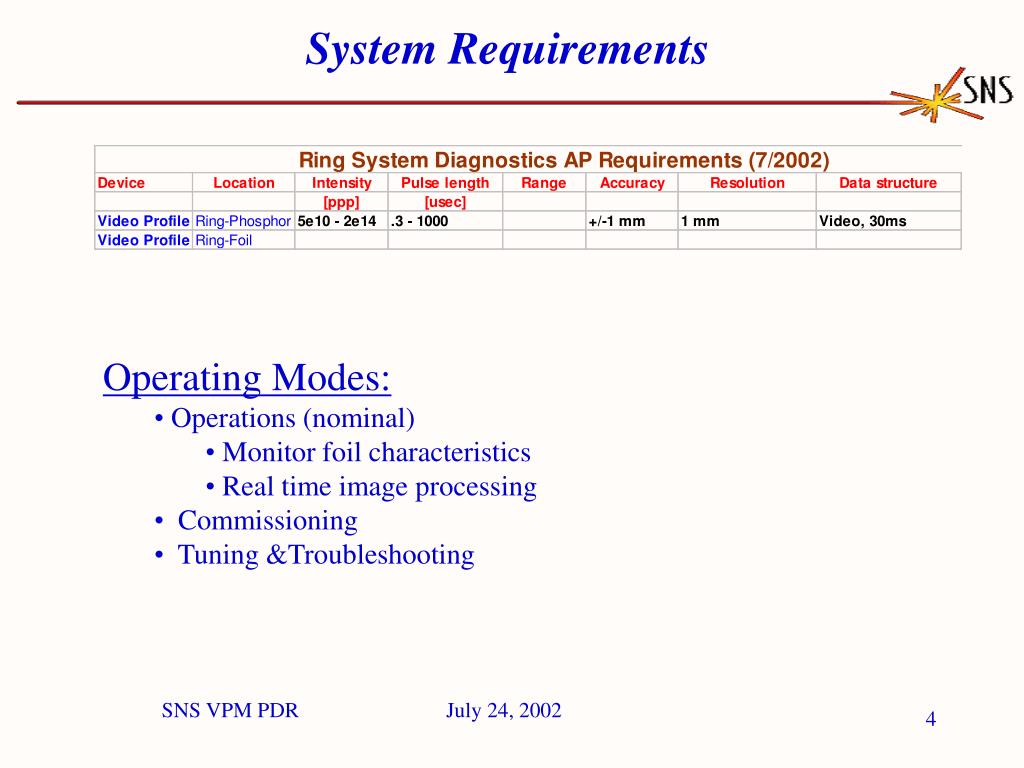

  4. System Requirements • Operating Modes: • Operations (nominal) • Monitor foil characteristics • Real time image processing • Commissioning • Tuning &Troubleshooting SNS VPM PDR

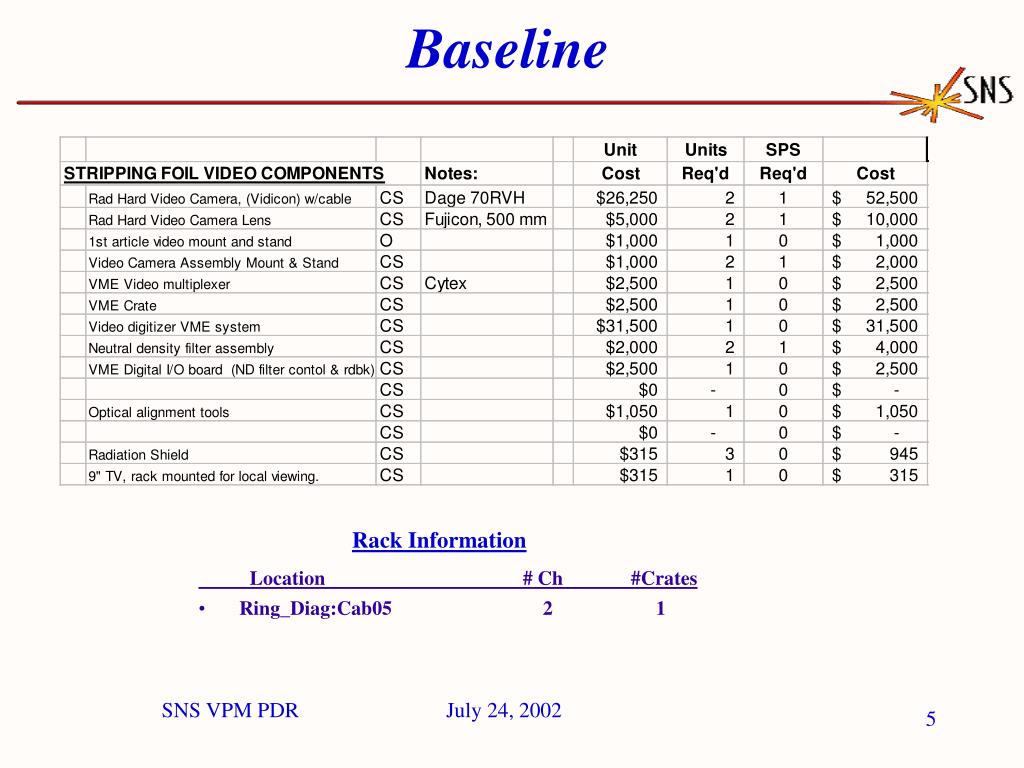

  5. Baseline Location # Ch #Crates • Ring_Diag:Cab05 2 1 Rack Information SNS VPM PDR

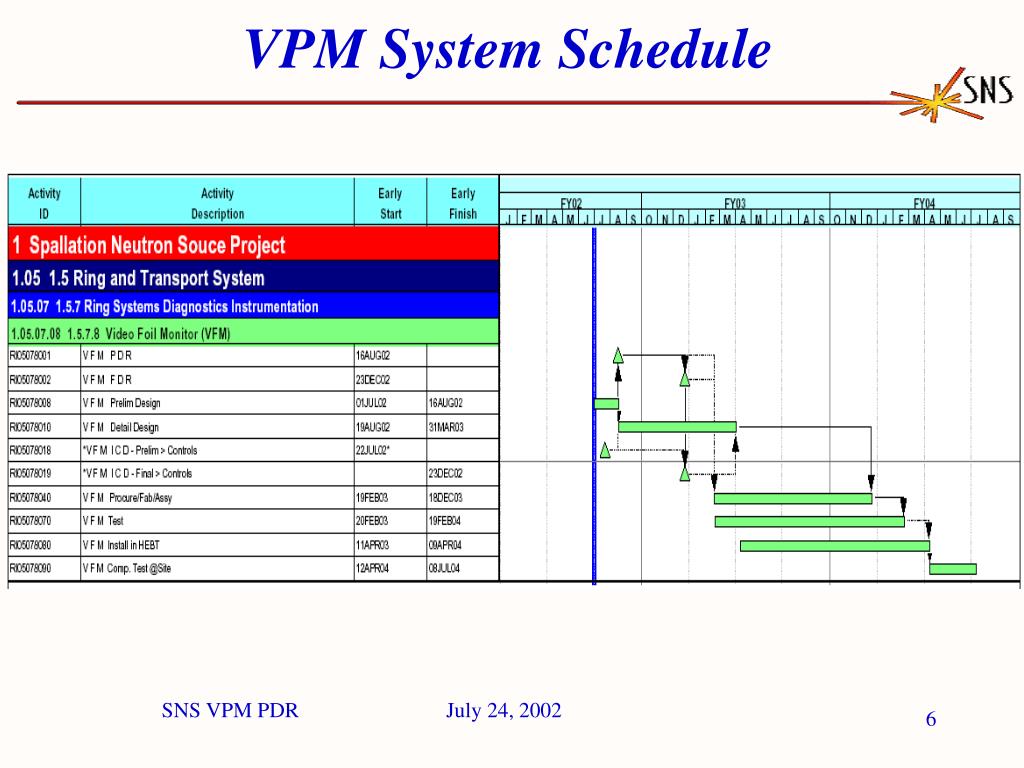

  6. VPM System Schedule SNS VPM PDR

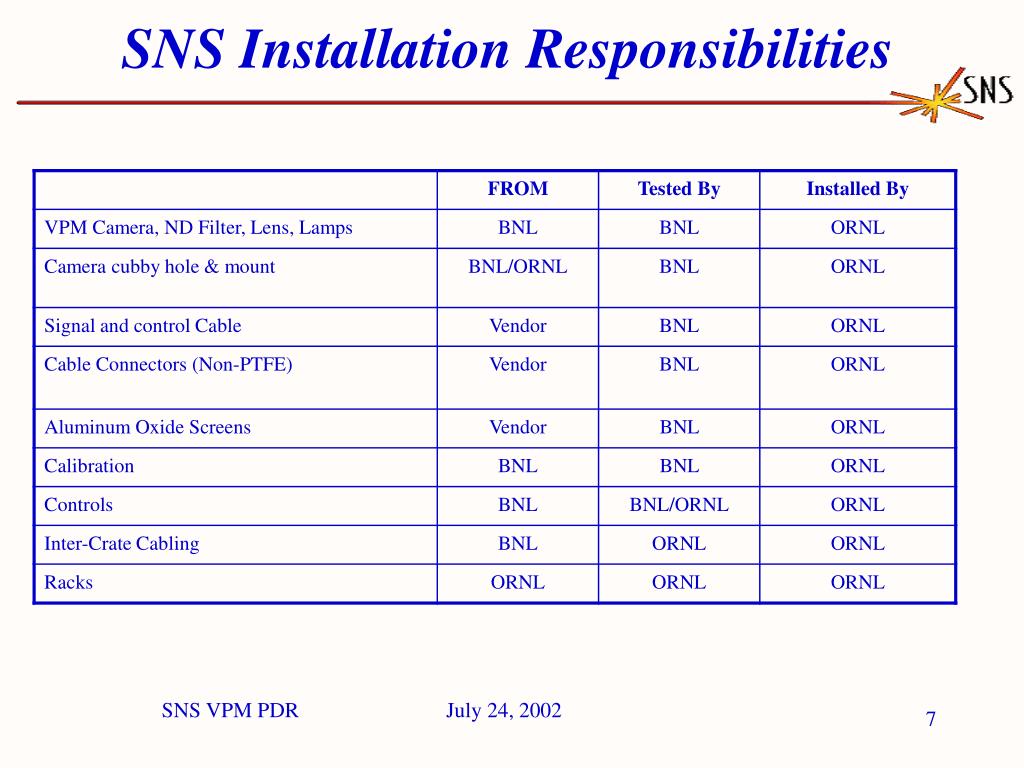

  7. SNS Installation Responsibilities SNS VPM PDR
