Secant Angles & Arcs

Secant Angles & Arcs. Introduction. A Secant is a straight line that crosses/intercepts another shape. A Secant angle is an angle made from two secant lines. Arcs and Secant Angles. The secant angle equals half the difference between the measure of the two arcs. m_A = ½(mBC – mDE). B.

doris
Télécharger la présentation

Secant Angles & Arcs

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Secant Angles & Arcs Introduction

  2. A Secant is a straight line that crosses/intercepts another shape. A Secant angle is an angle made from two secant lines.

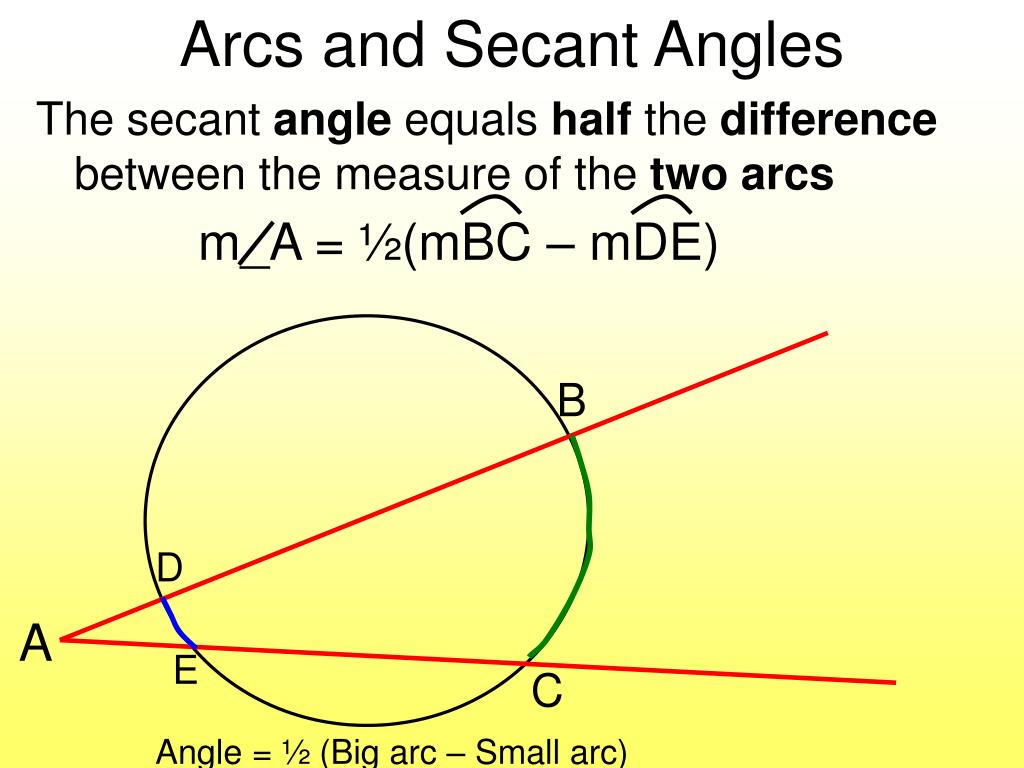

  3. Arcs and Secant Angles The secant angle equals half the difference between the measure of the two arcs m_A = ½(mBC – mDE) B D A E C Angle = ½ (Big arc – Small arc)

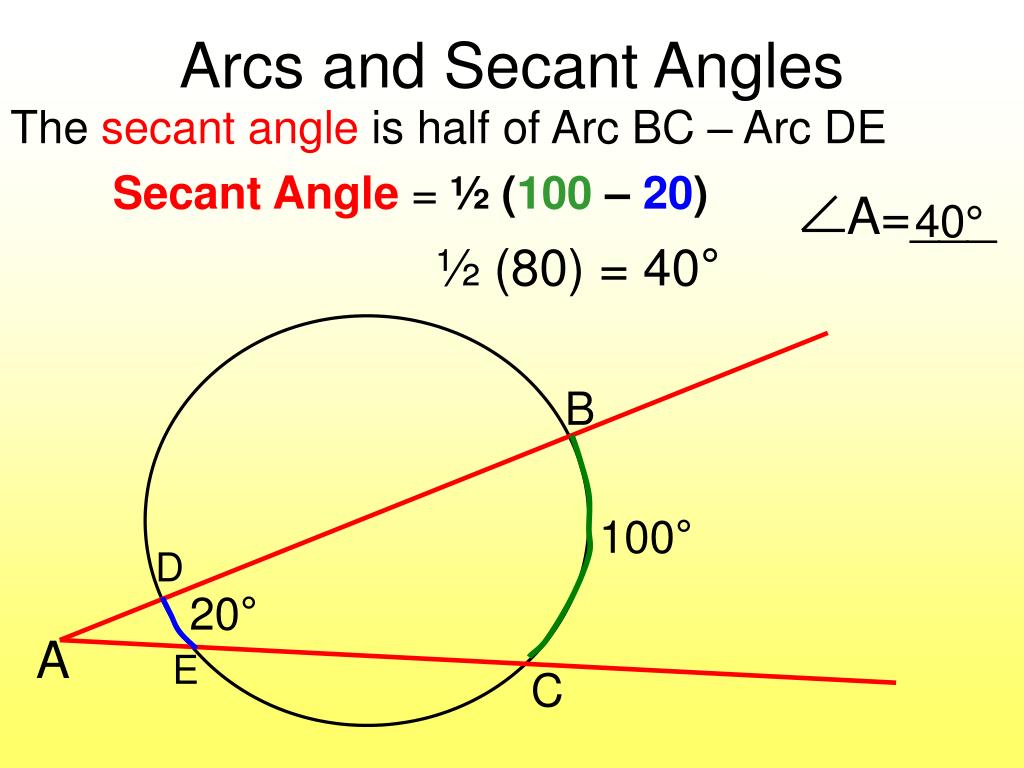

  4. Arcs and Secant Angles The secant angle is half of Arc BC – Arc DE Secant Angle = ½ (100 – 20) A=___ 40° ½ (80) = 40° B 100° D 20° A E C

  5. Given the Angle: Solve for missing arc (x) A= 30° Do the inverse: MULTIPLY BY 2 A = ½ (BC – DE) 30 = ½ (110 – x) BC= 110° 2(30) = (110 – x) 50° DE= ___ 60 = (110 – x) Find the difference: • 110 • 60 • 50 B 110° D x A 30° E C

  6. Introduction to Arcs and Secants For the front, you are looking for the angle. For the back, you are finding the missing arc. Due in class today. Homework is up front.
