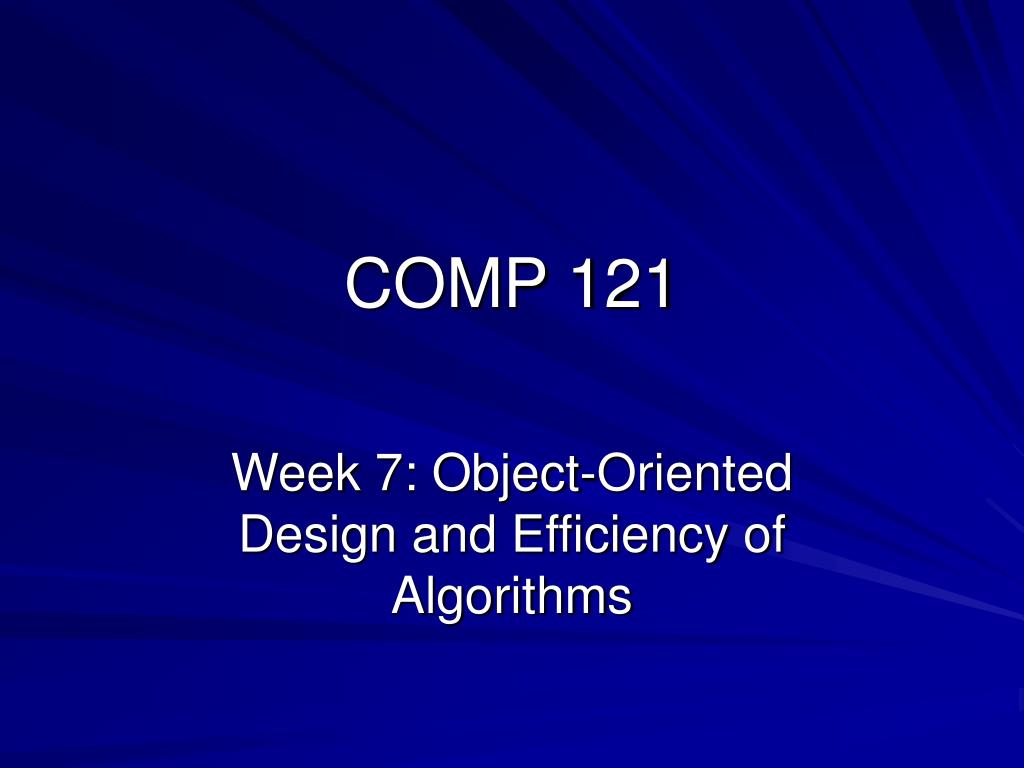

1. COMP 121 Week 7: Object-Oriented Design and Efficiency of Algorithms

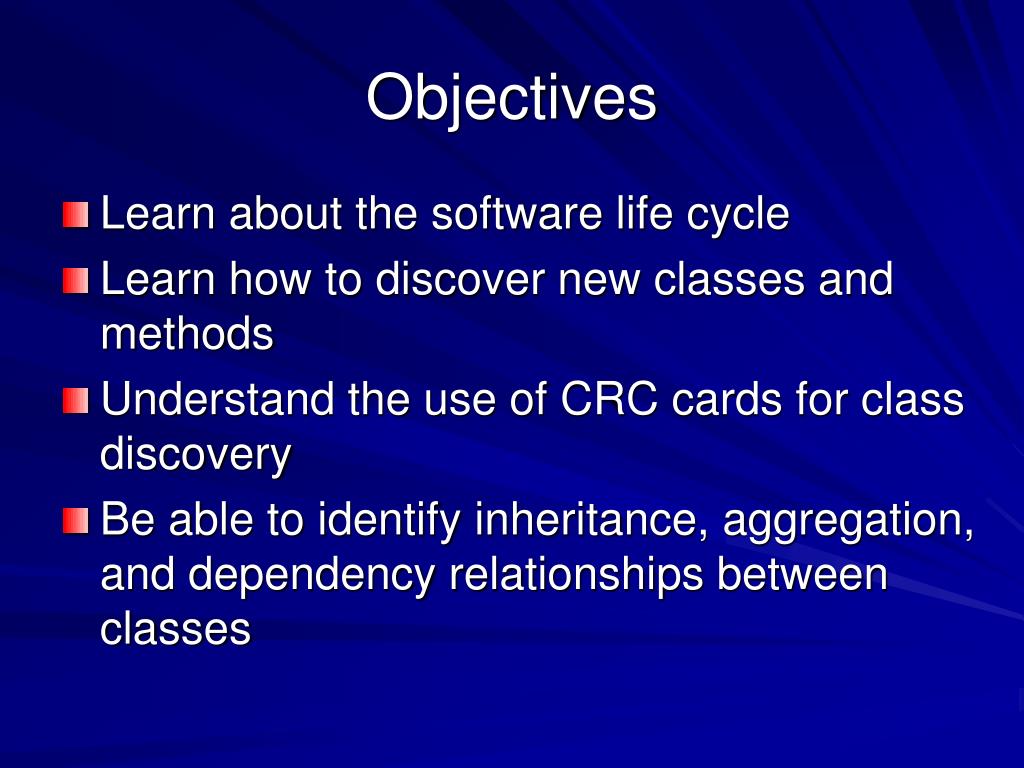

2. Objectives • Learn about the software life cycle • Learn how to discover new classes and methods • Understand the use of CRC cards for class discovery • Be able to identify inheritance, aggregation, and dependency relationships between classes

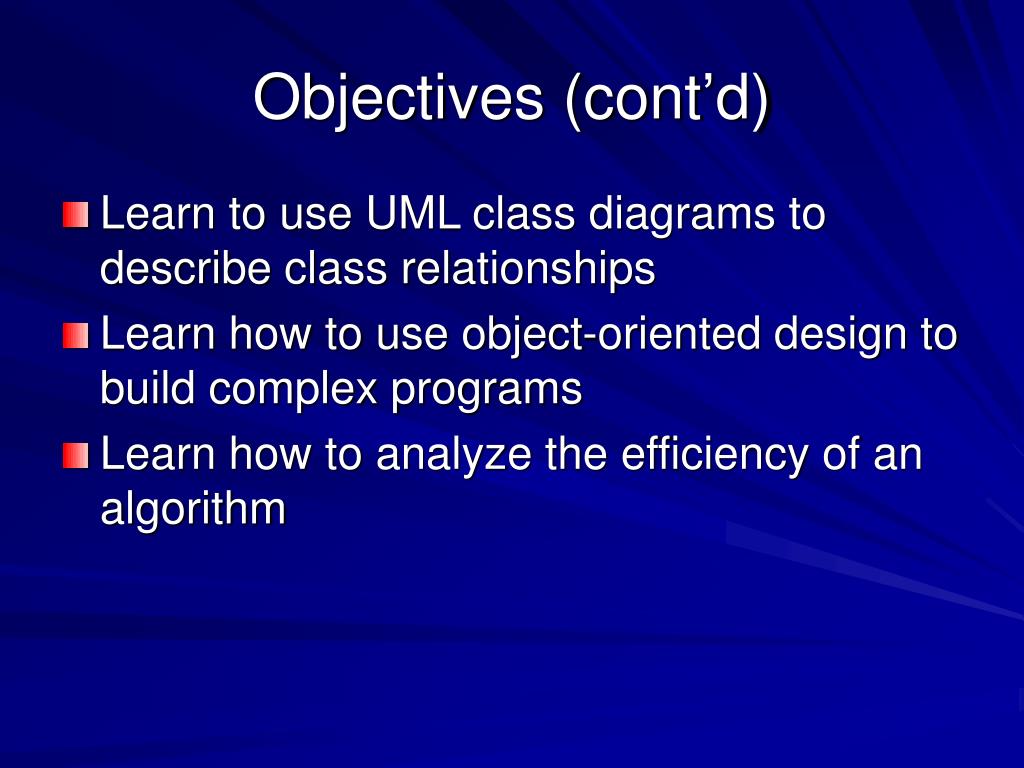

3. Objectives (cont’d) • Learn to use UML class diagrams to describe class relationships • Learn how to use object-oriented design to build complex programs • Learn how to analyze the efficiency of an algorithm

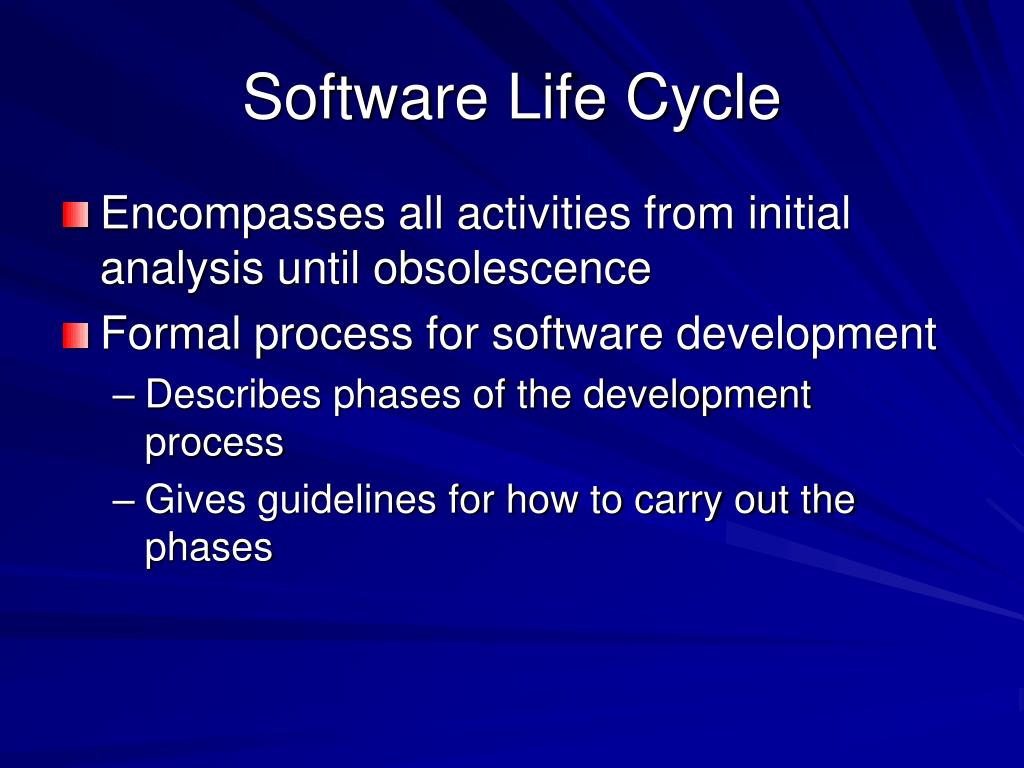

4. Software Life Cycle • Encompasses all activities from initial analysis until obsolescence • Formal process for software development • Describes phases of the development process • Gives guidelines for how to carry out the phases

5. Development Process • Analysis • Design • Implementation • Testing • Deployment

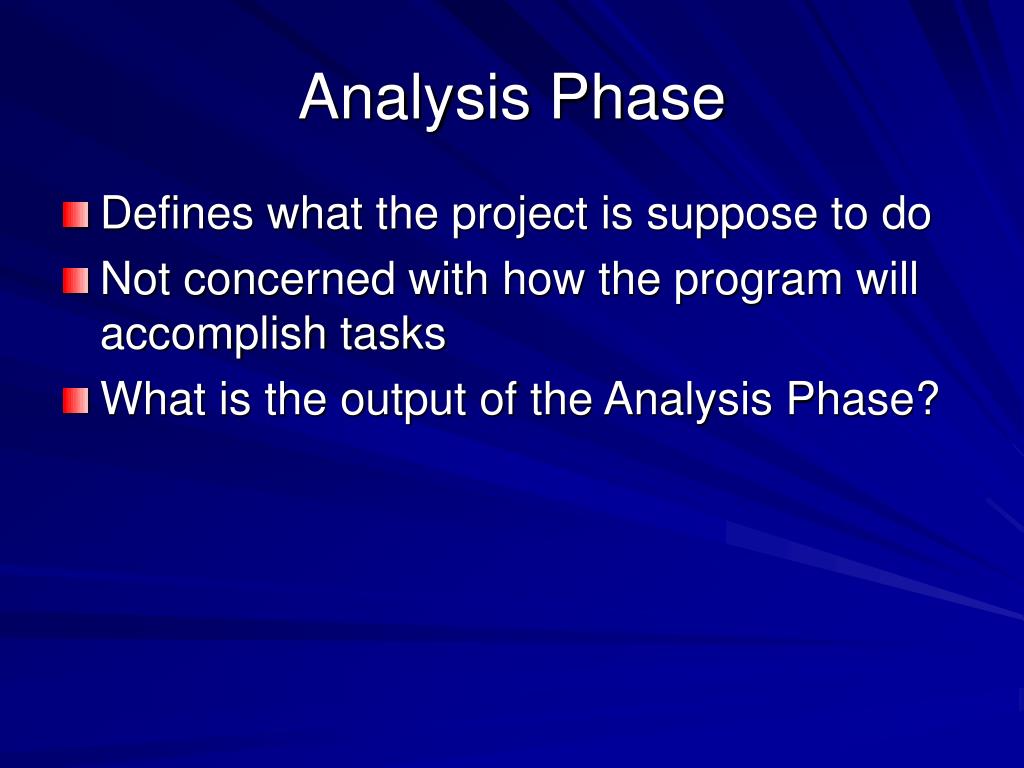

6. Analysis Phase • Defines what the project is suppose to do • Not concerned with how the program will accomplish tasks • What is the output of the Analysis Phase?

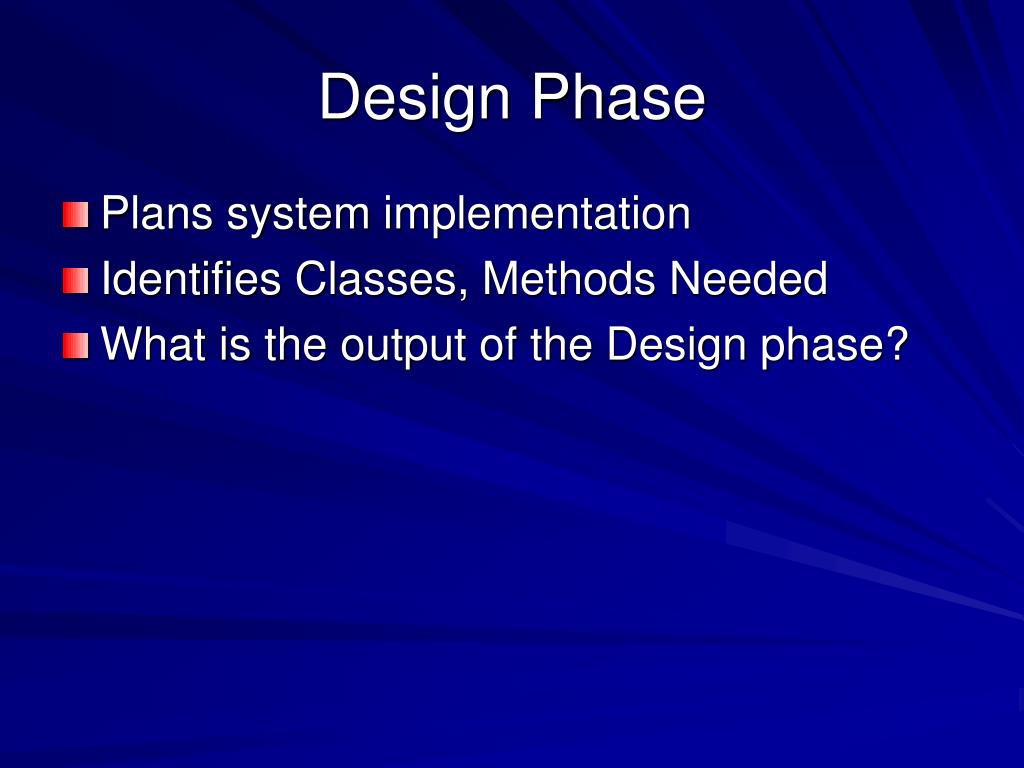

7. Design Phase • Plans system implementation • Identifies Classes, Methods Needed • What is the output of the Design phase?

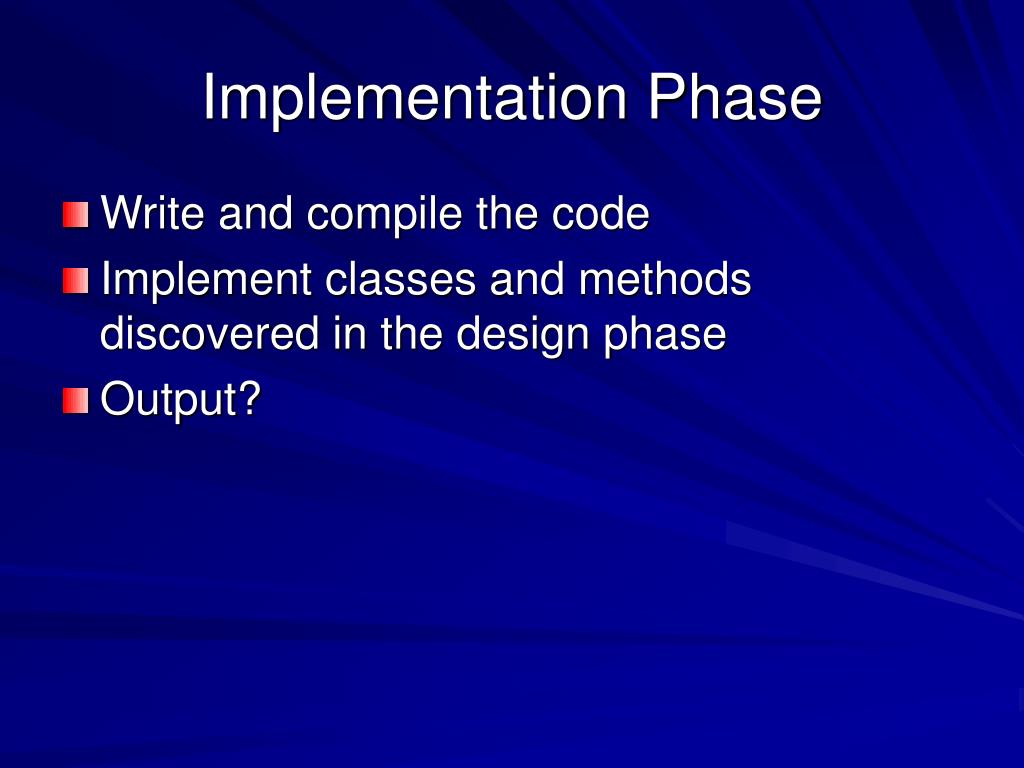

8. Implementation Phase • Write and compile the code • Implement classes and methods discovered in the design phase • Output?

9. Testing Phase • Run tests to verify the program works correctly • Output: a report of the tests and their results, test coverage

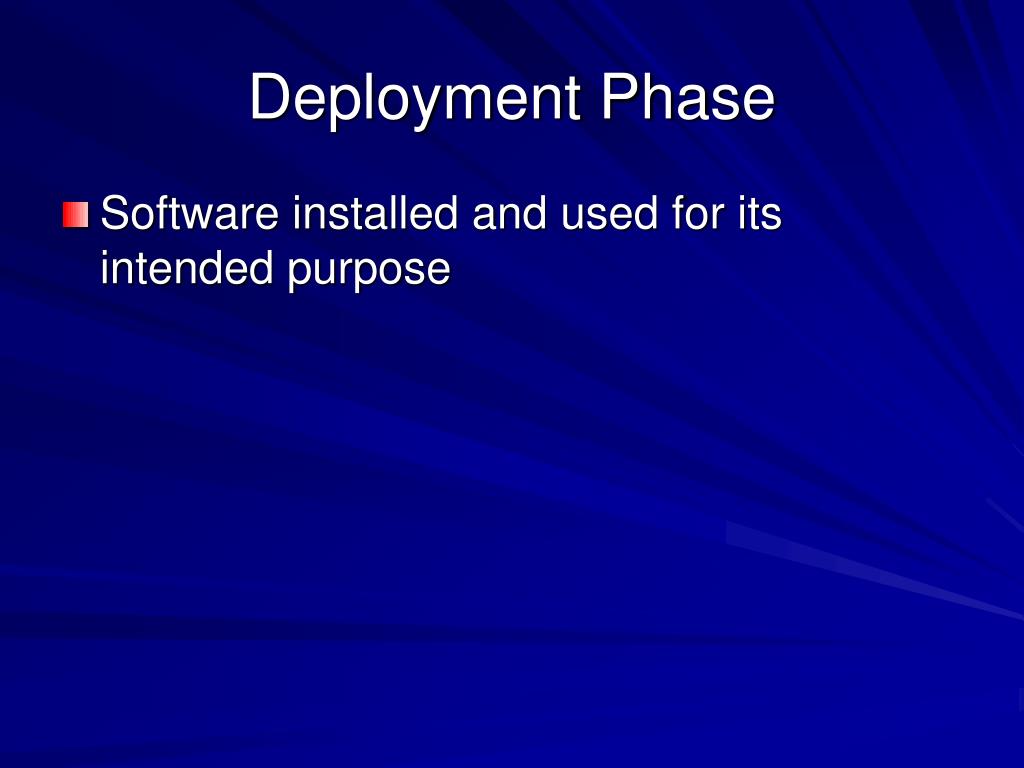

10. Deployment Phase • Software installed and used for its intended purpose

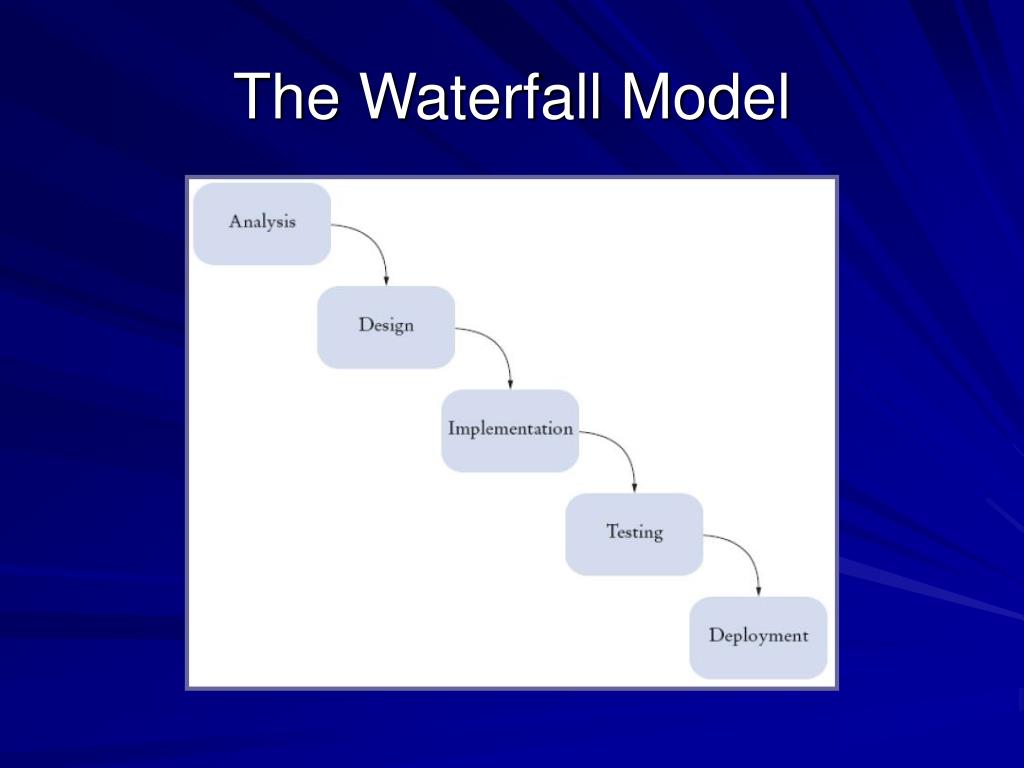

11. The Waterfall Model

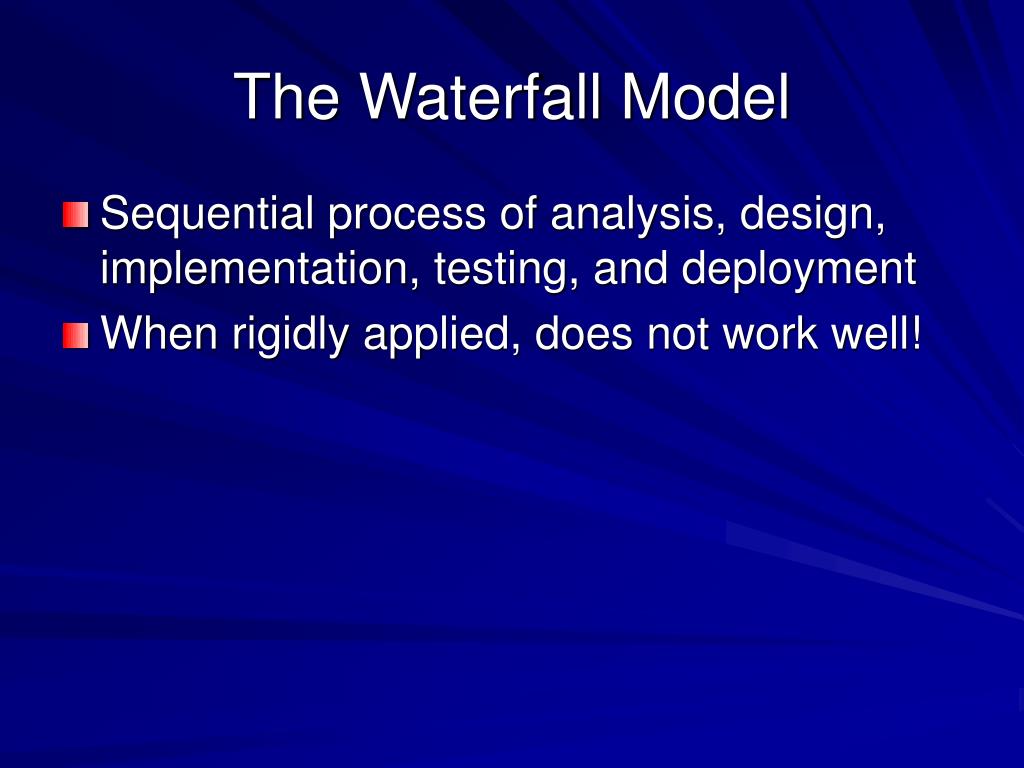

12. The Waterfall Model • Sequential process of analysis, design, implementation, testing, and deployment • When rigidly applied, does not work well!

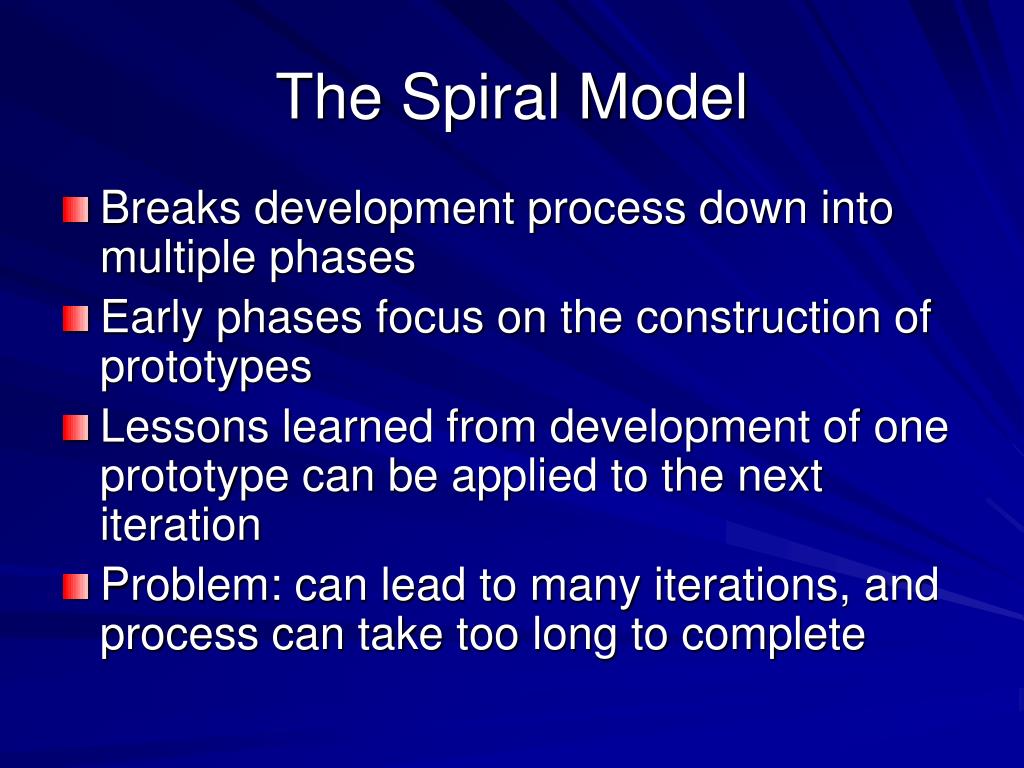

13. The Spiral Model • Breaks development process down into multiple phases • Early phases focus on the construction of prototypes • Lessons learned from development of one prototype can be applied to the next iteration • Problem: can lead to many iterations, and process can take too long to complete

14. The Spiral Model

15. Extreme Programming • Strives for simplicity • Removes formal structure • Focuses on best practices • Realistic planning • Small releases • Metaphor • Simplicity • Testing • Re-factoring

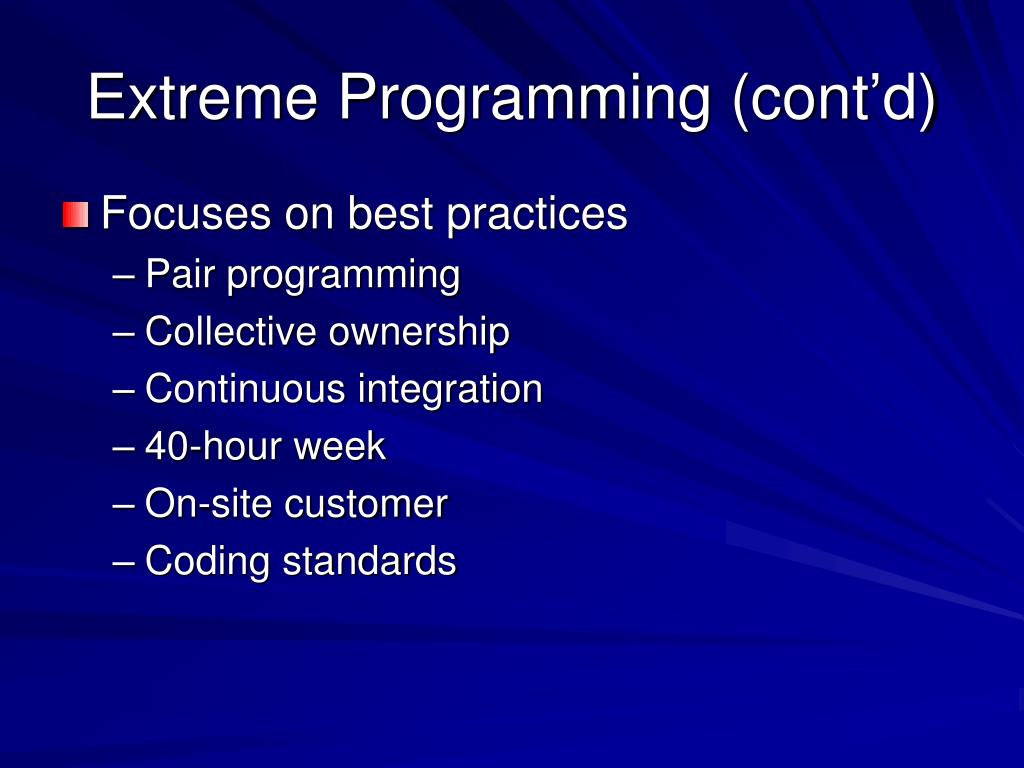

16. Extreme Programming (cont’d) • Focuses on best practices • Pair programming • Collective ownership • Continuous integration • 40-hour week • On-site customer • Coding standards

17. Test Driven Development

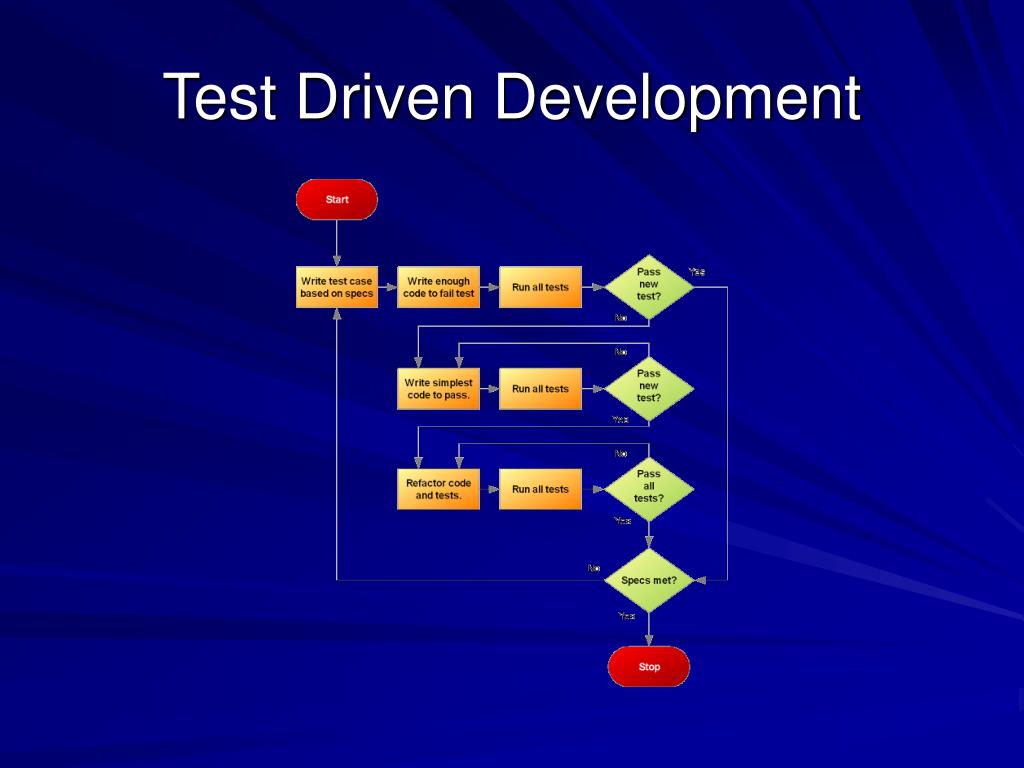

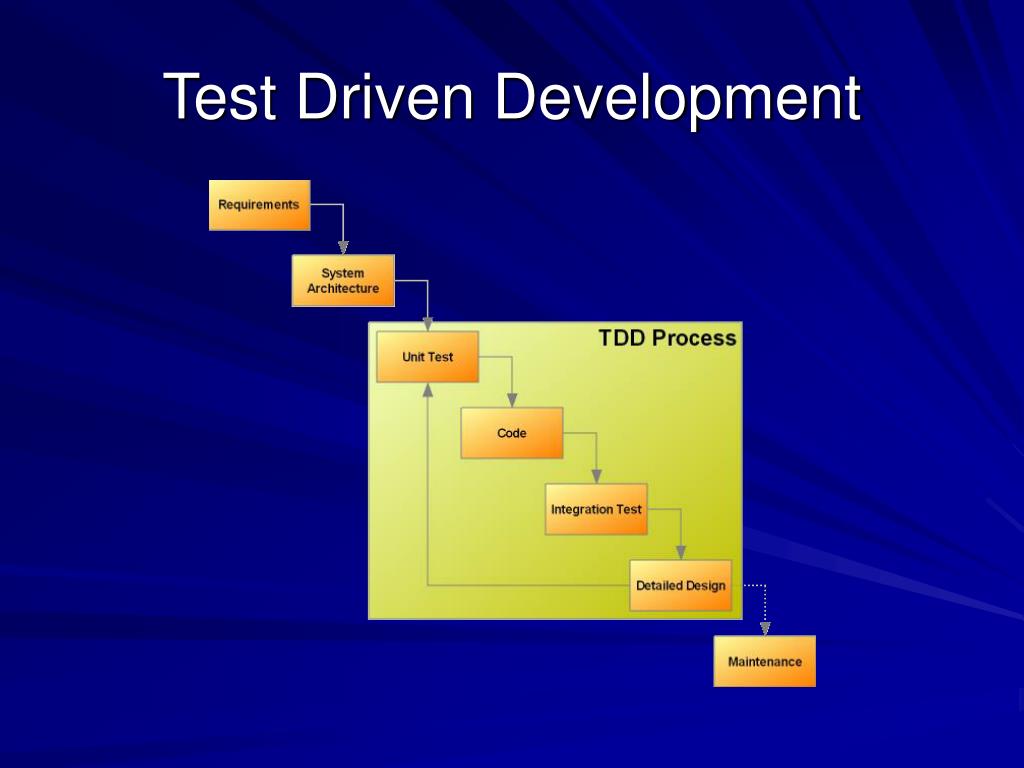

18. Test Driven Development • Typical Sequence of Steps: • Create a new test case • Write enough code to fail the test • Run the tests and watch the new test fail • Write the simplest code that will pass the new test • Run the tests and watch all the tests pass • Remove duplication • Rerun the tests

19. Test Driven Development

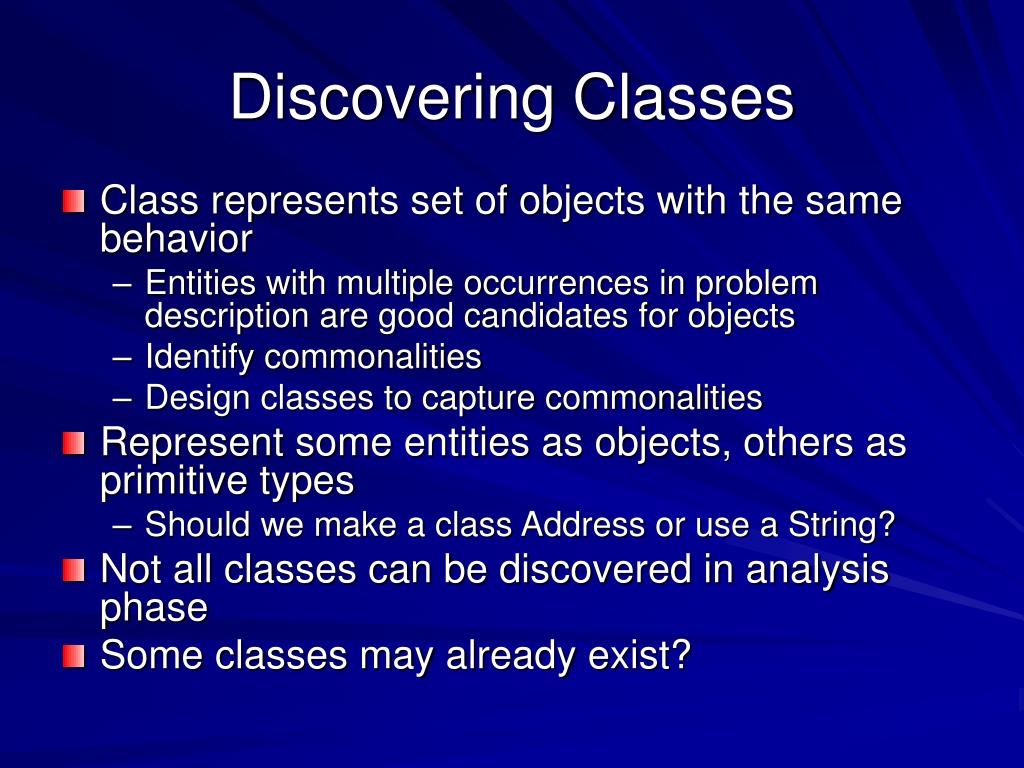

20. Discovering Classes • Class represents set of objects with the same behavior • Entities with multiple occurrences in problemdescription are good candidates for objects • Identify commonalities • Design classes to capture commonalities • Represent some entities as objects, others as primitive types • Should we make a class Address or use a String? • Not all classes can be discovered in analysis phase • Some classes may already exist?

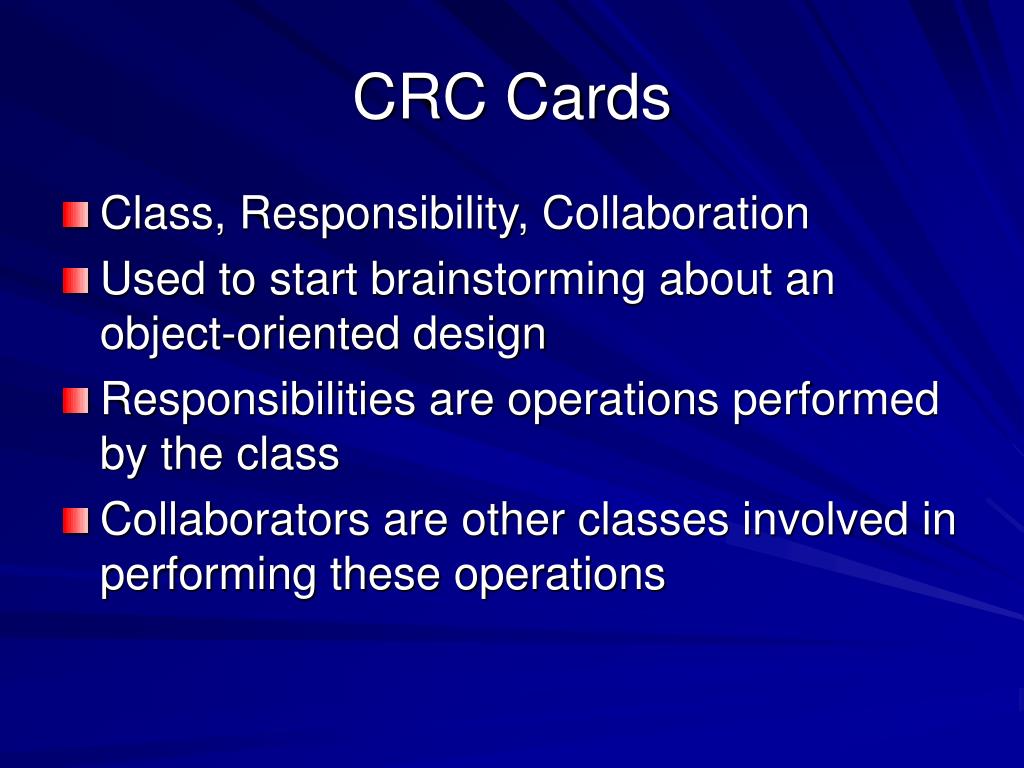

21. CRC Cards • Class, Responsibility, Collaboration • Used to start brainstorming about an object-oriented design • Responsibilities are operations performed by the class • Collaborators are other classes involved in performing these operations

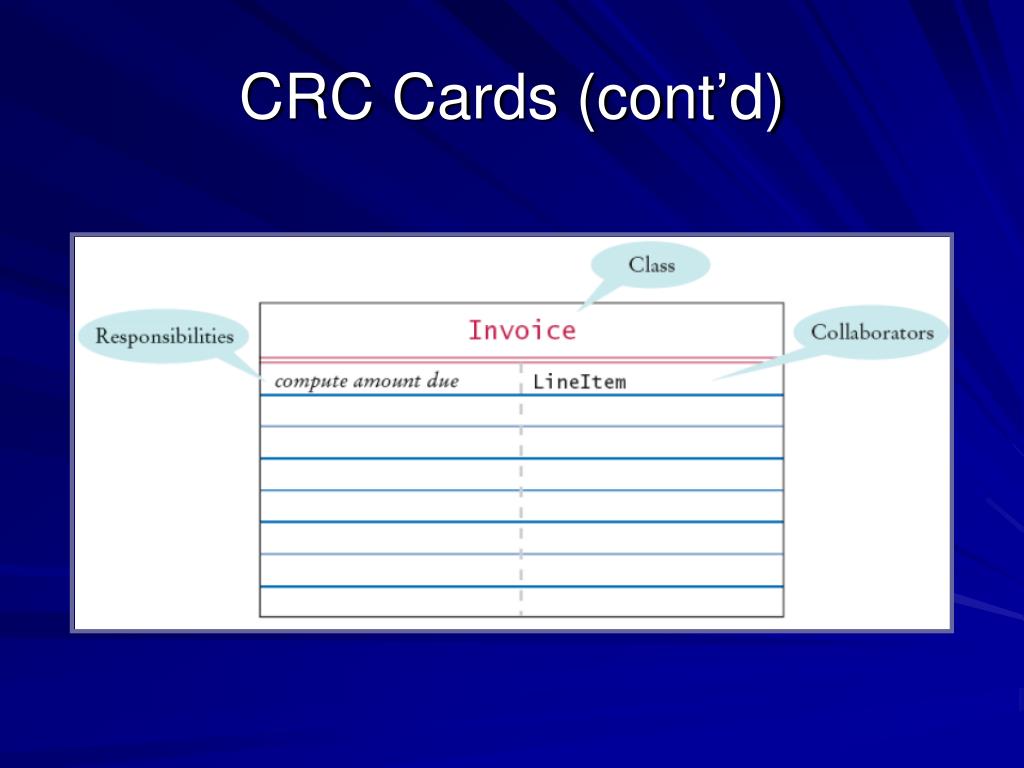

22. CRC Cards (cont’d)

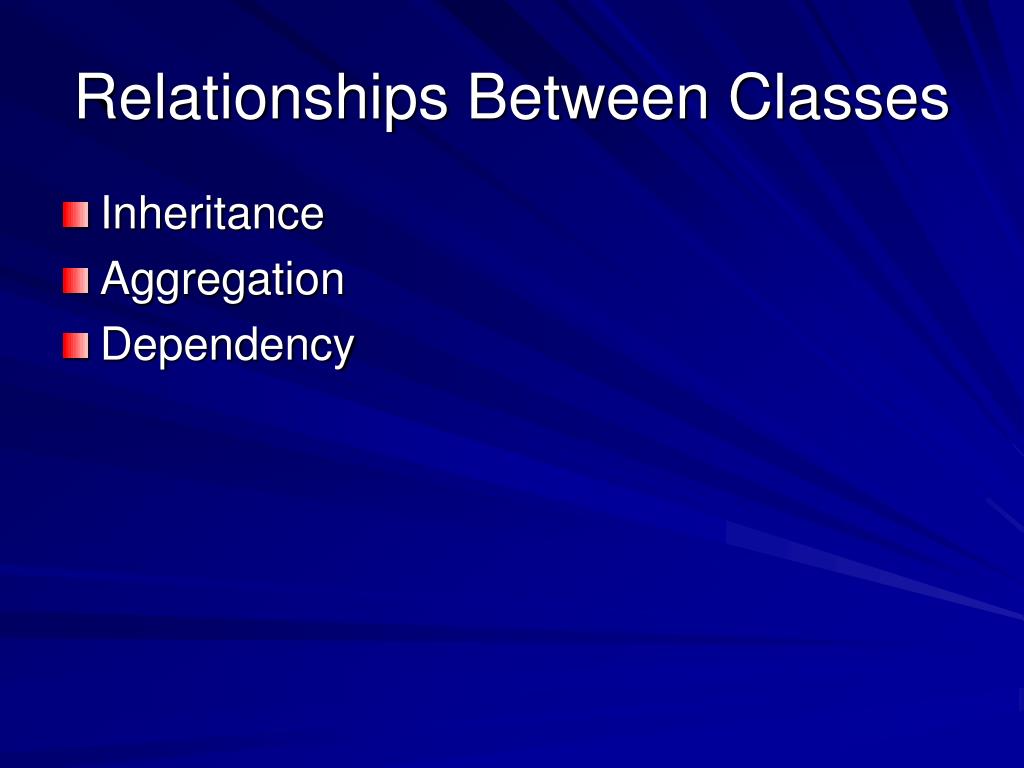

23. Relationships Between Classes • Inheritance • Aggregation • Dependency

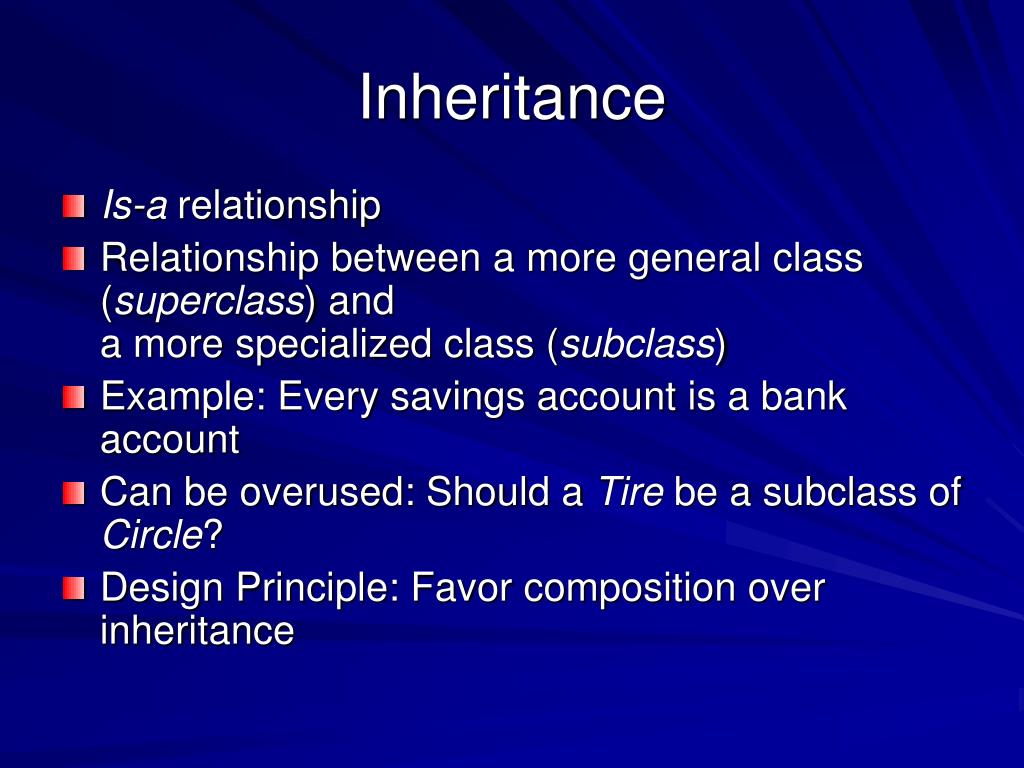

24. Inheritance • Is-a relationship • Relationship between a more general class (superclass) anda more specialized class (subclass) • Example: Every savings account is a bank account • Can be overused: Should a Tire be a subclass of Circle? • Design Principle: Favor composition over inheritance

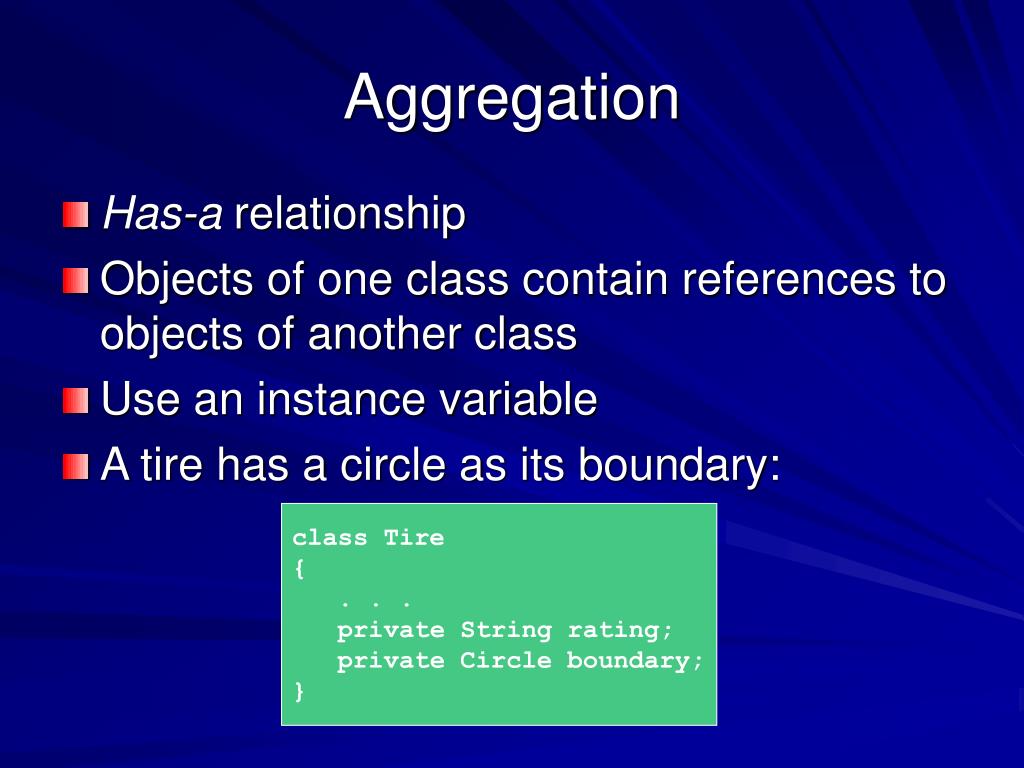

25. Aggregation • Has-a relationship • Objects of one class contain references to objects of another class • Use an instance variable • A tire has a circle as its boundary: class Tire{ . . . private String rating; private Circle boundary;}

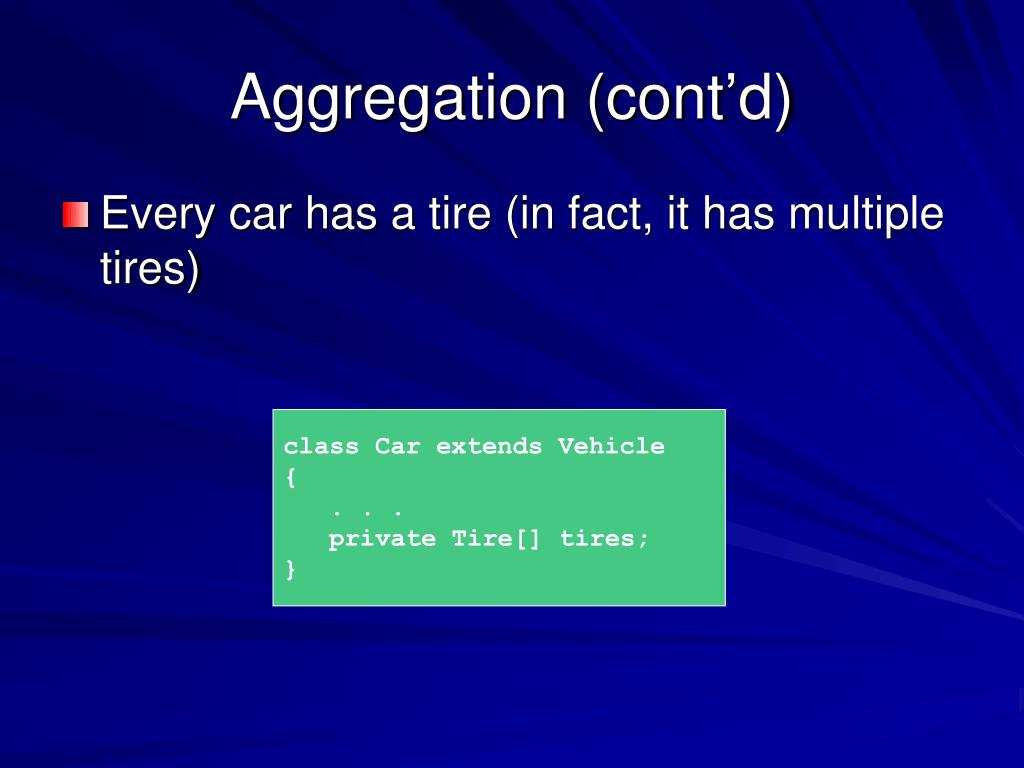

26. Aggregation (cont’d) • Every car has a tire (in fact, it has multiple tires) class Car extends Vehicle{ . . . private Tire[] tires;}

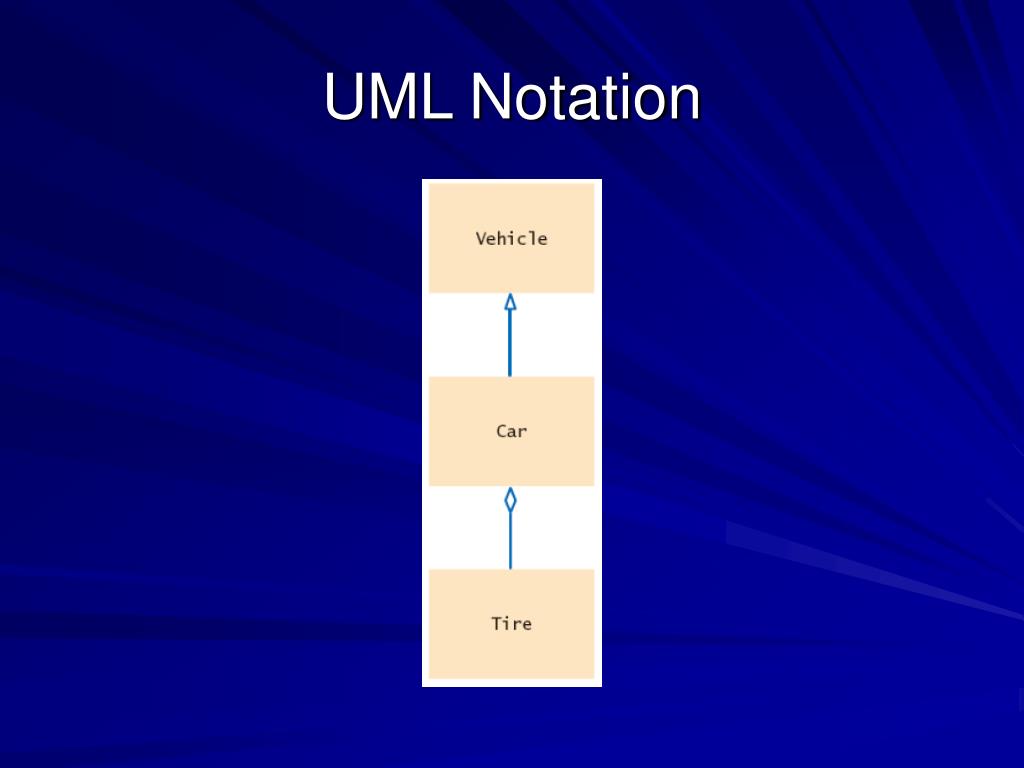

27. UML Notation

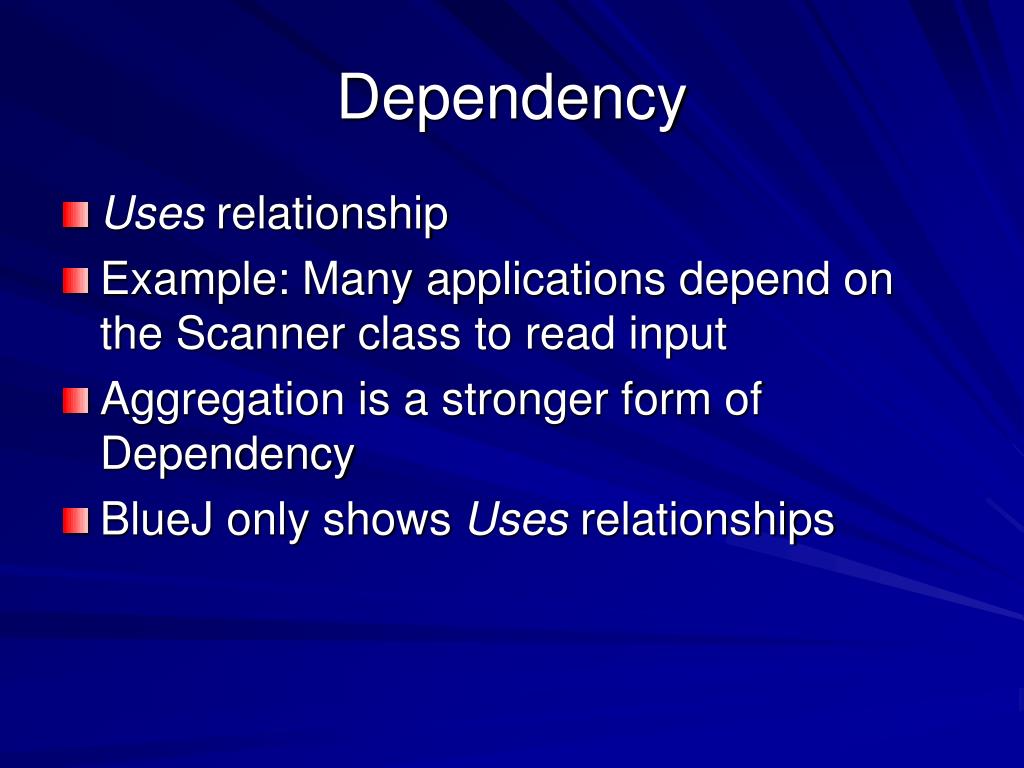

28. Dependency • Uses relationship • Example: Many applications depend on the Scanner class to read input • Aggregation is a stronger form of Dependency • BlueJ only shows Uses relationships

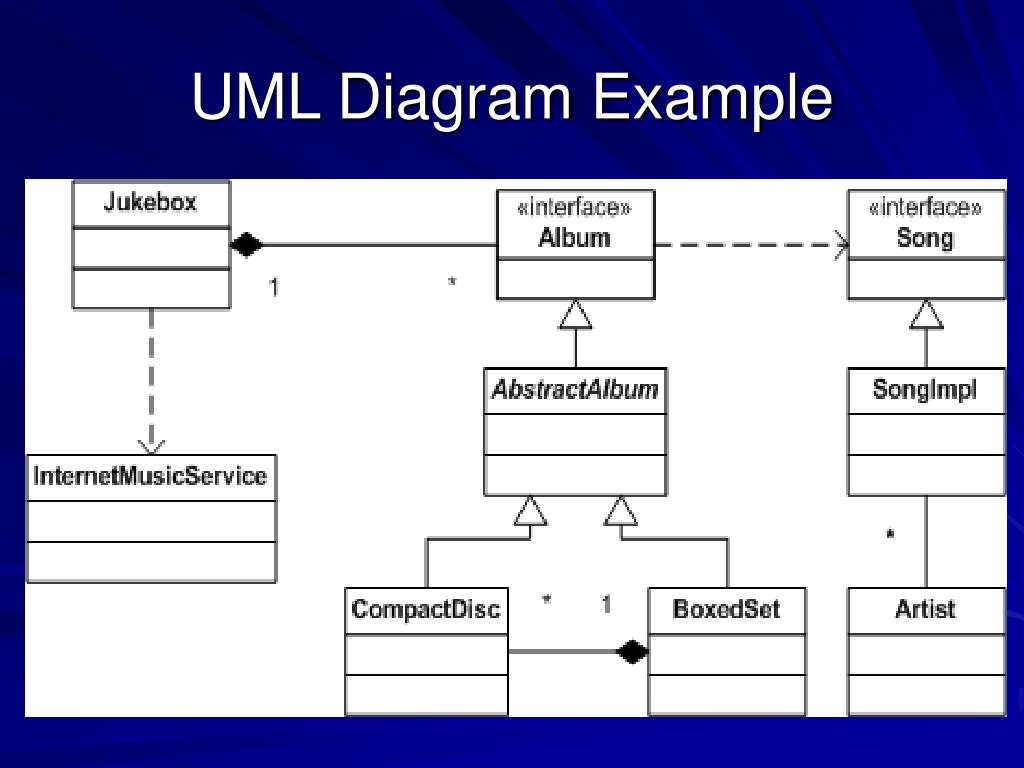

29. UML Diagram Example

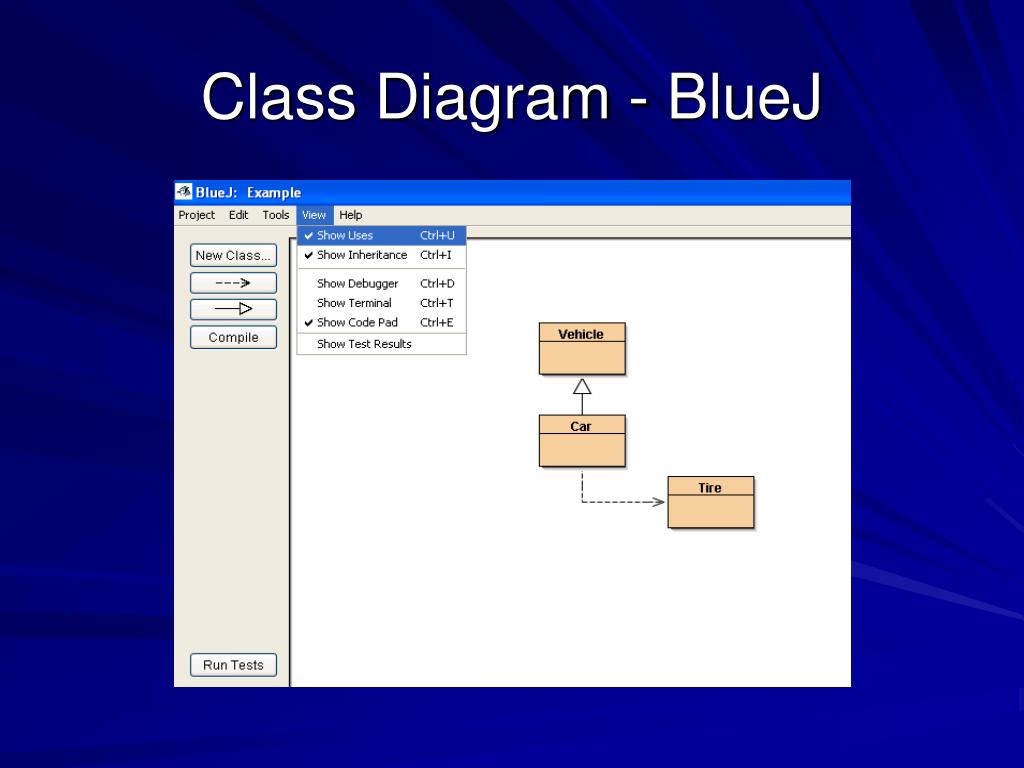

30. Class Diagram - BlueJ

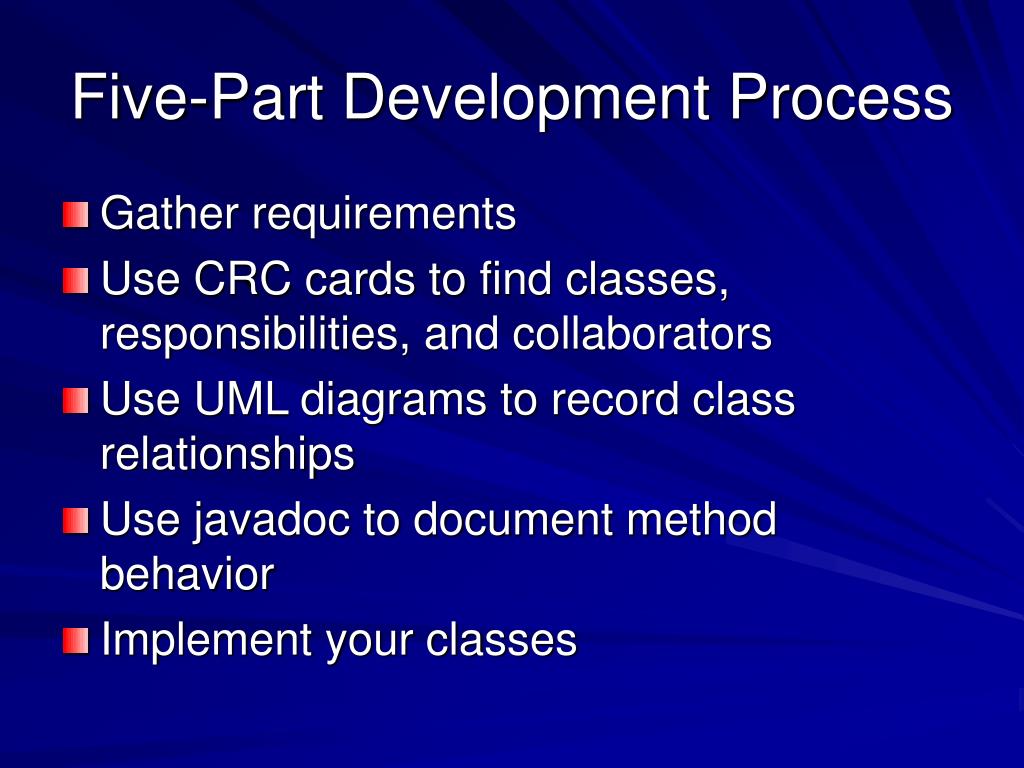

31. Five-Part Development Process • Gather requirements • Use CRC cards to find classes, responsibilities, and collaborators • Use UML diagrams to record class relationships • Use javadoc to document method behavior • Implement your classes

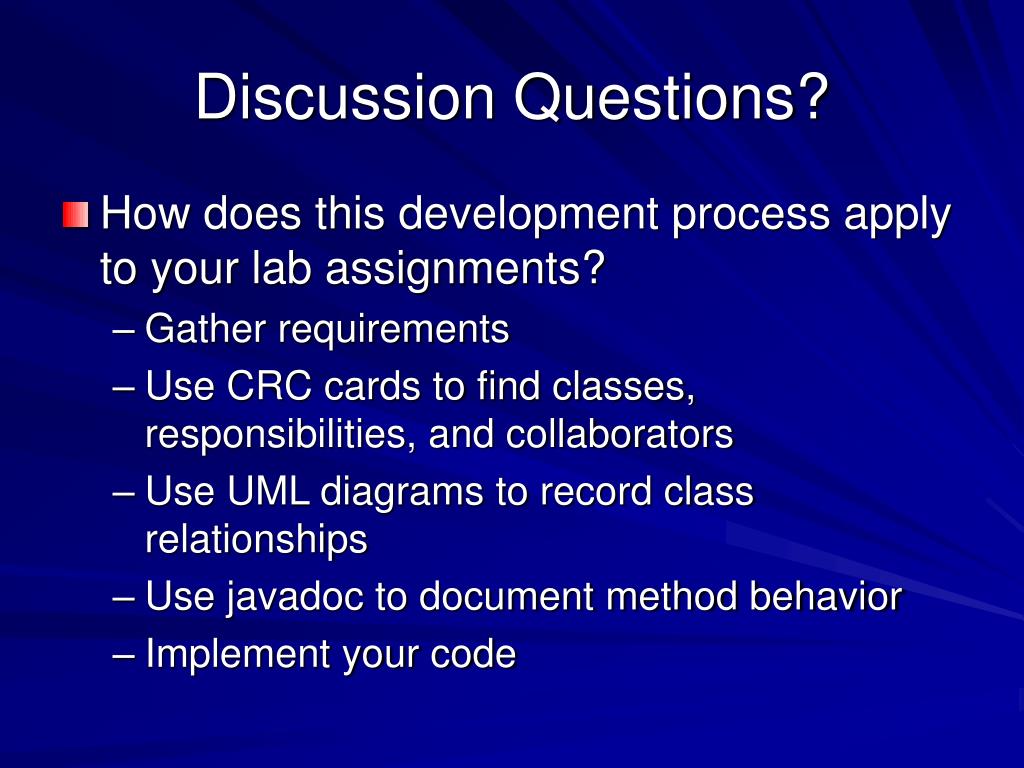

32. Discussion Questions? • How does this development process apply to your lab assignments? • Gather requirements • Use CRC cards to find classes, responsibilities, and collaborators • Use UML diagrams to record class relationships • Use javadoc to document method behavior • Implement your code

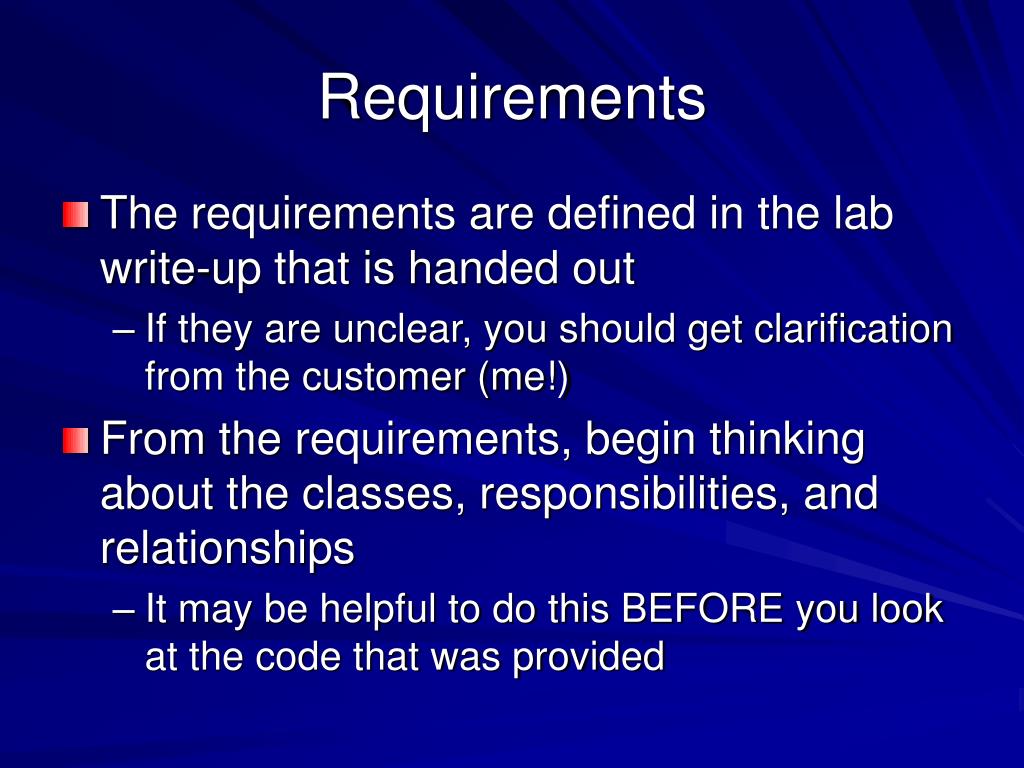

33. Requirements • The requirements are defined in the lab write-up that is handed out • If they are unclear, you should get clarification from the customer (me!) • From the requirements, begin thinking about the classes, responsibilities, and relationships • It may be helpful to do this BEFORE you look at the code that was provided

34. CRC Cards • Discover classes • Most, if not all, classes are already determined • Discover responsibilities • Relate the method names to the verbs in the requirements • Describe relationships • Consider whether there are other relationships between the classes besides those already established

35. Javadoc • Examine the javadoc that is included with the lab • Consider how the methods relate to the responsibilities on the CRC cards • Consider whether there are other methods that should be included

36. Implementation • Implement the code using test-driven development

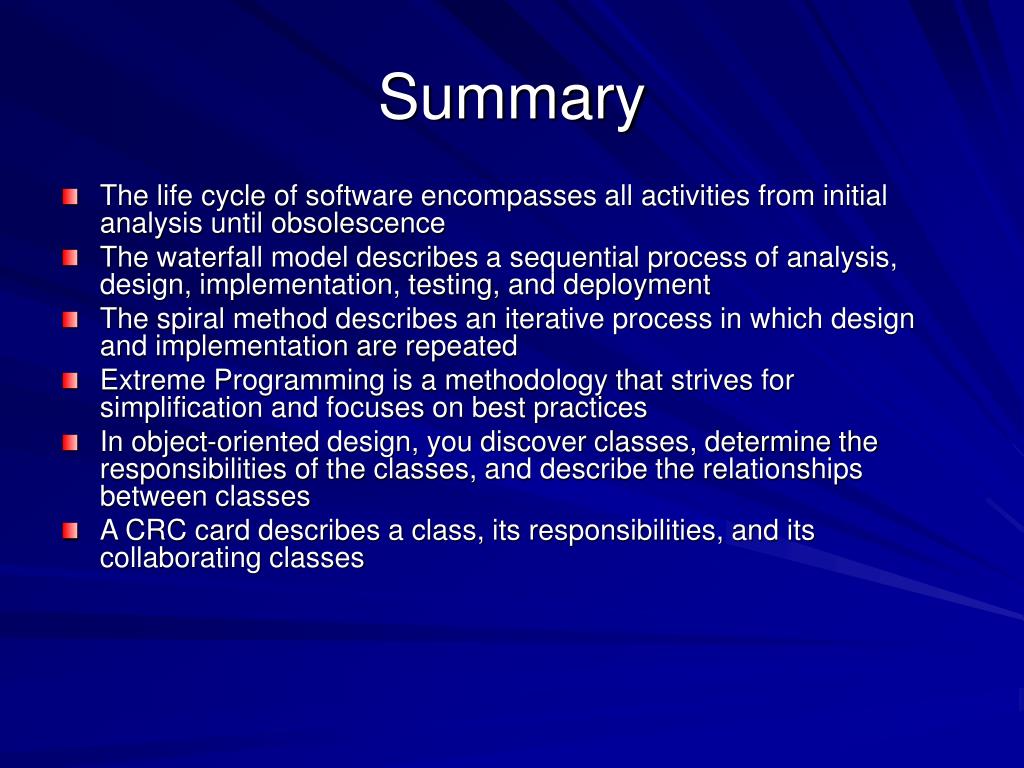

37. Summary • The life cycle of software encompasses all activities from initial analysis until obsolescence • The waterfall model describes a sequential process of analysis, design, implementation, testing, and deployment • The spiral method describes an iterative process in which design and implementation are repeated • Extreme Programming is a methodology that strives for simplification and focuses on best practices • In object-oriented design, you discover classes, determine the responsibilities of the classes, and describe the relationships between classes • A CRC card describes a class, its responsibilities, and its collaborating classes

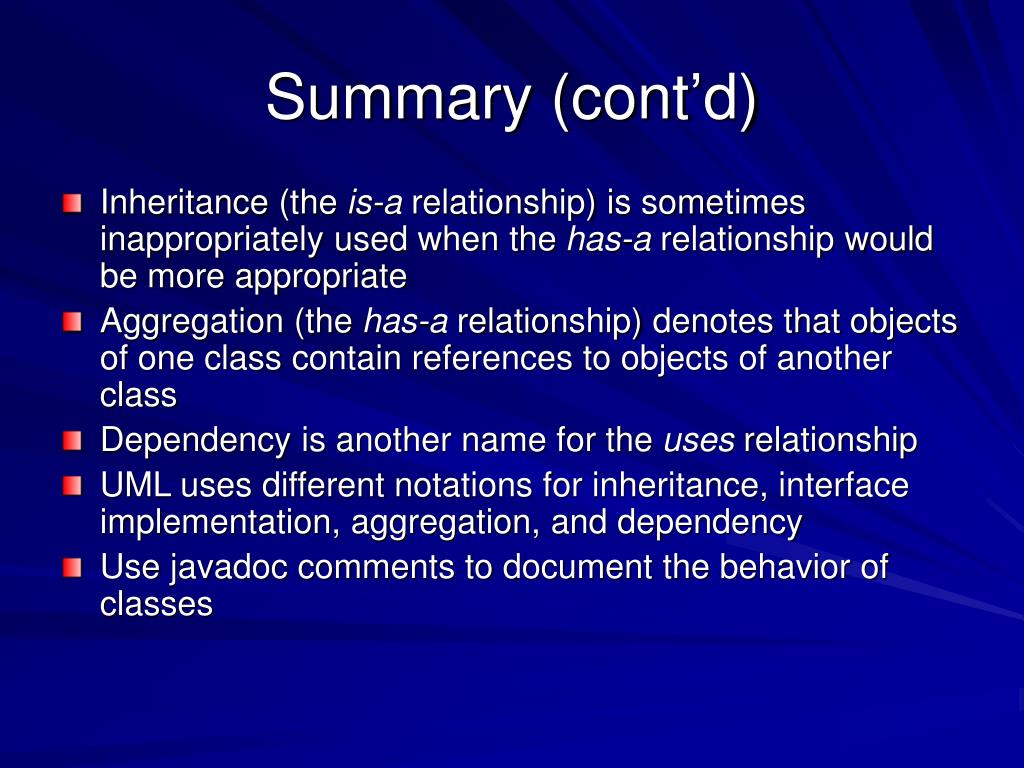

38. Summary (cont’d) • Inheritance (the is-a relationship) is sometimes inappropriately used when the has-a relationship would be more appropriate • Aggregation (the has-a relationship) denotes that objects of one class contain references to objects of another class • Dependency is another name for the uses relationship • UML uses different notations for inheritance, interface implementation, aggregation, and dependency • Use javadoc comments to document the behavior of classes

39. Questions?

40. Efficiency of Algorithms • Difficult to get a precise measure of the performance of an algorithm or program • Can characterize an algorithm by how the execution time increases as a function of the size of the input (asymptotic performance) • Big-O notation

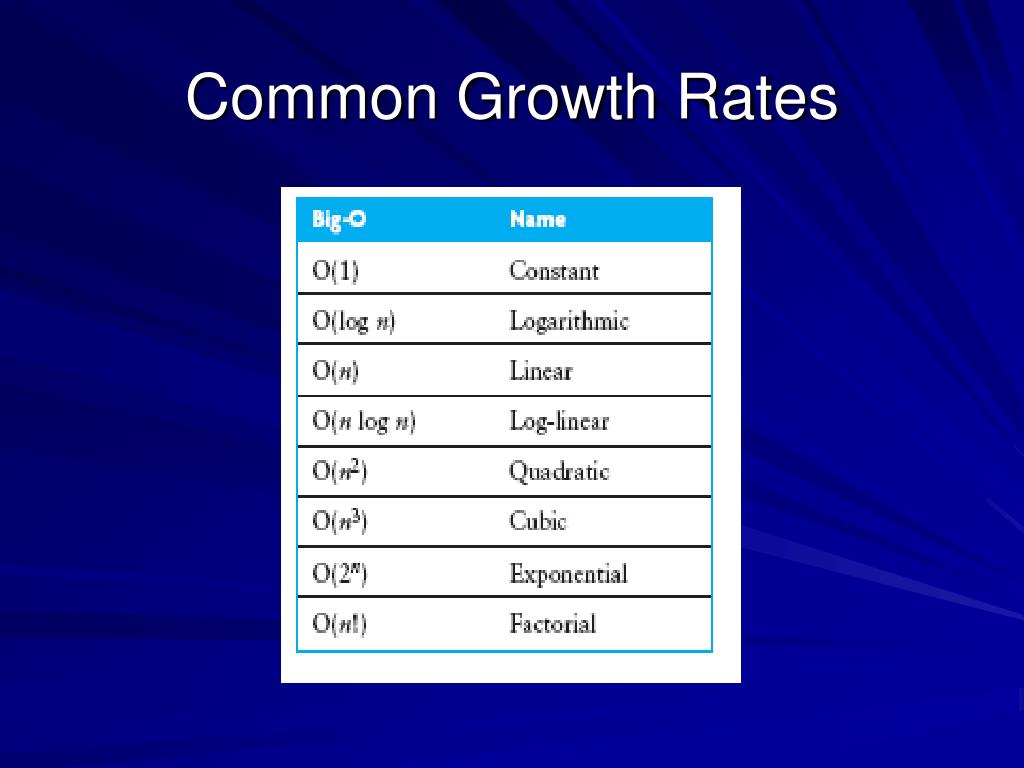

41. Common Growth Rates

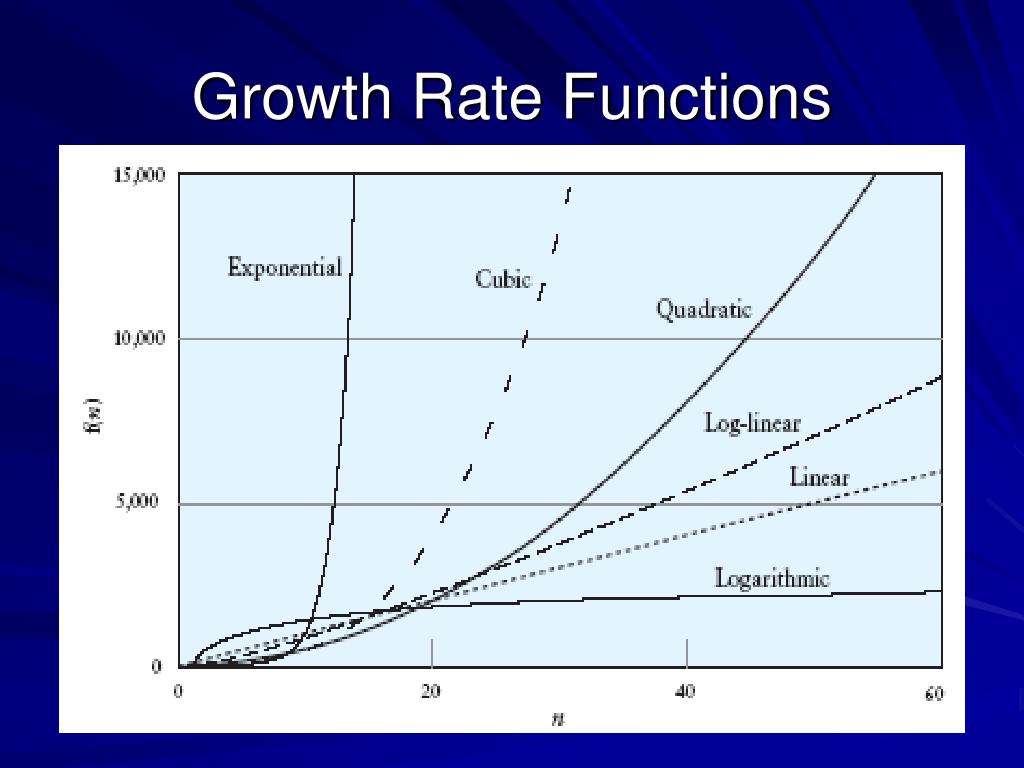

42. Growth Rate Functions

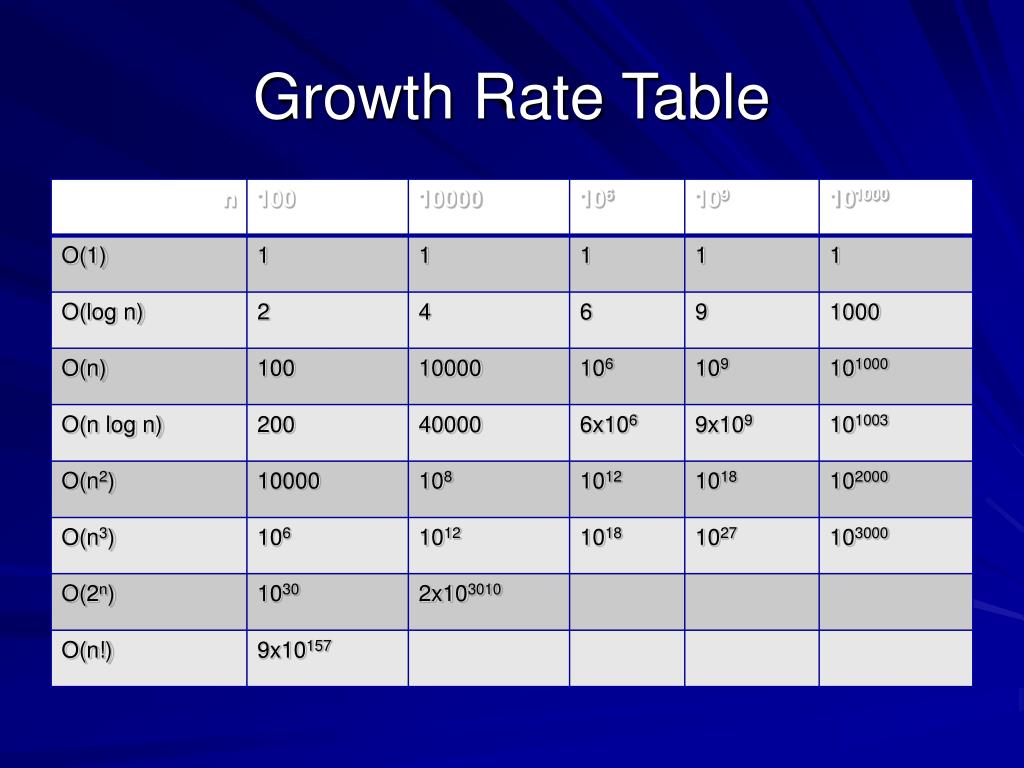

43. Growth Rate Table

44. What is the Big-O of this algorithm for (int i=0; i<n; i++) for (int j=0; j<n; j++) System.out.println(i + “ “ + j);

45. What is the Big-O of this algorithm for (int i=0; i<n; i++) for (int j=0; j<2; j++) System.out.println(i + “ “ + j);

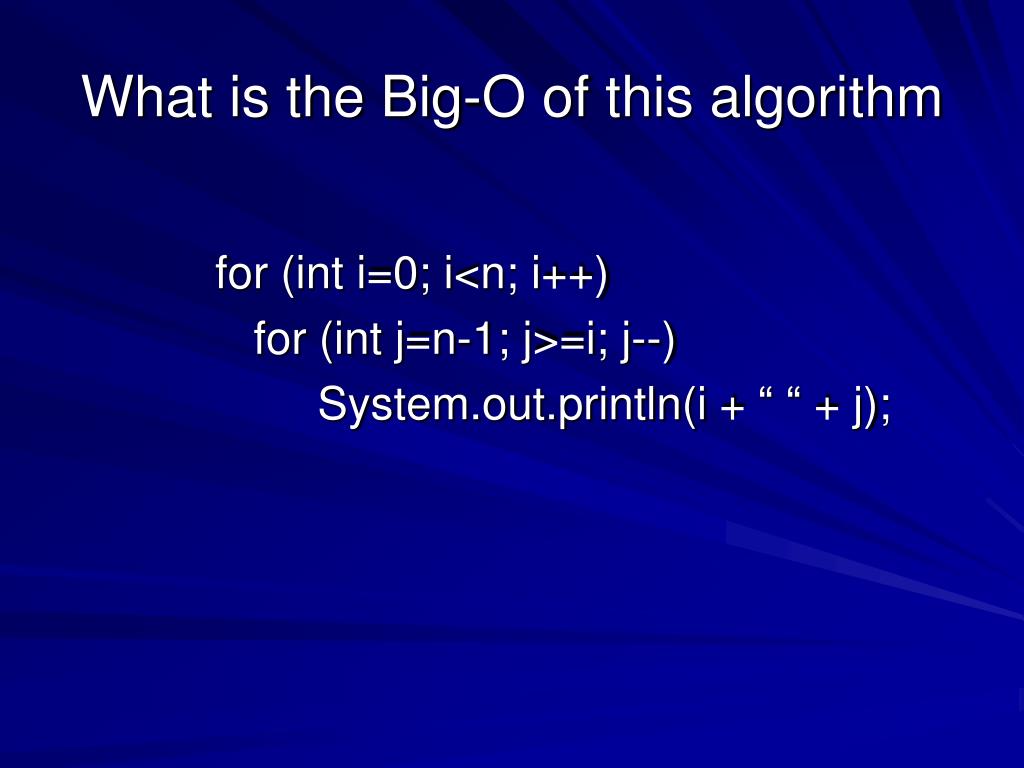

46. What is the Big-O of this algorithm for (int i=0; i<n; i++) for (int j=n-1; j>=i; j--) System.out.println(i + “ “ + j);

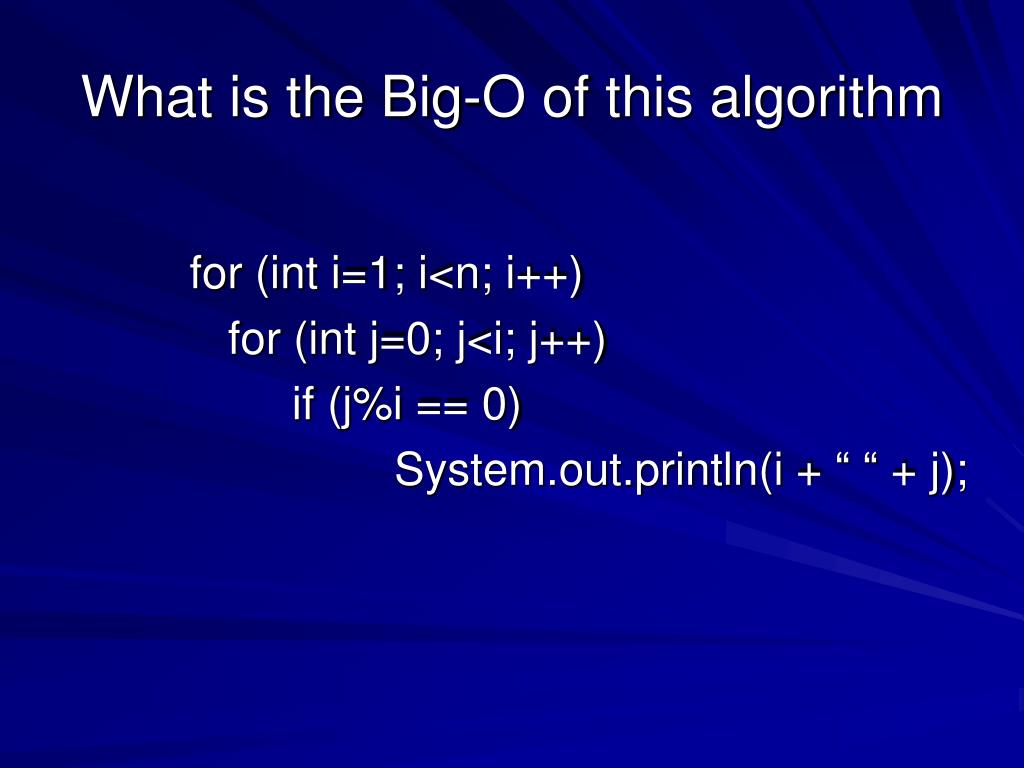

47. What is the Big-O of this algorithm for (int i=1; i<n; i++) for (int j=0; j<i; j++) if (j%i == 0) System.out.println(i + “ “ + j);
