  1. Sorting and Lower Bounds 15-211 Fundamental Data Structures and Algorithms Peter Lee February 25, 2003

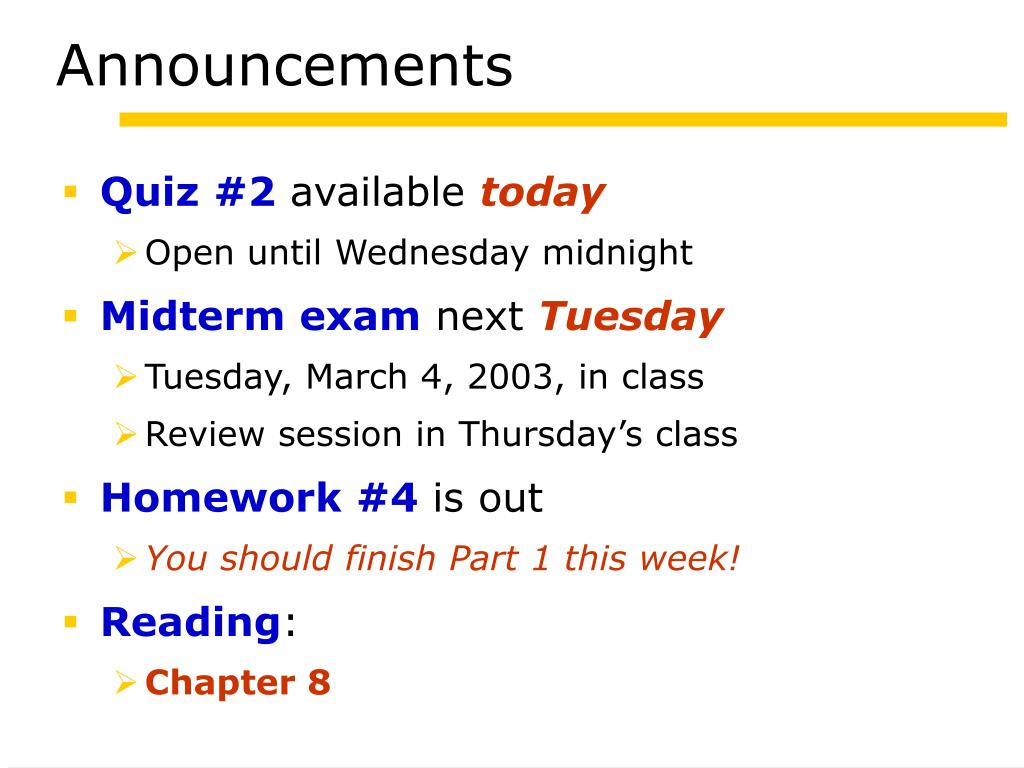

  2. Announcements • Quiz #2 available today • Open until Wednesday midnight • Midterm exam next Tuesday • Tuesday, March 4, 2003, in class • Review session in Thursday’s class • Homework #4 is out • You should finish Part 1 this week! • Reading: • Chapter 8

  3. Recap

  4. 13 47 105 13 13 105 30 47 105 47 47 47 13 47 13 13 99 105 99 105 99 99 99 99 30 30 105 30 30 30 222 222 222 222 222 222 24 47 13 99 105 222 13 47 13 24 Naïve sorting algorithms • Bubble sort. • Insertion sort.

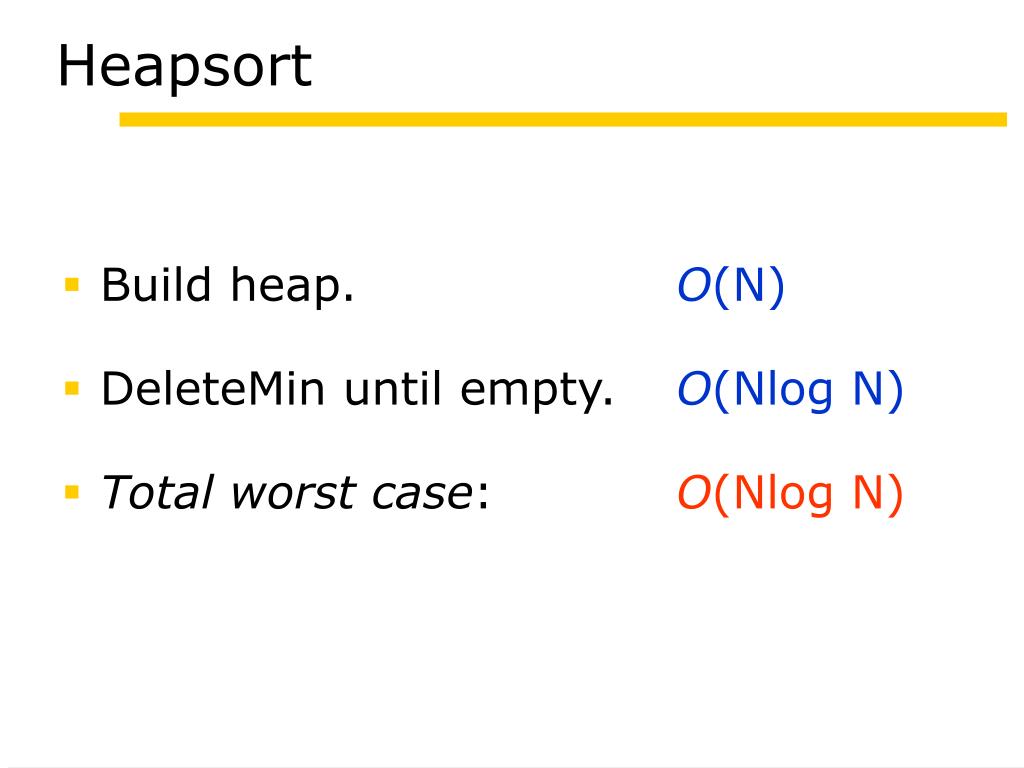

  5. Heapsort • Build heap. O(N) • DeleteMin until empty. O(Nlog N) • Total worst case: O(Nlog N)

  6. 99 105 30 99 30 99 30 30 99 47 13 47 13 99 13 13 13 13 105 99 105 105 105 105 47 47 30 30 47 47 222 222 222 222 222 222 Several inverted pairs fixed in one exchange. Shellsort • Example with sequence 3, 1. ...

  7. Divide-and-conquer

  8. Divide-and-conquer

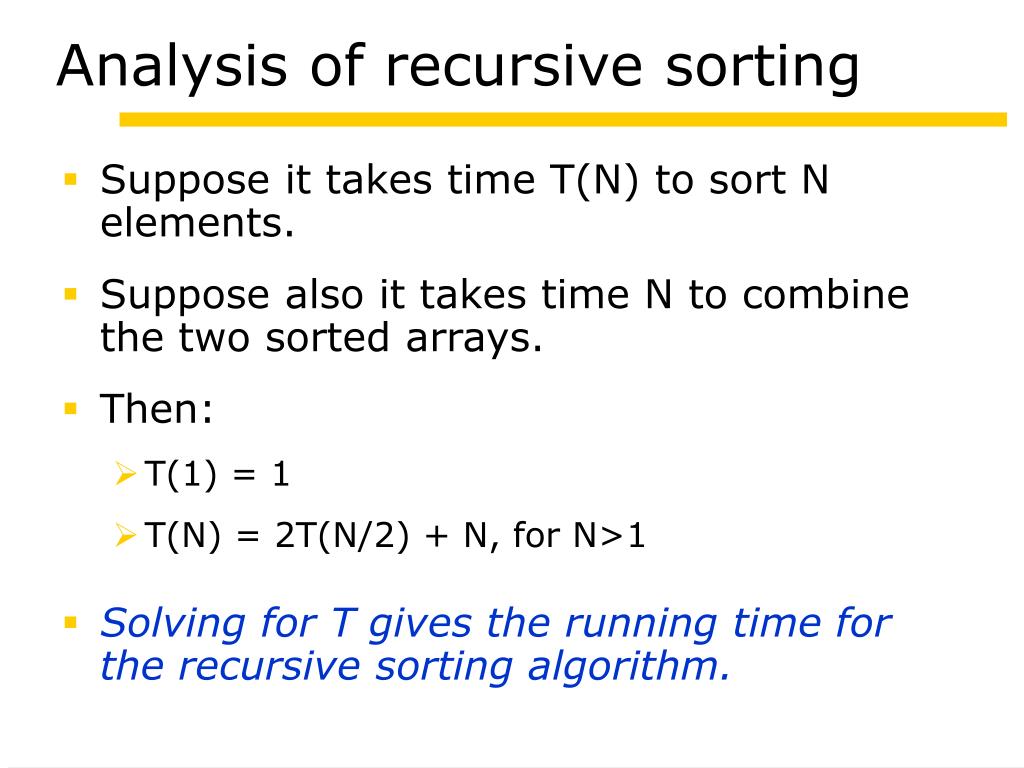

  9. Analysis of recursive sorting • Suppose it takes time T(N) to sort N elements. • Suppose also it takes time N to combine the two sorted arrays. • Then: • T(1) = 1 • T(N) = 2T(N/2) + N, for N>1 • Solving for T gives the running time for the recursive sorting algorithm.

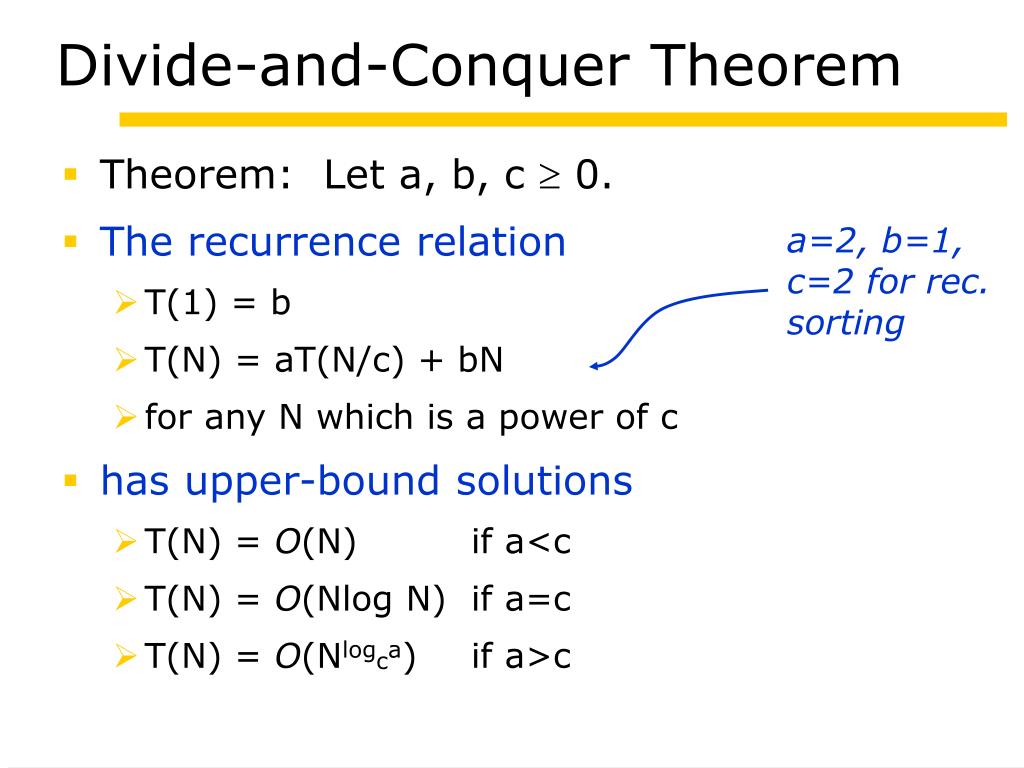

  10. a=2, b=1, c=2 for rec. sorting Divide-and-Conquer Theorem • Theorem: Let a, b, c  0. • The recurrence relation • T(1) = b • T(N) = aT(N/c) + bN • for any N which is a power of c • has upper-bound solutions • T(N) = O(N) if a<c • T(N) = O(Nlog N) if a=c • T(N) = O(Nlogca) if a>c

  11. Exact solutions • It is sometimes possible to derive closed-form solutions to recurrence relations. • Several methods exist for doing this. • Telescoping-sum method • Repeated-substitution method

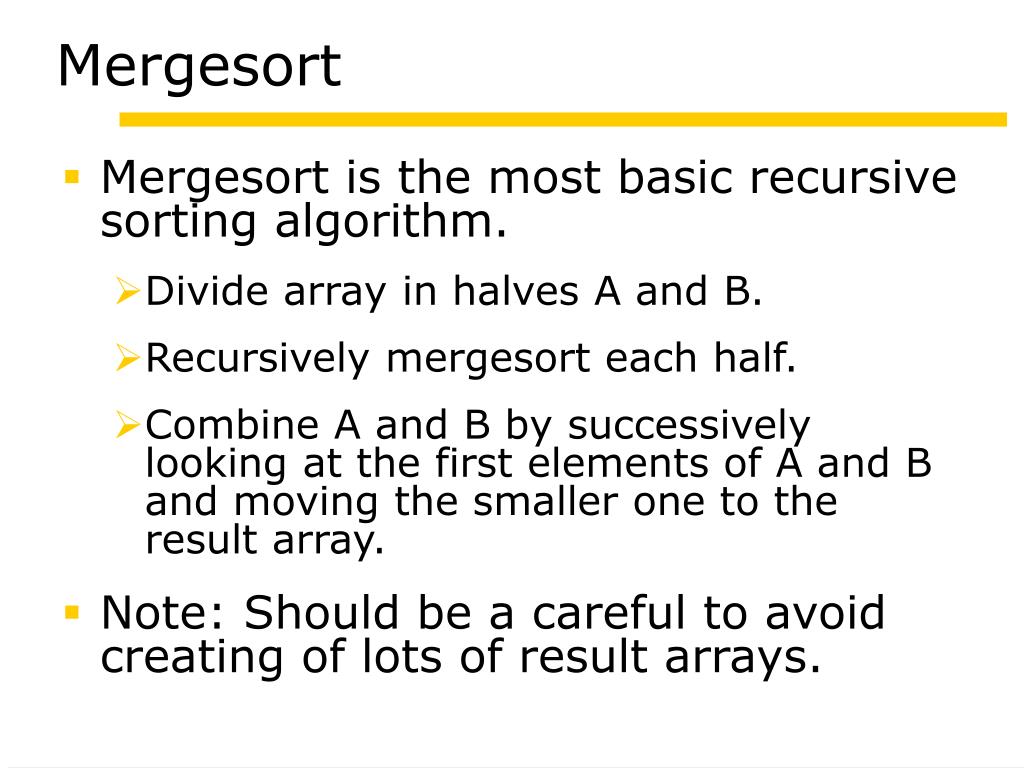

  12. Mergesort • Mergesort is the most basic recursive sorting algorithm. • Divide array in halves A and B. • Recursively mergesort each half. • Combine A and B by successively looking at the first elements of A and B and moving the smaller one to the result array. • Note: Should be a careful to avoid creating of lots of result arrays.

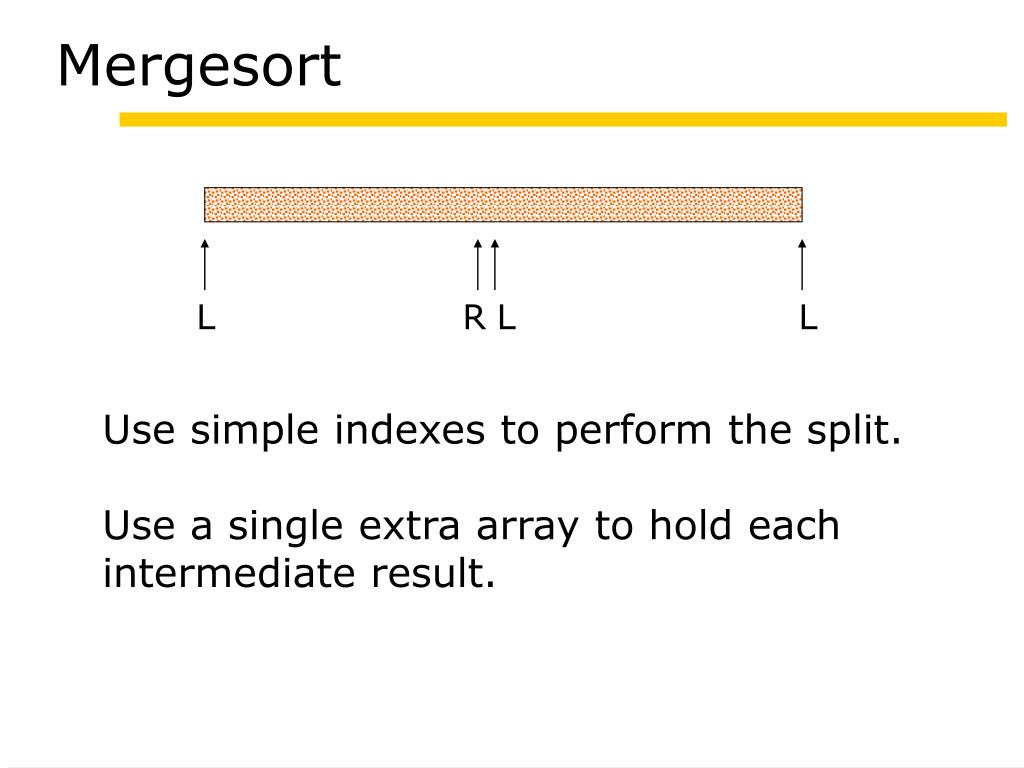

  13. Mergesort L R L L Use simple indexes to perform the split. Use a single extra array to hold each intermediate result.

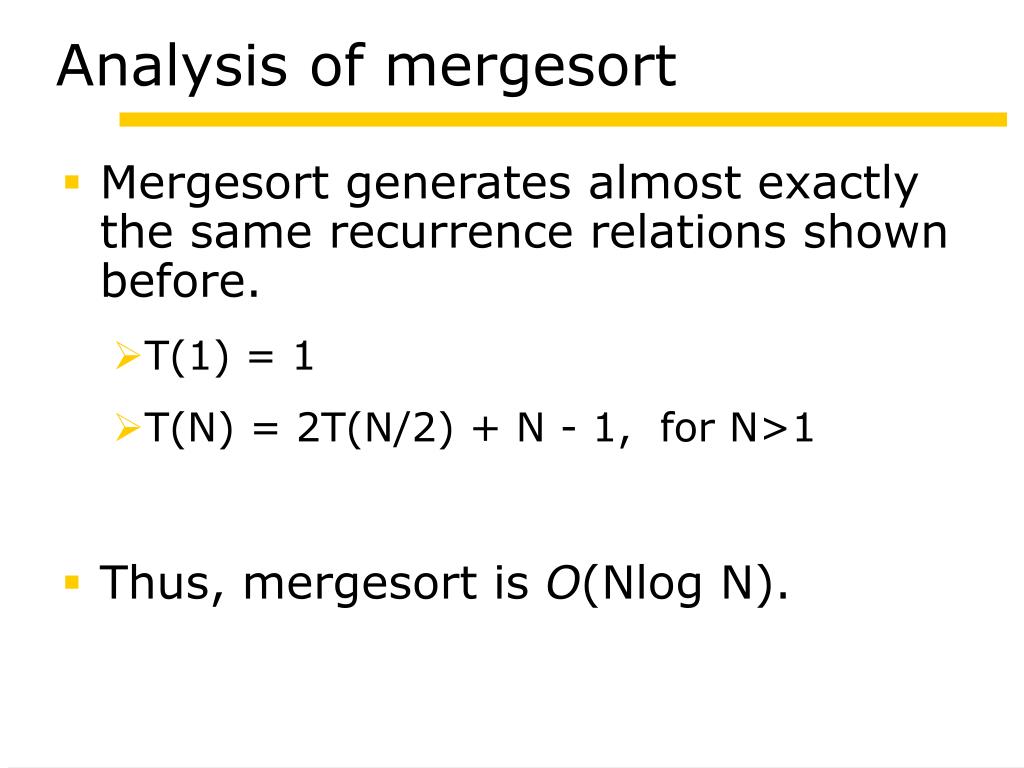

  14. Analysis of mergesort • Mergesort generates almost exactly the same recurrence relations shown before. • T(1) = 1 • T(N) = 2T(N/2) + N - 1, for N>1 • Thus, mergesort is O(Nlog N).

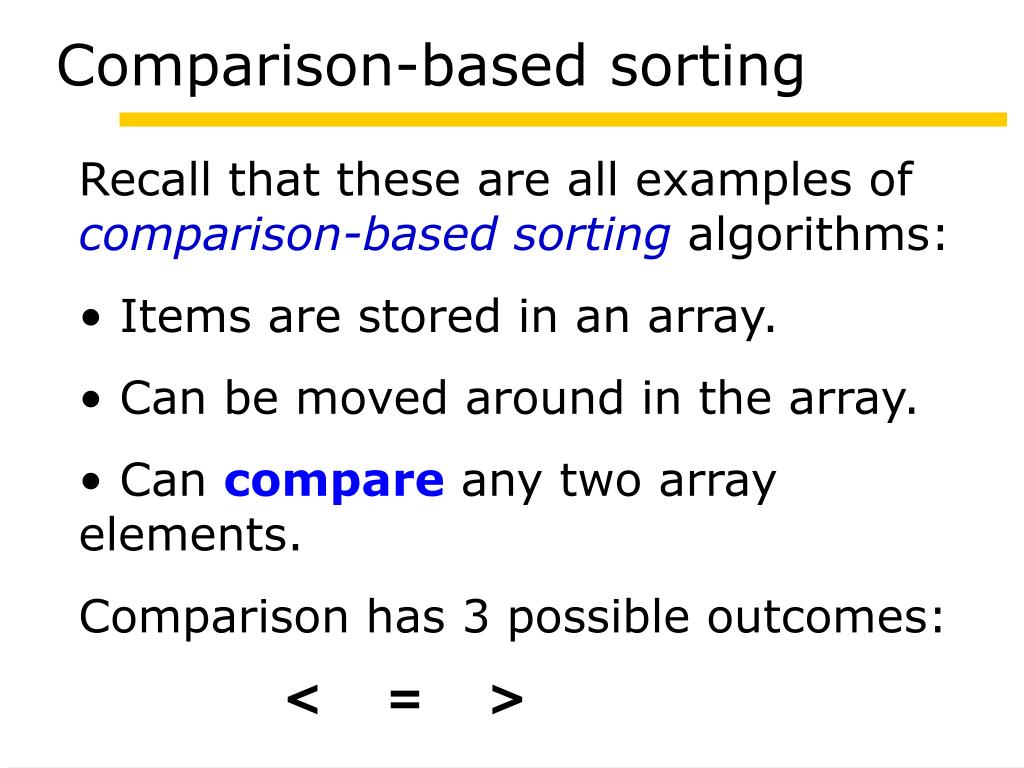

  15. Comparison-based sorting • Recall that these are all examples of comparison-based sorting algorithms: • Items are stored in an array. • Can be moved around in the array. • Can compare any two array elements. • Comparison has 3 possible outcomes: • < = >

  16. Non-comparison-based sorting • If we can do more than just compare pairs of elements, we can sometimes sort more quickly • Two simple examples are bucket sort and radix sort

  17. Bucket Sort

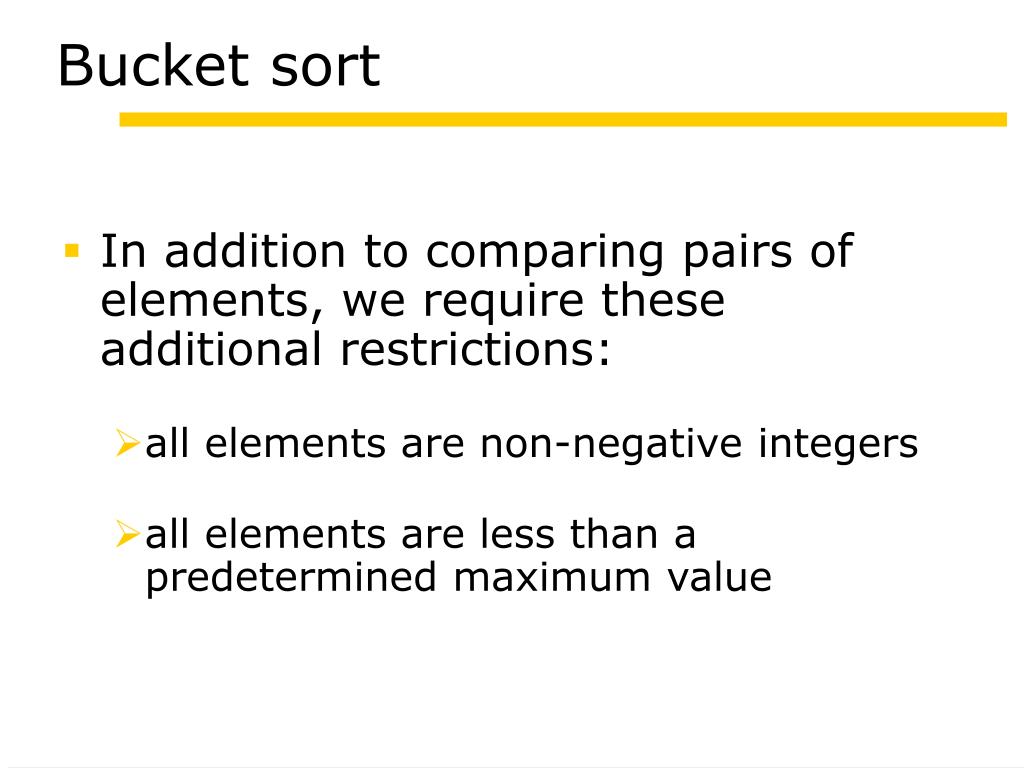

  18. Bucket sort • In addition to comparing pairs of elements, we require these additional restrictions: • all elements are non-negative integers • all elements are less than a predetermined maximum value

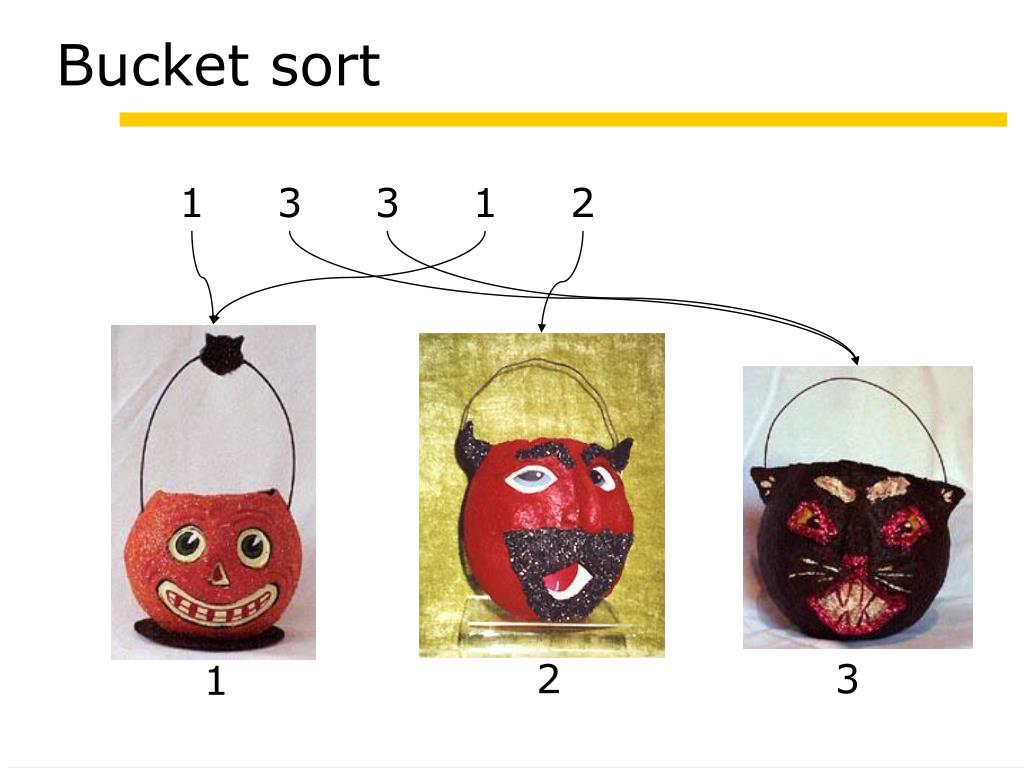

  19. 2 3 1 Bucket sort 1 3 3 1 2

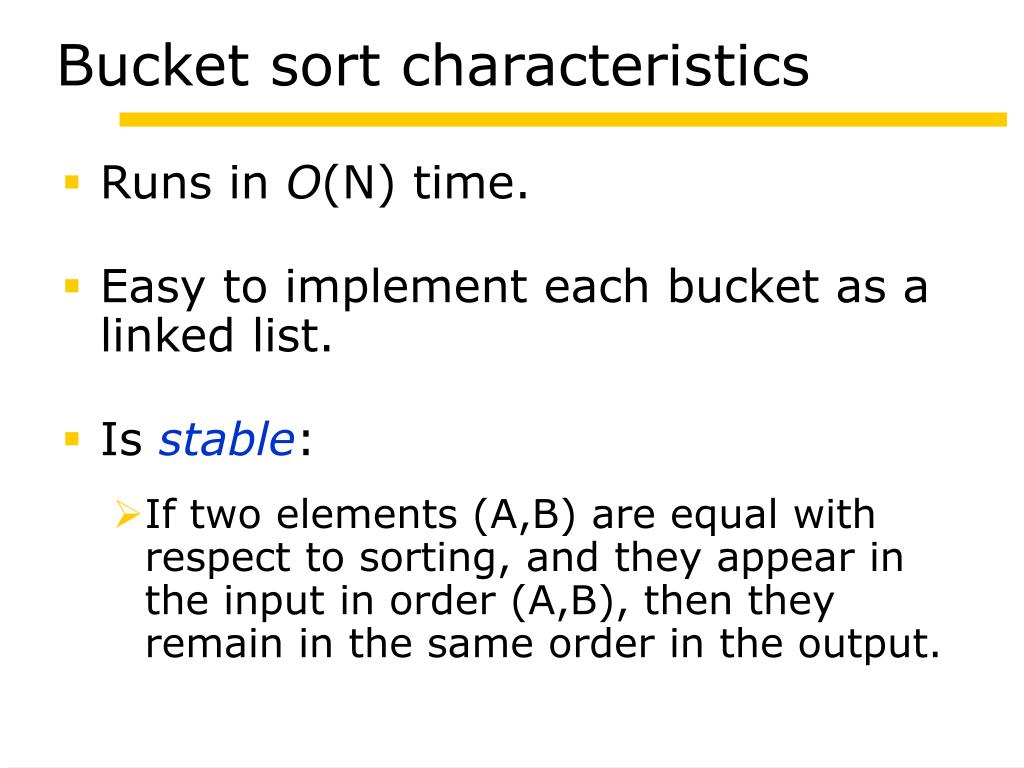

  20. Bucket sort characteristics • Runs in O(N) time. • Easy to implement each bucket as a linked list. • Is stable: • If two elements (A,B) are equal with respect to sorting, and they appear in the input in order (A,B), then they remain in the same order in the output.

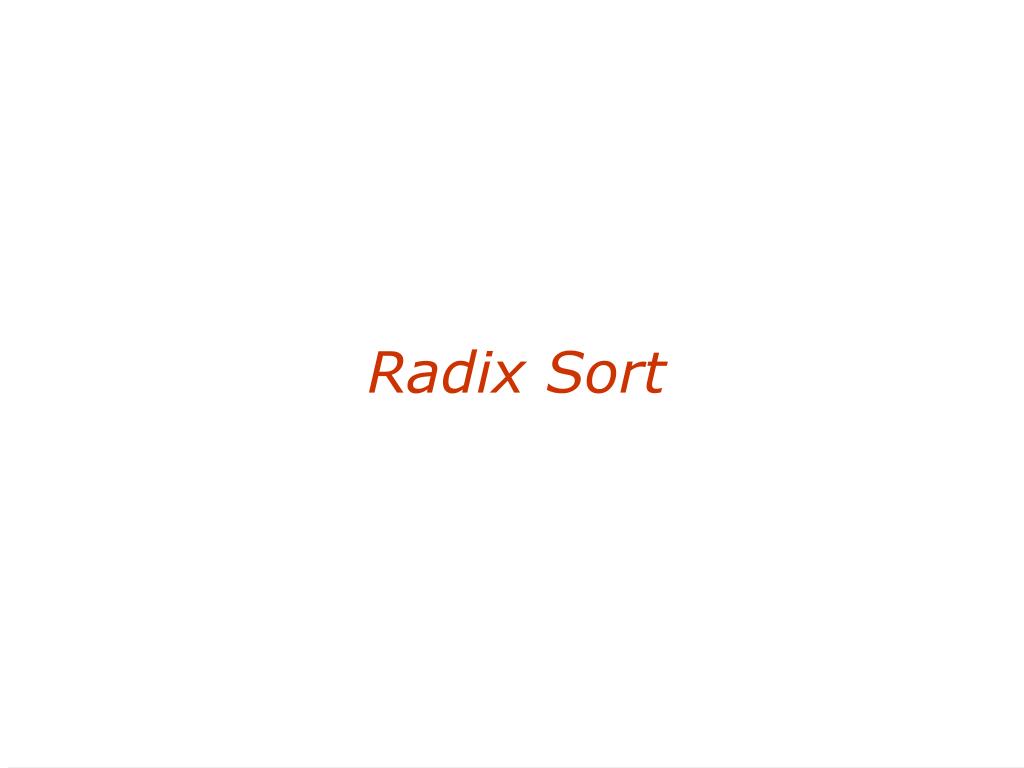

  21. Radix Sort

  22. 0 1 0 0 0 0 1 0 0 1 1 0 1 0 1 0 0 1 1 1 1 0 1 1 0 0 0 1 0 0 1 0 1 0 0 1 0 1 0 1 1 0 1 1 1 0 1 1 0 0 0 0 0 1 0 1 0 0 1 1 1 0 0 1 0 1 1 1 0 1 1 1 Radix sort • Another sorting algorithm that goes beyond comparison is radix sort. 2 0 5 1 7 3 4 6 0 1 0 0 0 0 1 0 1 0 0 1 1 1 1 0 1 1 1 0 0 1 1 0 0 1 2 3 4 5 6 7 Each sorting step must be stable.

  23. Radix sort characteristics • Each sorting step can be performed via bucket sort, and is thus O(N). • If the numbers are all b bits long, then there are b sorting steps. • Hence, radix sort is O(bN). • Also, radix sort can be implemented in-place (just like quicksort).

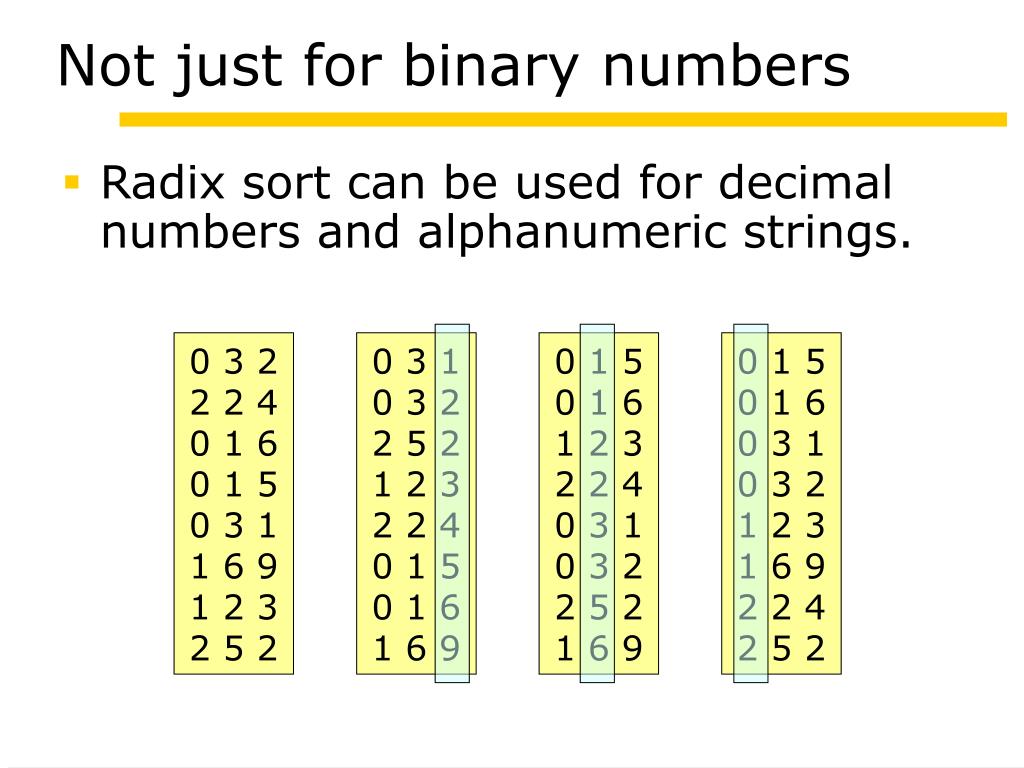

  24. 0 3 1 0 3 2 2 5 2 1 2 3 2 2 4 0 1 5 0 1 6 1 6 9 0 1 5 0 1 6 1 2 3 2 2 4 0 3 1 0 3 2 2 5 2 1 6 9 0 1 5 0 1 6 0 3 1 0 3 2 1 2 3 1 6 9 2 2 4 2 5 2 Not just for binary numbers • Radix sort can be used for decimal numbers and alphanumeric strings. 0 3 2 2 2 4 0 1 6 0 1 5 0 3 1 1 6 9 1 2 3 2 5 2

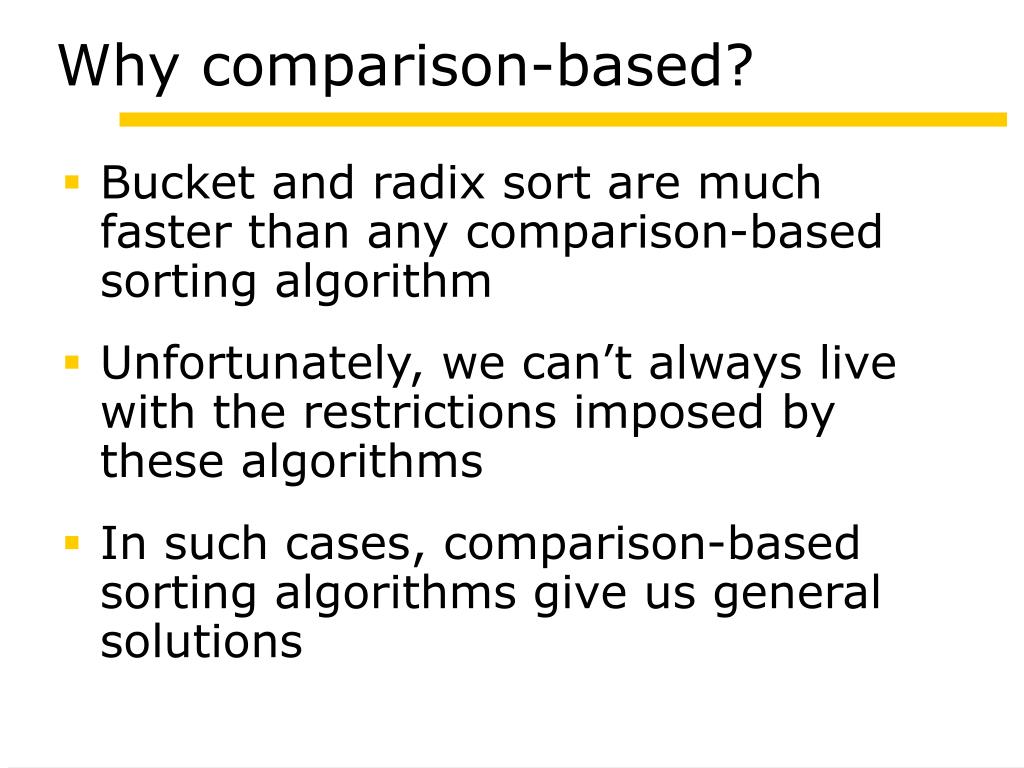

  25. Why comparison-based? • Bucket and radix sort are much faster than any comparison-based sorting algorithm • Unfortunately, we can’t always live with the restrictions imposed by these algorithms • In such cases, comparison-based sorting algorithms give us general solutions

  26. Back to Quick Sort

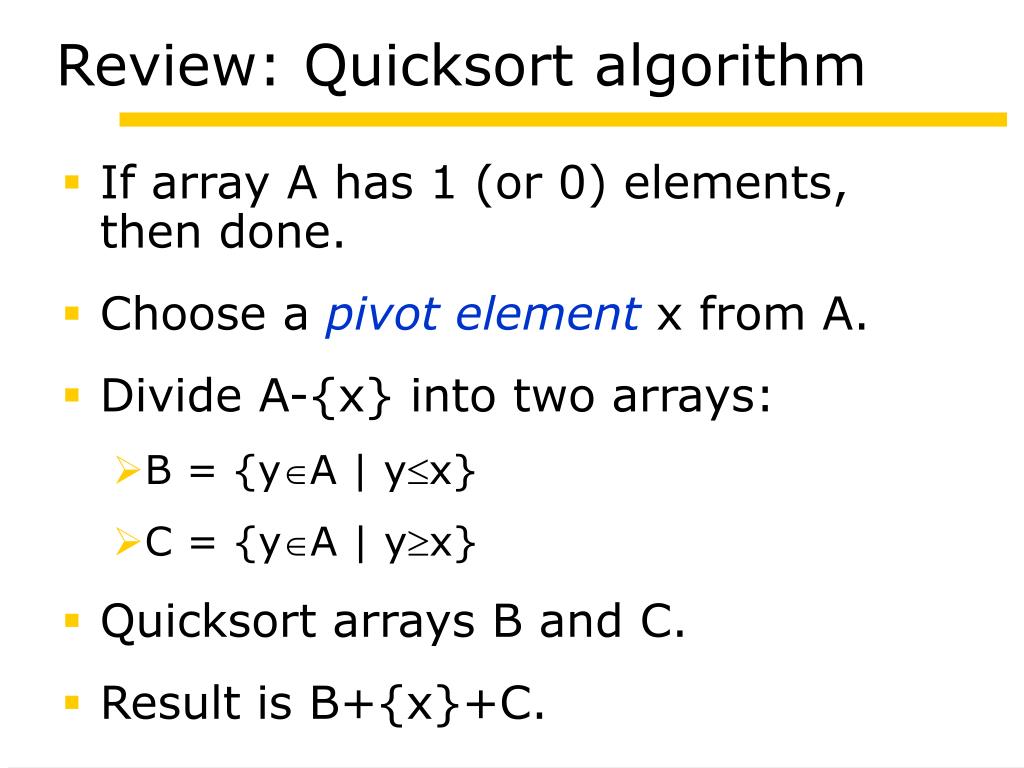

  27. Review: Quicksort algorithm • If array A has 1 (or 0) elements, then done. • Choose a pivot element x from A. • Divide A-{x} into two arrays: • B = {yA | yx} • C = {yA | yx} • Quicksort arrays B and C. • Result is B+{x}+C.

  28. Implementation issues • Quick sort can be very fast in practice, but this depends on careful coding • Three major issues: • doing quicksort in-place • picking the right pivot • avoiding quicksort on small arrays

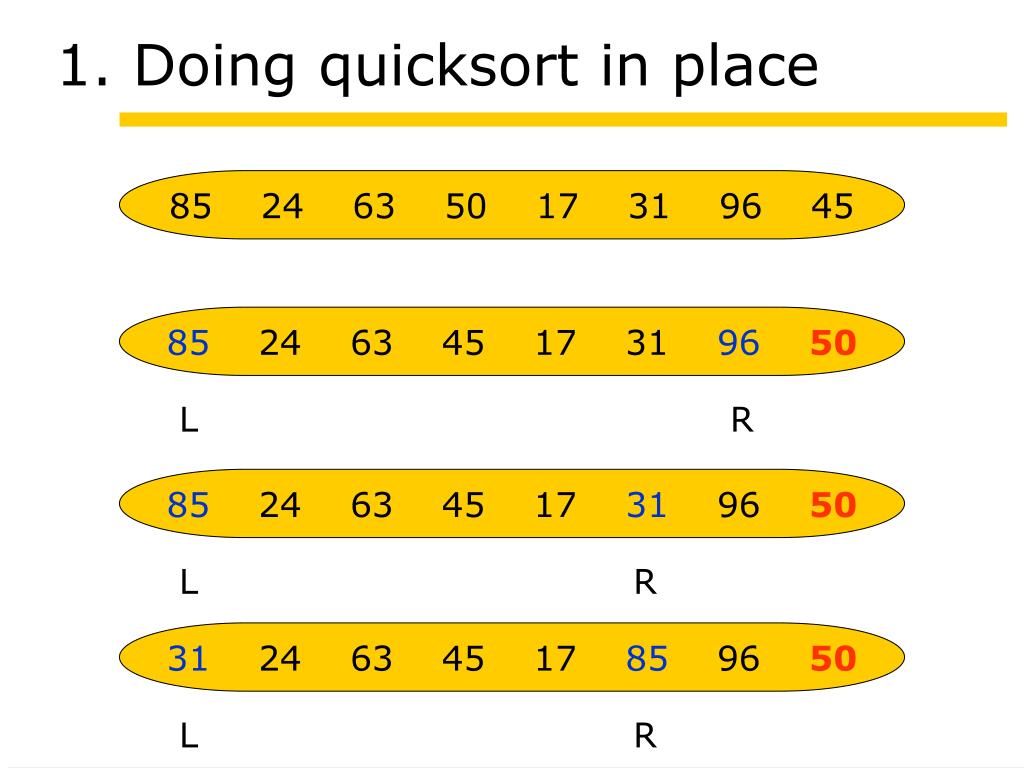

  29. L R 85 24 63 45 17 31 96 50 31 24 63 45 17 85 96 50 L L R R 1. Doing quicksort in place 85 24 63 50 17 31 96 45 85 24 63 45 17 31 9650

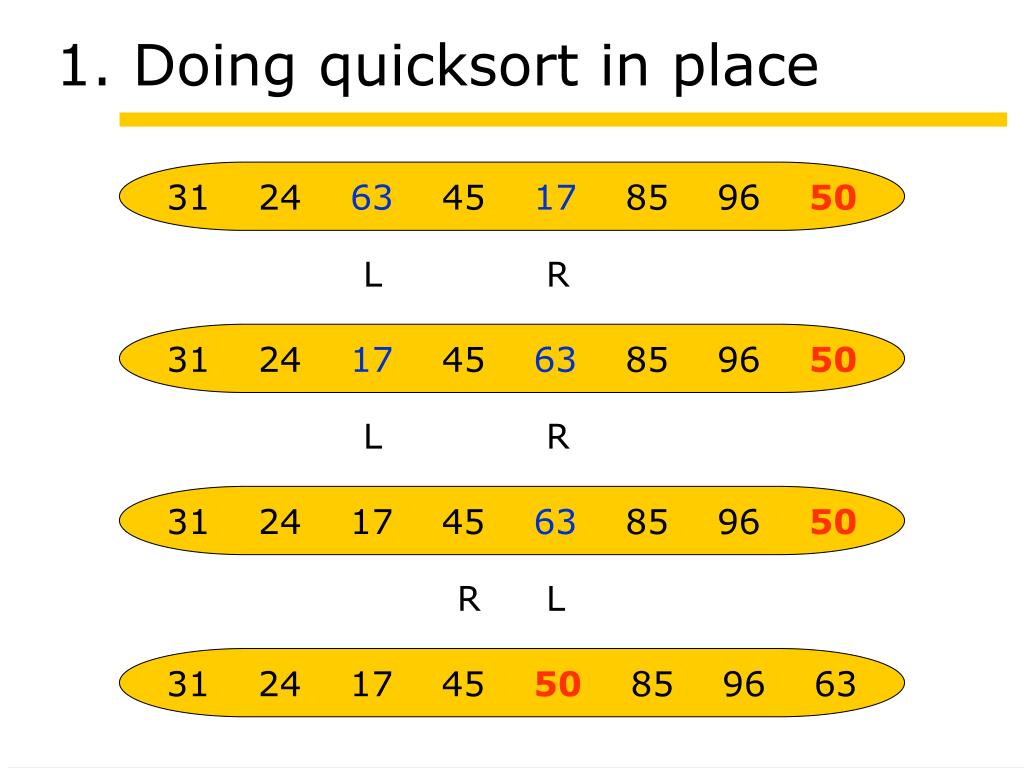

  30. 31 24 63 45 17 85 96 50 31 24 17 45 63 85 96 50 L L R R 31 24 17 45 63 85 96 50 R L 1. Doing quicksort in place 31 24 17 45 50 85 96 63

  31. 2. Picking the pivot • In real life, inputs to a sorting routine are often partially sorted • why does this happen? • So, picking the first or last element to be the pivot is usually a bad choice • One common strategy is to pick the middle element • this is an OK strategy

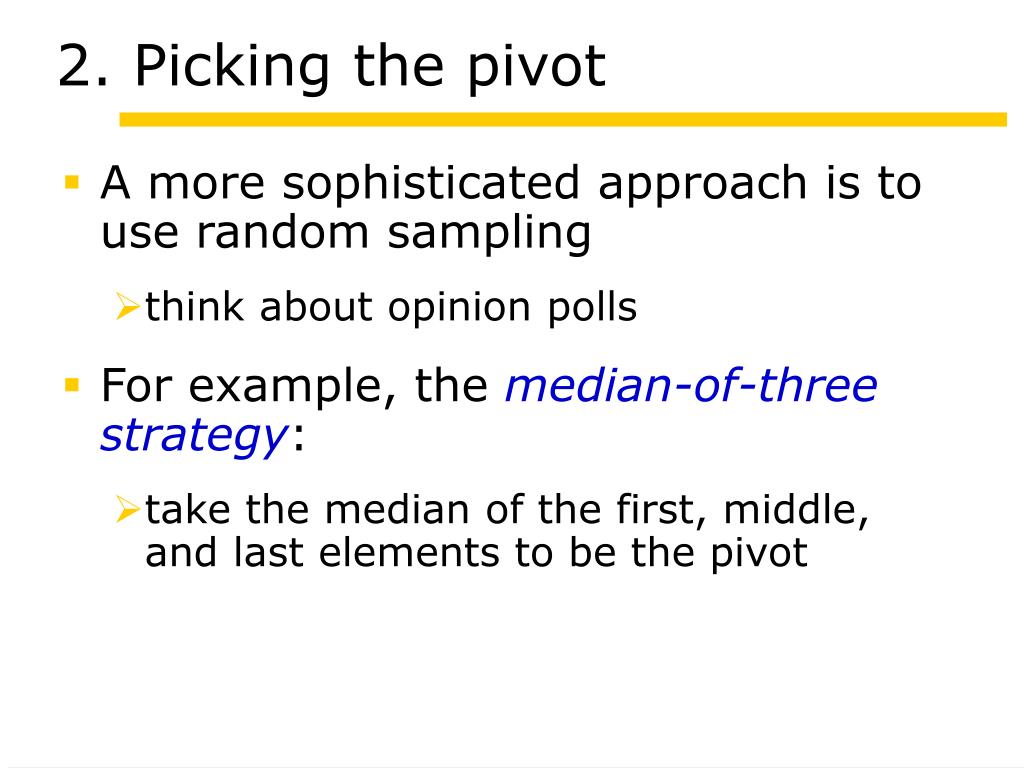

  32. 2. Picking the pivot • A more sophisticated approach is to use random sampling • think about opinion polls • For example, the median-of-three strategy: • take the median of the first, middle, and last elements to be the pivot

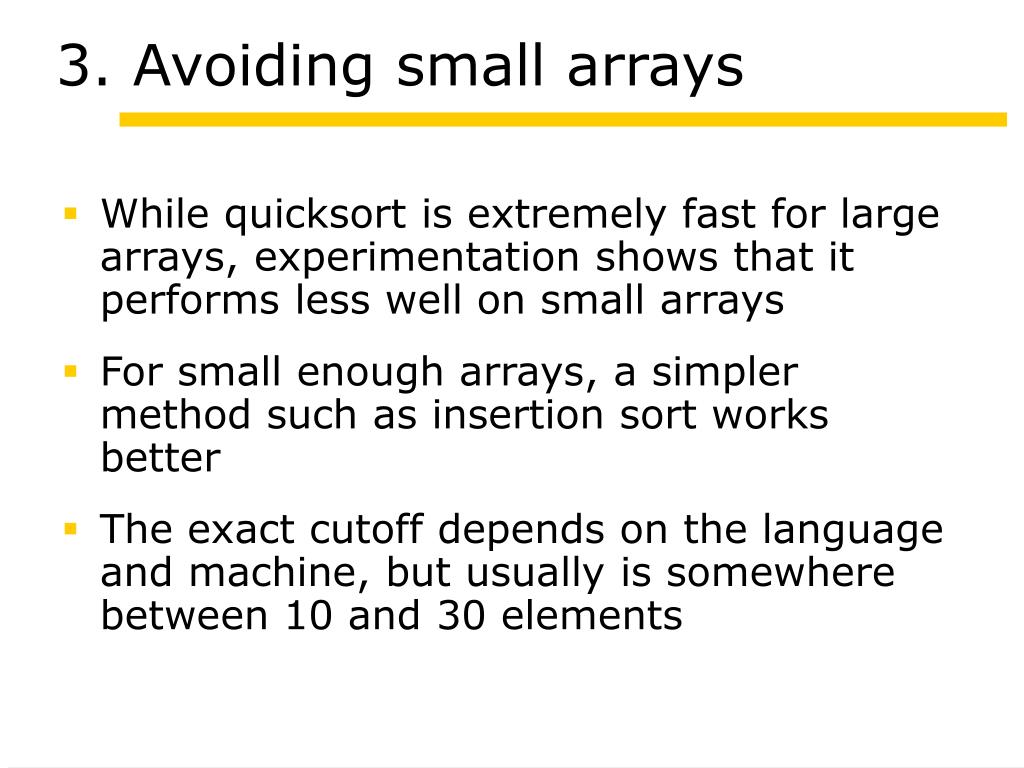

  33. 3. Avoiding small arrays • While quicksort is extremely fast for large arrays, experimentation shows that it performs less well on small arrays • For small enough arrays, a simpler method such as insertion sort works better • The exact cutoff depends on the language and machine, but usually is somewhere between 10 and 30 elements

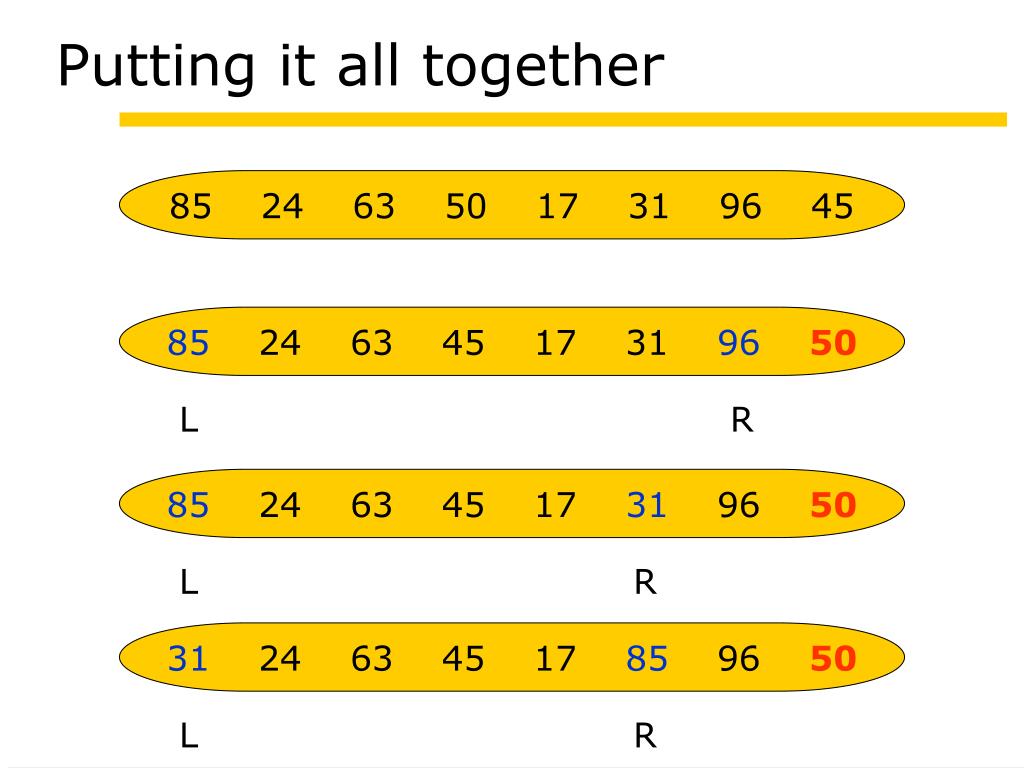

  34. L R 85 24 63 45 17 31 96 50 31 24 63 45 17 85 96 50 L L R R Putting it all together 85 24 63 50 17 31 96 45 85 24 63 45 17 31 9650

  35. 31 24 63 45 17 85 96 50 31 24 17 45 63 85 96 50 L L R R 31 24 17 45 63 85 96 50 R L Putting it all together 31 24 17 45 50 85 96 63

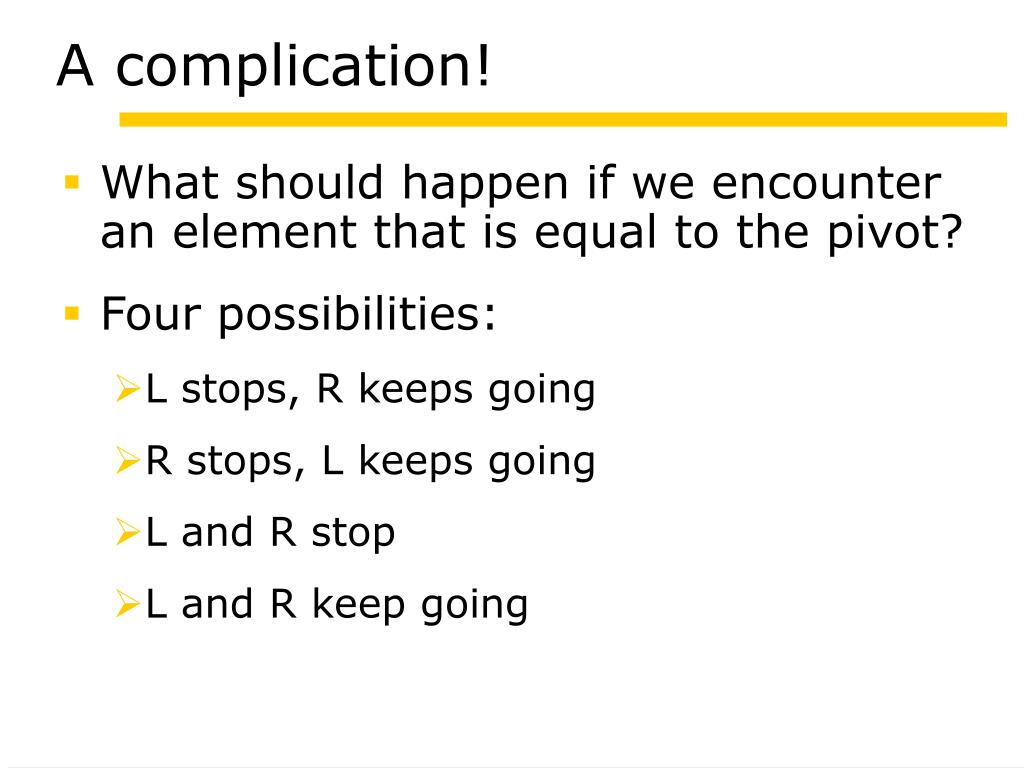

  36. A complication! • What should happen if we encounter an element that is equal to the pivot? • Four possibilities: • L stops, R keeps going • R stops, L keeps going • L and R stop • L and R keep going

  37. Quiz Break

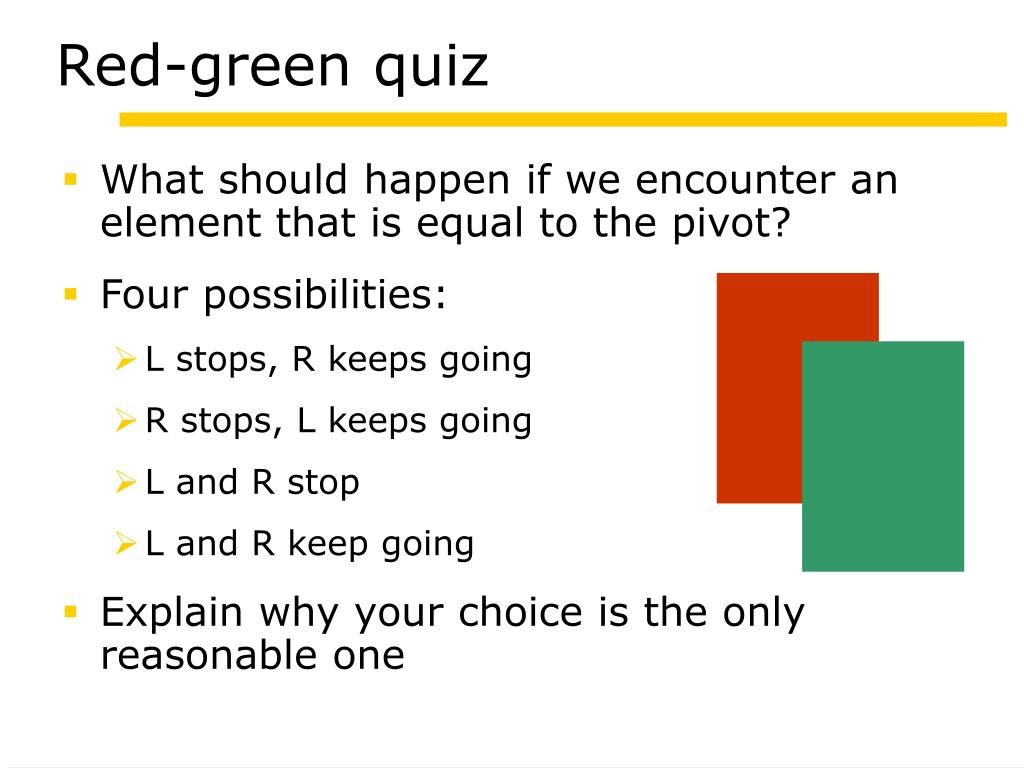

  38. Red-green quiz • What should happen if we encounter an element that is equal to the pivot? • Four possibilities: • L stops, R keeps going • R stops, L keeps going • L and R stop • L and R keep going • Explain why your choice is the only reasonable one

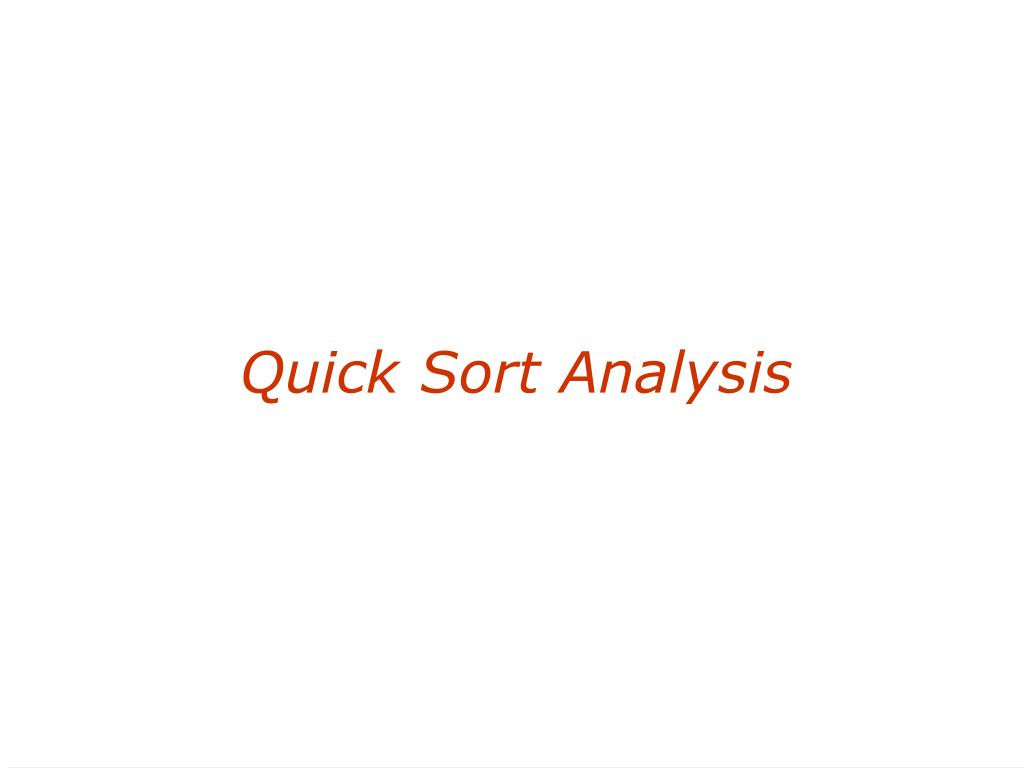

  39. Quick Sort Analysis

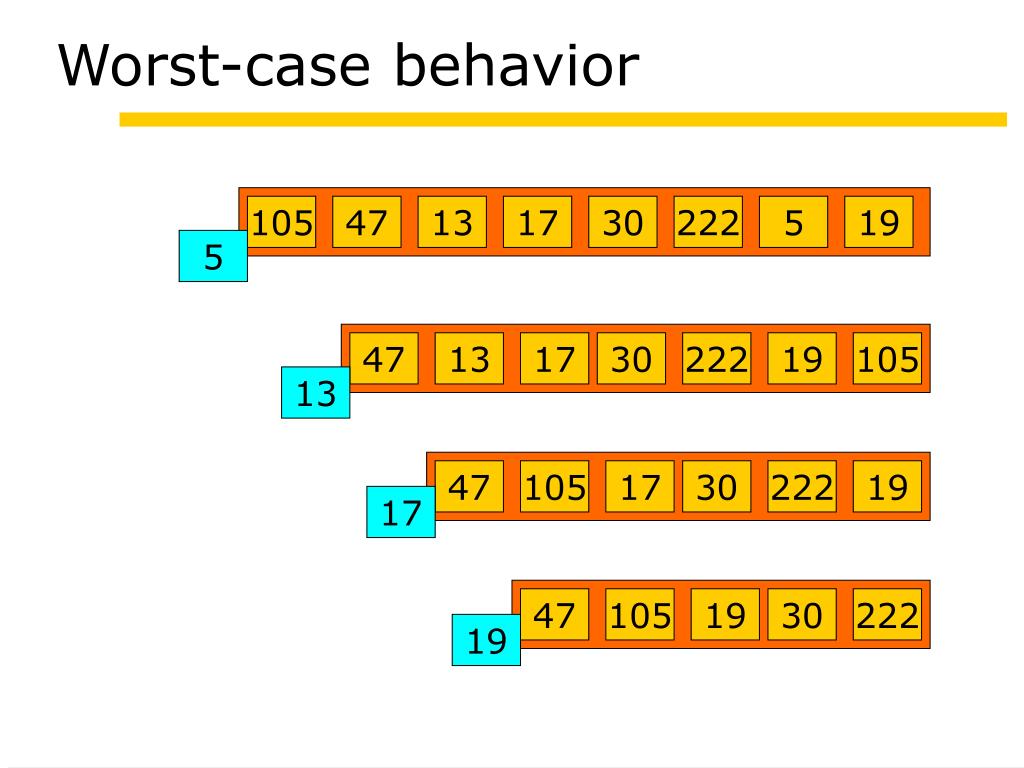

  40. 105 47 13 17 30 222 5 19 47 13 17 30 222 19 105 47 105 17 30 222 19 47 105 19 30 222 Worst-case behavior 5 13 17 19

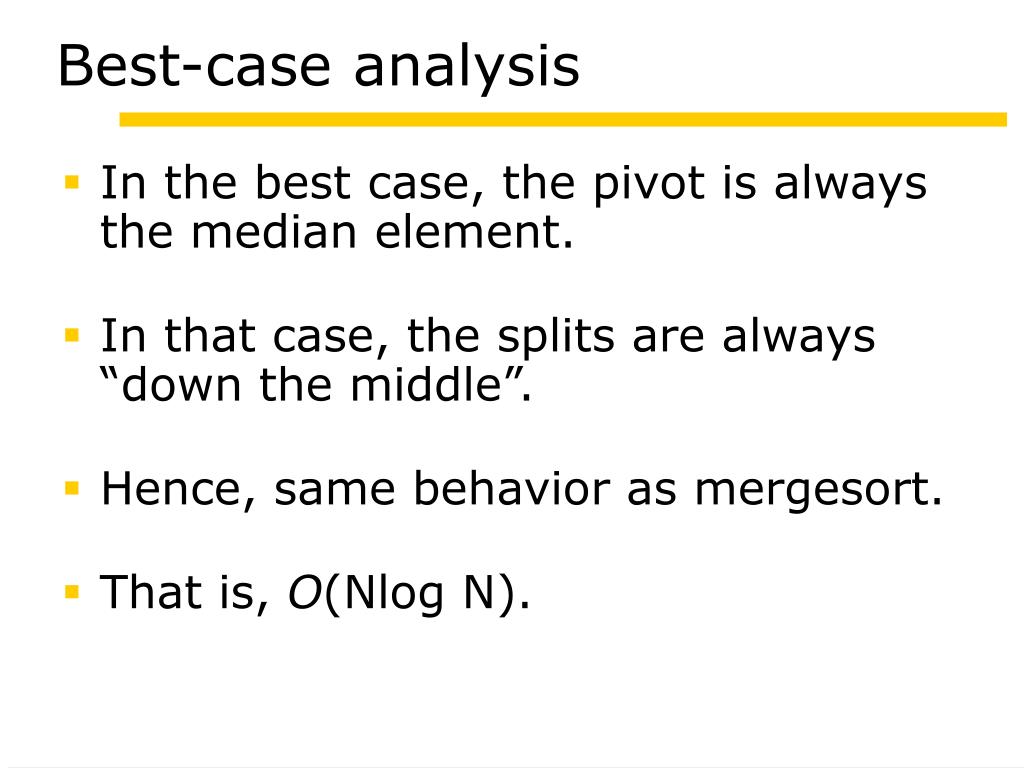

  41. Best-case analysis • In the best case, the pivot is always the median element. • In that case, the splits are always “down the middle”. • Hence, same behavior as mergesort. • That is, O(Nlog N).

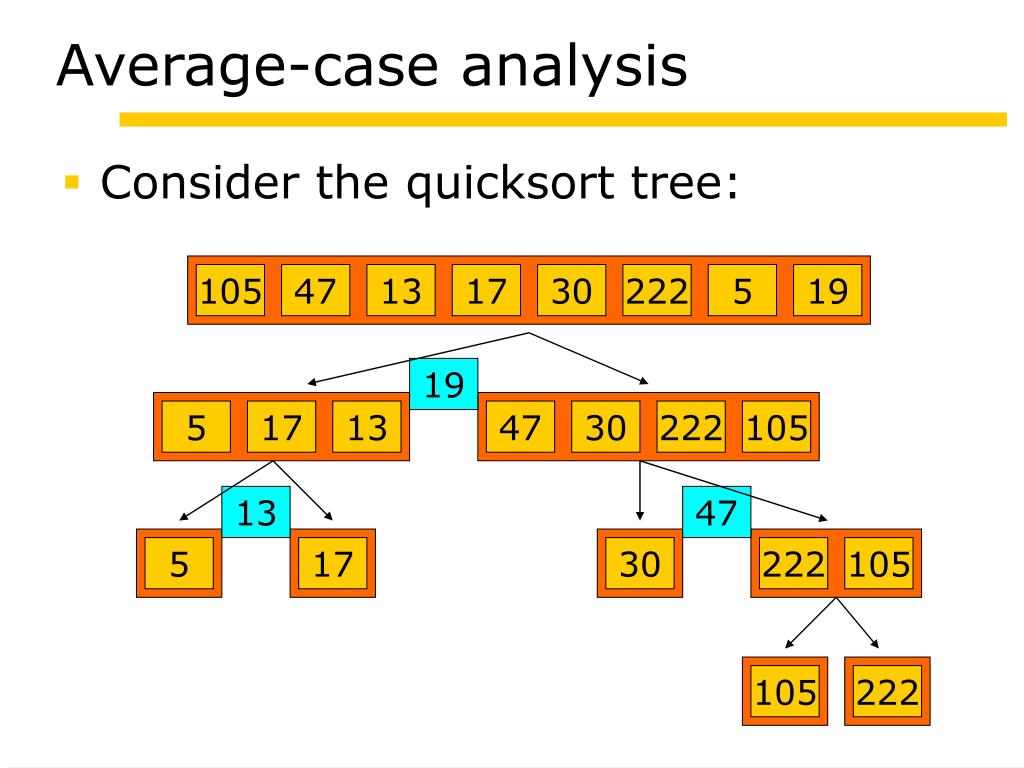

  42. 105 47 13 17 30 222 5 19 5 17 13 47 30 222 105 19 5 17 30 222 105 13 47 105 222 Average-case analysis • Consider the quicksort tree:

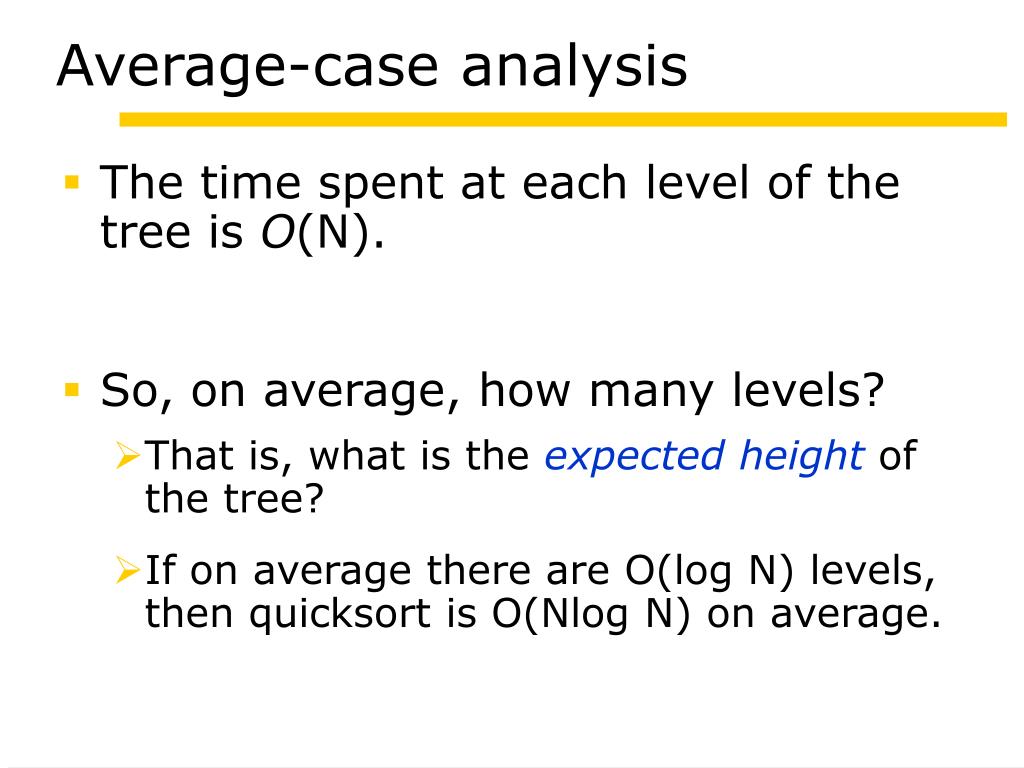

  43. Average-case analysis • The time spent at each level of the tree is O(N). • So, on average, how many levels? • That is, what is the expected height of the tree? • If on average there are O(log N) levels, then quicksort is O(Nlog N) on average.

  44. 5 13 17 19 30 47 105 222 Expected height of qsort tree • Assume that pivot is chosen randomly. • When is a pivot “good”? “Bad”? Probability of a good pivot is 0.5. After good pivot, each child is at most 3/4 size of parent.

  45. Expected height of qsort tree • So, if we descend k levels in the tree, each time being lucky enough to pick a “good” pivot, the maximum size of the kth child is: • N(3/4)(3/4) … (3/4) (k times) • = N(3/4)k • But on average, only half of the pivots will be good, so • N(3/4)k/2 = 2log4/3N = O(log N)

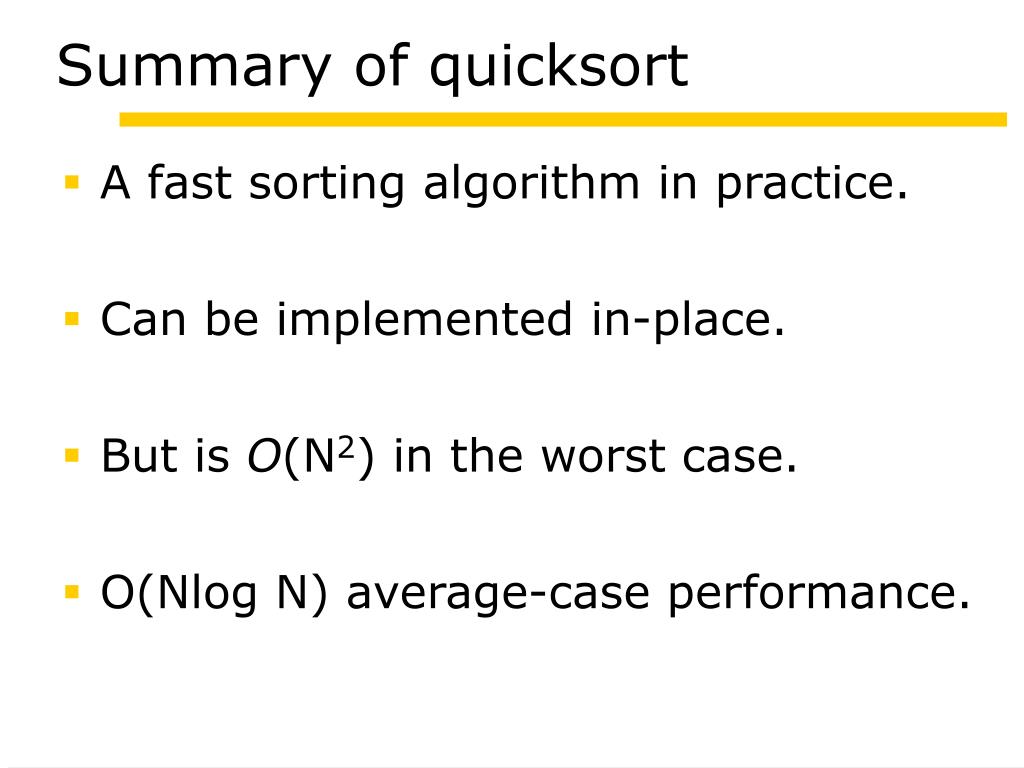

  46. Summary of quicksort • A fast sorting algorithm in practice. • Can be implemented in-place. • But is O(N2) in the worst case. • O(Nlog N) average-case performance.

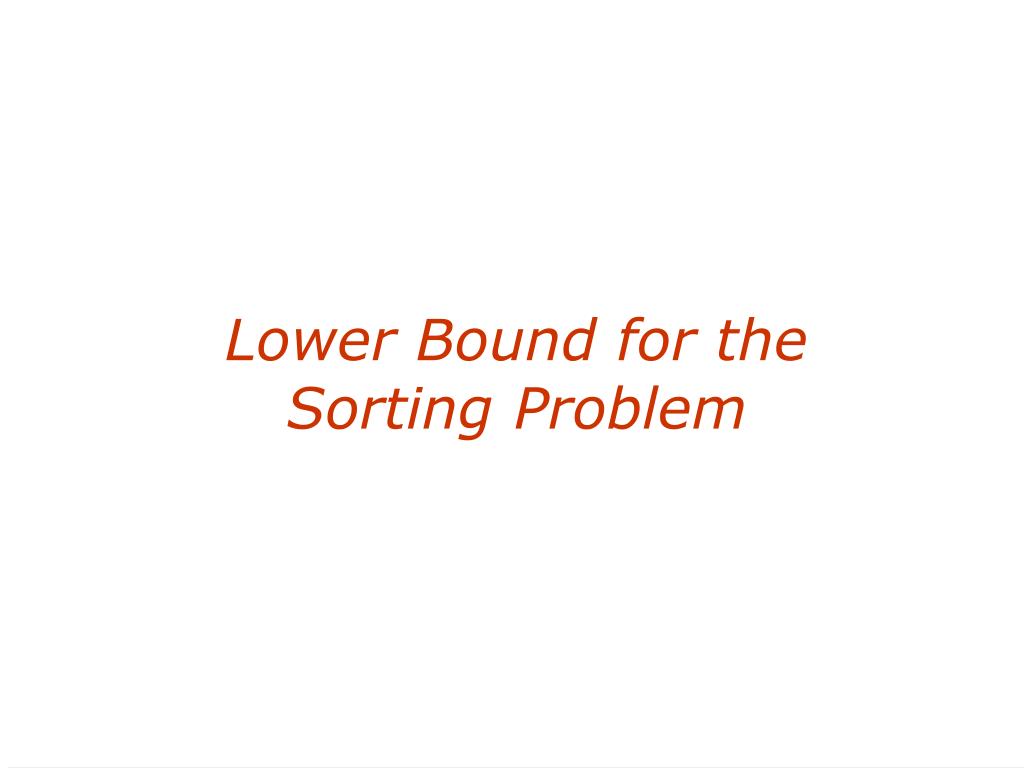

  47. Lower Bound for the Sorting Problem

  48. How fast can we sort? • We have seen several sorting algorithms with O(Nlog N) running time. • In fact, O(Nlog N) is a general lower bound for the sorting algorithm. • A proof appears in Weiss. • Informally…

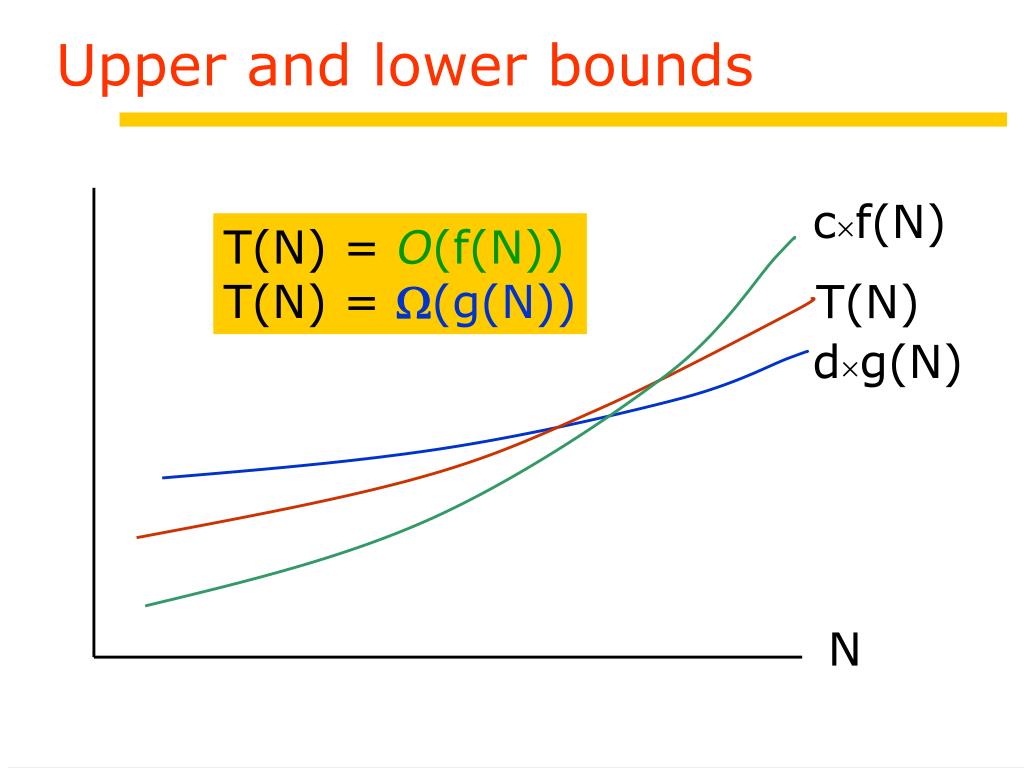

  49. Upper and lower bounds cf(N) T(N) = O(f(N)) T(N) = (g(N)) T(N) dg(N) N

  50. a<b<c a<c<b b<a<c b<c<a c<a<b c<b<a a<b b<a a<b<c a<c<b c<a<b b<a<c b<c<a c<b<a a<c c<a b<c c<b a<b<c a<c<b c<a<b b<a<c b<c<a c<b<a b<c c<b a<c c<a a<b<c a<c<b b<a<c b<c<a Decision tree for sorting N! leaves. So, tree has height log(N!). log(N!) = (Nlog N).
