Implementing Declarative Overlays

1. Implementing Declarative Overlays Boon Thau Loo1 Tyson Condie1, Joseph M. Hellerstein1,2, Petros Maniatis2, Timothy Roscoe2, Ion Stoica1 1University of California at Berkeley, 2Intel Research Berkeley

2. Overlays Everywhere… • Overlay networks are widely used today: • Routing and forwarding component of large-scale distributed systems • Provide new functionality over existing infrastructure • Many examples, variety of requirements: • Packet delivery: Multicast, RON • Content delivery: CDNs, P2P file sharing, DHTs • Enterprise systems: MS Exchange Overlay networks are an integral part of many large-scale distributed systems.

3. Problem • Non-trivial to design, build and deploy an overlay correctly: • Iterative design process: • Desired properties  Distributed algorithms and protocols  Simulation  Implementation  Deployment  Repeat… • Each iteration takes significant time and utilizes a variety of expertise

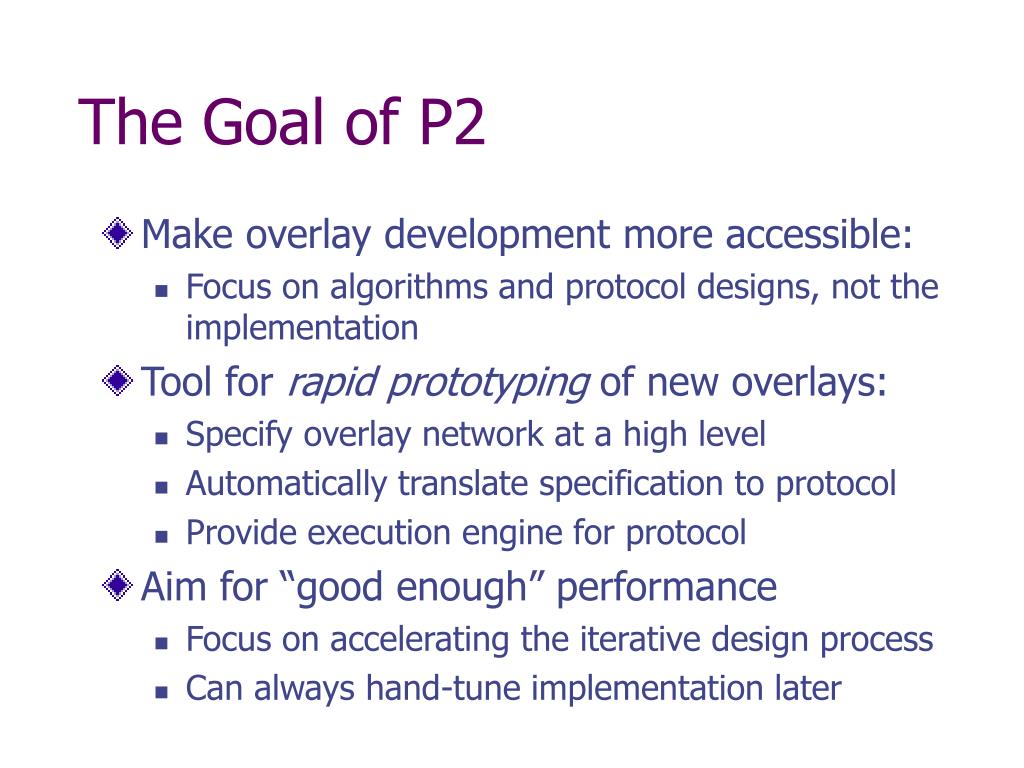

4. The Goal of P2 • Make overlay development more accessible: • Focus on algorithms and protocol designs, not the implementation • Tool for rapid prototyping of new overlays: • Specify overlay network at a high level • Automatically translate specification to protocol • Provide execution engine for protocol • Aim for “good enough” performance • Focus on accelerating the iterative design process • Can always hand-tune implementation later

5. Outline • Overview of P2 • Architecture By Example • Data Model • Dataflow framework • Query Language • Chord • Additional Benefits • Overlay Introspection • Automatic Optimizations • Conclusion

6. Traditional Overlay Node Traditional Overlay Node Packets Out Packets In Overlay Program

7. Overlay description: declarative query language Runtime dataflows maintain network state Overlay description: dataflow scripting language Planner P2 Overlay Node Packets Out Packets In Overlay Program P2 Query Processor

8. Advantages of the P2 Approach • Declarative Query Language • Concise/high level expression • Statically checkable (termination, correctness) • Ease of modification • Unifying framework for introspection and implementation • Automatic optimizations • Query and dataflow level

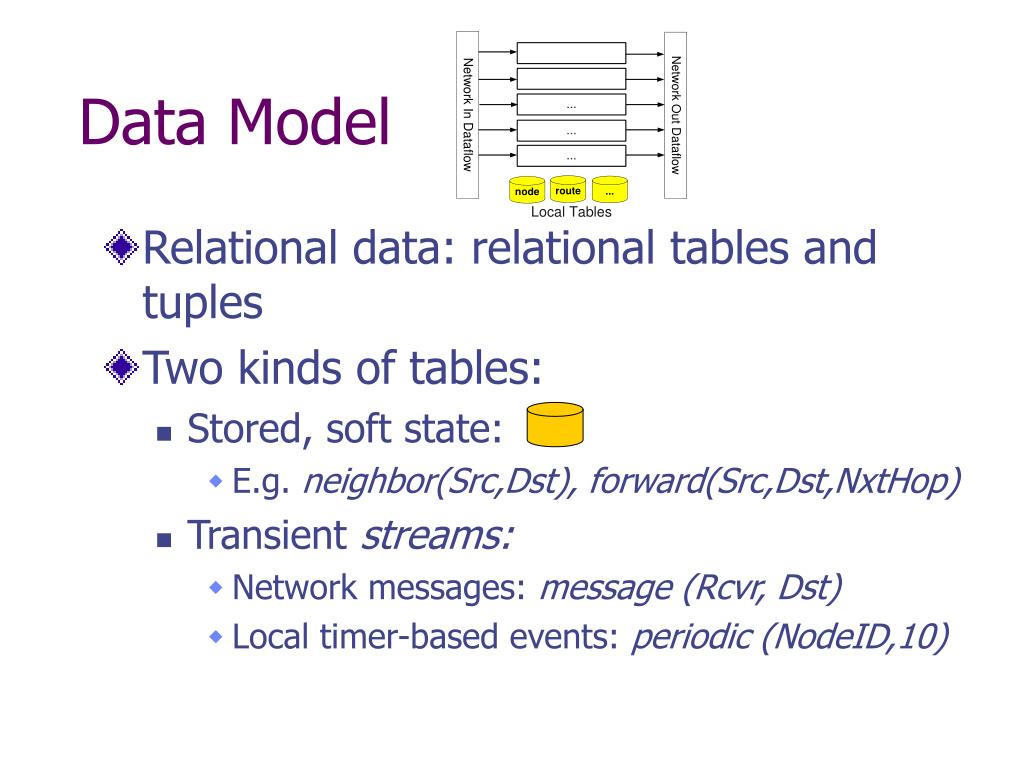

9. Data Model • Relational data: relational tables and tuples • Two kinds of tables: • Stored, soft state: • E.g. neighbor(Src,Dst), forward(Src,Dst,NxtHop) • Transient streams: • Network messages: message (Rcvr, Dst) • Local timer-based events: periodic (NodeID,10)

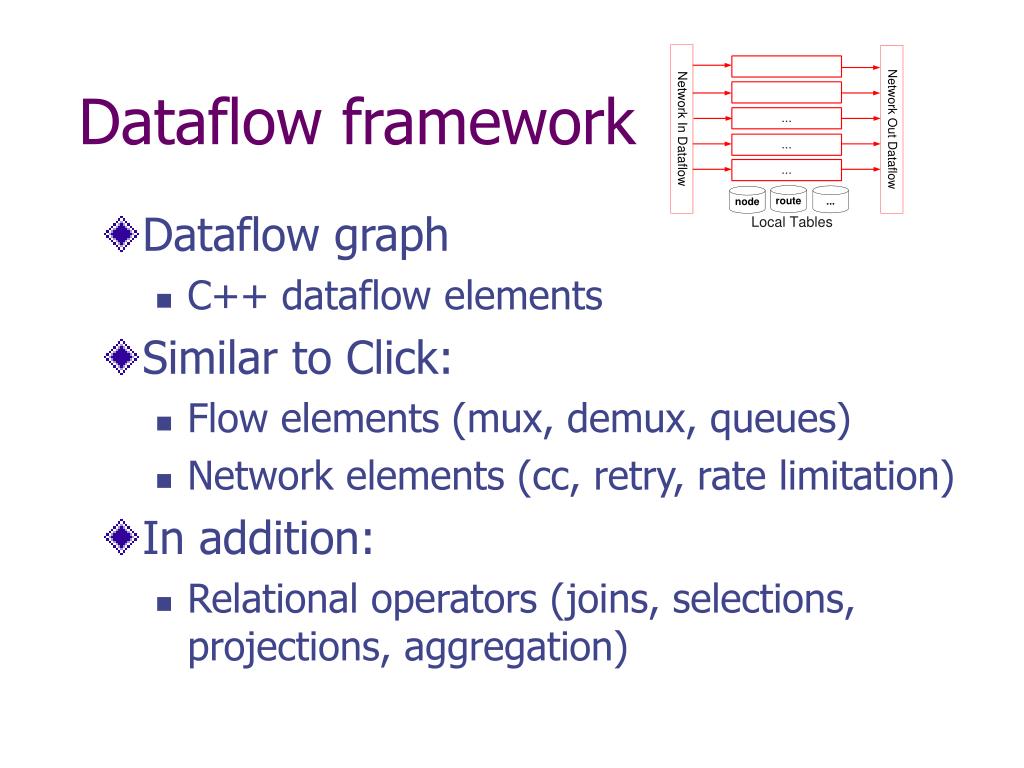

10. Dataflow framework • Dataflow graph • C++ dataflow elements • Similar to Click: • Flow elements (mux, demux, queues) • Network elements (cc, retry, rate limitation) • In addition: • Relational operators (joins, selections, projections, aggregation)

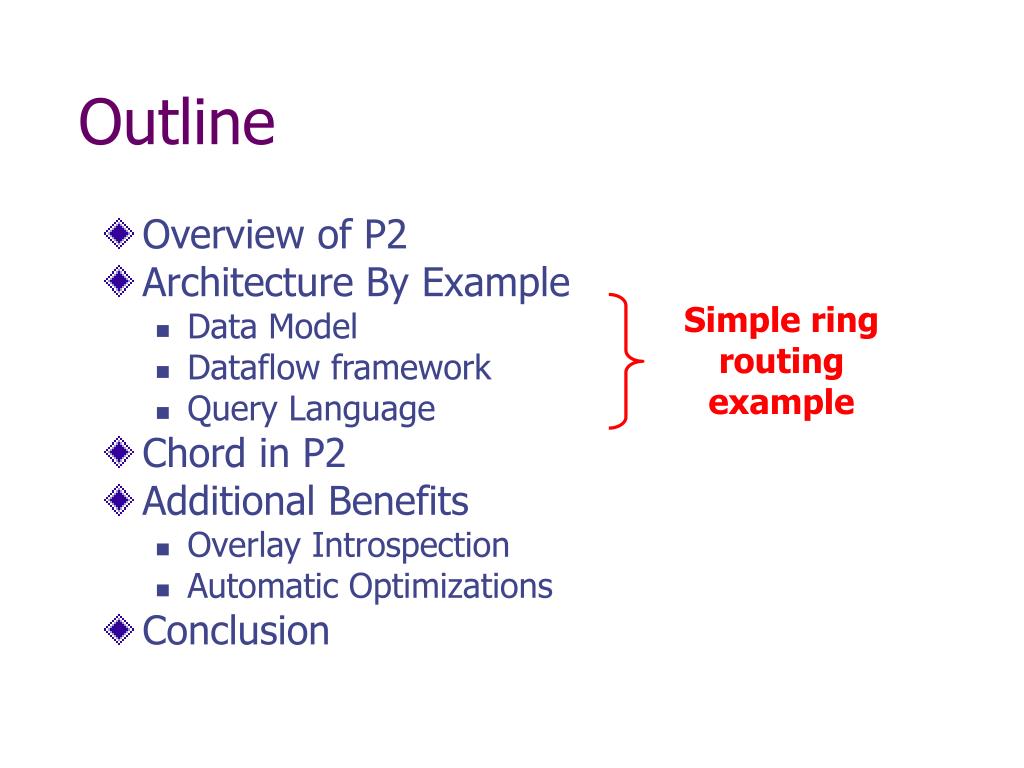

11. Outline • Overview of P2 • Architecture By Example • Data Model • Dataflow framework • Query Language • Chord in P2 • Additional Benefits • Overlay Introspection • Automatic Optimizations • Conclusion Simple ring routing example

12. Example: Ring Routing Each node has an address and an identifier Objects “served” by successor Each object has an identifier. Every node knows its successor

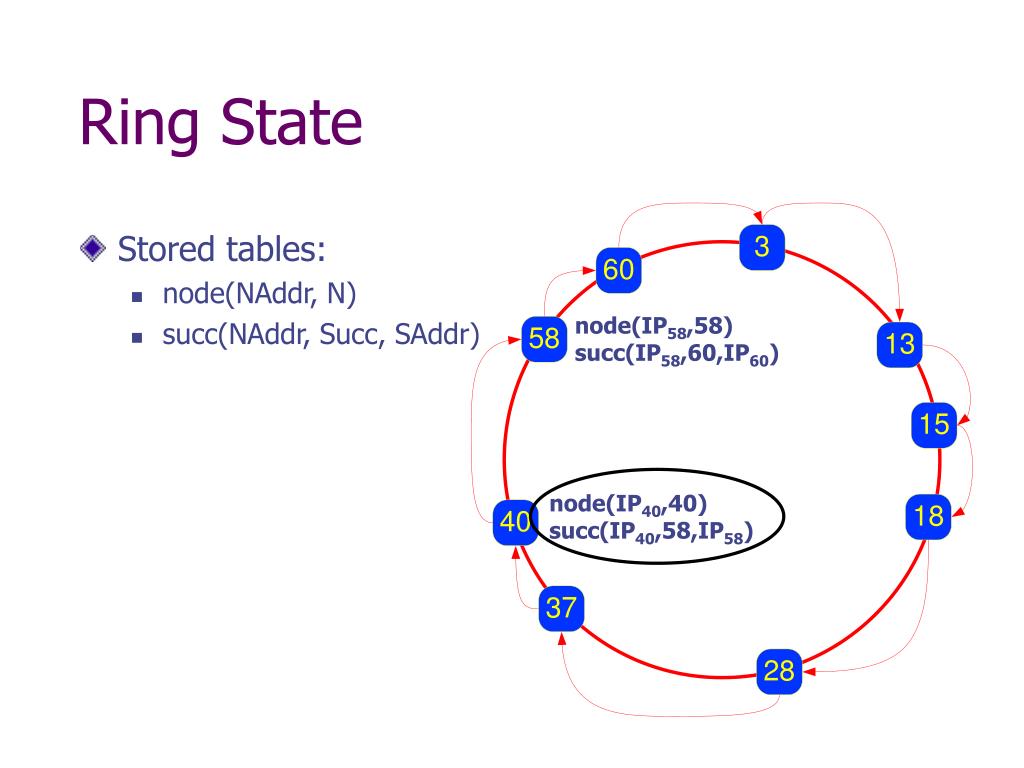

13. Ring State • Stored tables: • node(NAddr, N) • succ(NAddr, Succ, SAddr) node(IP58,58) succ(IP58,60,IP60) node(IP40,40) succ(IP40,58,IP58)

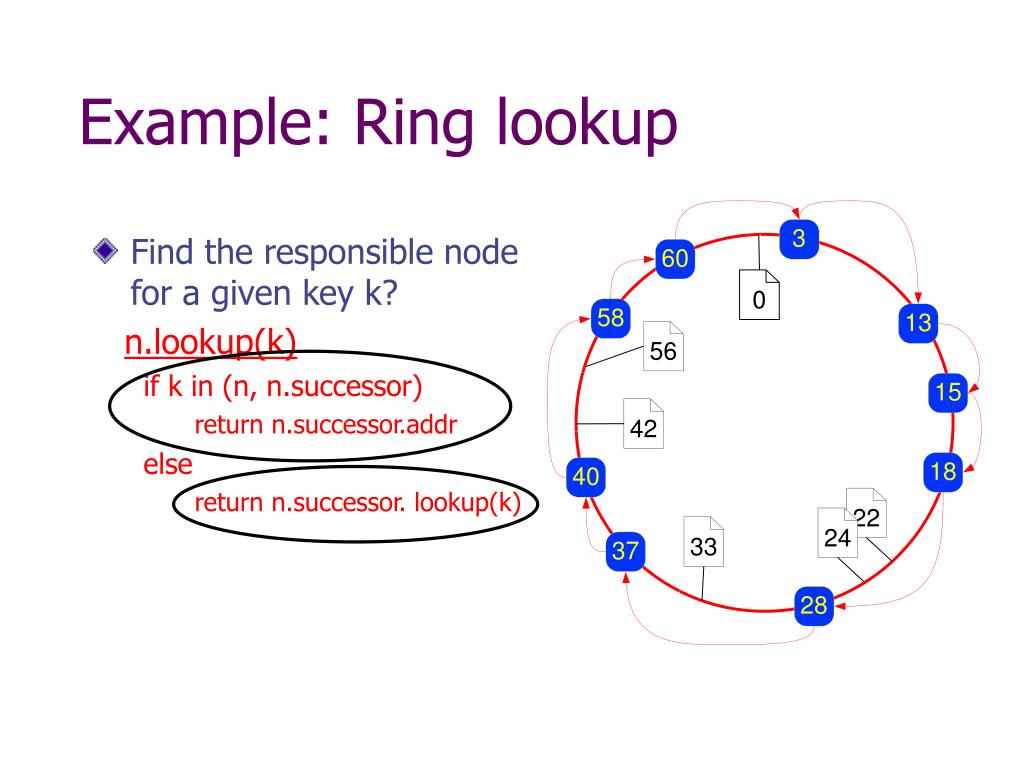

14. Example: Ring lookup • Find the responsible node for a given key k? n.lookup(k) if k in (n, n.successor) return n.successor.addr else return n.successor. lookup(k)

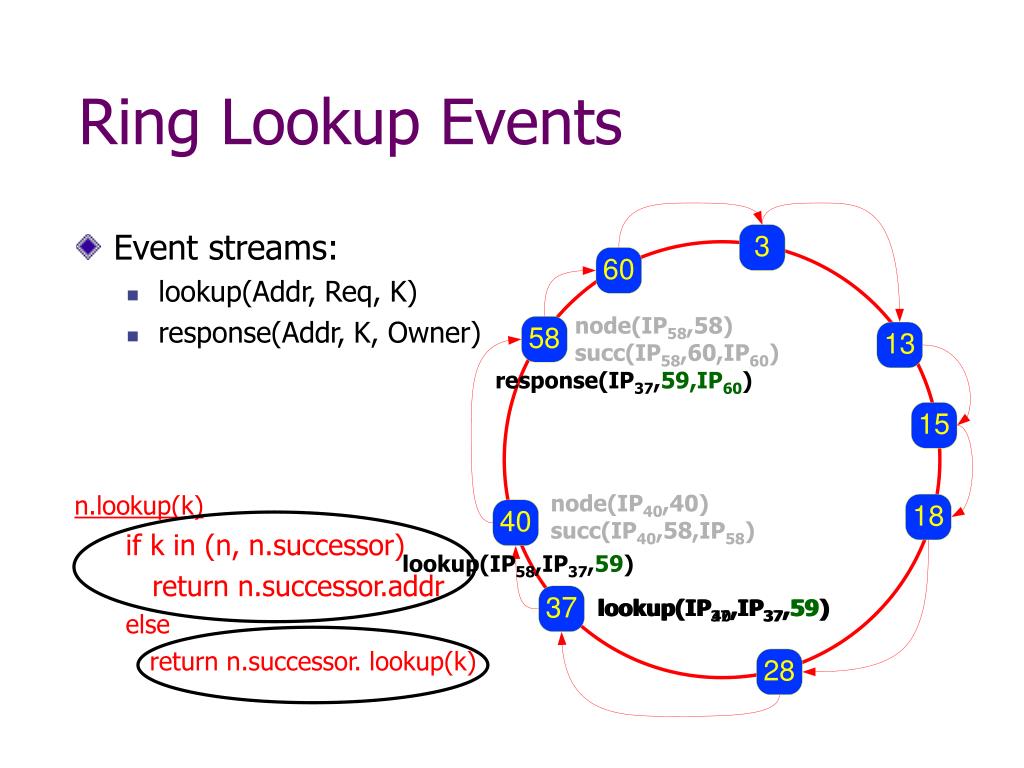

15. Ring Lookup Events • Event streams: • lookup(Addr, Req, K) • response(Addr, K, Owner) node(IP58,58) succ(IP58,60,IP60) response(IP37,59,IP60) node(IP40,40) succ(IP40,58,IP58) n.lookup(k) if k in (n, n.successor) return n.successor.addr else return n.successor. lookup(k) lookup(IP58,IP37,59) lookup(IP37,IP37,59) lookup(IP40,IP37,59)

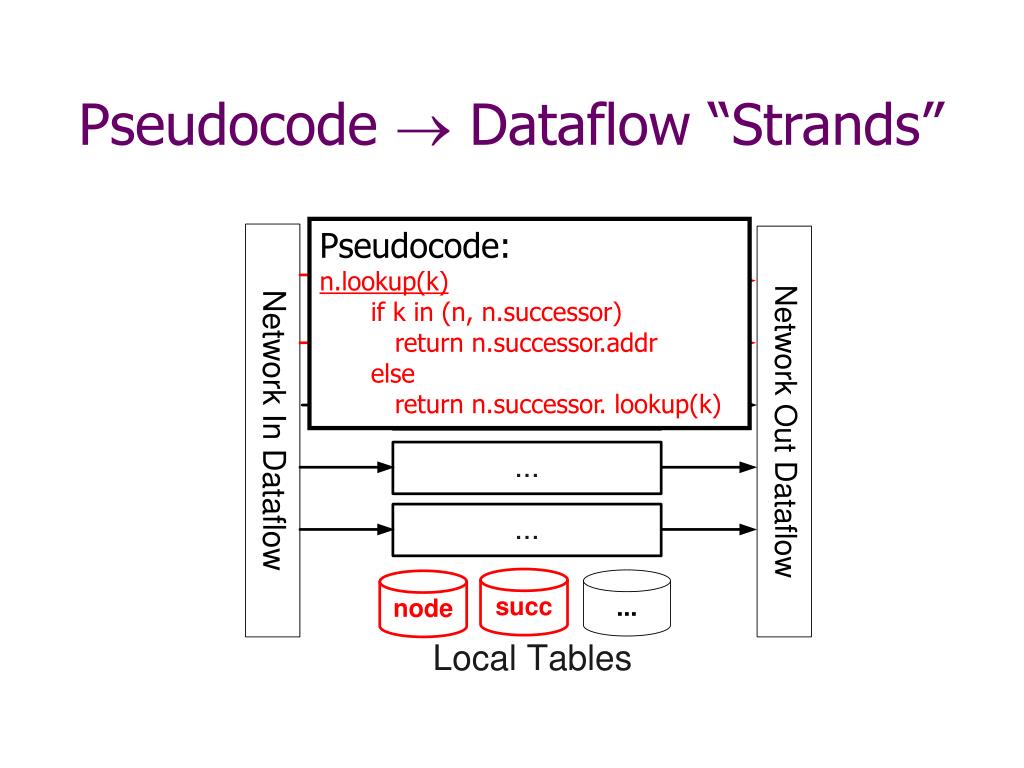

16. Pseudocode  Dataflow “Strands” • Pseudocode: • n.lookup(k) • if k in (n, n.successor) • return n.successor.addr • else • return n.successor. lookup(k)

17. Dataflow Strand Strand Elements Element2 Element1 … Actions Event Stream Elementn Event: Incoming network messages, periodic timers Condition: Process event using strand elements Action: Outgoing network messages, local table updates

18. Pseudocode  Strand 1 • Stored tables • node(NAddr, N) • succ(NAddr, Succ, SAddr) n.lookup(k) if k in (n, n.successor) return n.successor.addr else return n.successor.lookup(k) • Event streams • lookup(Addr, Req, K) • response(Addr, K, Owner) Event: RECEIVElookup(NAddr, Req, K) Condition: node(NAddr, N) & succ(NAddr, Succ, SAddr) & K in (N, Succ] Action: SEND response(Req, K, SAddr) to Req

19. lookup succ node Pseudocode to Strand 1 Event:RECEIVE lookup(NAddr, Req, K) Condition: node(NAddr, N) & succ(NAddr, Succ, SAddr) & K in (N, Succ] Action:SEND response(Req, K, SAddr) to Req Dataflow strand Match lookup.Addr = succ.Addr Match lookup.Addr = node.Addr Join Join Format Response(Req,K,SAddr) Project Filter K in (N,Succ) Select Response n.lookup(k) if k in (n, n.successor) return n.successor.addr else return n.successor. lookup(k)

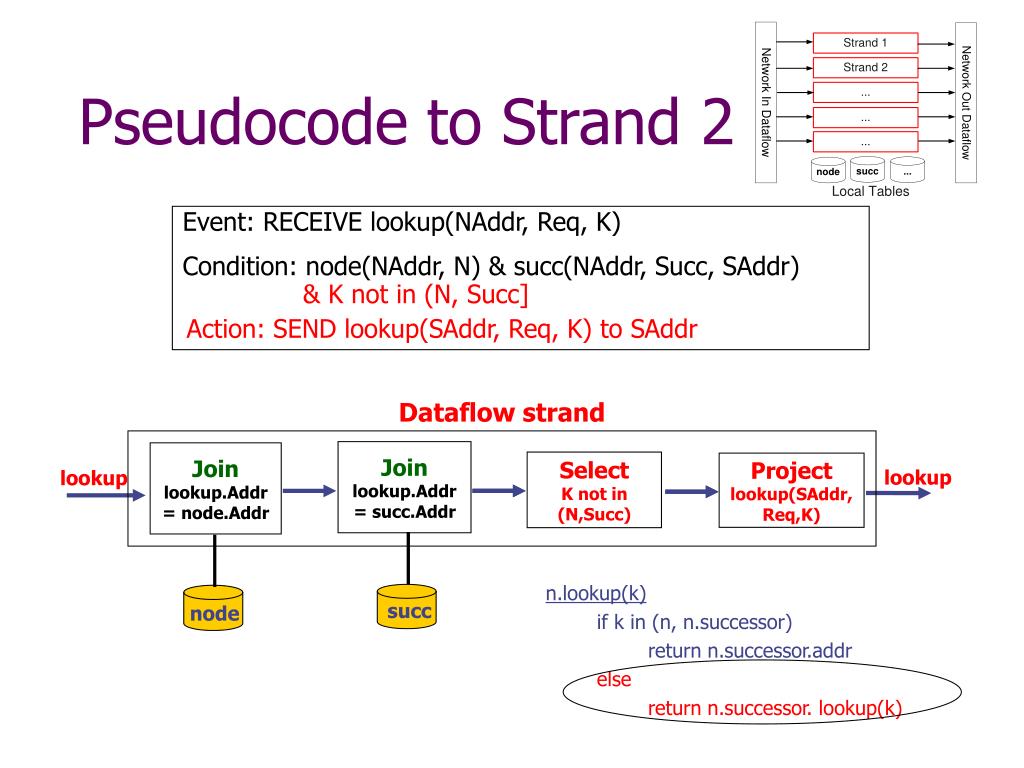

20. lookup succ node Pseudocode to Strand 2 Event: RECEIVE lookup(NAddr, Req, K) Condition: node(NAddr, N) & succ(NAddr, Succ, SAddr) & K not in (N, Succ] Action:SEND lookup(SAddr, Req, K) to SAddr Dataflow strand Join lookup.Addr = succ.Addr Join lookup.Addr = node.Addr Select K not in (N,Succ) Project lookup(SAddr,Req,K) lookup n.lookup(k) if k in (n, n.successor) return n.successor.addr else return n.successor. lookup(k)

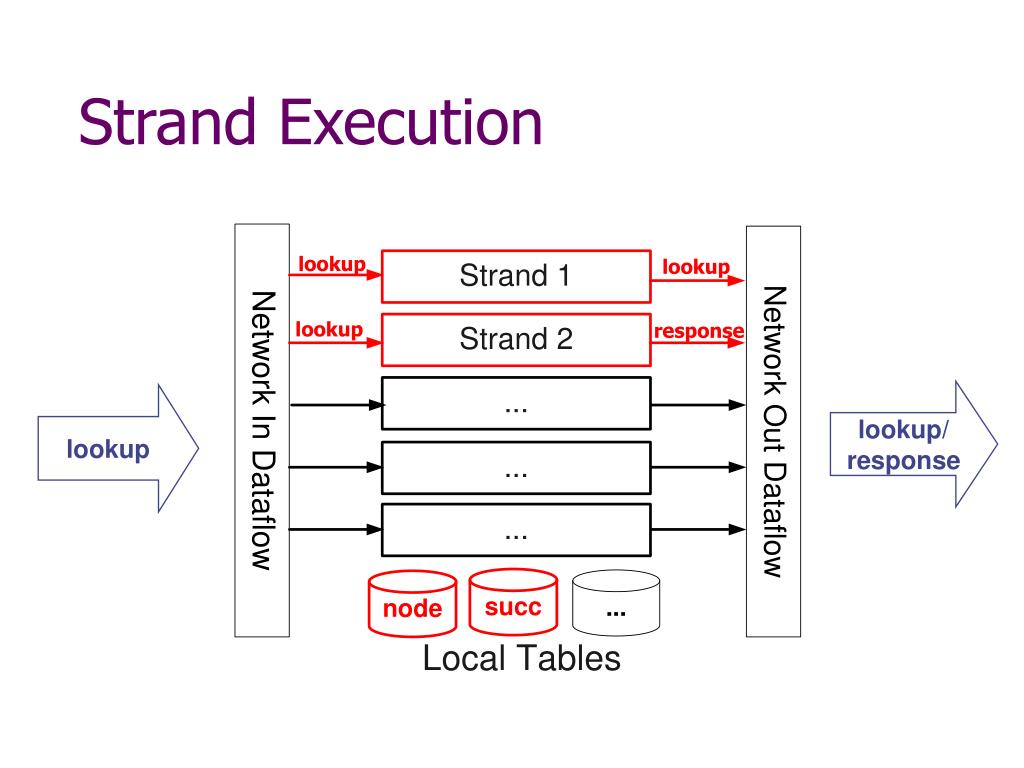

21. Strand Execution lookup lookup lookup response lookup/ response lookup

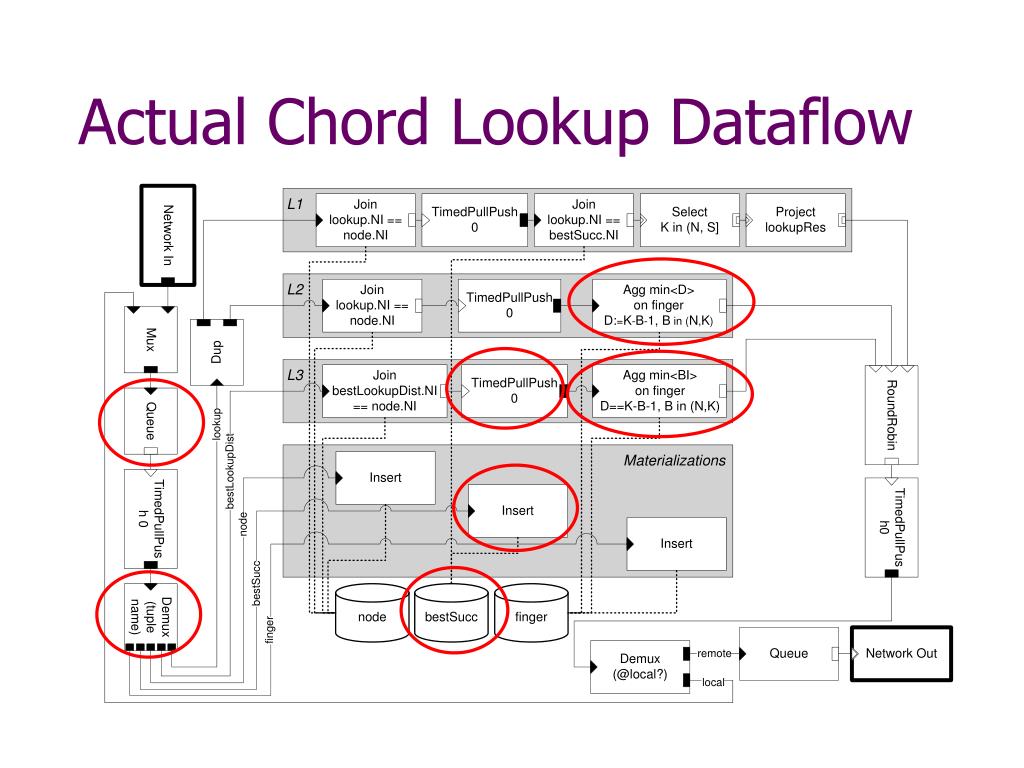

22. Actual Chord Lookup Dataflow

23. Query Language: Overlog • “SQL” equivalent for overlay networks • Based on Datalog: • Declarative recursive query language • Well-suited for querying properties of graphs • Well-studied in database literature • Static analysis, optimizations, etc • Extensions: • Data distribution, asynchronous messaging, periodic timers and state modification

24. Query Language: Overlog Datalog rule syntax: <head>  <condition1>, <condition2>, … , <conditionN>. Overlog rule syntax: <Action><event>,<condition1>, … , <conditionN>.

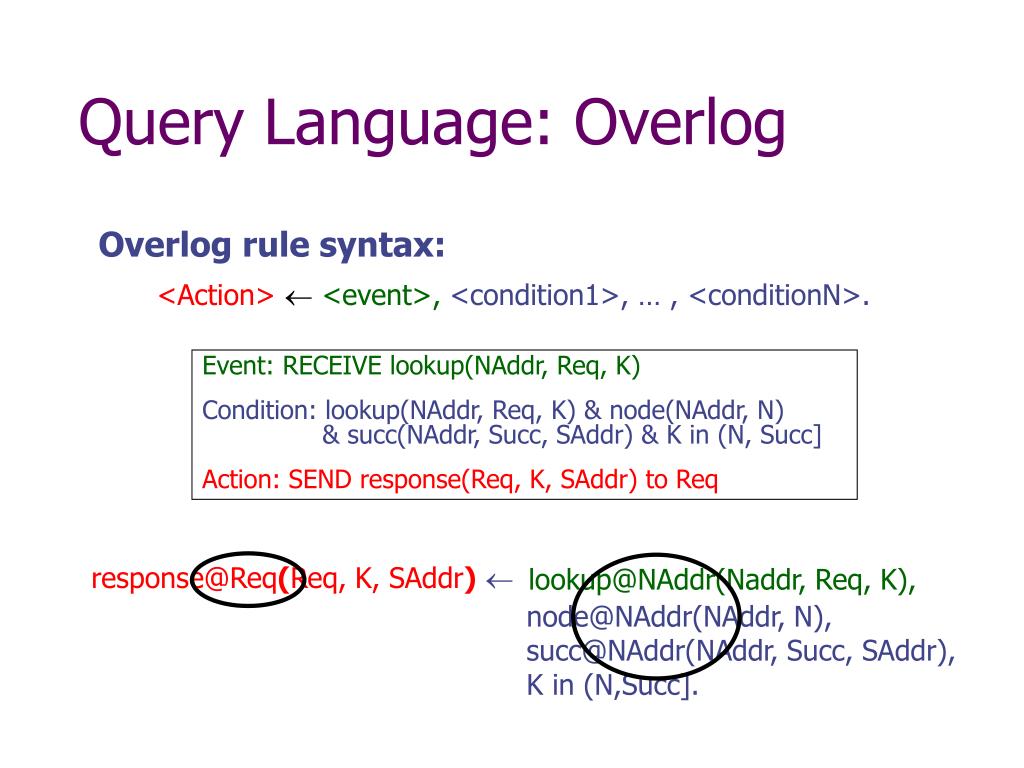

25. Query Language: Overlog Overlog rule syntax: <Action><event>,<condition1>, … , <conditionN>. Event: RECEIVE lookup(NAddr, Req, K) Condition: lookup(NAddr, Req, K) & node(NAddr, N) & succ(NAddr, Succ, SAddr) & K in (N, Succ] Action: SEND response(Req, K, SAddr) to Req • response@Req(Req, K, SAddr) lookup@NAddr(Naddr, Req, K), node@NAddr(NAddr, N), succ@NAddr(NAddr, Succ, SAddr), K in (N,Succ].

26. P2-Chord • Chord Routing, including: • Multiple successors • Stabilization • Optimized finger maintenance • Failure recovery • 47 OverLog rules • 13 table definitions • Other examples: • Narada, flooding, routing protocols 10 pt font

27. Performance Validation • Experimental Setup: • 100 nodes on Emulab testbed • 500 P2-Chord nodes • Main goals: • Validate expected network properties

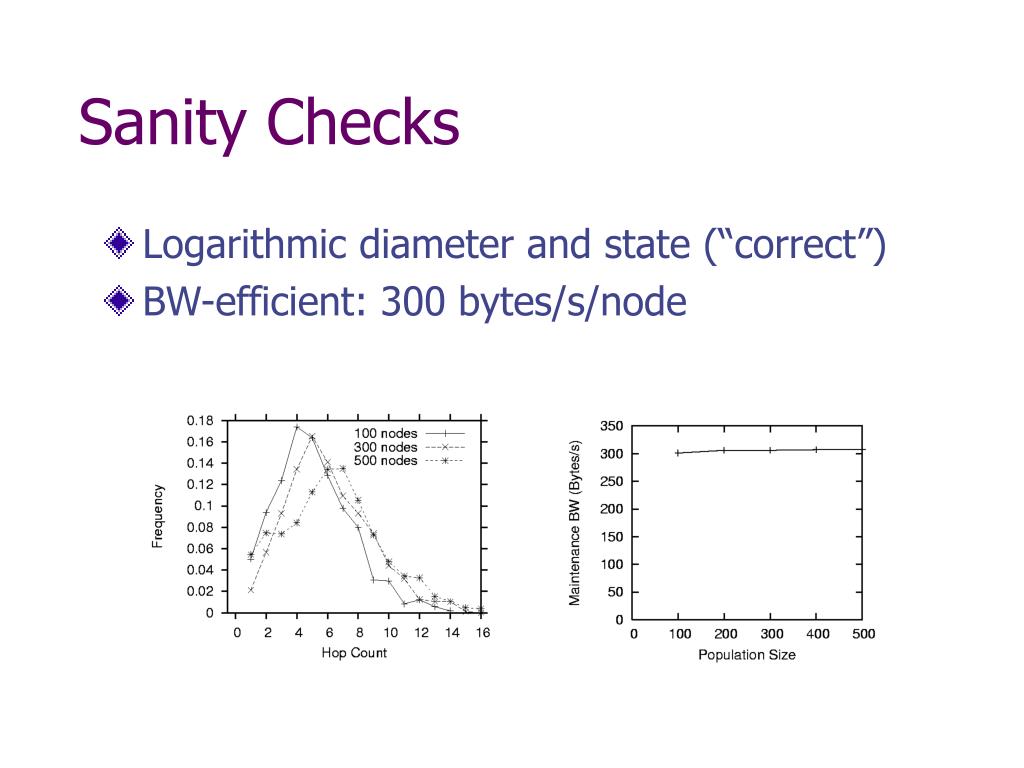

28. Sanity Checks • Logarithmic diameter and state (“correct”) • BW-efficient: 300 bytes/s/node

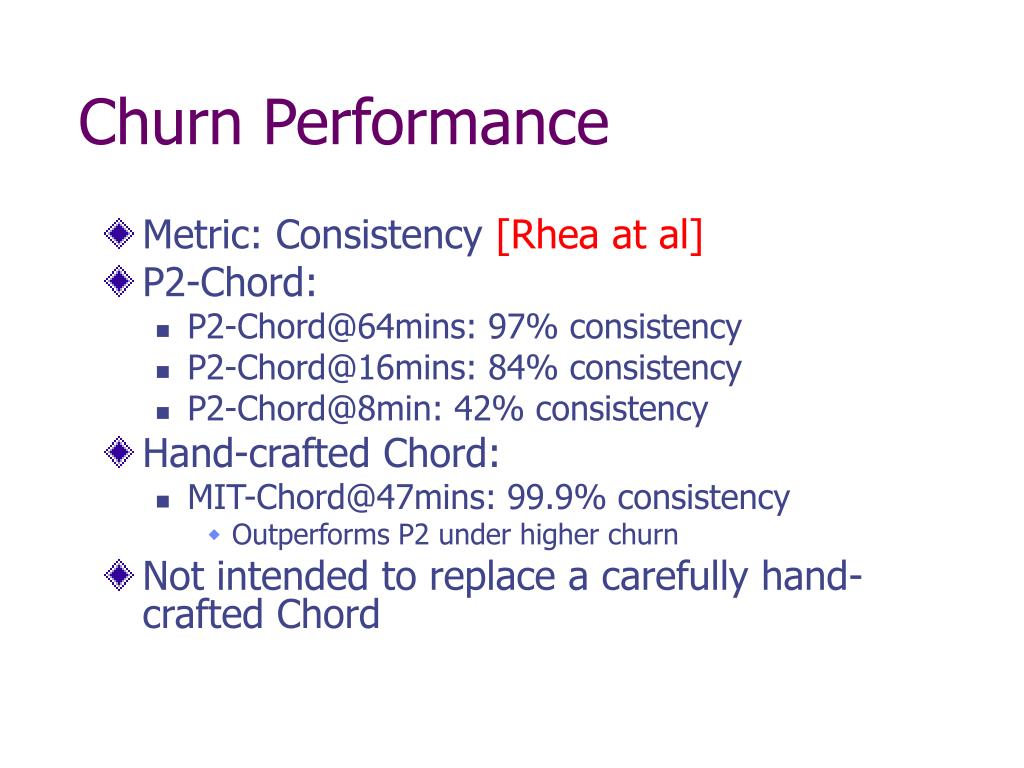

29. Churn Performance • Metric: Consistency [Rhea at al] • P2-Chord: • P2-Chord@64mins: 97% consistency • P2-Chord@16mins: 84% consistency • P2-Chord@8min: 42% consistency • Hand-crafted Chord: • MIT-Chord@47mins: 99.9% consistency • Outperforms P2 under higher churn • Not intended to replace a carefully hand-crafted Chord

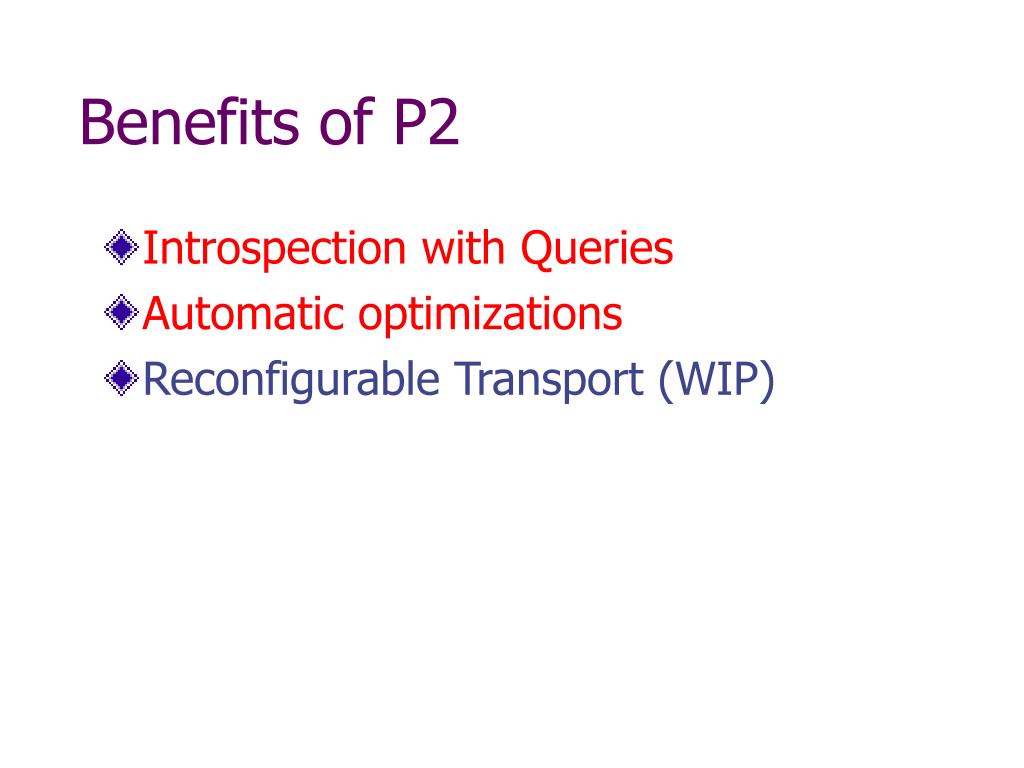

30. Benefits of P2 • Introspection with Queries • Automatic optimizations • Reconfigurable Transport (WIP)

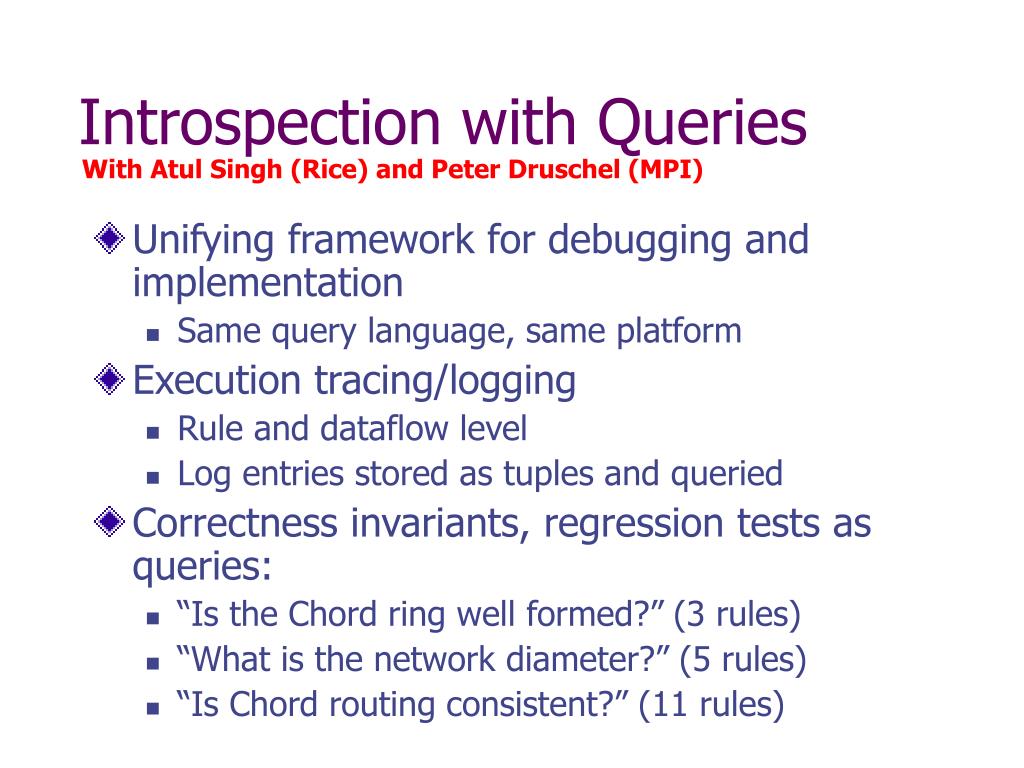

31. Introspection with Queries With Atul Singh (Rice) and Peter Druschel (MPI) • Unifying framework for debugging and implementation • Same query language, same platform • Execution tracing/logging • Rule and dataflow level • Log entries stored as tuples and queried • Correctness invariants, regression tests as queries: • “Is the Chord ring well formed?” (3 rules) • “What is the network diameter?” (5 rules) • “Is Chord routing consistent?” (11 rules)

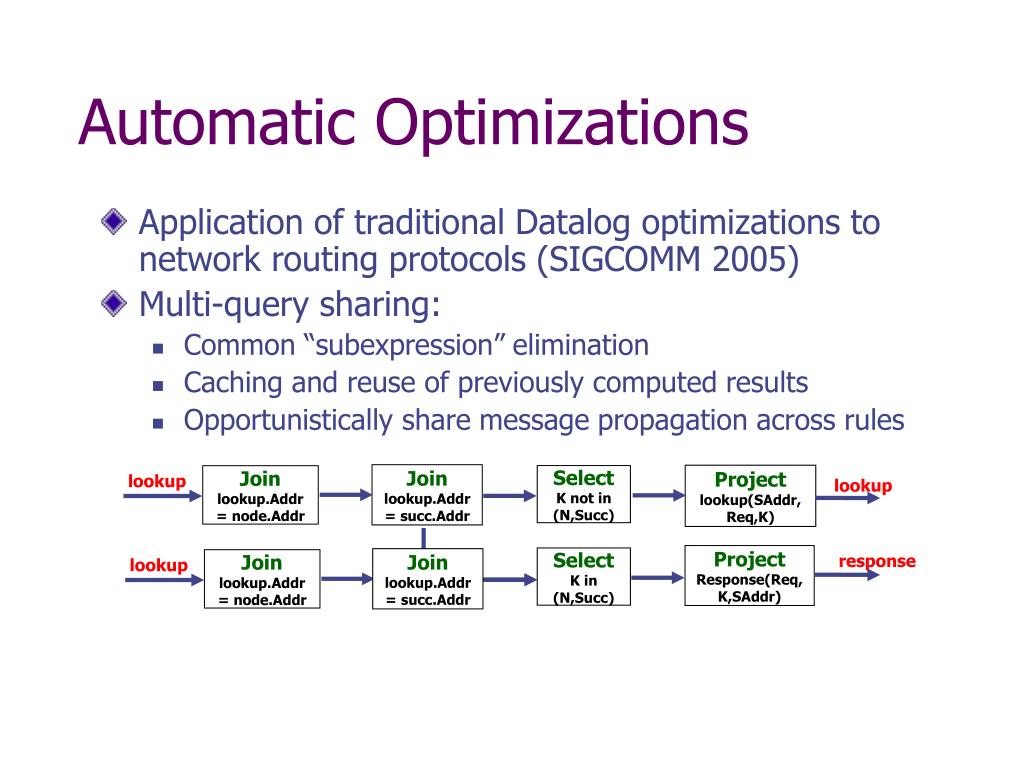

32. Join lookup.Addr = succ.Addr lookup Project lookup(SAddr,Req,K) Select K not in (N,Succ) Join lookup.Addr = node.Addr lookup response Project Response(Req,K,SAddr) Select K in (N,Succ) Join lookup.Addr = succ.Addr lookup Join lookup.Addr = node.Addr Automatic Optimizations • Application of traditional Datalog optimizations to network routing protocols (SIGCOMM 2005) • Multi-query sharing: • Common “subexpression” elimination • Caching and reuse of previously computed results • Opportunistically share message propagation across rules

33. Automatic Optimizations • Cost-based optimizations • Join ordering affects performance Join lookup.Addr = succ.Addr Join lookup.Addr = succ.Addr Join lookup.Addr = node.Addr lookup Project lookup(SAddr,Req,K) Select K not in (N,Succ) Join lookup.Addr = node.Addr lookup Project Response(Req,K,SAddr) response Select K in (N,Succ)

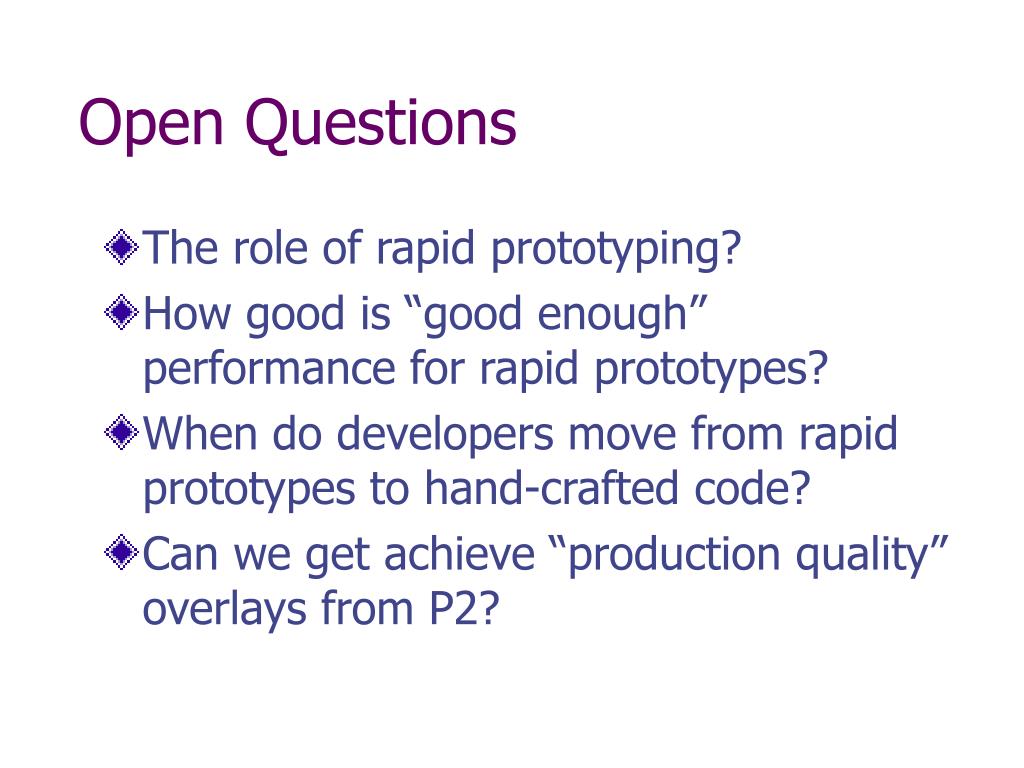

34. Open Questions • The role of rapid prototyping? • How good is “good enough” performance for rapid prototypes? • When do developers move from rapid prototypes to hand-crafted code? • Can we get achieve “production quality” overlays from P2?

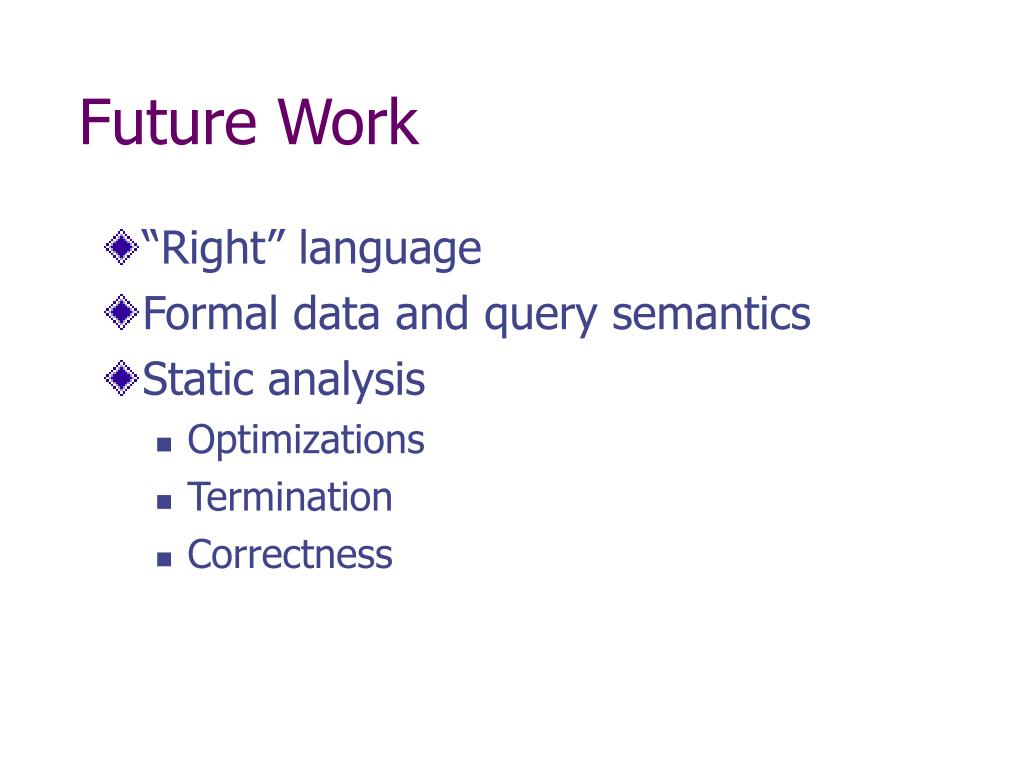

35. Future Work • “Right” language • Formal data and query semantics • Static analysis • Optimizations • Termination • Correctness

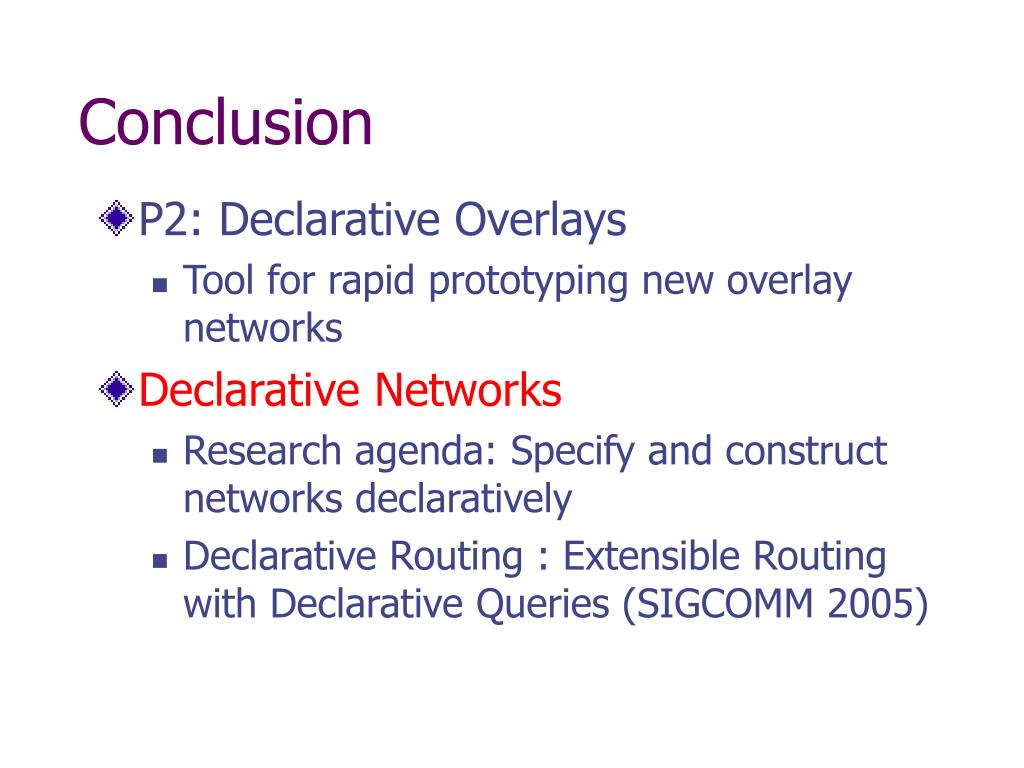

36. Conclusion • P2: Declarative Overlays • Tool for rapid prototyping new overlay networks • Declarative Networks • Research agenda: Specify and construct networks declaratively • Declarative Routing : Extensible Routing with Declarative Queries (SIGCOMM 2005)

37. Thank You http://p2.cs.berkeley.edu

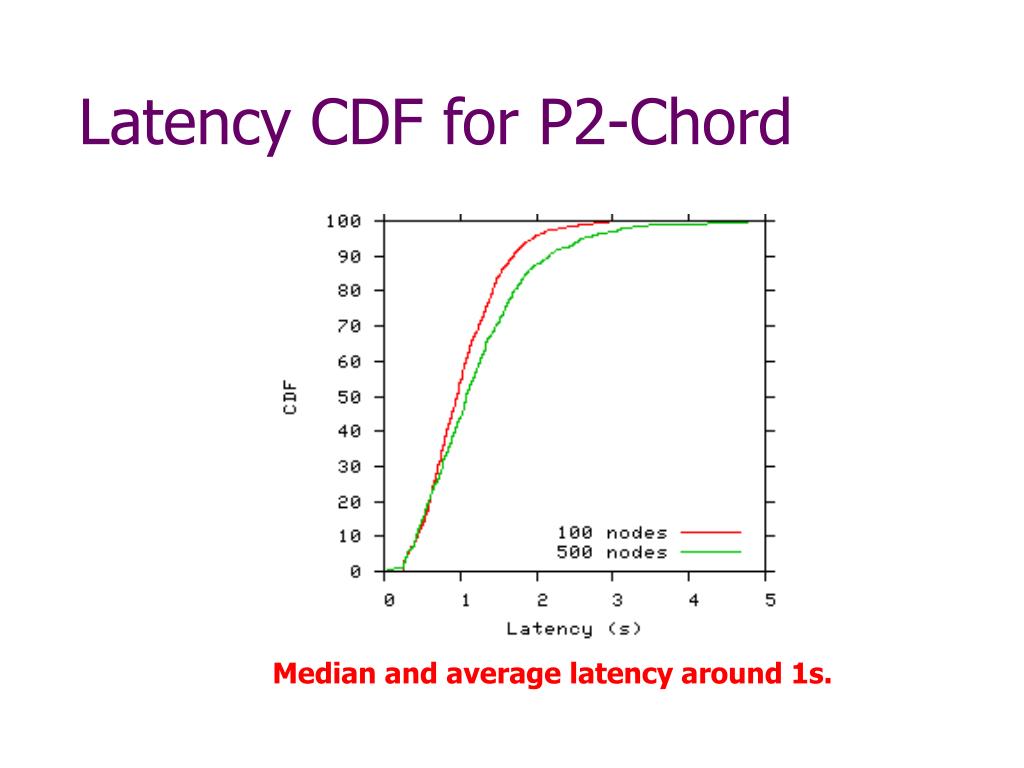

38. Latency CDF for P2-Chord Median and average latency around 1s.
