  1. IT-004Installing and Configuring Citrix in a CMDSeries Environment David Cutten dcutten@commandalkon.com 205-879-3282 ext 1715

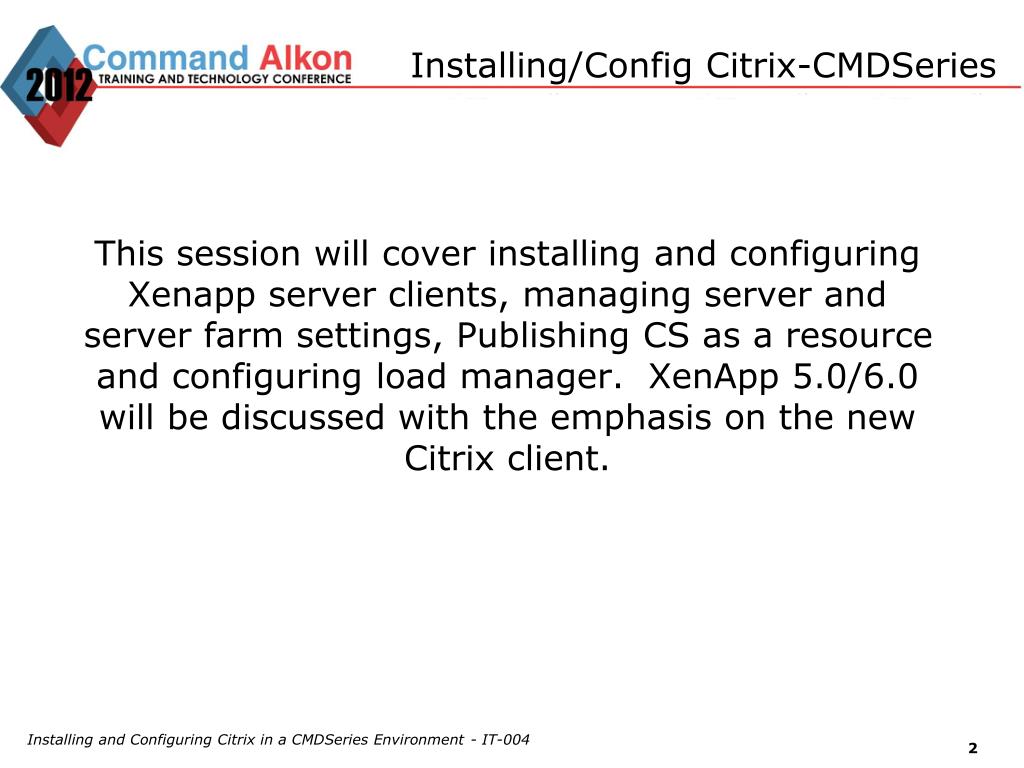

  2. Installing/Config Citrix-CMDSeries This session will cover installing and configuring Xenapp server clients, managing server and server farm settings, Publishing CS as a resource and configuring load manager. XenApp 5.0/6.0 will be discussed with the emphasis on the new Citrix client. Installing and Configuring Citrix in a CMDSeries Environment - IT-004

  3. Overview Overview • Introduction to XenApp • Managing a Citrix Server/Farm • Tools • Sizing a Farm • Server Performance • Server Farm Settings • Citrix Group Policy Installing and Configuring Citrix in a CMDSeries Environment - IT-004

  4. Overview • Configuring Load Balancing • Load Balance Manager • Installing Citrix Clients • Version of Clients • Citrix Receiver • Publishing Command Series • Published Application • Published Desktop Installing and Configuring Citrix in a CMDSeries Environment - IT-004

  5. Introduction to XenApp David Cutten dcutten@commandalkon.com 205-879-3282 ext 1715

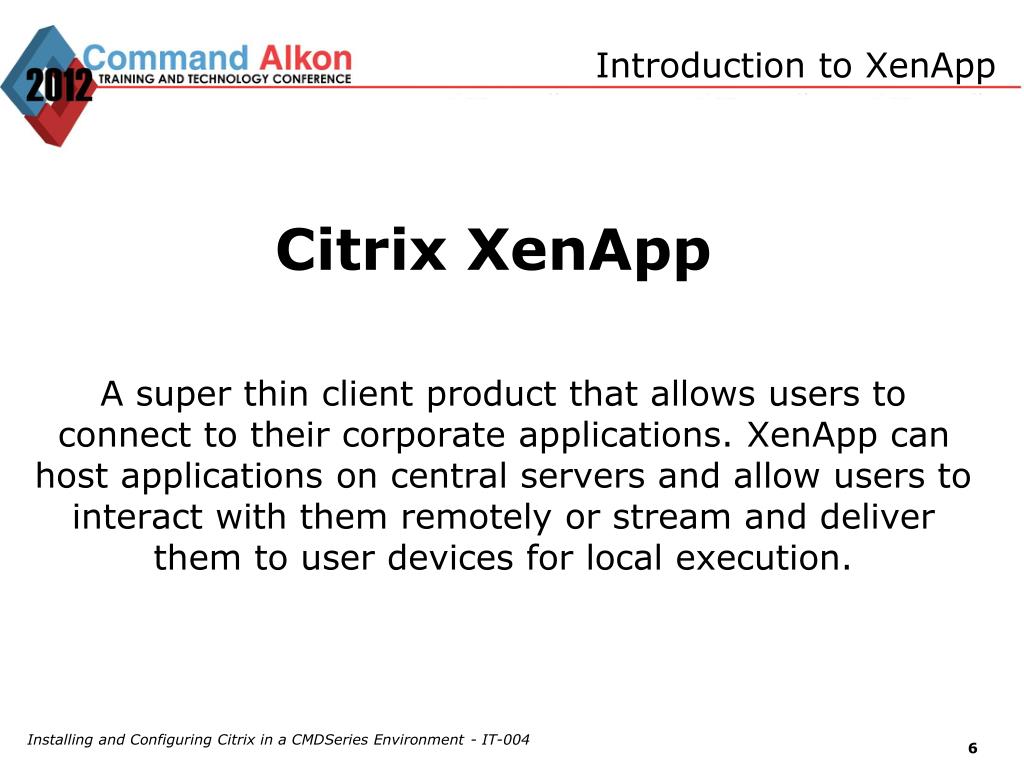

  6. Introduction to XenApp Citrix XenApp A super thin client product that allows users to connect to their corporate applications. XenApp can host applications on central servers and allow users to interact with them remotely or stream and deliver them to user devices for local execution. Installing and Configuring Citrix in a CMDSeries Environment - IT-004

  7. Introducing Citrix XenApp • Citrix XenApp was formerly known as Citrix Presentation Server • Prior to Citrix Presentation Server, it was known as Citrix MetaFrame, and prior to that, Citrix WinFrame • It is the heart of Application Virtualization • It delivers applications as an on-demand service to users anywhere using any device Installing and Configuring Citrix in a CMDSeries Environment - IT-004

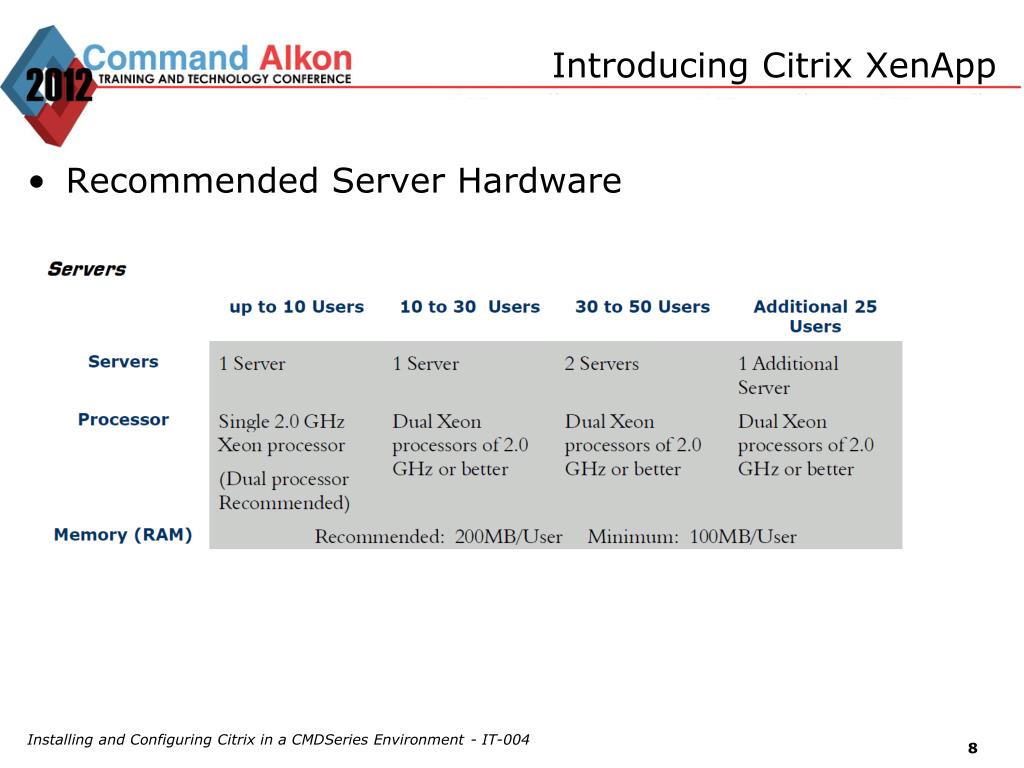

  8. Introducing Citrix XenApp • Recommended Server Hardware Installing and Configuring Citrix in a CMDSeries Environment - IT-004

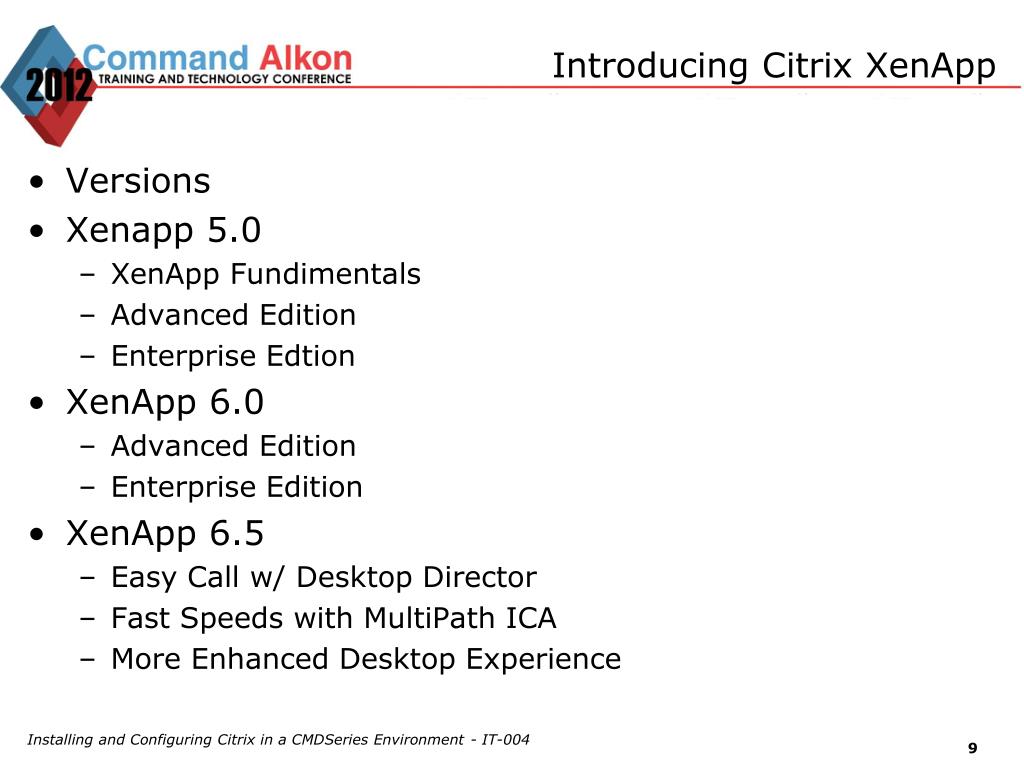

  9. Introducing Citrix XenApp • Versions • Xenapp 5.0 • XenApp Fundimentals • Advanced Edition • Enterprise Edtion • XenApp 6.0 • Advanced Edition • Enterprise Edition • XenApp 6.5 • Easy Call w/ Desktop Director • Fast Speeds with MultiPath ICA • More Enhanced Desktop Experience Installing and Configuring Citrix in a CMDSeries Environment - IT-004

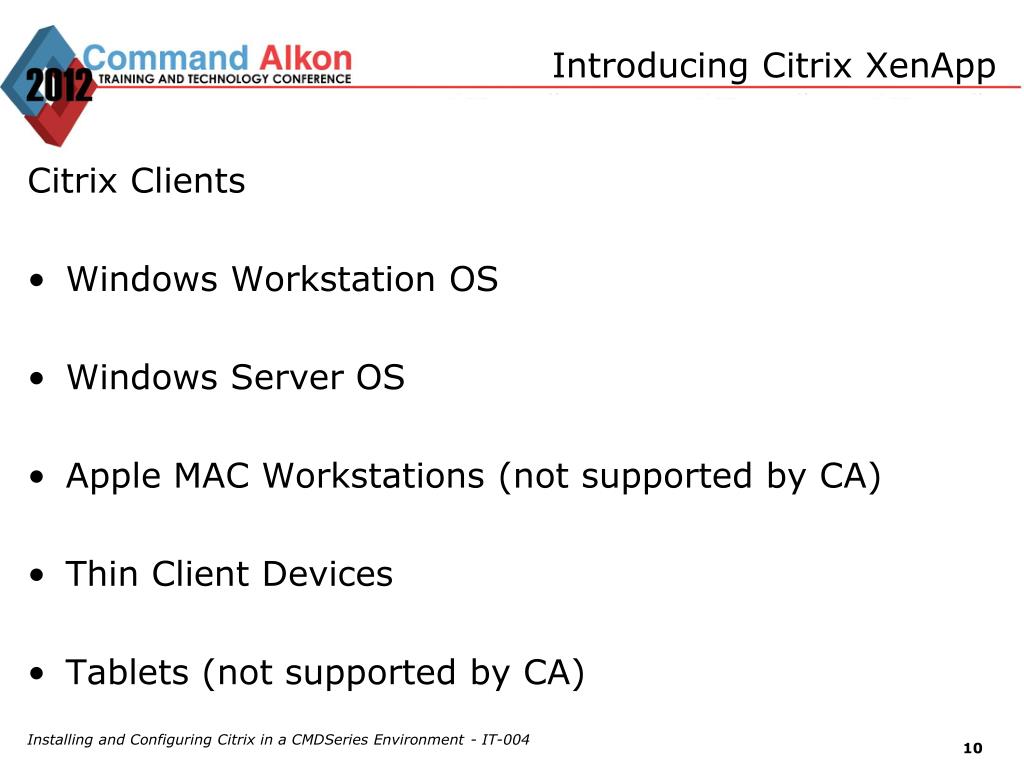

  10. Introducing Citrix XenApp Citrix Clients • Windows Workstation OS • Windows Server OS • Apple MAC Workstations (not supported by CA) • Thin Client Devices • Tablets (not supported by CA) Installing and Configuring Citrix in a CMDSeries Environment - IT-004

  11. Managing a Citrix Server/Farm David Cutten dcutten@commandalkon.com 205-879-3282 ext 1715

  12. Managing a Citrix Server/Farm • Citrix Xenapp 5.0 Tools • Access Management Console • Server Management • Application Management • Hotfix Management • Web Management • PNAgent Management • Farm Settings • Presentation Server Console • Printer Management • Load Evaluators • Server Load Management • Policy Management • License Administration Console • Management of Citrix Licenses Installing and Configuring Citrix in a CMDSeries Environment - IT-004

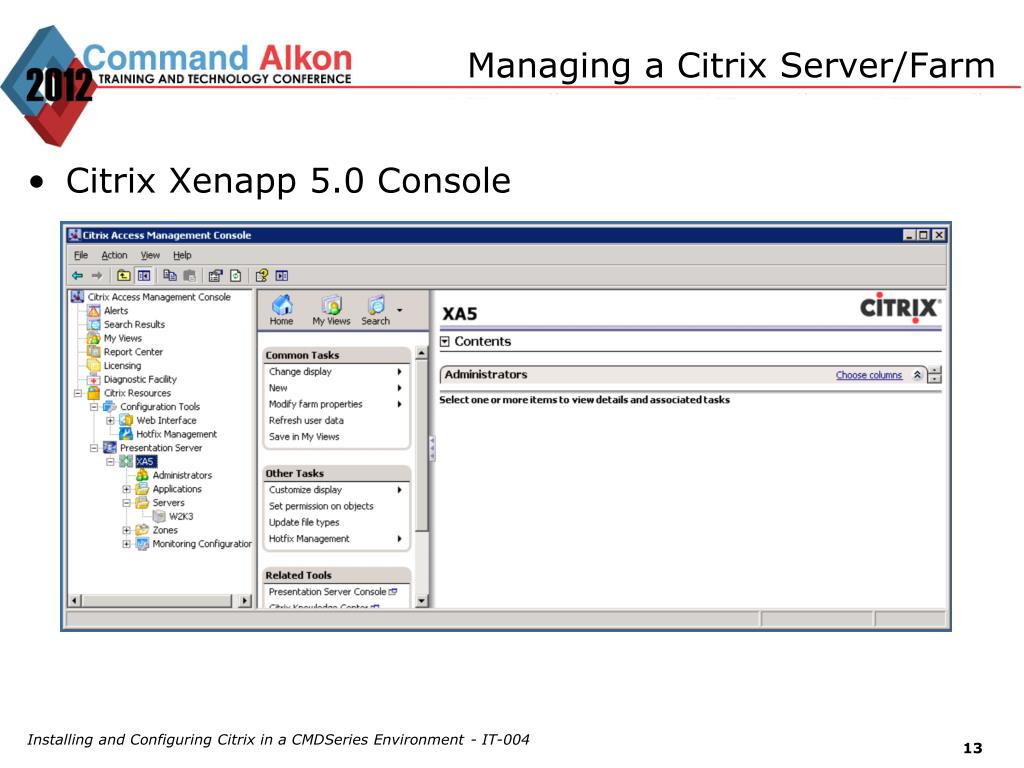

  13. Managing a Citrix Server/Farm • Citrix Xenapp 5.0 Console Installing and Configuring Citrix in a CMDSeries Environment - IT-004

  14. Managing a Citrix Server/Farm • Citrix Xenapp 6.0 Tools • Citrix Delivery Services Console • Server Management • Policy Management(Non AD) • No Farm Settings – Moved to Policy Management • Application Management • Most Administration will be done from here • Citrix Web Interface Management • Web Interface Management • PNAgent Management • XenApp Server Role Manager • Adds Roles to the Server • License Administration Console • Management of Citrix Licenses Installing and Configuring Citrix in a CMDSeries Environment - IT-004

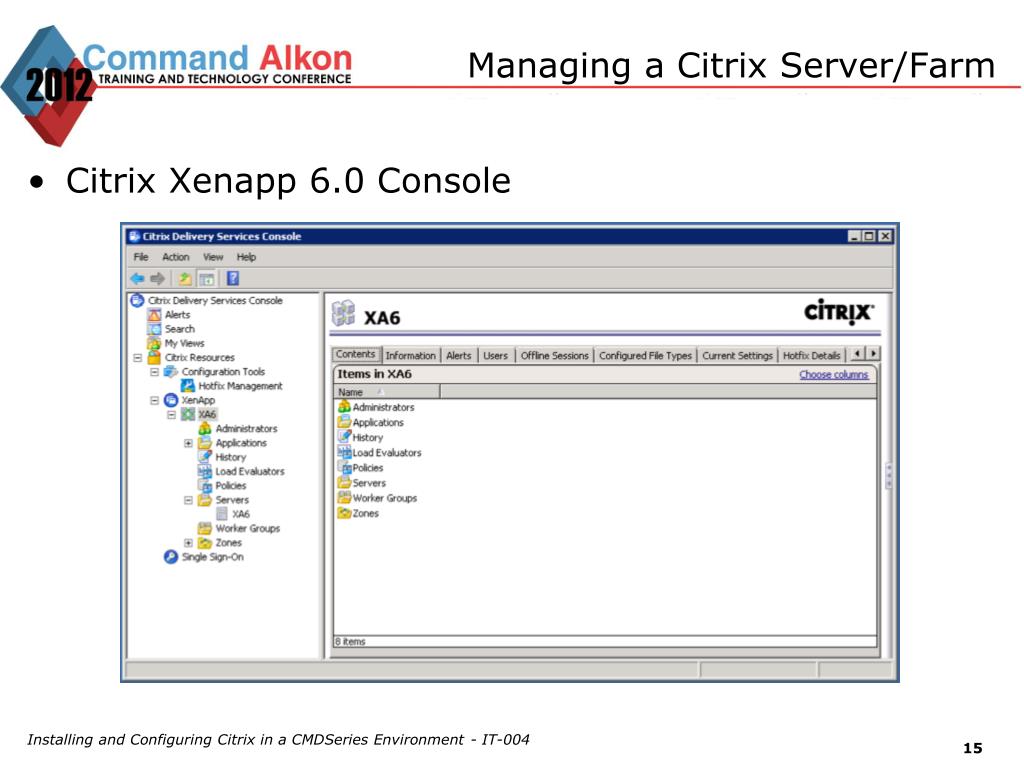

  15. Managing a Citrix Server/Farm • Citrix Xenapp 6.0 Console Installing and Configuring Citrix in a CMDSeries Environment - IT-004

  16. Managing a Citrix Server/Farm • Citrix Xenapp 6.5 Tools (Relocated to Admin Tools) • Citrix App Center • Server Management • Policy Management(Non AD) • No Farm Settings – Moved to Policy Management • Application Management • Most Administration will be done from here • Citrix Web Interface Management • Web Interface Management • PNAgent Management • XenApp Server Role Manager • Adds Roles to the Server • License Administration Console • Management of Citrix Licenses Installing and Configuring Citrix in a CMDSeries Environment - IT-004

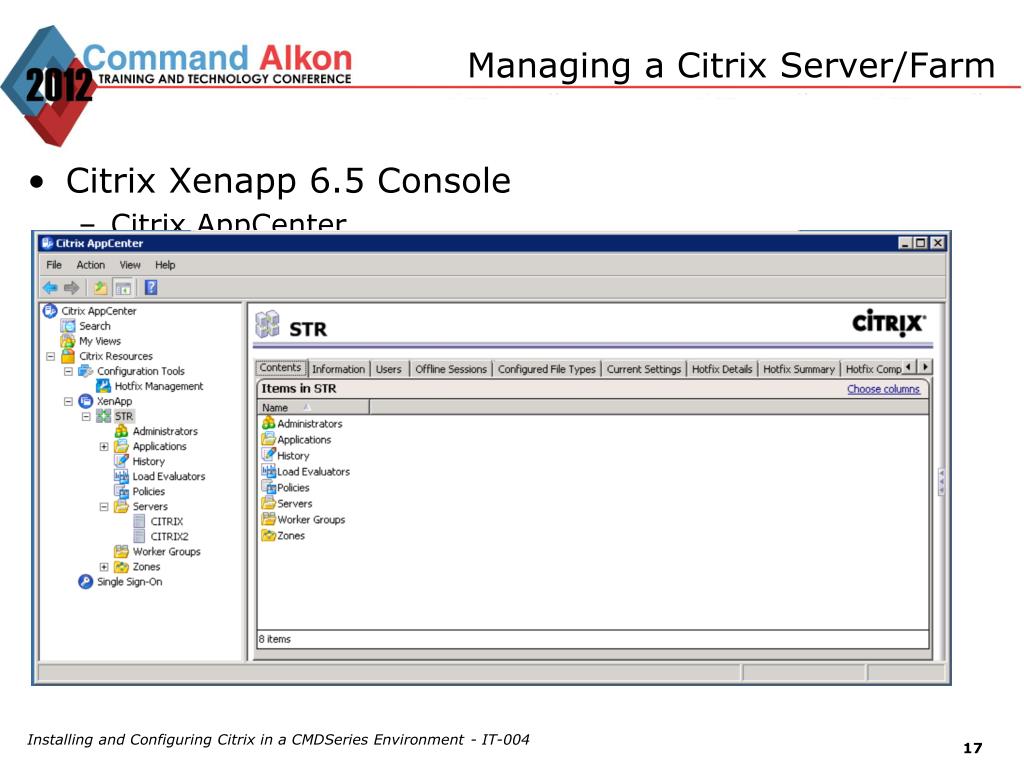

  17. Managing a Citrix Server/Farm • Citrix Xenapp 6.5 Console • Citrix AppCenter Installing and Configuring Citrix in a CMDSeries Environment - IT-004

  18. Install Citrix Instructor Name Instructor E-mail Telephone Number

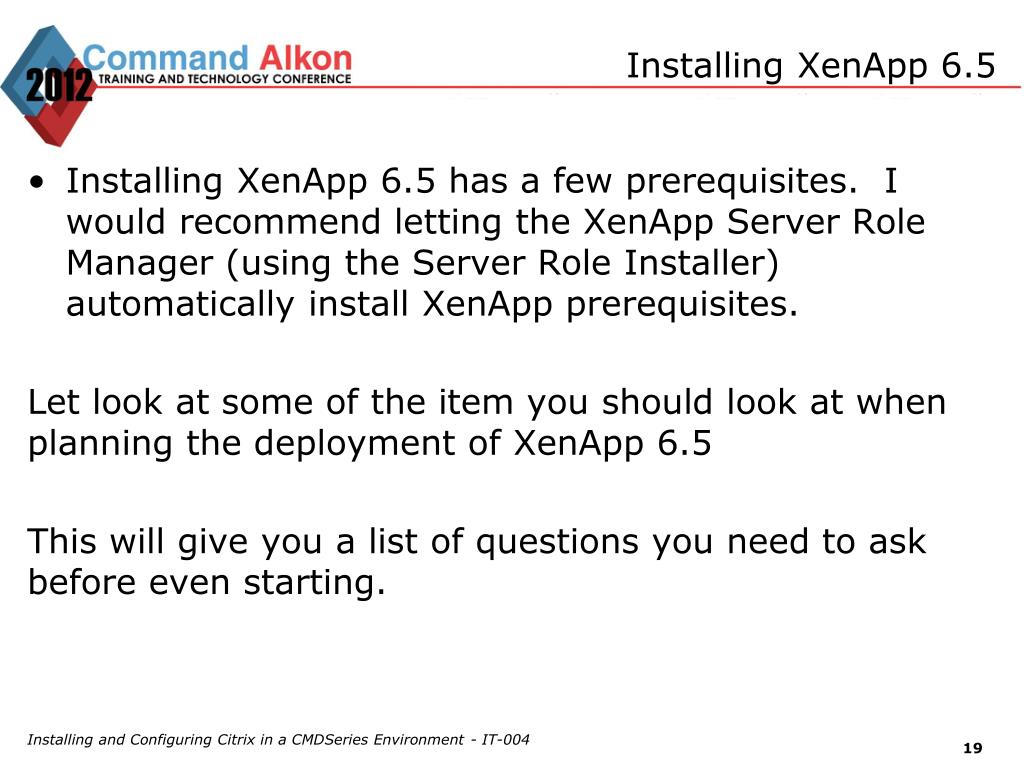

  19. Installing XenApp 6.5 • Installing XenApp 6.5 has a few prerequisites. I would recommend letting the XenApp Server Role Manager (using the Server Role Installer) automatically install XenApp prerequisites.   Let look at some of the item you should look at when planning the deployment of XenApp 6.5 This will give you a list of questions you need to ask before even starting. Installing and Configuring Citrix in a CMDSeries Environment - IT-004

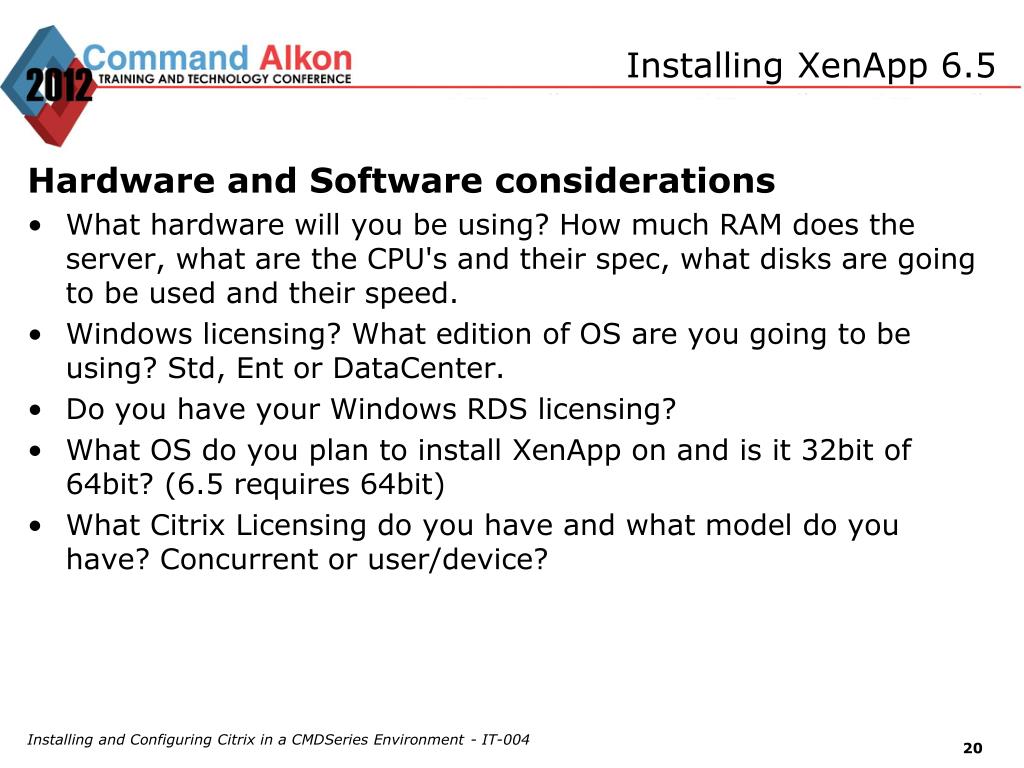

  20. Installing XenApp 6.5 Hardware and Software considerations • What hardware will you be using? How much RAM does the server, what are the CPU's and their spec, what disks are going to be used and their speed. • Windows licensing? What edition of OS are you going to be using? Std, Ent or DataCenter. • Do you have your Windows RDS licensing? • What OS do you plan to install XenApp on and is it 32bit of 64bit? (6.5 requires 64bit) • What Citrix Licensing do you have and what model do you have? Concurrent or user/device?  Installing and Configuring Citrix in a CMDSeries Environment - IT-004

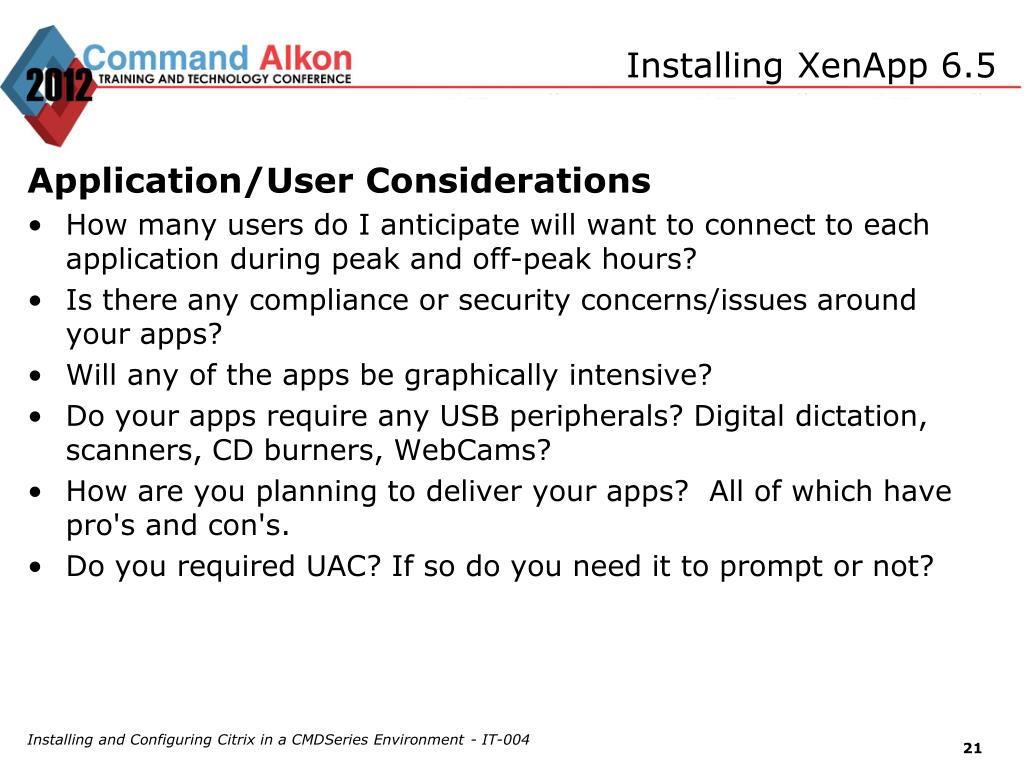

  21. Installing XenApp 6.5 Application/User Considerations • How many users do I anticipate will want to connect to each application during peak and off-peak hours? • Is there any compliance or security concerns/issues around your apps? • Will any of the apps be graphically intensive? • Do your apps require any USB peripherals? Digital dictation, scanners, CD burners, WebCams? • How are you planning to deliver your apps?  All of which have pro's and con's. • Do you required UAC? If so do you need it to prompt or not? Installing and Configuring Citrix in a CMDSeries Environment - IT-004

  22. Installing XenApp 6.5 • Networking Considerations  • What's your network topology like? • Do you have any high latency links? • What if any security measures are required? • Consider your AD requirements • Do you require single sign-on? • Is pass-through authentication required? Installing and Configuring Citrix in a CMDSeries Environment - IT-004

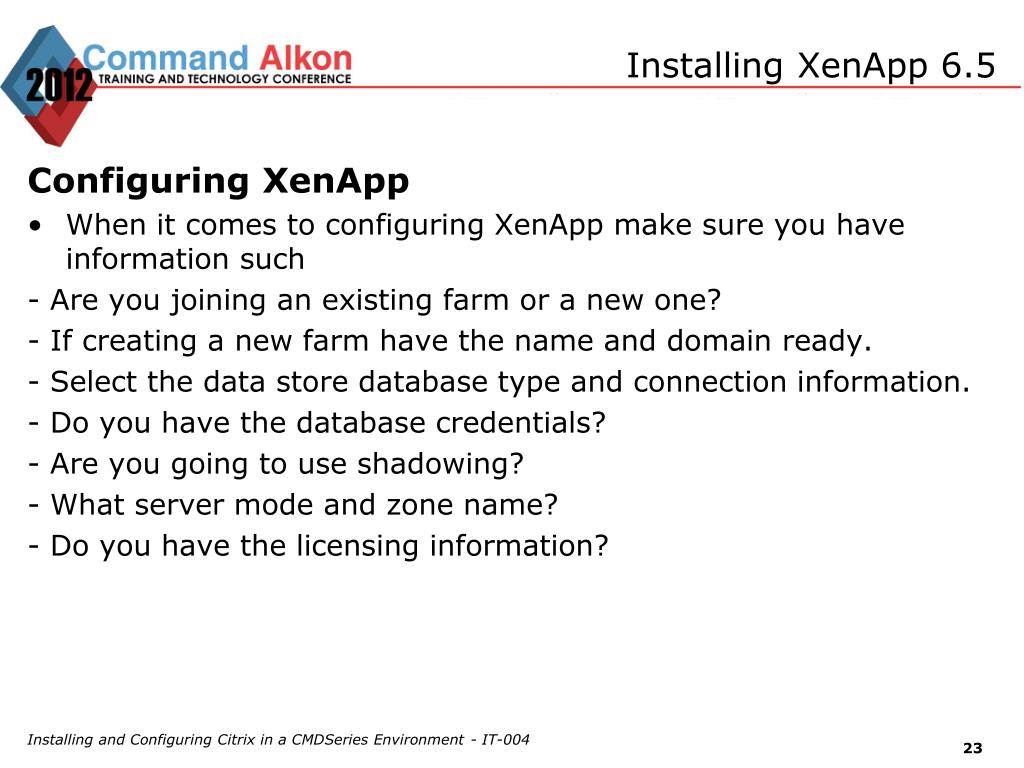

  23. Installing XenApp 6.5 Configuring XenApp • When it comes to configuring XenApp make sure you have information such  - Are you joining an existing farm or a new one? - If creating a new farm have the name and domain ready. - Select the data store database type and connection information. - Do you have the database credentials? - Are you going to use shadowing? - What server mode and zone name? - Do you have the licensing information? Installing and Configuring Citrix in a CMDSeries Environment - IT-004

  24. Installing XenApp 6.5 • Insert the XenApp 6.5 media and click on install XenApp Server. Installing and Configuring Citrix in a CMDSeries Environment - IT-004

  25. Installing XenApp 6.5 • Since we added no prerequisites you will be prompted to install .Net 3.5 SP1, click OK. Installing and Configuring Citrix in a CMDSeries Environment - IT-004

  26. Installing XenApp 6.5 • Once the install of .Net 3.5 has finished and the Citrix XenApp Server Role Manager starts click on Add Server Roles. Installing and Configuring Citrix in a CMDSeries Environment - IT-004

  27. Installing XenApp 6.5 • You will be prompted to select your edition of XenApp. Installing and Configuring Citrix in a CMDSeries Environment - IT-004

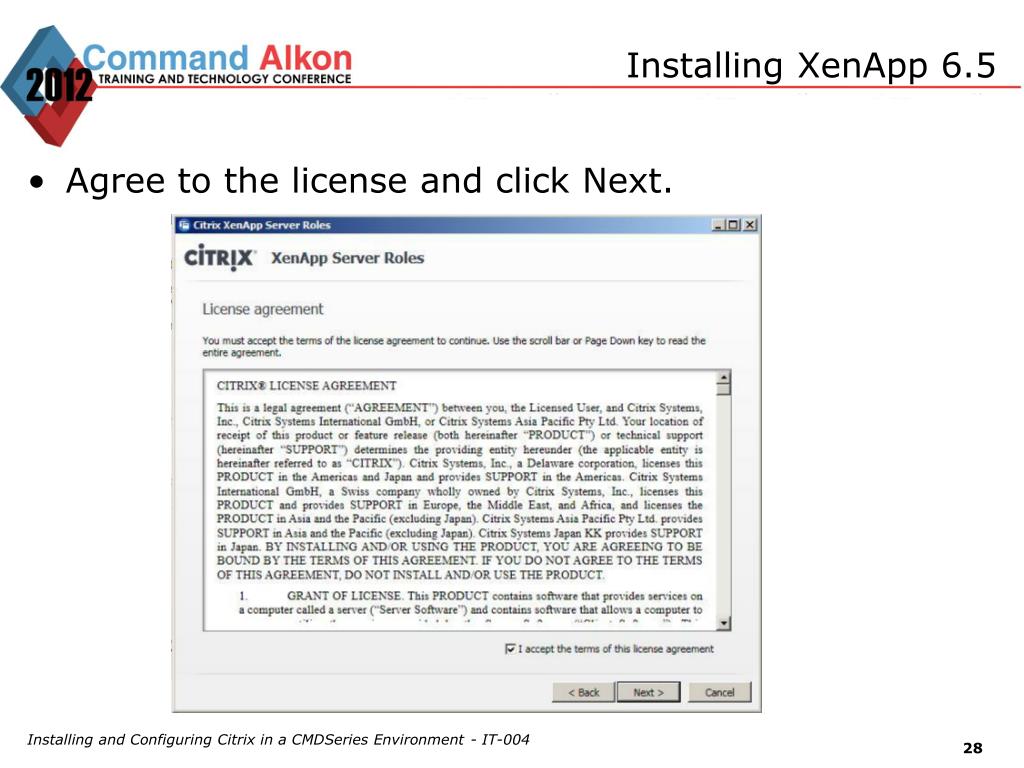

  28. Installing XenApp 6.5 • Agree to the license and click Next. Installing and Configuring Citrix in a CMDSeries Environment - IT-004

  29. Installing XenApp 6.5 • In this example the XenApp and Web Interface role will be on the same server but if this is a production, consider how you can split these roles out.  Installing and Configuring Citrix in a CMDSeries Environment - IT-004

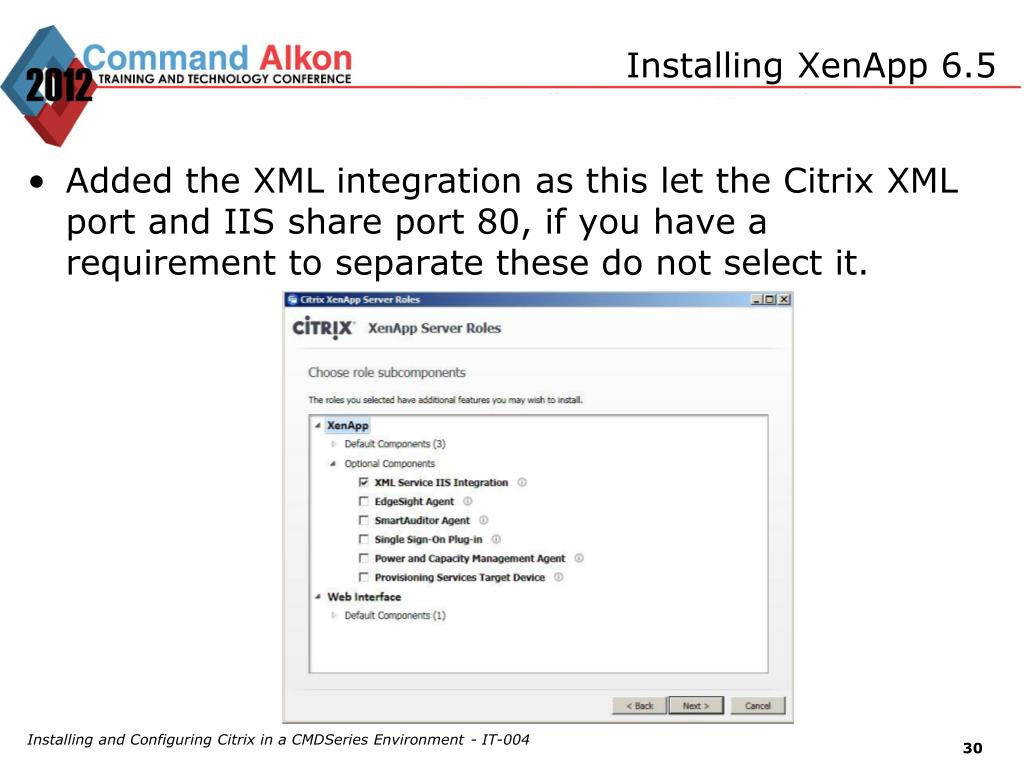

  30. Installing XenApp 6.5 • Added the XML integration as this let the Citrix XML port and IIS share port 80, if you have a requirement to separate these do not select it. Installing and Configuring Citrix in a CMDSeries Environment - IT-004

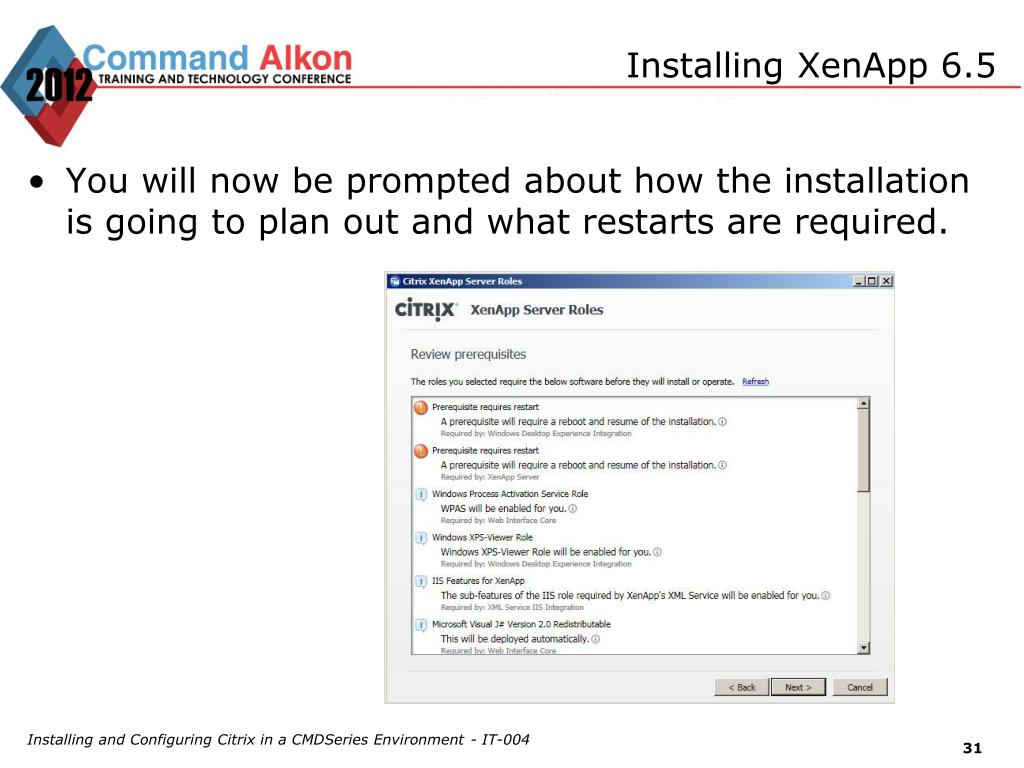

  31. Installing XenApp 6.5 • You will now be prompted about how the installation is going to plan out and what restarts are required. Installing and Configuring Citrix in a CMDSeries Environment - IT-004

  32. Installing XenApp 6.5 • Review what is going to be installed and click next. Installing and Configuring Citrix in a CMDSeries Environment - IT-004

  33. Installing XenApp 6.5 • The prerequisites the installation requires a restart. Installing and Configuring Citrix in a CMDSeries Environment - IT-004

  34. Installing XenApp 6.5 • Once you clicked on finish on the previous screen you will now be prompted to Reboot the XenApp server, click on the Reboot link within role manager. Installing and Configuring Citrix in a CMDSeries Environment - IT-004

  35. Installing XenApp 6.5 • Make sure you log back in to the server with the user account the you used to install XenApp with and you will be prompted to resume install, click on the resume install link. Installing and Configuring Citrix in a CMDSeries Environment - IT-004

  36. Installing XenApp 6.5 • You will be presented with now what is going to be installed after the restart, click Install. Installing and Configuring Citrix in a CMDSeries Environment - IT-004

  37. Installing XenApp 6.5 • Your XenApp 6.5 install is now completed, click finish Installing and Configuring Citrix in a CMDSeries Environment - IT-004

  38. Installing XenApp 6.5 • You will now be asked to configure the XenApp licensing and the Web Interface since we select this during the install.  Installing and Configuring Citrix in a CMDSeries Environment - IT-004

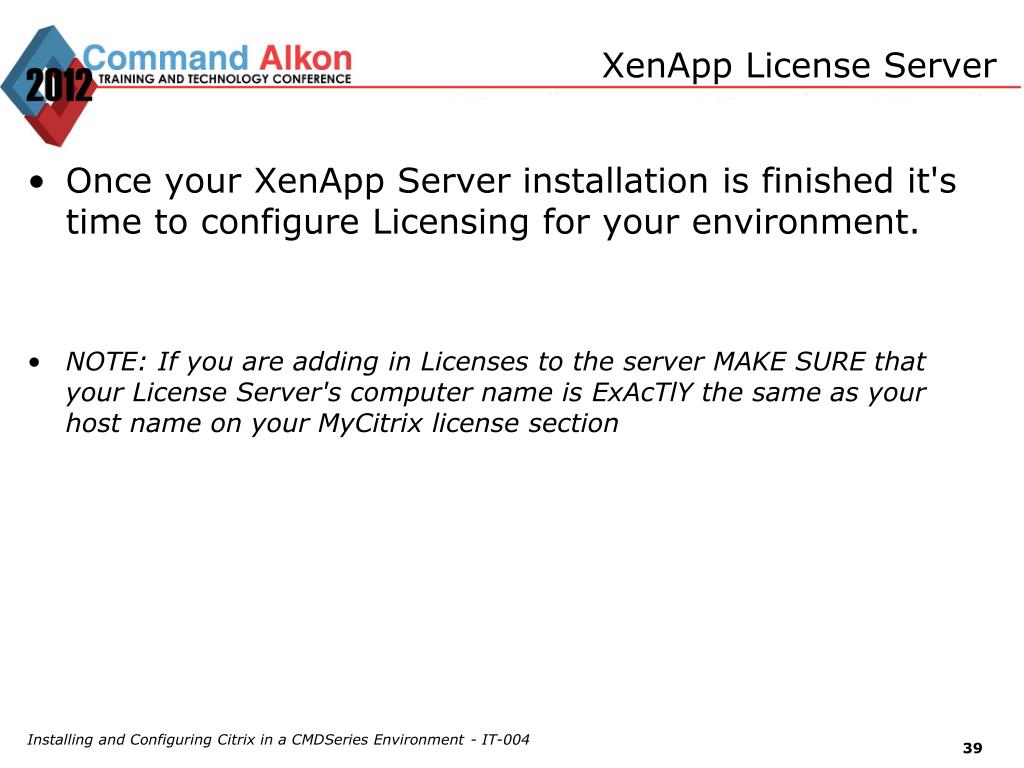

  39. XenApp License Server • Once your XenApp Server installation is finished it's time to configure Licensing for your environment.   • NOTE: If you are adding in Licenses to the server MAKE SURE that your License Server's computer name is ExAcTlY the same as your host name on your MyCitrix license section Installing and Configuring Citrix in a CMDSeries Environment - IT-004

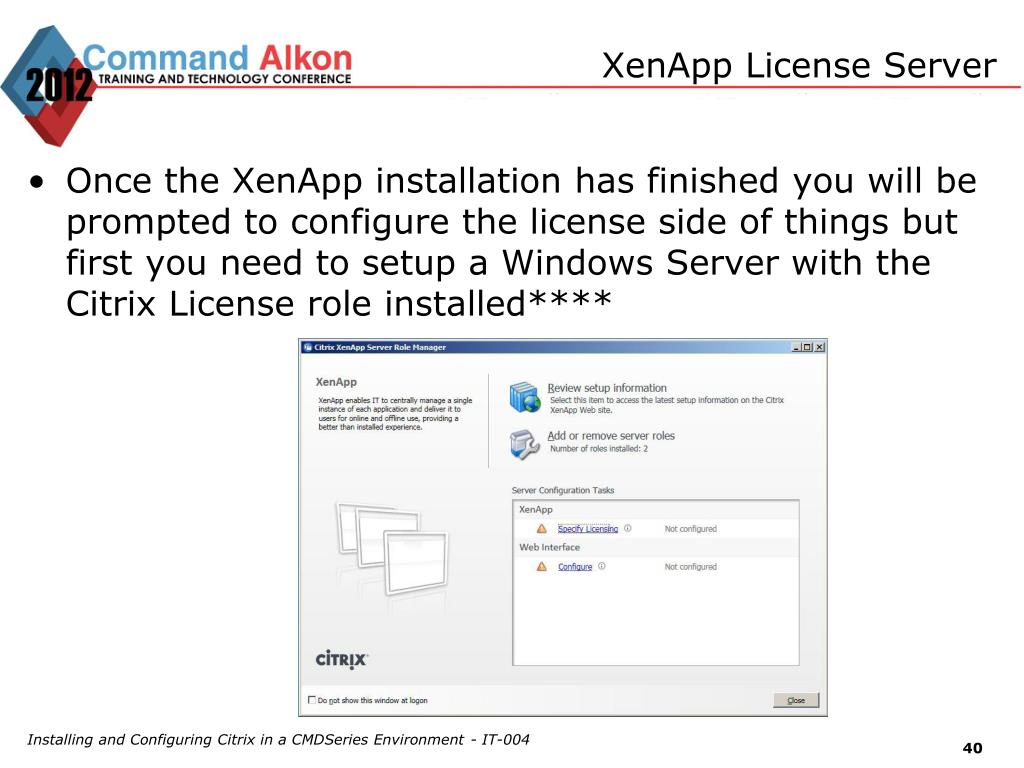

  40. XenApp License Server • Once the XenApp installation has finished you will be prompted to configure the license side of things but first you need to setup a Windows Server with the Citrix License role installed**** Installing and Configuring Citrix in a CMDSeries Environment - IT-004

  41. XenApp License Server • Have a Windows 2008 R2 server configured to handle the licensing side of things so first thing first insert the XenApp 6.5 media.  Now the option to install the license side of things you have to drill down to find the option so click on >Manually install components>Common Components>Citrix Licensing. • NOTE: Now you need to install the Citrix Licnese server but first back sure you have .NET Framework 3.5.1 features through the add features wizard. Installing and Configuring Citrix in a CMDSeries Environment - IT-004

  42. XenApp License Server • Accept the license agreement and click next. Installing and Configuring Citrix in a CMDSeries Environment - IT-004

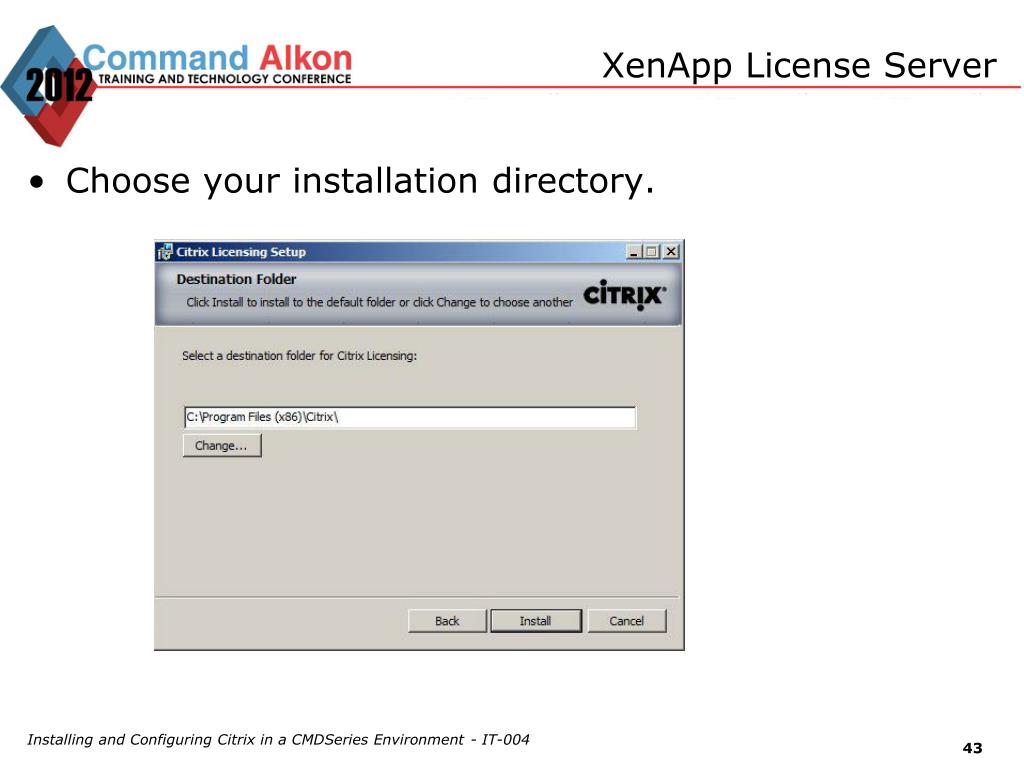

  43. XenApp License Server • Choose your installation directory. Installing and Configuring Citrix in a CMDSeries Environment - IT-004

  44. XenApp License Server • Click finish to the License server installation. Installing and Configuring Citrix in a CMDSeries Environment - IT-004

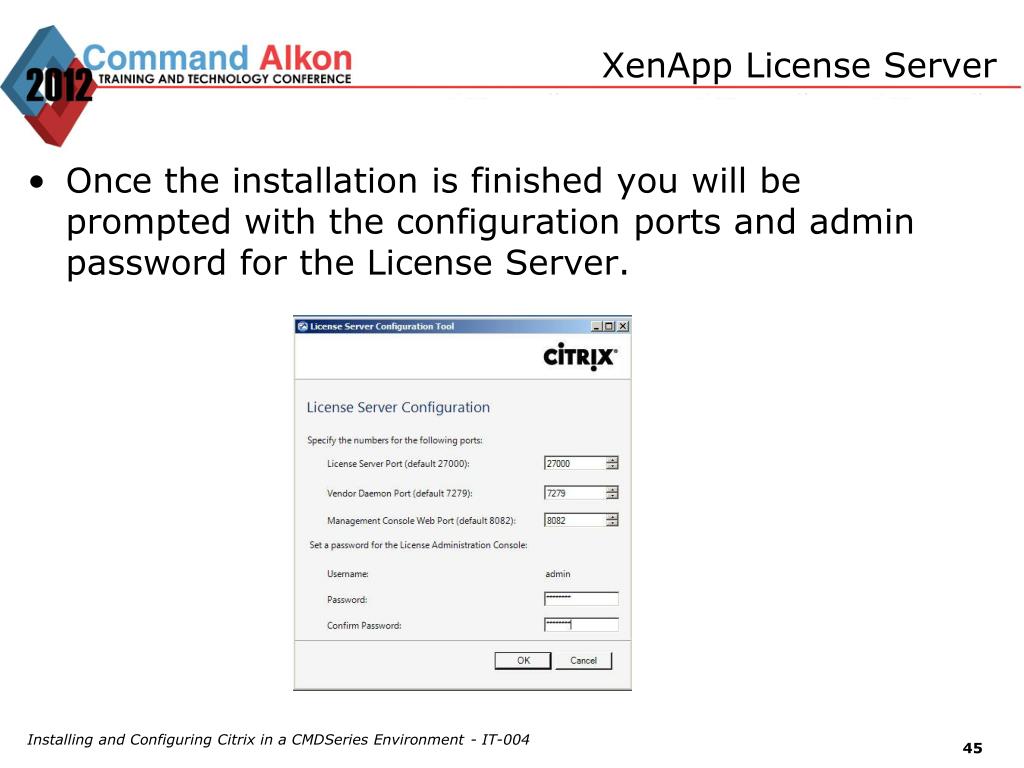

  45. XenApp License Server • Once the installation is finished you will be prompted with the configuration ports and admin password for the License Server.   Installing and Configuring Citrix in a CMDSeries Environment - IT-004

  46. XenApp License Server • Locate the License Administration Console under the all programs in your start menu, once the console starts locate the Administration link in the top right of the page and you will be prompted with log on page.   Installing and Configuring Citrix in a CMDSeries Environment - IT-004

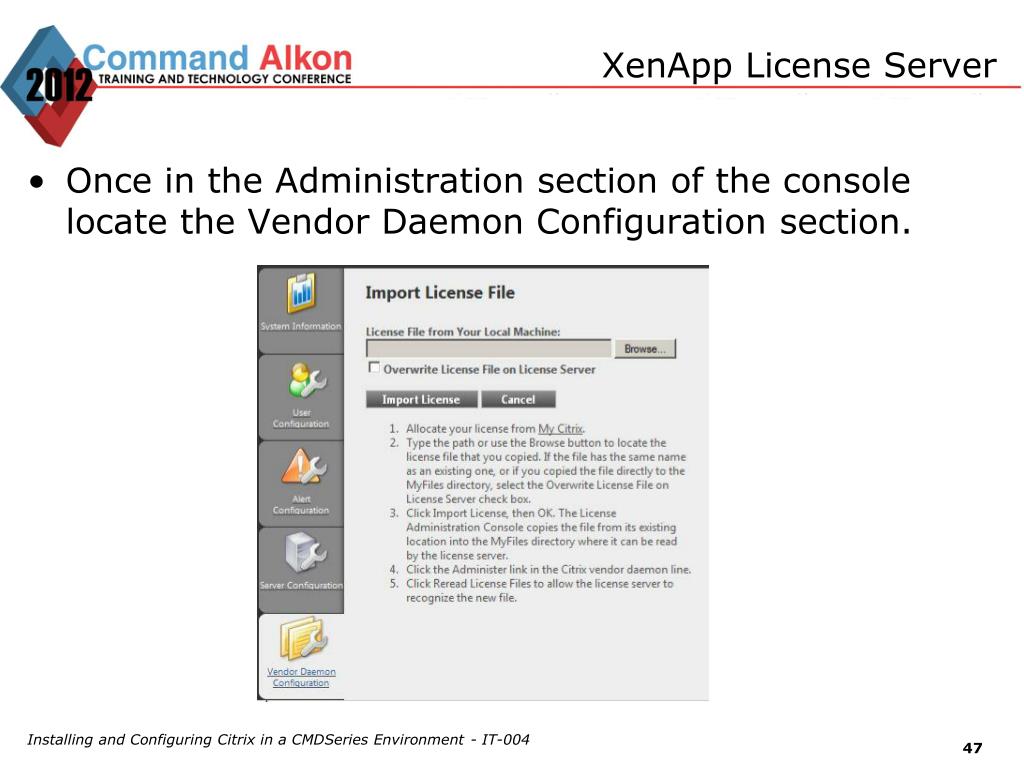

  47. XenApp License Server • Once in the Administration section of the console locate the Vendor Daemon Configuration section. Installing and Configuring Citrix in a CMDSeries Environment - IT-004

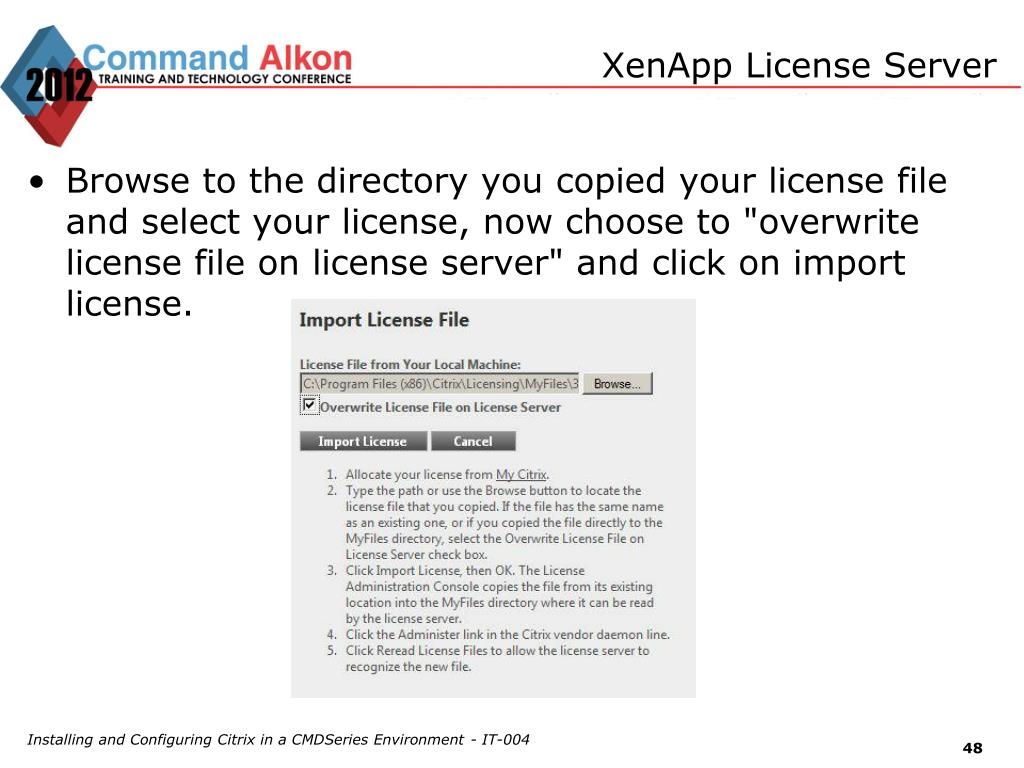

  48. XenApp License Server • Browse to the directory you copied your license file and select your license, now choose to "overwrite license file on license server" and click on import license. Installing and Configuring Citrix in a CMDSeries Environment - IT-004

  49. XenApp License Server • Your license should now have imported, click on OK to message. Installing and Configuring Citrix in a CMDSeries Environment - IT-004

  50. XenApp License Server • Now restart the Citrix License Server Service and then look back at the dashboard of the License console and you should see all your licenses checked in. • RESTART is Required to see the license file you just install Installing and Configuring Citrix in a CMDSeries Environment - IT-004
